BATTERY COMPARTMENTS

Family Accessories - Electronic enclosures - Plastic

Description

BATTERY COMPARTMENTS

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

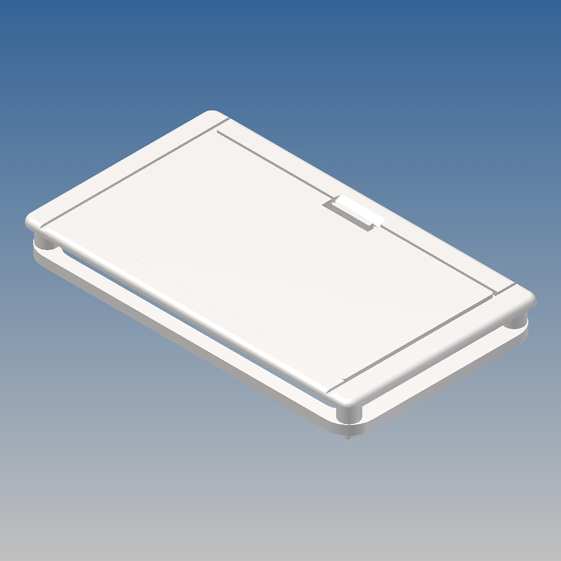

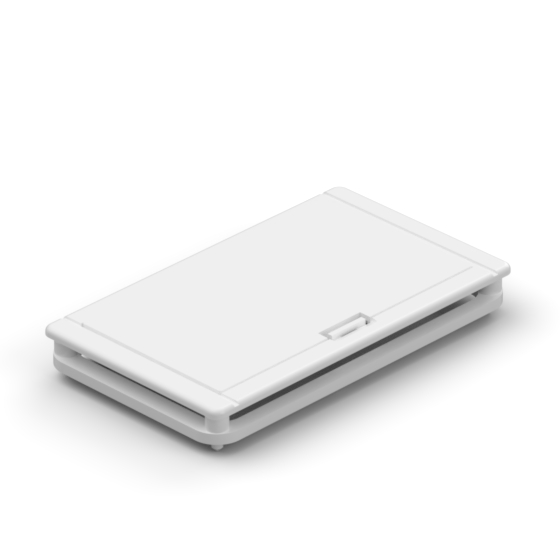

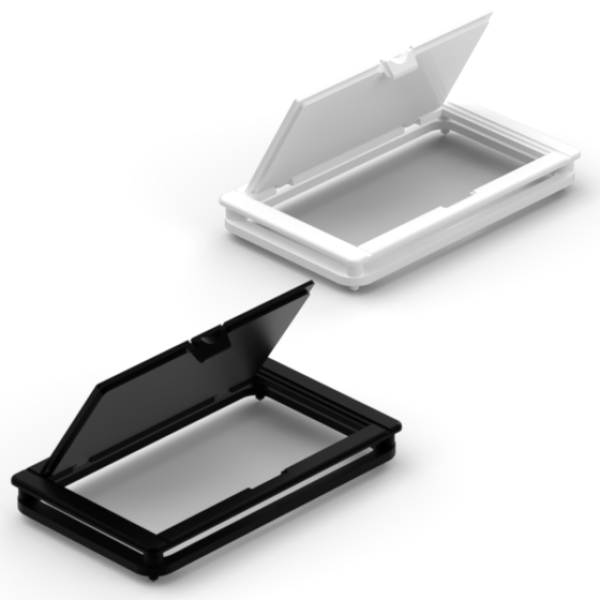

BH-1.7 68,5 39 8,5 9002
B 2460 - - - 2 x AA / 1 x 9V PDF
DWG
View
  • Color (Ral): 9002
  • Material: B 2460
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: -
  • Battery: 2 x AA / 1 x 9V
  • Accessories:
  • Drawings:  PDF  DWG

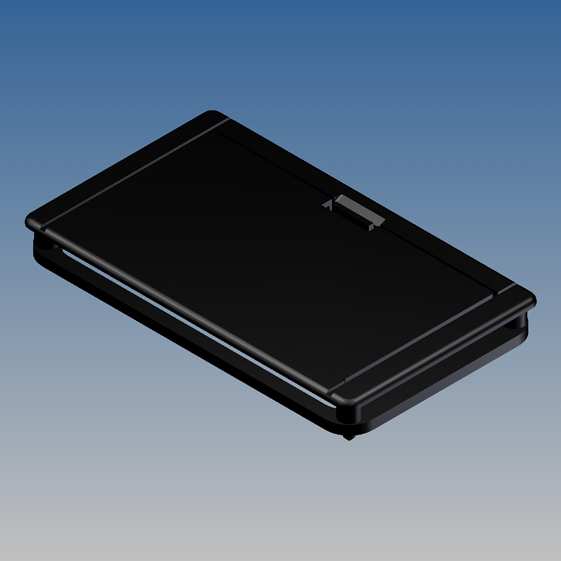

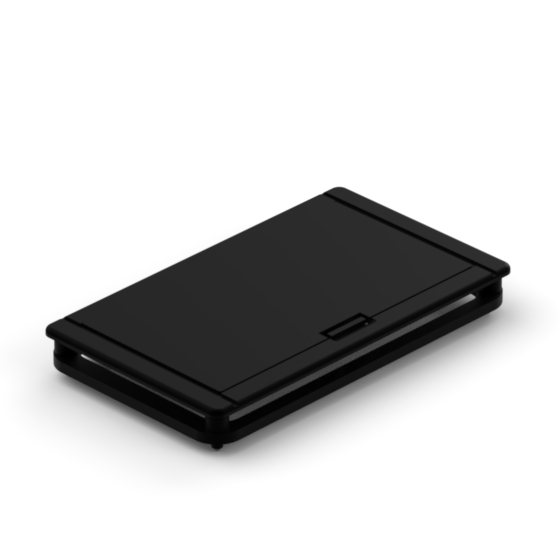

BH-1.9 68,5 39 8,5 9004
P2H-AT - - - 2 x AA / 1 x 9V PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: -
  • Battery: 2 x AA / 1 x 9V
  • Accessories:
  • Drawings:  PDF  DWG

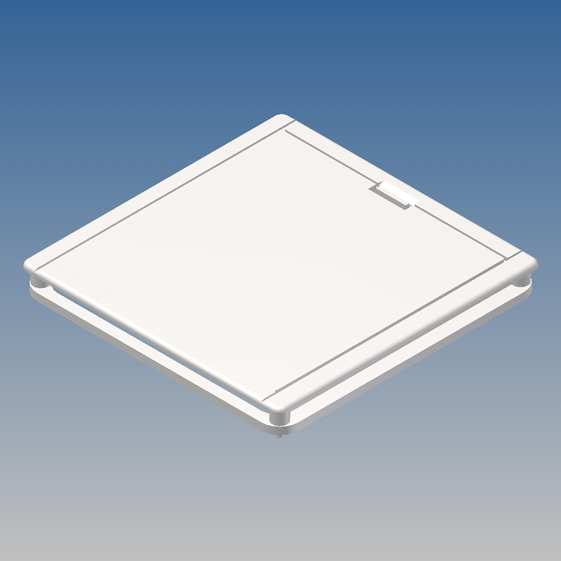

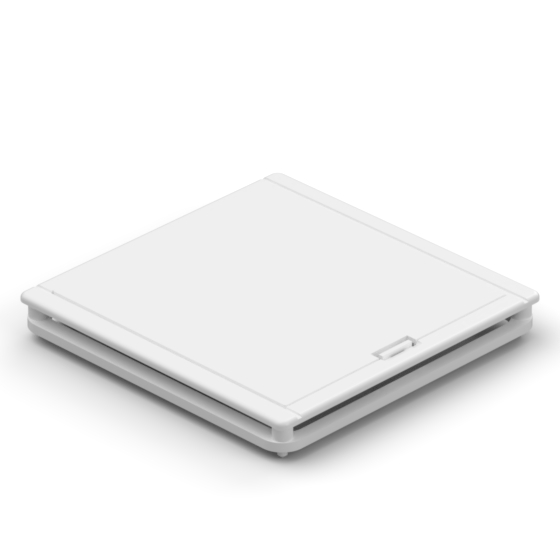

BH-2.7 68,5 69 8,5 9002
B 2460 - - - 4 x AA / 2 x 9V PDF
DWG
View
  • Color (Ral): 9002
  • Material: B 2460
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: -
  • Battery: 4 x AA / 2 x 9V
  • Accessories:
  • Drawings:  PDF  DWG

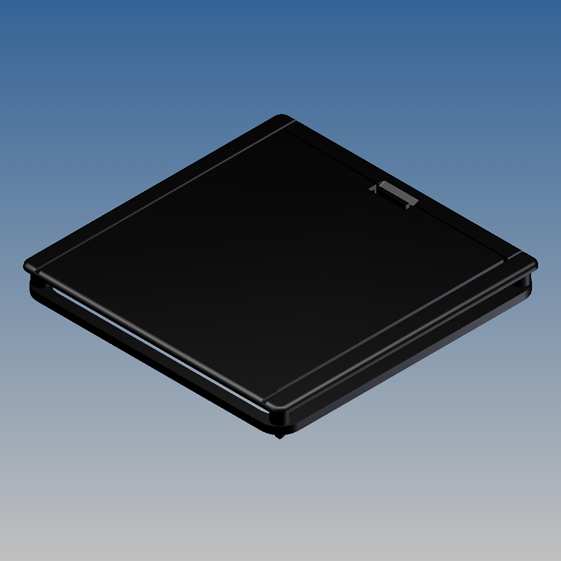

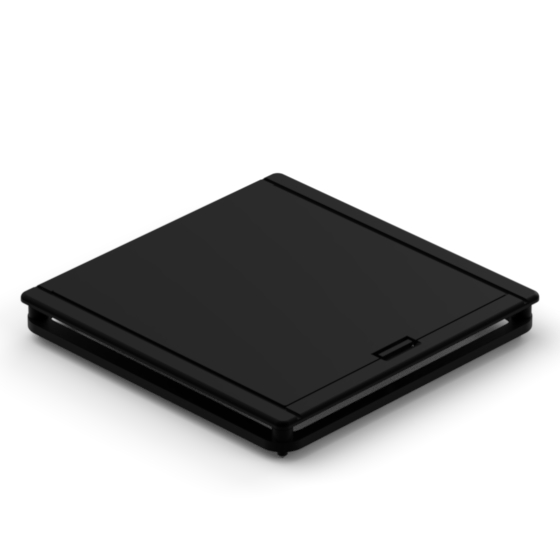

BH-2.9 68,5 69 8,5 9004
P2H-AT - - - 4 x AA / 2 x 9V PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: -
  • Battery: 4 x AA / 2 x 9V
  • Accessories:
  • Drawings:  PDF  DWG

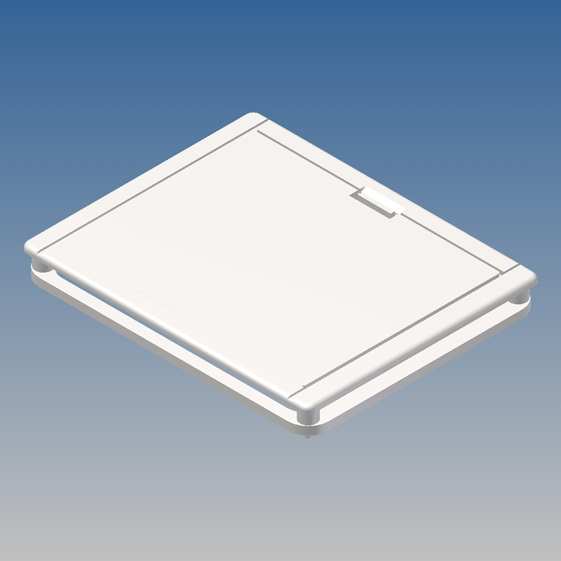

BH-3.7 68,5 55 8,5 9002
B 2460 - - - 4 x AAA PDF
DWG
View
  • Color (Ral): 9002
  • Material: B 2460
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: -
  • Battery: 4 x AAA
  • Accessories:
  • Drawings:  PDF  DWG

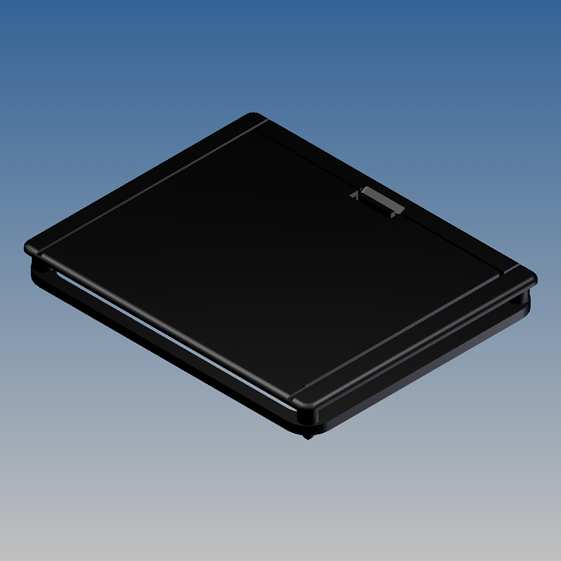

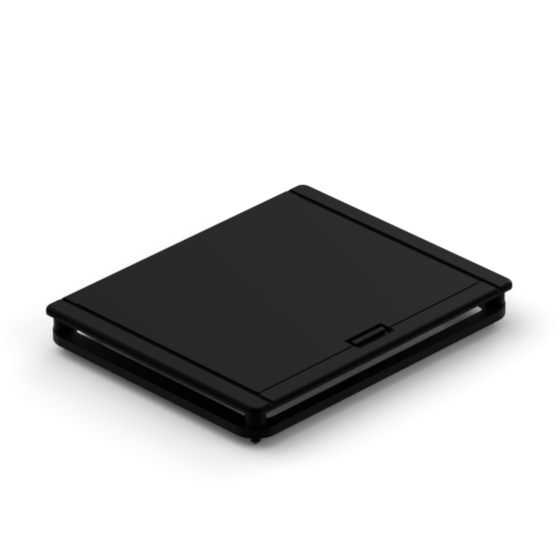

BH-3.9 68,5 55 8,5 9004
P2H-AT - - - 4 x AAA PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: -
  • Battery: 4 x AAA
  • Accessories:
  • Drawings:  PDF  DWG

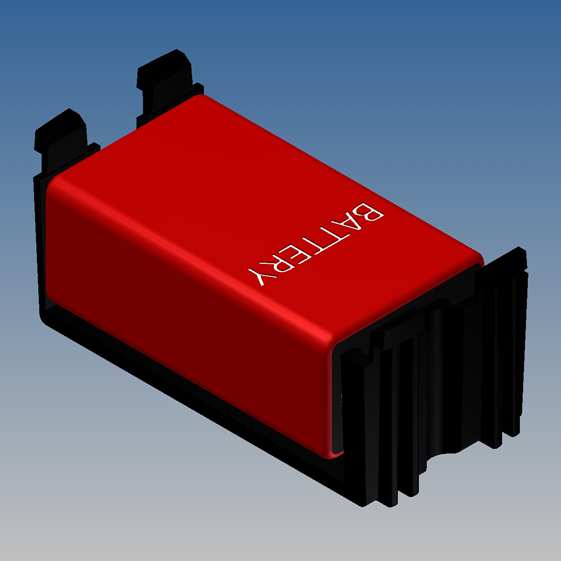

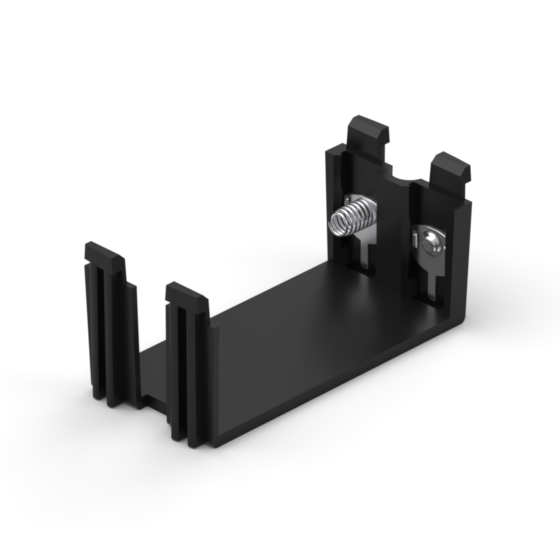

BT-1.9 55,7 25,8 24,5 9004
P2H-AT - - - 1 x 9V PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: -
  • Battery: 1 x 9V
  • Accessories:
  • Drawings:  PDF  DWG

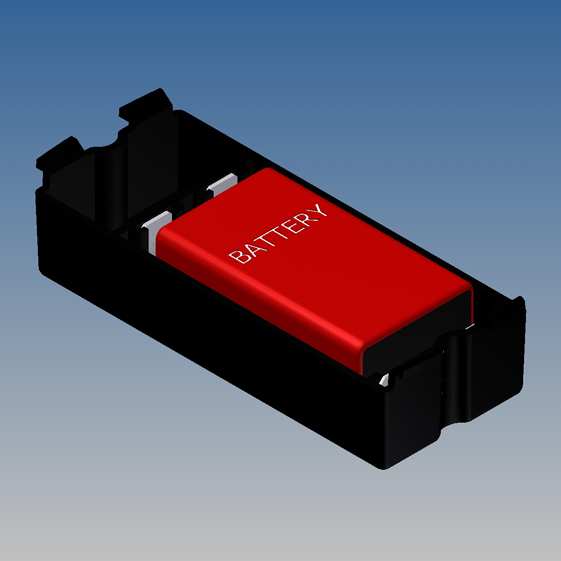

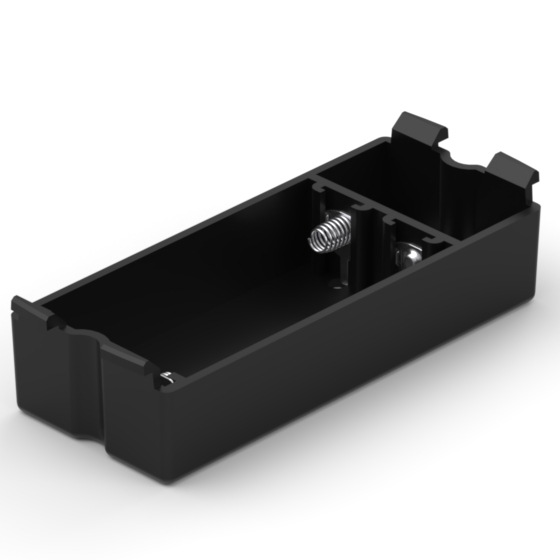

BT-2.9 81,4 31,9 20 9004
P2H-AT - - - 2 x AA / 1 x 9V PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: -
  • Battery: 2 x AA / 1 x 9V
  • Accessories:
  • Drawings:  PDF  DWG
