Description

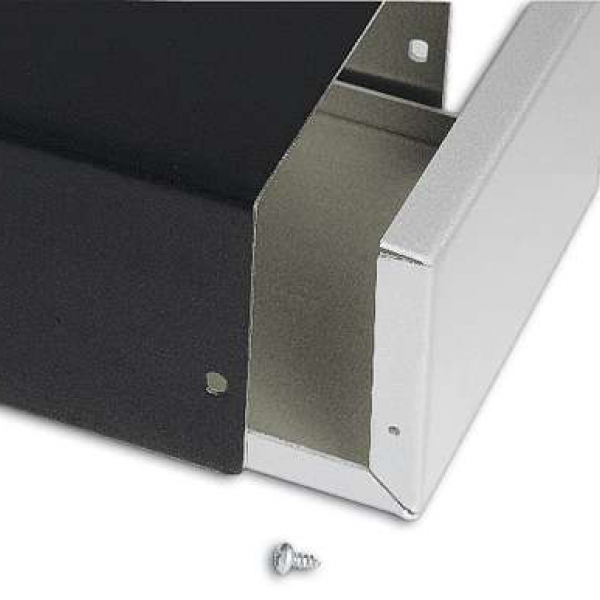

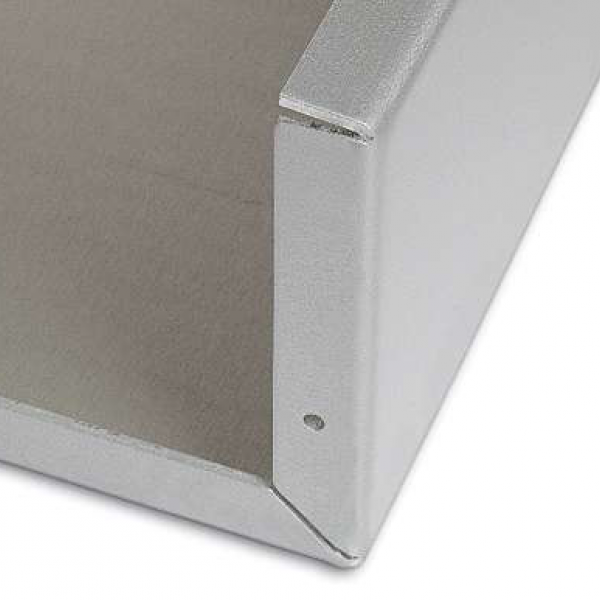

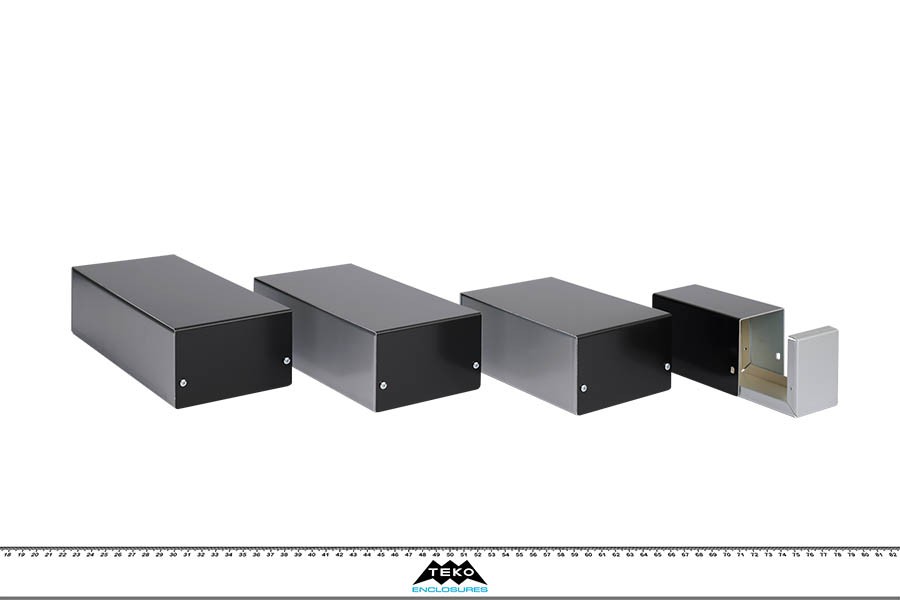

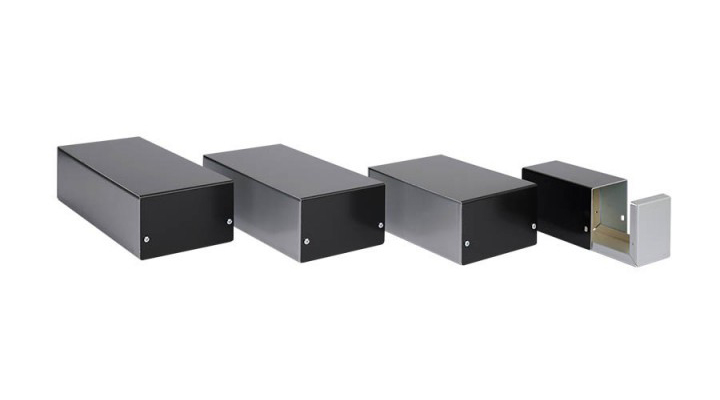

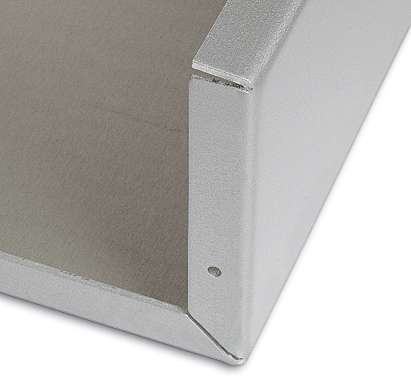

Aluminium enclosures with silver metalised base and black cover. Simple and speedy to assemble, with four screws to put in place.
Details
.jpg)
.jpg)
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

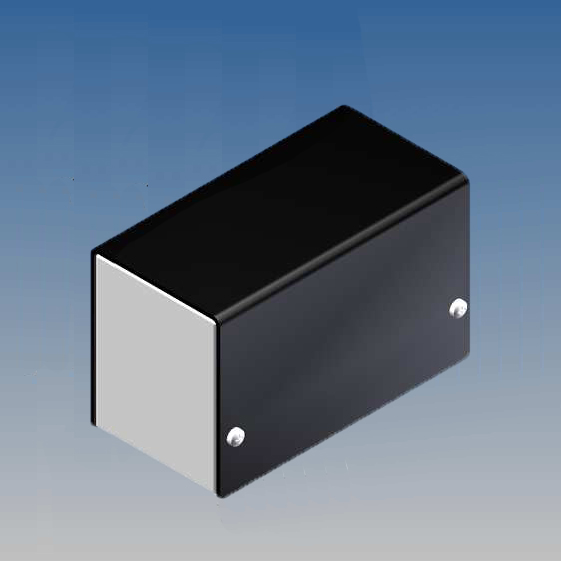

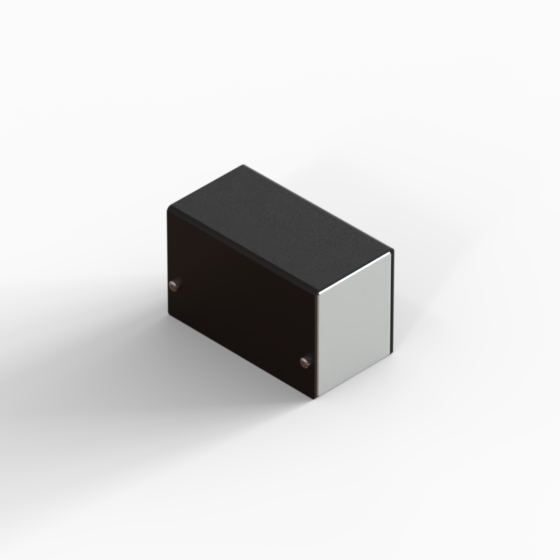

331.18 | 53,5 | 100 | 63 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|

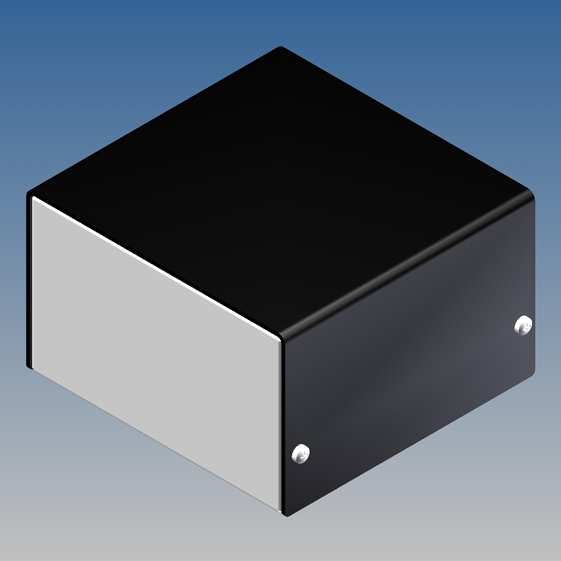

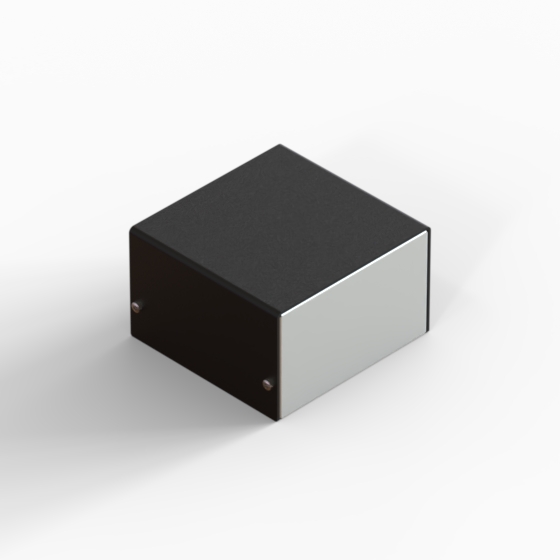

332.18 | 103,5 | 100 | 63 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|

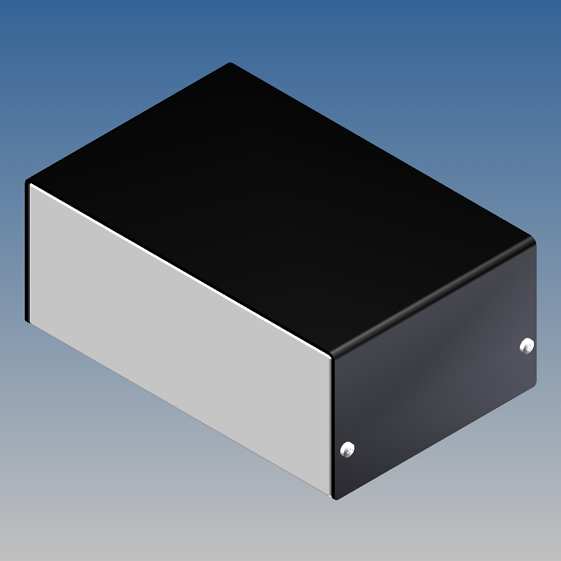

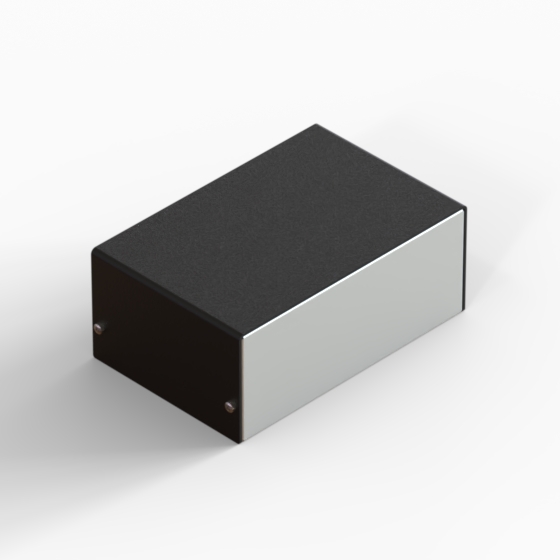

333.18 | 153 | 100 | 63 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|

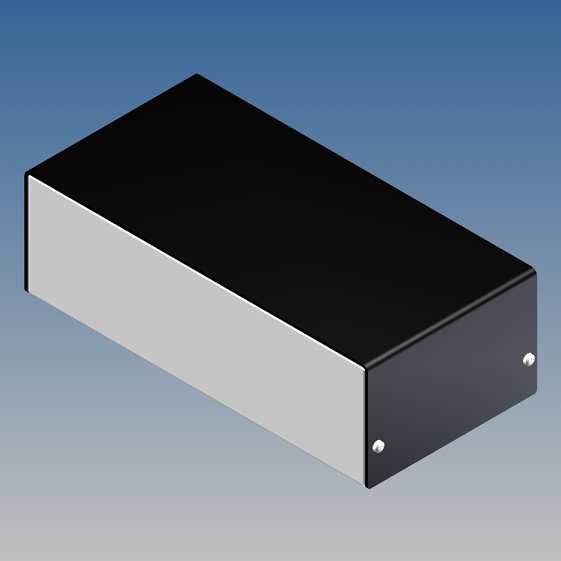

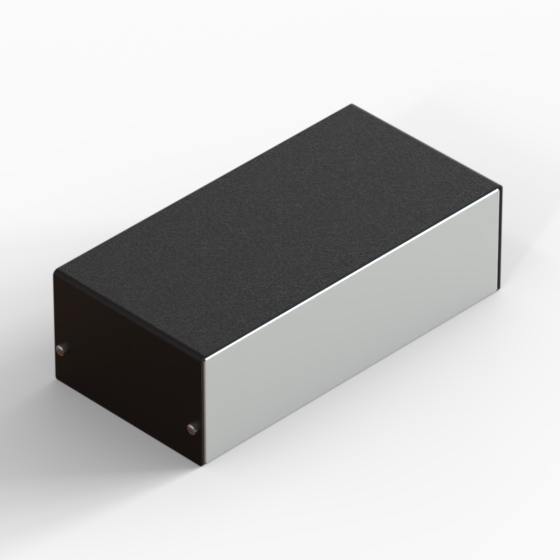

334.18 | 203 | 100 | 63 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|

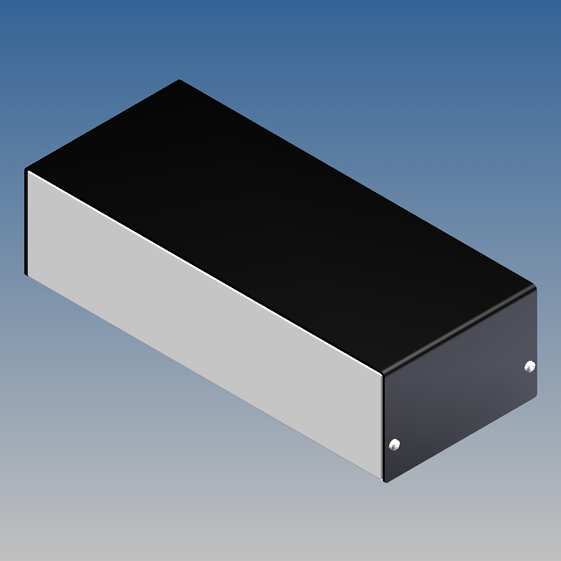

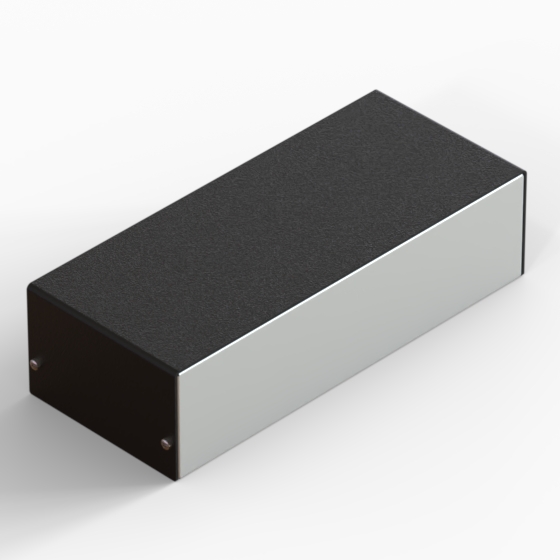

335.18 | 237 | 100 | 63 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
12 product families, 152 series. You can't find what you're looking for? Contact us
