Description

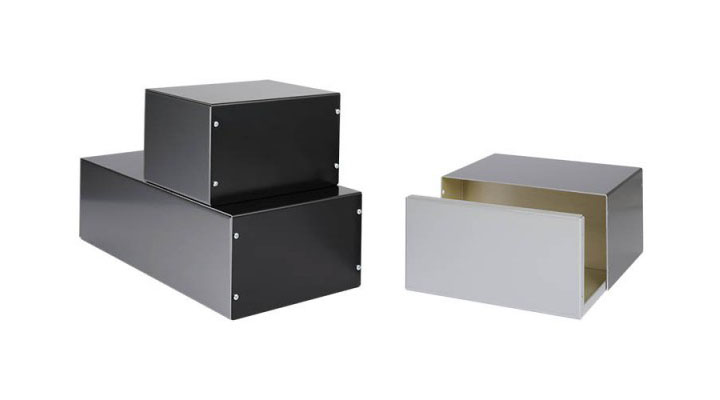

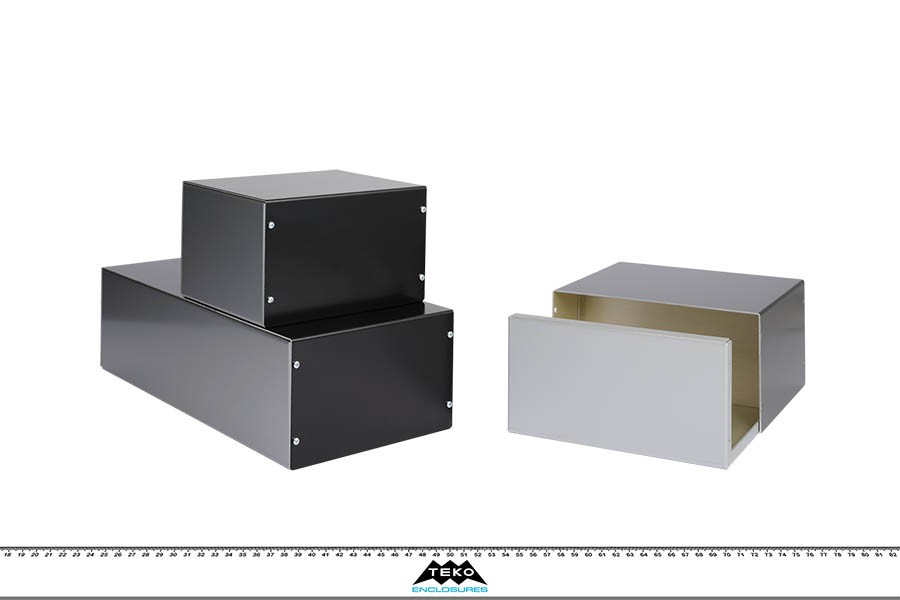

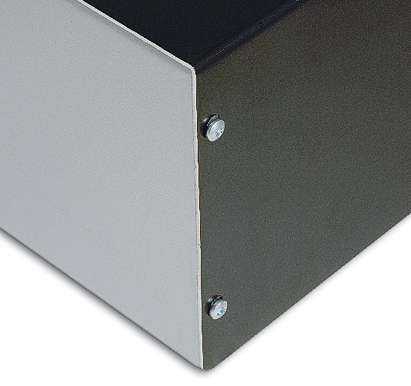

Aluminium enclosures with silver metalised base and black cover. Simple and speedy to assemble, with four screws to put in place. Model 424.18 is available on request.

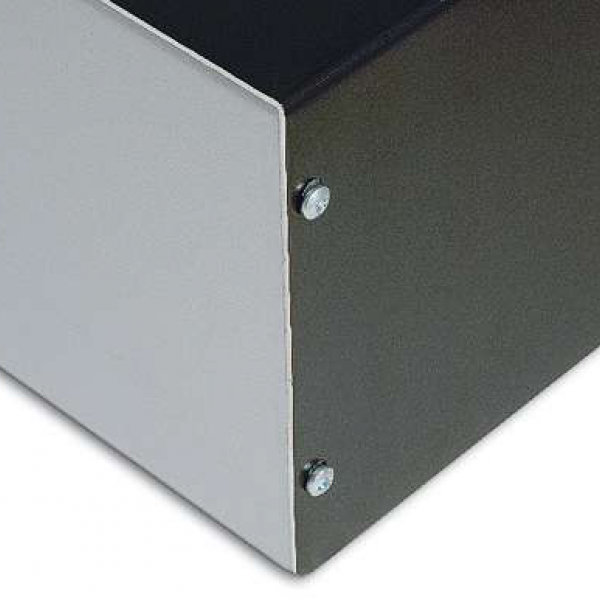

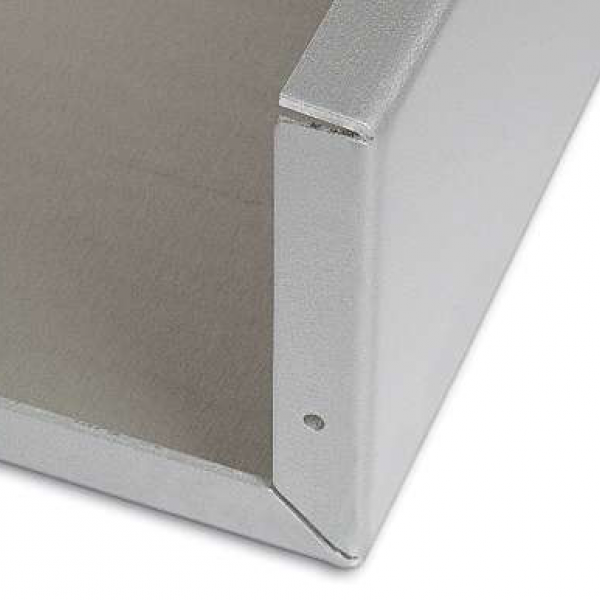

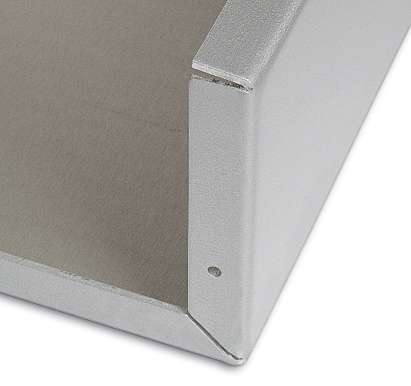

Details
.jpg)
.jpg)
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

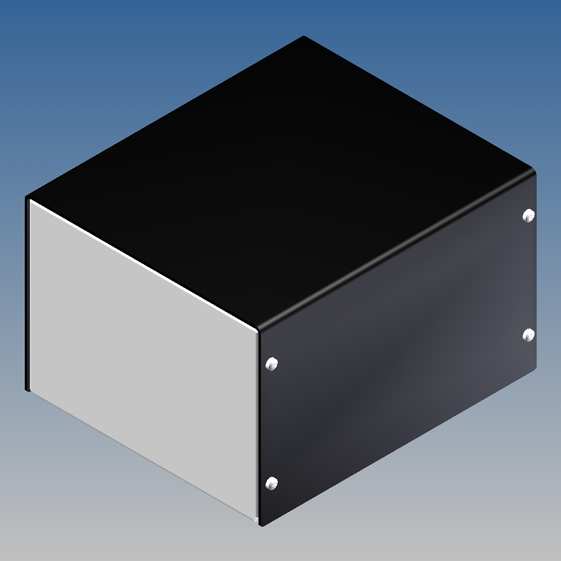

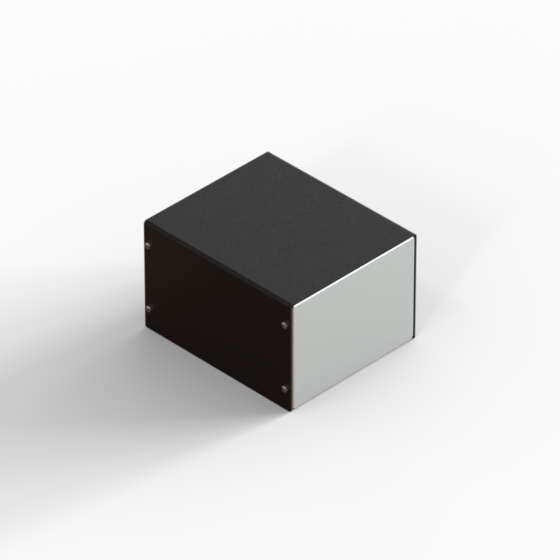

422.18 | 137 | 160 | 100 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 8 | - |
PDF DWG |
View
|
|
|

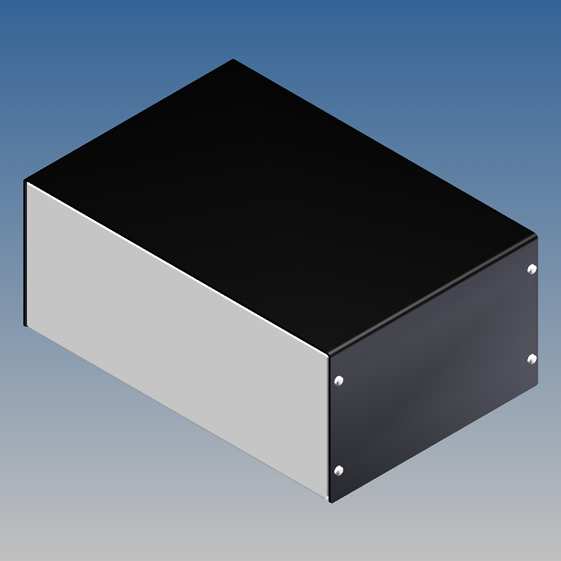

424.18 | 237 | 160 | 100 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 8 | - |
PDF DWG |
View
|
|
|

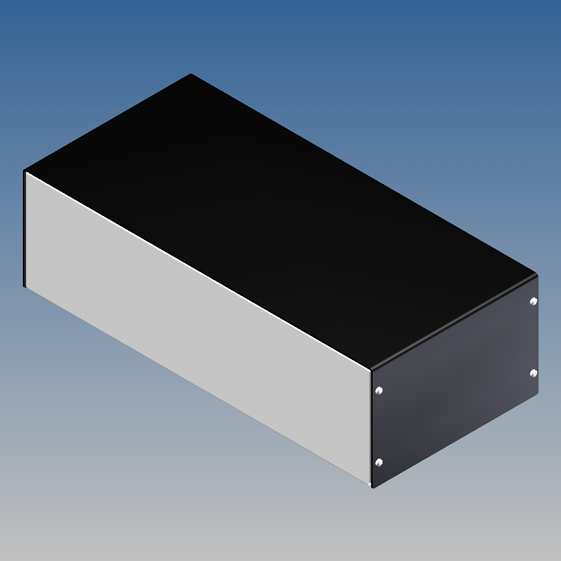

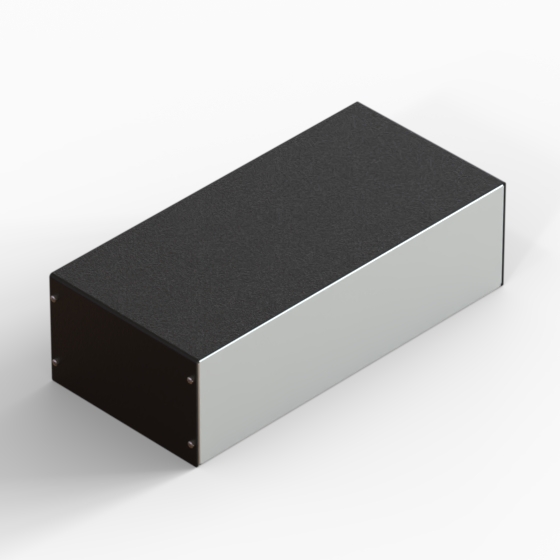

426.18 | 337 | 160 | 100 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 8 | - |
PDF DWG |
View
|
|
|

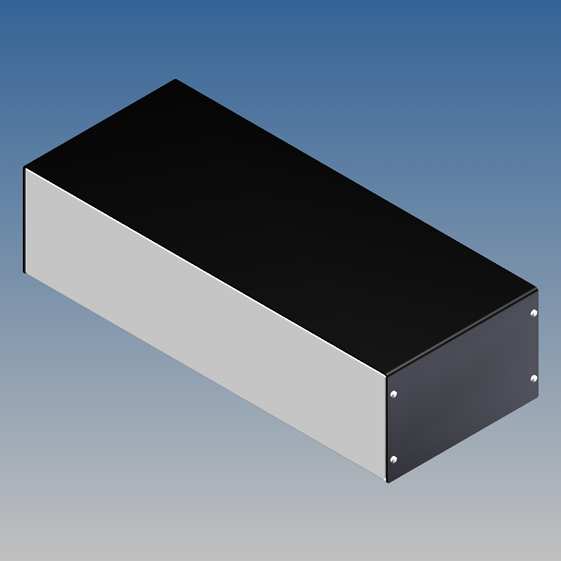

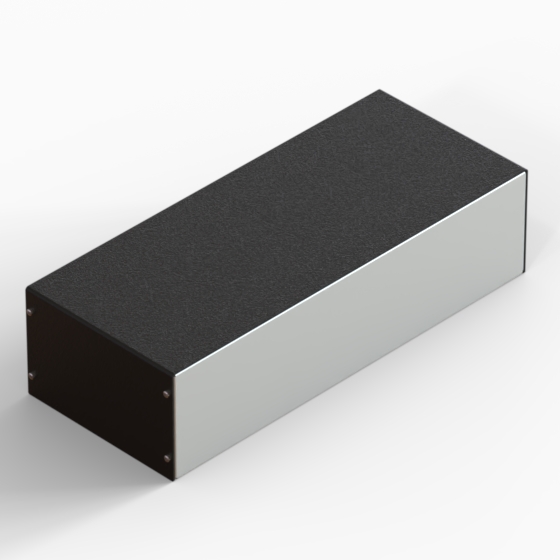

427.18 | 387 | 160 | 100 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 8 | - |
PDF DWG |
View
|
