Description

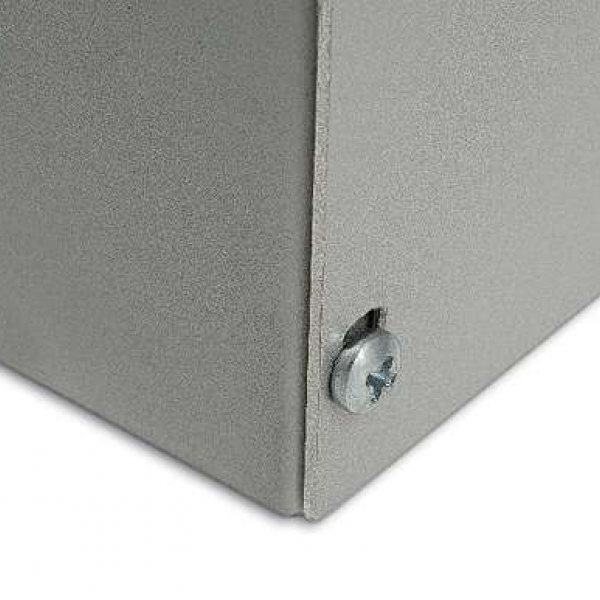

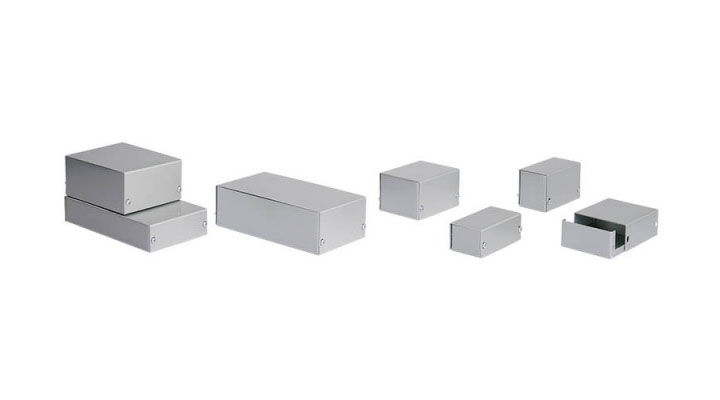

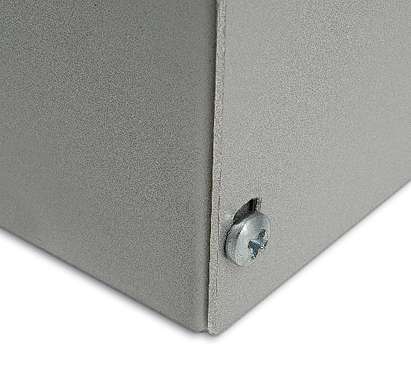

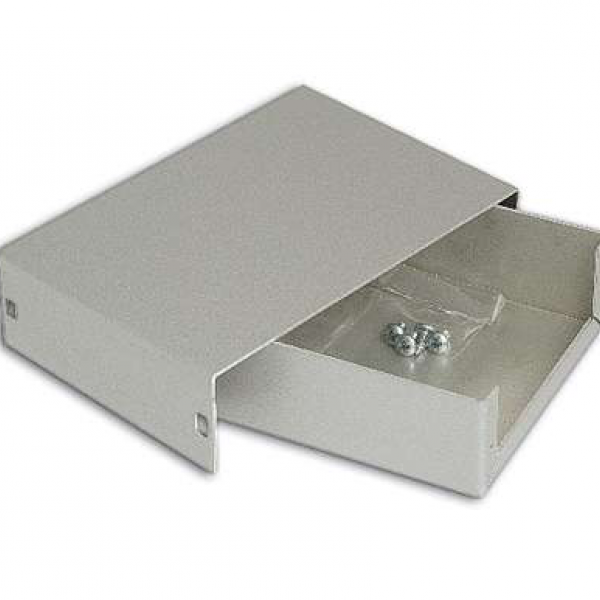

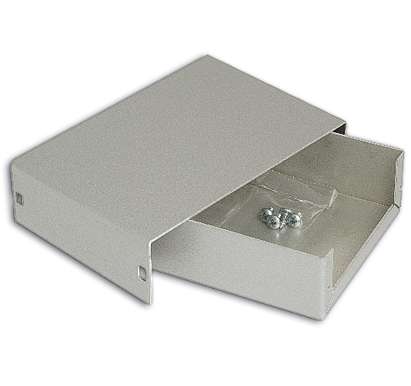

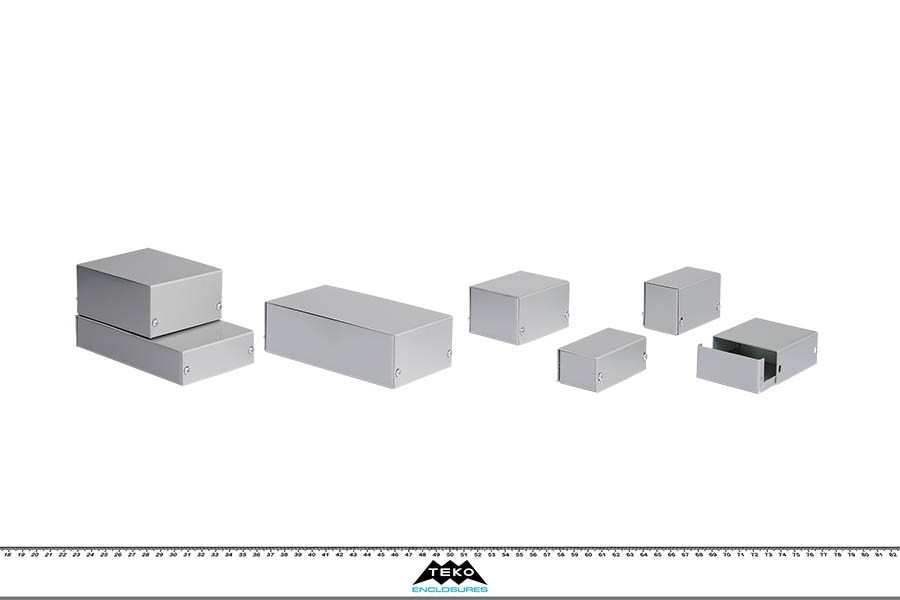

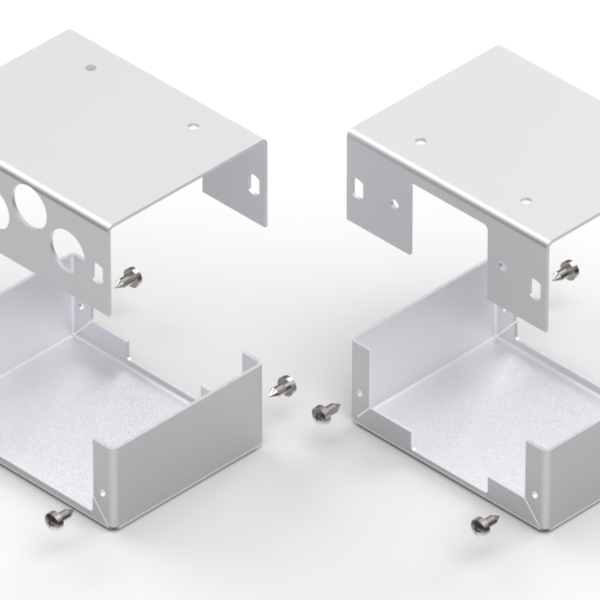

Aluminium enclosures with silver metalised base and cover. Simple and speedy to assemble, with four screws to put in place.
Details
.jpg)
.jpg)
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

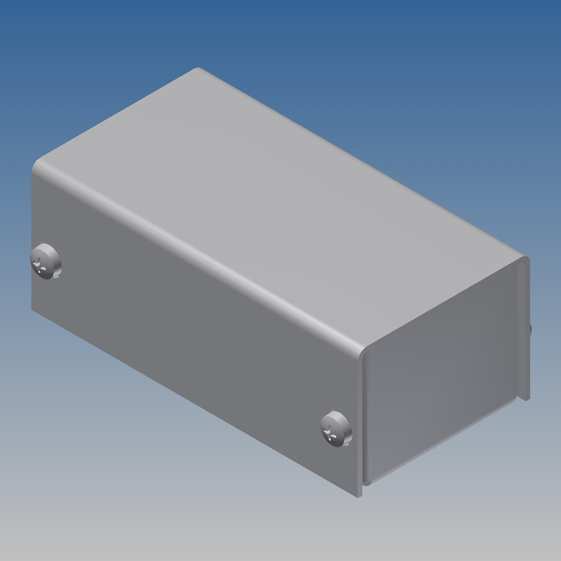

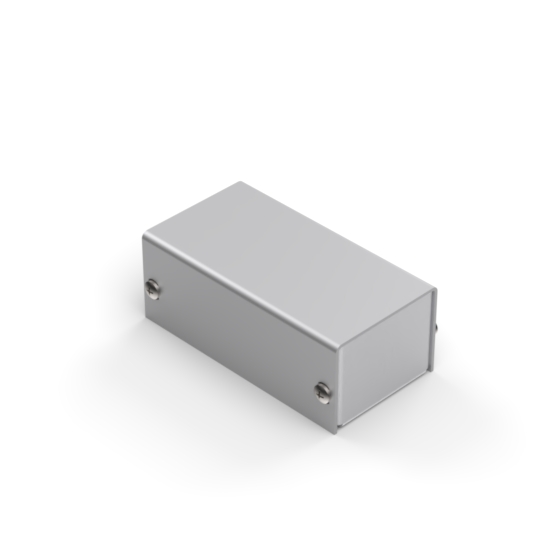

1/A.1 | 38 | 72 | 28 |
9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|

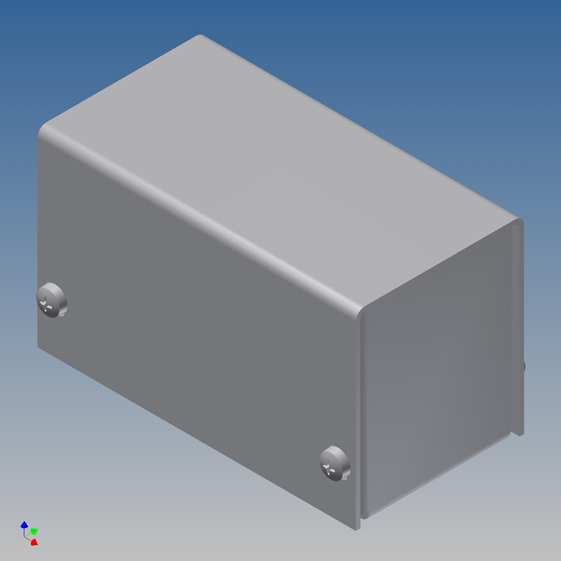

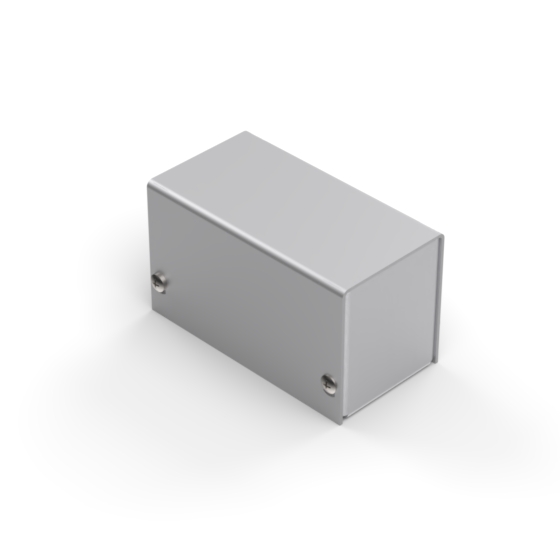

1/B.1 | 38 | 72 | 43 |
9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|

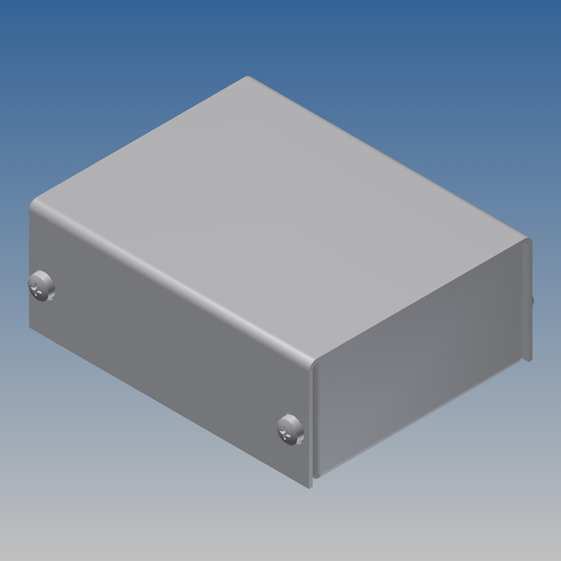

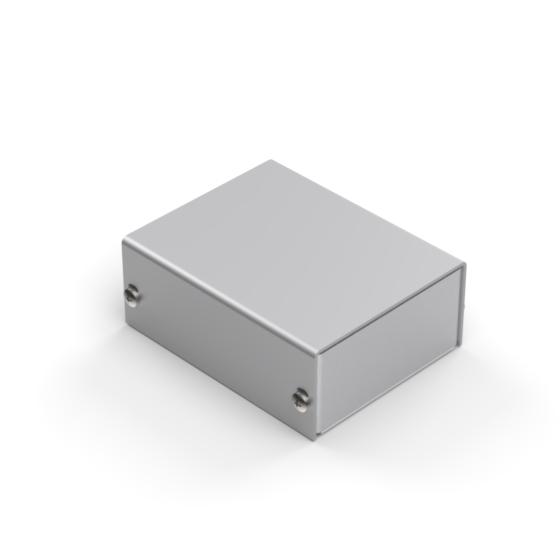

2/A.1 | 57,5 | 72 | 28 |
9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|

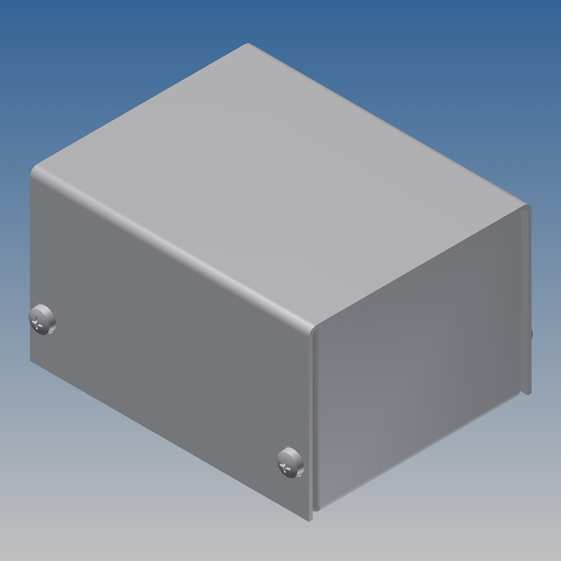

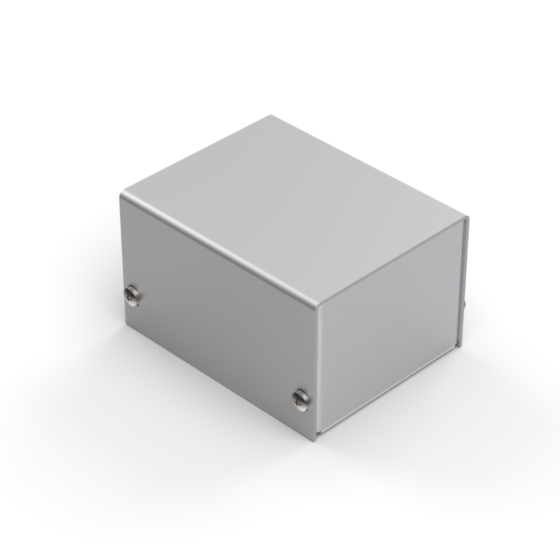

2/B.1 | 57,5 | 72 | 43 |
9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|

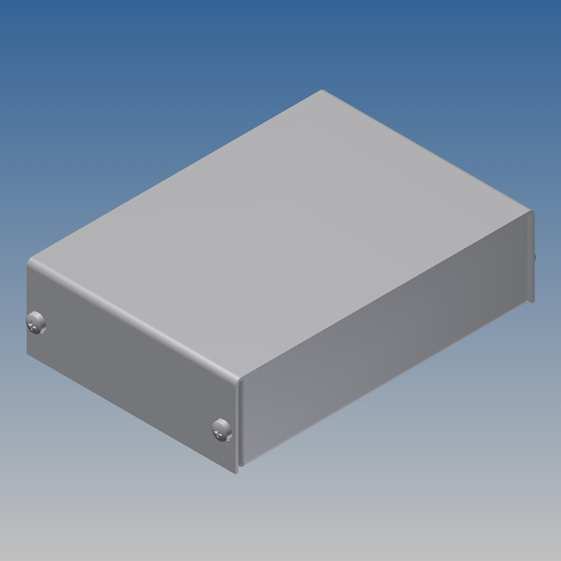

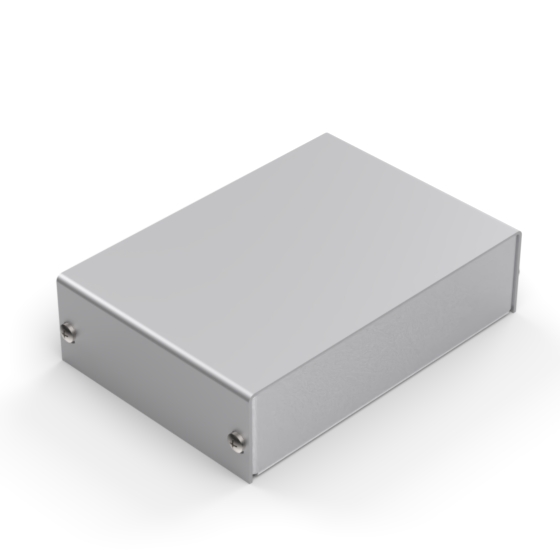

3/A.1 | 103 | 72 | 28 |
9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|

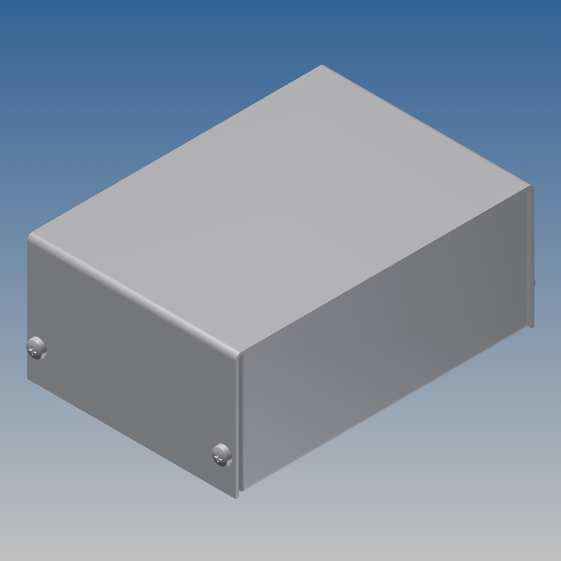

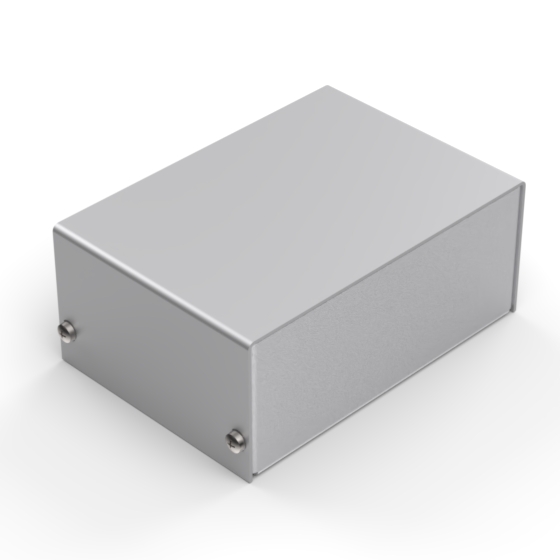

3/B.1 | 103 | 72 | 43 |
9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|

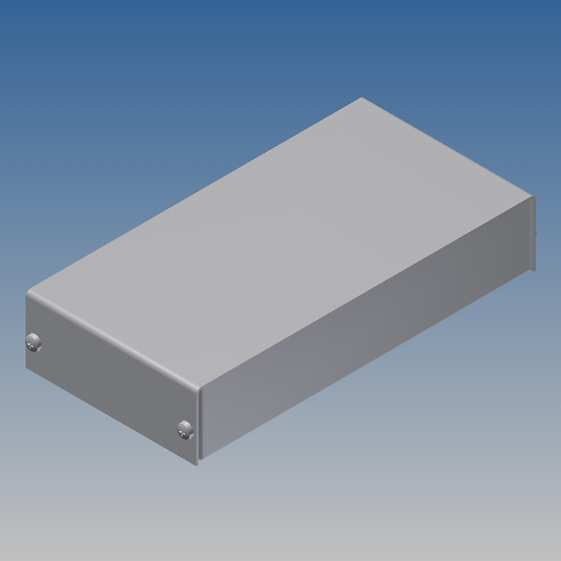

4/A.1 | 143 | 72 | 28 |
9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|

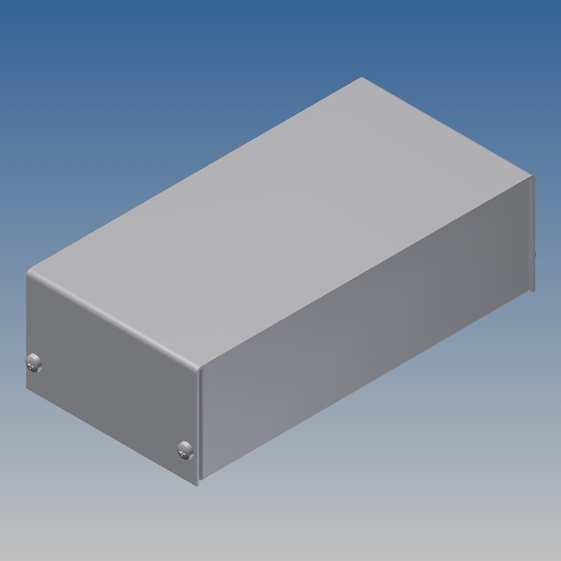

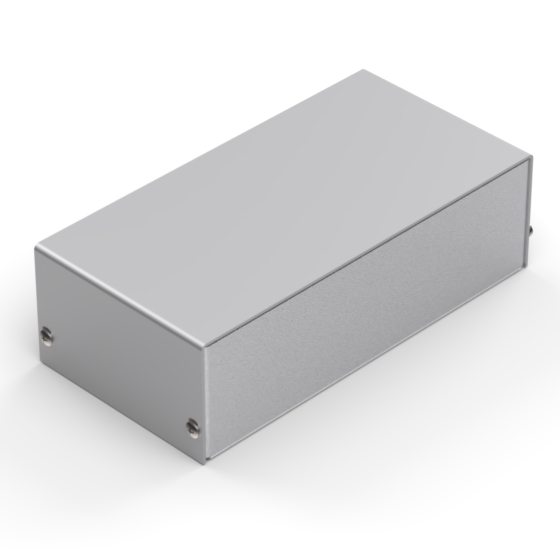

4/B.1 | 143 | 72 | 43 |
9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
12 product families, 152 series. You can't find what you're looking for? Contact us
