Description

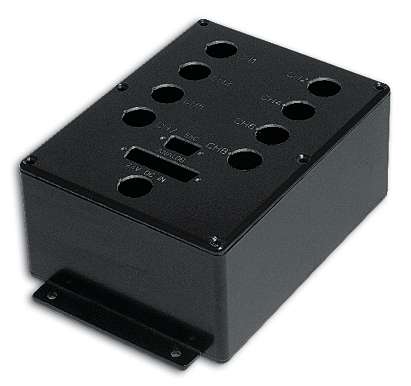

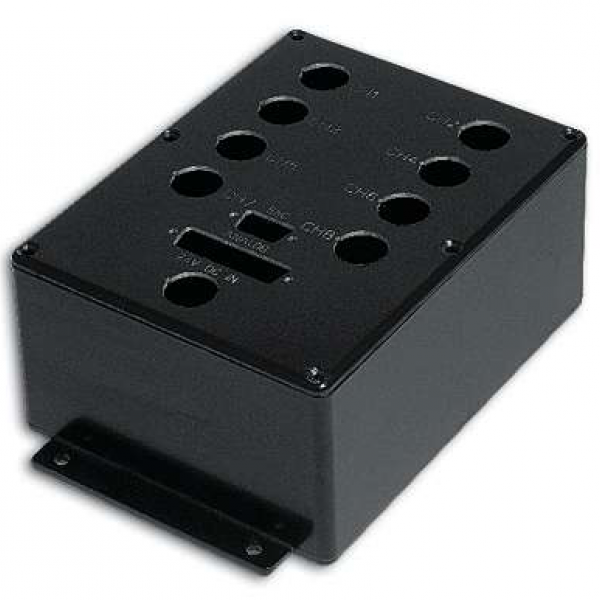

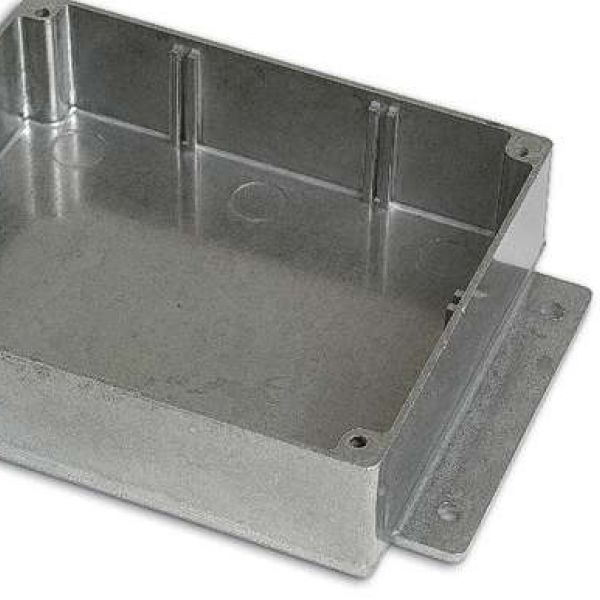

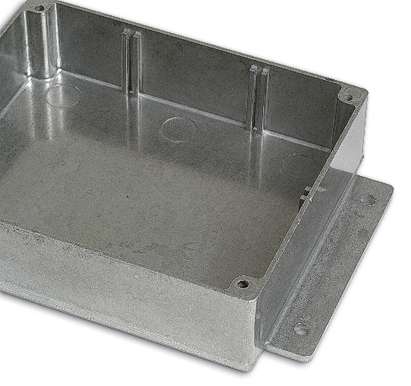

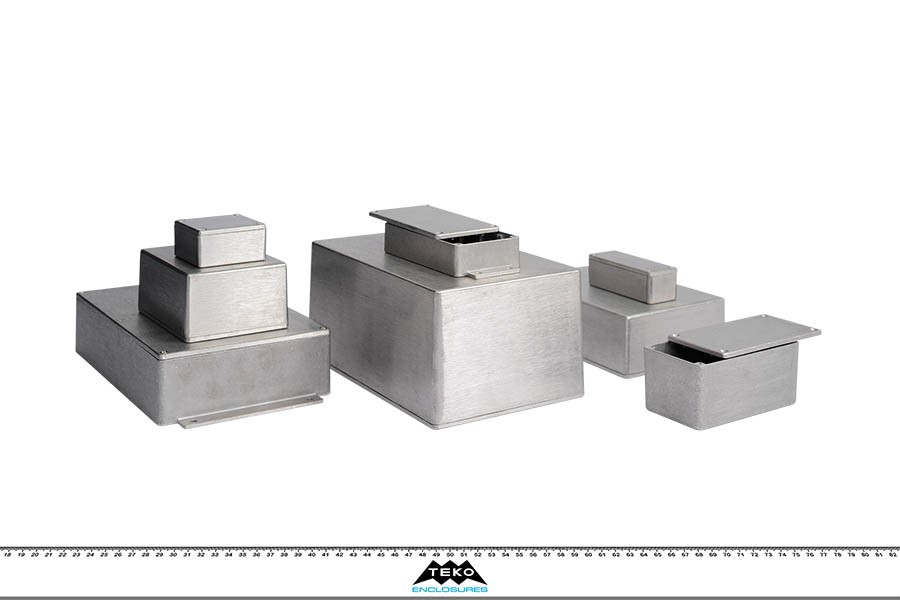

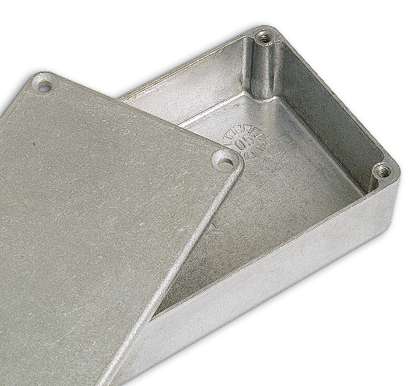

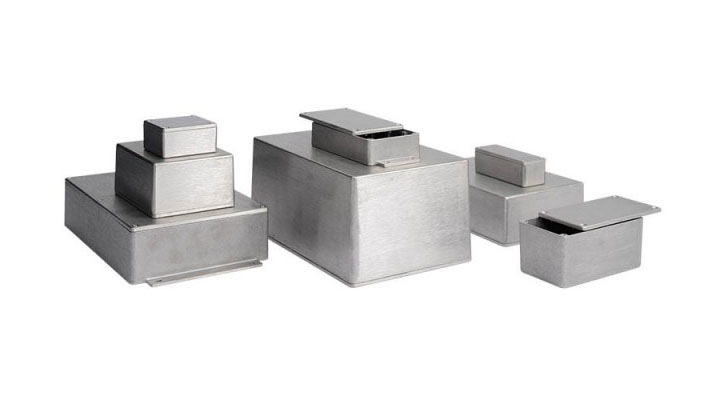

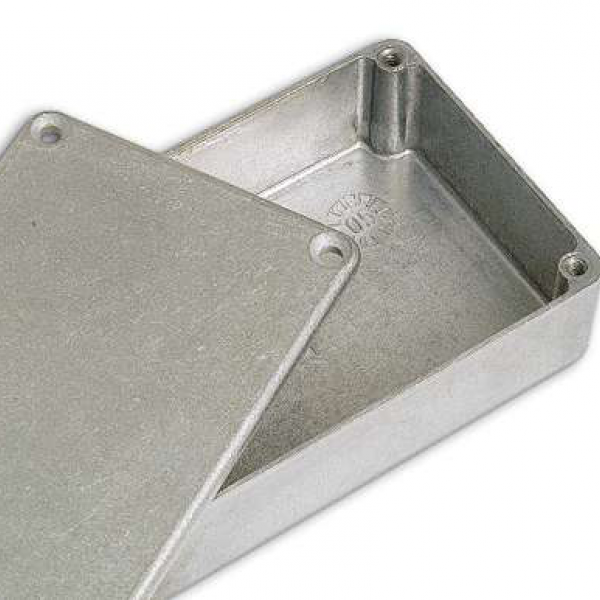

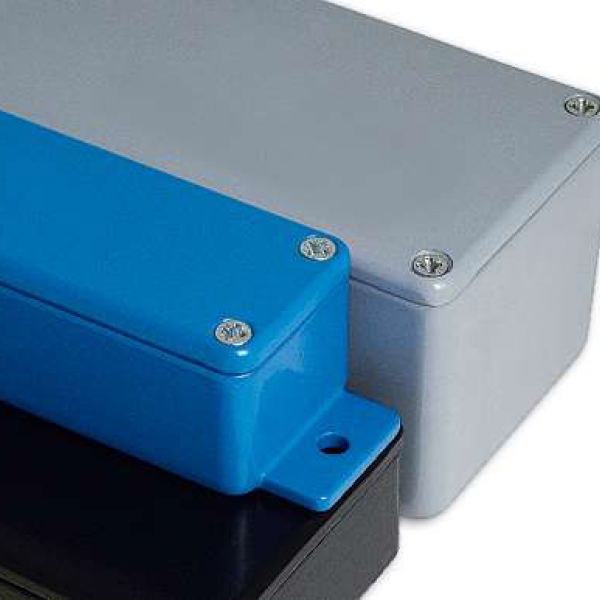

These aluminium die-cast enclosures provide excellent screening against EMI-RFI. Integral PCB guides are incorporated in some of the styles (X). The series from “AL16x” to “AL25x” have pre-drilled external mounting flanges, for quick and easy mounting. Part of the range has self-adhesive rubber seals which provide IP66 rating when attached to the box lids (SK-not available for the models AL1 and AL2). Upon request these enclosures can be supplied Nylon coated or stove enameled. Simple and speedy to assemble, with four or six stainless steel screws to put in place.
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

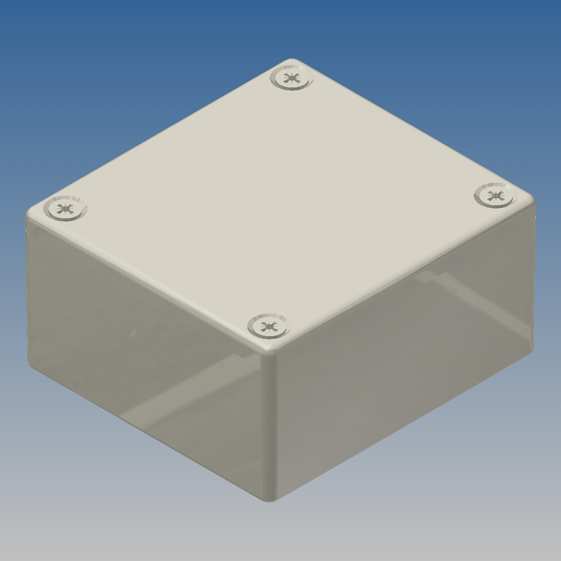

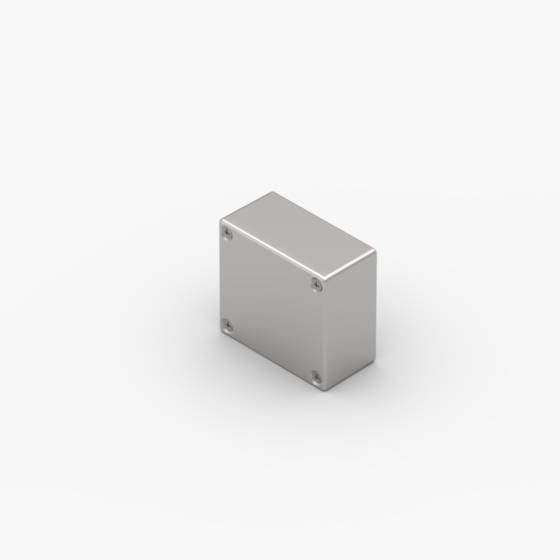

AL-1.0 | 60 | 55 | 30 |
- |
LM 24 | 55,8 | 20 | 4 | - |
PDF DWG |
||
|

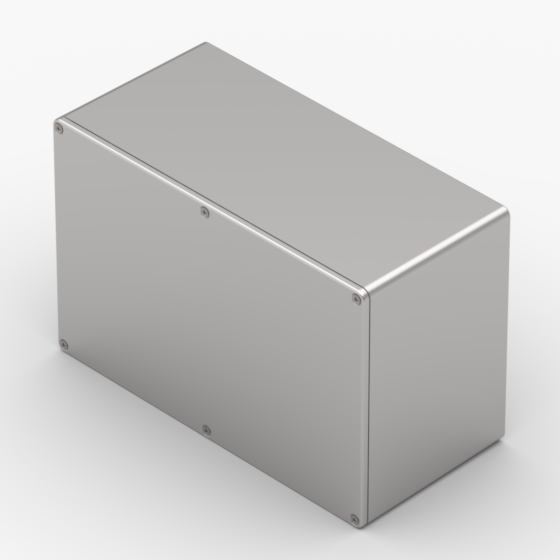

AL-10.0 | 222,3 | 146 | 105 |
- |
LM 24 | 218,3 | 142 | 6 | - |
PDF DWG |
||
|

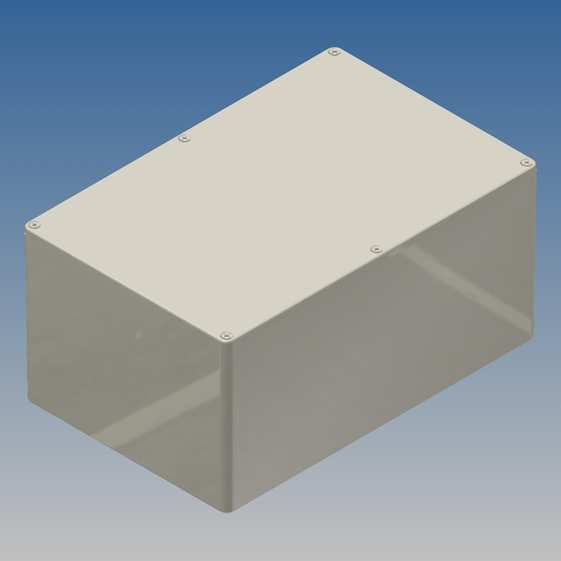

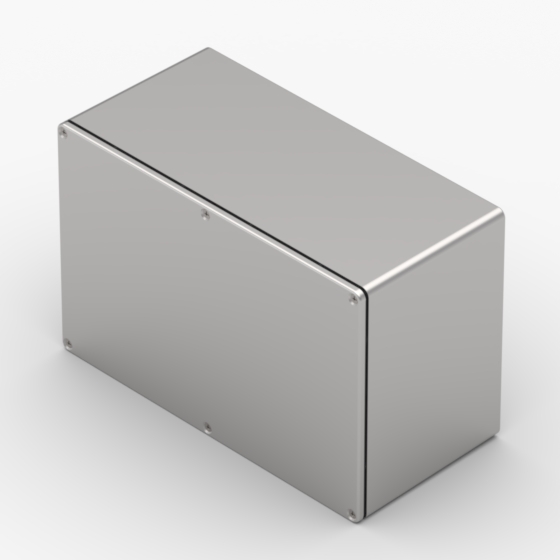

AL-10SK.0 | 222,3 | 146 | 105 |
- |
LM 24 | 218,3 | 142 | 6 | - |
PDF DWG |
||
|

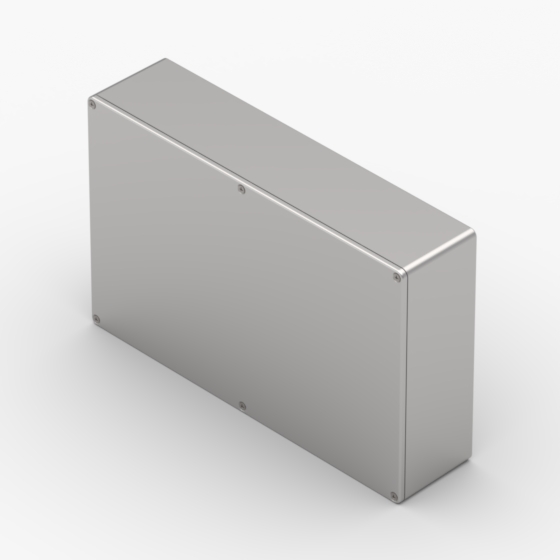

AL-11X.0 | 275 | 175 | 65 |
- |
LM 24 | 270,5 | 55,5 | 6 | - |
PDF DWG |
||
|

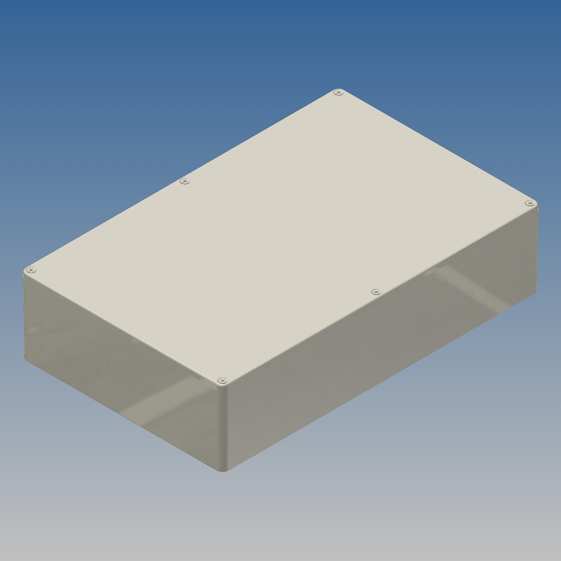

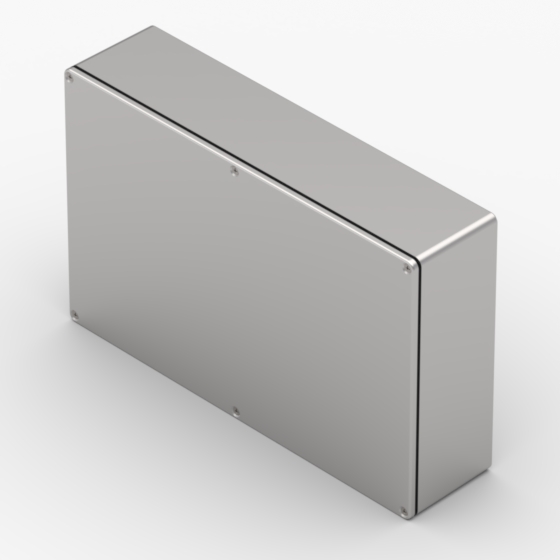

AL-11XSK.0 | 275 | 175 | 65 |
- |
LM 24 | 270,5 | 55,5 | 6 | - |
PDF DWG |
||
|

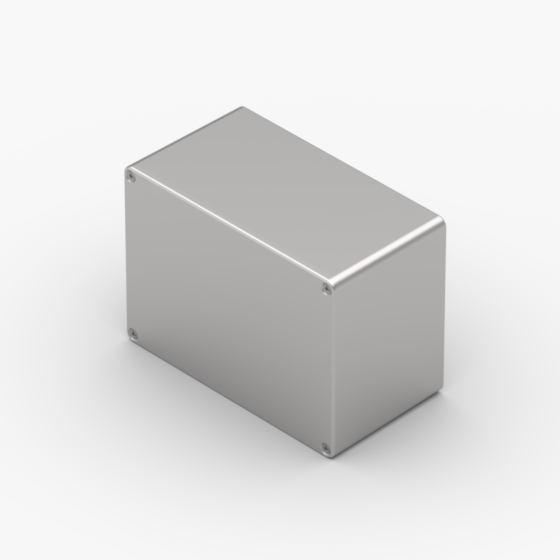

AL-12X.0 | 139,7 | 101,6 | 76 |
- |
LM 24 | 135,2 | 66,5 | 4 | - |
PDF DWG |
||
|

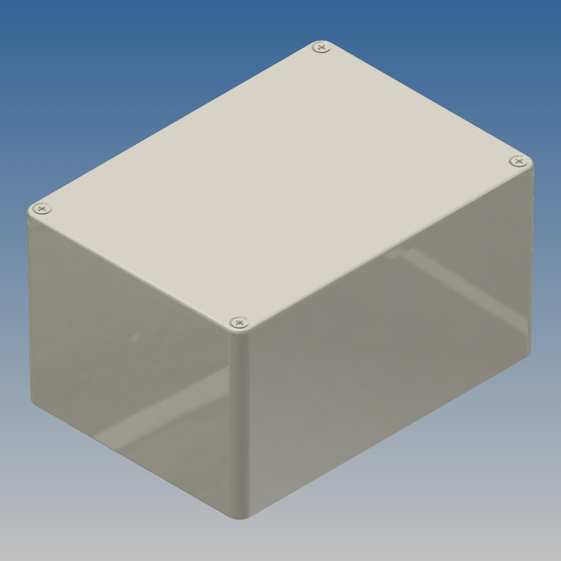

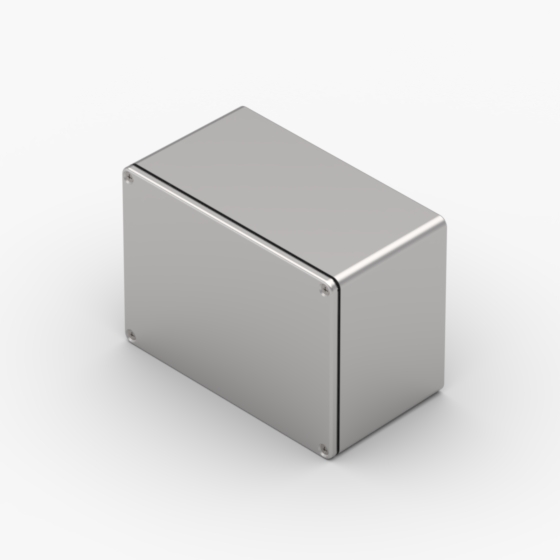

AL-12XSK.0 | 139,7 | 101,6 | 76 |
- |
LM 24 | 135,2 | 66,5 | 4 | - |
PDF DWG |
||
|

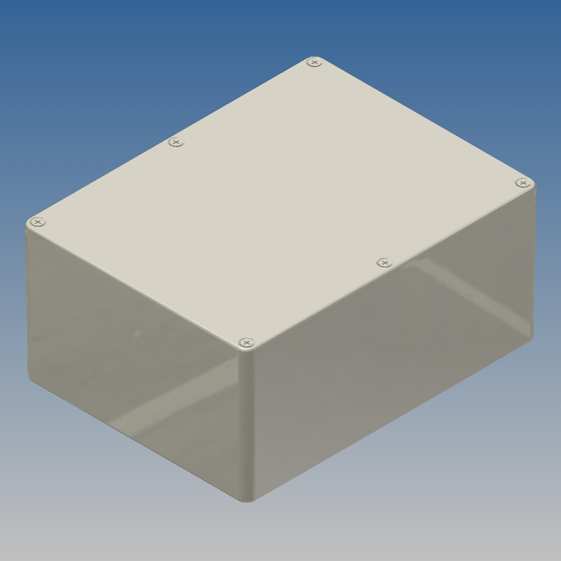

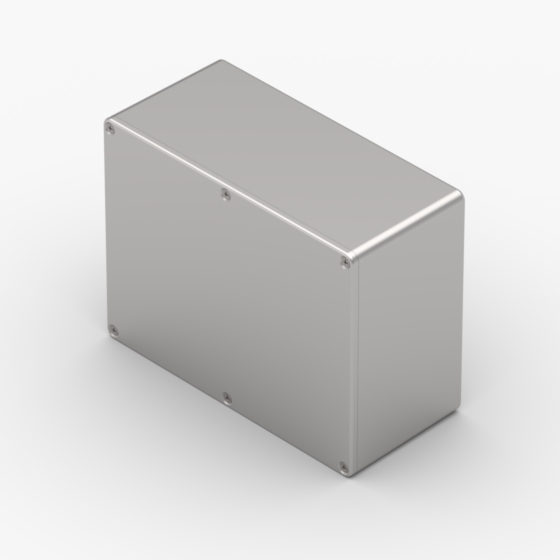

AL-13X.0 | 165 | 127 | 76 |
- |
LM 24 | 161,5 | 66,5 | 6 | - |
PDF DWG |
||
|

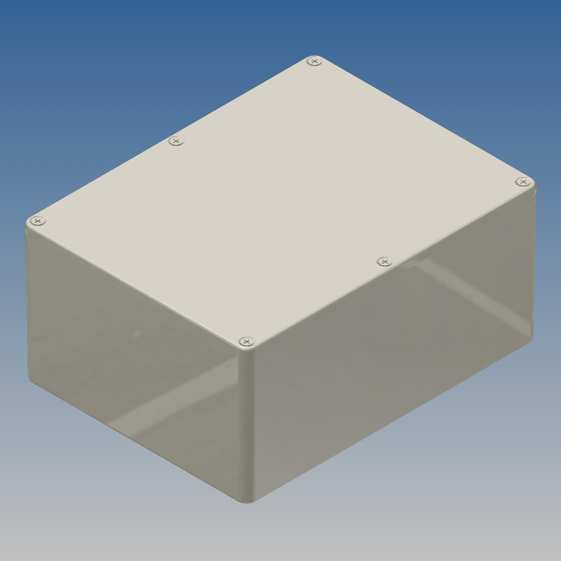

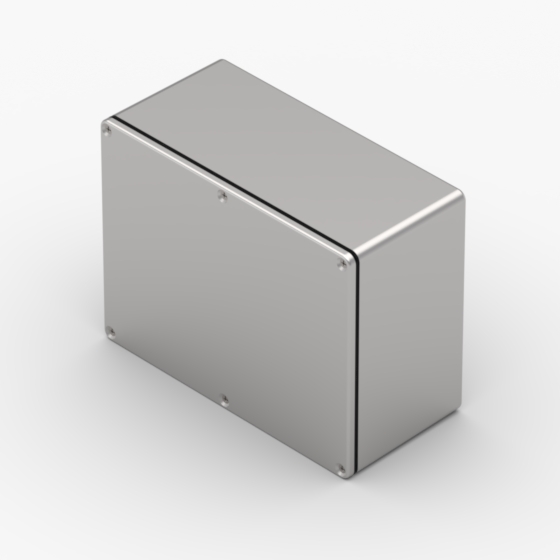

AL-13XSK.0 | 165 | 127 | 76 |
- |
LM 24 | 161,5 | 66,5 | 6 | - |
PDF DWG |
||
|

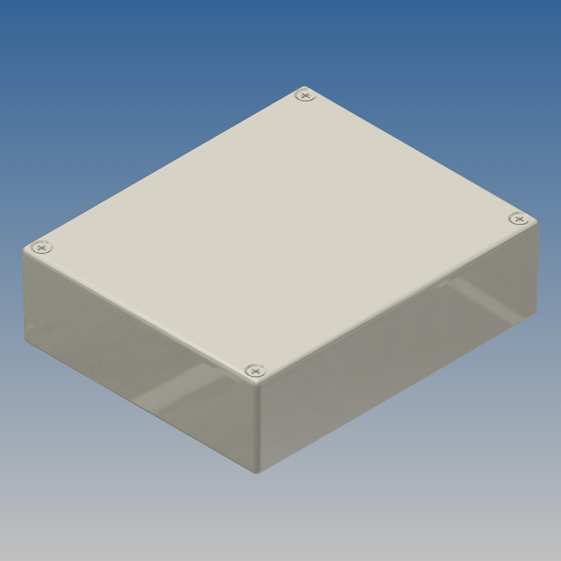

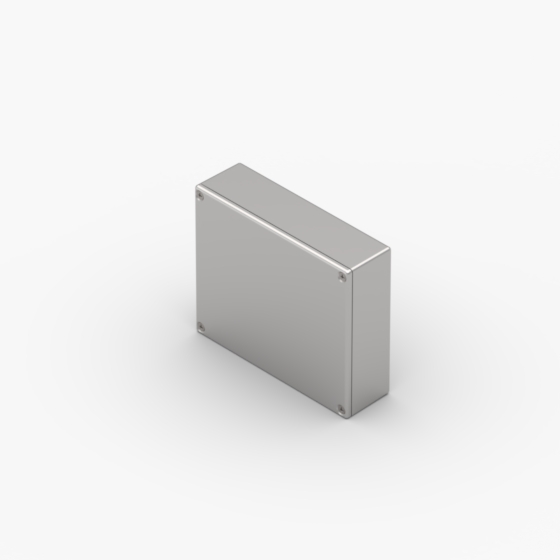

AL-14X.0 | 120 | 100 | 35 |
- |
LM 24 | 116,5 | 25,5 | 4 | - |
PDF DWG |
||
|

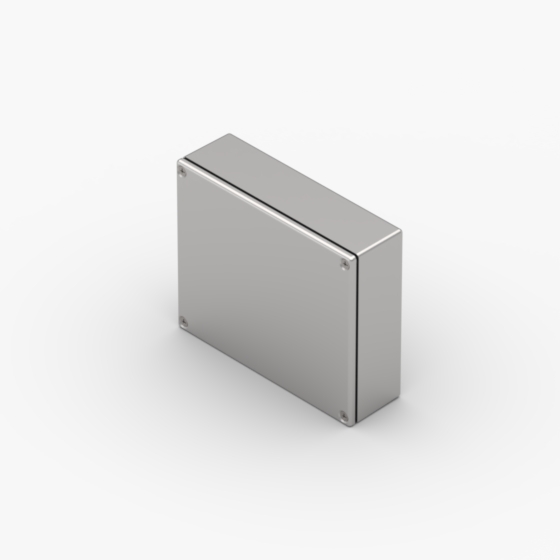

AL-14XSK.0 | 120 | 100 | 35 |
- |
LM 24 | 116,5 | 25,5 | 4 | - |
PDF DWG |
||
|

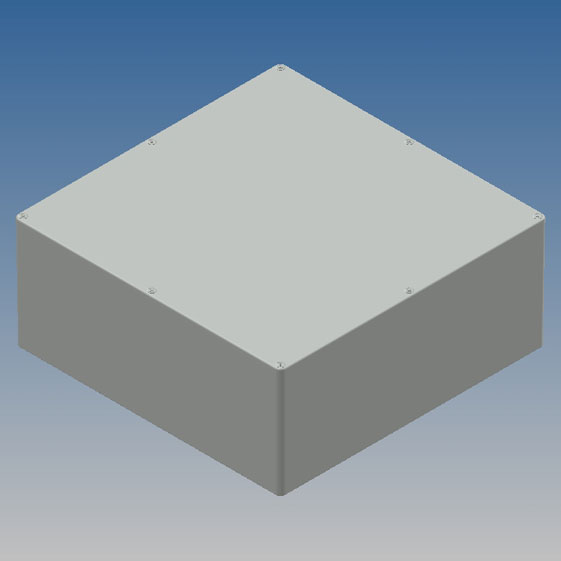

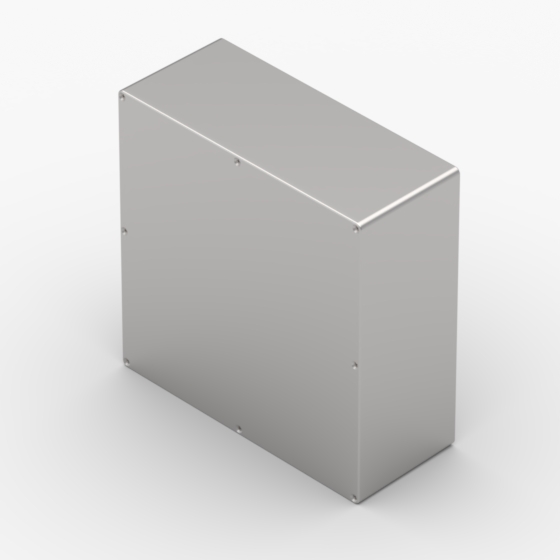

AL-15X.0 | 250 | 250 | 100 |
- |
LM 24 | 246 | 246 | 8 | - |
PDF DWG |
||
|

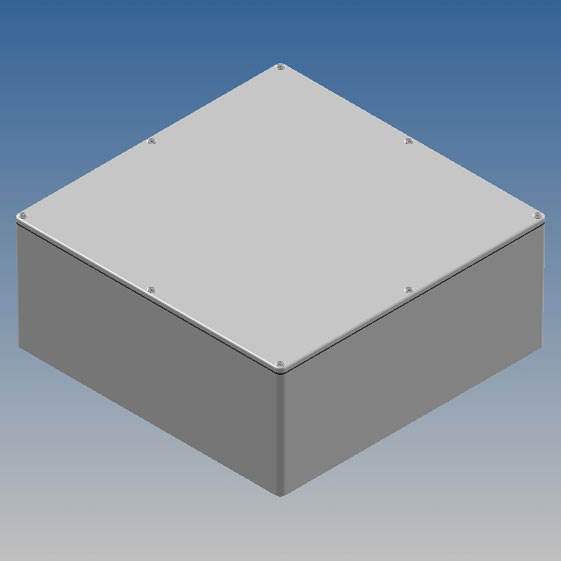

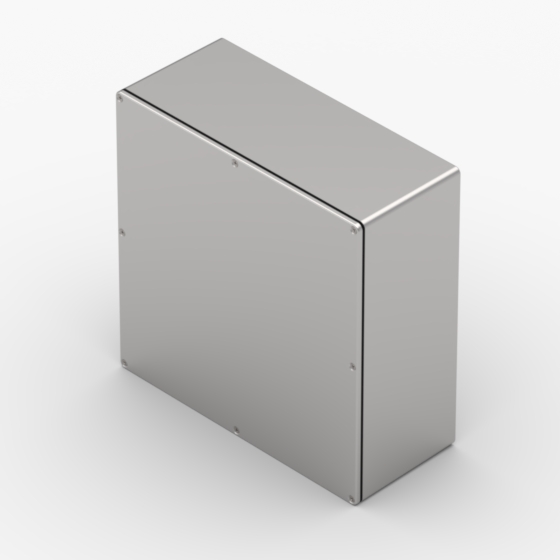

AL-15XSK.0 | 250 | 250 | 100 |
- |
LM 24 | 246 | 246 | 8 | - |
PDF DWG |
||
|

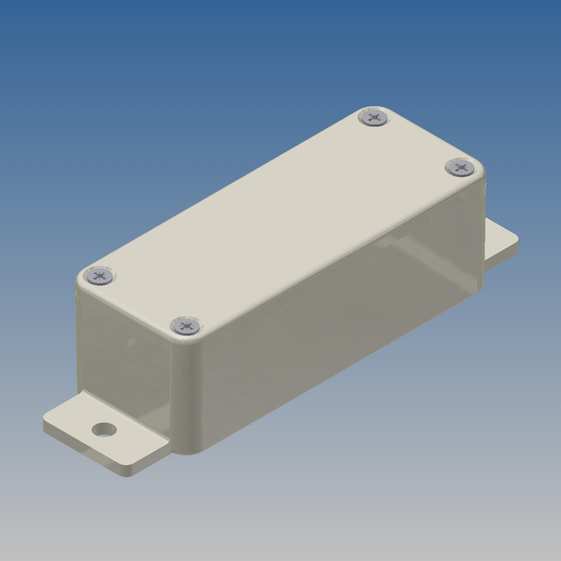

AL-16X.0 | 114 | 35,1 | 29,5 |
- |
LM 24 | 31,3 | 20 | 4 | - |
PDF DWG |
||
|

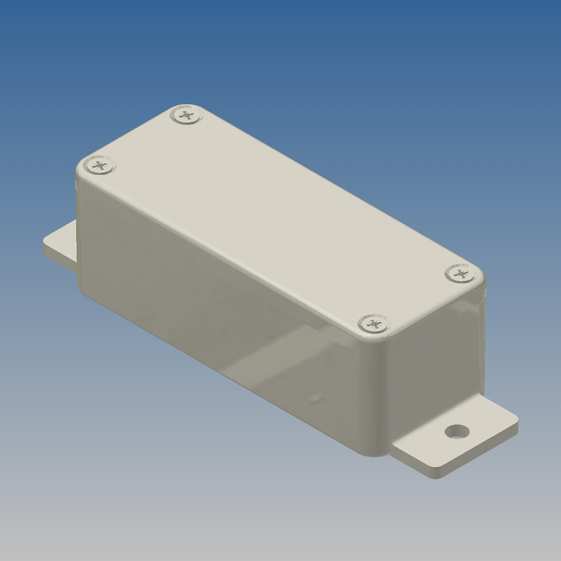

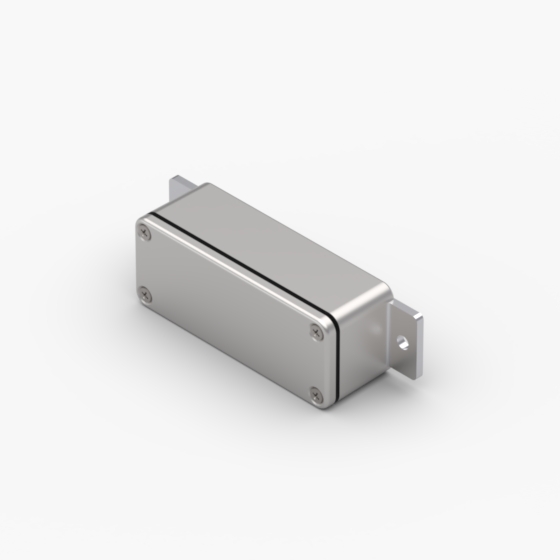

AL-16XSK.0 | 114 | 35,1 | 29,5 |
- |
LM 24 | 31,3 | 20 | 4 | - |
PDF DWG |
||
|

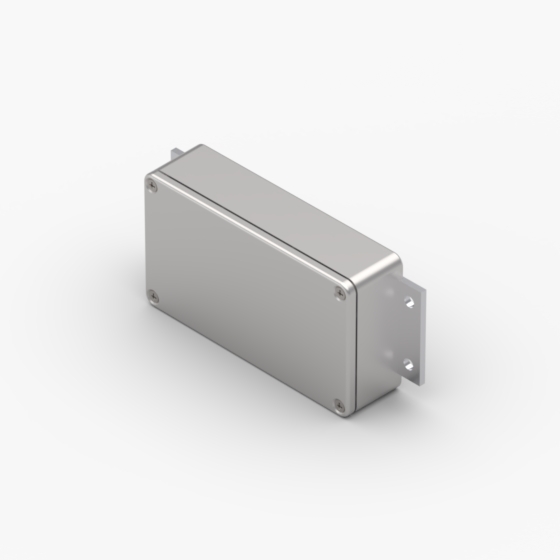

AL-17X.0 | 139,7 | 63,6 | 29,5 |
- |
LM 24 | 110,8 | 20,1 | 4 | - |
PDF DWG |
||
|

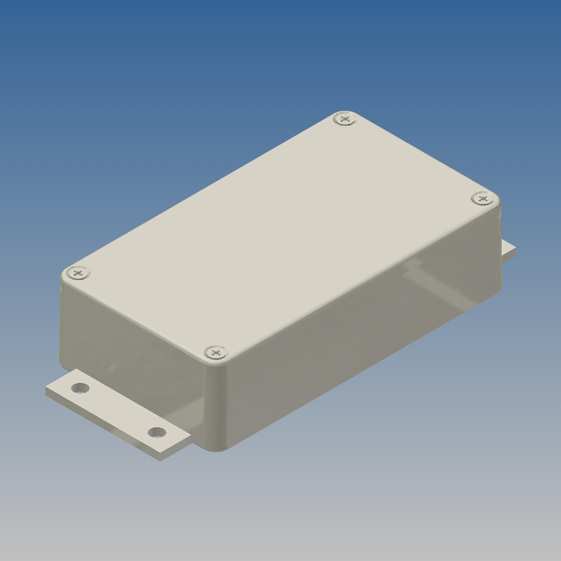

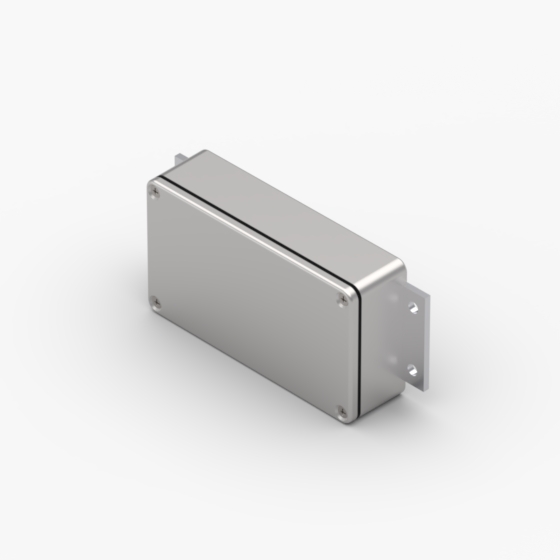

AL-17XSK.0 | 139,7 | 63,6 | 29,5 |
- |
LM 24 | 110,8 | 20,1 | 4 | - |
PDF DWG |
||
|

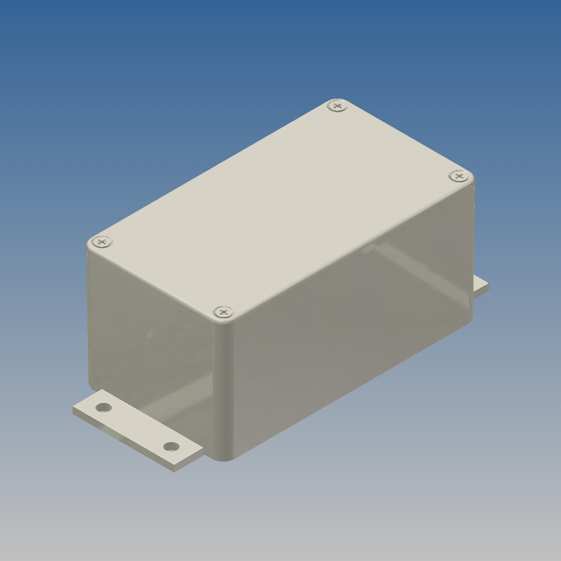

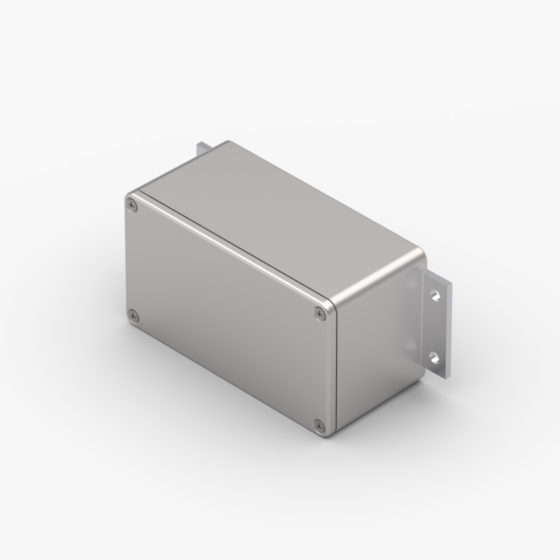

AL-18X.0 | 139,7 | 63,7 | 54,9 |
- |
LM 24 | 110,8 | 45,6 | 4 | - |
PDF DWG |
||
|

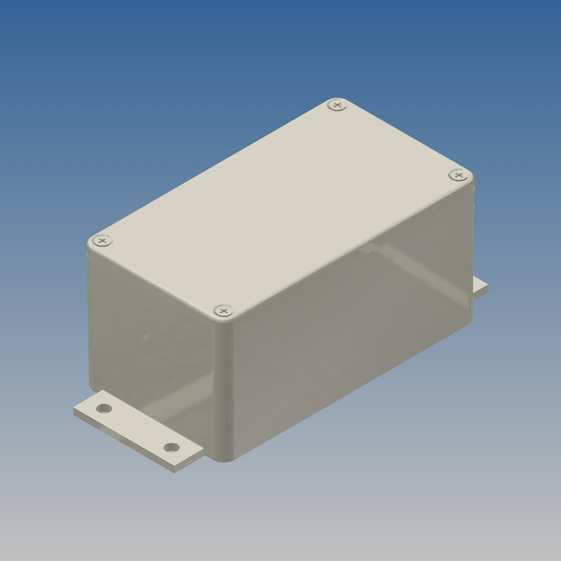

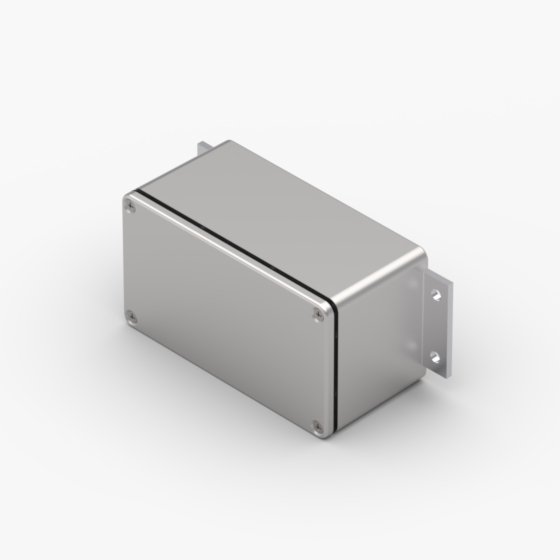

AL-18XSK.0 | 139,7 | 63,7 | 54,9 |
- |
LM 24 | 110,8 | 45,6 | 4 | - |
PDF DWG |
||
|

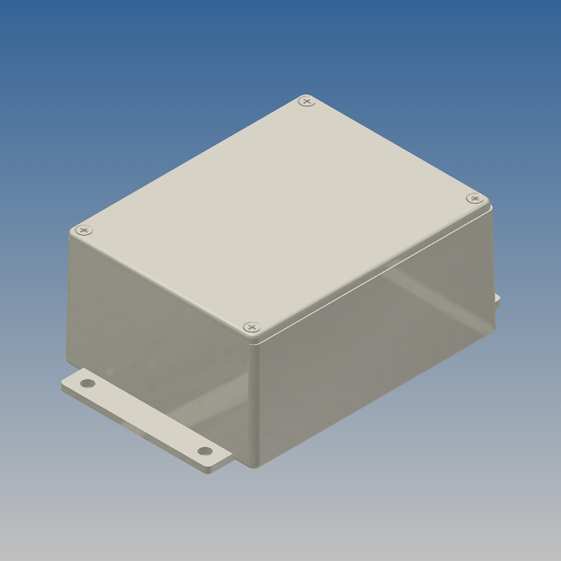

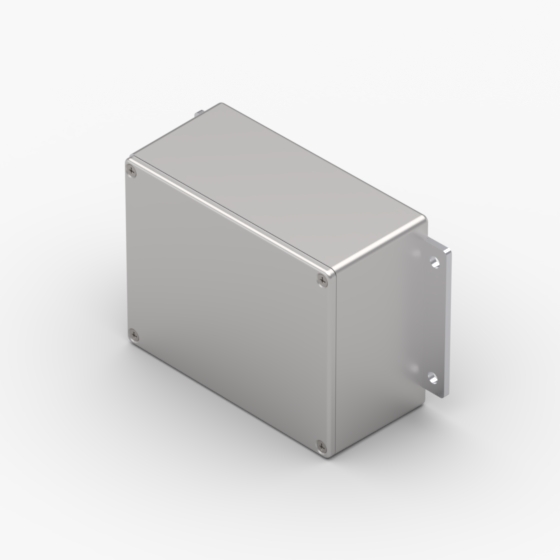

AL-19X.0 | 139,7 | 89,1 | 54,9 |
- |
LM 24 | 110,5 | 46,3 | 4 | - |
PDF DWG |
||
|

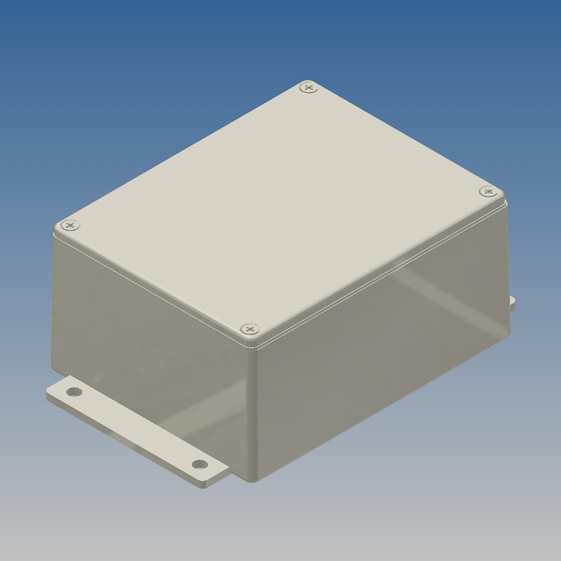

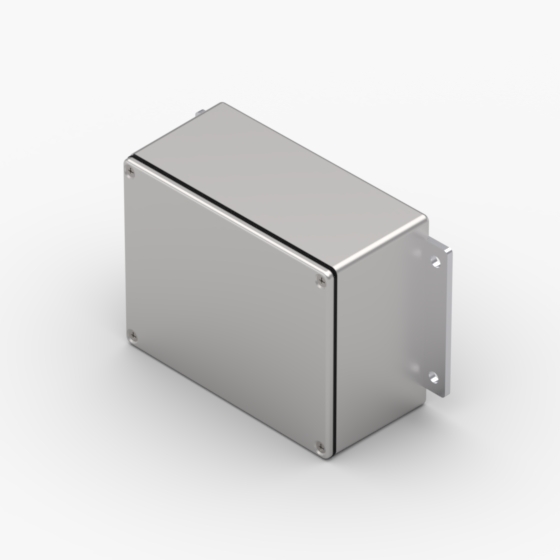

AL-19XSK.0 | 139,7 | 89,1 | 54,9 |
- |
LM 24 | 110,5 | 46,3 | 4 | - |
PDF DWG |
||
|

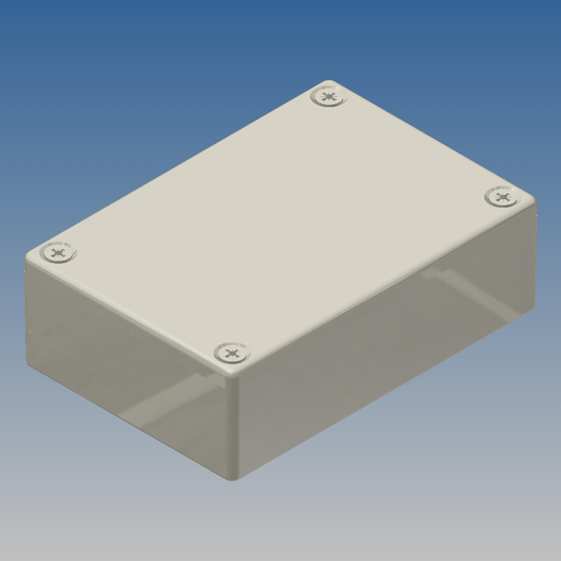

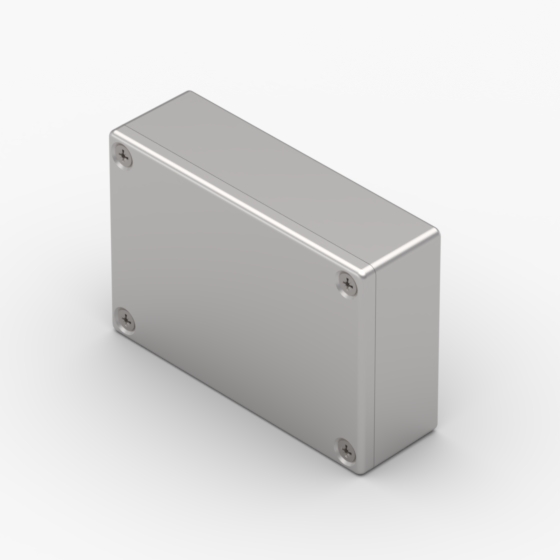

AL-2.0 | 80 | 55 | 25 |
- |
LM 24 | 75,8 | 15 | 4 | - |
PDF DWG |
||
|

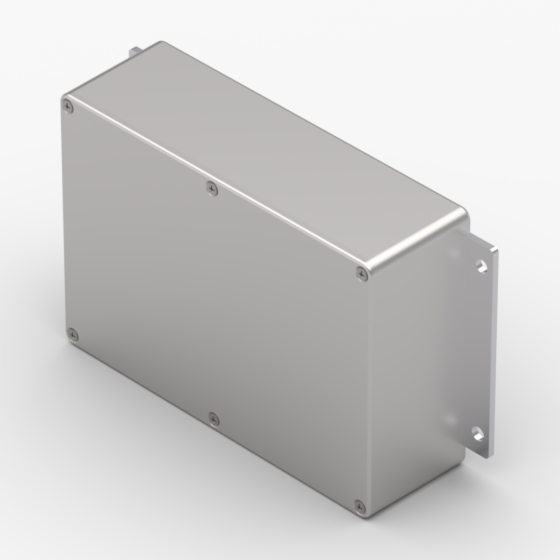

AL-20X.0 | 202 | 120,8 | 54,9 |
- |
LM 24 | 168 | 45,6 | 6 | - |
PDF DWG |
||
|

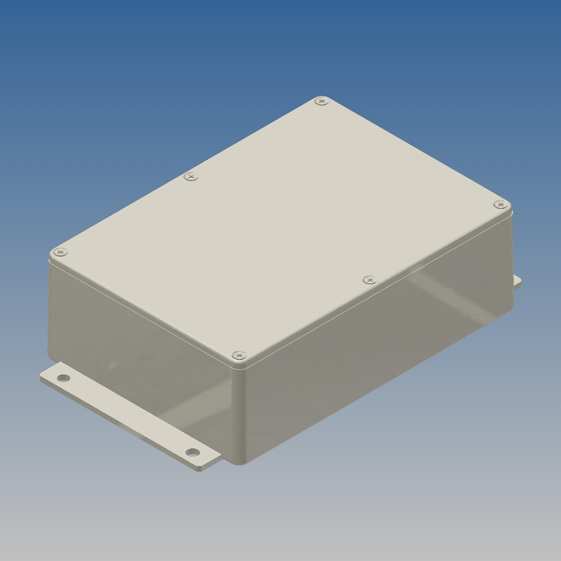

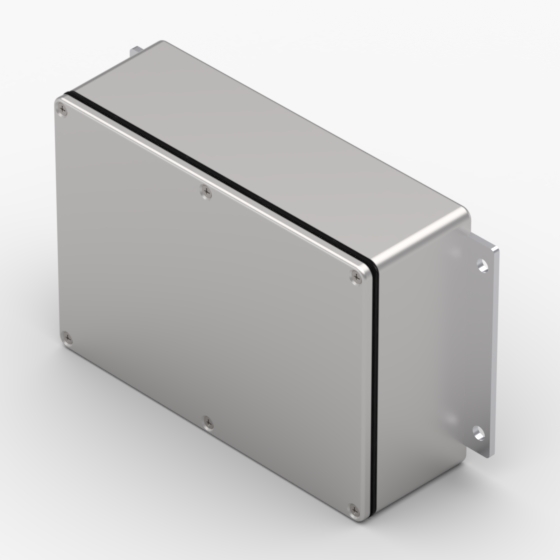

AL-20XSK.0 | 202 | 120,8 | 54,9 |
- |
LM 24 | 168 | 45,6 | 6 | - |
PDF DWG |
||
|

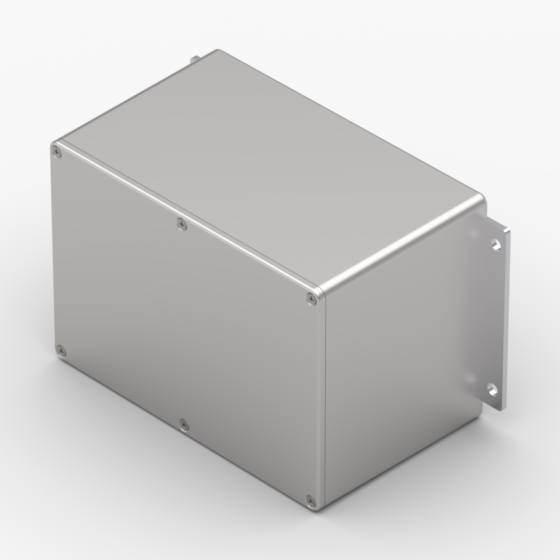

AL-21X.0 | 202 | 120,8 | 105,7 |
- |
LM 24 | 168 | 96,6 | 6 | - |
PDF DWG |
||
|

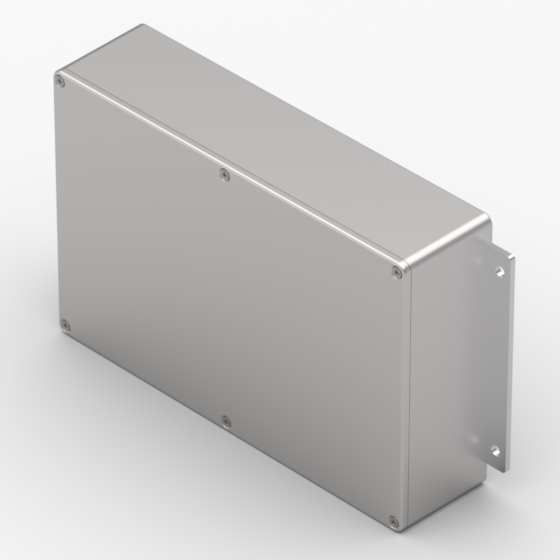

AL-22X.0 | 252 | 146 | 54,9 |
- |
LM 24 | 217,8 | 45,6 | 6 | - |
PDF DWG |
||
|

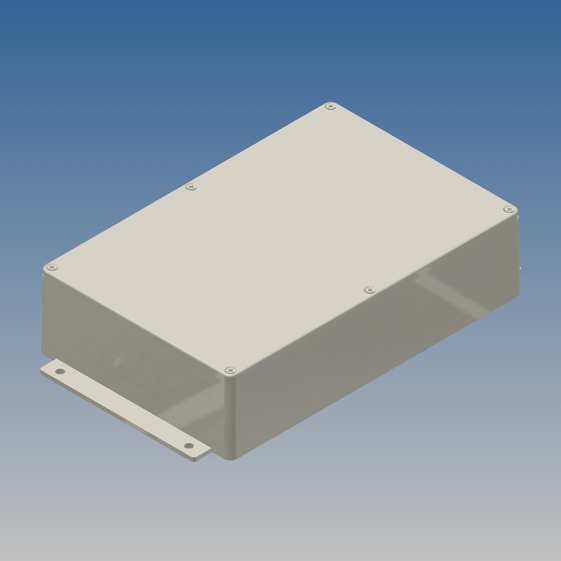

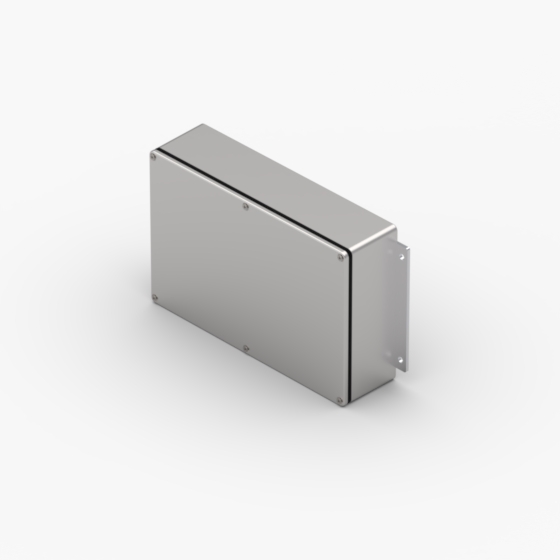

AL-22XSK.0 | 252 | 146 | 54,9 |
- |
LM 24 | 217,8 | 45,6 | 6 | - |
PDF DWG |
||
|

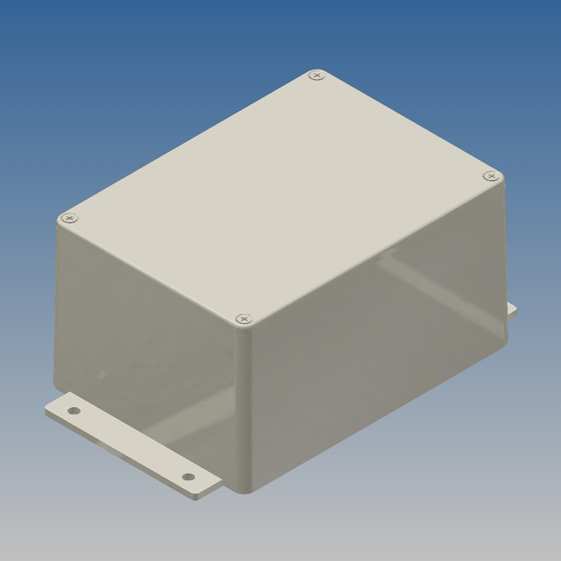

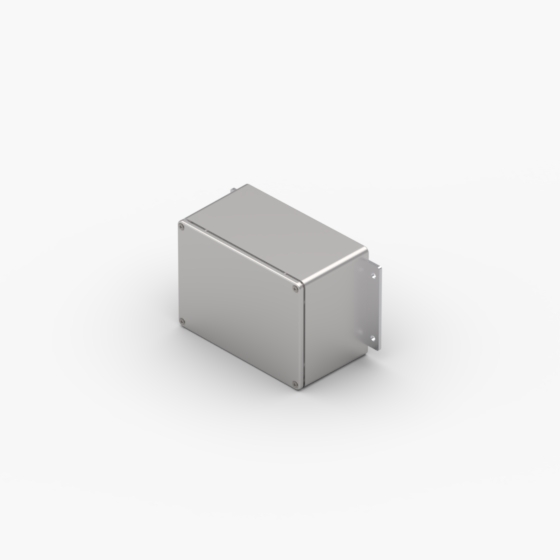

AL-23X.0 | 170 | 101,6 | 76 |
- |
LM 24 | 135,2 | 66,5 | 4 | - |
PDF DWG |
||
|

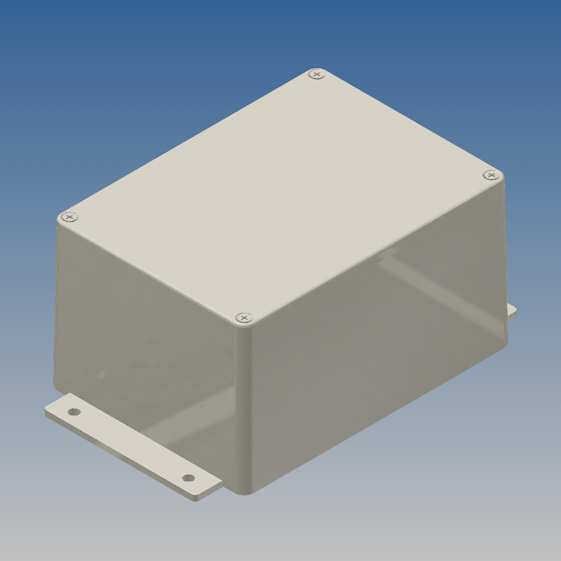

AL-23XSK.0 | 170 | 101,6 | 76 |
- |
LM 24 | 135,2 | 66,5 | 4 | - |
PDF DWG |
||
|

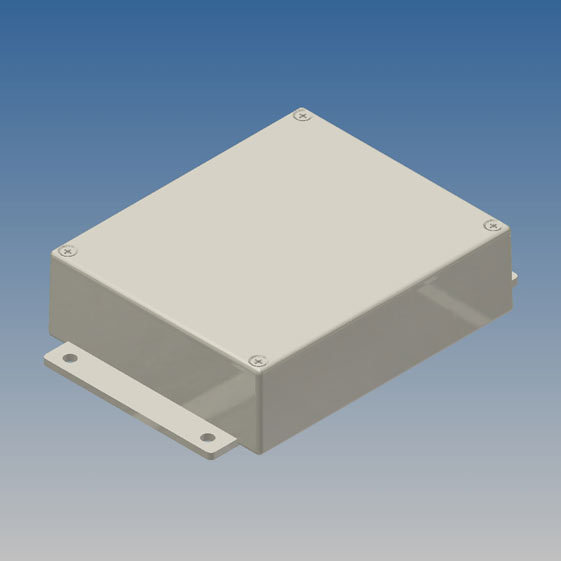

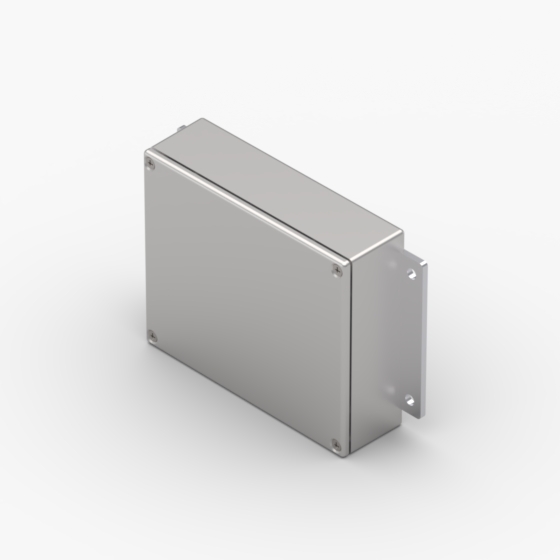

AL-25X.0 | 150 | 100 | 35 |
- |
LM 24 | 116,5 | 25,5 | 4 | - |
PDF DWG |
||
|

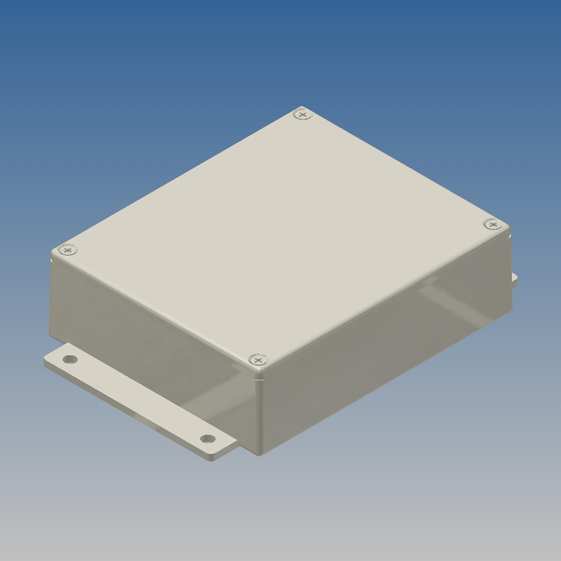

AL-25XSK.0 | 150 | 100 | 35 |
- |
LM 24 | 116,5 | 25,5 | 4 | - |
PDF DWG |
||
|

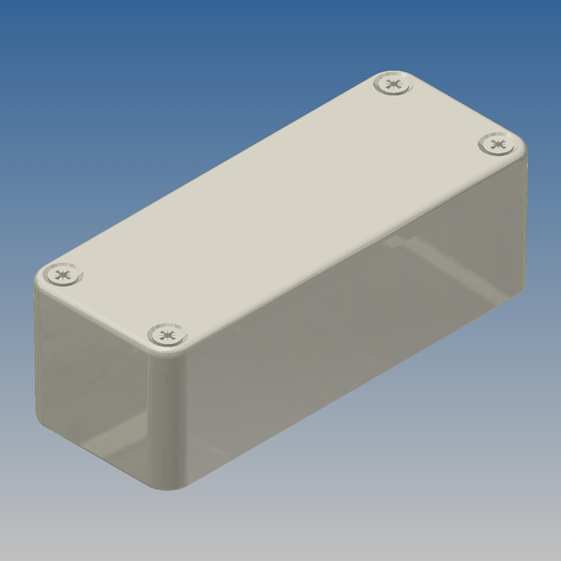

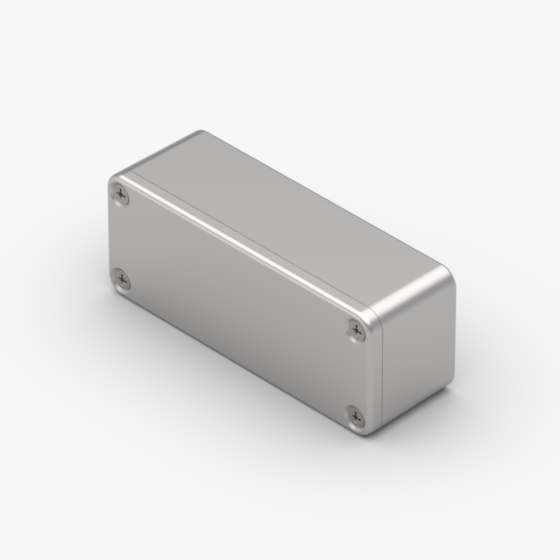

AL-3.0 | 88,9 | 34,9 | 29,5 |
- |
LM 24 | 30,5 | 20 | 4 | - |
PDF DWG |
||
|

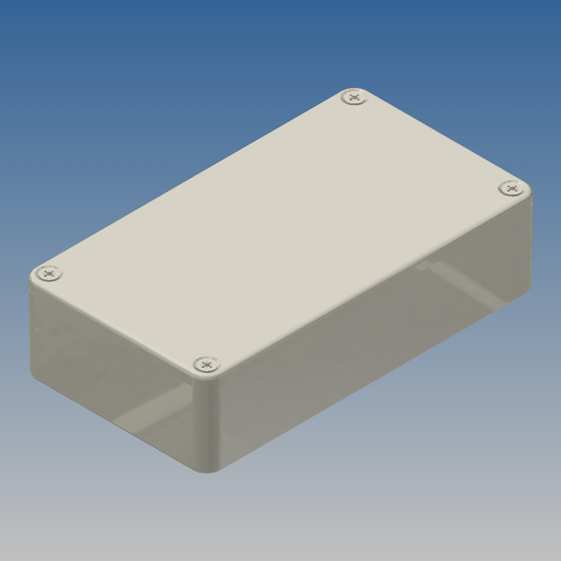

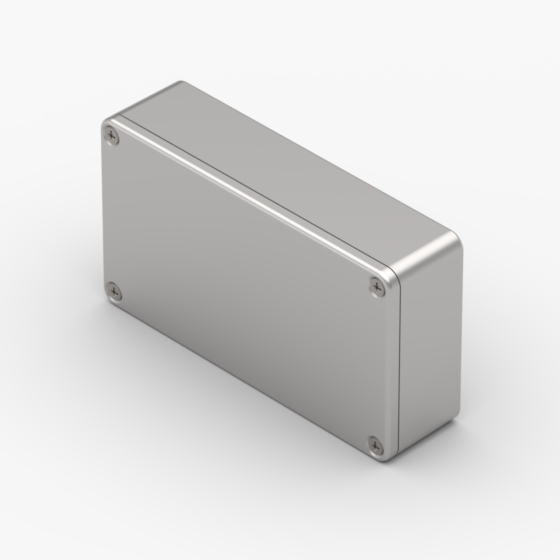

AL-4.0 | 114,3 | 63,5 | 29,5 |
- |
LM 24 | 110,5 | 60 | 4 | - |
PDF DWG |
||
|

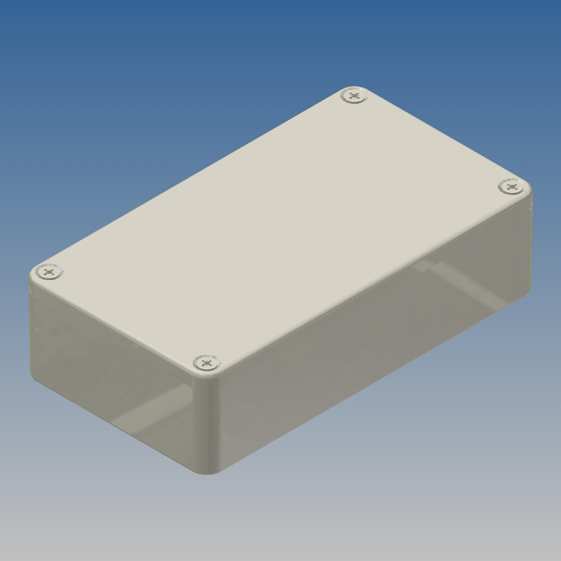

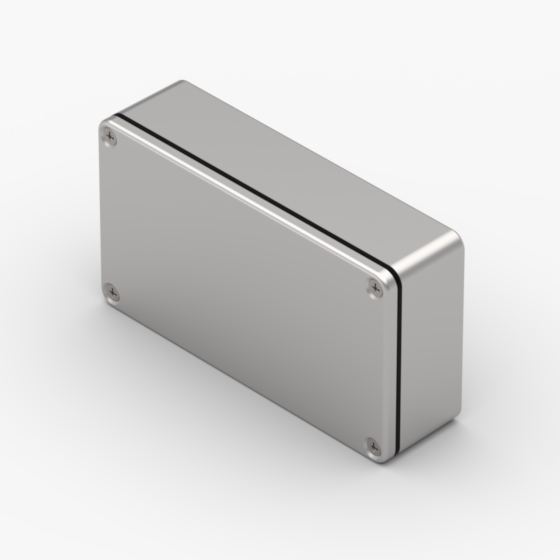

AL-4SK.0 | 114,3 | 63,5 | 29,5 |
- |
LM 24 | 110,5 | 60 | 4 | - |
PDF DWG |
||
|

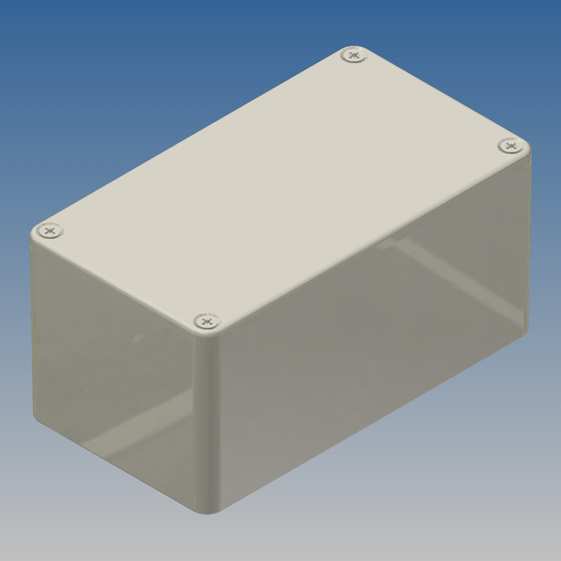

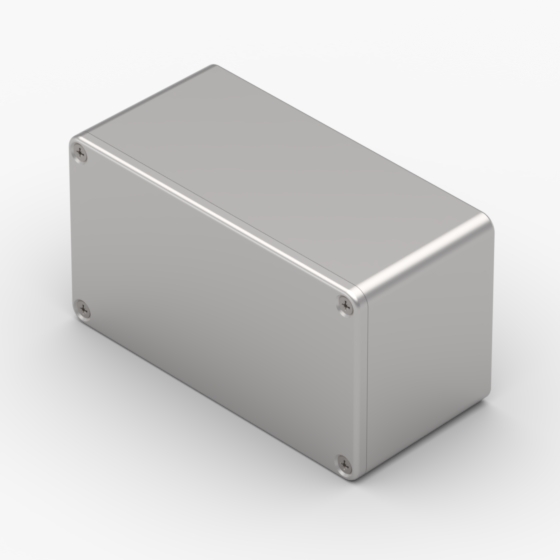

AL-5.0 | 114,3 | 63,5 | 54,9 |
- |
LM 24 | 110,5 | 60 | 4 | - |
PDF DWG |
||
|

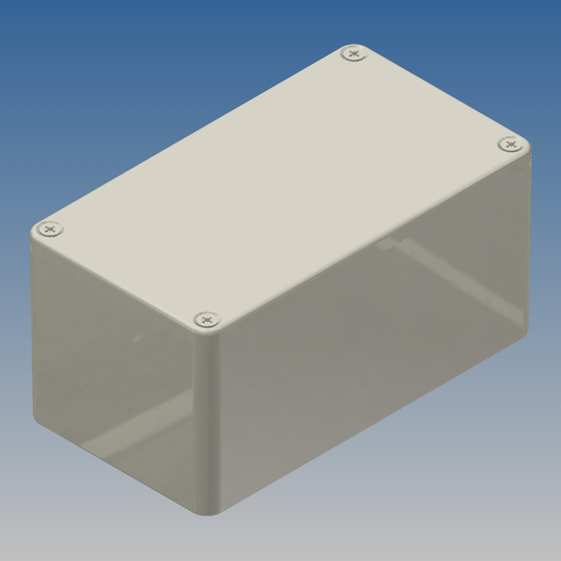

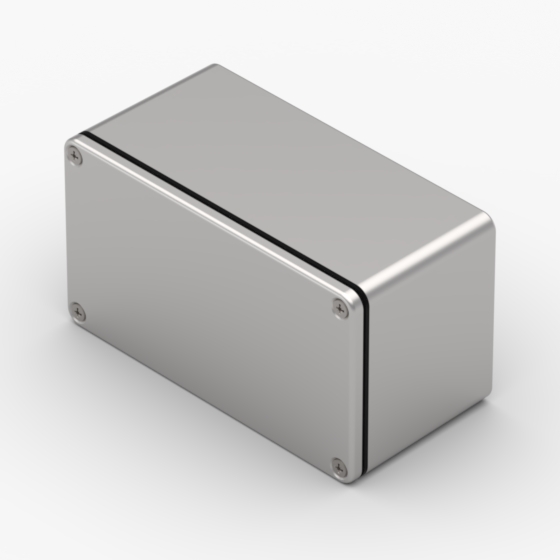

AL-5SK.0 | 114,3 | 63,5 | 54,9 |
- |
LM 24 | 110,5 | 60 | 4 | - |
PDF DWG |
||
|

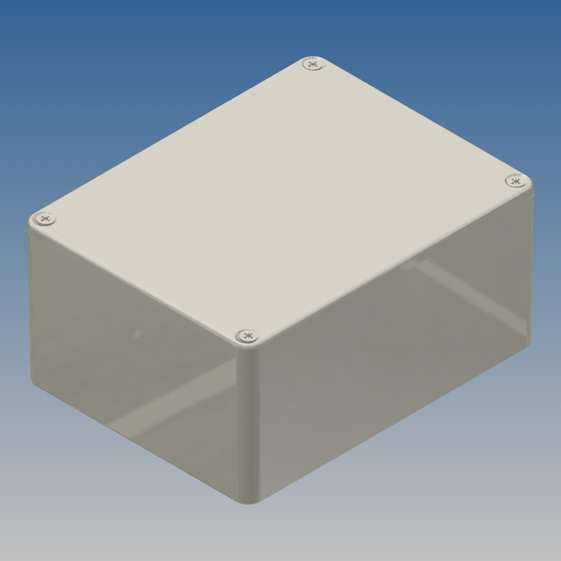

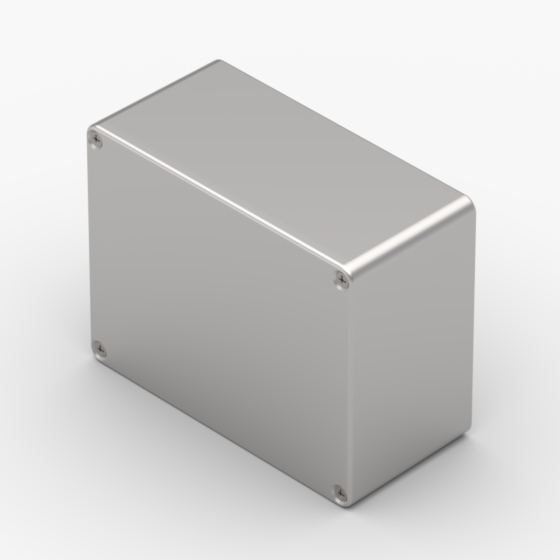

AL-6.0 | 114,3 | 88,9 | 54,9 |
- |
LM 24 | 111 | 85,7 | 4 | - |
PDF DWG |
||
|

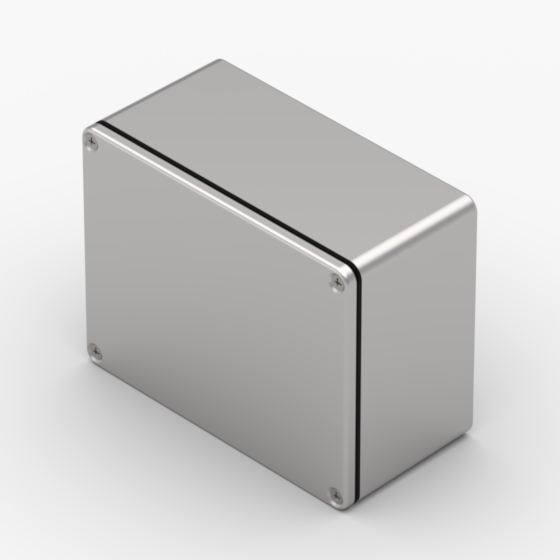

AL-6SK.0 | 114,3 | 88,9 | 54,9 |
- |
LM 24 | 111 | 85,7 | 4 | - |
PDF DWG |
||
|

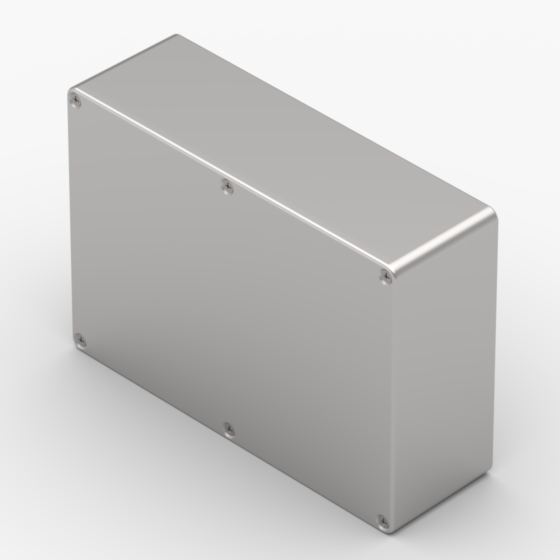

AL-7.0 | 171,5 | 120,6 | 54,9 |
- |
LM 24 | 167,5 | 116,5 | 6 | - |
PDF DWG |
||
|

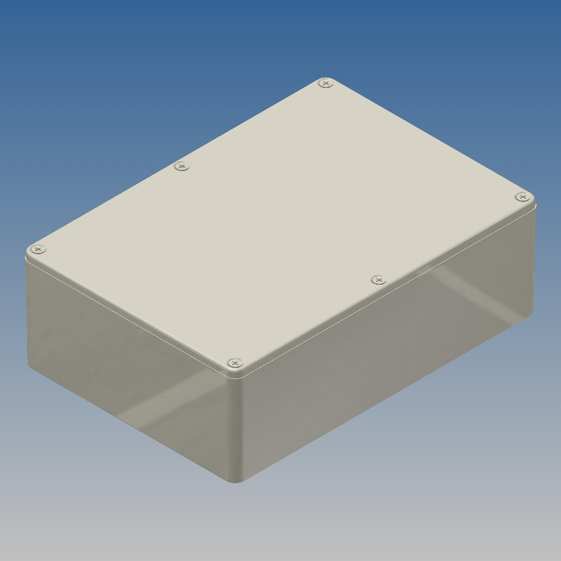

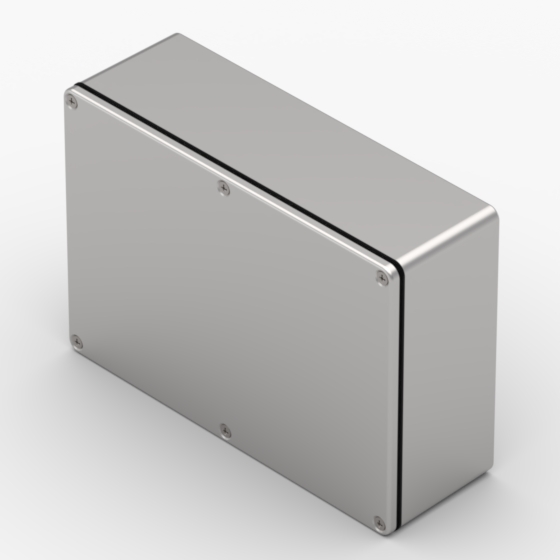

AL-7SK.0 | 171,5 | 120,6 | 54,9 |
- |
LM 24 | 167,5 | 116,5 | 6 | - |
PDF DWG |
||
|

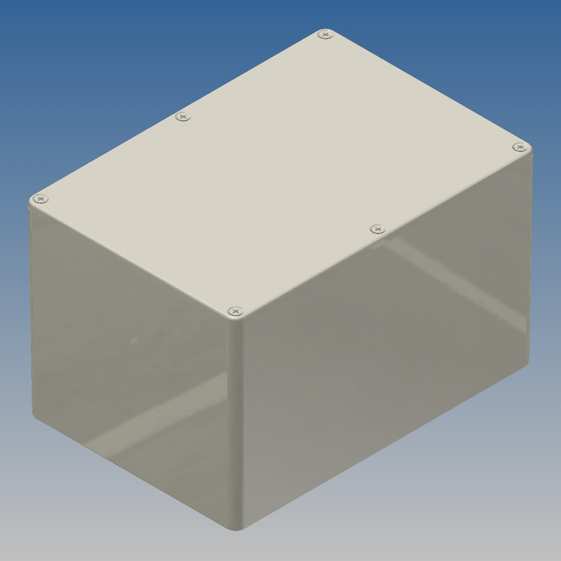

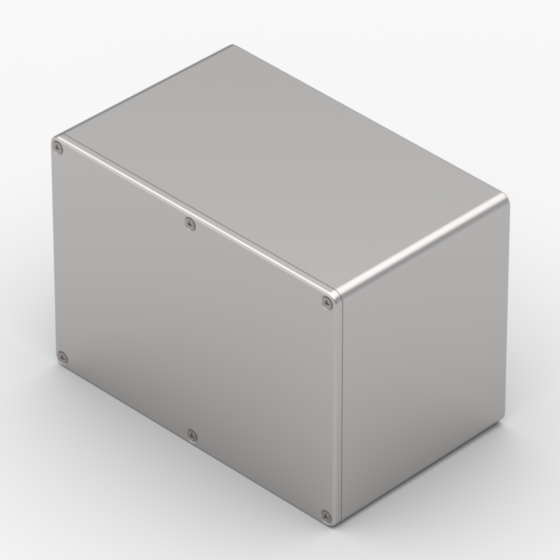

AL-8.0 | 171,5 | 120,6 | 105,7 |
- |
LM 24 | 167,5 | 116,5 | 6 | - |
PDF DWG |
||
|

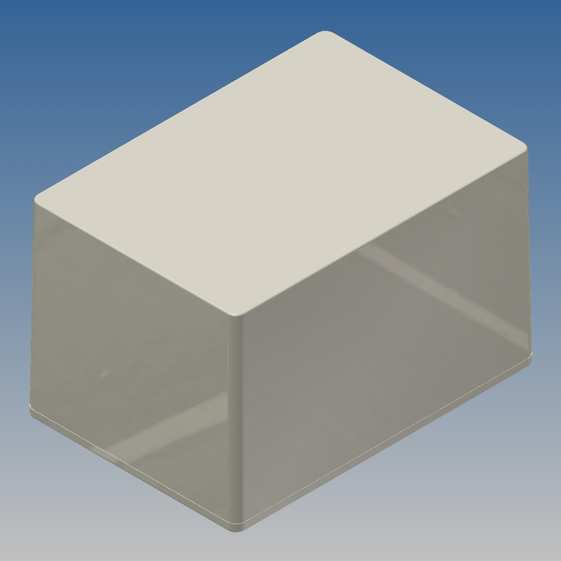

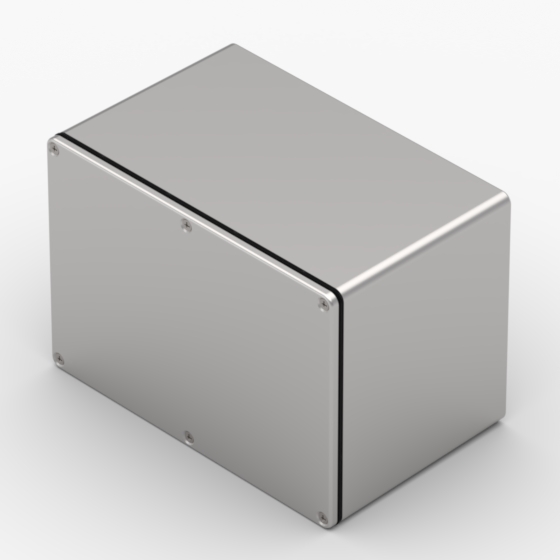

AL-8SK.0 | 171,5 | 120,6 | 105,7 |
- |
LM 24 | 167,5 | 116,5 | 6 | - |
PDF DWG |
||
|

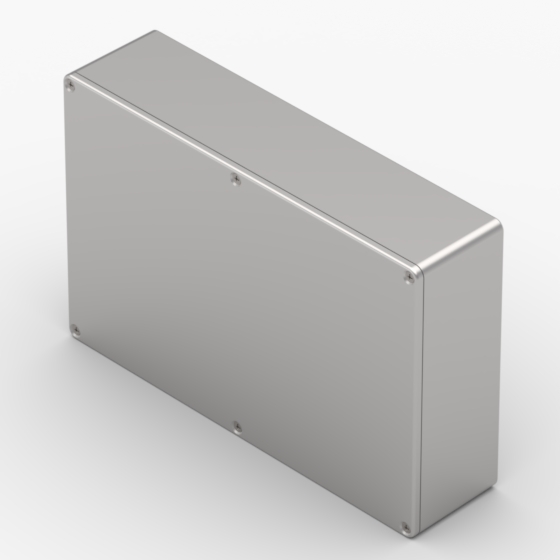

AL-9.0 | 222,3 | 146 | 55 |
- |
LM 24 | 218,3 | 142 | 6 | - |
PDF DWG |
||
|

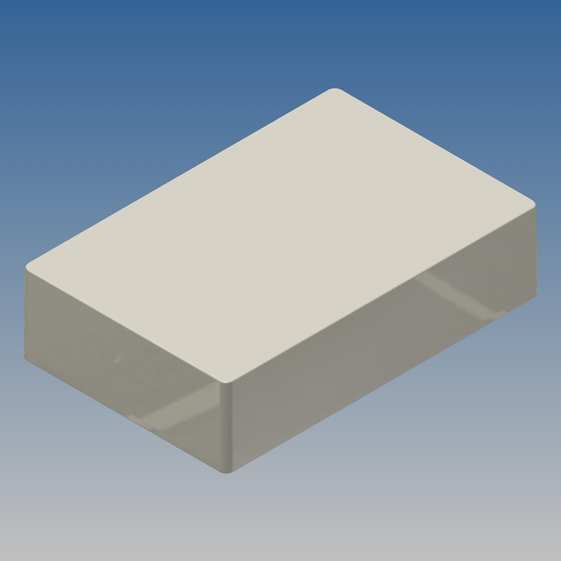

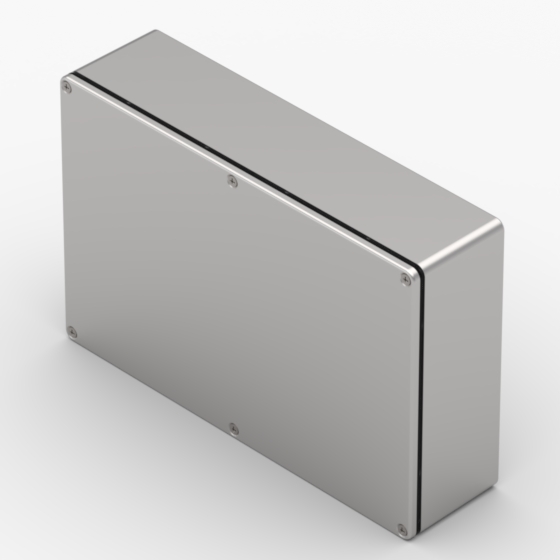

AL-9SK.0 | 222,3 | 146 | 55 |
- |
LM 24 | 218,3 | 142 | 6 | - |
PDF DWG |
12 product families, 152 series. You can't find what you're looking for? Contact us
