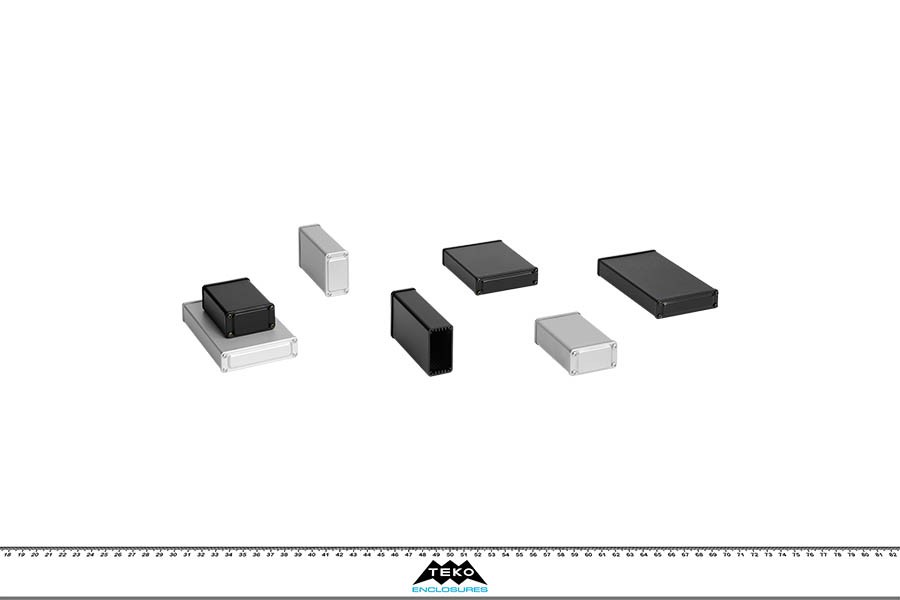

MINITEKAL

Family Aluminium - Electronic enclosures - Metal

Description

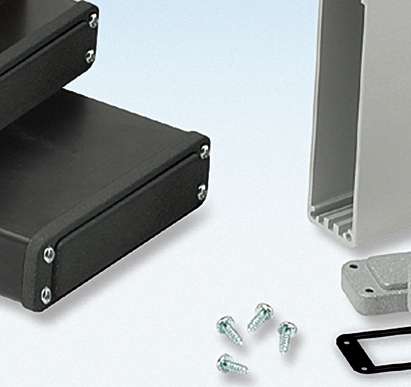

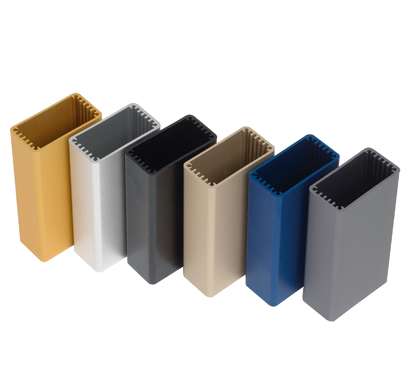

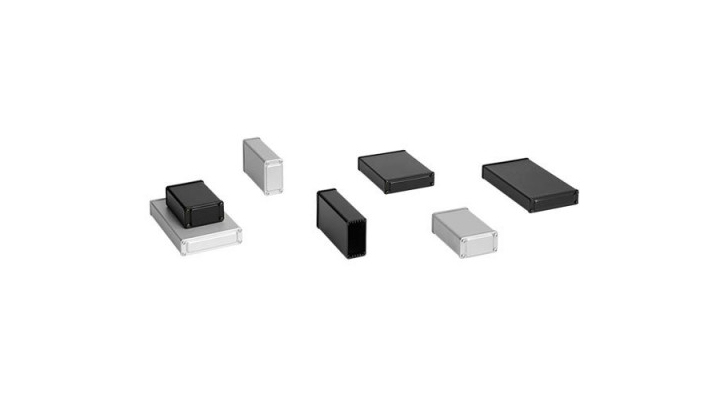

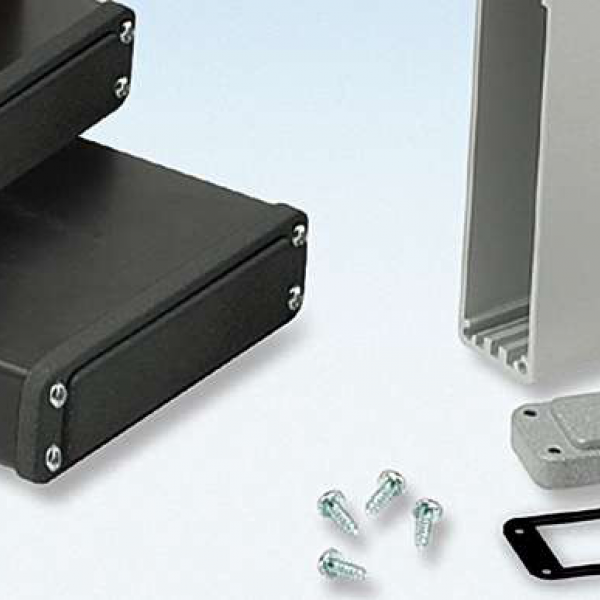

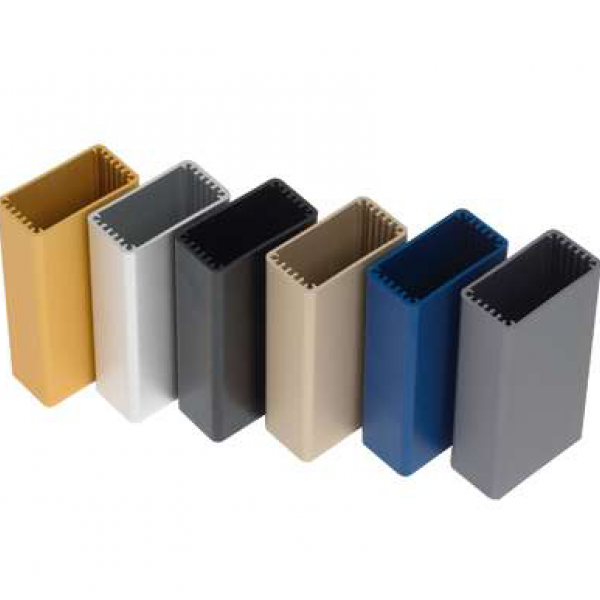

Compact extruded aluminium case with powder coating. Two aluminium front cover panels with two rubber sealing kits to protect against water and from dust. Internal slots for PCB’s. Closing by eight screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

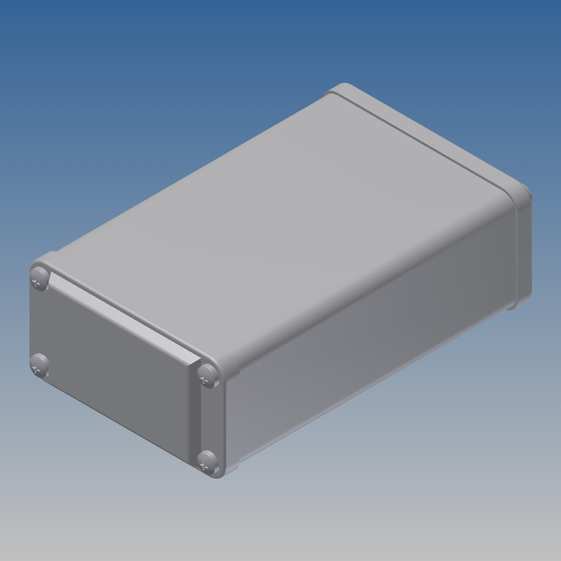

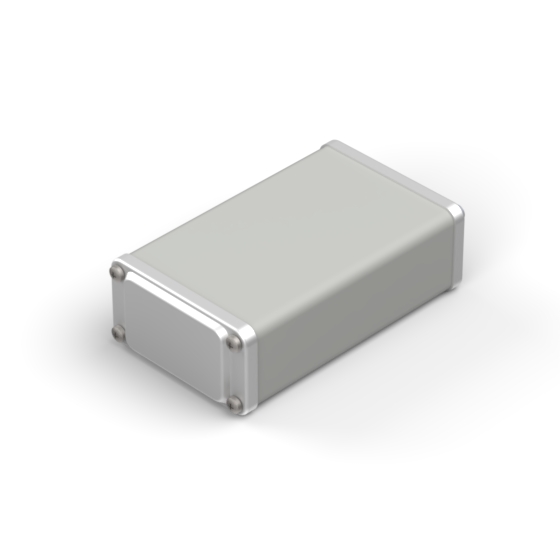

MTK465.1 68 43 23 9006
ALLOY 6060 65 39,4 8 - PDF
DWG
View
  • Color (Ral): 9006
  • Material: ALLOY 6060
  • MAX PCB L (mm): 65
  • MAX PCB W (mm): 39,4
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

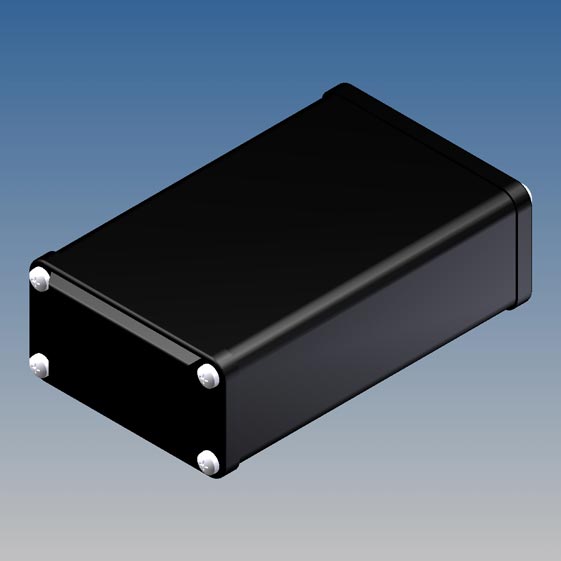

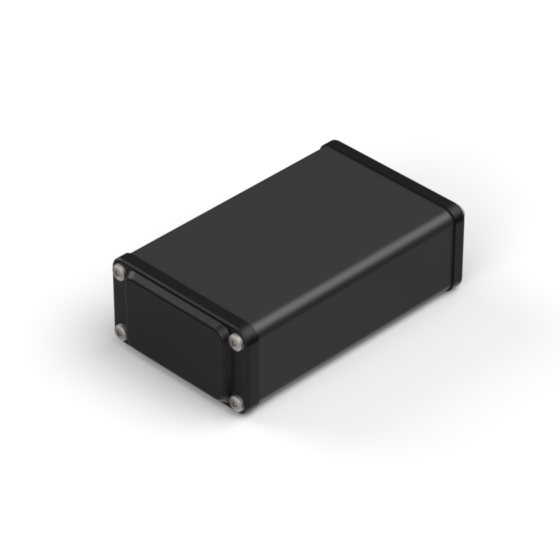

MTK465.9 68 43 23 9004
ALLOY 6060 65 39,4 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: ALLOY 6060
  • MAX PCB L (mm): 65
  • MAX PCB W (mm): 39,4
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

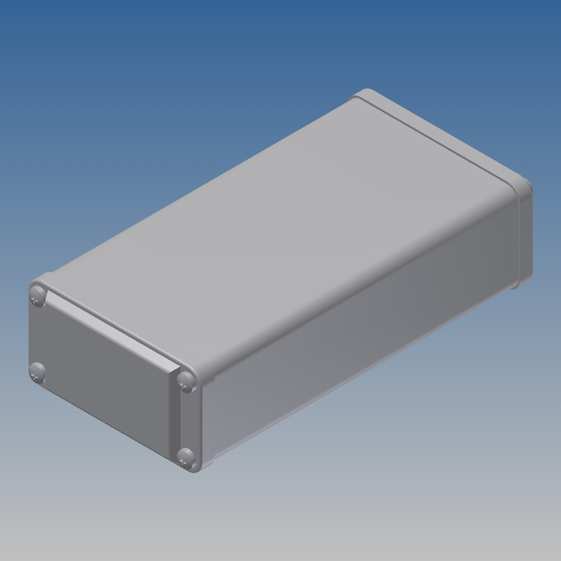

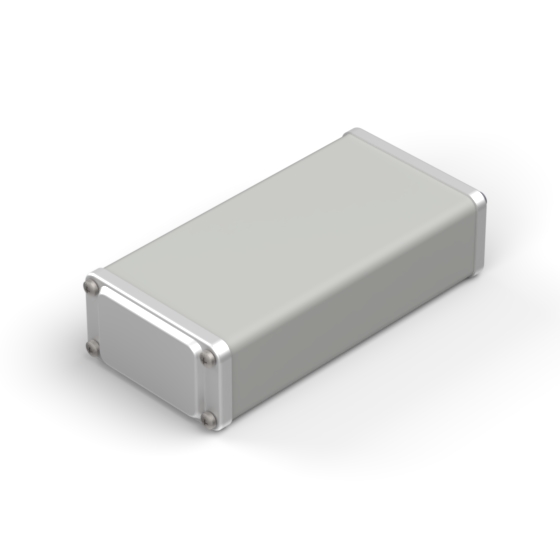

MTK480.1 83 43 23 9006
ALLOY 6060 80 39,4 8 - PDF
DWG
View
  • Color (Ral): 9006
  • Material: ALLOY 6060
  • MAX PCB L (mm): 80
  • MAX PCB W (mm): 39,4
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

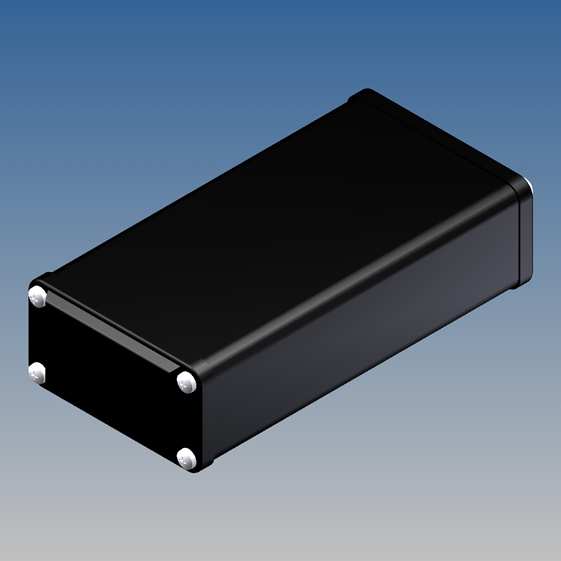

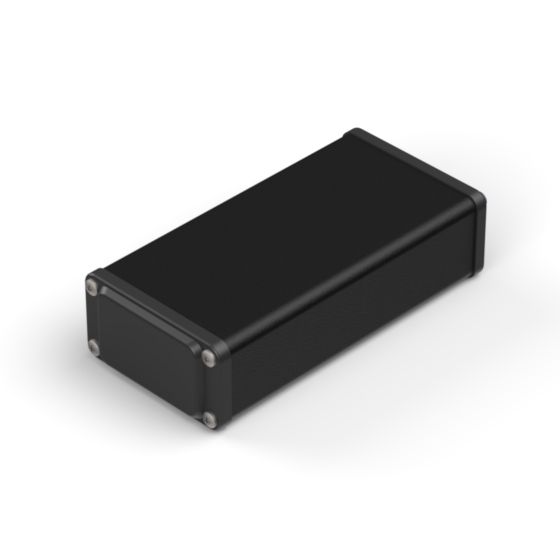

MTK480.9 83 43 23 9004
ALLOY 6060 80 39,4 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: ALLOY 6060
  • MAX PCB L (mm): 80
  • MAX PCB W (mm): 39,4
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

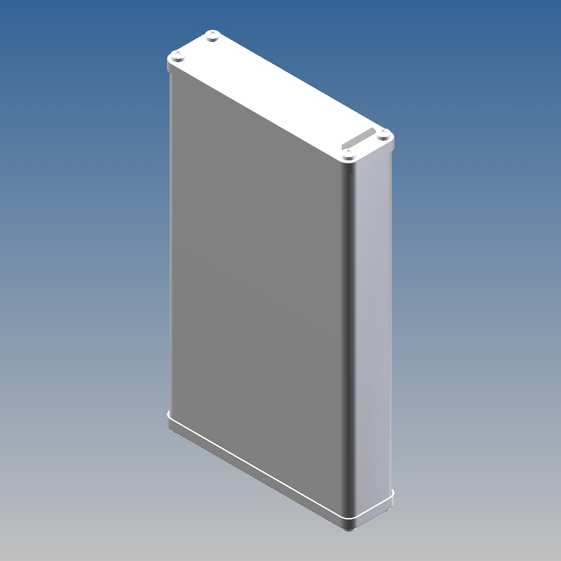

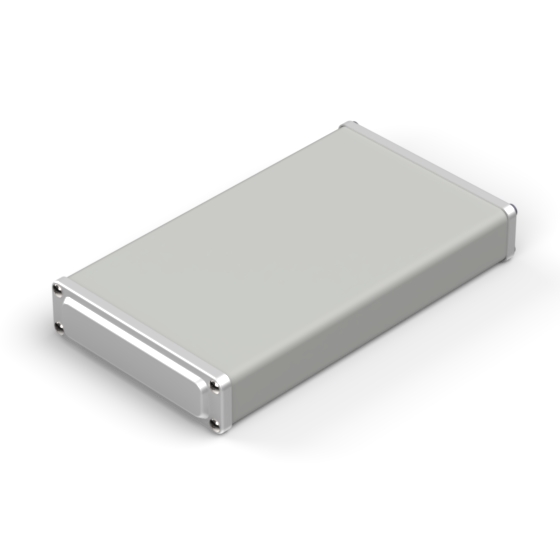

MTK6110.1 113 66 18 9006
ALLOY 6060 110 62,4 8 - PDF
DWG
View
  • Color (Ral): 9006
  • Material: ALLOY 6060
  • MAX PCB L (mm): 110
  • MAX PCB W (mm): 62,4
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

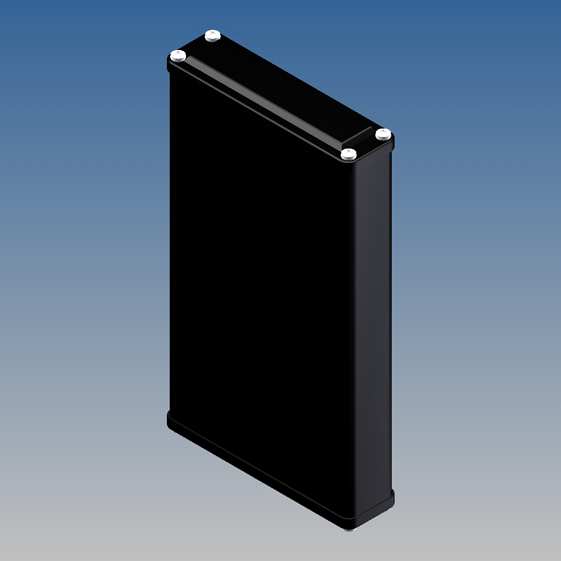

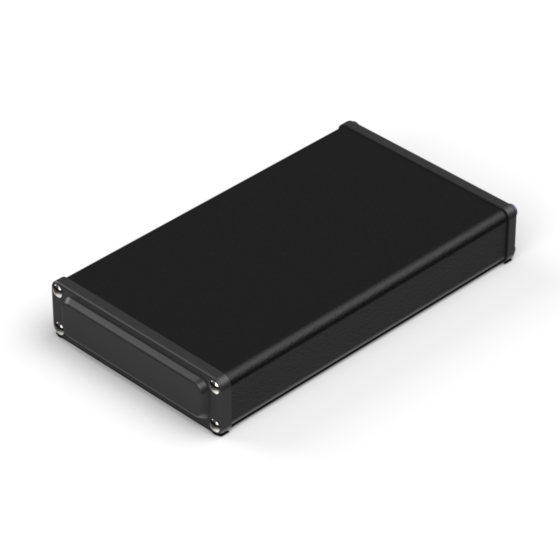

MTK6110.9 113 66 18 9004
ALLOY 6060 110 62,4 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: ALLOY 6060
  • MAX PCB L (mm): 110
  • MAX PCB W (mm): 62,4
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

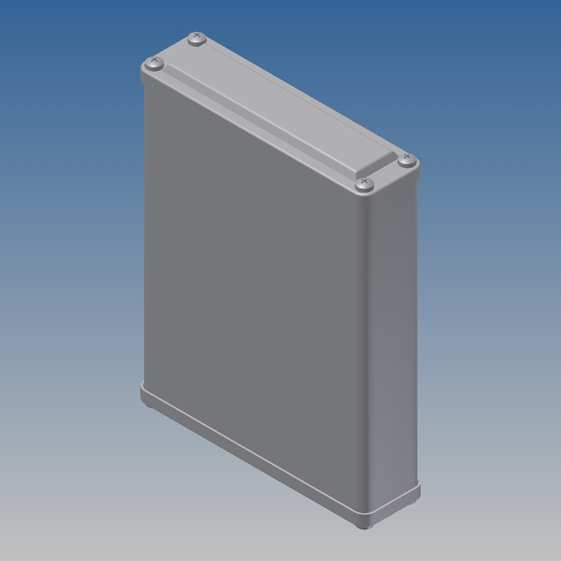

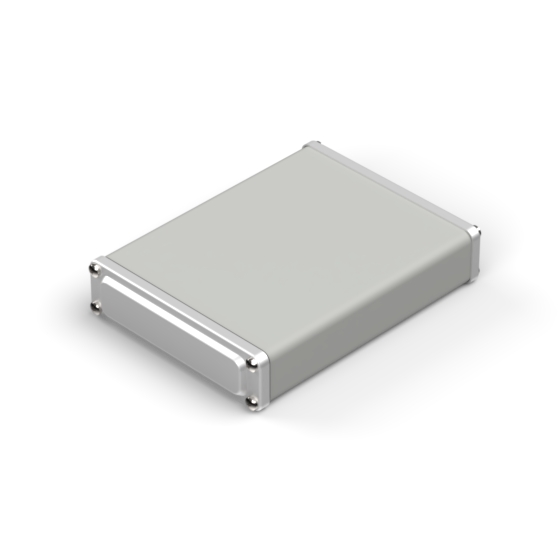

MTK680.1 83 66 18 9006
ALLOY 6060 80 62,4 8 - PDF
DWG
View
  • Color (Ral): 9006
  • Material: ALLOY 6060
  • MAX PCB L (mm): 80
  • MAX PCB W (mm): 62,4
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

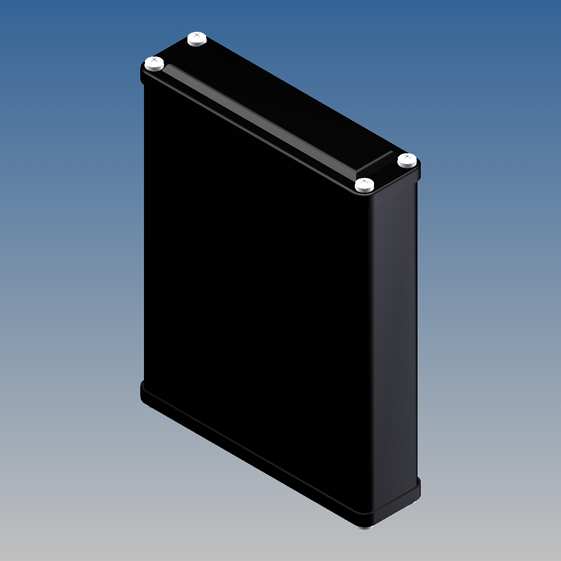

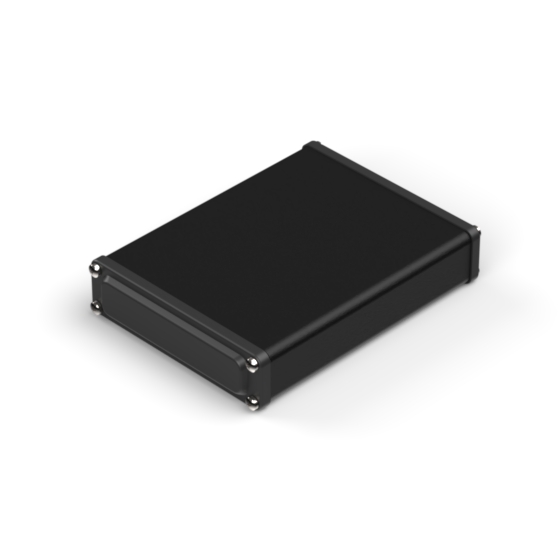

MTK680.9 83 66 18 9004
ALLOY 6060 80 62,4 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: ALLOY 6060
  • MAX PCB L (mm): 80
  • MAX PCB W (mm): 62,4
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
