Description

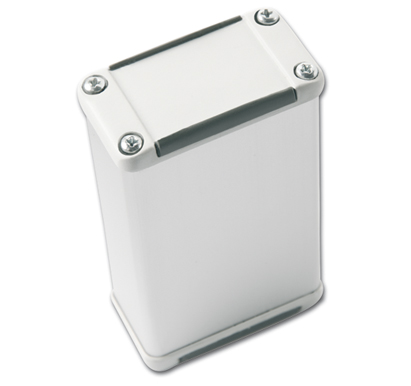

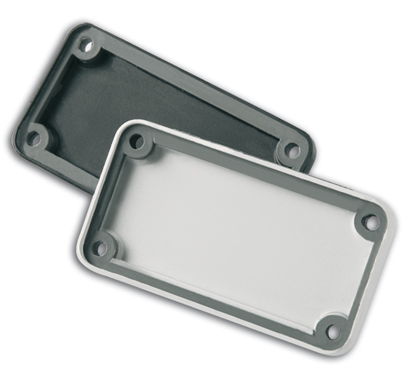

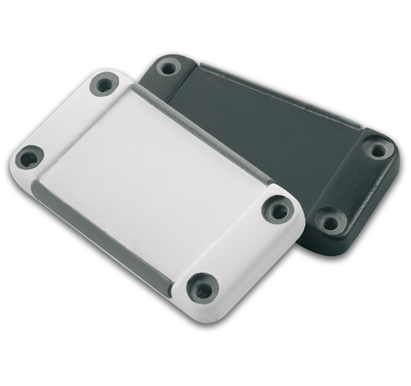

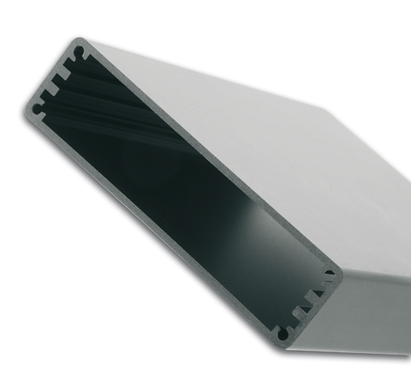

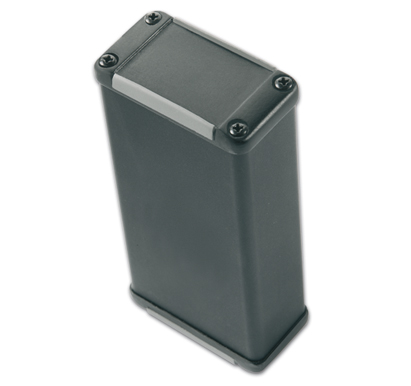

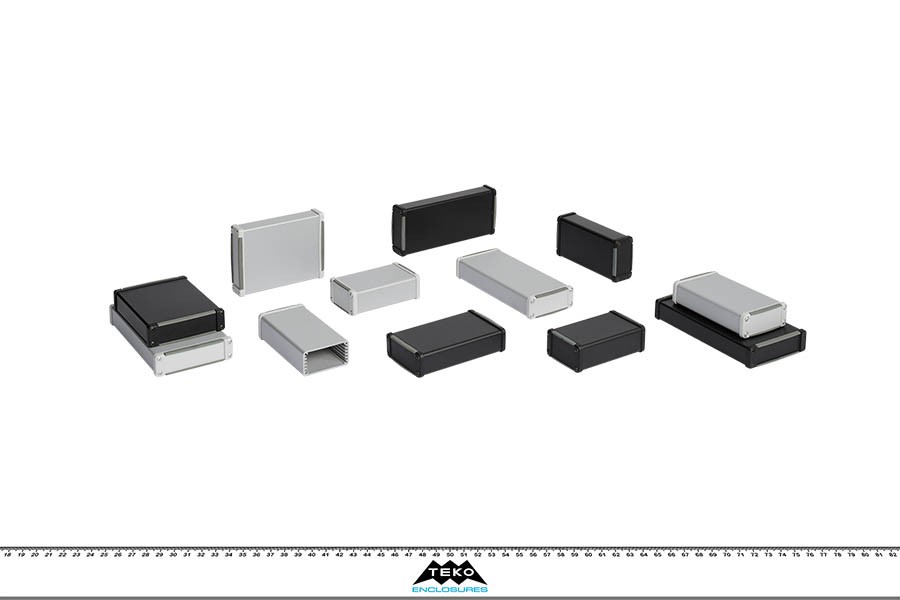

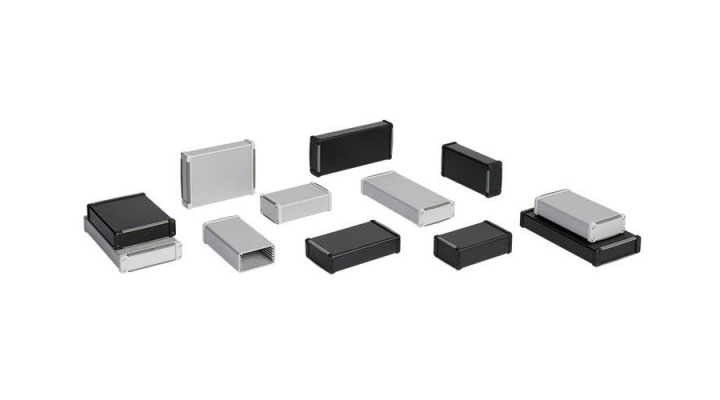

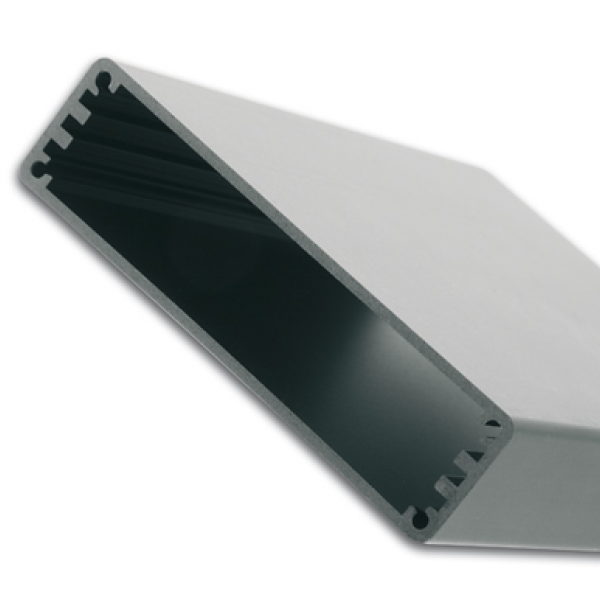

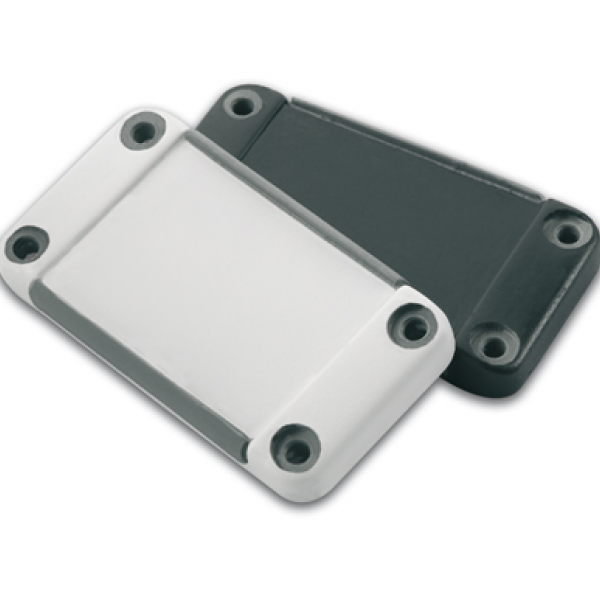

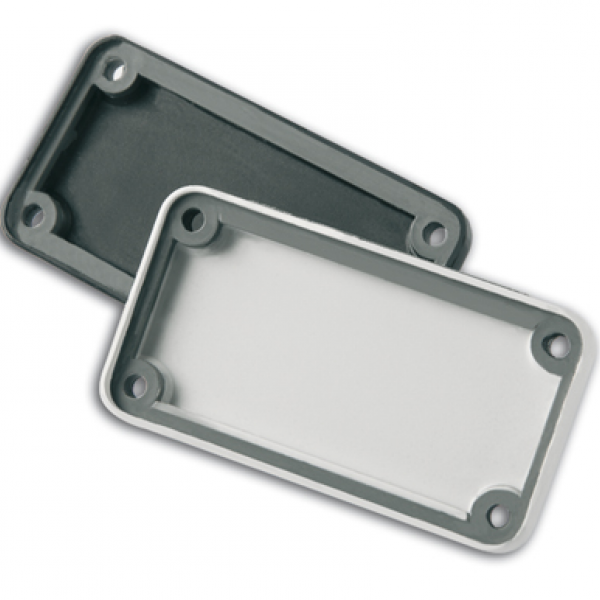

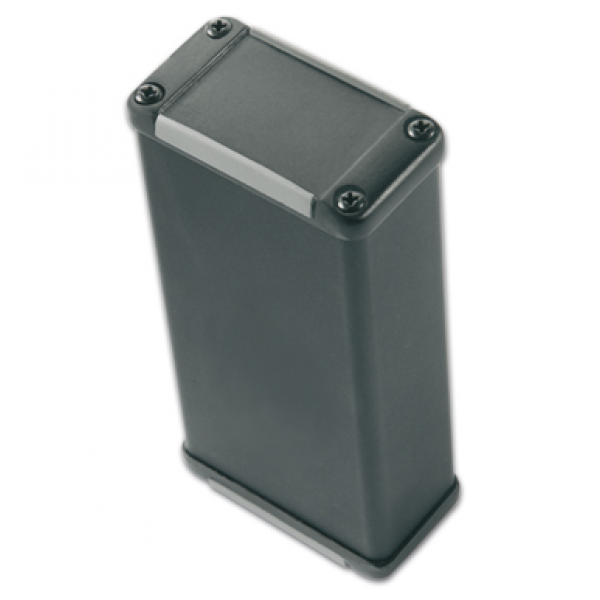

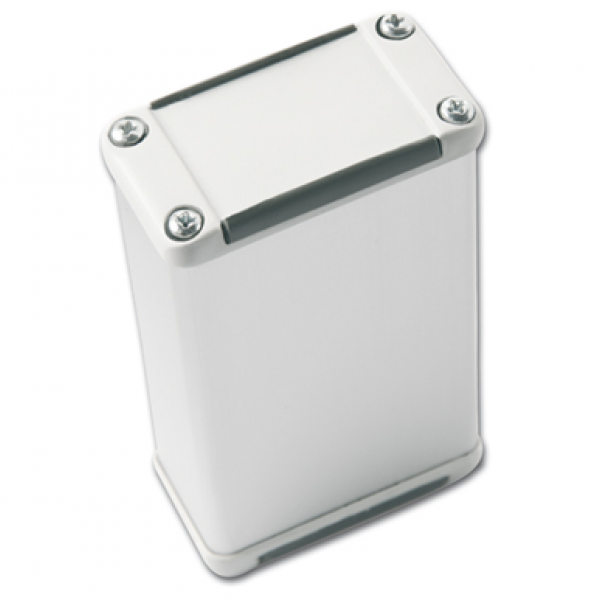

Series of small powder coating aluminium enclosures with multi-shot moulded (ABS+TPU) two-tone coloured front cover panels. They have co-moulded sealing to protect against water and from dust (IP65). The internal guides allow an easy assembly of PCB. Closing by eight screws.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

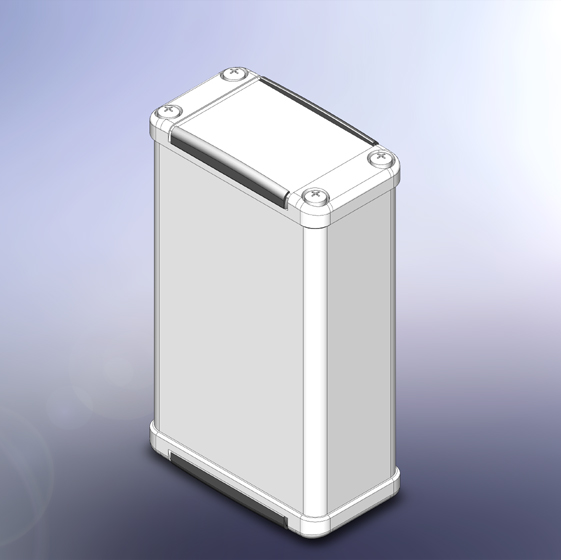

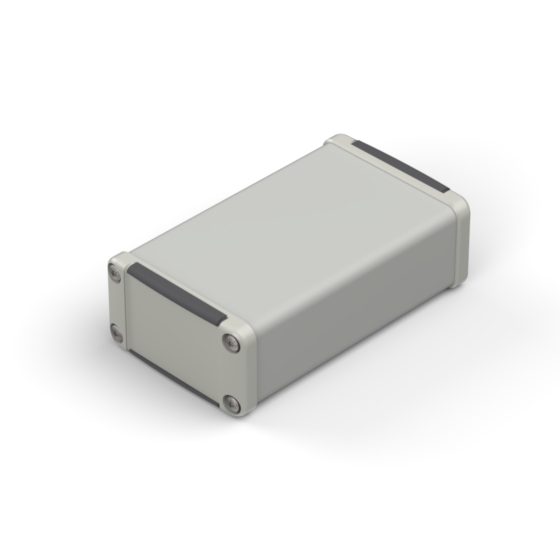

MTK465PK.1 | 75 | 44 | 24 |
9006 |
ALLOY 6060 - P2H-AT + 8020 | 65 | 39,4 | 8 |
PDF DWG |
View
|
||
|

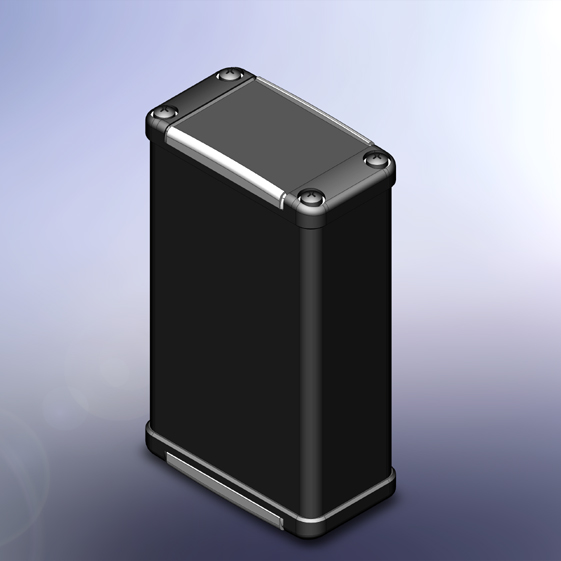

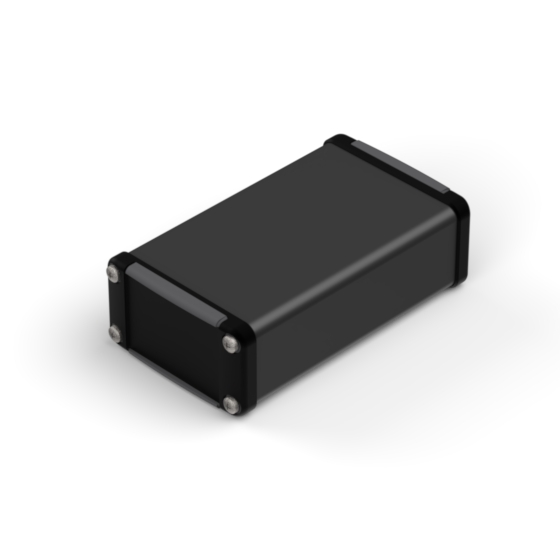

MTK465PK.9 | 75 | 44 | 24 |
9004 |
ALLOY 6060 - P2H-AT + 8020 | 65 | 39,4 | 8 |
PDF DWG |
View
|
||
|

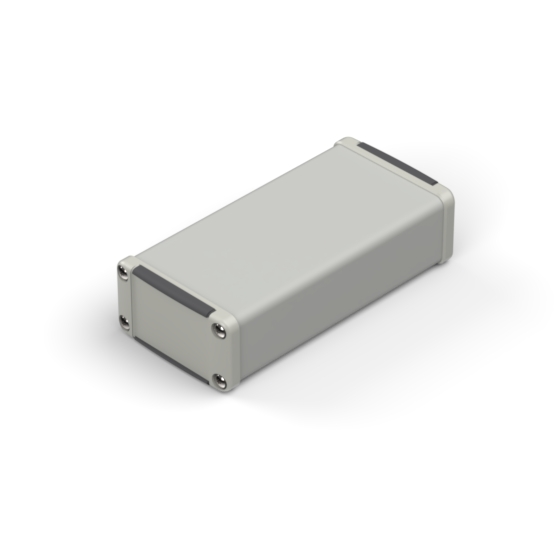

MTK480PK.1 | 90 | 44 | 24 |
9006 |
ALLOY 6060 - P2H-AT + 8020 | 80 | 39,4 | 8 |
PDF DWG |
View
|
||
|

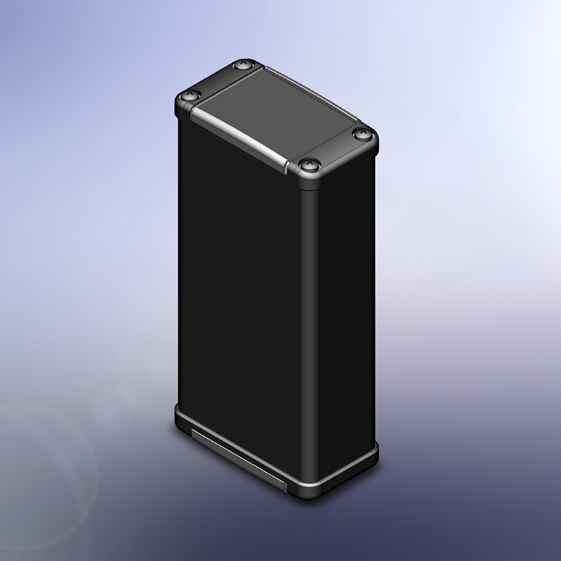

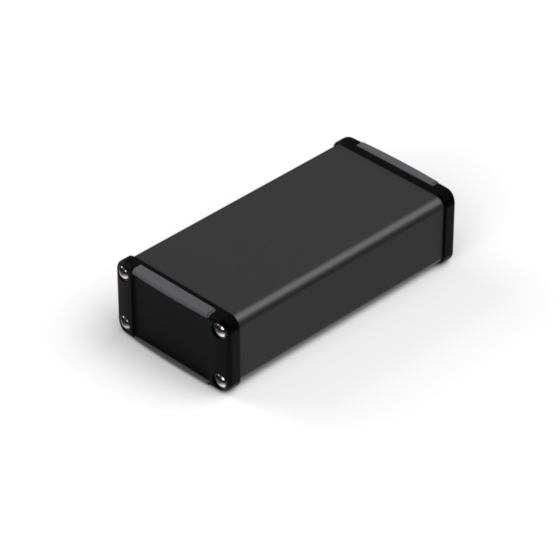

MTK480PK.9 | 90 | 44 | 24 |
9004 |
ALLOY 6060 - P2H-AT + 8020 | 80 | 39,4 | 8 |
PDF DWG |
View
|
||
|

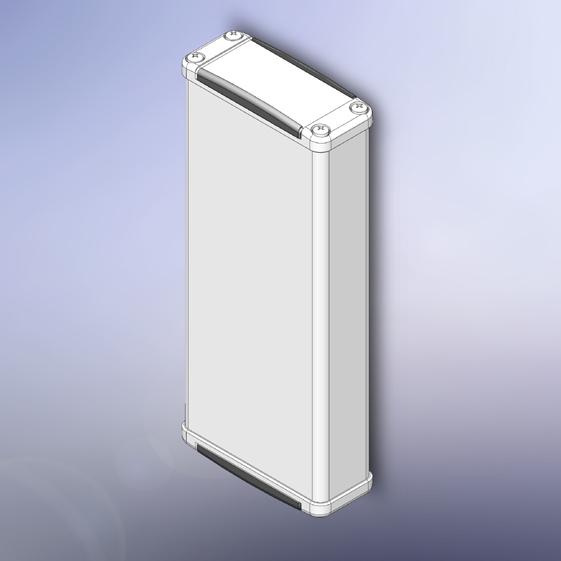

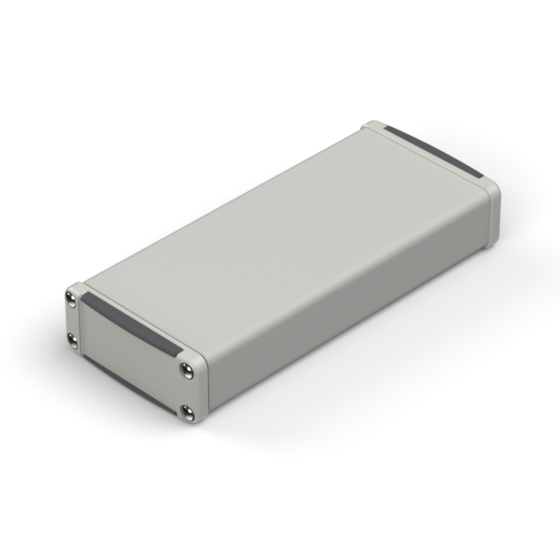

MTK5110PK.1 | 120 | 52 | 21 |
9006 |
ALLOY 6060 - P2H-AT + 8020 | 110 | 47 | 8 |
PDF DWG |
View
|
||
|

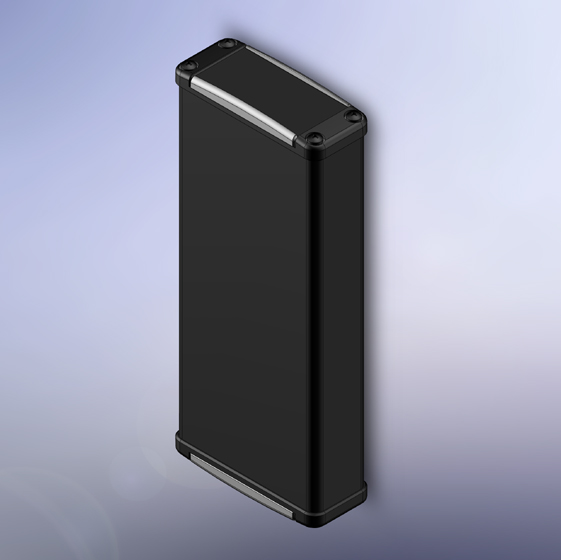

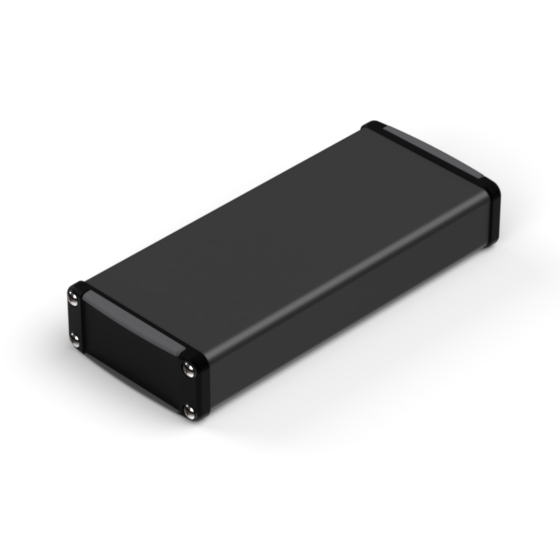

MTK5110PK.9 | 120 | 52 | 21 |
9004 |
ALLOY 6060 - P2H-AT + 8020 | 110 | 47 | 8 |
PDF DWG |
View
|
||
|

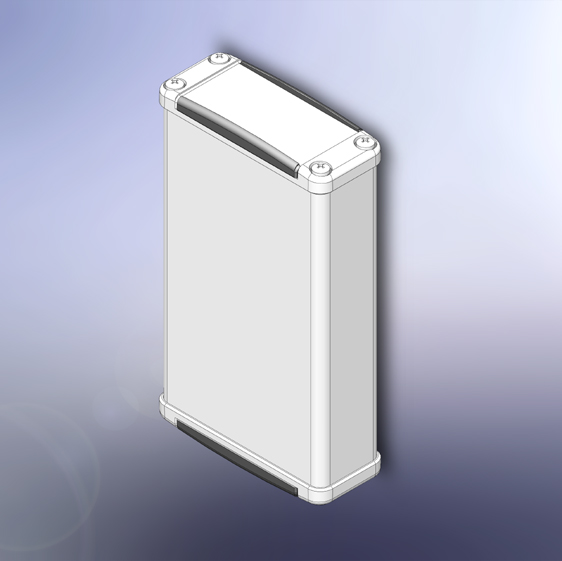

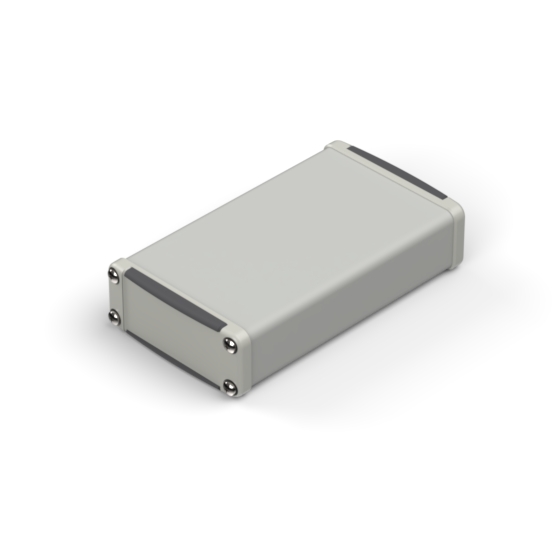

MTK580PK.1 | 90 | 52 | 21 |
9006 |
ALLOY 6060 - P2H-AT + 8020 | 80 | 47 | 8 |
PDF |
View
|
||
|

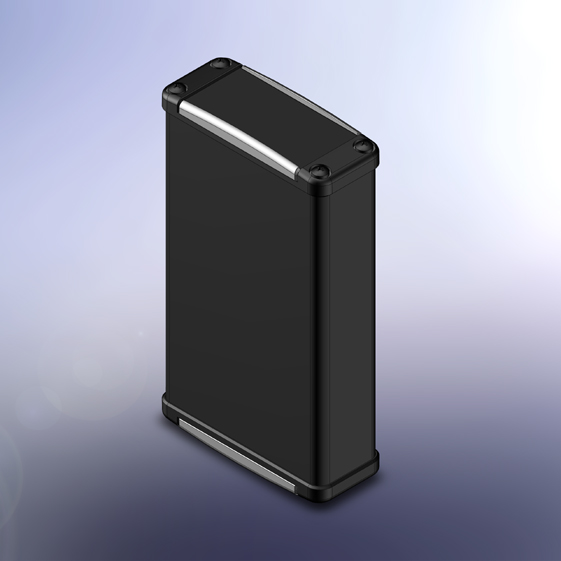

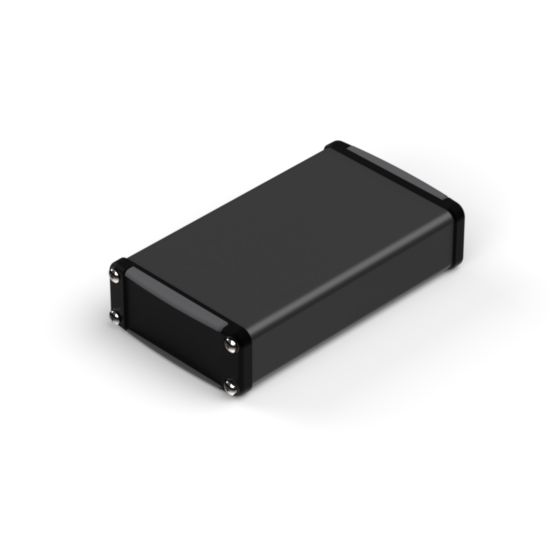

MTK580PK.9 | 90 | 52 | 21 |
9004 |
ALLOY 6060 - P2H-AT + 8020 | 80 | 47 | 8 |
PDF |
View
|
||
|

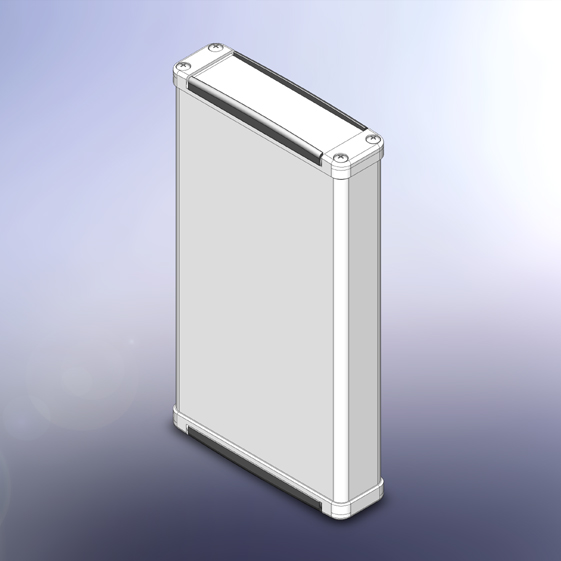

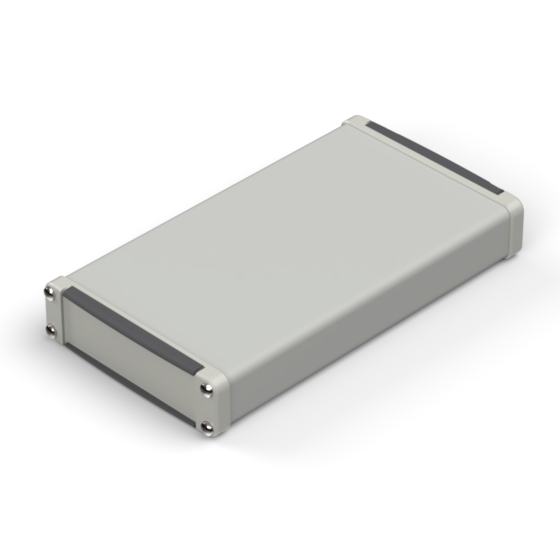

MTK6110PK.1 | 120 | 67 | 19 |
9006 |
ALLOY 6060 - P2H-AT + 8020 | 110 | 62,4 | 8 |
PDF DWG |
View
|
||
|

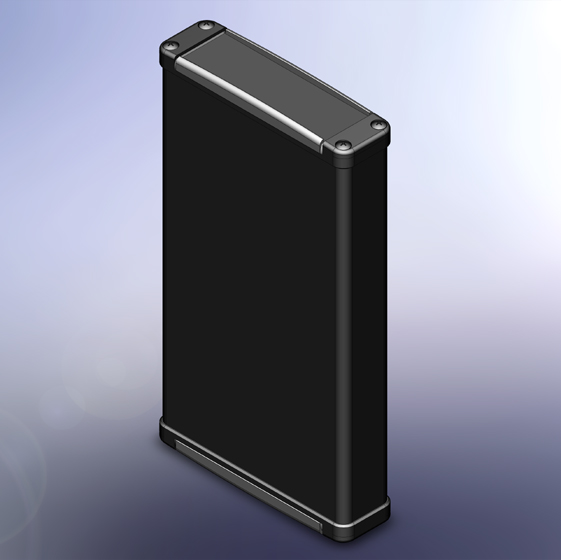

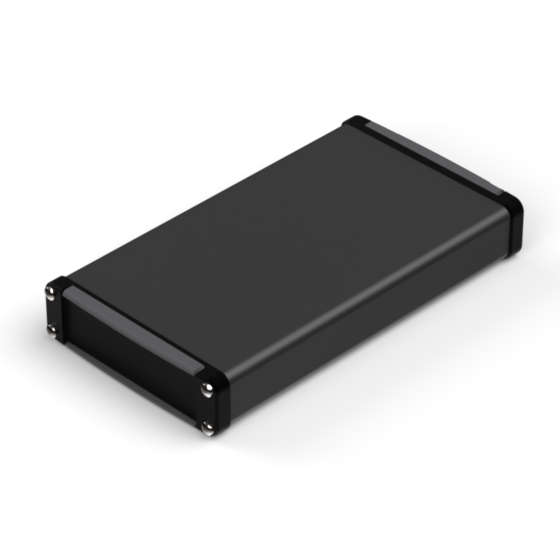

MTK6110PK.9 | 120 | 67 | 19 |
9004 |
ALLOY 6060 - P2H-AT + 8020 | 110 | 62,4 | 8 |
PDF DWG |
View
|
||
|

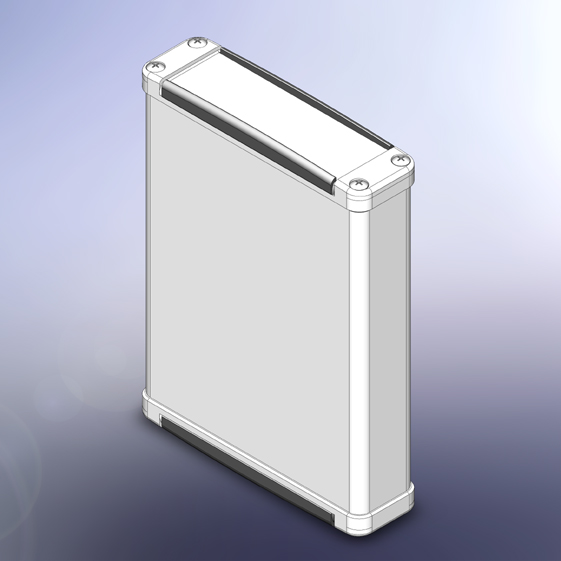

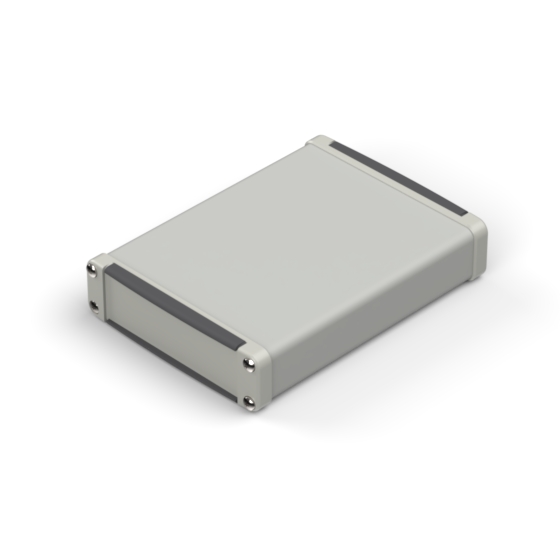

MTK680PK.1 | 90 | 67 | 19 |
9006 |
ALLOY 6060 - P2H-AT + 8020 | 80 | 62,4 | 8 |
PDF DWG |
View
|
||
|

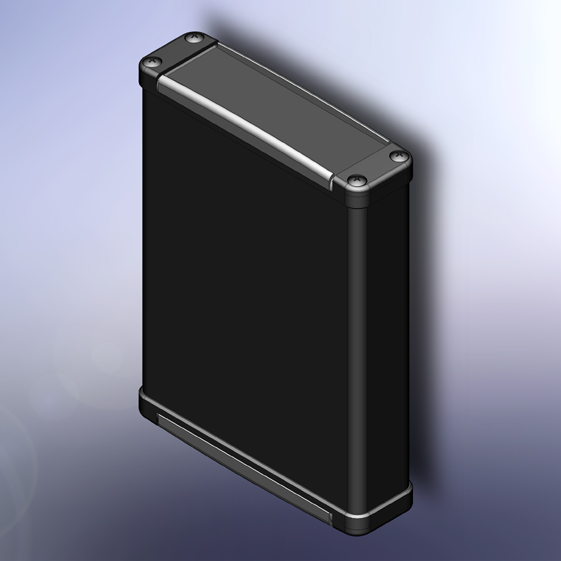

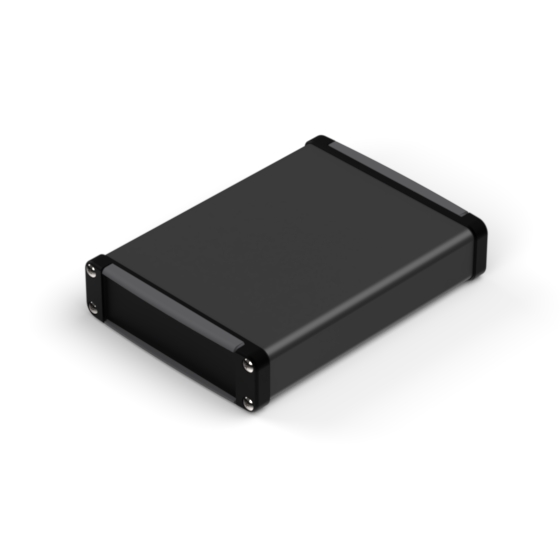

MTK680PK.9 | 90 | 67 | 19 |
9004 |
ALLOY 6060 - P2H-AT + 8020 | 80 | 62,4 | 8 |
PDF DWG |
View
|
