Description

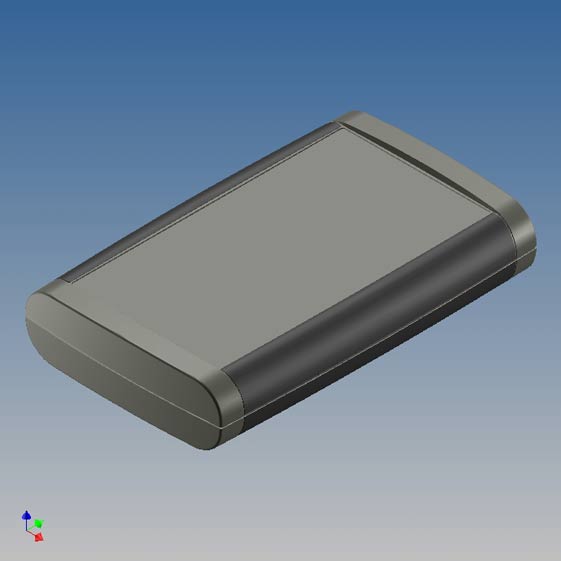

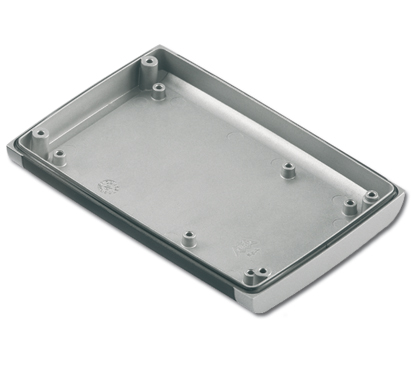

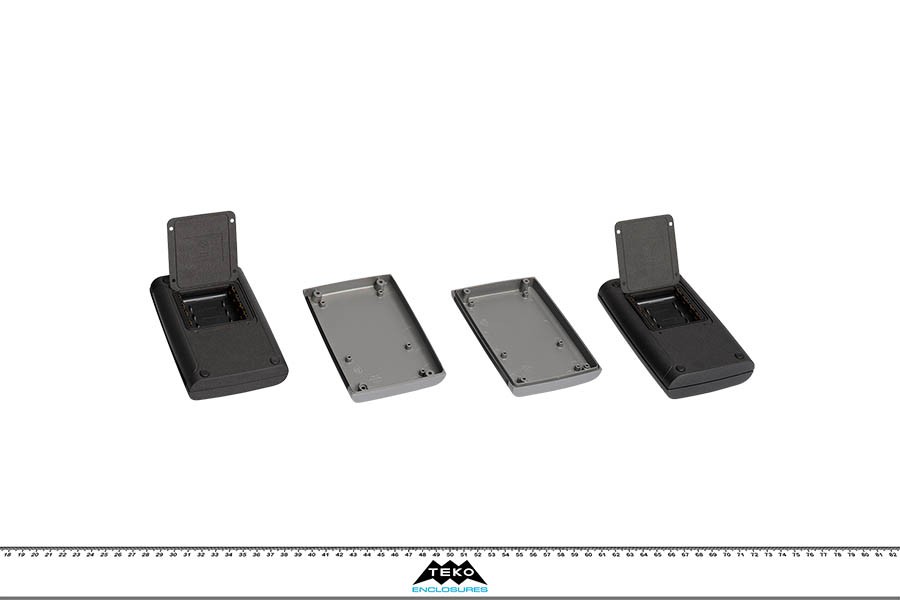

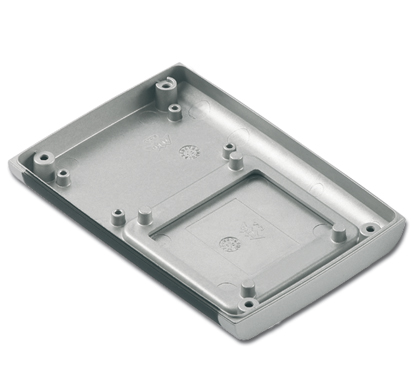

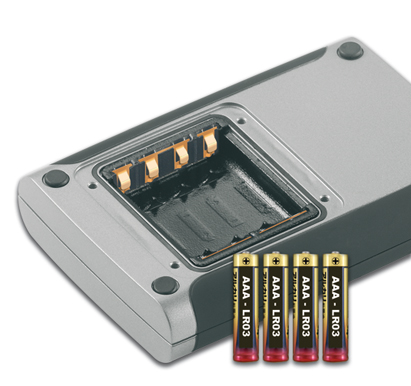

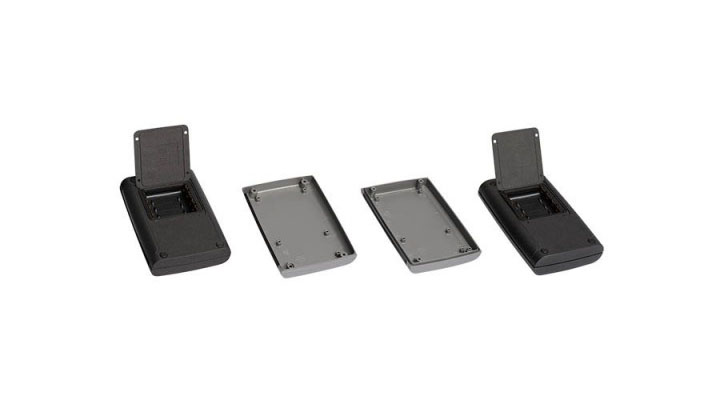

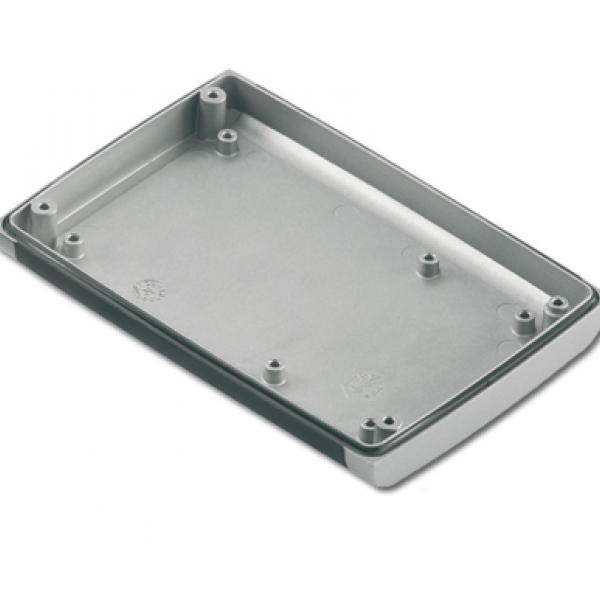

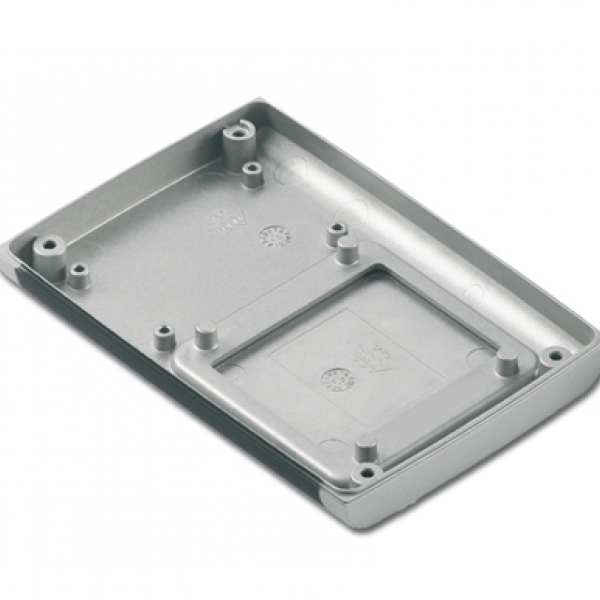

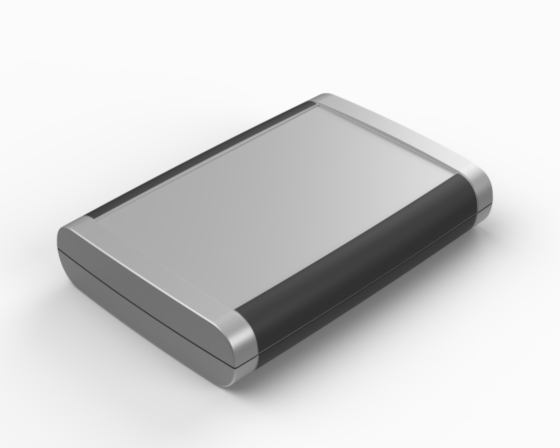

TEKO introduces a new model in the TEKMAG range with different dimensions. Hand-held enclosure , moulded in TEKNIUM®, a special magnesium alloy, that will convince You thanks to the ultra-light weight, the absolute strength, and the shielding properties of the three models available. The side profiles have a special black soft-feel surface to assure a secure grip. The model is equipped with IP67 sealing kits. The versions with “B” have a battery compartment for two 1,5 mignon cells (AAA) while the models with “B2” have a battery compartment for four 1,5V mignon cells (AAA). The recessed area on the covers can accept a keypad membrane or a LCD display. Closure by four screws. Two-tone colour version: Graphite grey /Black RAL 9004.
Details
Products
| |
|---|---|
| Model | MTG01-B2K.34 |
| L (mm) | 125 |
| W (mm) | 87 |
| H (mm) | 23,5 |
| Color (Ral) |
9004 |
| Material | AZ91D |
| MAX PCB L (mm) | 115 |
| MAX PCB W (mm) | 77 |
| Screws | 4+4 |
| Battery | 4 x AAA |
| Accessories | |
| Drawings |
PDF |
| Other |
View
|
| |
| Model | MTG01-BK.34 |
| L (mm) | 125 |
| W (mm) | 87 |
| H (mm) | 23,5 |
| Color (Ral) |
9004 |
| Material | AZ91D |
| MAX PCB L (mm) | 115 |
| MAX PCB W (mm) | 77 |
| Screws | 4+4 |
| Battery | 2 x AAA |
| Accessories | |
| Drawings |
PDF |
| Other |
View
|
| |
| Model | MTG01K.34 |
| L (mm) | 125 |
| W (mm) | 87 |
| H (mm) | 23,5 |
| Color (Ral) |
9004 |
| Material | AZ91D |
| MAX PCB L (mm) | 115 |
| MAX PCB W (mm) | 77 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MTG01-B2K.34 | 125 | 87 | 23,5 |
9004 |
AZ91D | 115 | 77 | 4+4 | 4 x AAA |
PDF |
View
|
|
|
|
MTG01-BK.34 | 125 | 87 | 23,5 |
9004 |
AZ91D | 115 | 77 | 4+4 | 2 x AAA |
PDF |
View
|
|
|
|
MTG01K.34 | 125 | 87 | 23,5 |
9004 |
AZ91D | 115 | 77 | 4 | - |
PDF |
View
|
