Description

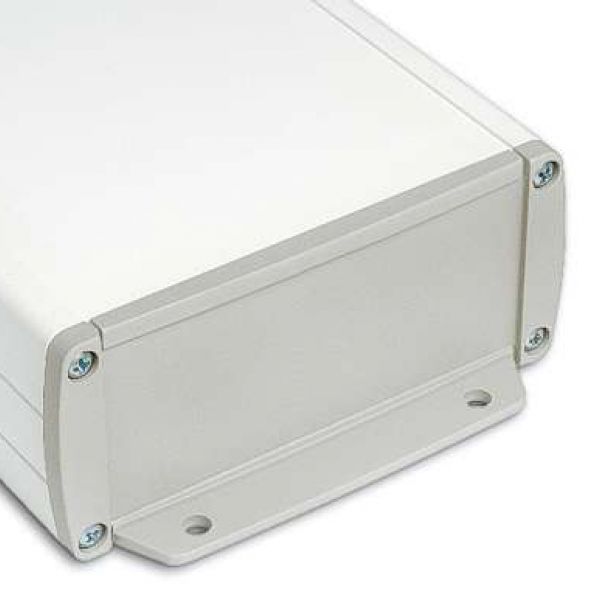

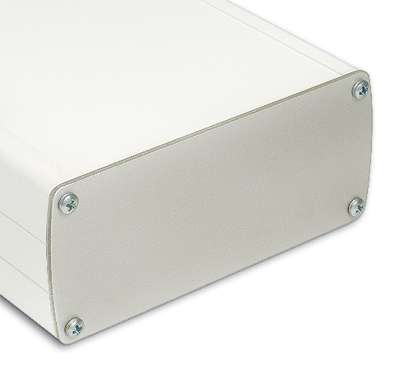

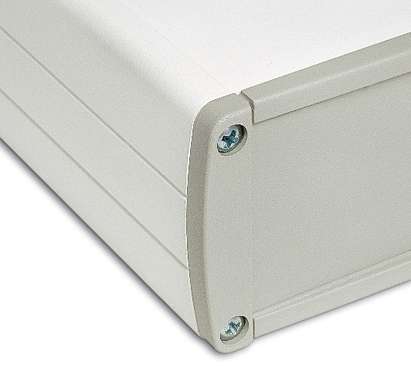

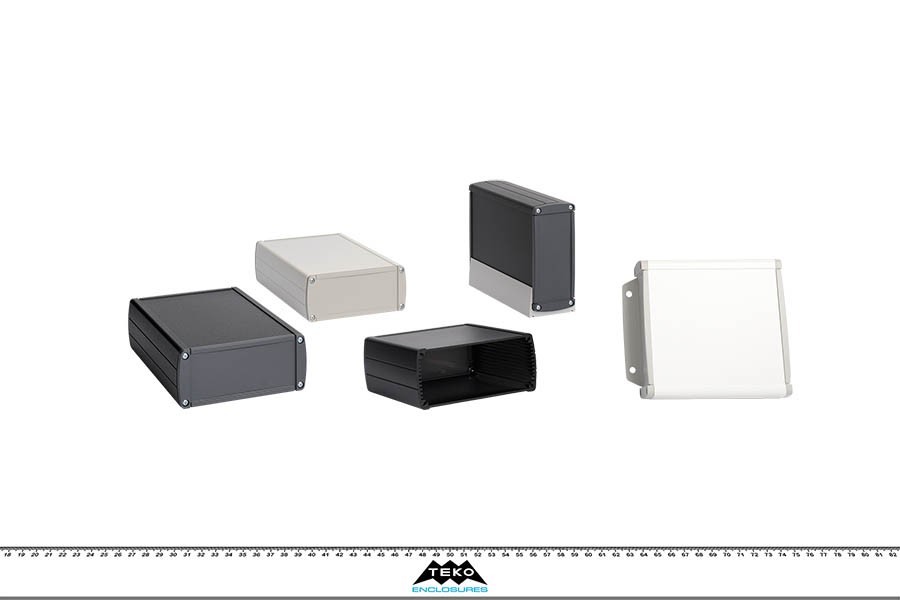

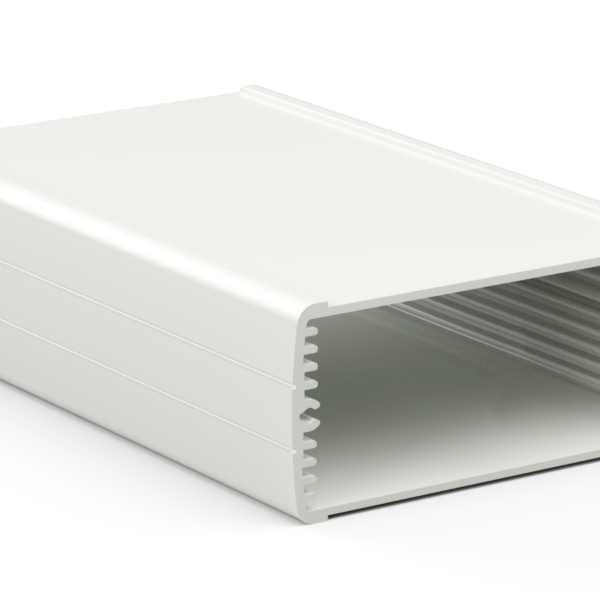

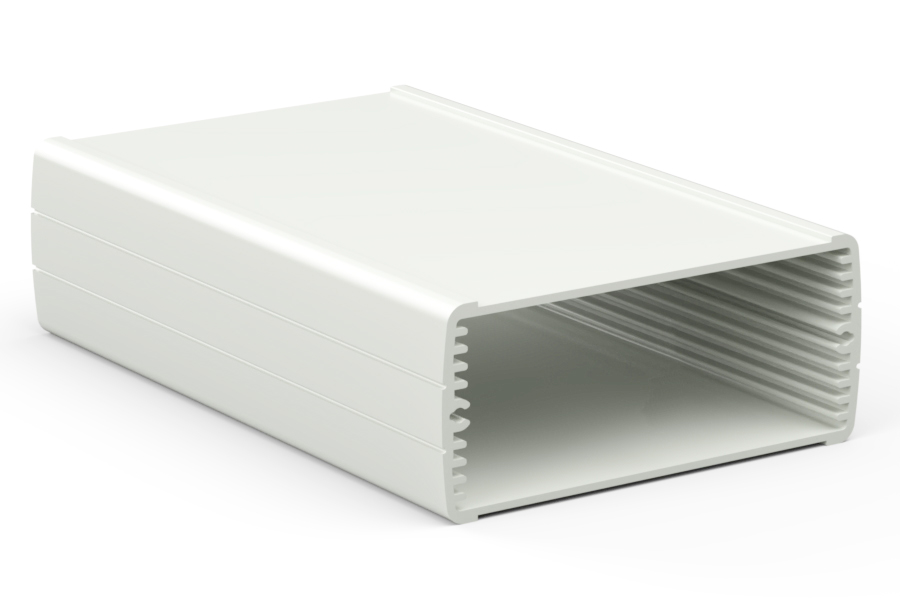

Extruded aluminium cases with high quality painted finishing. Two ABS front panels, internal slots for PCB’s and a recessed area for a keypad membrane. Six standard models are available with different sizes. The models with “-E” have mounting wall panels. Closing by eight screws
Details
Products
Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

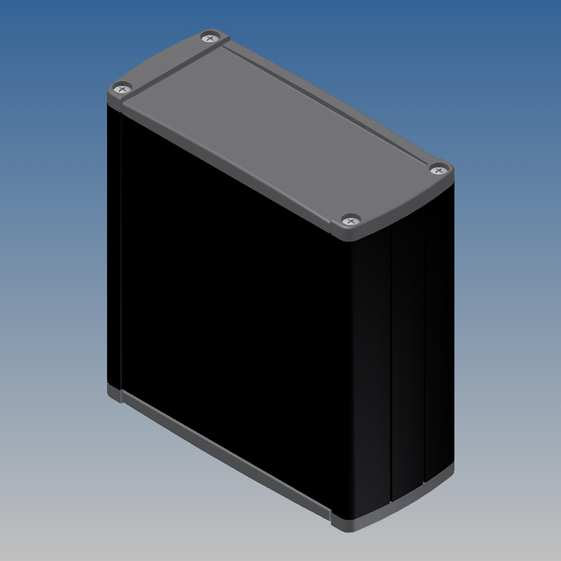

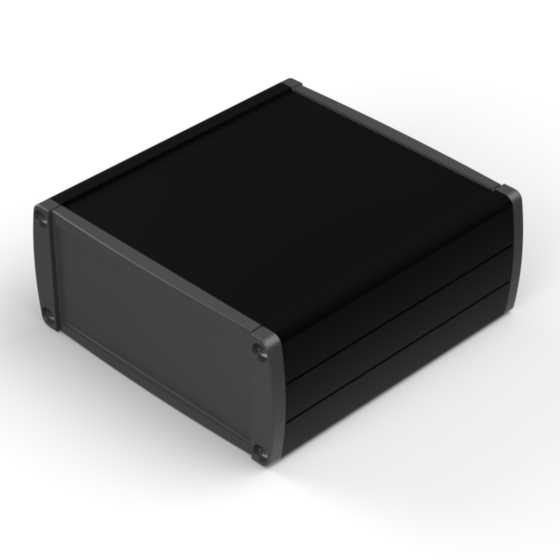

TEKAL-31.29 | 110 | 106 | 46 |
9004 7012 |
ALLOY 6060 - 1640 AS | 100 | 100,5 | 8 | - |

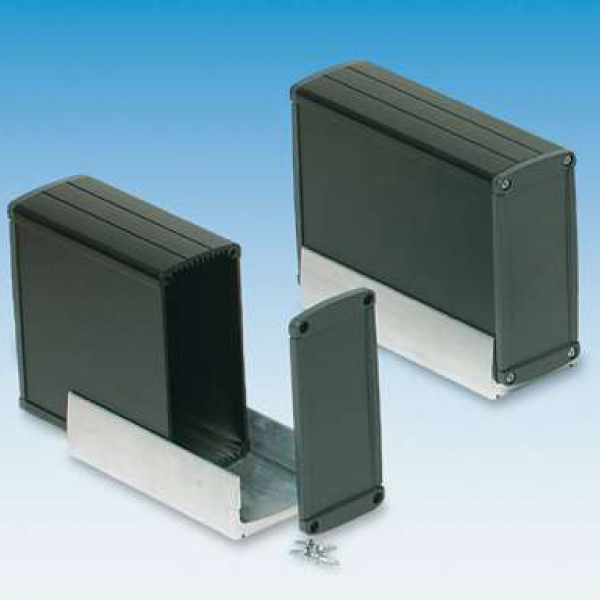

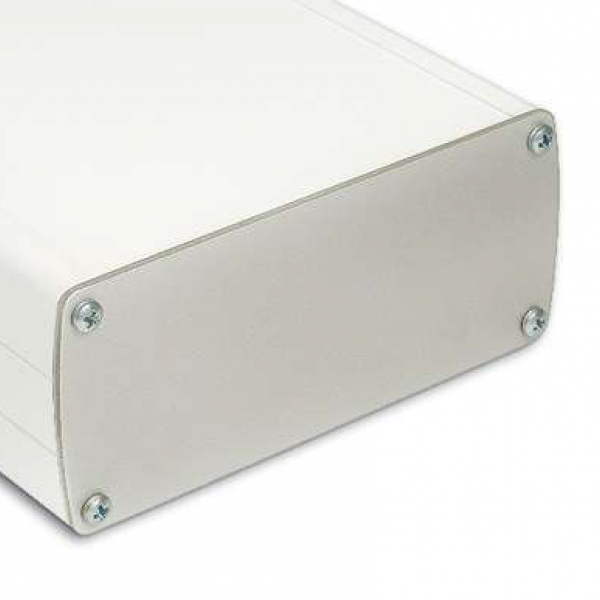

ALP-3 PPMT3 VS1 |
PDF DWG |
||

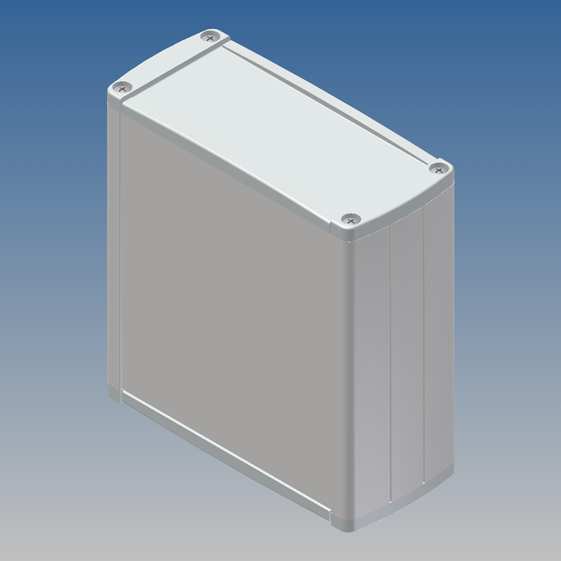

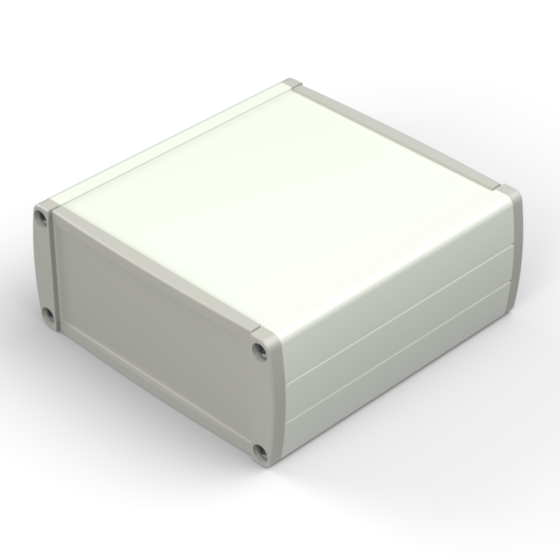

TEKAL-31.30 | 110 | 106 | 46 |
9002 9018 |
ALLOY 6060 - 1640 AS | 100 | 100,5 | 8 | - |
ALP-3 PPMT3 VS1 |
PDF DWG |
||

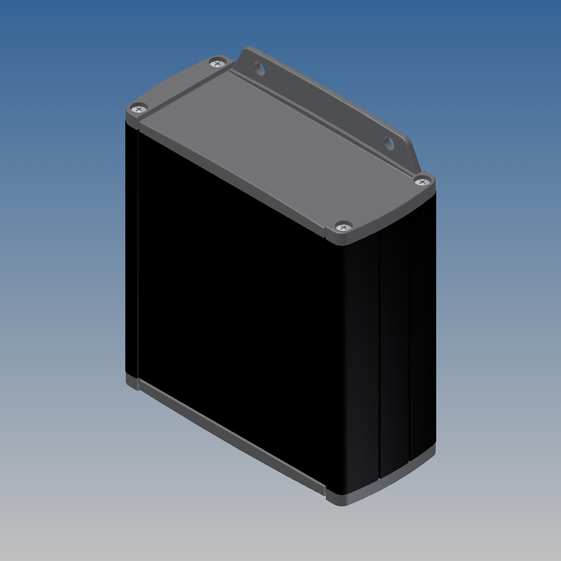

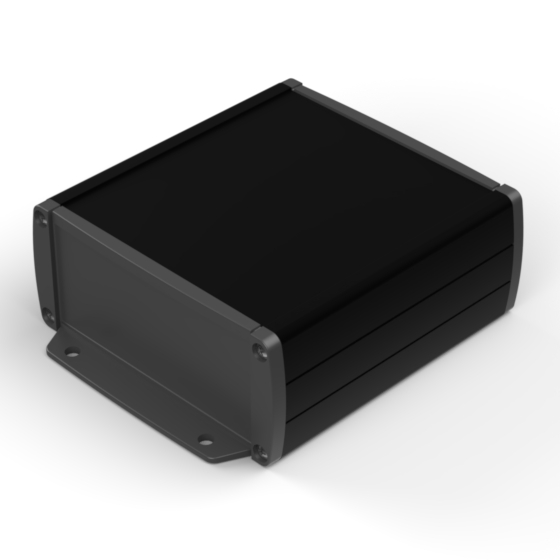

TEKAL-31/E.29 | 110 | 106 | 46 |
9004 7012 |
ALLOY 6060 - 1640 AS | 100 | 100,5 | 8 | - |
ALP-3 VS1 |
PDF DWG |
||

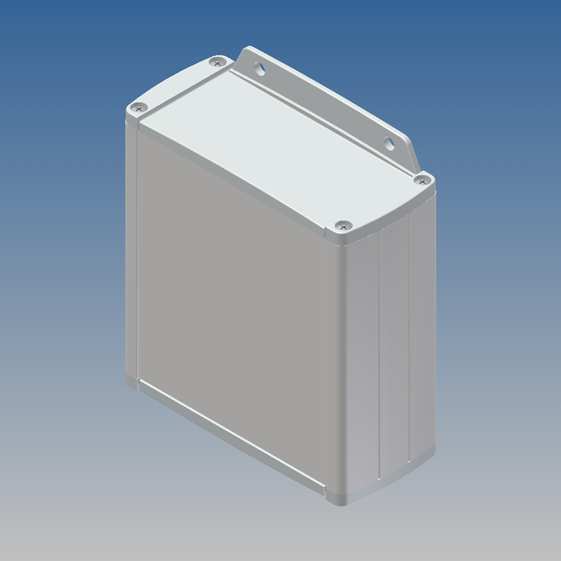

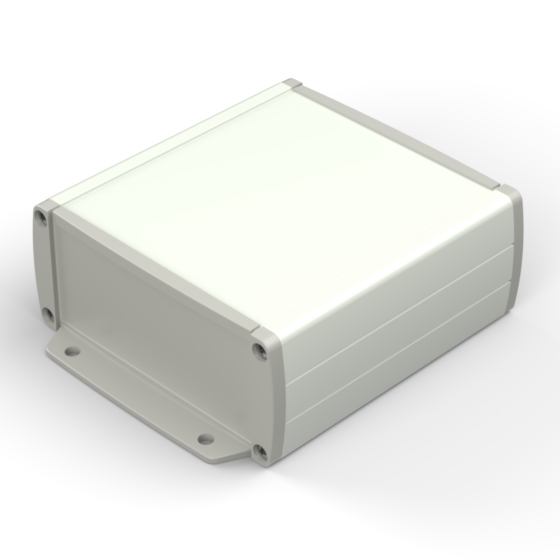

TEKAL-31/E.30 | 110 | 106 | 46 |
9002 9018 |
ALLOY 6060 - 1640 AS | 100 | 100,5 | 8 | - |
ALP-3 VS1 |
PDF DWG |
||

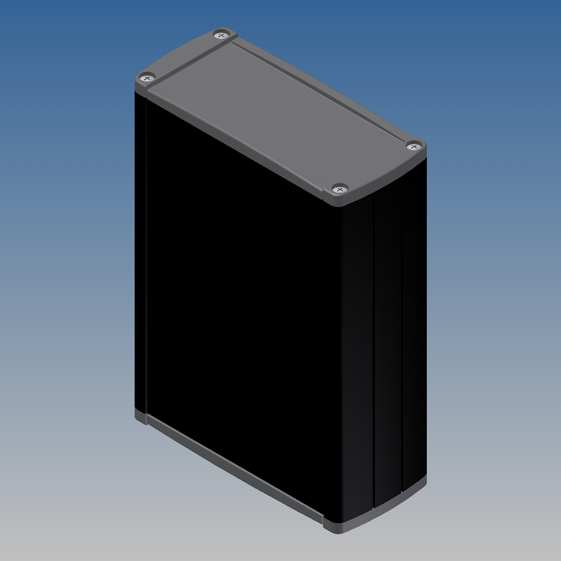

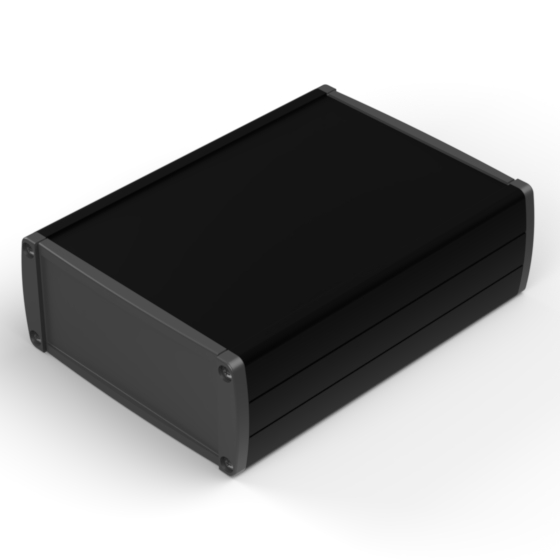

TEKAL-32.29 | 145 | 106 | 46 |
9004 7012 |
ALLOY 6060 - 1640 AS | 135 | 100,5 | 8 | - |
ALP-3 PPMT3 VS2 |
PDF DWG |
||

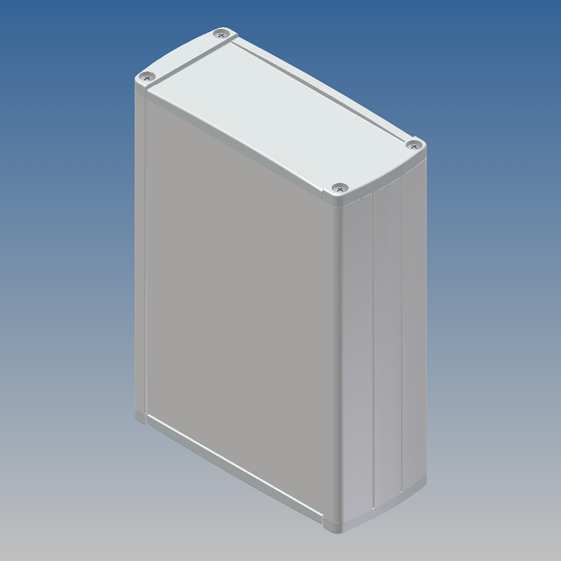

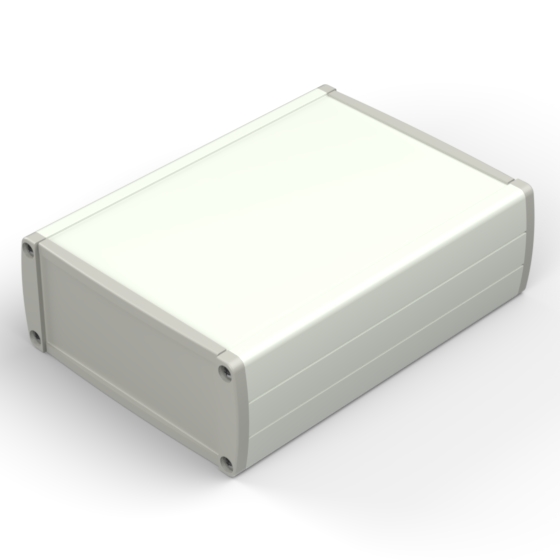

TEKAL-32.30 | 145 | 106 | 46 |
9002 9018 |
ALLOY 6060 - 1640 AS | 135 | 100,5 | 8 | - |
ALP-3 PPMT3 VS2 |
PDF DWG |
||

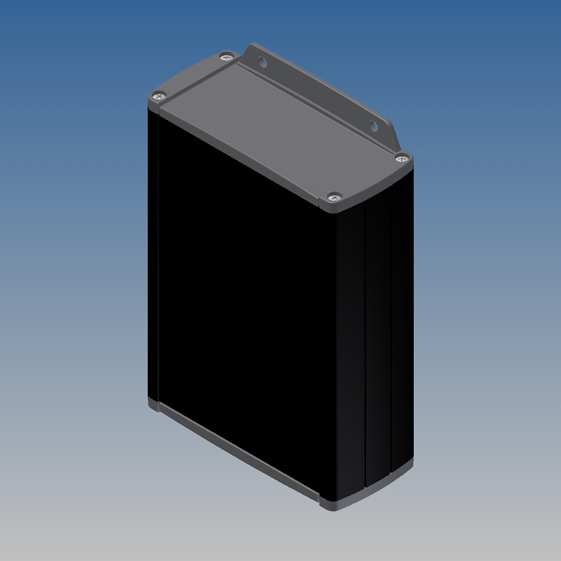

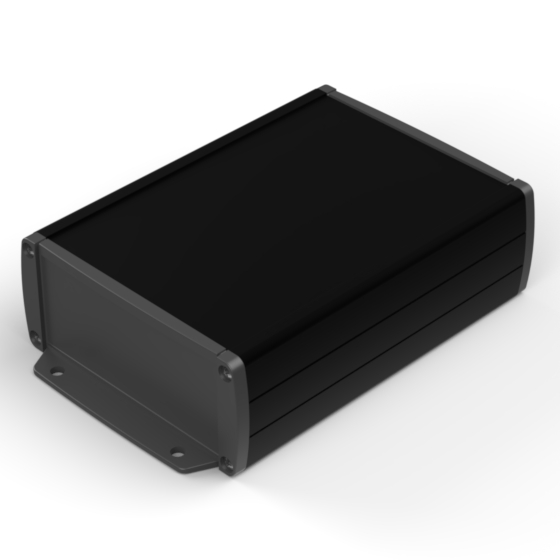

TEKAL-32/E.29 | 145 | 106 | 46 |
9004 7012 |
ALLOY 6060 - 1640 AS | 135 | 100,5 | 8 | - |
ALP-3 VS2 |
PDF DWG |
||

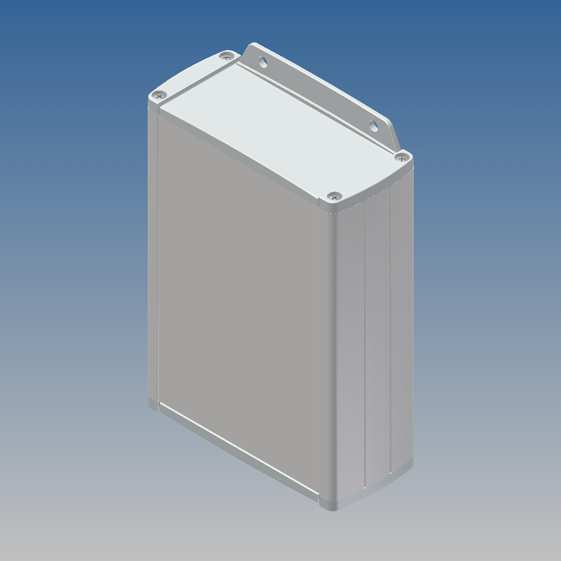

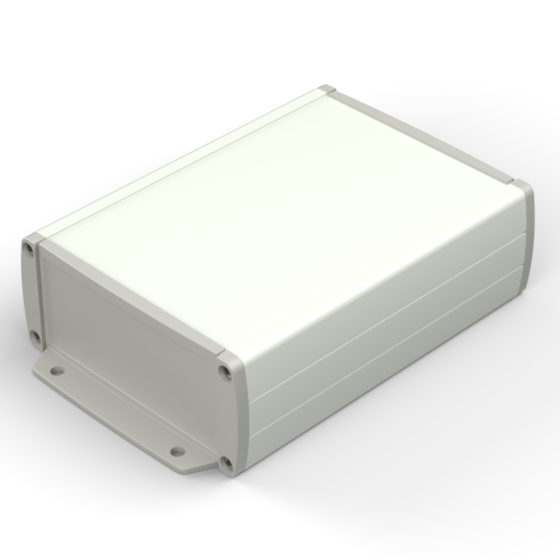

TEKAL-32/E.30 | 145 | 106 | 46 |
9002 9018 |
ALLOY 6060 - 1640 AS | 135 | 100,5 | 8 | - |
ALP-3 VS2 |
PDF DWG |
||

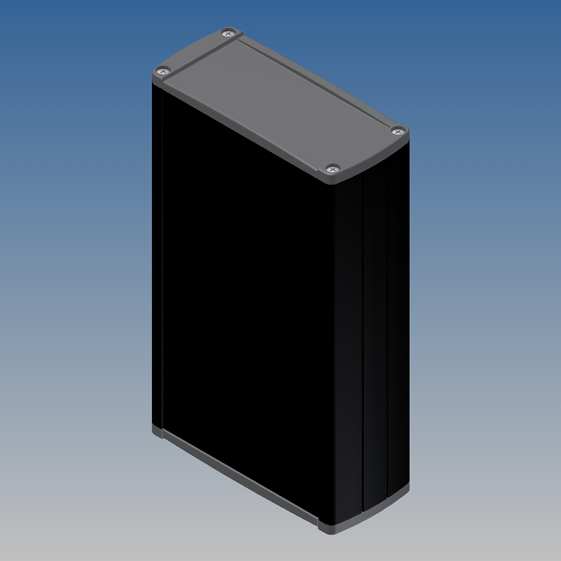

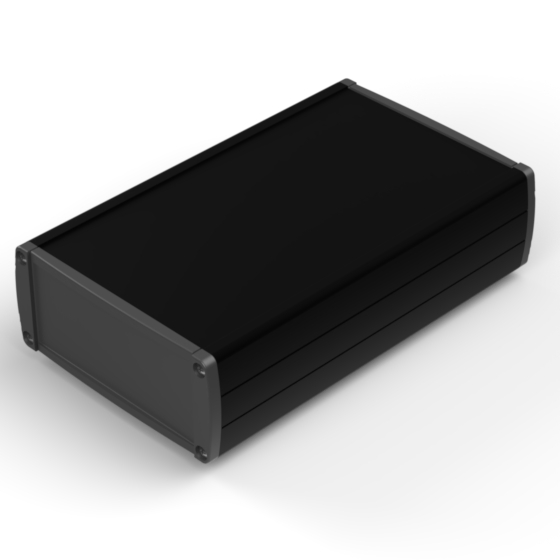

TEKAL-33.29 | 175 | 106 | 46 |
9004 7012 |
ALLOY 6060 - 1640 AS | 165 | 100,5 | 8 | - |
ALP-3 PPMT3 VS3 |
PDF DWG |
||

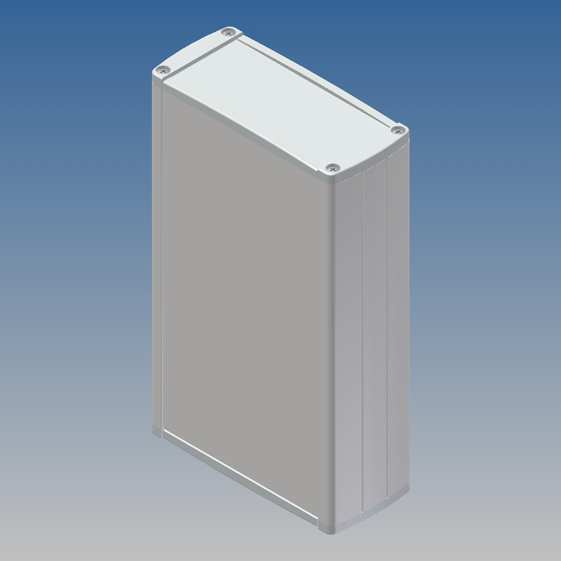

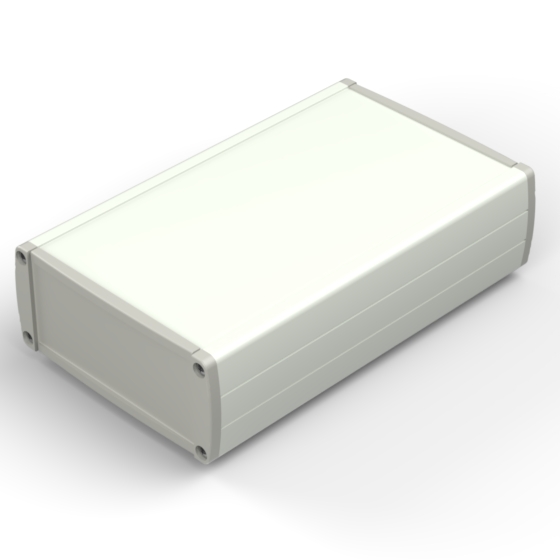

TEKAL-33.30 | 175 | 106 | 46 |
9002 9018 |
ALLOY 6060 - 1640 AS | 165 | 100,5 | 8 | - |
ALP-3 PPMT3 VS3 |
PDF DWG |
||

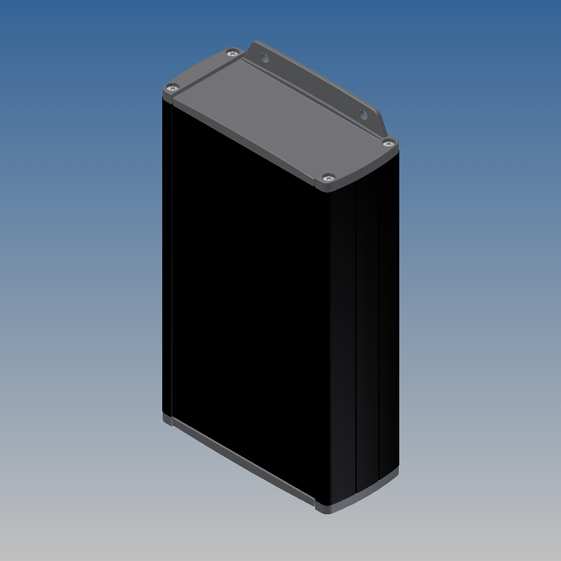

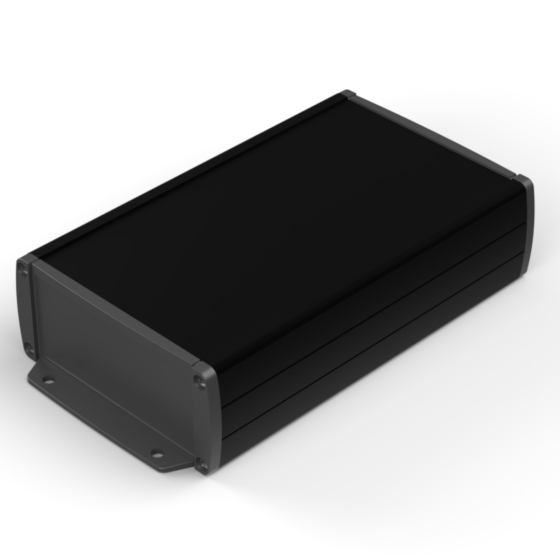

TEKAL-33/E.29 | 175 | 106 | 46 |
9004 7012 |
ALLOY 6060 - 1640 AS | 165 | 100,5 | 8 | - |
ALP-3 VS3 |
PDF DWG |
||

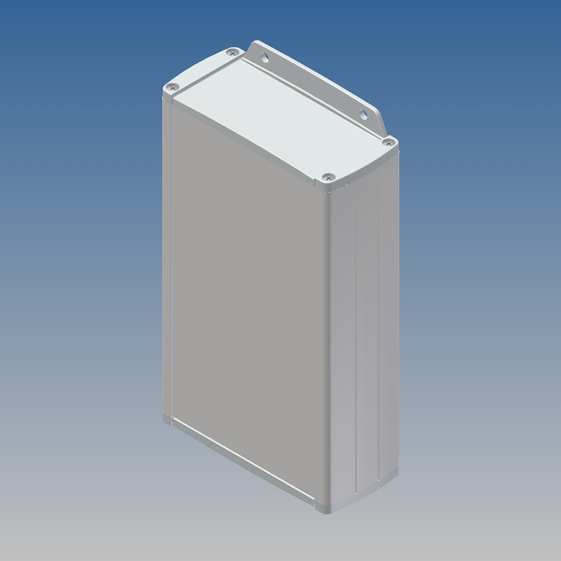

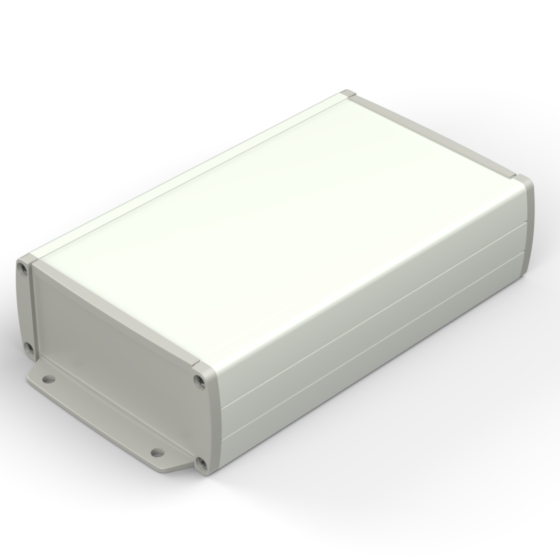

TEKAL-33/E.30 | 175 | 106 | 46 |
9002 9018 |
ALLOY 6060 - 1640 AS | 165 | 100,5 | 8 | - |
ALP-3 VS3 |
PDF DWG |
