Description

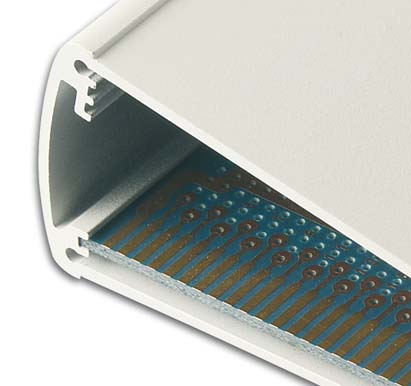

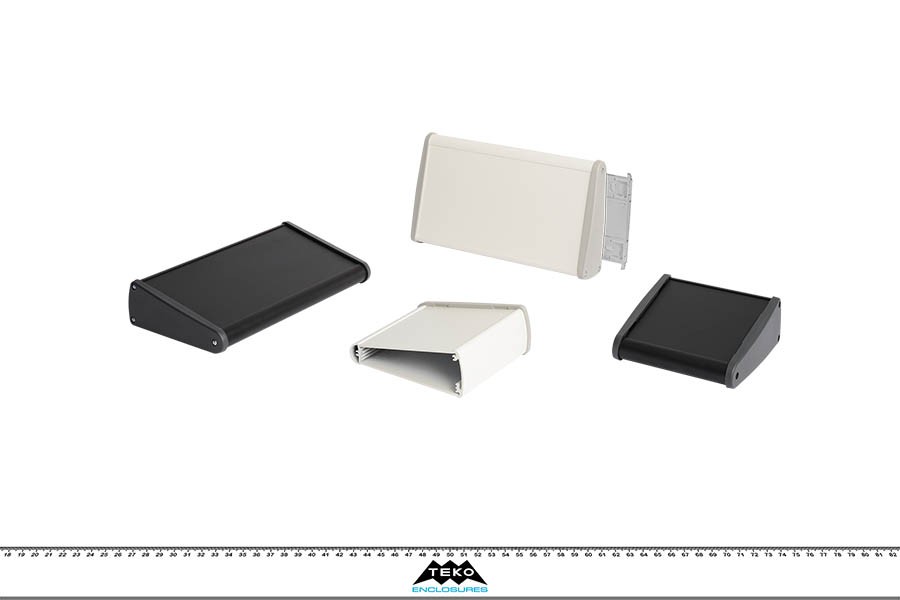

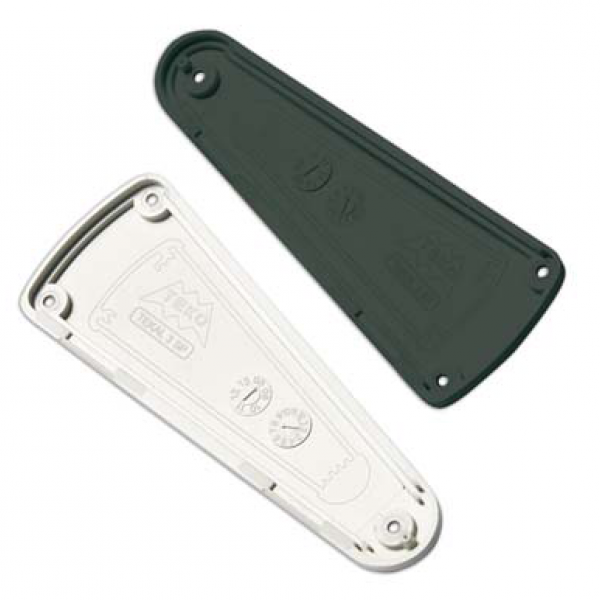

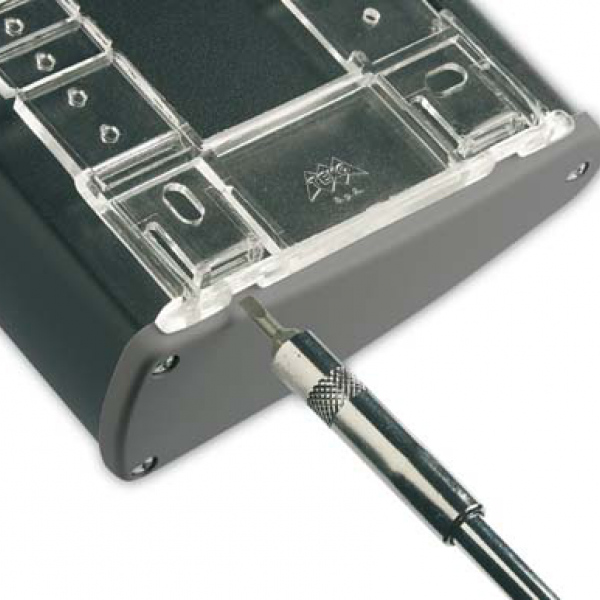

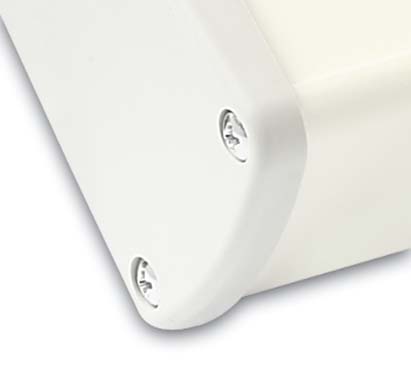

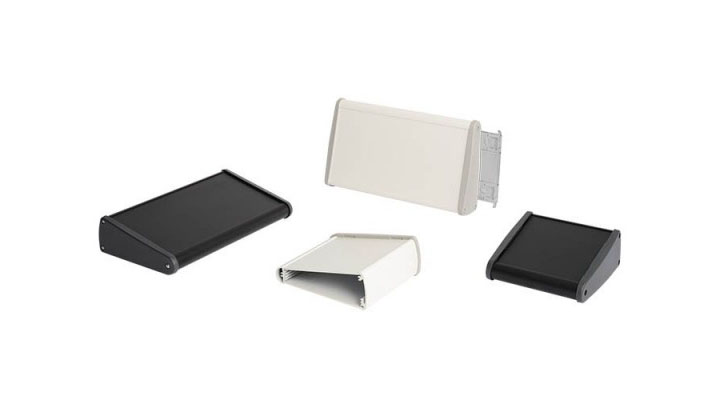

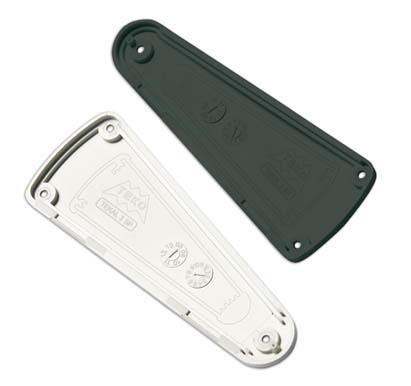

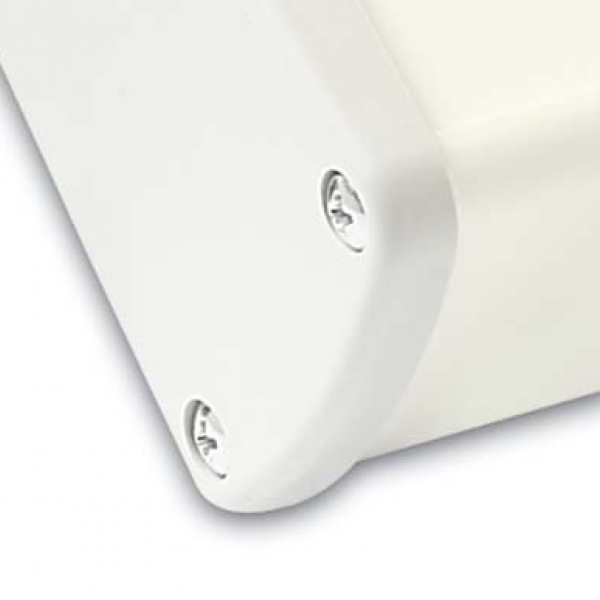

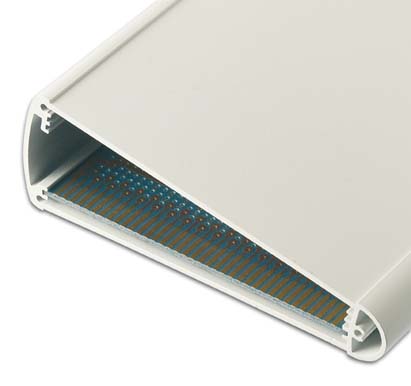

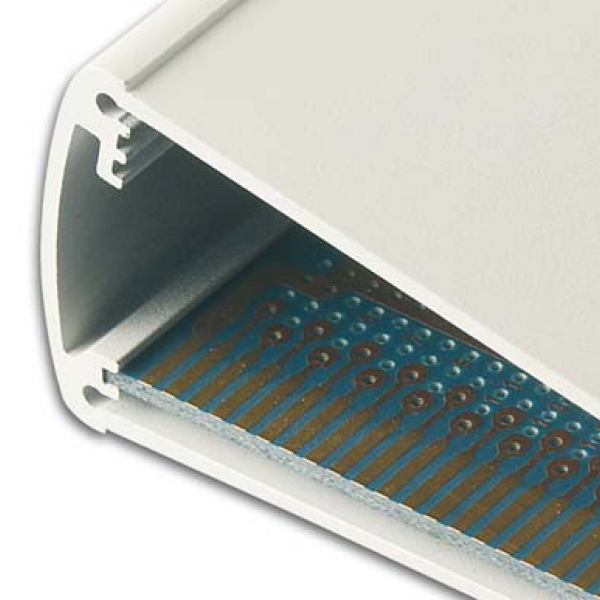

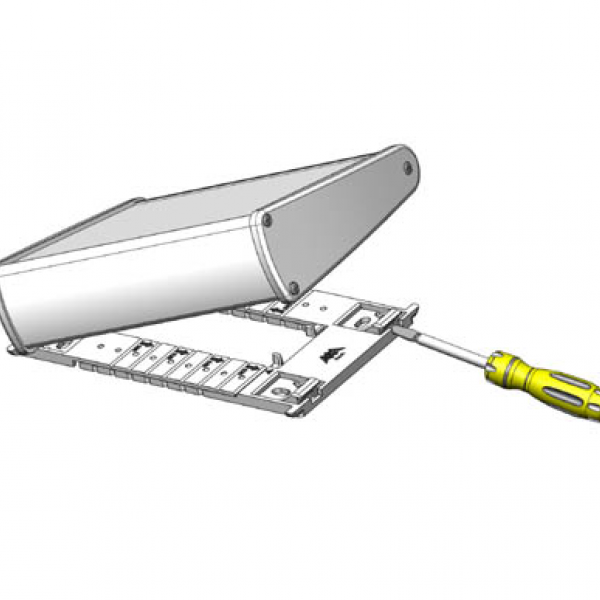

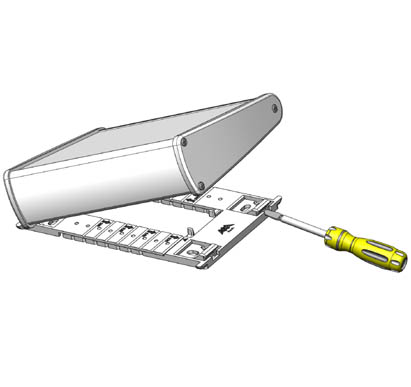

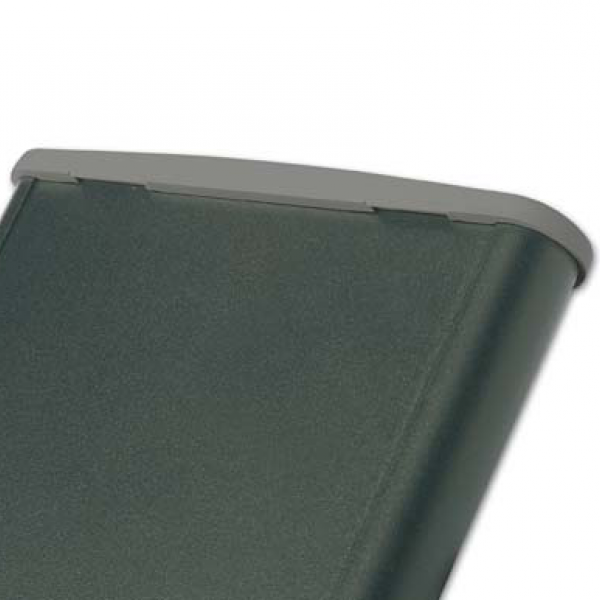

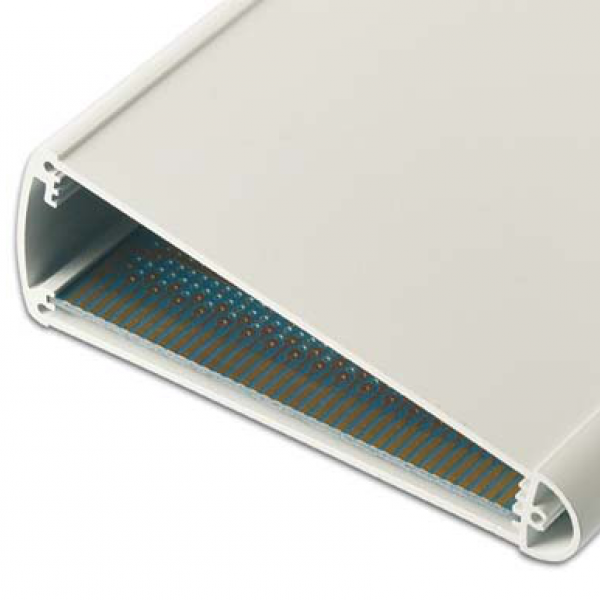

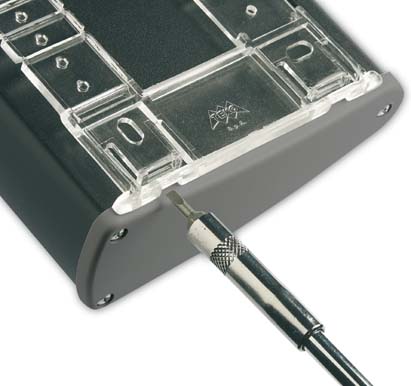

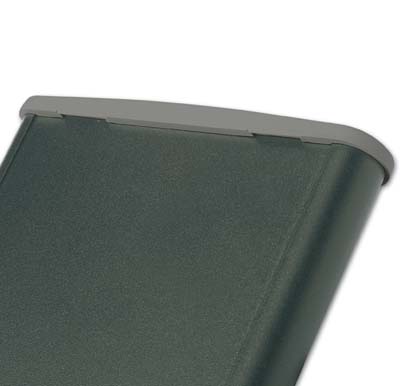

Inclined extruded aluminium case with high quality painted finishing. Two ABS side panels, internal guides for PCB, recessed area for membrane keypad.Closing by six screws. Two colours combinations: black RAL 9004 / grey RAL 7012 - white RAL 9002 / light grey RAL 9018. Upon request wall-suspension element “MT7.0”.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

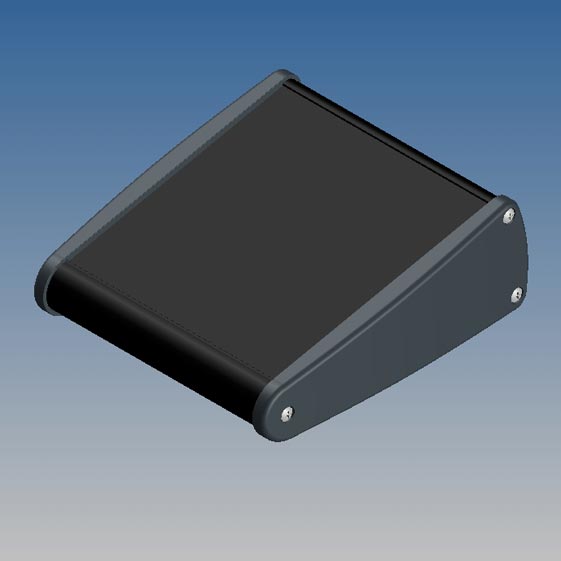

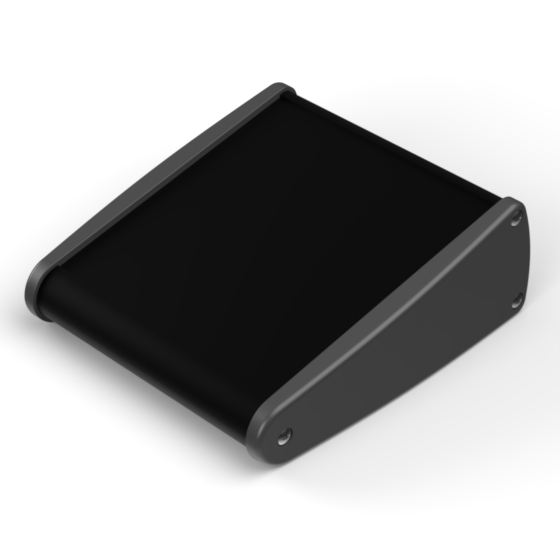

TEKAL-31SP.29 | 111 | 121 | 44 |
9004 7012 |
ALLOY 6060 - 1640 AS | 100 | 100 | 6 | - |
MT7 |
PDF DWG |
|
|

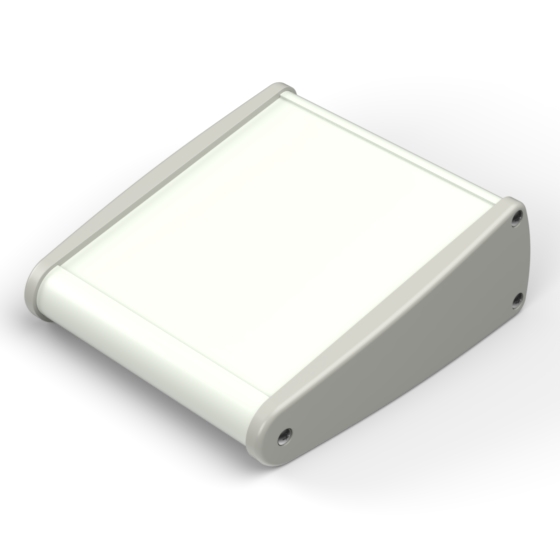

TEKAL-31SP.30 | 111 | 121 | 44 |
9002 9018 |
ALLOY 6060 - 1640 AS | 100 | 100 | 6 | - |
MT7 |
PDF DWG |
|
|

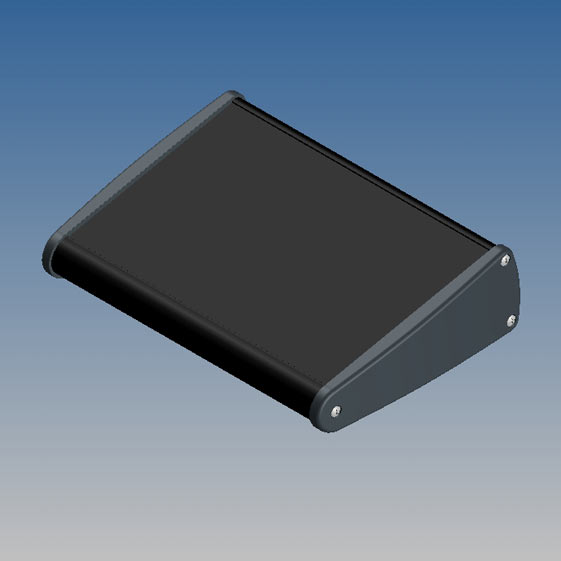

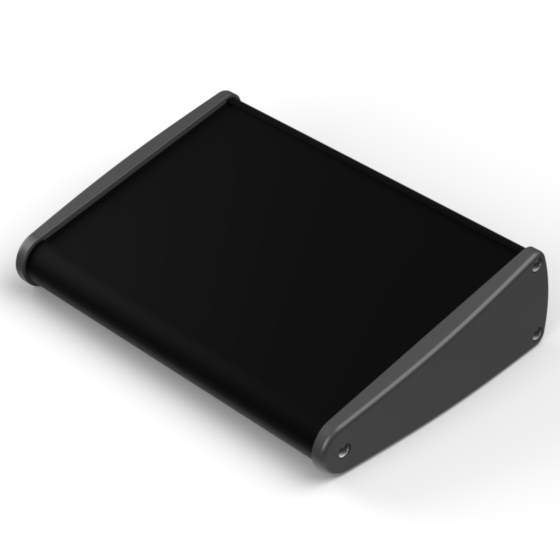

TEKAL-32SP.29 | 171 | 121 | 44 |
9004 7012 |
ALLOY 6060 - 1640 AS | 160 | 100 | 6 | - |
MT7 |
PDF DWG |
|
|

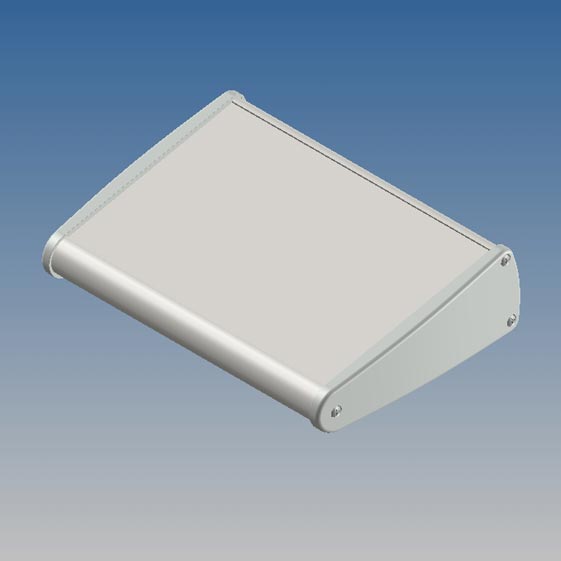

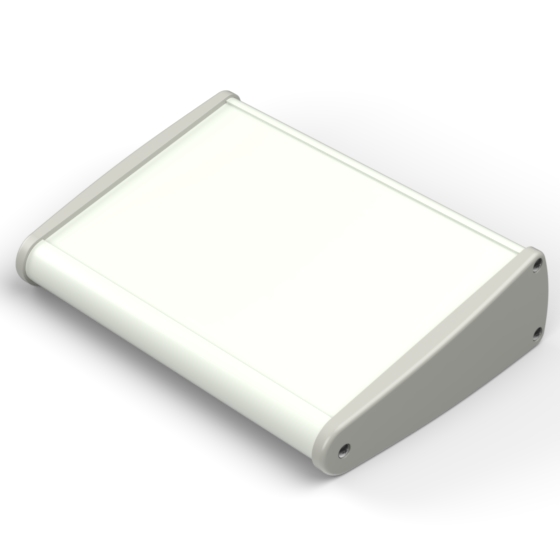

TEKAL-32SP.30 | 171 | 121 | 44 |
9002 9018 |
ALLOY 6060 - 1640 AS | 160 | 100 | 6 | - |
MT7 |
PDF DWG |
|
|

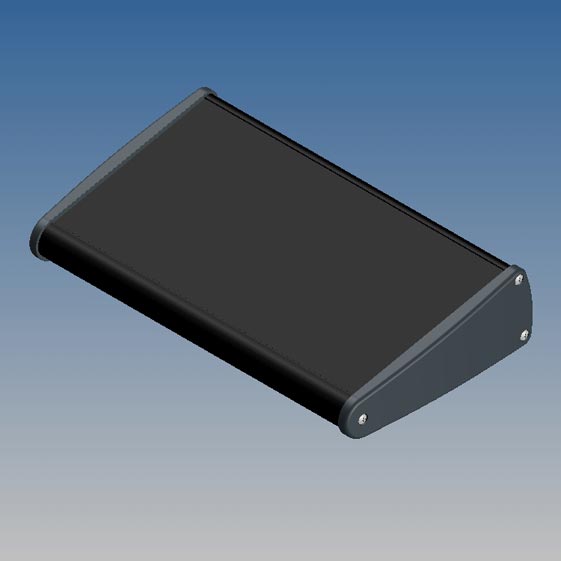

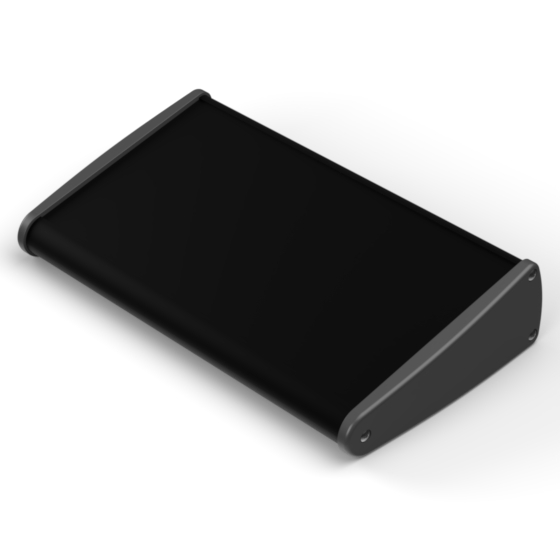

TEKAL-33SP.29 | 211 | 121 | 44 |
9004 7012 |
ALLOY 6060 - 1640 AS | 200 | 100 | - |
MT7 |
PDF DWG |
||
|

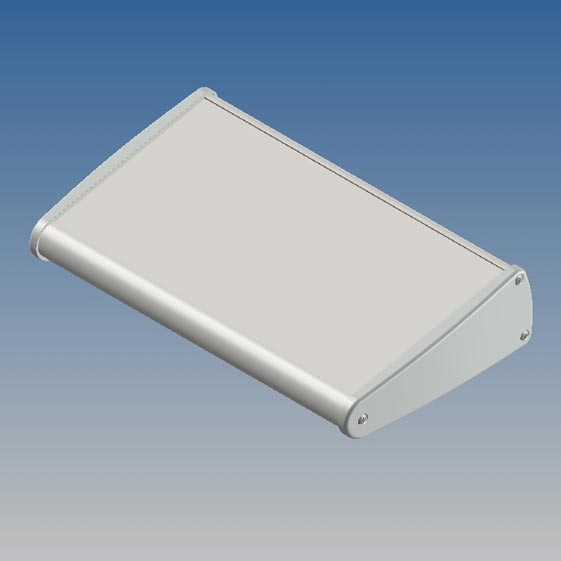

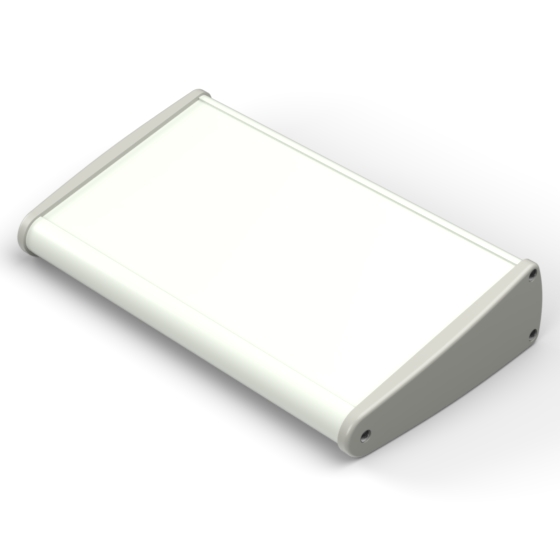

TEKAL-33SP.30 | 211 | 121 | 44 |
9002 9018 |
ALLOY 6060 - 1640 AS | 200 | 100 | - |
MT7 |
PDF DWG |
