CAB B

Family Front Panel - Electronic enclosures - Plastic

CAB B

Description

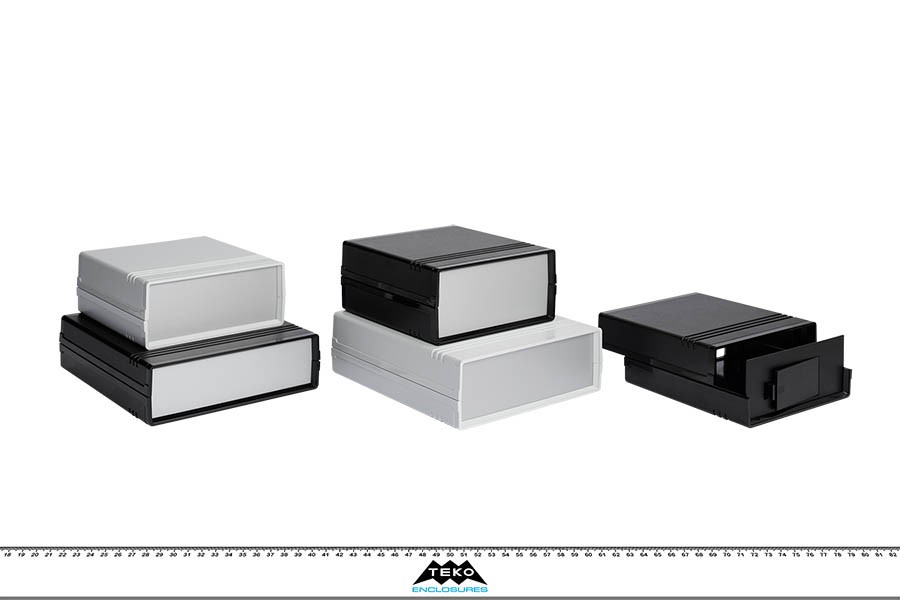

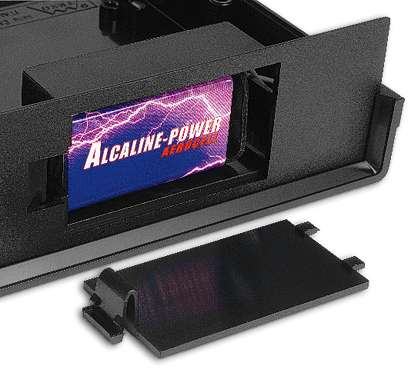

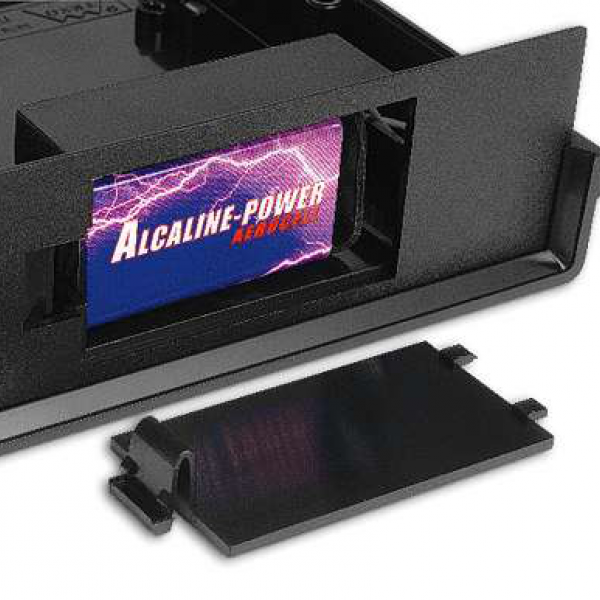

An ABS enclosure with a 9V battery compartment in the rear panel. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. Closing by only two screws. Available also ABS front panels (.13).

Details

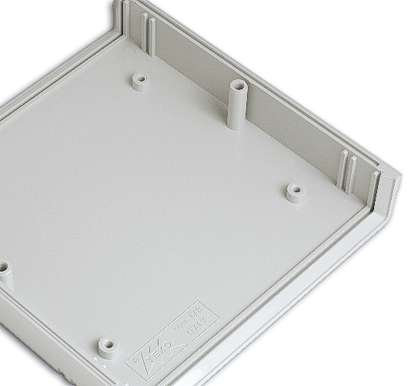

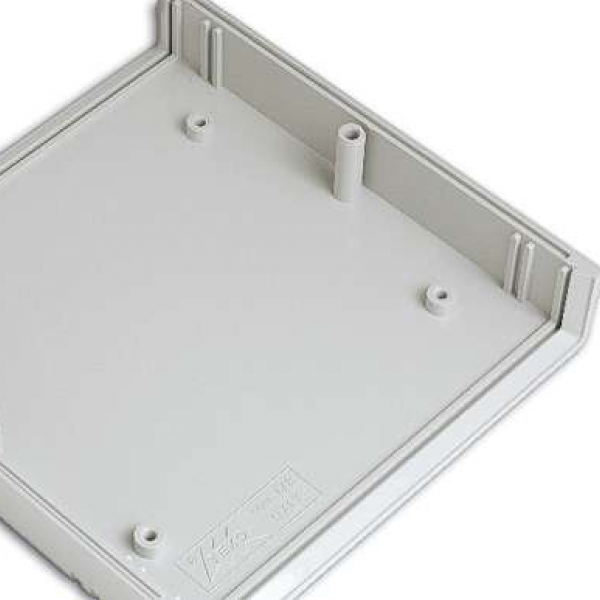

CAB B - dettaglio 1

CAB B - dettaglio 2

Products

	Model	L (mm)	W (mm)	H (mm)	Color (Ral)	Material	MAX PCB L (mm)	MAX PCB W (mm)	Screws	Battery	Accessories	Drawings	Other

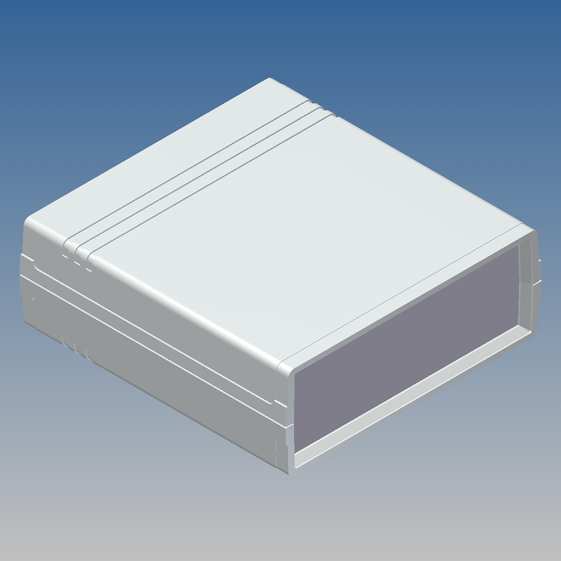

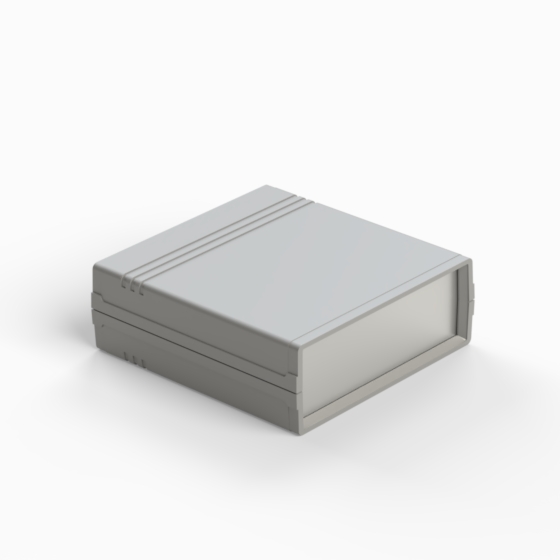

	011-B.5	134	129	47	9018	AG-ATY	116	115	2	1 x 9V	AB9 PP11		View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): 116 MAX PCB W (mm): 115 Screws: 2 Battery: 1 x 9V Accessories: AB9 PP11 Drawings: PDF DWG

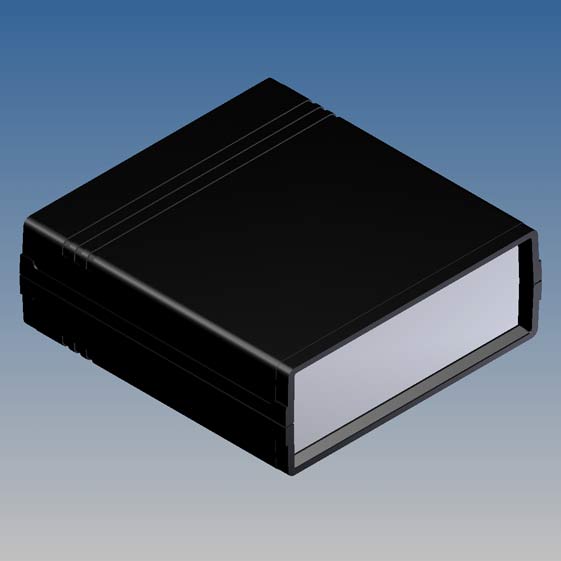

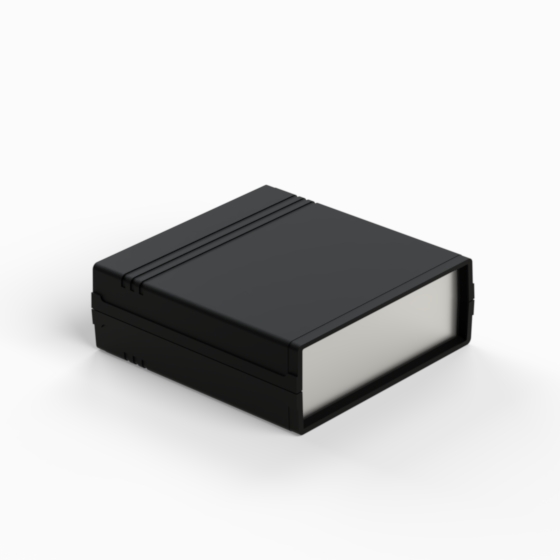

	011-B.9	134	129	47	9004	P2H-AT	116	115	2	1 x 9V	AB9 PP11		View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): 116 MAX PCB W (mm): 115 Screws: 2 Battery: 1 x 9V Accessories: AB9 PP11 Drawings: PDF DWG

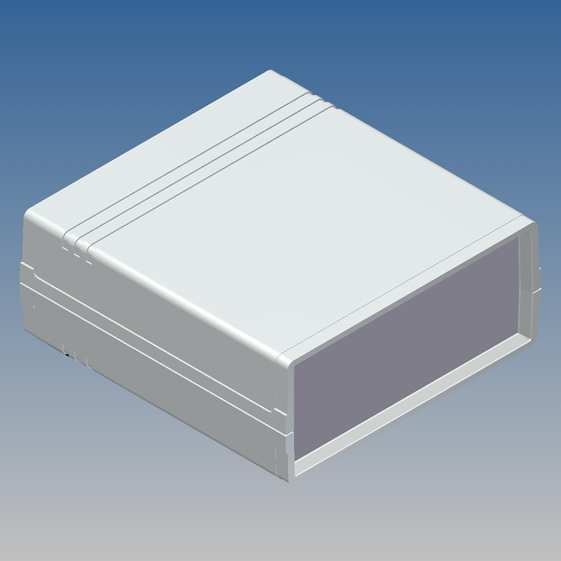

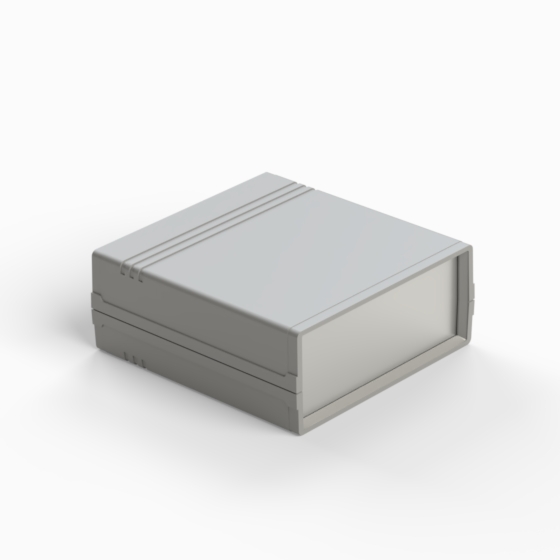

	012-B.5	134	129	54	9018	AG-ATY	116	115	2	1 x 9V	AB9 PP12		View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): 116 MAX PCB W (mm): 115 Screws: 2 Battery: 1 x 9V Accessories: AB9 PP12 Drawings: PDF DWG

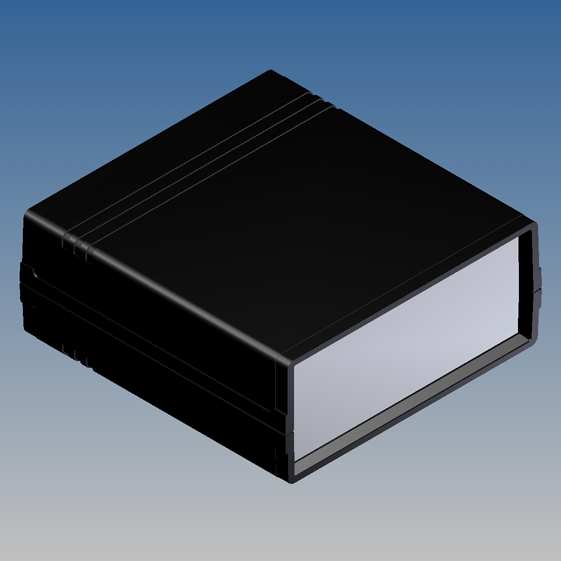

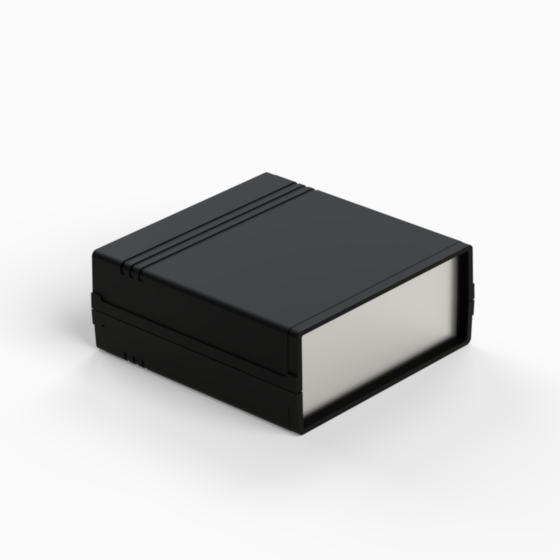

	012-B.9	134	129	54	9004	P2H-AT	116	115	2	1 x 9V	AB9 PP12		View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): 116 MAX PCB W (mm): 115 Screws: 2 Battery: 1 x 9V Accessories: AB9 PP12 Drawings: PDF DWG

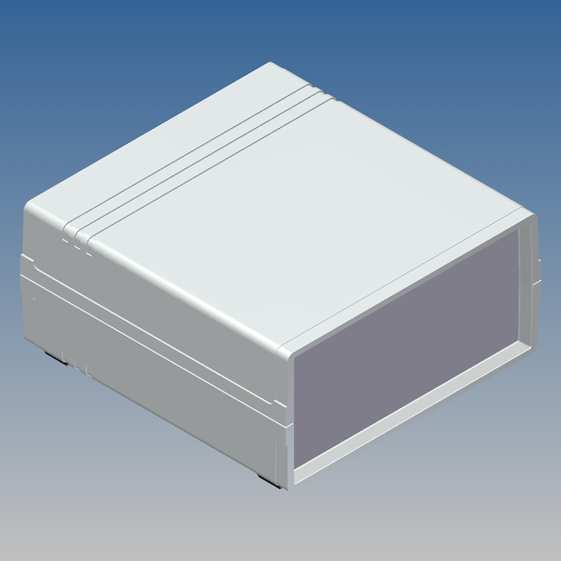

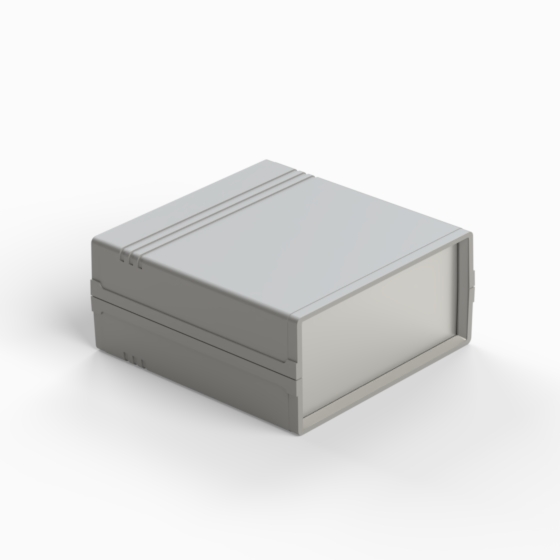

	022-B.5	134	129	61	9018	AG-ATY	116	115	2	1 x 9V	AB9 PP22		View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): 116 MAX PCB W (mm): 115 Screws: 2 Battery: 1 x 9V Accessories: AB9 PP22 Drawings: PDF DWG

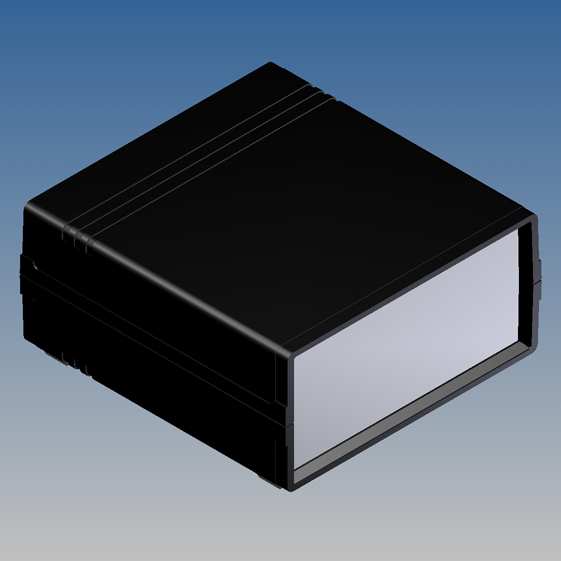

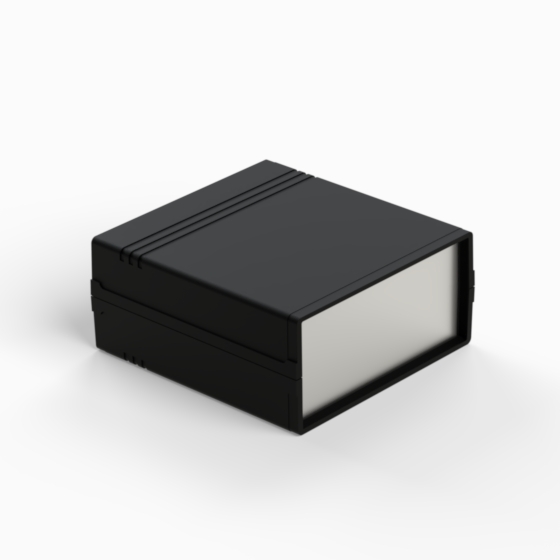

	022-B.9	134	129	61	9004	P2H-AT	116	115	2	1 x 9V	AB9 PP22		View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): 116 MAX PCB W (mm): 115 Screws: 2 Battery: 1 x 9V Accessories: AB9 PP22 Drawings: PDF DWG

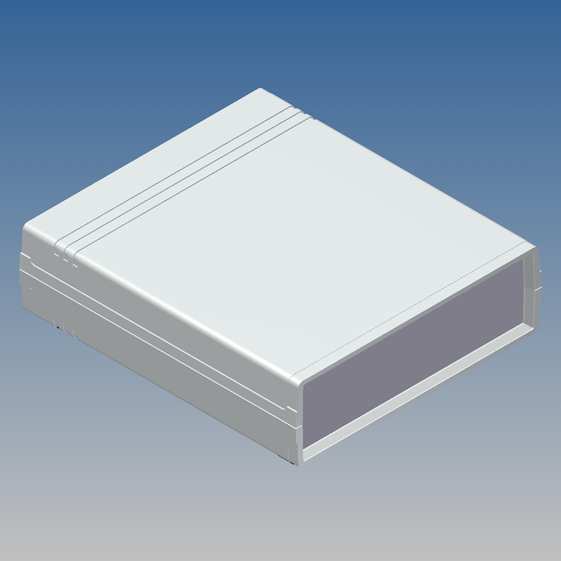

	222-B.5	173	154	47	9018	AG-ATY	154	140	2	1 x 9V	AB9 PP222		View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): 154 MAX PCB W (mm): 140 Screws: 2 Battery: 1 x 9V Accessories: AB9 PP222 Drawings: PDF DWG

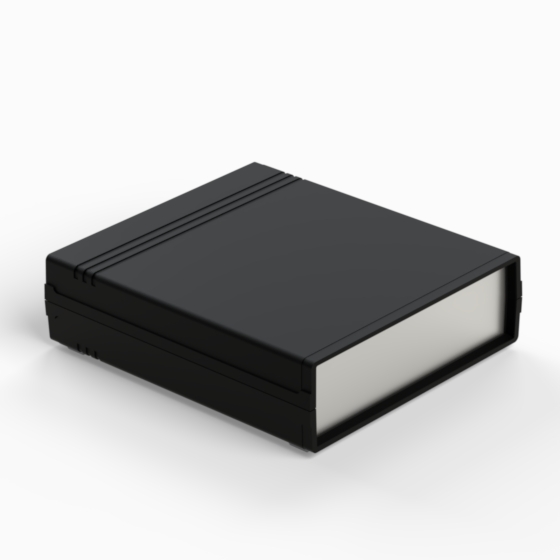

	222-B.9	173	154	47	9004	P2H-AT	154	140	2	1 x 9V	AB9 PP222		View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): 154 MAX PCB W (mm): 140 Screws: 2 Battery: 1 x 9V Accessories: AB9 PP222 Drawings: PDF DWG

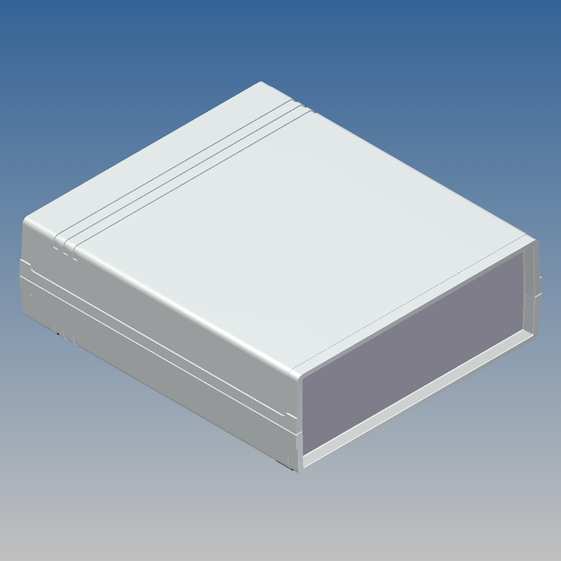

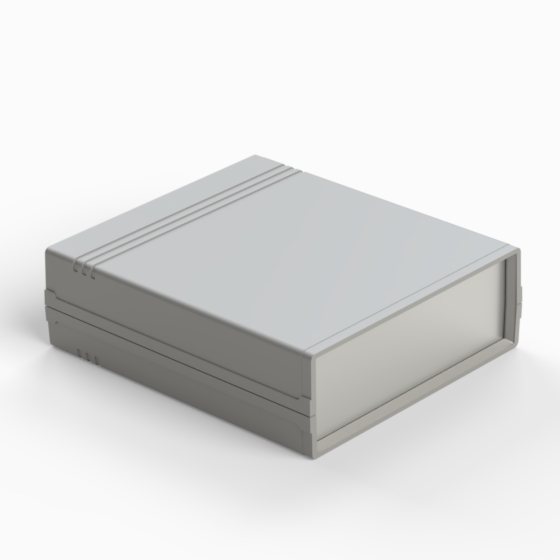

	223-B.5	173	154	54	9018	AG-ATY	154	140	2	1 x 9V	AB9 PP223		View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): 154 MAX PCB W (mm): 140 Screws: 2 Battery: 1 x 9V Accessories: AB9 PP223 Drawings: PDF DWG

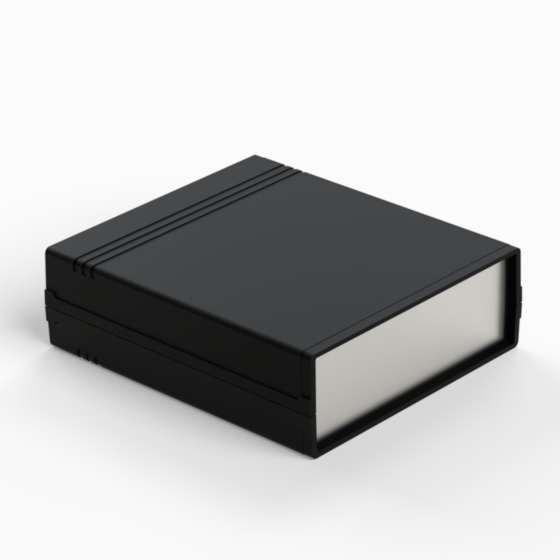

	223-B.9	173	154	54	9004	P2H-AT	154	140	2	1 x 9V	AB9 PP223		View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): 154 MAX PCB W (mm): 140 Screws: 2 Battery: 1 x 9V Accessories: AB9 PP223 Drawings: PDF DWG

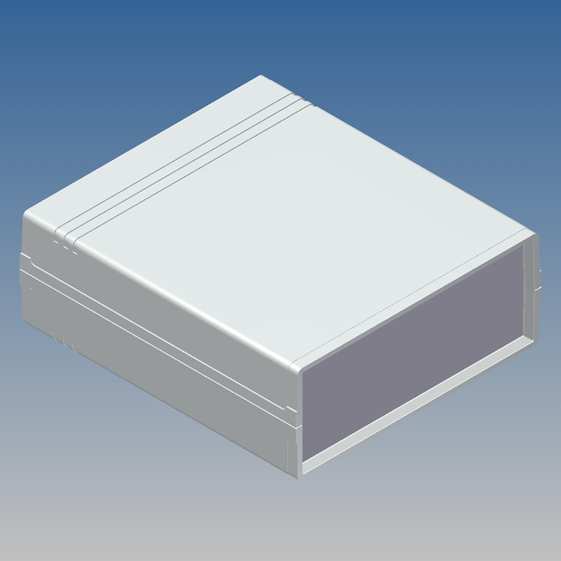

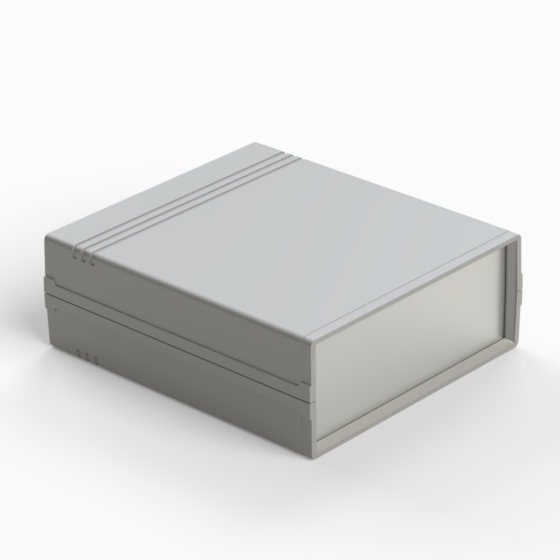

	233-B.5	173	154	61	9018	AG-ATY	154	140	2	1 x 9V	AB9 PP233		View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): 154 MAX PCB W (mm): 140 Screws: 2 Battery: 1 x 9V Accessories: AB9 PP233 Drawings: PDF DWG

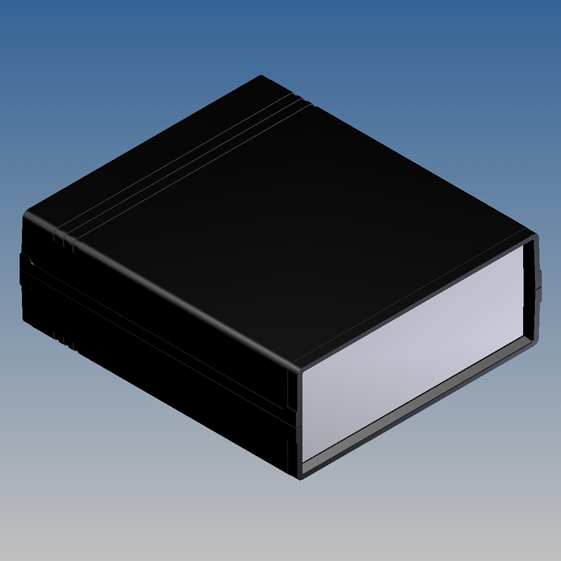

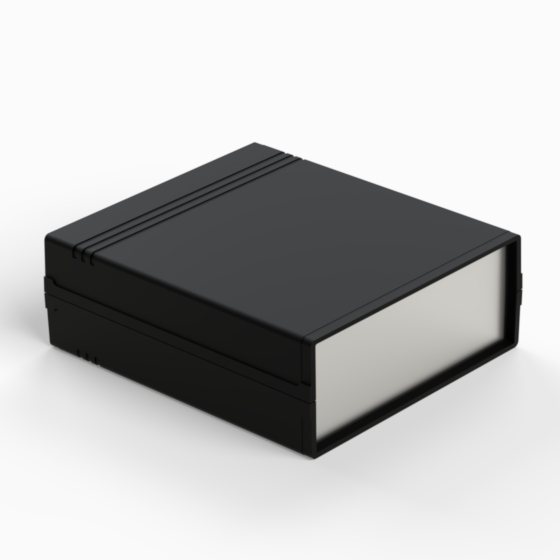

	233-B.9	173	154	61	9004	P2H-AT	154	140	2	1 x 9V	AB9 PP233		View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): 154 MAX PCB W (mm): 140 Screws: 2 Battery: 1 x 9V Accessories: AB9 PP233 Drawings: PDF DWG
