Family Front Panel - Electronic enclosures - Plastic

DESIGNER

Description

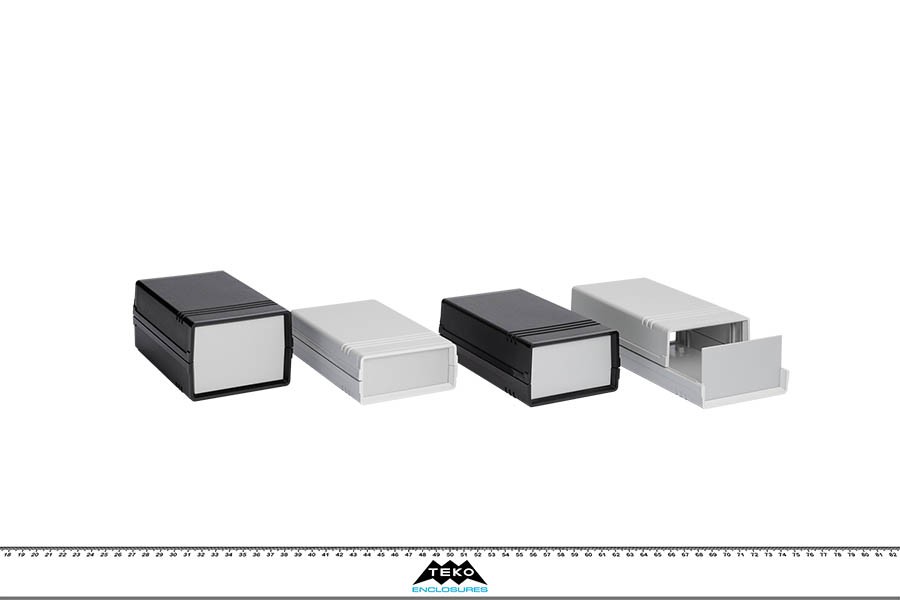

An ABS enclosure with two 1 mm aluminium panels. Each half-shells has mounting studs. Matt surface finish. Closing by only two screws. Available with plastic panels (Mod. PPD1. PPD2, PPD3).

Details

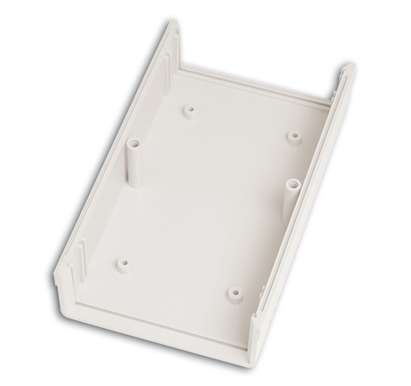

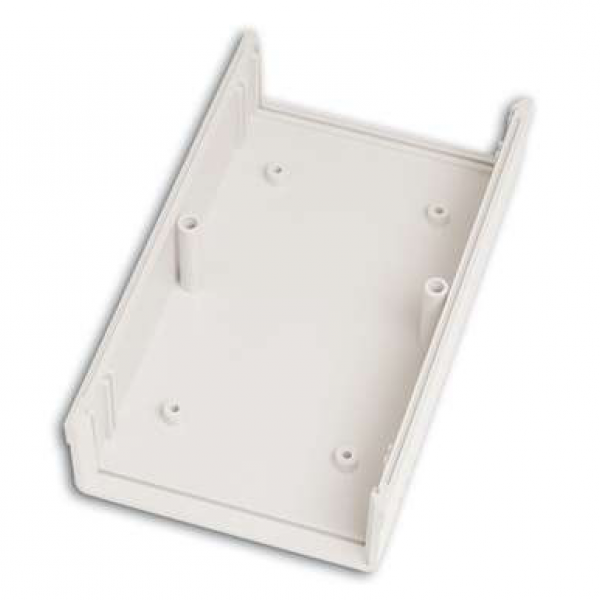

DESIGNER - dettaglio 1

Products

	Model	L (mm)	W (mm)	H (mm)	Color (Ral)	Material	MAX PCB L (mm)	MAX PCB W (mm)	Screws	Battery	Accessories	Drawings	Other

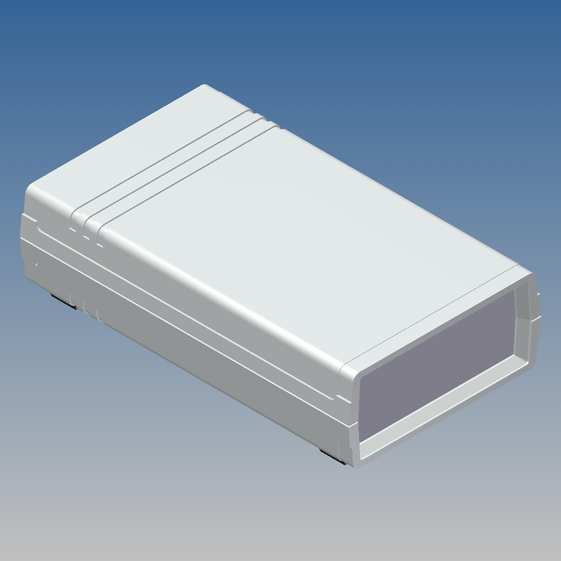

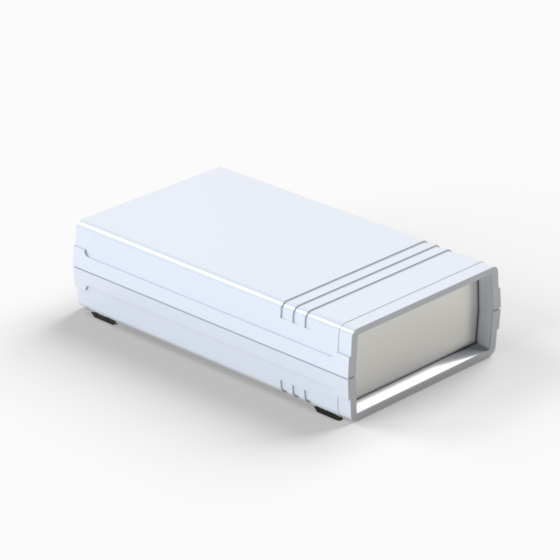

	10001.5	145	85	37	9018	AG-ATY	126	72	2	-	PPD1		View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): 126 MAX PCB W (mm): 72 Screws: 2 Battery: - Accessories: PPD1 Drawings: PDF DWG

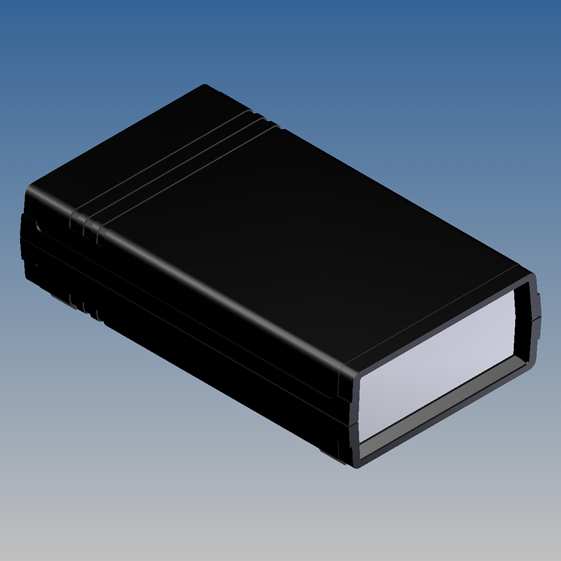

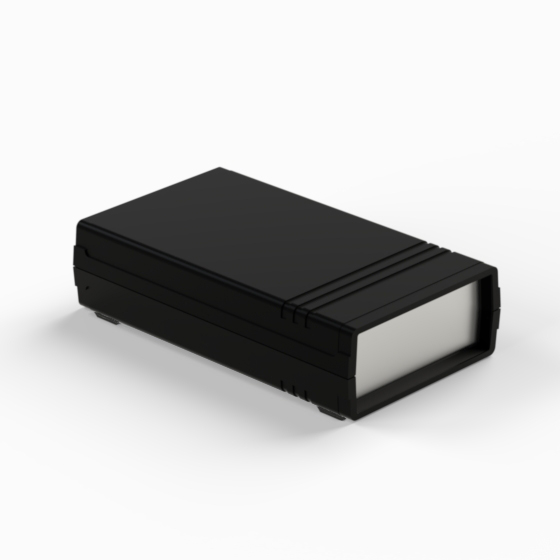

	10001.9	145	85	37	9004	P2H-AT	126	72	2	-	PPD1		View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): 126 MAX PCB W (mm): 72 Screws: 2 Battery: - Accessories: PPD1 Drawings: PDF DWG

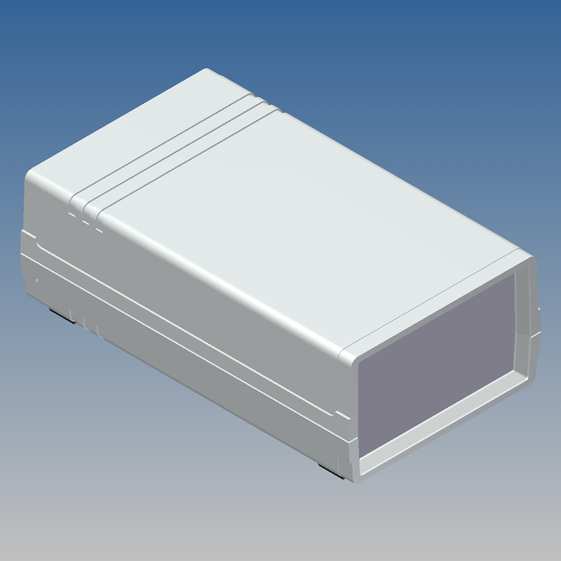

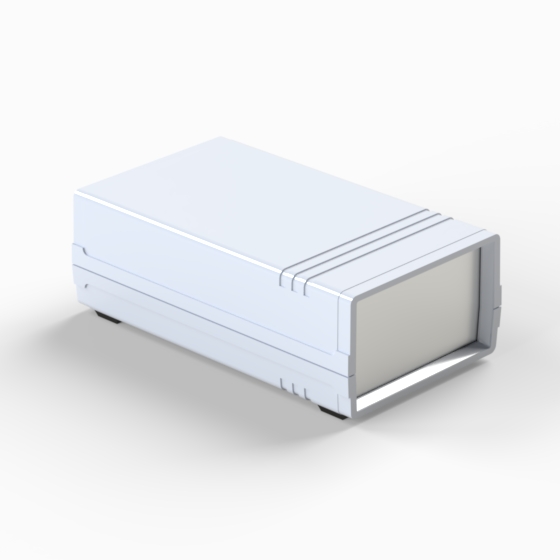

	10002.5	145	85	49	9018	AG-ATY	126	72	2	-	PPD2		View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): 126 MAX PCB W (mm): 72 Screws: 2 Battery: - Accessories: PPD2 Drawings: PDF DWG

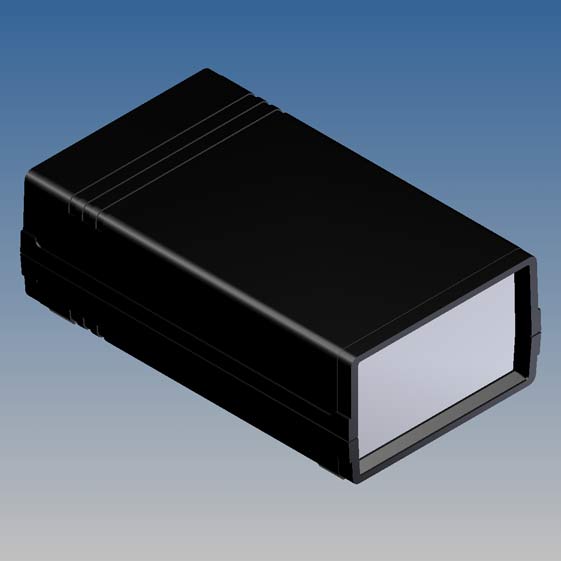

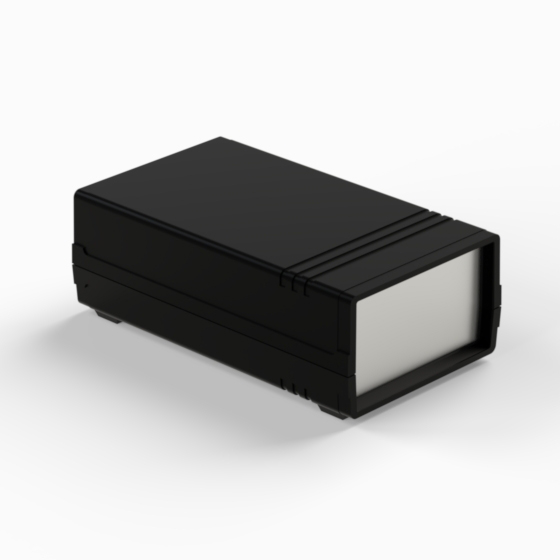

	10002.9	145	85	49	9004	P2H-AT	126	72	2	-	PPD2		View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): 126 MAX PCB W (mm): 72 Screws: 2 Battery: - Accessories: PPD2 Drawings: PDF DWG

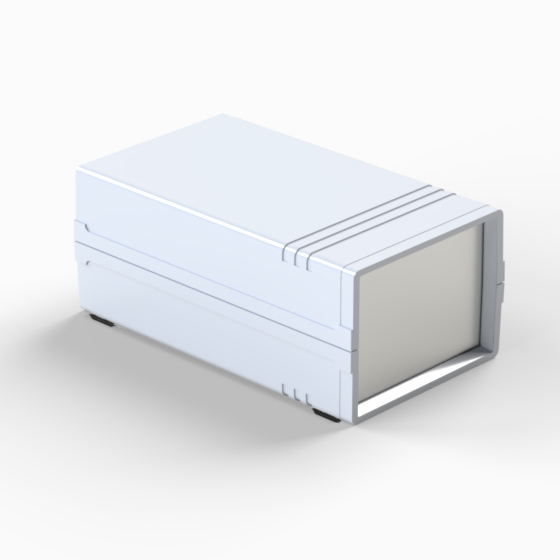

	10003.5	145	85	61	9018	AG-ATY	126	72	2	-	PPD3		View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): 126 MAX PCB W (mm): 72 Screws: 2 Battery: - Accessories: PPD3 Drawings: PDF DWG

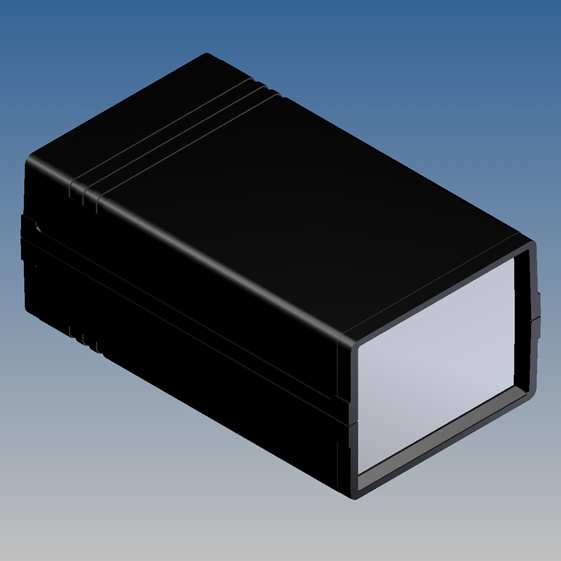

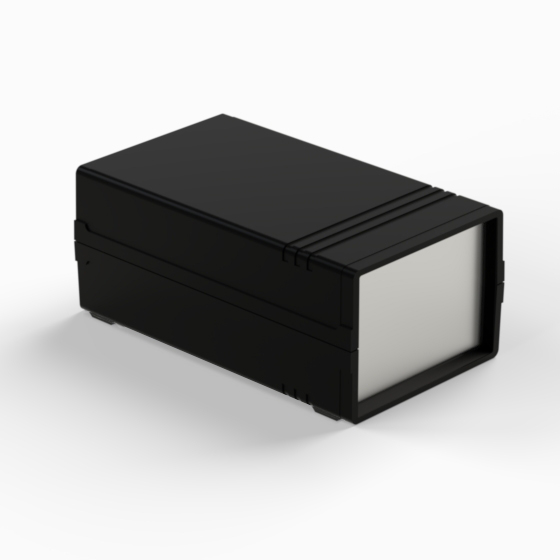

	10003.9	145	85	61	9004	P2H-AT	126	72	2	-	PPD3		View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): 126 MAX PCB W (mm): 72 Screws: 2 Battery: - Accessories: PPD3 Drawings: PDF DWG
