Family Front Panel - Electronic enclosures - Plastic

Description

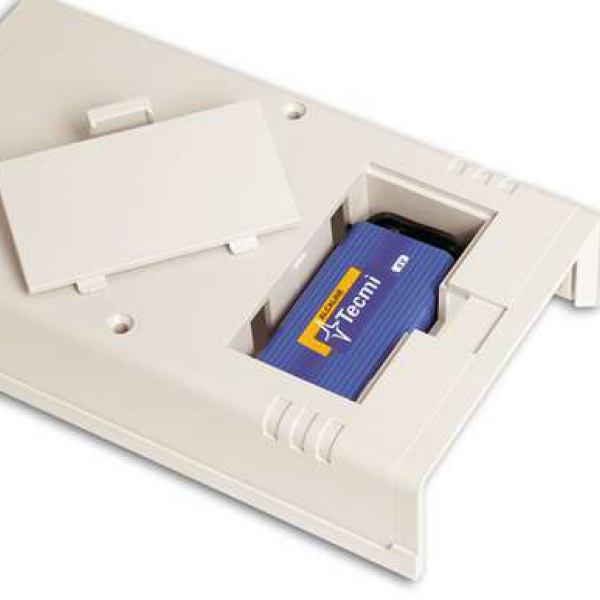

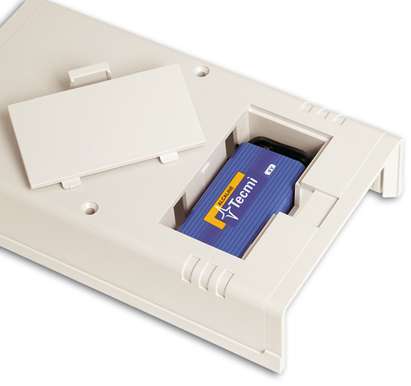

An ABS enclosure with two 1 mm aluminium panels. A 9V battery compartment with a Snap-On lid. Each half-shells has mounting studs. Mat surface finish. Closing by only two screws. Available with plastic panels (Mod. PPD1. PPD2, PPD3).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

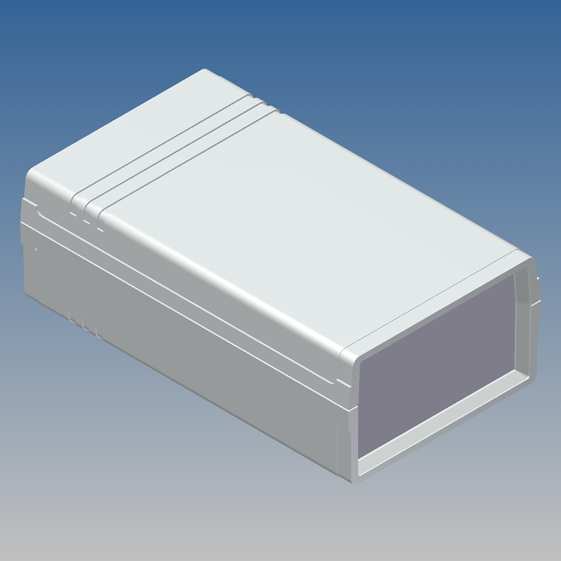

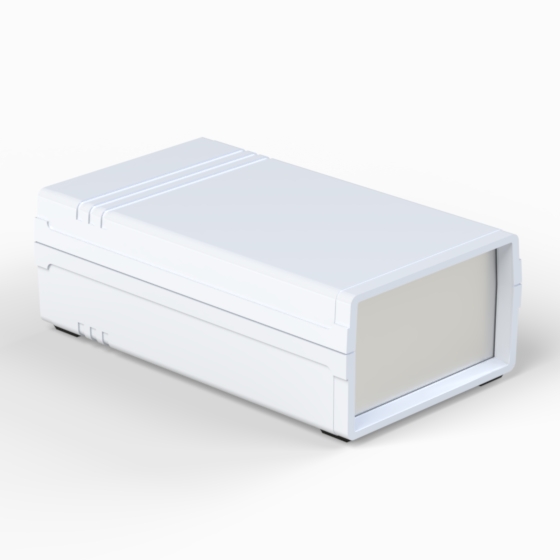

10002-B.5 145 85 49 9018
AG-ATY 126 72 2 1 x 9V PPD2
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 126
  • MAX PCB W (mm): 72
  • Screws: 2
  • Battery: 1 x 9V
  • Accessories: PPD2
  • Drawings:  PDF  DWG

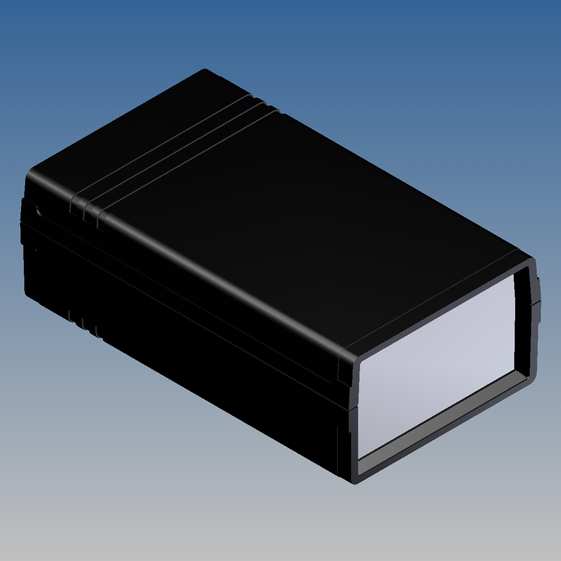

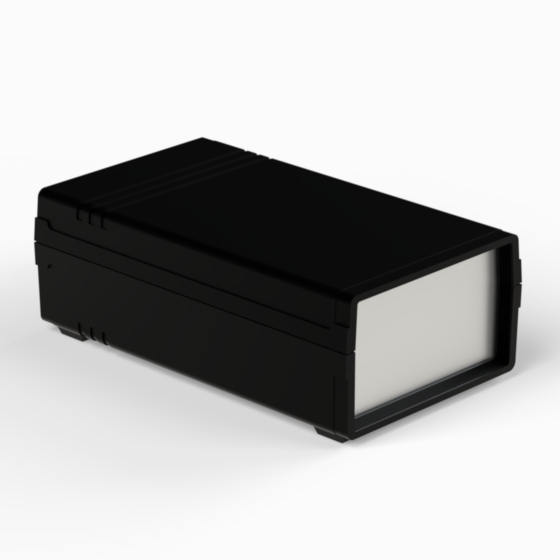

10002-B.9 145 85 49 9004
P2H-AT 126 72 2 1 x 9V PPD2
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 126
  • MAX PCB W (mm): 72
  • Screws: 2
  • Battery: 1 x 9V
  • Accessories: PPD2
  • Drawings:  PDF  DWG

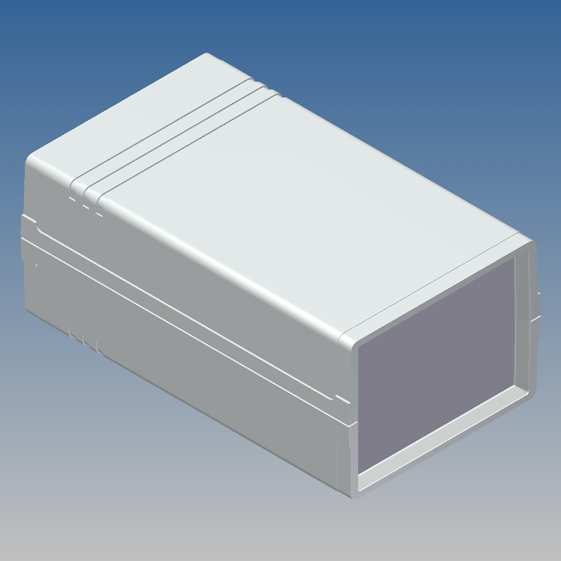

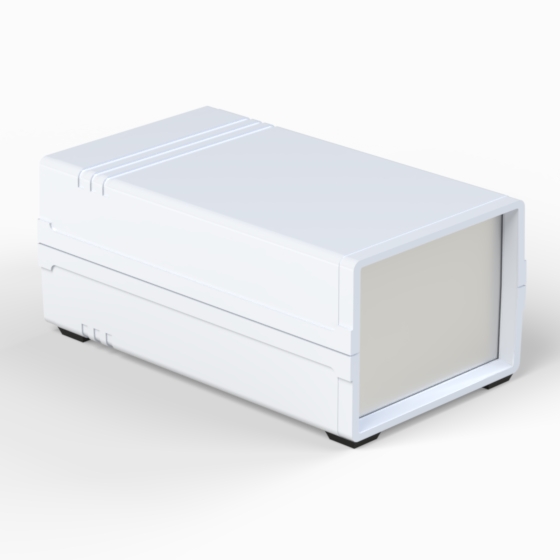

10003-B.5 145 85 61 9018
AG-ATY 126 72 2 1 x 9V PPD3
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 126
  • MAX PCB W (mm): 72
  • Screws: 2
  • Battery: 1 x 9V
  • Accessories: PPD3
  • Drawings:  PDF  DWG

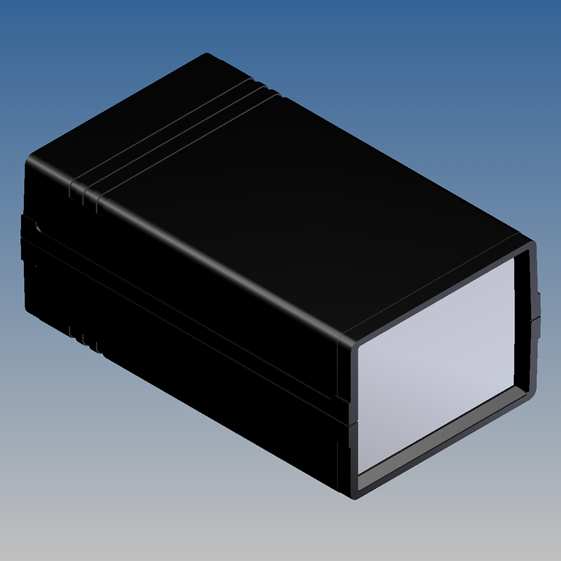

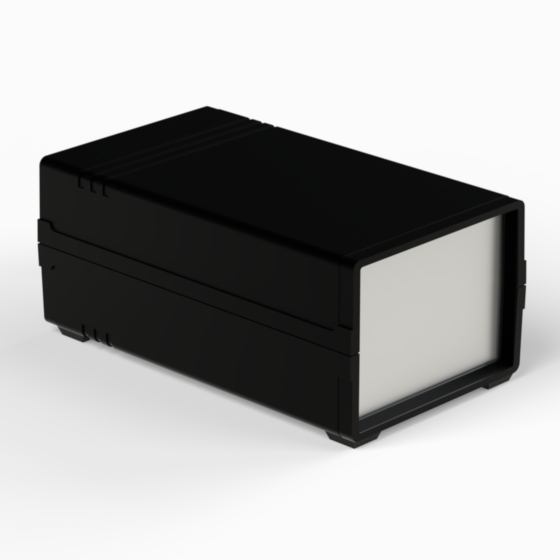

10003-B.9 145 85 61 9004
P2H-AT 126 72 2 1 x 9V PPD3
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 126
  • MAX PCB W (mm): 72
  • Screws: 2
  • Battery: 1 x 9V
  • Accessories: PPD3
  • Drawings:  PDF  DWG
12 product families, 152 series. You can't find what you're looking for? Contact us
