EURO 93

Family Front Panel - Electronic enclosures - Plastic

Description

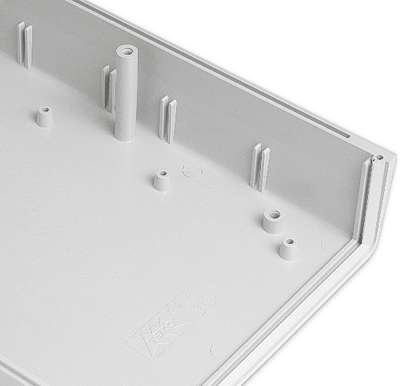

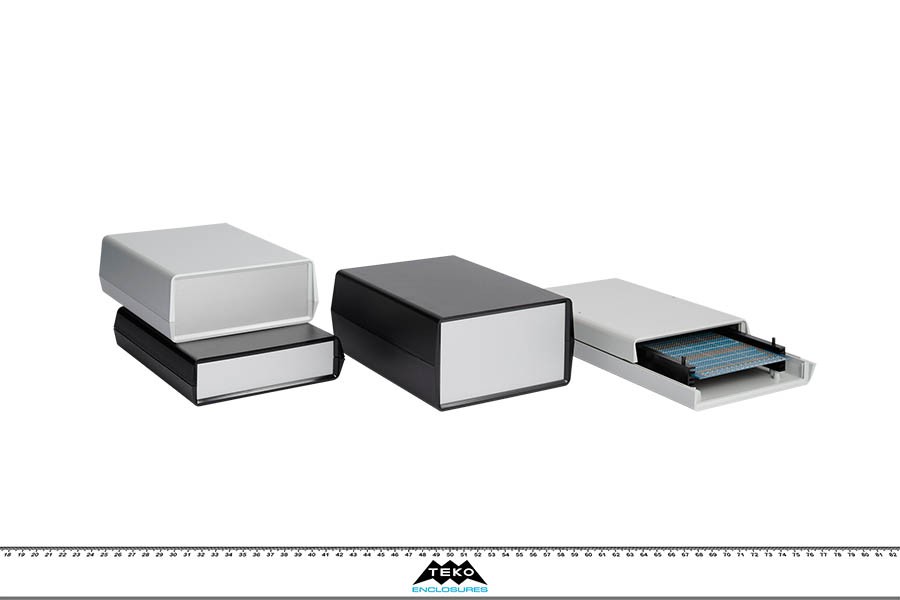

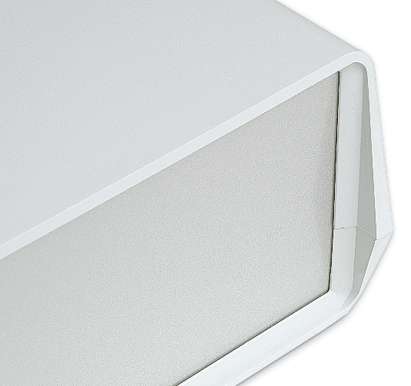

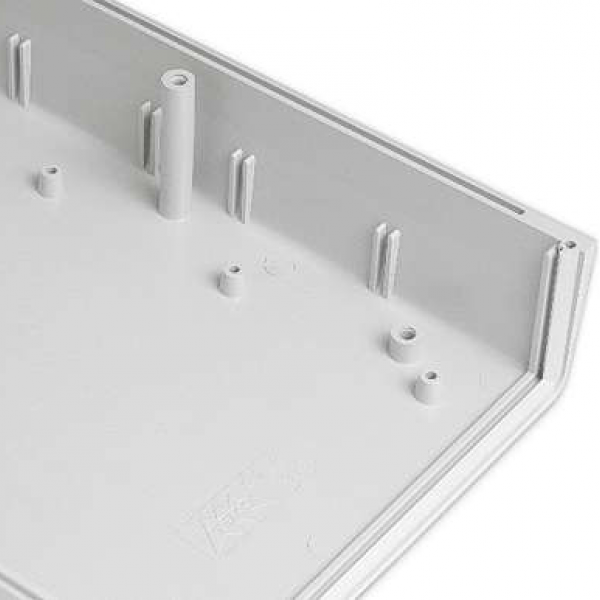

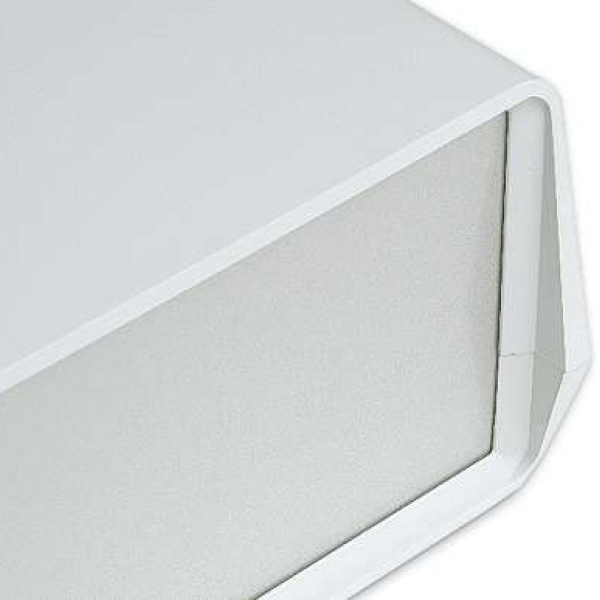

ABS enclosures with two 1 mm aluminium panels. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. Closing by only two screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

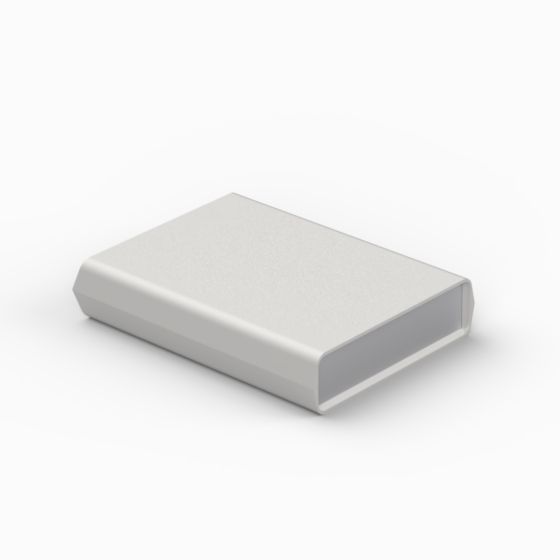

931.5 178 131,5 36 9018
AG-ATY 158 116 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

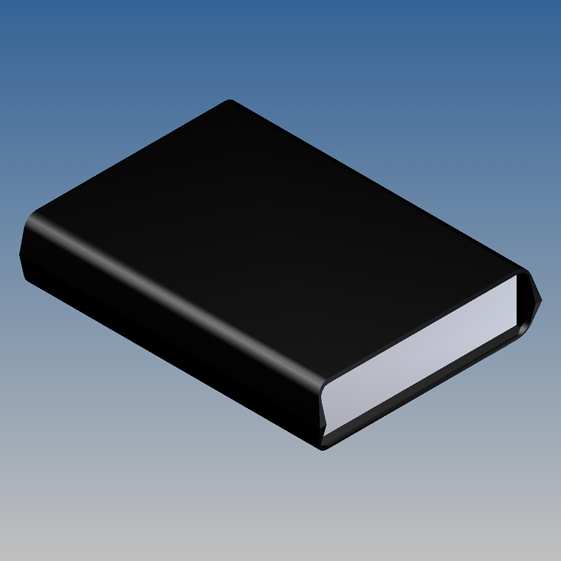

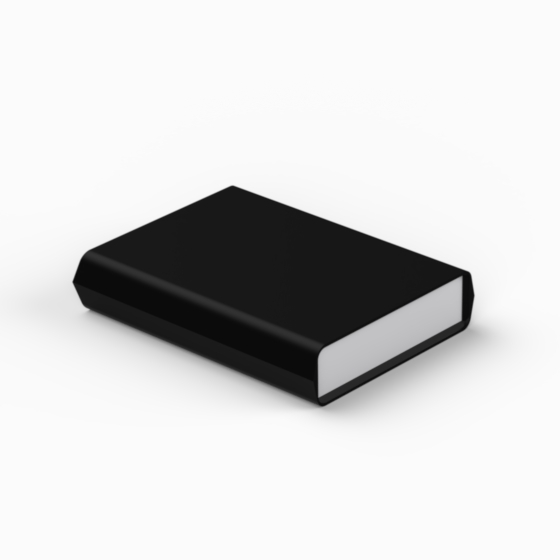

931.9 178 131,5 36 9004
P2H-AT 158 116 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

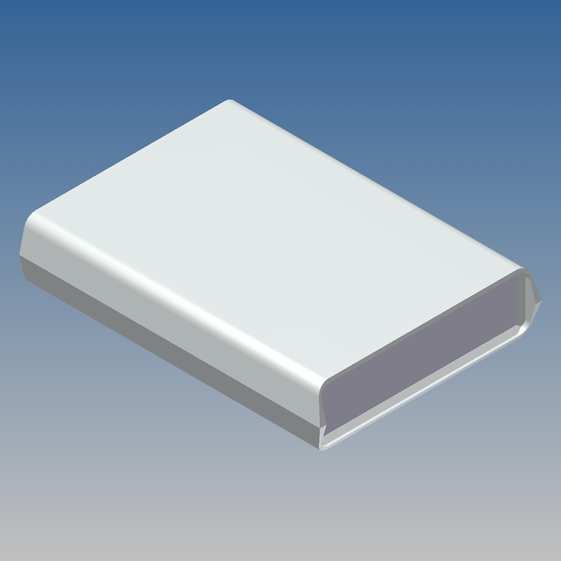

931-C.5 178 131,5 36 9018
AG-ATY 158 116 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

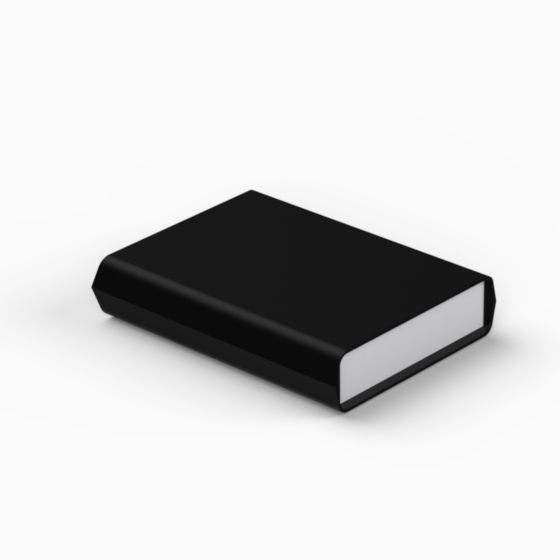

931-C.9 178 131,5 36 9004
P2H-AT 158 116 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

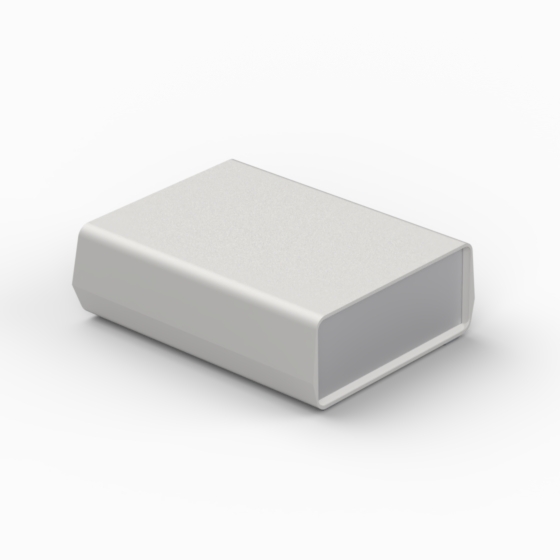

932.5 178 131,5 54 9018
AG-ATY 158 116 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

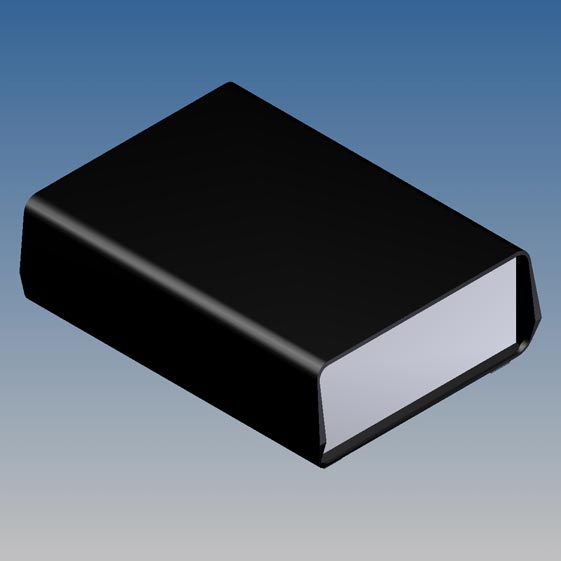

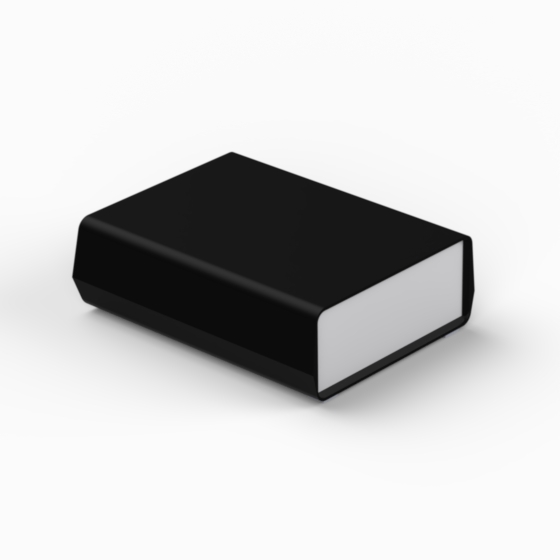

932.9 178 131,5 54 9004
P2H-AT 158 116 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

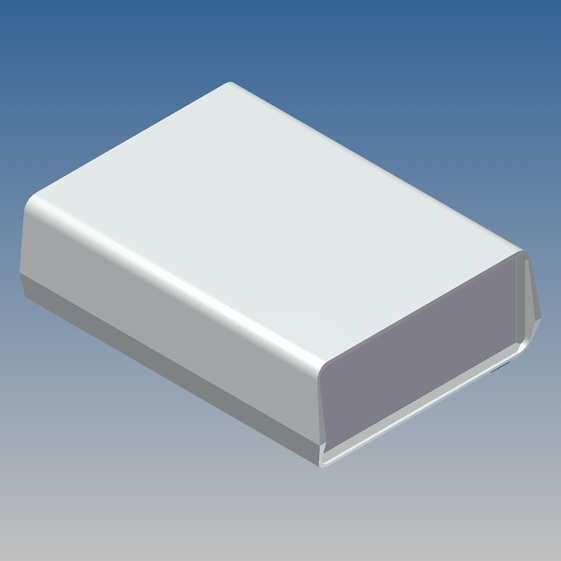

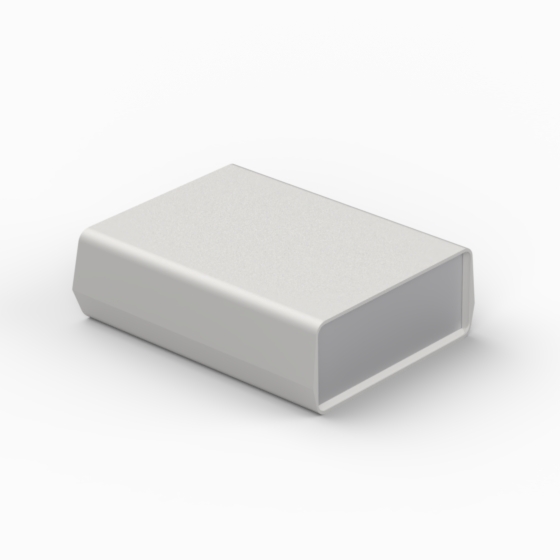

932-C.5 178 131,5 54 9018
AG-ATY 158 116 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

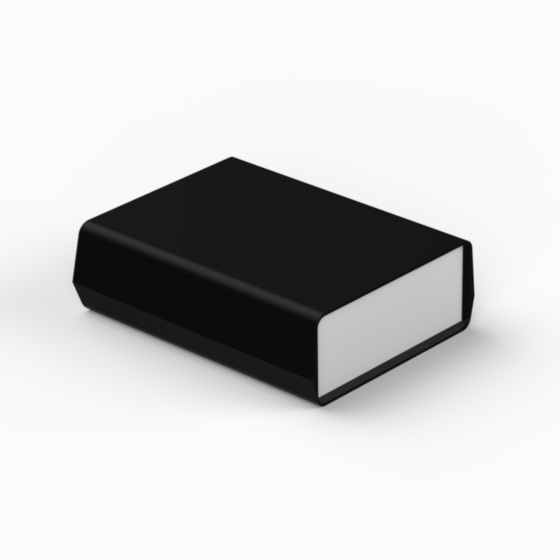

932-C.9 178 131,5 54 9004
P2H-AT 158 116 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
933.5 178 131,5 72 9018
AG-ATY 158 116 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
933.9 178 131,5 72 9004
P2H-AT 158 116 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

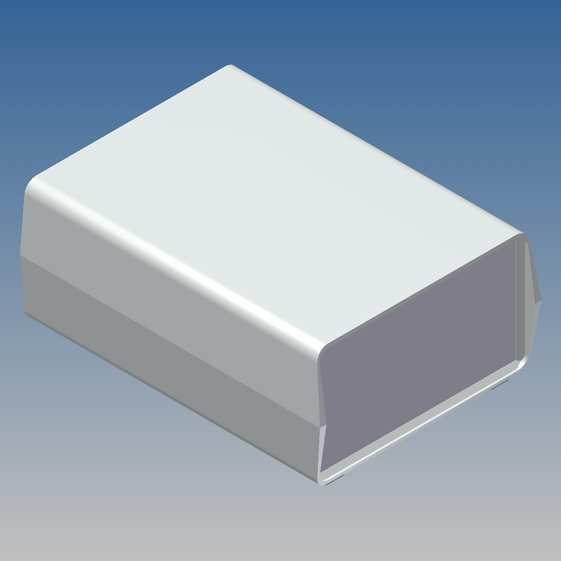

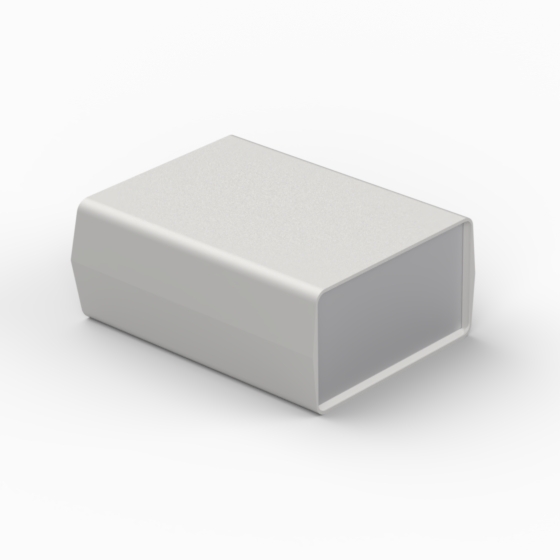

933-C.5 178 131,5 72 9018
AG-ATY 158 116 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

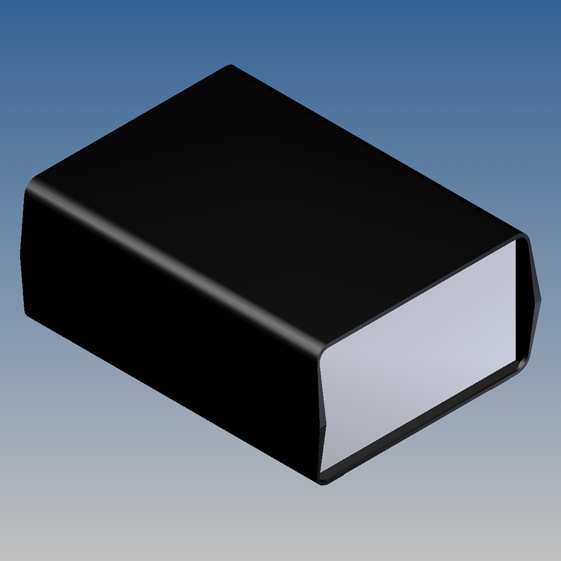

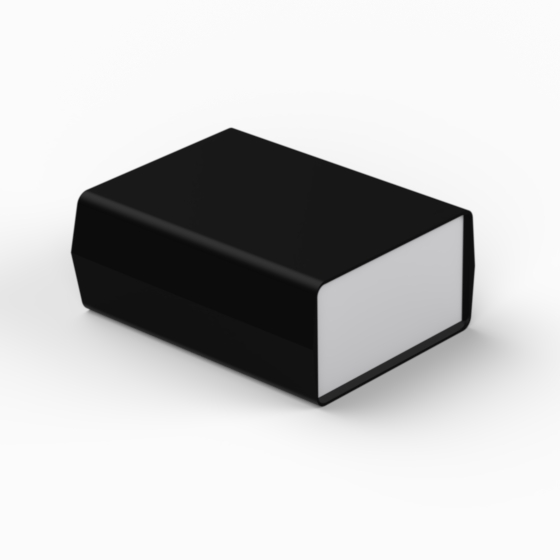

933-C.9 178 131,5 72 9004
P2H-AT 158 116 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

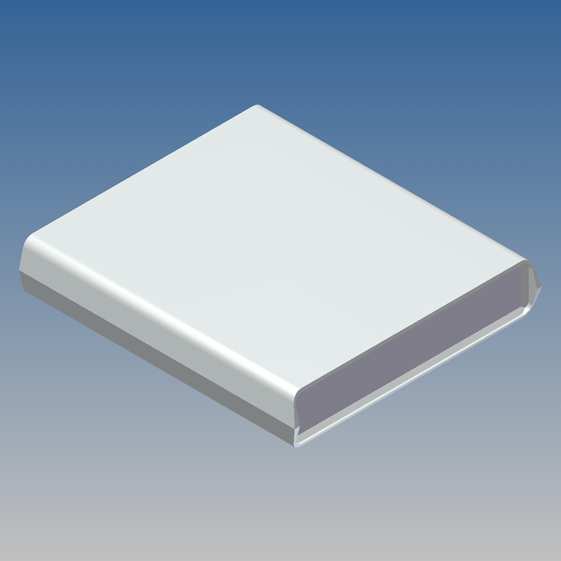

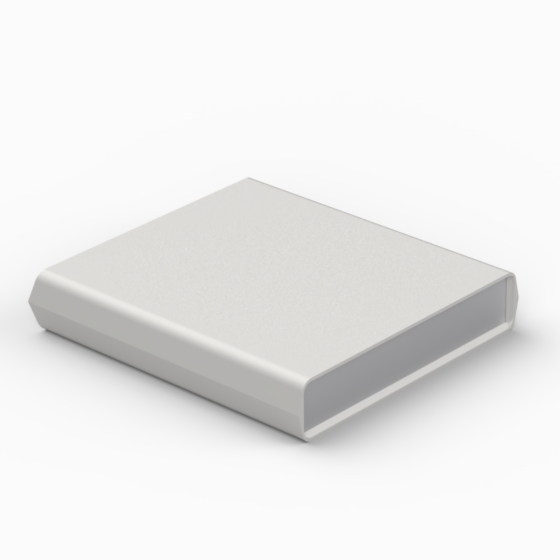

934.5 198 178 36 9018
AG-ATY 178 162 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 178
  • MAX PCB W (mm): 162
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

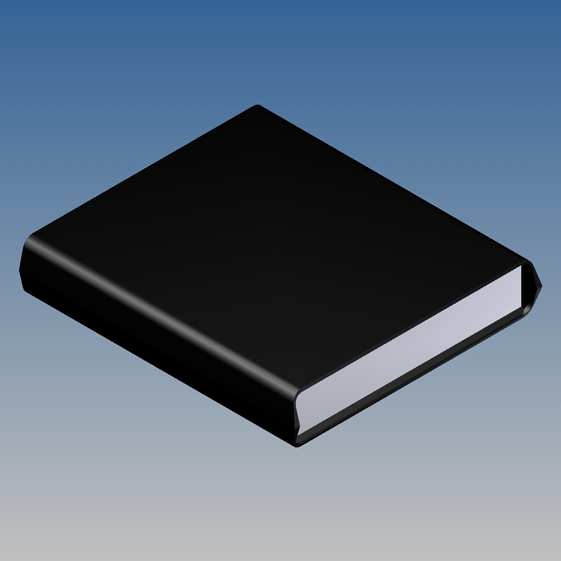

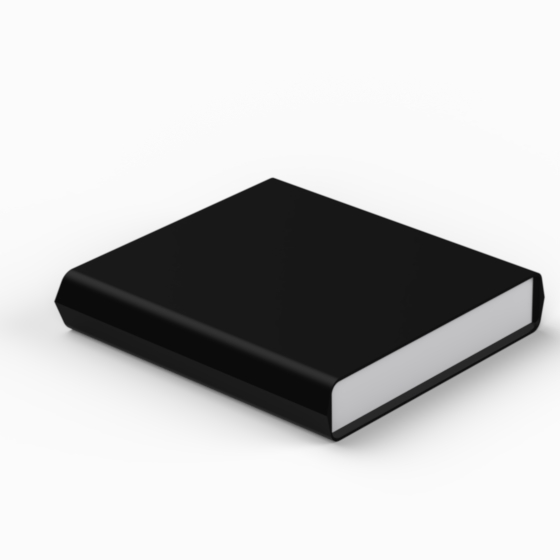

934.9 198 178 36 9004
P2H-AT 178 162 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 178
  • MAX PCB W (mm): 162
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

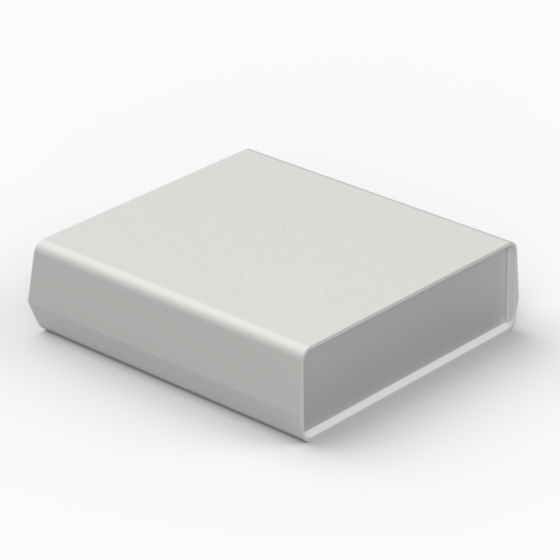

935.5 198 178 54 9018
AG-ATY 178 162 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 178
  • MAX PCB W (mm): 162
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

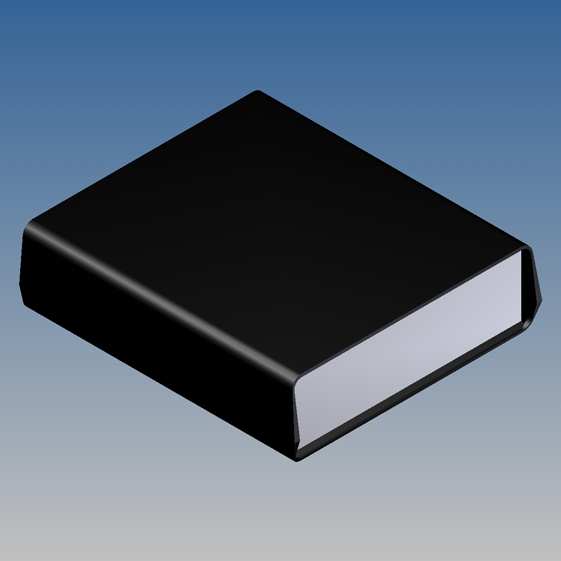

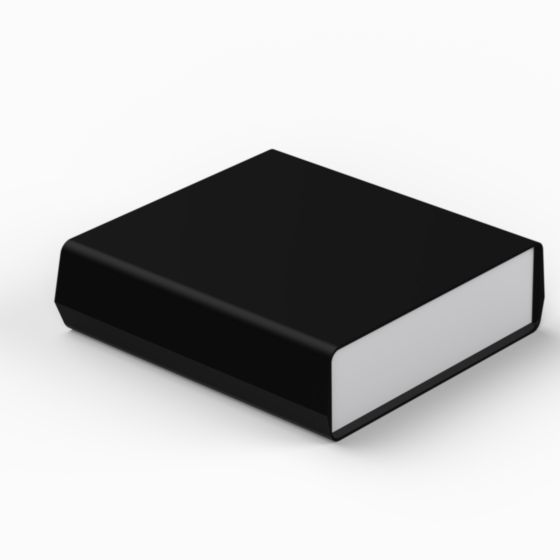

935.9 198 178 54 9004
P2H-AT 178 162 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 178
  • MAX PCB W (mm): 162
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

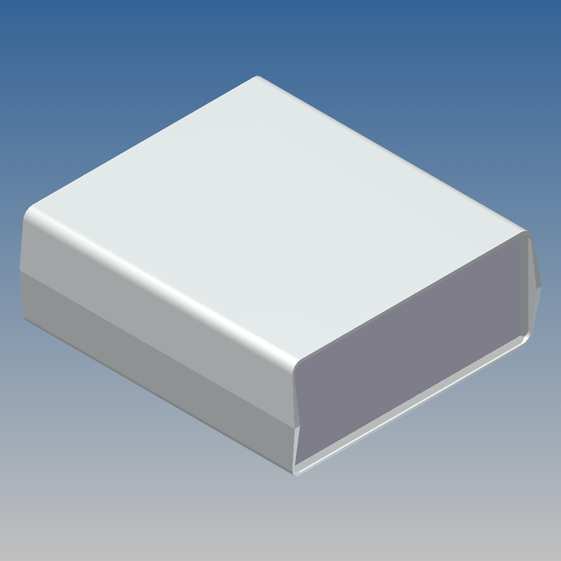

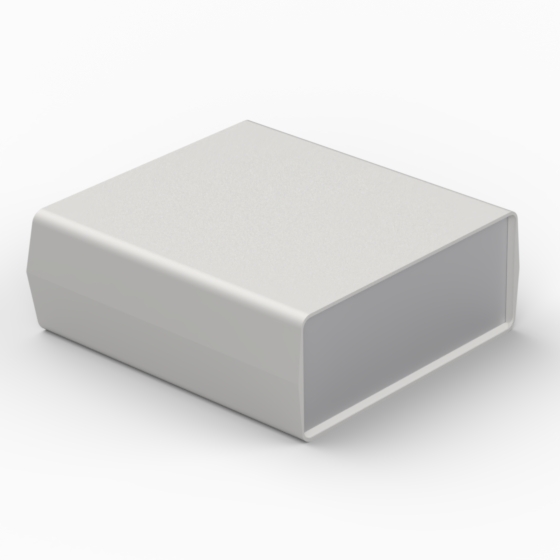

936.5 198 178 72 9018
AG-ATY 178 162 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 178
  • MAX PCB W (mm): 162
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

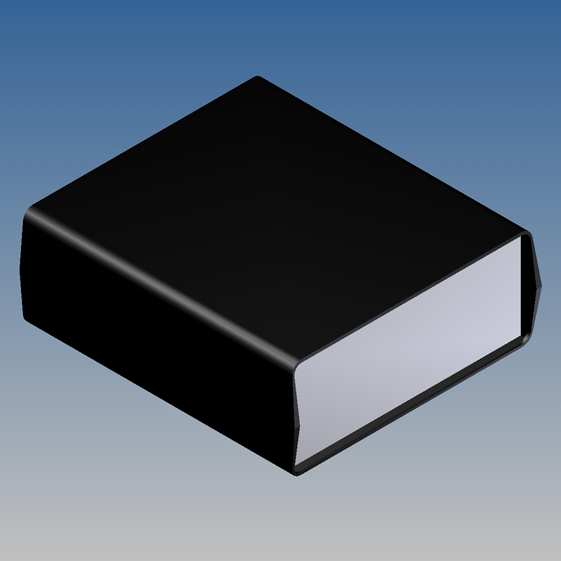

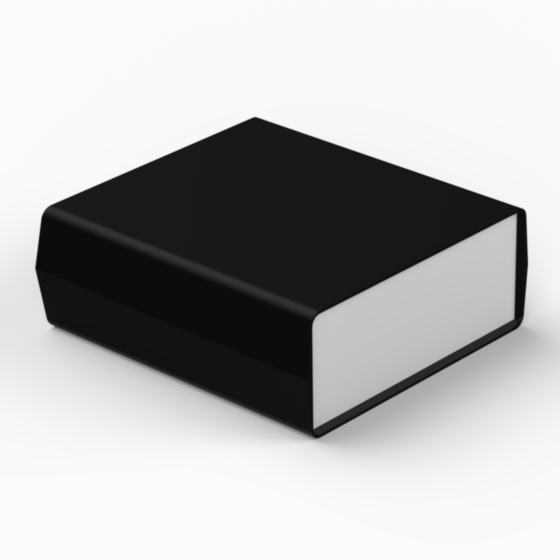

936.9 198 178 72 9004
P2H-AT 178 162 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 178
  • MAX PCB W (mm): 162
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
