MINI CAB

Family Front Panel - Electronic enclosures - Plastic

Description

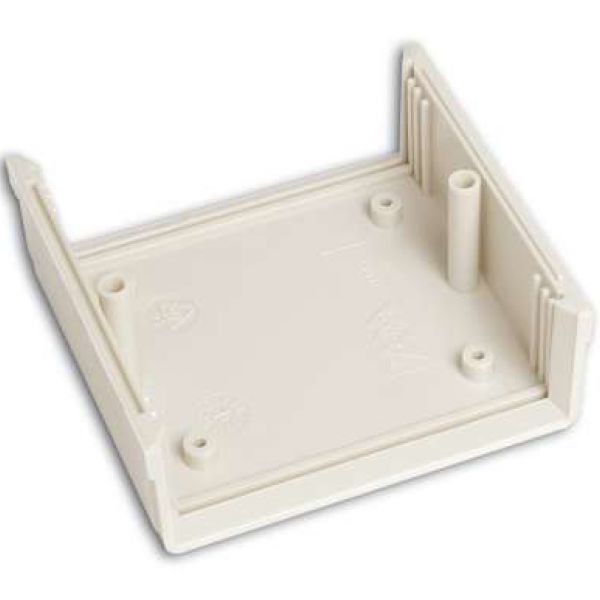

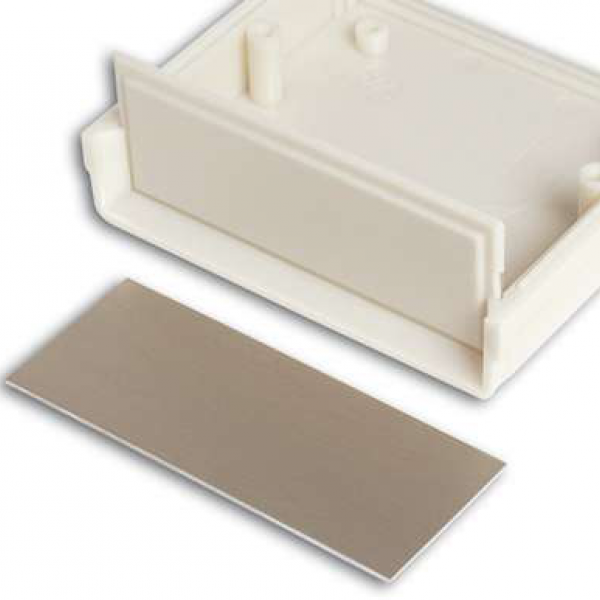

A small Polystyrene enclosure with a front and rear panel. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. Closing by only two screws. Upon request aluminium panels (Mod. AP11, AP12, AP22).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

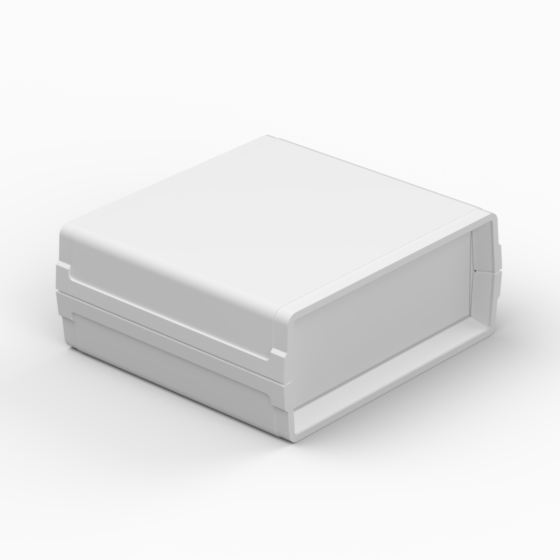

MC11.7 85 80 36 9002
L320 72 62 2 - AP11
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 72
  • MAX PCB W (mm): 62
  • Screws: 2
  • Battery: -
  • Accessories: AP11
  • Drawings:  PDF  DWG

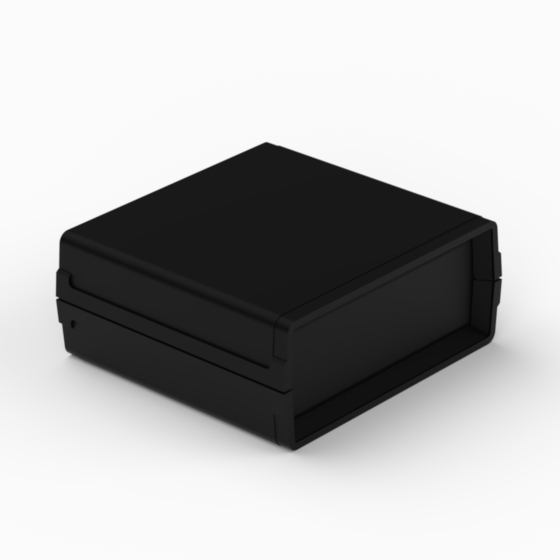

MC11.9 85 80 36 9004
P2H-AT 72 62 2 - AP11
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 72
  • MAX PCB W (mm): 62
  • Screws: 2
  • Battery: -
  • Accessories: AP11
  • Drawings:  PDF  DWG

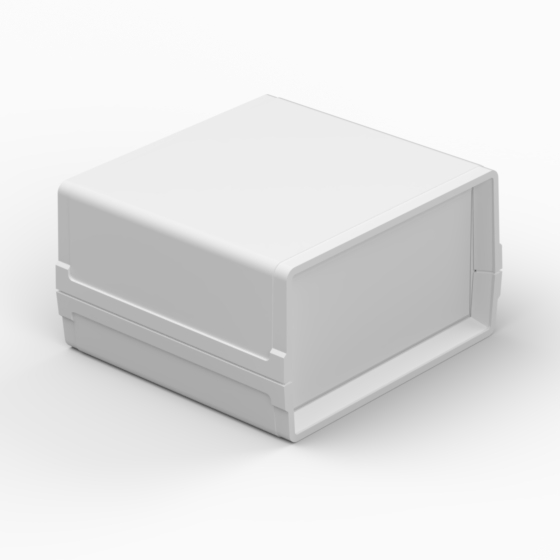

MC12.7 85 80 48 9002
L320 72 62 2 - AP12
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 72
  • MAX PCB W (mm): 62
  • Screws: 2
  • Battery: -
  • Accessories: AP12
  • Drawings:  PDF  DWG

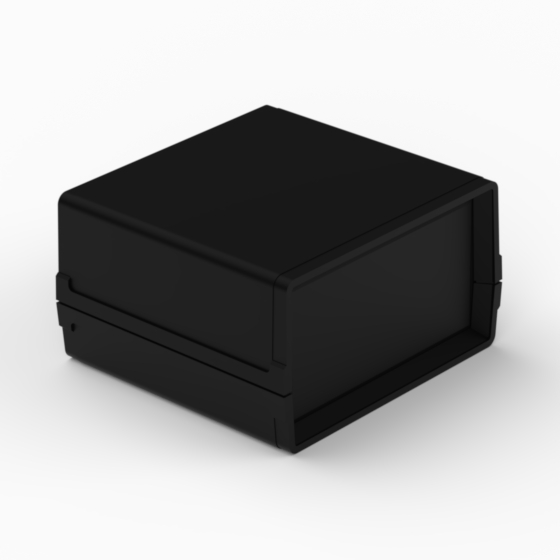

MC12.9 85 80 48 9004
P2H-AT 72 62 2 - AP12
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 72
  • MAX PCB W (mm): 62
  • Screws: 2
  • Battery: -
  • Accessories: AP12
  • Drawings:  PDF  DWG

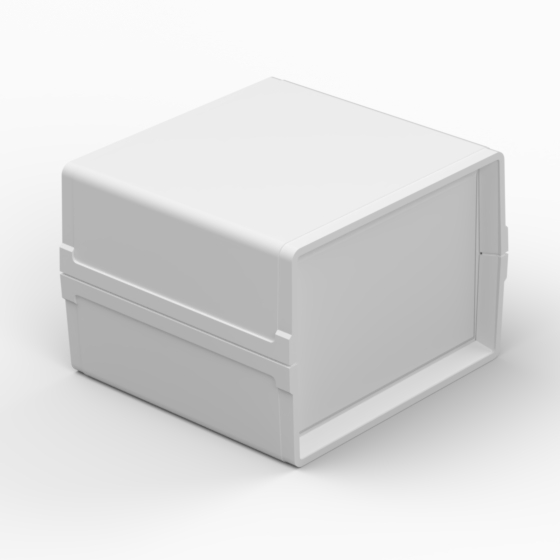

MC22.7 85 80 60 9002
L320 72 62 2 - AP22
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 72
  • MAX PCB W (mm): 62
  • Screws: 2
  • Battery: -
  • Accessories: AP22
  • Drawings:  PDF  DWG

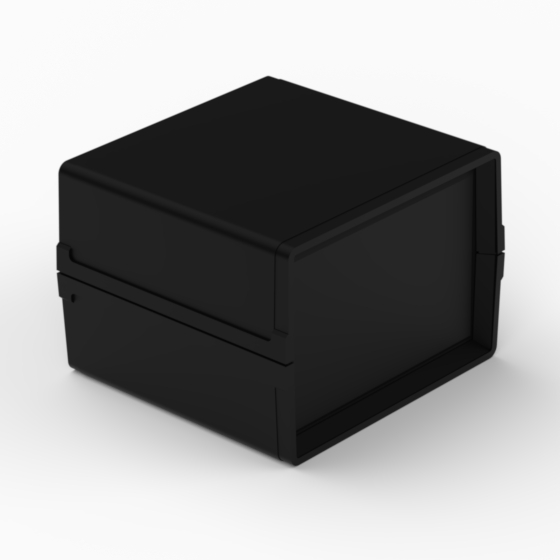

MC22.9 85 80 60 9004
P2H-AT 72 62 2 - AP22
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 72
  • MAX PCB W (mm): 62
  • Screws: 2
  • Battery: -
  • Accessories: AP22
  • Drawings:  PDF  DWG
