SNAP DESIGNER

Family Front Panel - Electronic enclosures - Plastic

Description

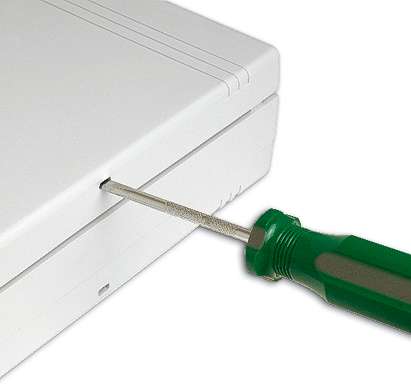

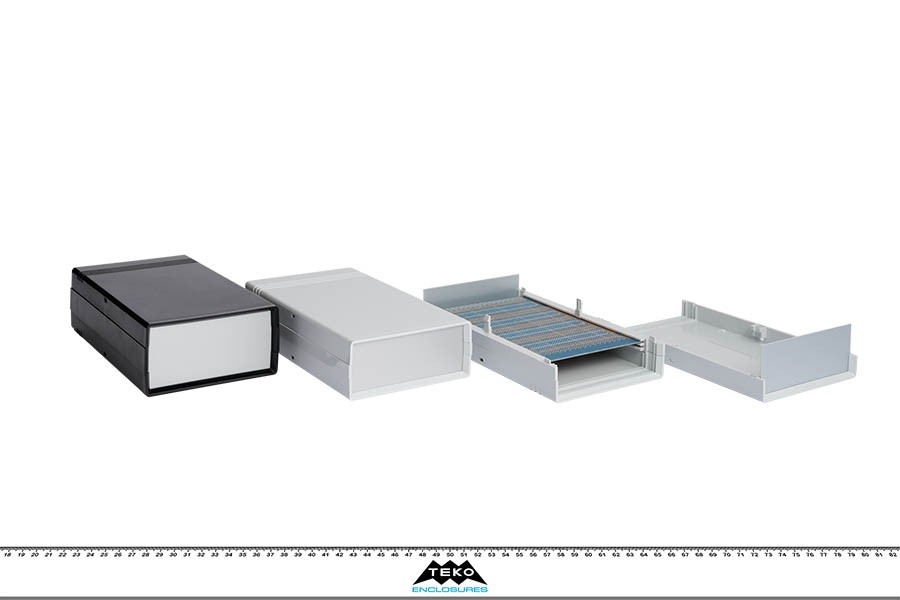

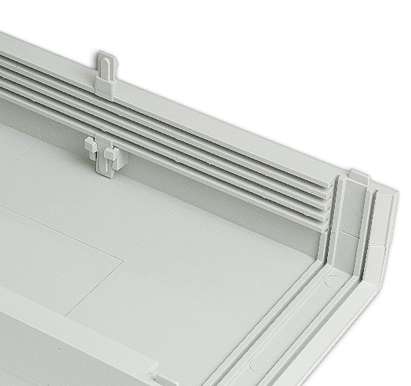

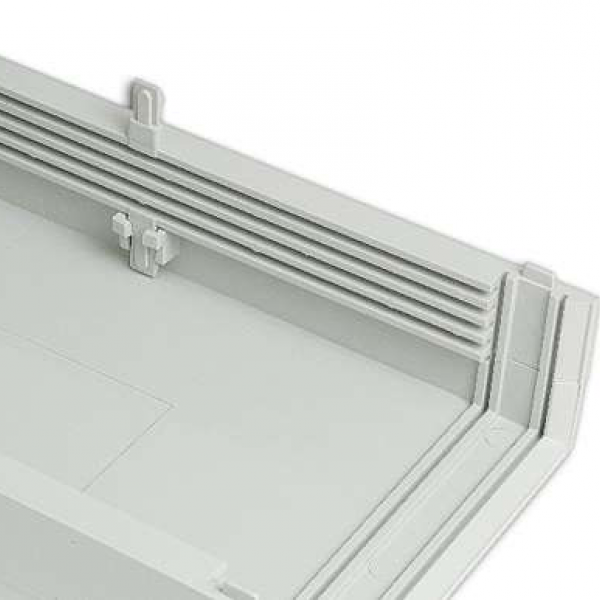

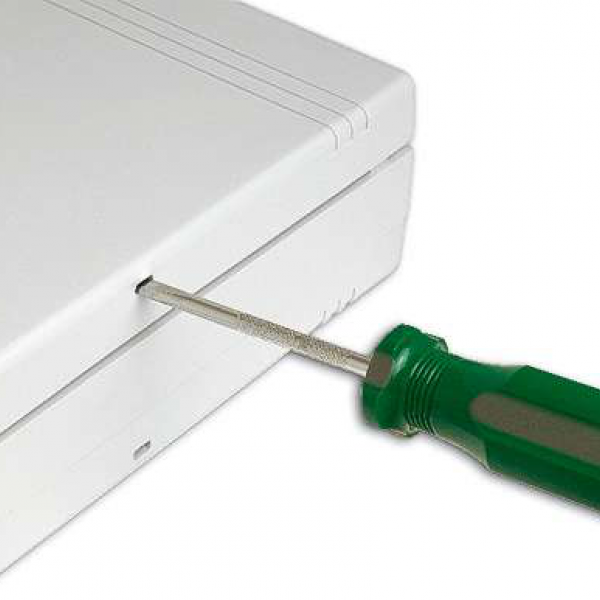

ABS enclosures with two 1 mm aluminium panels. Each base and cover have integral PCB guides (Eurocard 100 x 160 mm) inside. Matt surface finish. Snap-together closing, no screws required.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

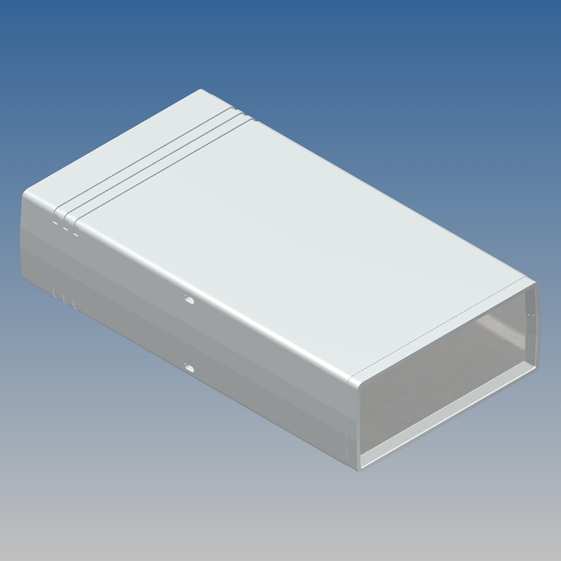

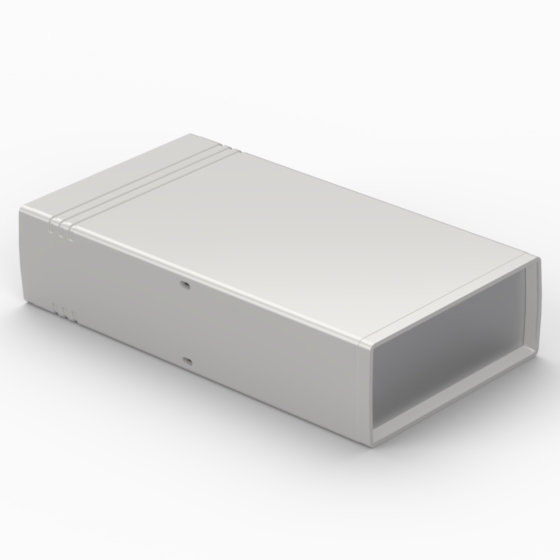

10004.5 199,5 110 46,5 9018
AG-ATY 152,5 101,6 - - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 152,5
  • MAX PCB W (mm): 101,6
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

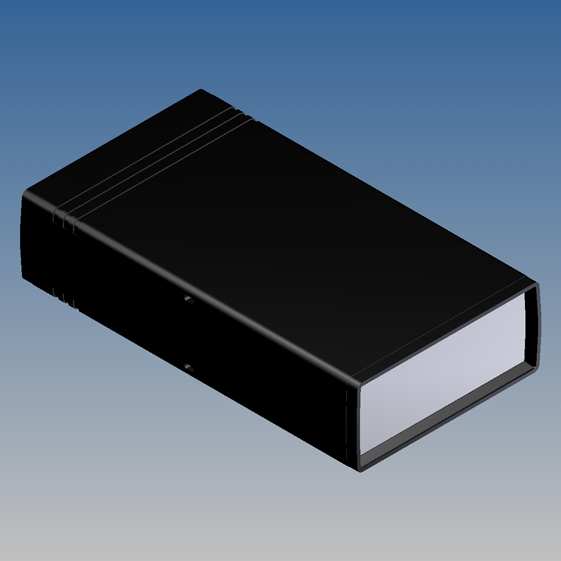

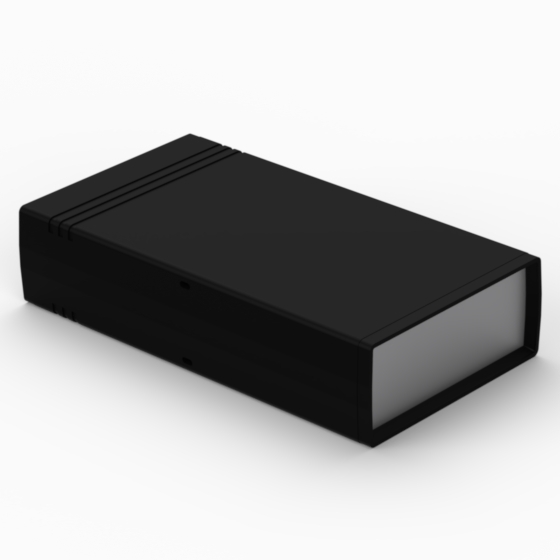

10004.9 199,5 110 46,5 9004
P2H-AT 152,5 101,6 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 152,5
  • MAX PCB W (mm): 101,6
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

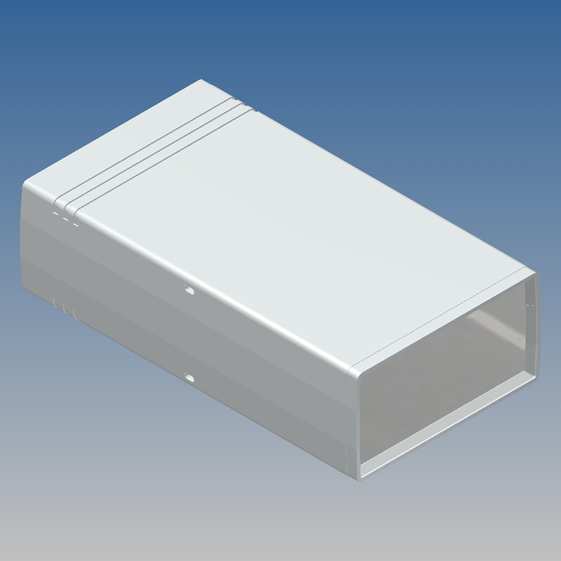

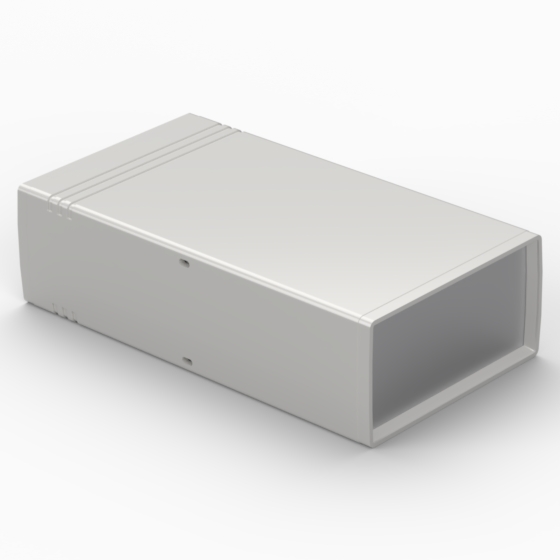

10005.5 199,5 110 56,5 9018
AG-ATY 152,5 101,6 - - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 152,5
  • MAX PCB W (mm): 101,6
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

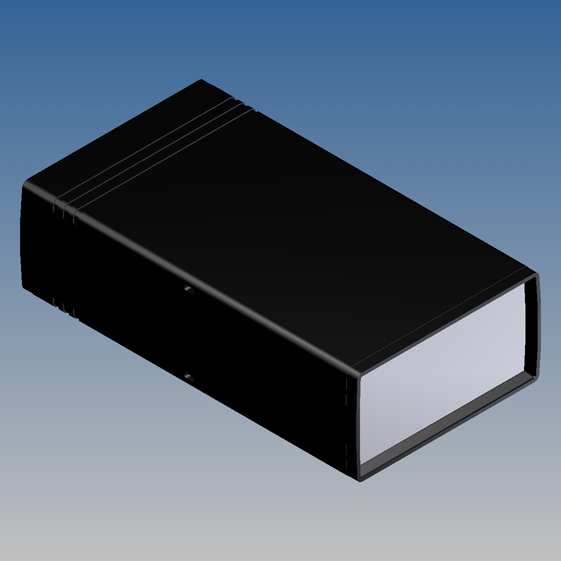

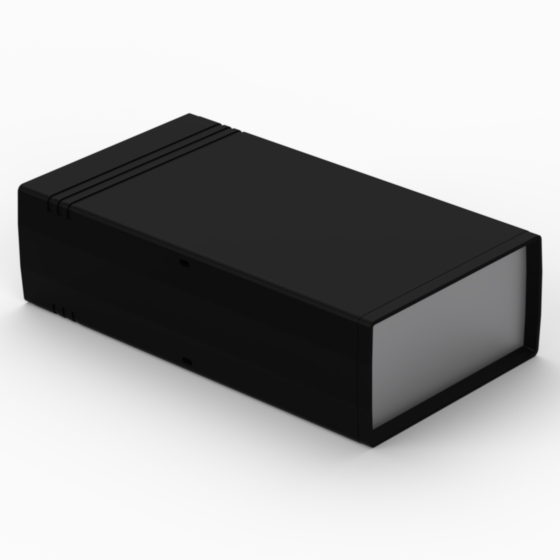

10005.9 199,5 110 56,5 9004
P2H-AT 152,5 101,6 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 152,5
  • MAX PCB W (mm): 101,6
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
12 product families, 152 series. You can't find what you're looking for? Contact us
