Description

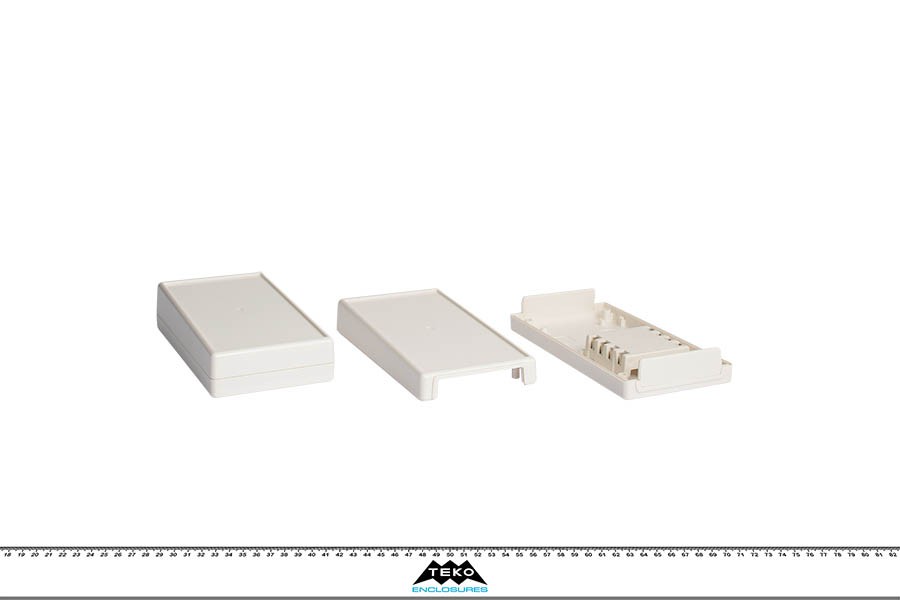

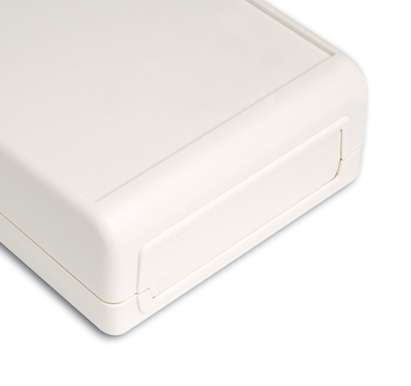

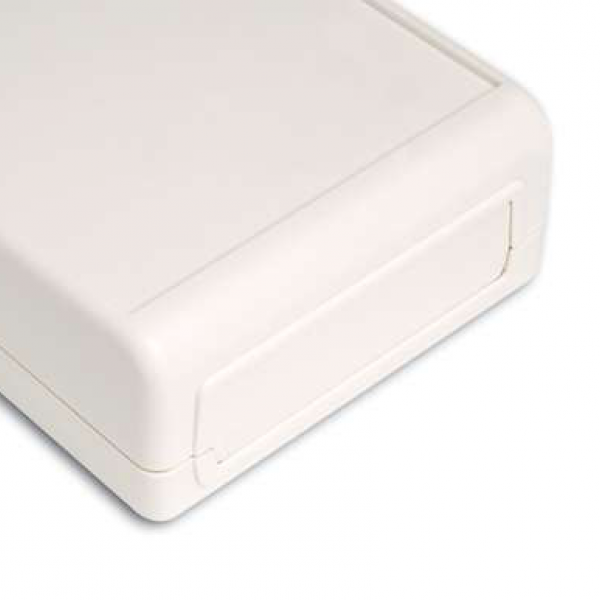

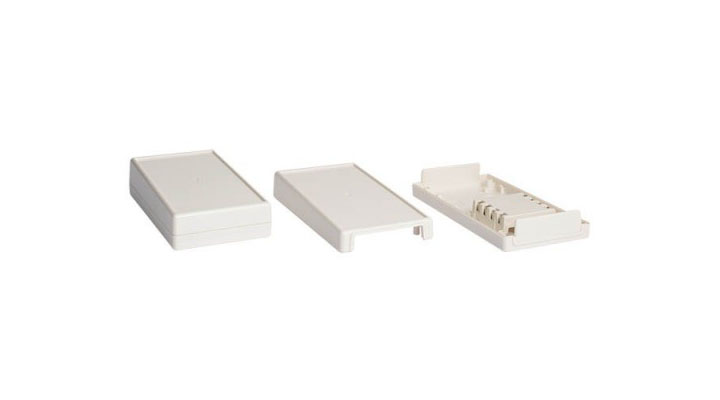

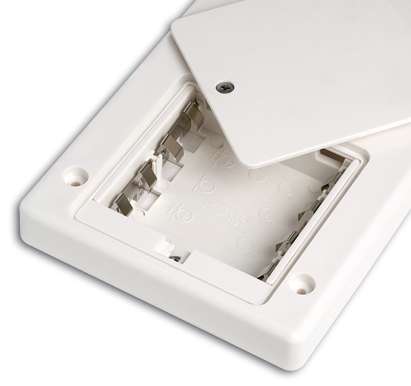

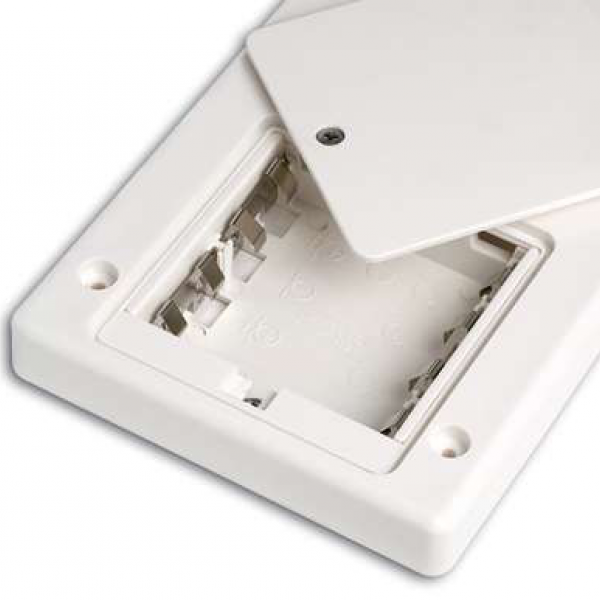

Hand-held enclosures are moulded in polycarbonate and consist of two halves closed by four stainless steel screws. The cover has a recessed area suitable for a membrane keypad. Ten models available. The version “W” has a front and a rear panel, the version “-B” has a compartment for four battery 1.5V. The models with “K” are available with a sealing kit for IP65 protection.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HS.3 | 200 | 100 | 44,5 |
9003 |
2405 | - | - | 4 | - |
PDF DWG |
||
|

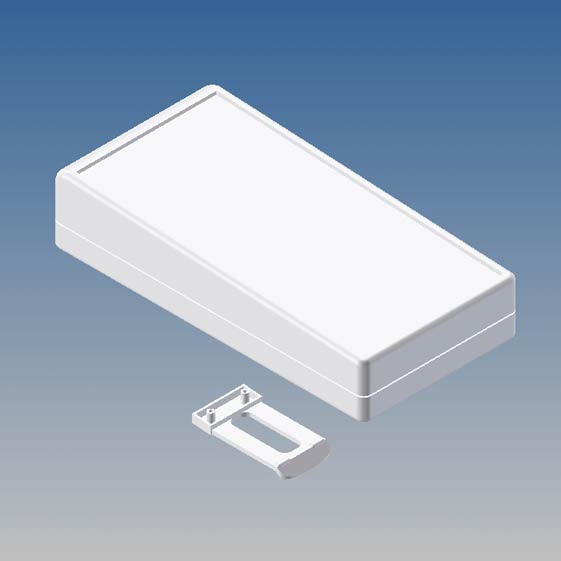

HS-B.3 | 200 | 100 | 44,5 |
9003 |
2405 | - | - | 4 | 4 x AA |
PDF DWG |
||
|

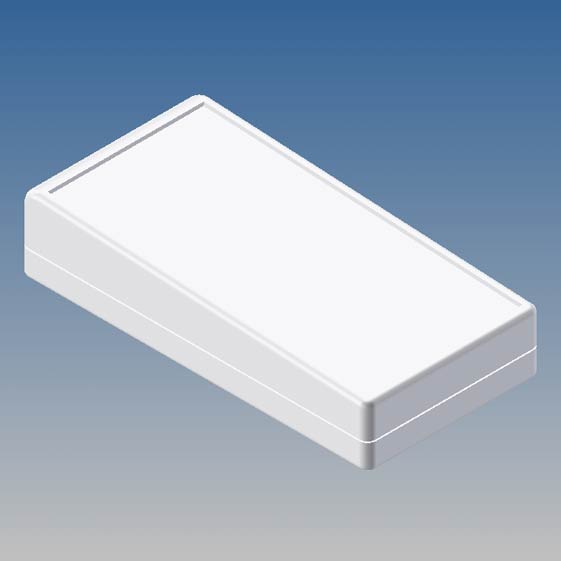

HSK.3 | 200 | 100 | 44,5 |
9003 |
2405 | - | - | 4 | - |
PDF DWG |
||
|

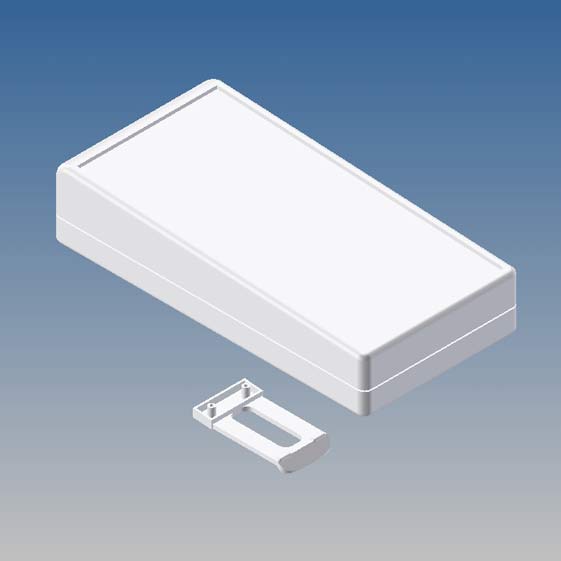

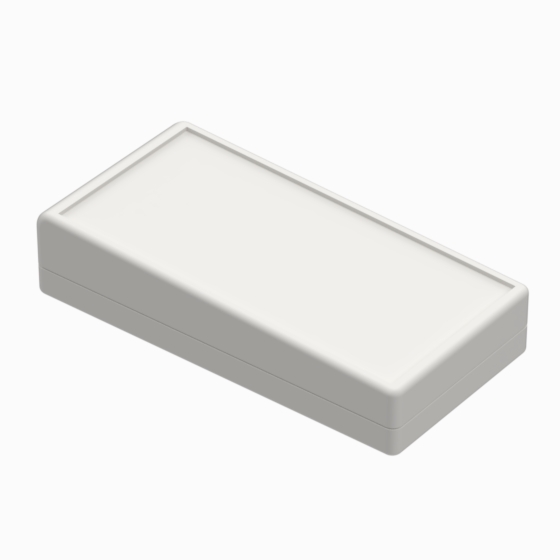

HSK-B.3 | 200 | 100 | 44,5 |
9003 |
2405 | - | - | 4 | 4 x AA |
PDF DWG |
||
|

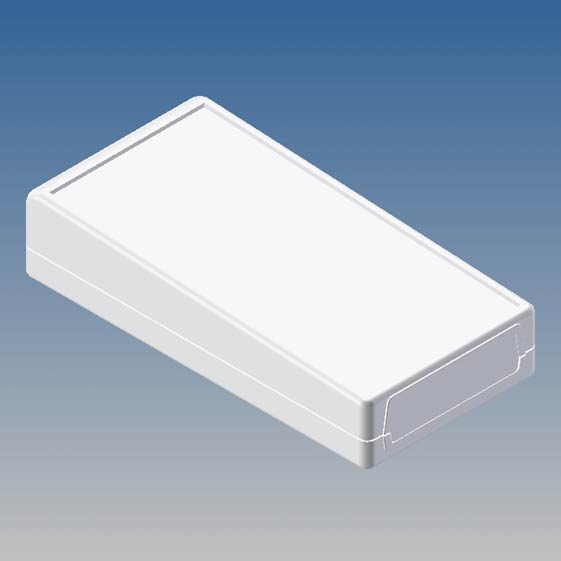

HSW.3 | 200 | 100 | 44,5 |
9003 |
2405 | - | - | 4 | - |
PDF DWG |
||
|

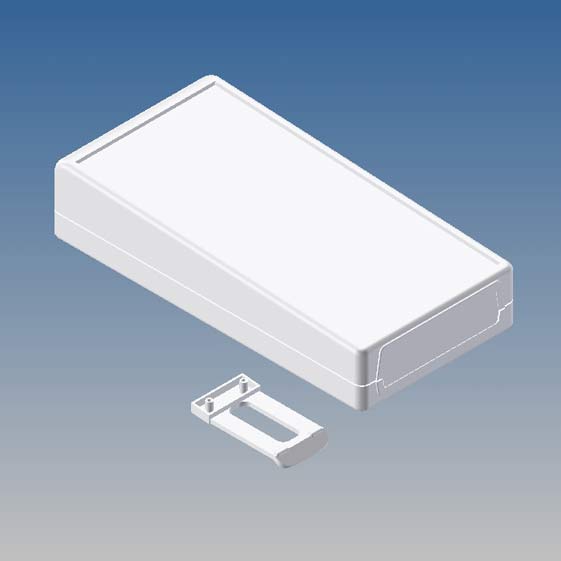

HSW-B.3 | 200 | 100 | 44,5 |
9003 |
2405 | - | - | 4 | 4 x AA |
PDF DWG |
