Description

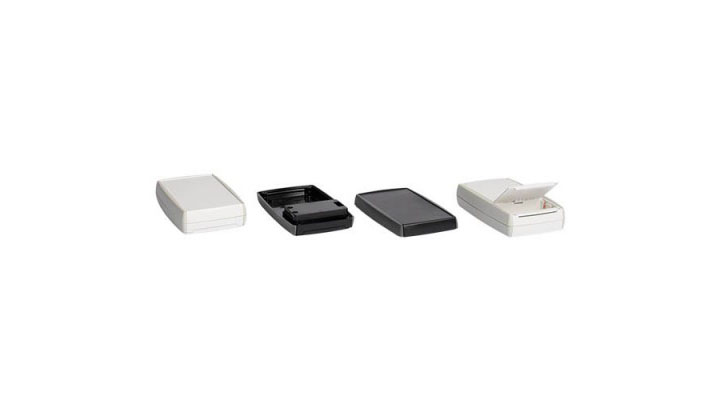

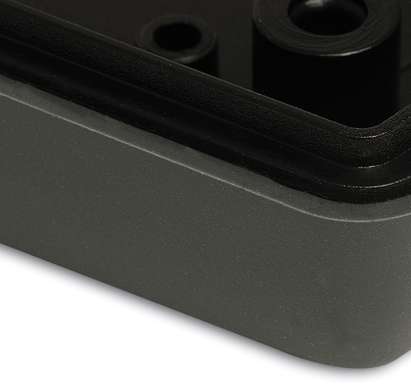

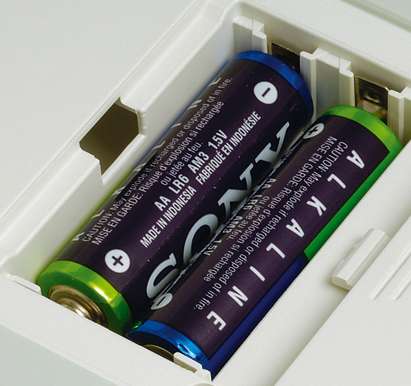

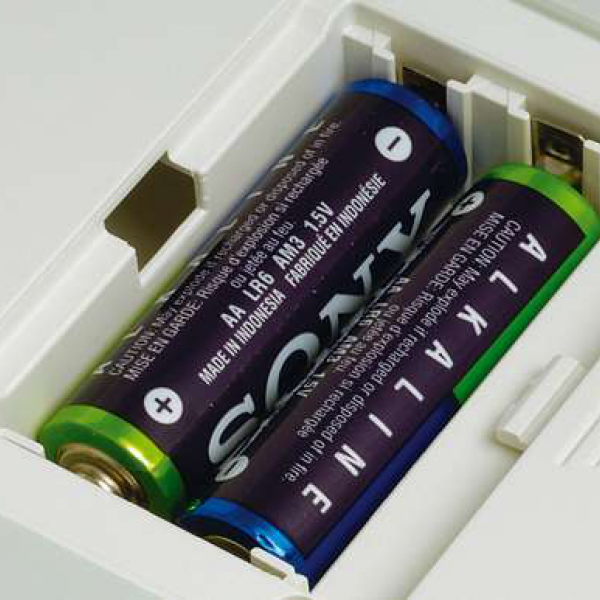

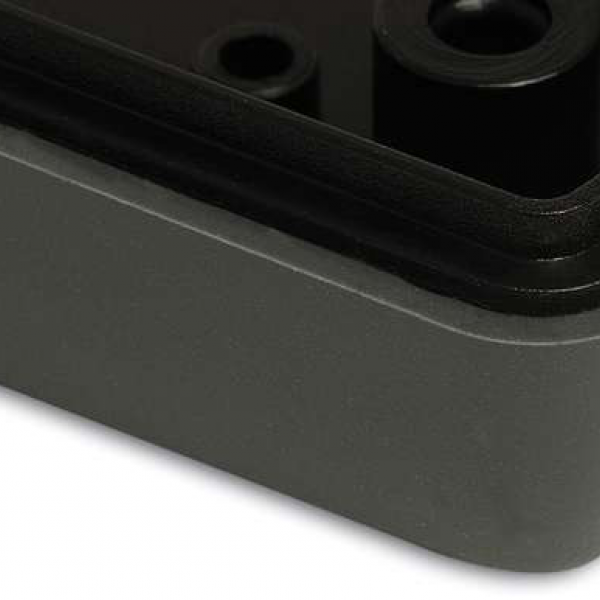

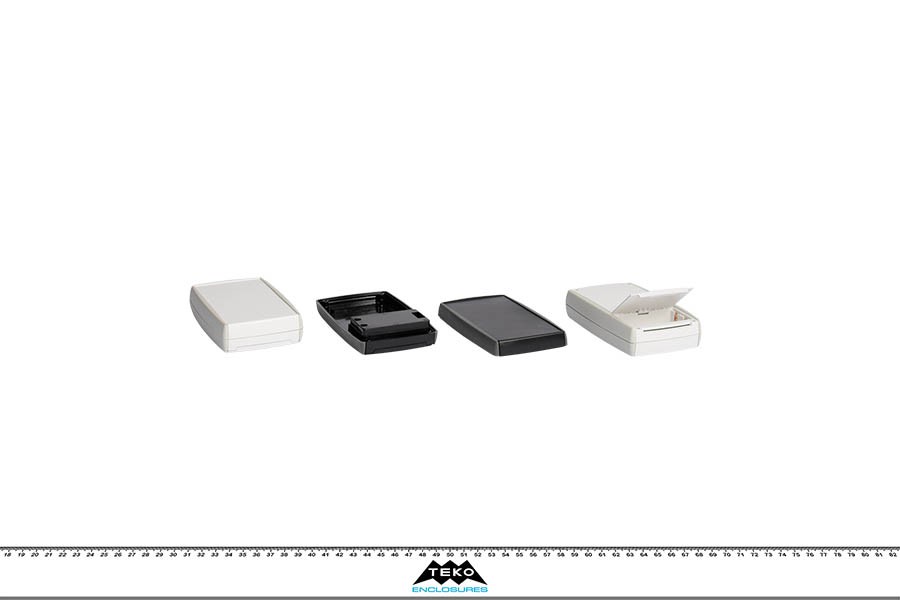

ABS enclosure with new soft-touch contoured shape. By utilising multi-shot moulding technology, the MINITEKNET features an ergonomic design of elastomer grips (TPU) on the side of the case. Battery compartment for two 1,5V (AA) mignon cells or one 9V flat battery (PP3). Base and cover have integral PCB mounting studs. Matt surface finish. Closing by four screws.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

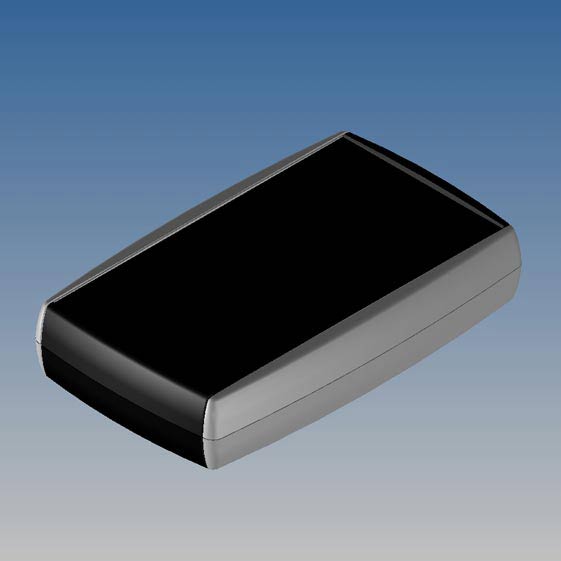

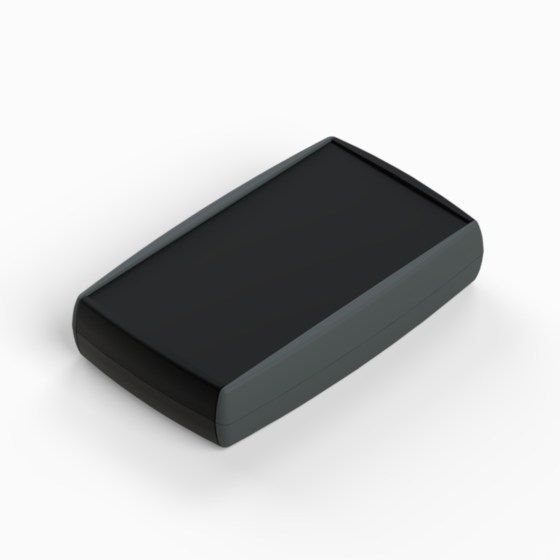

MTN01-B.29 | 115 | 70 | 24 |
9004 7012 |
P2H-AT - 8020 | 60 | 48 | 4 | 2 x AA / 1 x 9V |
M56 MW57 |
PDF DWG |
|
|

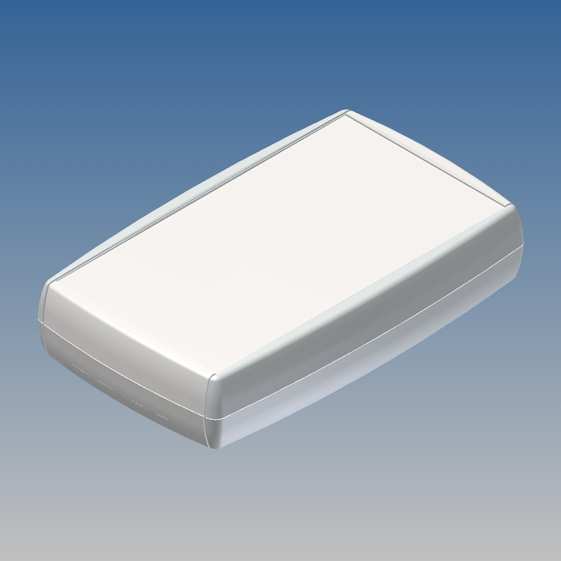

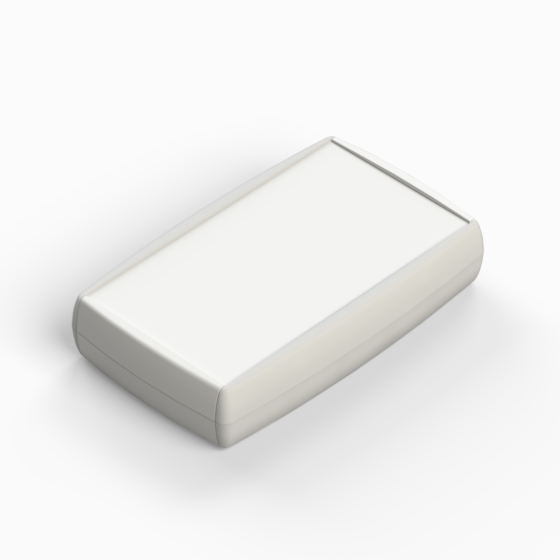

MTN01-B.30 | 115 | 70 | 24 |
9002 9018 |
P2H-AT - 8020 | 60 | 48 | 4 | 2 x AA / 1 x 9V |
M56 MW57 |
PDF DWG |
