Description

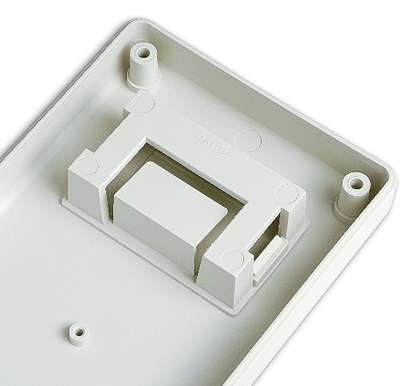

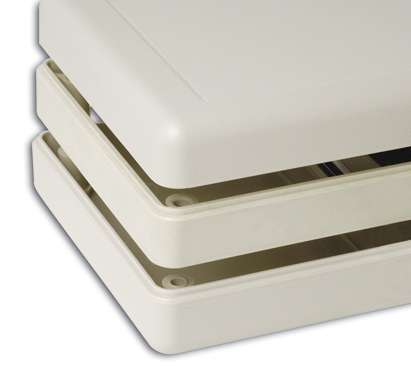

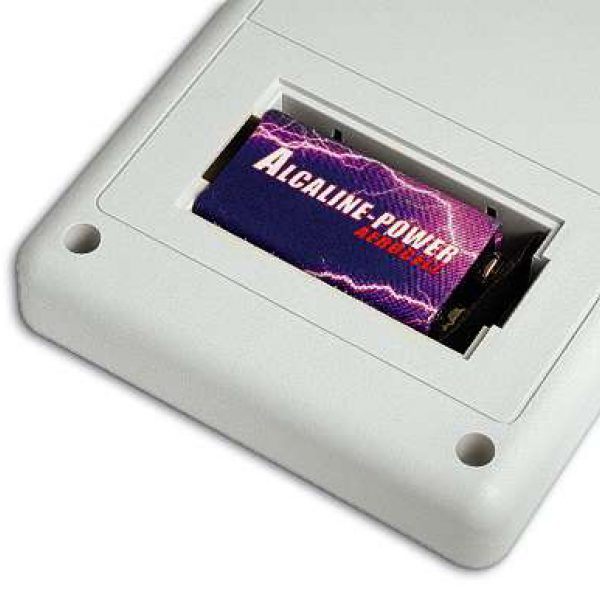

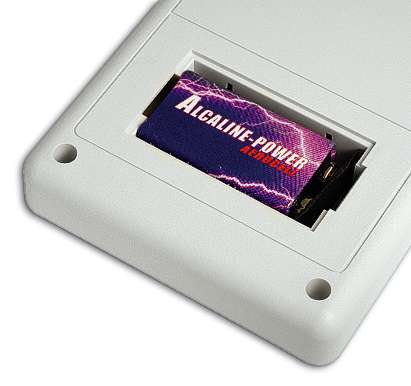

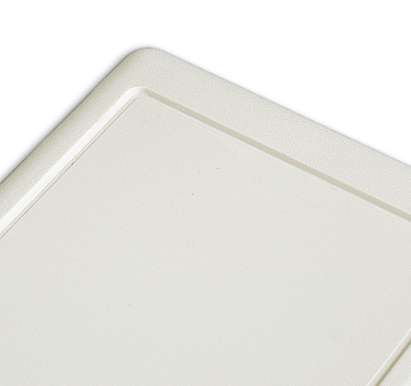

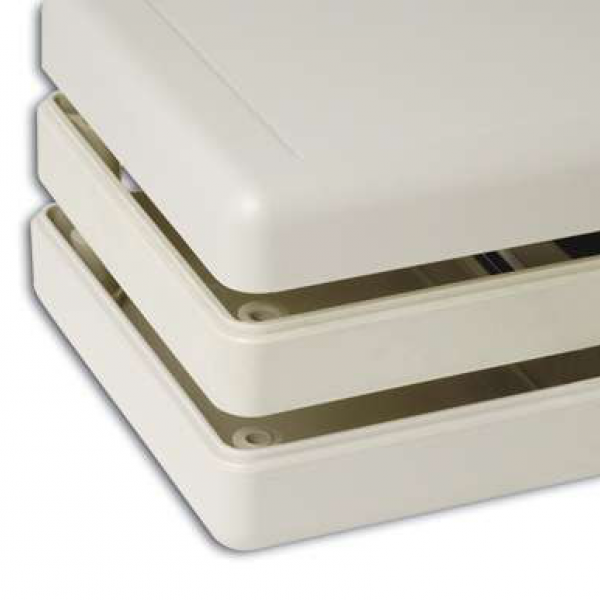

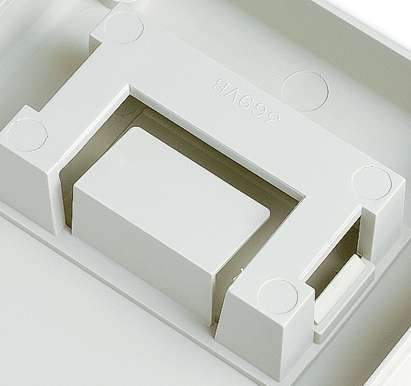

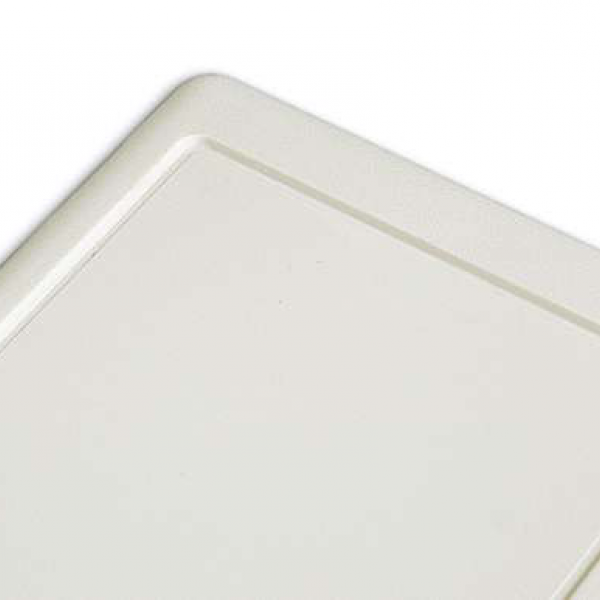

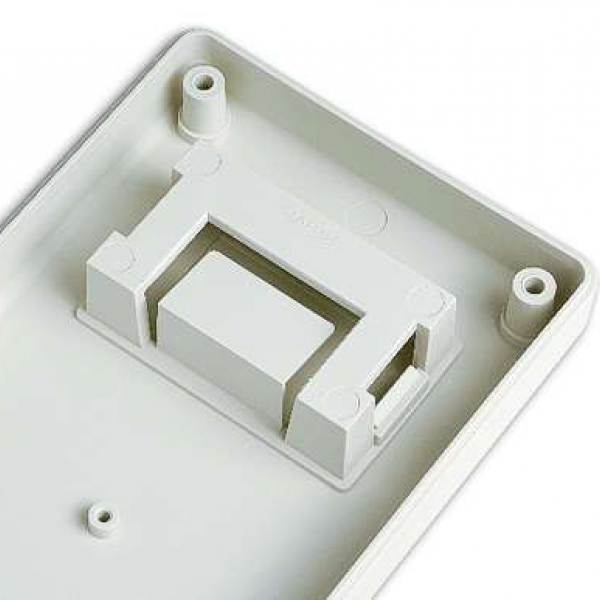

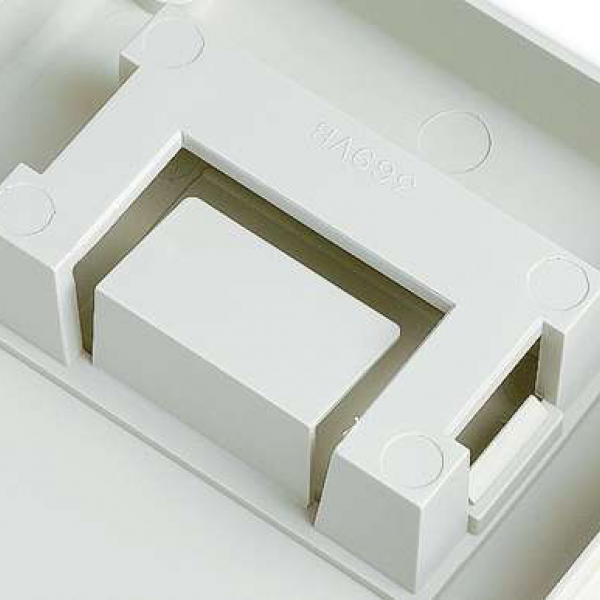

ABS enclosures with a recessed area suitable for a membrane keypad. The base has integral PCB mounting studs. The models with “-B” have a battery compartment. The “S” version has a slanted cover. Matt surface finish. Closing by four screws. Upon request a surround strip is available to increase height of 14 mm (Mod. XR13).
Products
Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

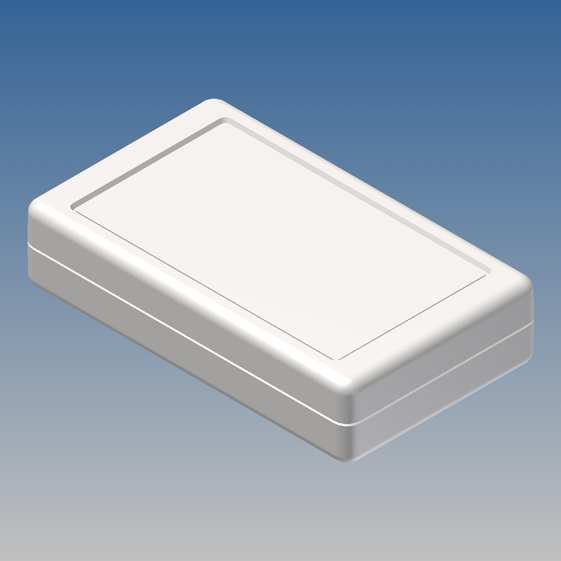

SM-B.7 | 160 | 95 | 35,5 |
9002 |
TERLURAN GP-22 | 96,5 | 86 | 4 | 1 x 9V |
AB9 |
PDF DWG |
View
|
|
SM-B.9 | 160 | 95 | 35,5 |
9004 |
TERLURAN GP-22 | 96,5 | 86 | 4 | 1 x 9V |
AB9 |
PDF DWG |
View
|
|

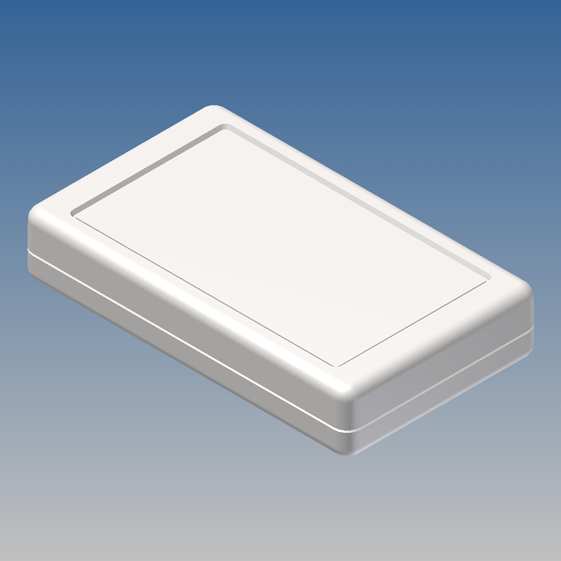

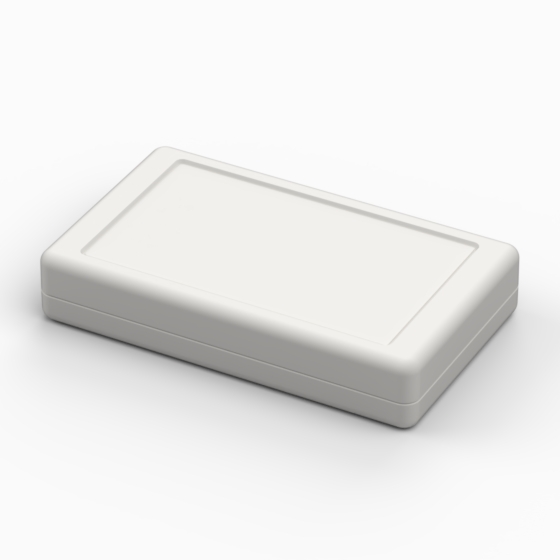

SM1.7 | 160 | 95 | 30 |
9002 |
TERLURAN GP-22 | 151,1 | 86,1 | 4 | - |
PDF DWG |
View
|
||

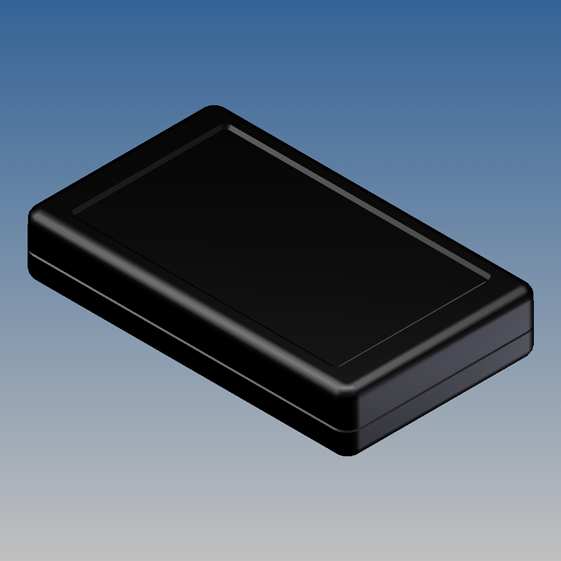

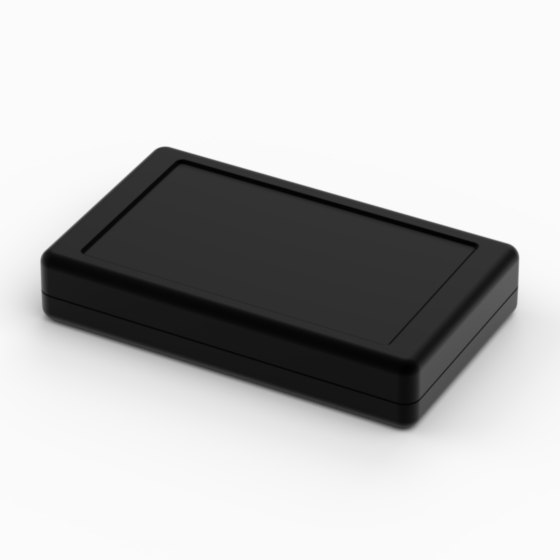

SM1.9 | 160 | 95 | 30 |
9004 |
TERLURAN GP-22 | 151,1 | 86,1 | 4 | - |
PDF DWG |
View
|
||

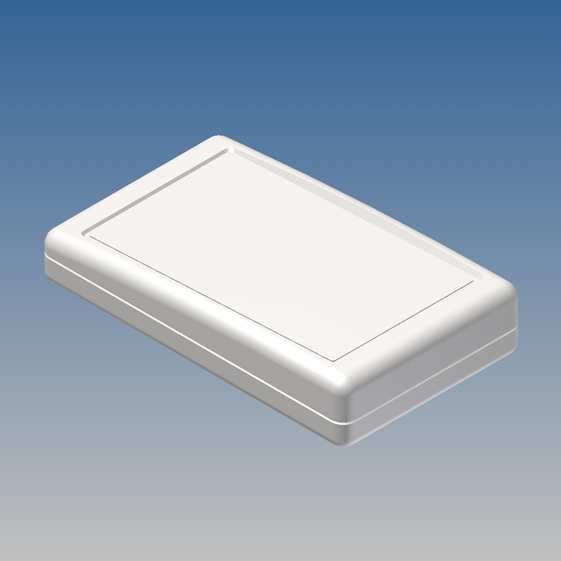

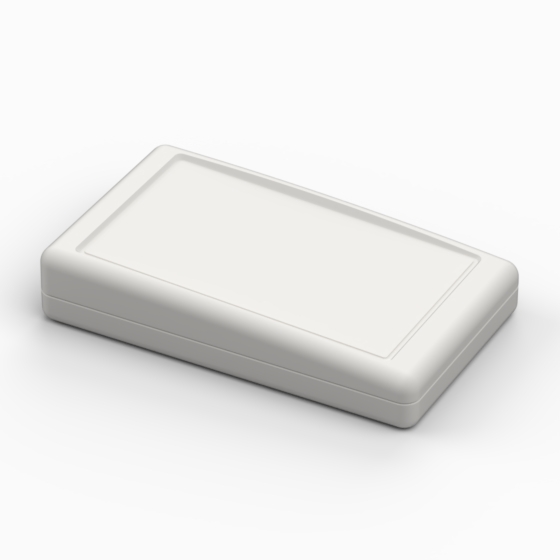

SM1S.7 | 160 | 95 | 30 |
9002 |
TERLURAN GP-22 | 151,1 | 86,1 | 4 | - |
PDF DWG |
View
|
||

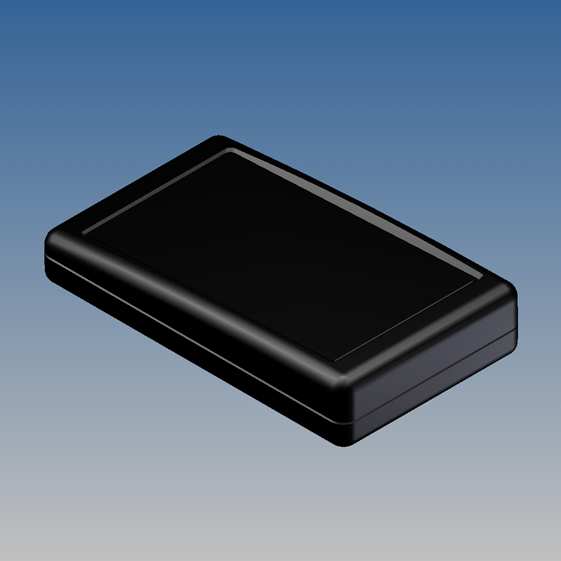

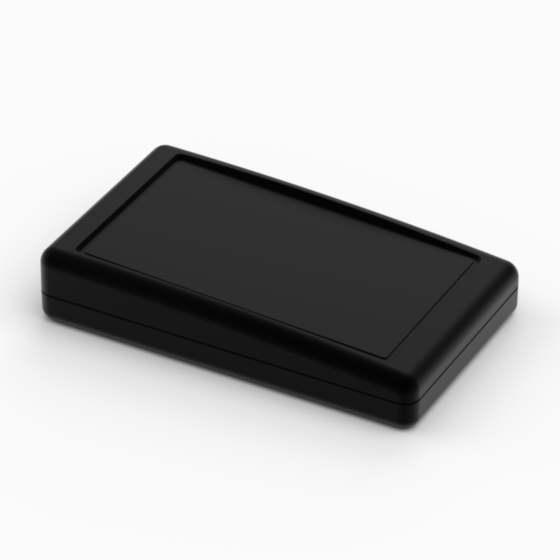

SM1S.9 | 160 | 95 | 30 |
9004 |
TERLURAN GP-22 | 151,1 | 86,1 | 4 | - |
PDF DWG |
View
|
||
SM2 - OUT OF STOCK.7 | 160 | 95 | 35,5 |
9002 |
TERLURAN GP-22 | 151,1 | 86,1 | 4 | - |
PDF DWG |
View
|
||
SM2 - OUT OF STOCK.9 | 160 | 95 | 35,5 |
9004 |
TERLURAN GP-22 | 151,1 | 86,1 | 4 | - |
PDF DWG |
View
|
||

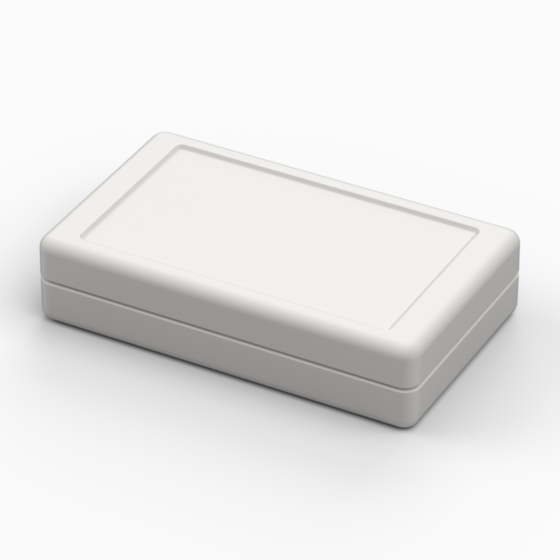

SM2-2B.7 | 160 | 95 | 35,5 |
9002 |
TERLURAN GP-22 | 96,5 | 86 | 4 | 2 x AA |
PDF DWG |
View
|
||
SM2-2B.9 | 160 | 95 | 35,5 |
9004 |
TERLURAN GP-22 | 96,5 | 86 | 4 | 2 x AA |
PDF DWG |
View
|
||

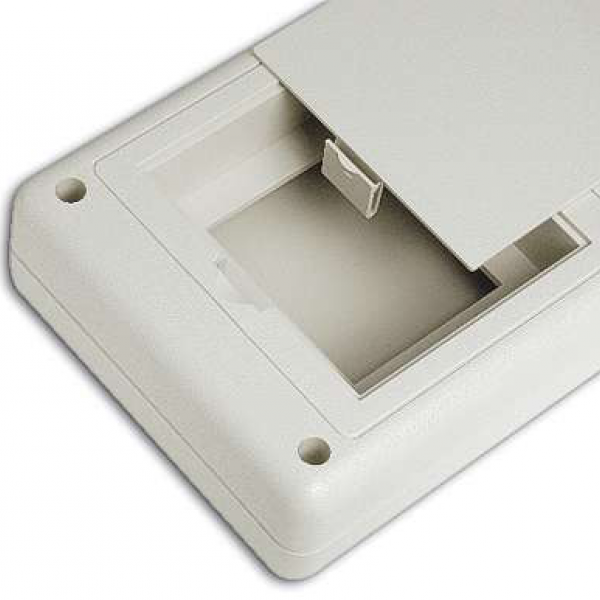

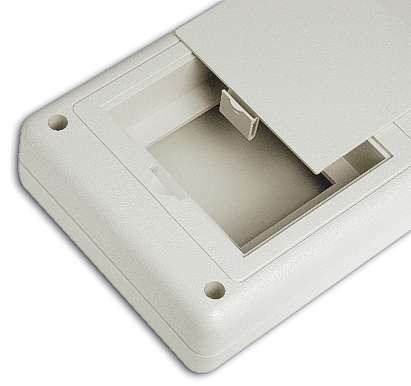

SM2-4B - OUT OF STOCK.7 | 160 | 95 | 35,5 |
9002 |
TERLURAN GP-22 | 86 | 66,5 | 4 | 4 x AA |
PDF DWG |
View
|
||

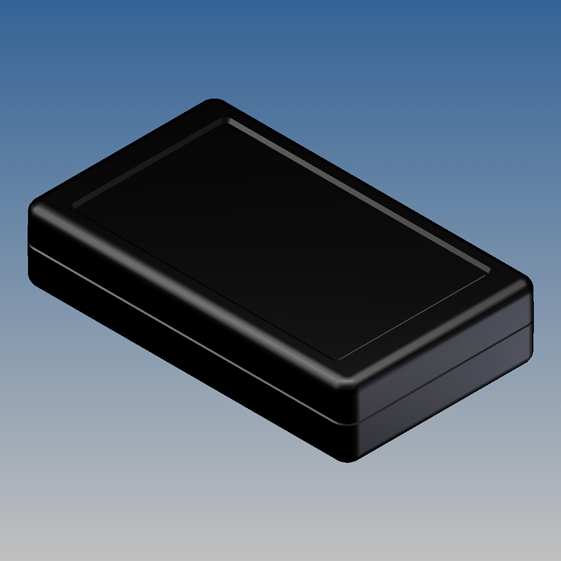

SM2-4B - OUT OF STOCK.9 | 160 | 95 | 35,5 |
9004 |
TERLURAN GP-22 | 86 | 66,5 | 4 | 4 x AA |
PDF DWG |
View
|
||
SM2S - OUT OF STOCK.7 | 160 | 95 | 35,5 |
9002 |
TERLURAN GP-22 | 151,1 | 86,1 | 4 | - |
PDF DWG |
View
|
||
SM2S - OUT OF STOCK.9 | 160 | 95 | 35,5 |
9004 |
TERLURAN GP-22 | 151,1 | 86,1 | 4 | - |
PDF DWG |
View
|
||

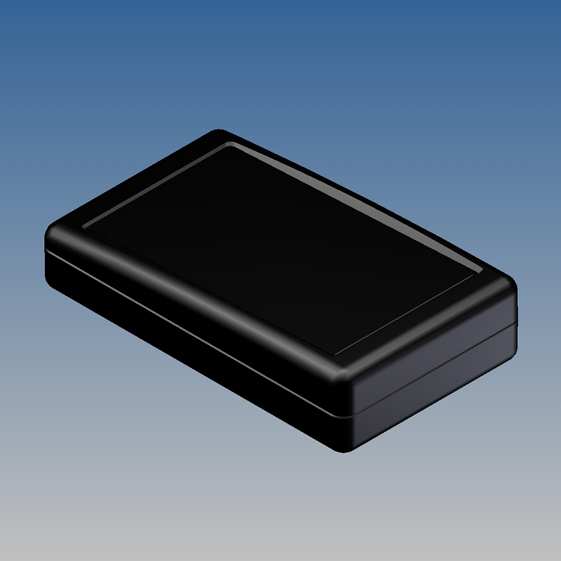

SMS-2B - OUT OF STOCK.7 | 160 | 95 | 35,5 |
9002 |
TERLURAN GP-22 | 96,5 | 86 | 4 | 2 x AA |
PDF DWG |
View
|
||
SMS-2B - OUT OF STOCK.9 | 160 | 95 | 35,5 |
9004 |
TERLURAN GP-22 | 96,5 | 86 | 4 | 2 x AA |
PDF DWG |
View
|
||
SMS-4B - OUT OF STOCK.7 | 160 | 95 | 35,5 |
9002 |
TERLURAN GP-22 | 86 | 66,5 | 4 | 4 x AA |
PDF DWG |
View
|
||

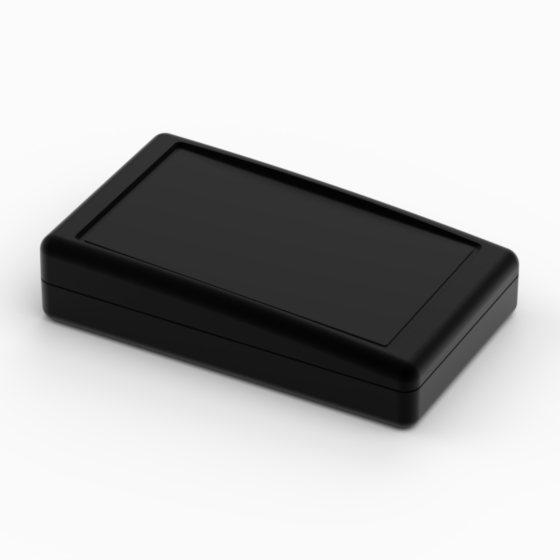

SMS-4B - OUT OF STOCK.9 | 160 | 95 | 35,5 |
9004 |
TERLURAN GP-22 | 86 | 66,5 | 4 | 4 x AA |
PDF DWG |
View
|
||

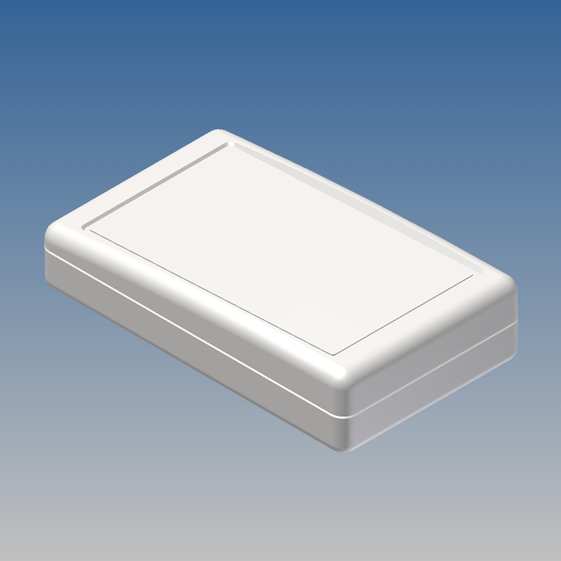

SMS-B - OUT OF STOCK.7 | 160 | 95 | 35,5 |
9002 |
TERLURAN GP-22 | 96,5 | 86 | 4 | 1 x 9V |
AB9 |
PDF DWG |
View
|
|
SMS-B - OUT OF STOCK.9 | 160 | 95 | 35,5 |
9004 |
TERLURAN GP-22 | 96,5 | 86 | 4 | 1 x 9V |
AB9 |
PDF DWG |
View
|
