TB

Description

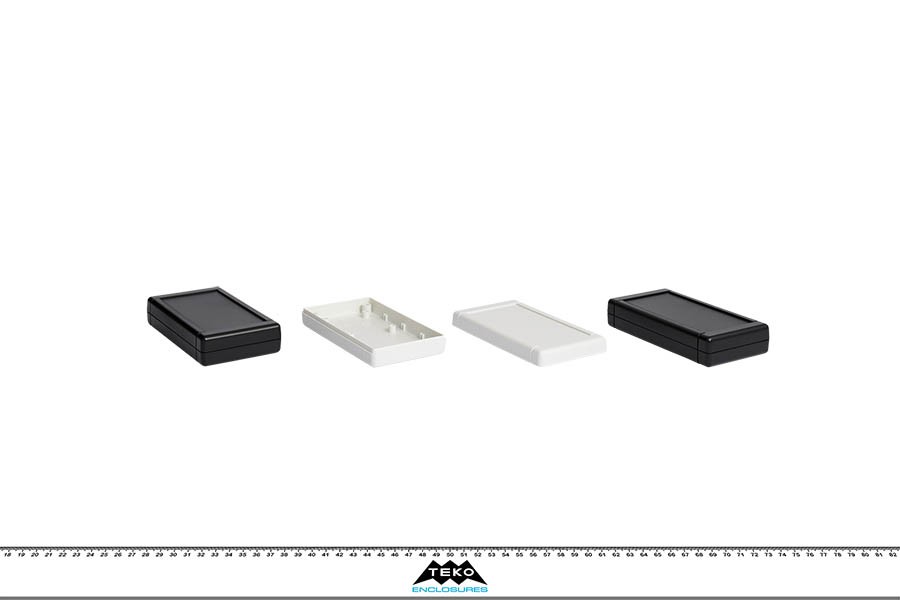

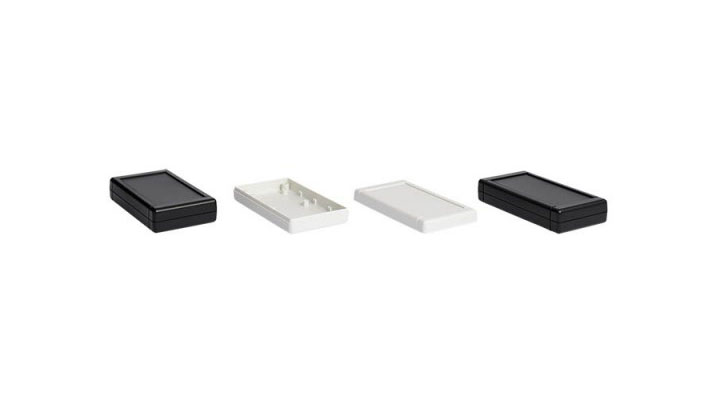

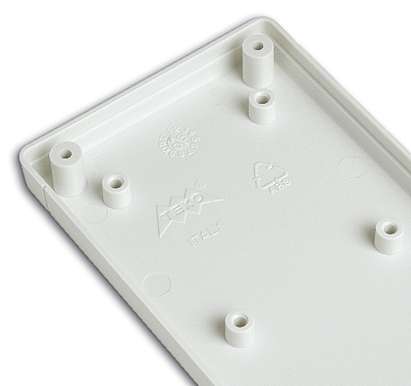

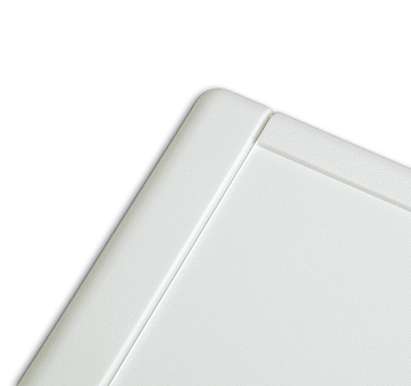

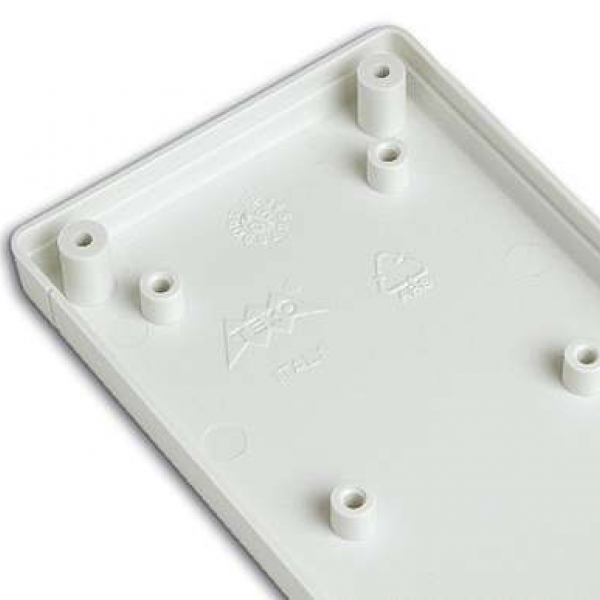

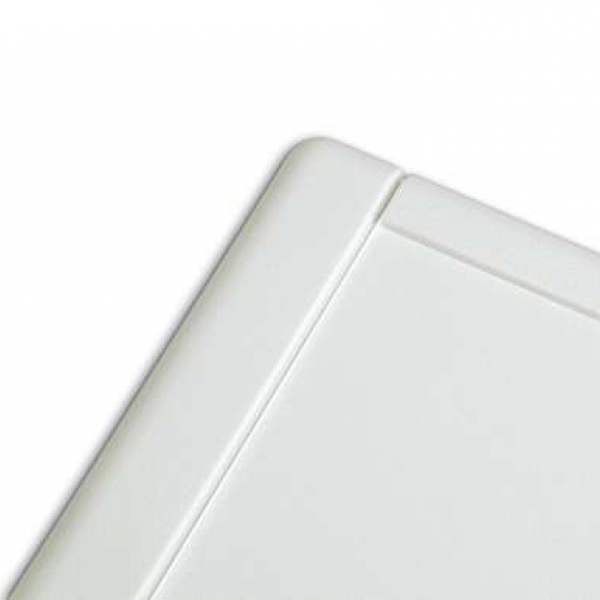

ABS enclosures with a recessed operating area 102 x 52 mm. for membrane keyboards. Base and cover have integral PCB guides and mounting studs. Matt surface finish. Closing by four screws. Upon request ABS wall mounting tabs “MT1”.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

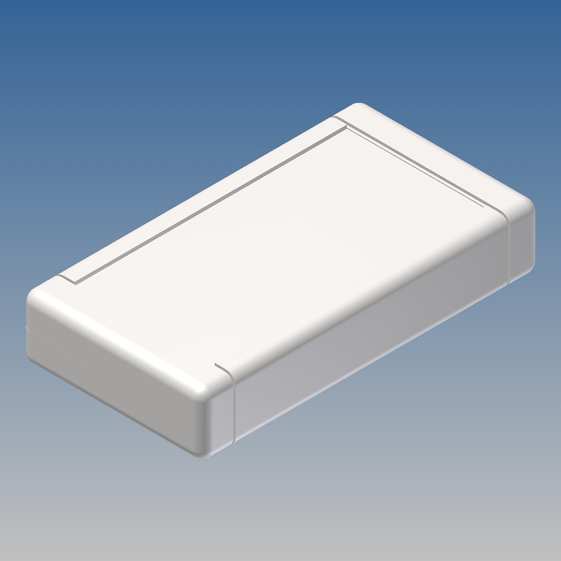

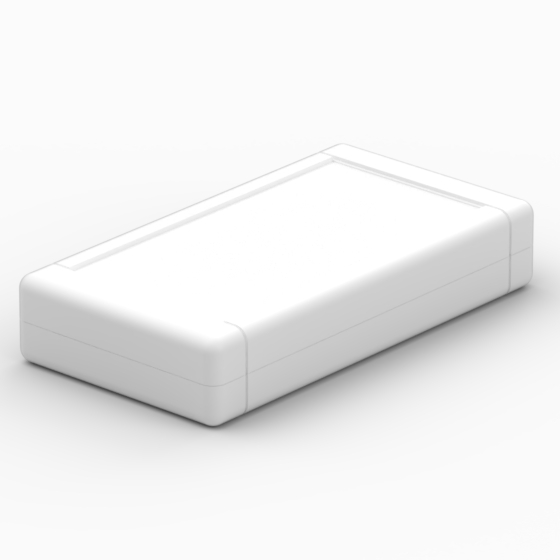

TB.7 126 67,8 24,5 9002
 FORMACROM 9249FC 98 57 4 - M54
MT1
MW55
 PDF
DWG
View

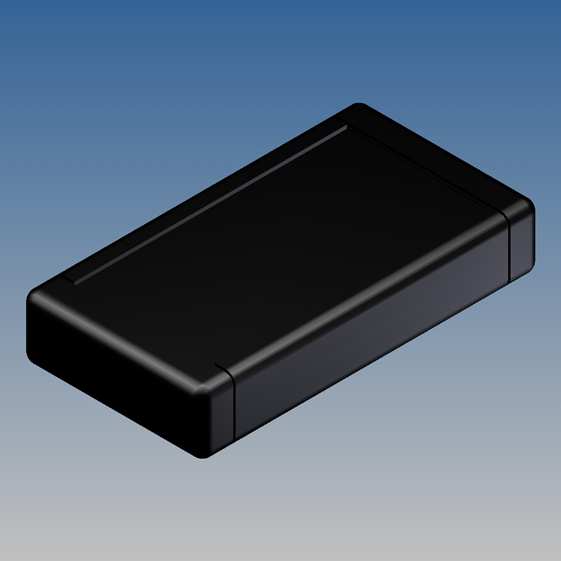

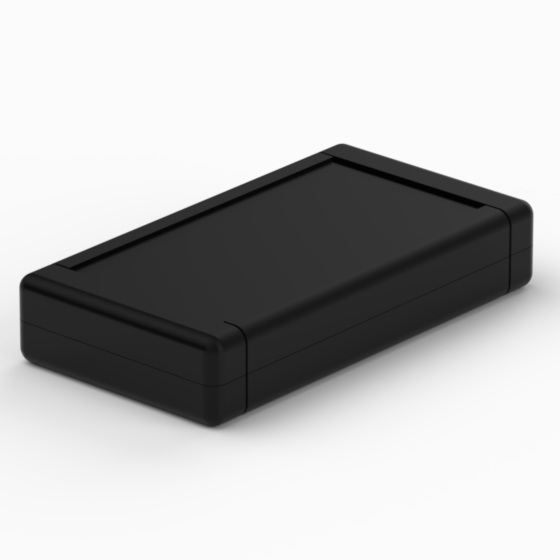

TB.9 126 67,8 24,5 9004
 TERLURAN GP-35 98 57 4 - M54
MT1
MW55
 PDF
DWG
View
