Tbl

Description

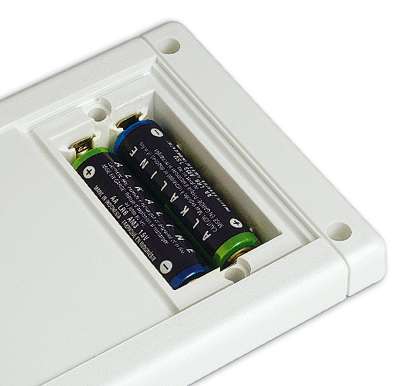

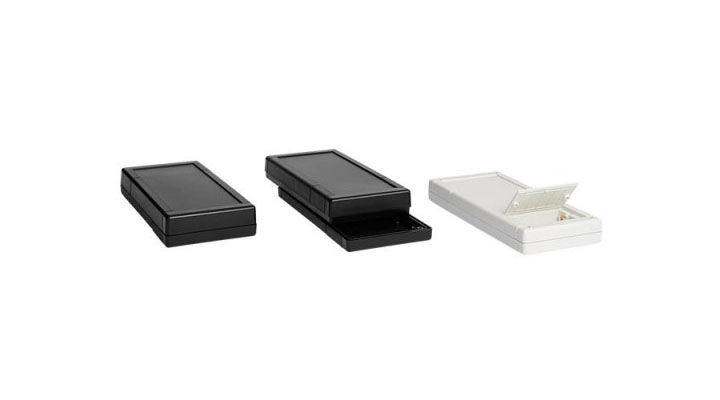

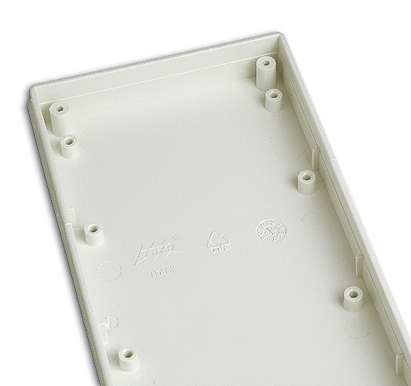

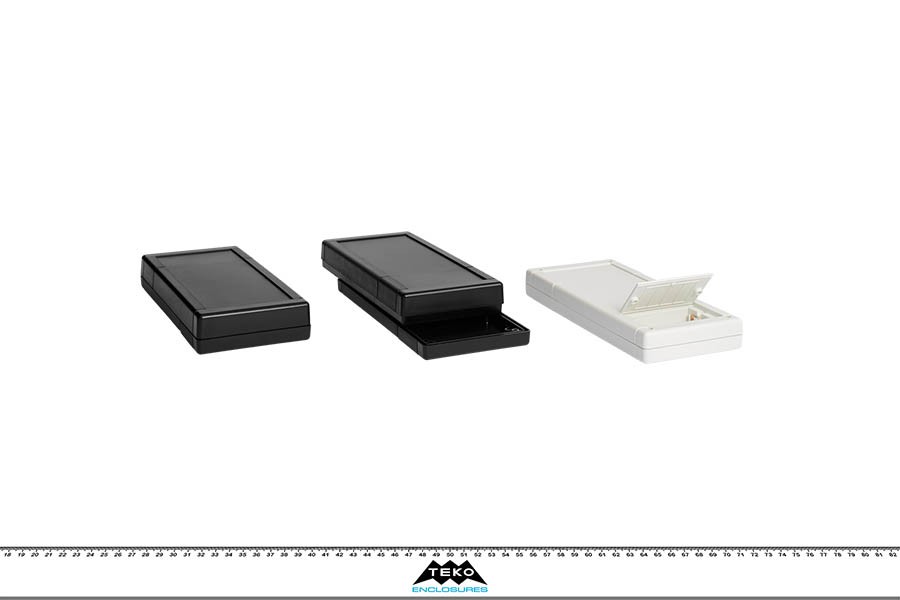

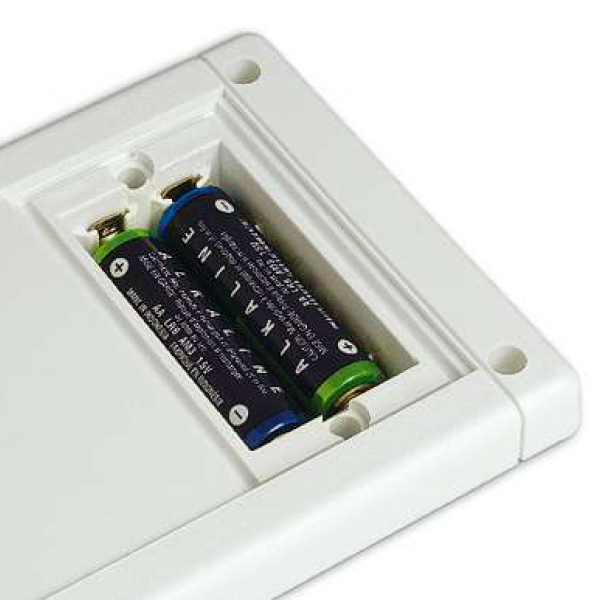

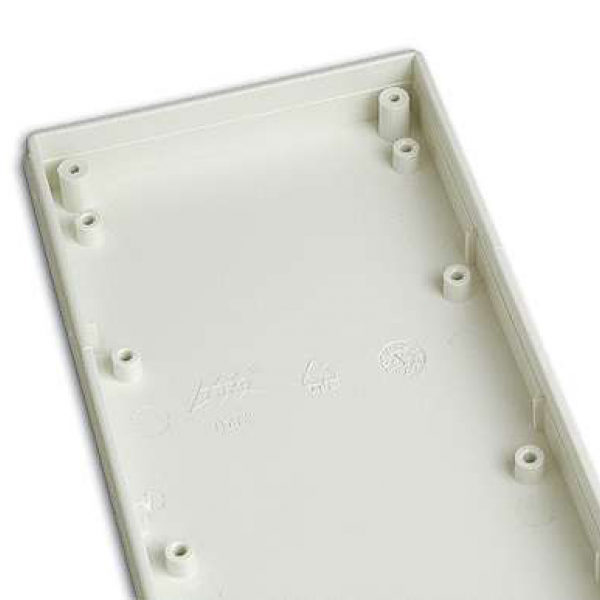

ABS enclosures with a recessed operating area for membrane keyboards. Base and cover have integral PCB guides and mounting studs. Matt surface finish. The models with “-B” have a battery compartment for two mignon-cells 1.5V or one flat battery 9V. The models with “K” are able to accept the IP65 sealing kit. Closing by four screws. Upon request ABS wall mounting tabs “MT1”, aluminium panels “APTB”, Keypad membrane “M” and “MW” (with transparent display area).

Details

Products

Model	L (mm)	W (mm)	H (mm)	Color (Ral)	Material	MAX PCB L (mm)	MAX PCB W (mm)	Screws	Battery	Accessories	Other

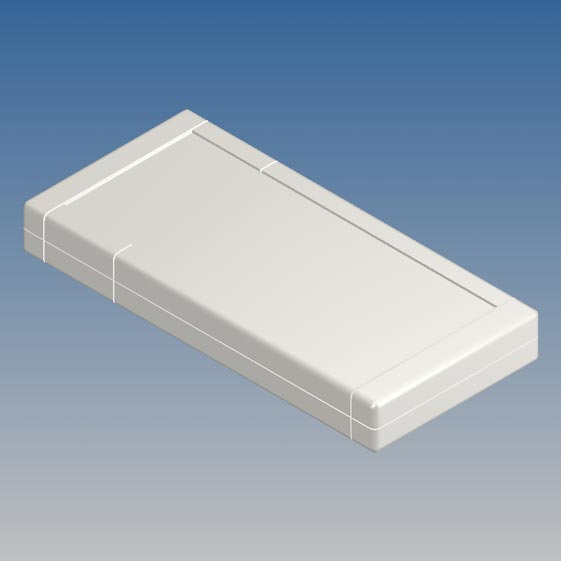

TBL-1.7	200	94	25	9002	FORMACROM 9249FC	190	83	4	-	M M58 M59 MT1 MW61	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 190 MAX PCB W (mm): 83 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW61 Drawings: PDF DWG
TBL-1.9	200	94	25	9004	TERLURAN GP-35	190	83	4	-	M M58 M59 MT1 MW61	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 190 MAX PCB W (mm): 83 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW61 Drawings: PDF DWG

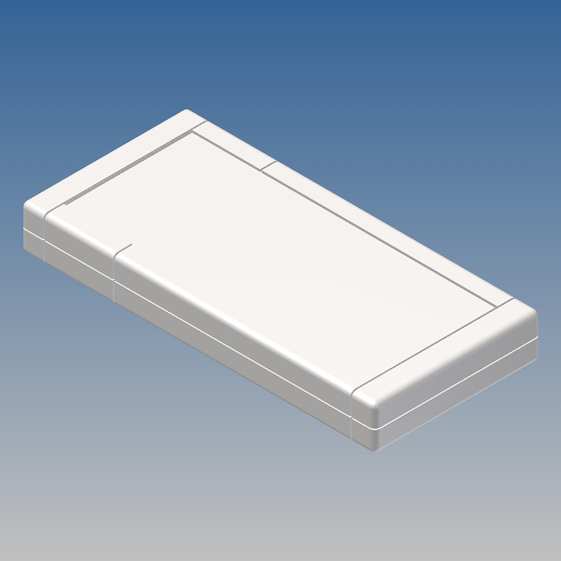

TBL-1B.7	200	94	25	9002	FORMACROM 9249FC	140	80	4	2 x AA / 1 x 9V	AB9 M M58 M59 MT1 MW61	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 140 MAX PCB W (mm): 80 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW61 Drawings: PDF DWG
TBL-1B.9	200	94	25	9004	TERLURAN GP-35	140	80	4	2 x AA / 1 x 9V	AB9 M M58 M59 MT1 MW61	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 140 MAX PCB W (mm): 80 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW61 Drawings: PDF DWG

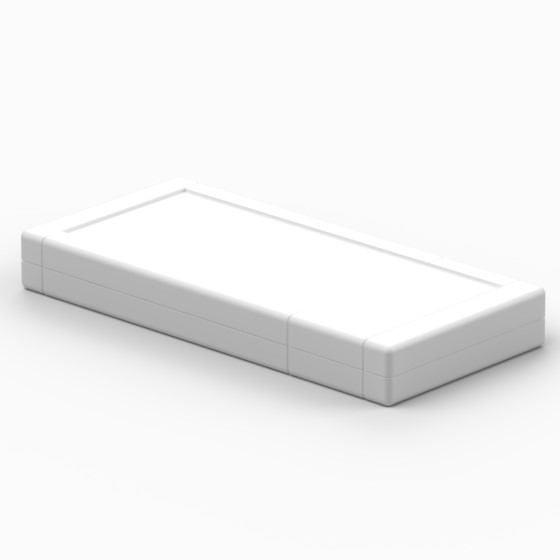

TBL-1BK.7	200	94	25	9002	FORMACROM 9249FC	140	80	4	2 x AA / 1 x 9V	AB9 M M58 M59 MT1 MW61	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 140 MAX PCB W (mm): 80 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW61 Drawings: PDF DWG

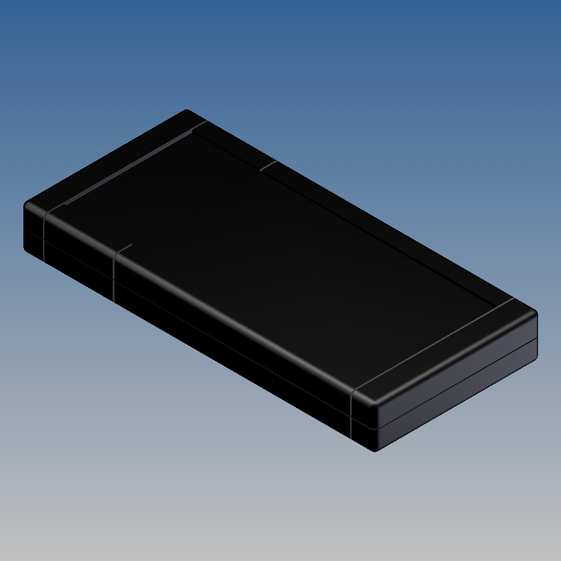

TBL-1BK.9	200	94	25	9004	TERLURAN GP-35	140	80	4	2 x AA / 1 x 9V	AB9 M M58 M59 MT1 MW61	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 140 MAX PCB W (mm): 80 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW61 Drawings: PDF DWG
TBL-1K.7	200	94	25	9002	FORMACROM 9249FC	190	83	4	-	M M58 M59 MT1 MW61	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 190 MAX PCB W (mm): 83 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW61 Drawings: PDF DWG

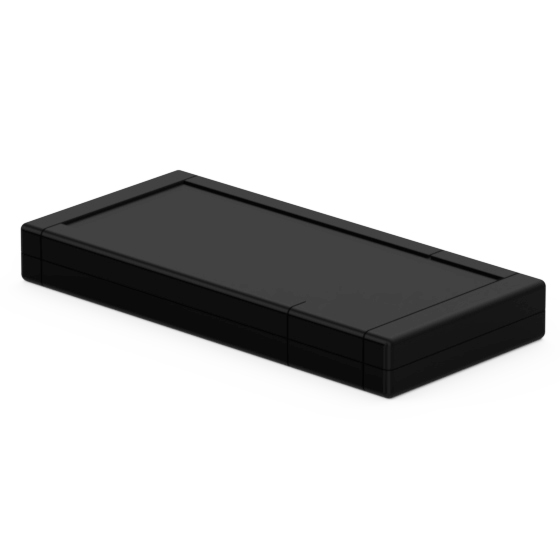

TBL-1K.9	200	94	25	9004	TERLURAN GP-35	190	83	4	-	M M58 M59 MT1 MW61	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 190 MAX PCB W (mm): 83 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW61 Drawings: PDF DWG

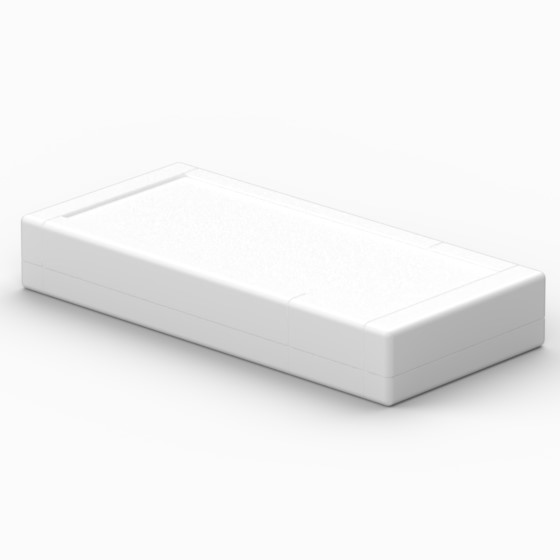

TBL-2.7	200	94	31,5	9002	FORMACROM 9249FC	190	83	4	-	M M58 M59 MT1 MW61	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 190 MAX PCB W (mm): 83 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW61 Drawings: PDF DWG

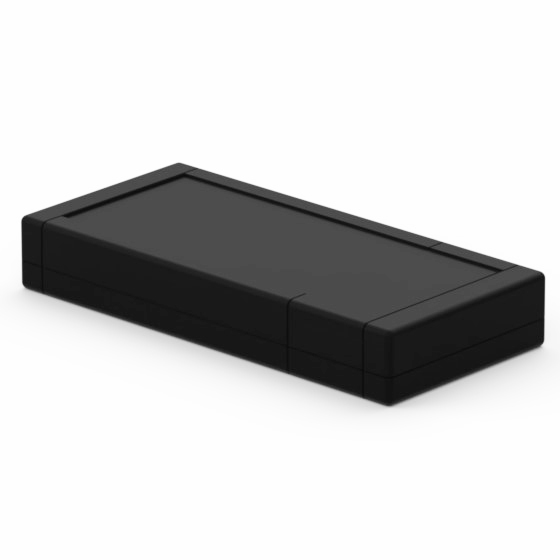

TBL-2.9	200	94	31,5	9004	TERLURAN GP-35	190	83	4	-	M M58 M59 MT1 MW61	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 190 MAX PCB W (mm): 83 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW61 Drawings: PDF DWG

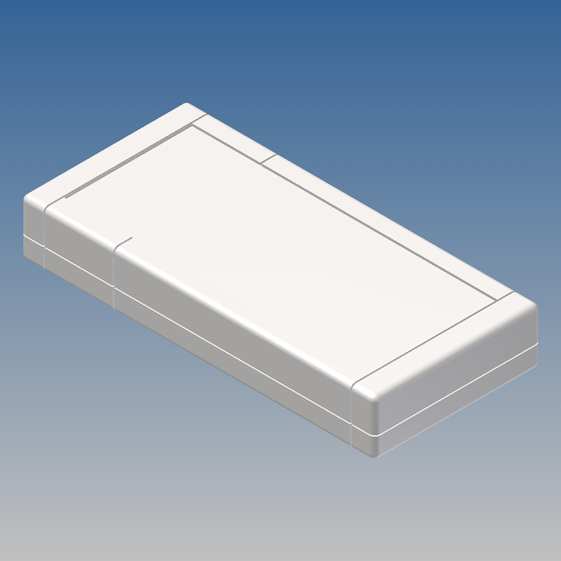

TBL-2B.7	200	94	31,5	9002	FORMACROM 9249FC	140	80	4	2 x AA / 1 x 9V	AB9 M M58 M59 MT1 MW61	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 140 MAX PCB W (mm): 80 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW61 Drawings: PDF DWG
TBL-2B.9	200	94	31,5	9004	TERLURAN GP-35	140	80	4	2 x AA / 1 x 9V	AB9 M M58 M59 MT1 MW61	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 140 MAX PCB W (mm): 80 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW61 Drawings: PDF DWG
TBL-2BK.7	200	94	31,5	9002	FORMACROM 9249FC	140	80	4	2 x AA / 1 x 9V	AB9 M M58 M59 MT1 MW61	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 140 MAX PCB W (mm): 80 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW61 Drawings: PDF DWG

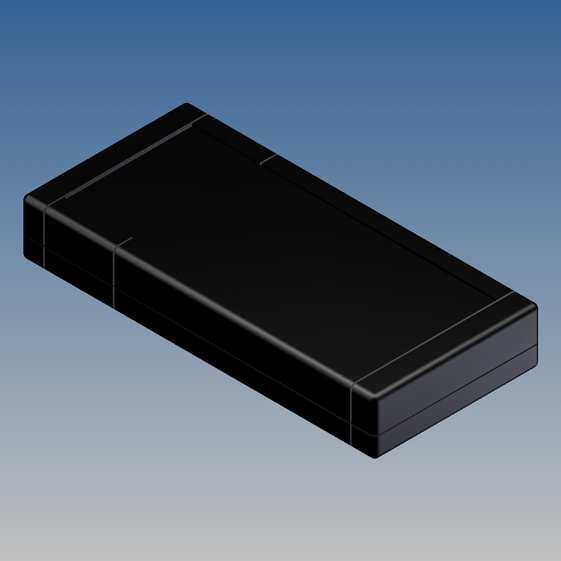

TBL-2BK.9	200	94	31,5	9004	TERLURAN GP-35	140	80	4	2 x AA / 1 x 9V	AB9 M M58 M59 MT1 MW61	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 140 MAX PCB W (mm): 80 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW61 Drawings: PDF DWG

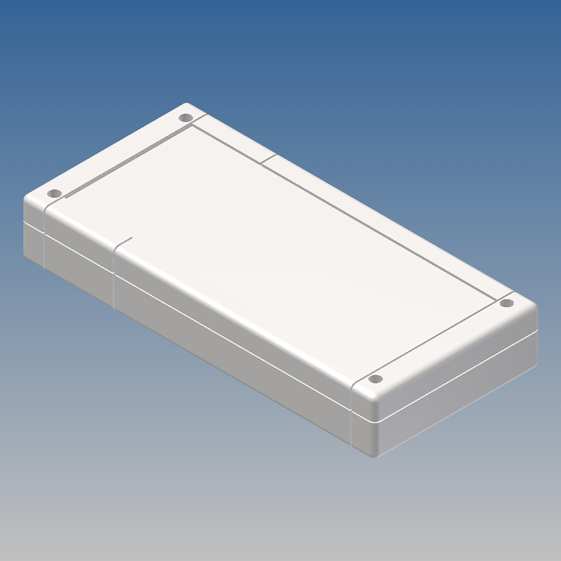

TBL-2K.7	200	94	31,5	9002	FORMACROM 9249FC	190	83	4	-	M M58 M59 MT1 MW61	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 190 MAX PCB W (mm): 83 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW61 Drawings: PDF DWG
TBL-2K.9	200	94	31,5	9004	TERLURAN GP-35	190	83	4	-	M M58 M59 MT1 MW61	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 190 MAX PCB W (mm): 83 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW61 Drawings: PDF DWG
