Description

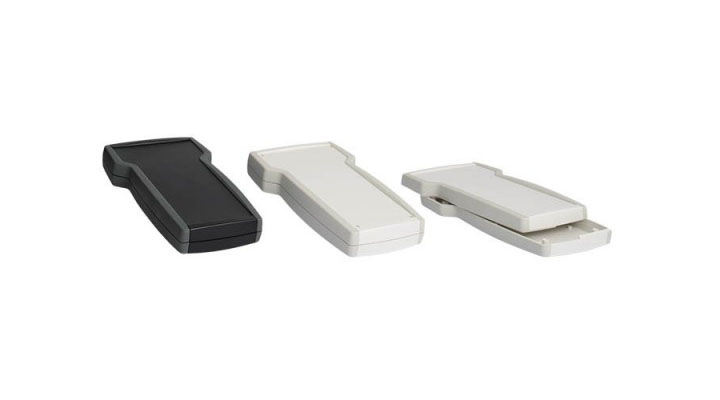

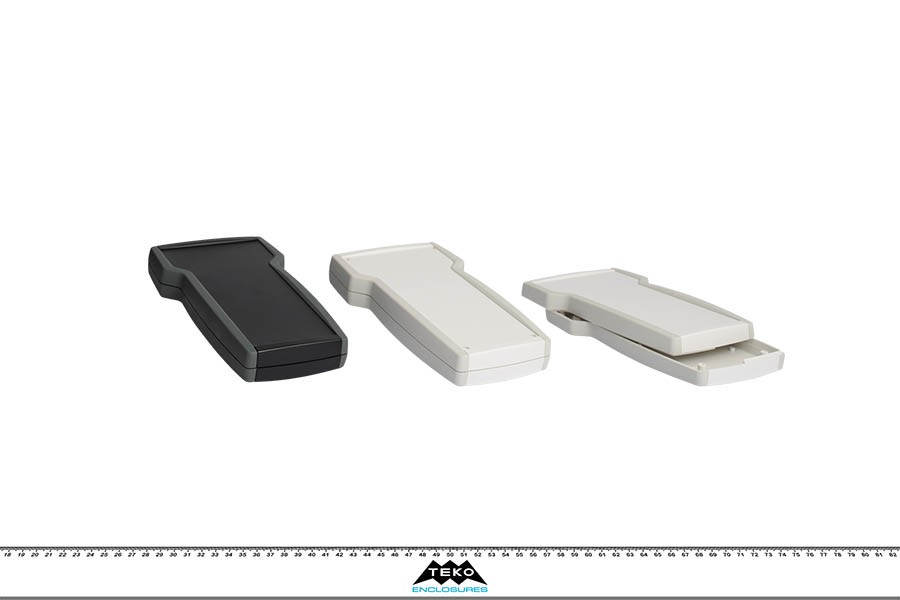

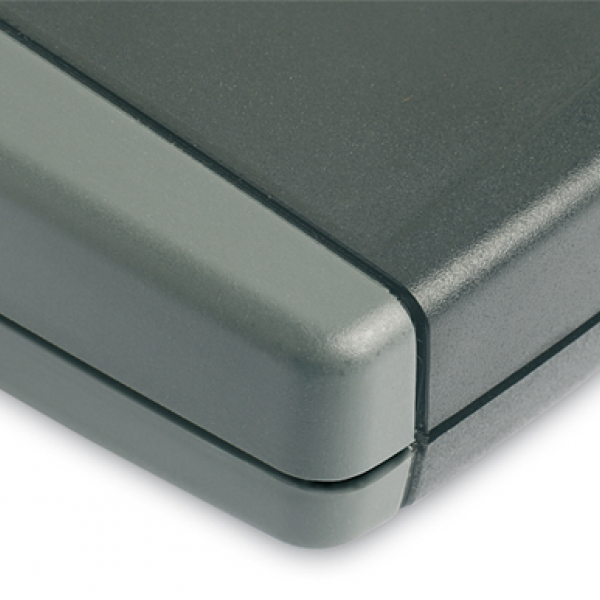

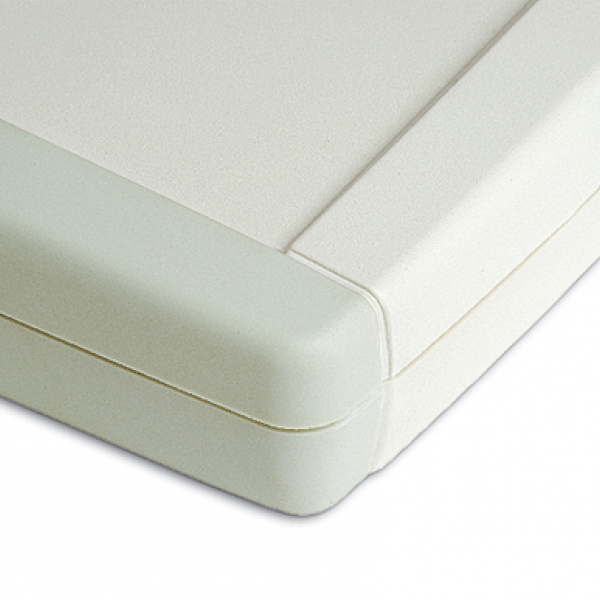

New models from TEKNET series featuring a “T-shape”. ABS hand-held enclosures with elastomer grips (TPU) on the sides. Matt surface

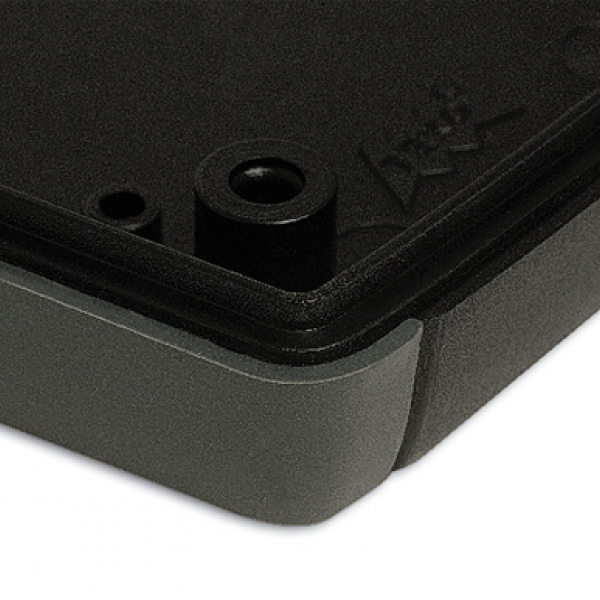

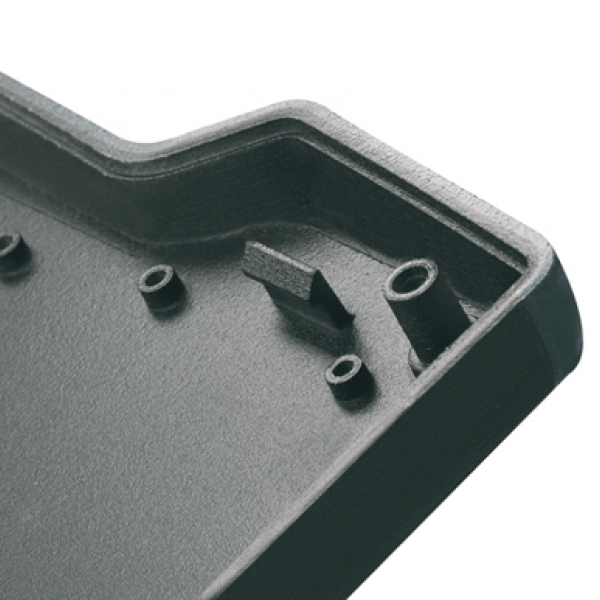

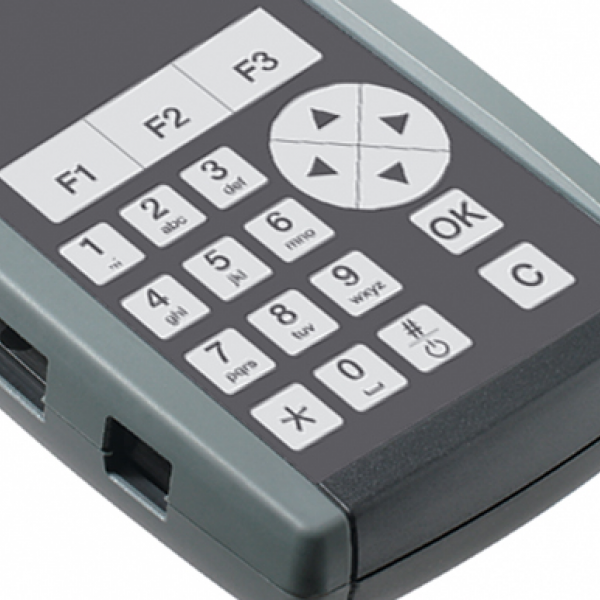

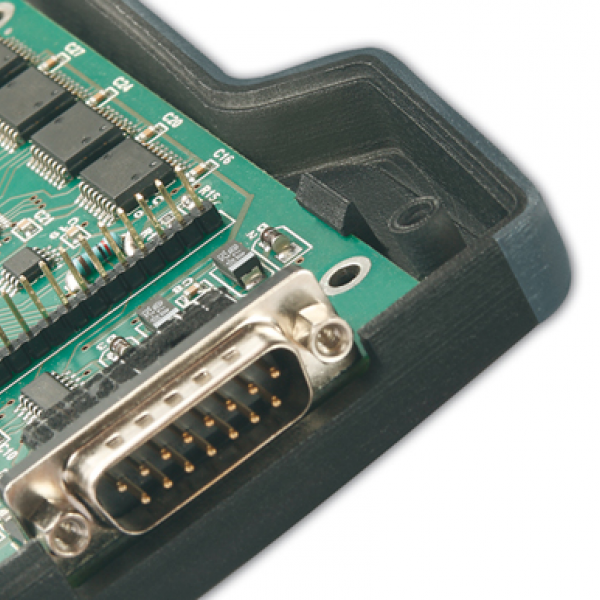

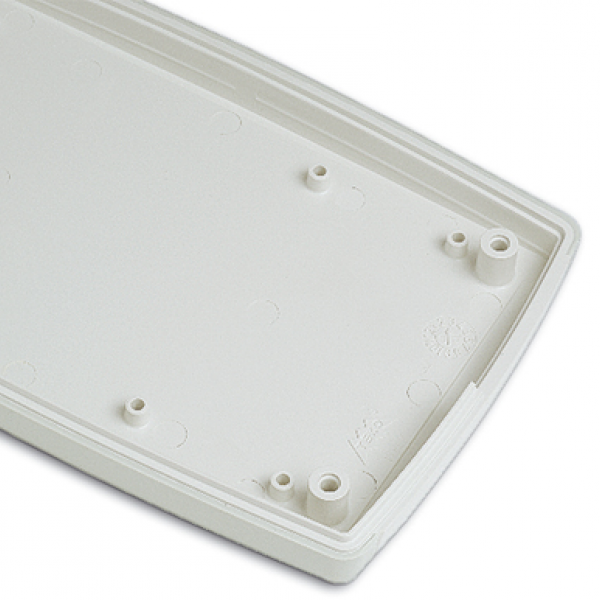

finishing. The recessed area on the cover is suitable to accept a keypad membrane. Internal pillars on top and bottom to fix PCB. Closing by four screws.
Products
|
Model |
L (mm) |
W (mm) |
H (mm) |
Color (Ral) |
Material |
MAX PCB L (mm) |
MAX PCB W (mm) |
Screws |
Battery |
Accessories |
Drawings |
Other |
|

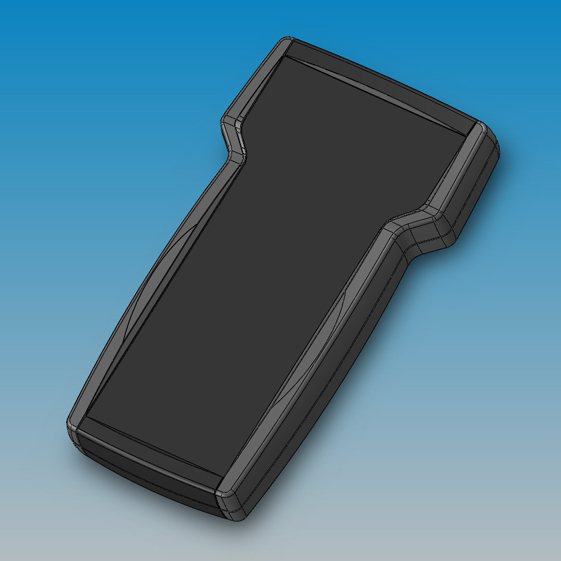

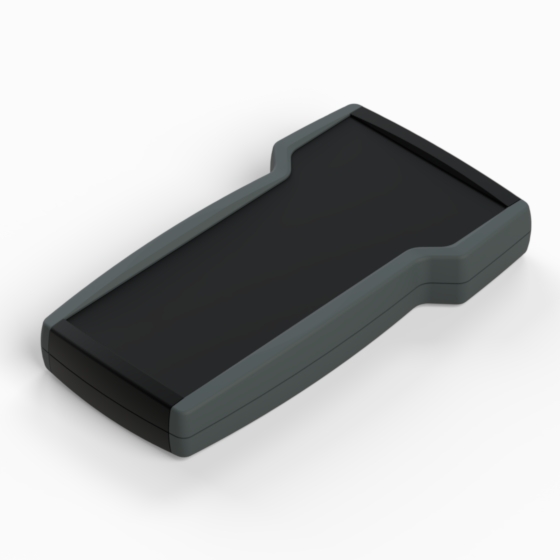

TNT22.29 |
208 |
117 |
30,3 |
9004 7012
|
P2H-AT
-
8020
|
196 |
102 |
|
|
|
PDF
DWG
|
View
- Color (Ral):
9004 7012
- Material:
P2H-AT
-
8020
- MAX PCB L (mm): 196
- MAX PCB W (mm): 102
- Screws:
- Battery:
- Accessories:
-
Drawings:
PDF
DWG
|
|

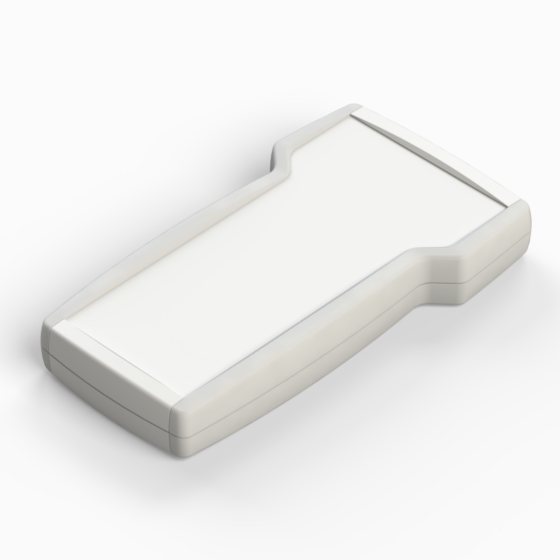

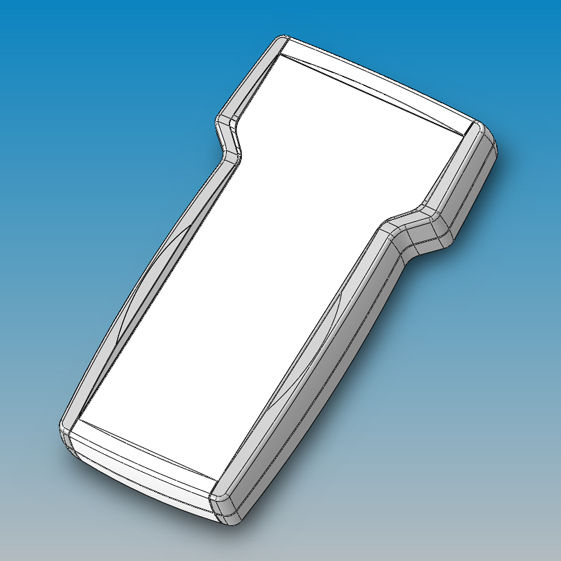

TNT22.30 |
208 |
117 |
30,3 |
9002 9018
|
P2H-AT
-
8020
|
196 |
102 |
|
|
|
PDF
DWG
|
View
- Color (Ral):
9002 9018
- Material:
P2H-AT
-
8020
- MAX PCB L (mm): 196
- MAX PCB W (mm): 102
- Screws:
- Battery:
- Accessories:
-
Drawings:
PDF
DWG
|
