Description

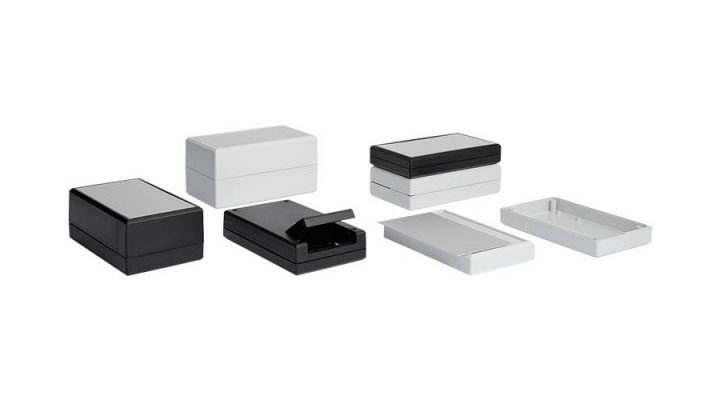

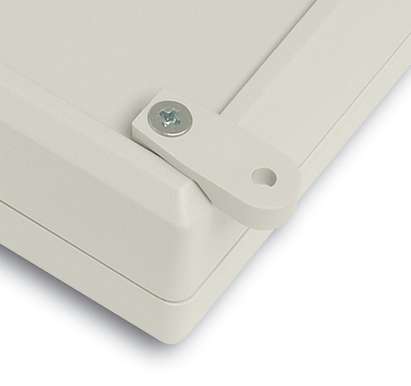

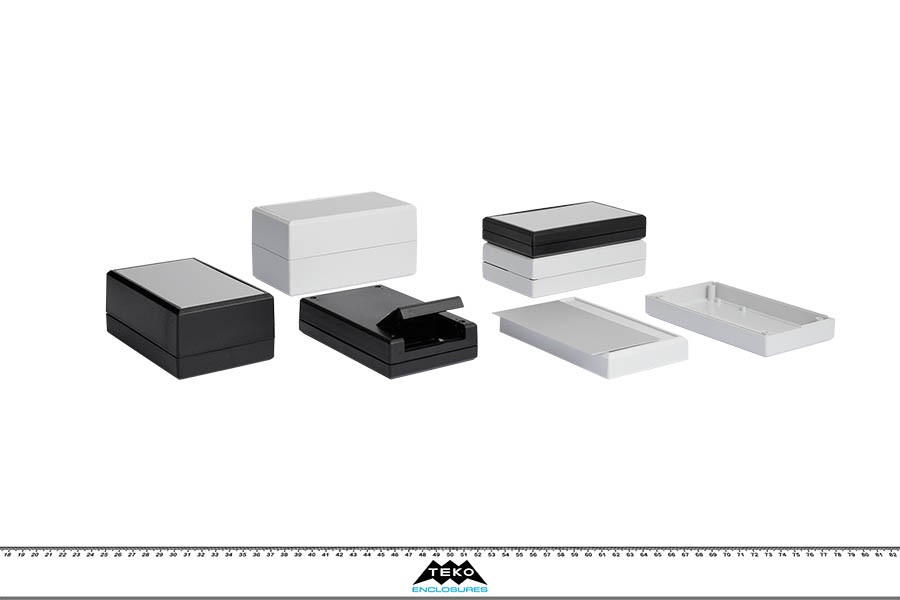

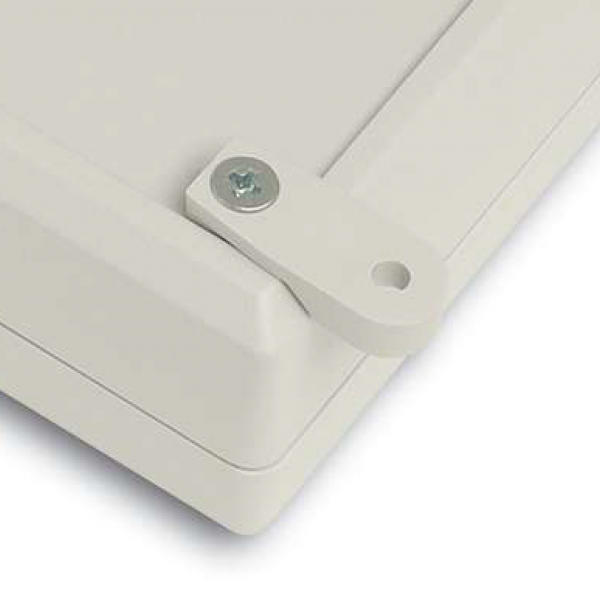

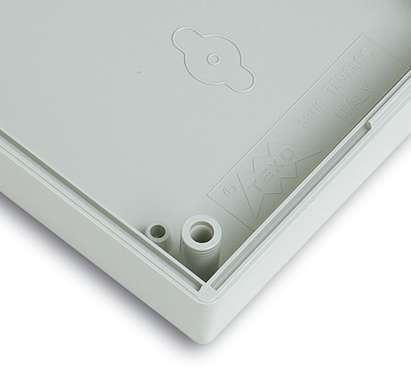

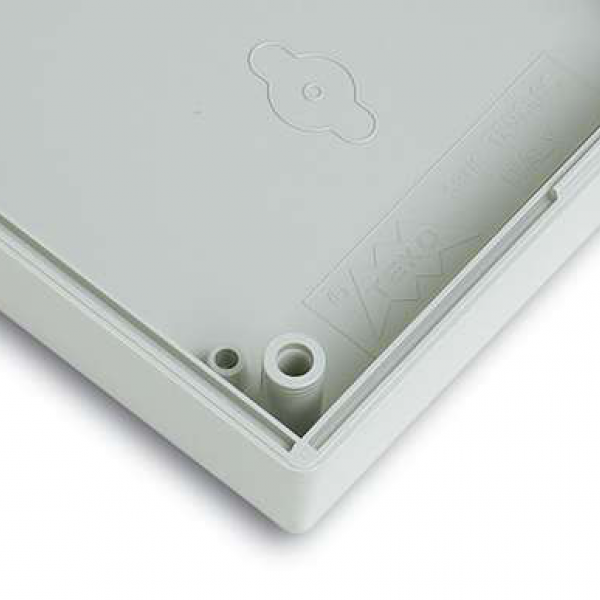

ABS enclosures with a recessed area to allow an 0.5 mm anodised aluminium panel. Base and cover have integral PCB mounting studs. The model “EXP BOX” (only black) has cutouts for three connectors DB25. Matt surface finish. Closing by four screws. Upon request ABS mounting tabs (Mod. MT1).
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

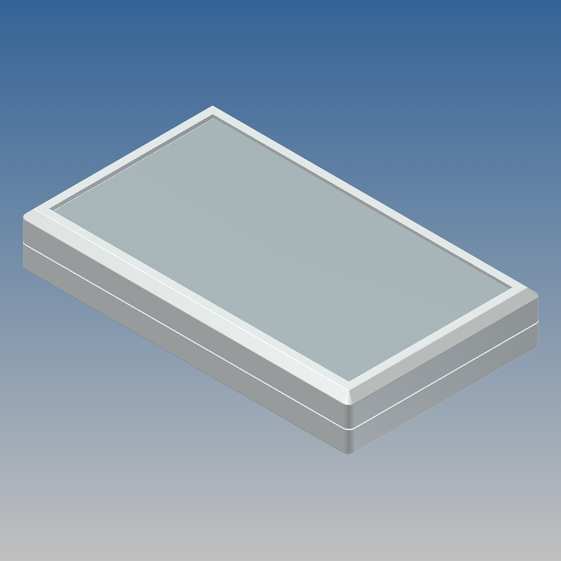

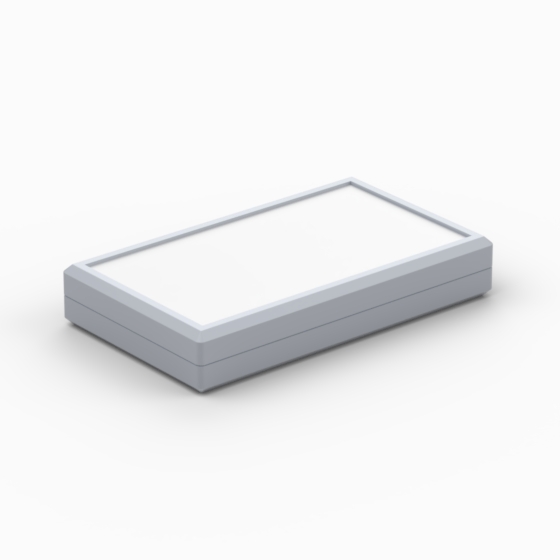

550.5 | 145 | 85 | 25 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
|
|

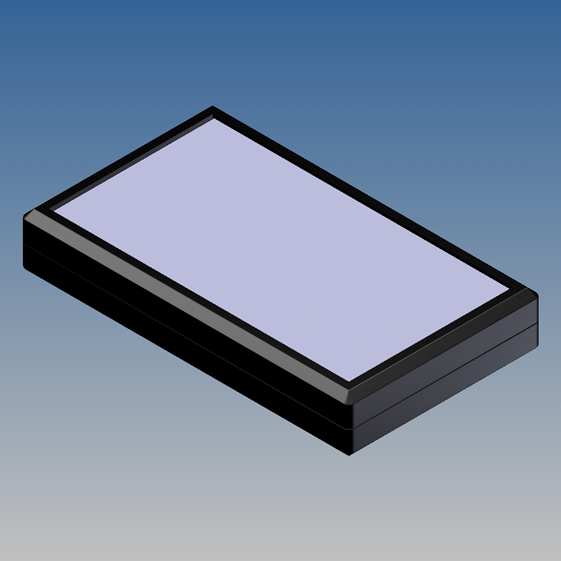

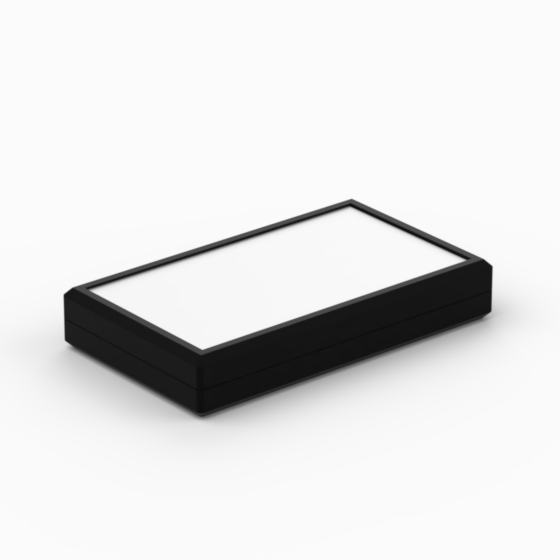

550.9 | 145 | 85 | 25 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
|
|

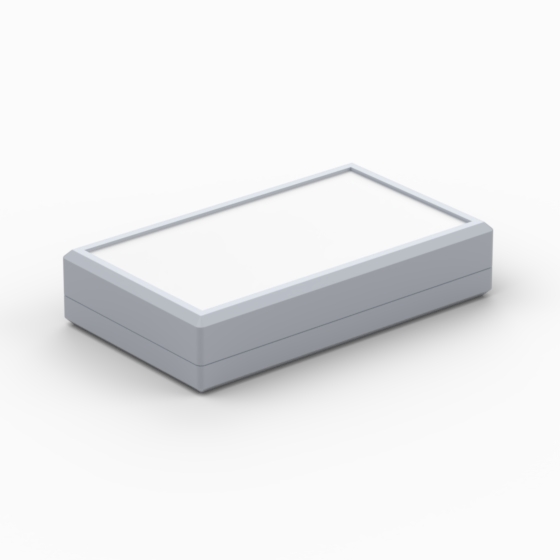

560.5 | 145 | 85 | 31 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
|
|
560.9 | 145 | 85 | 31 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
|
|

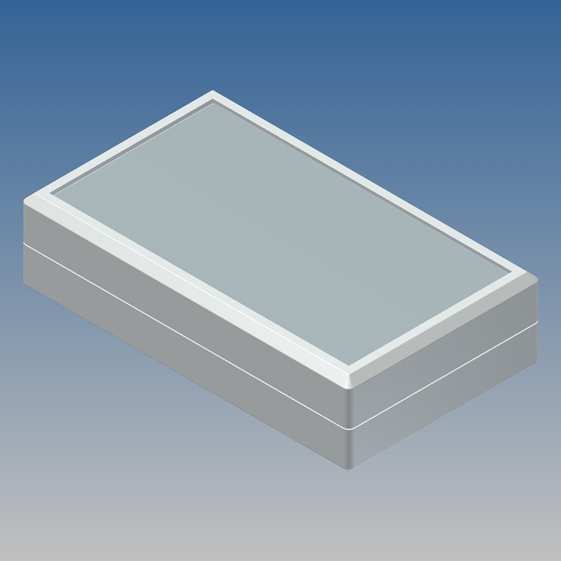

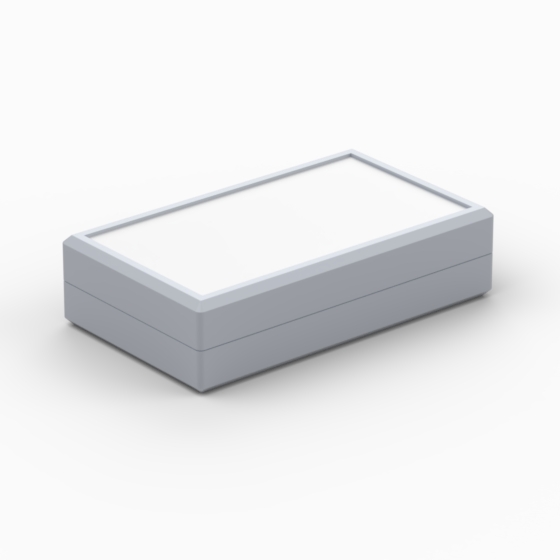

660.5 | 145 | 85 | 37 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
|
|

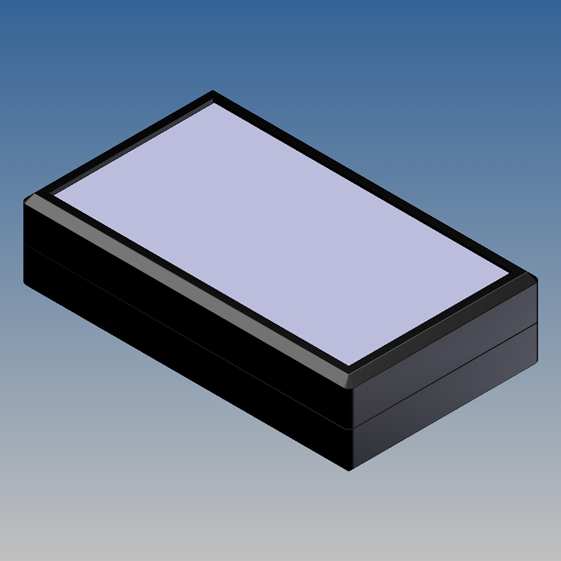

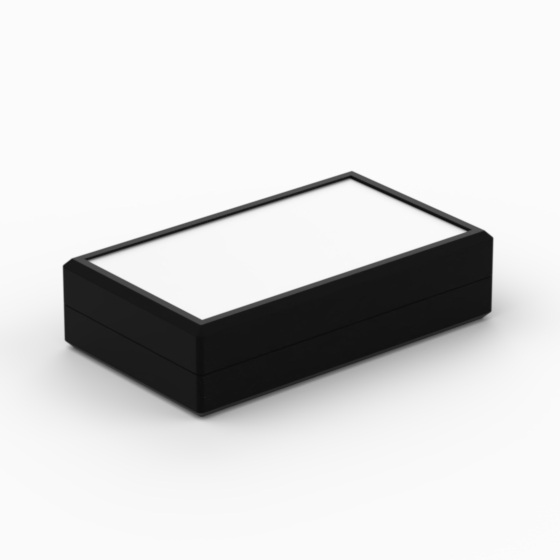

660.9 | 145 | 85 | 37 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
|
|

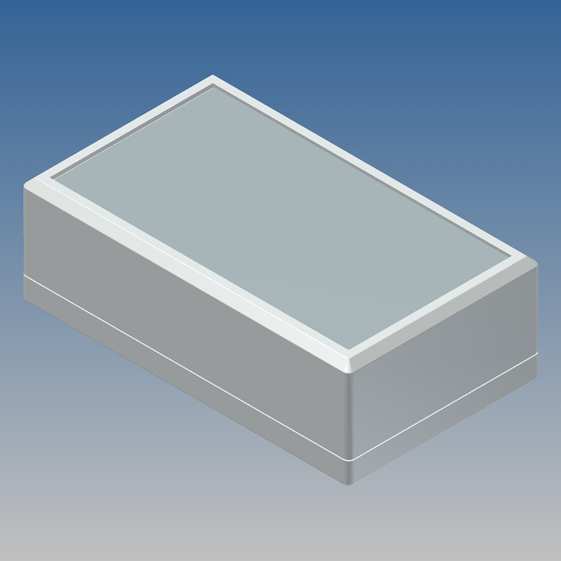

750.5 | 145 | 85 | 49 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
|
|

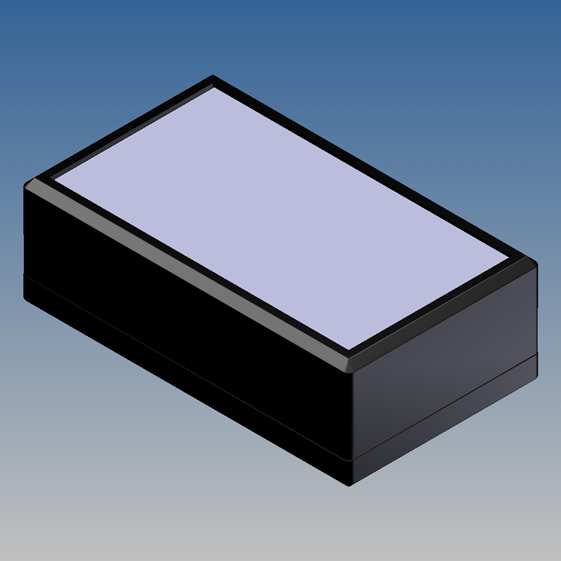

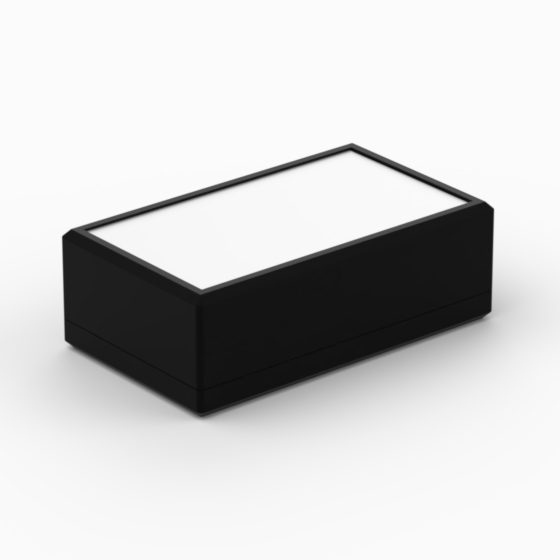

750.9 | 145 | 85 | 49 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
|
|

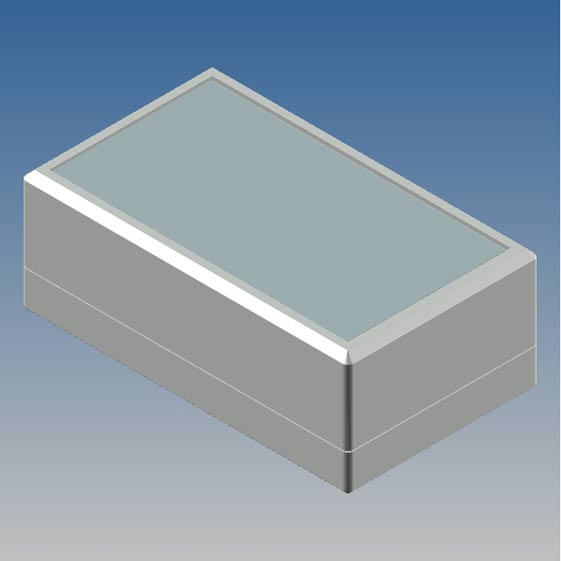

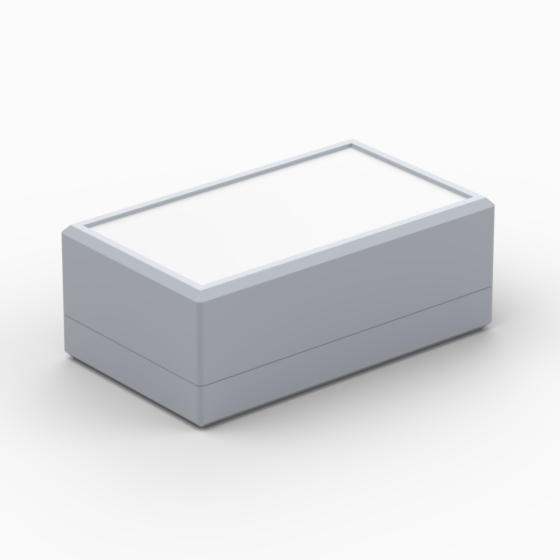

760.5 | 145 | 85 | 55 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
|
|

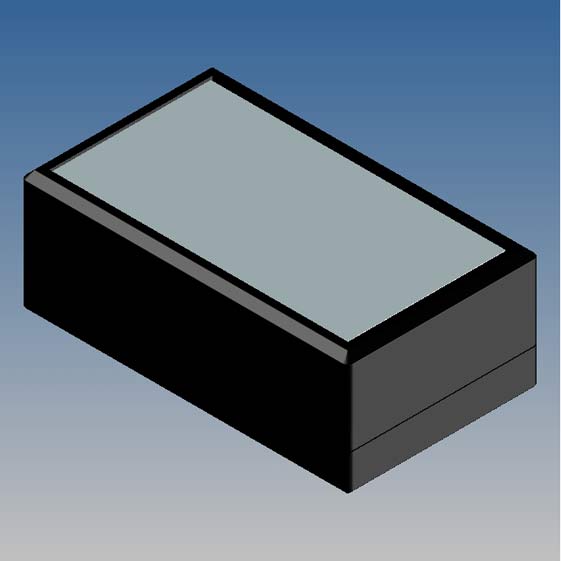

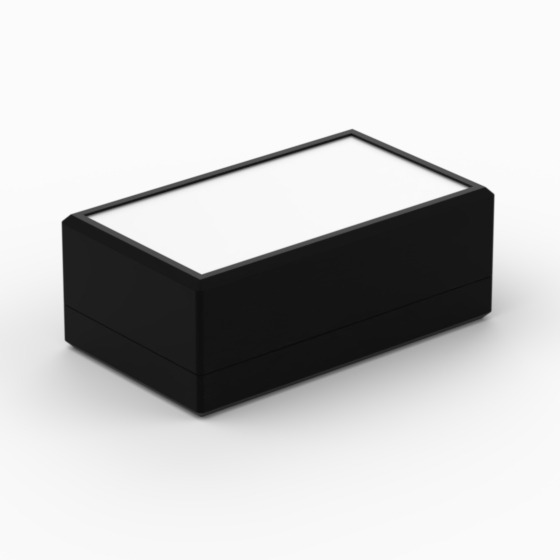

760.9 | 145 | 85 | 55 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
|
|

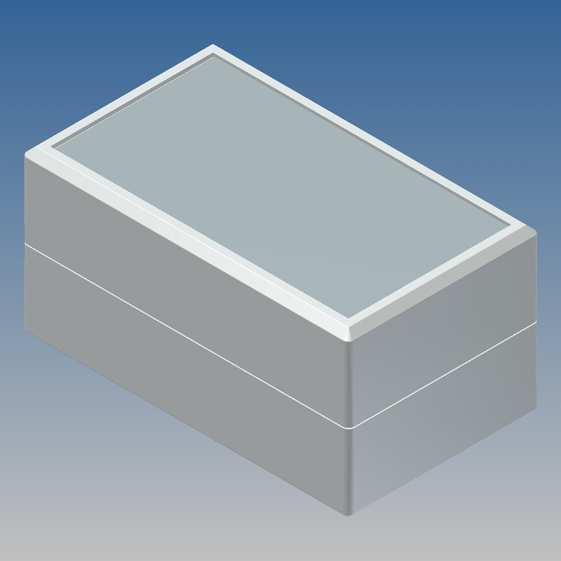

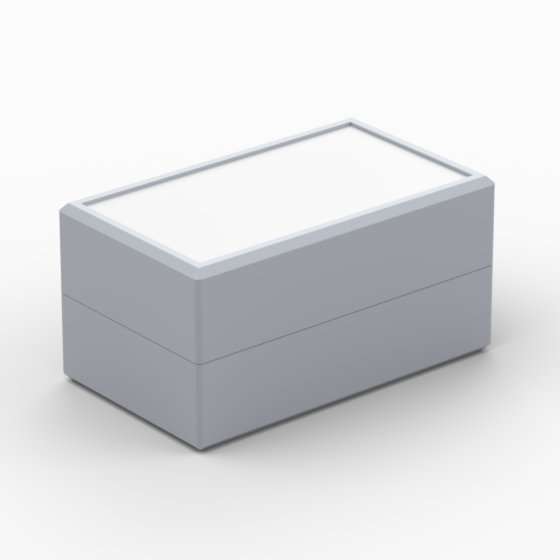

770.5 | 145 | 85 | 73 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
|
|

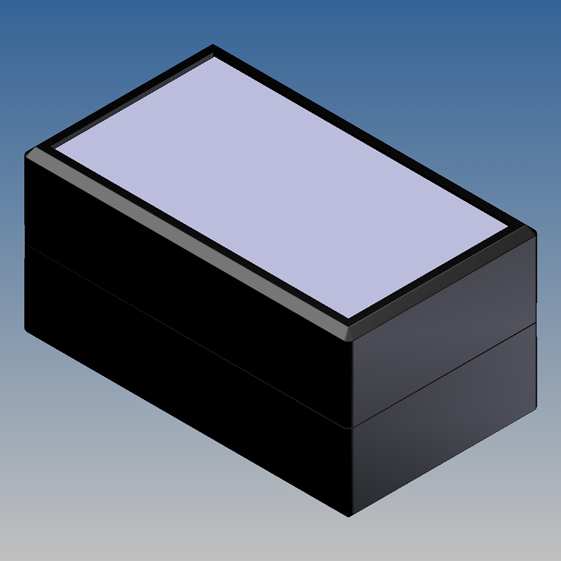

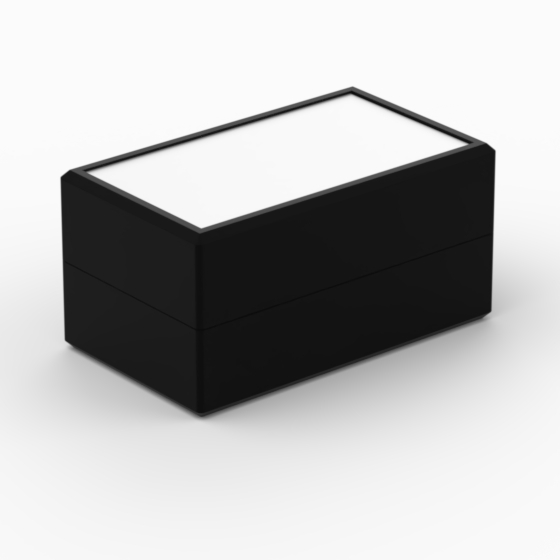

770.9 | 145 | 85 | 73 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
|
|

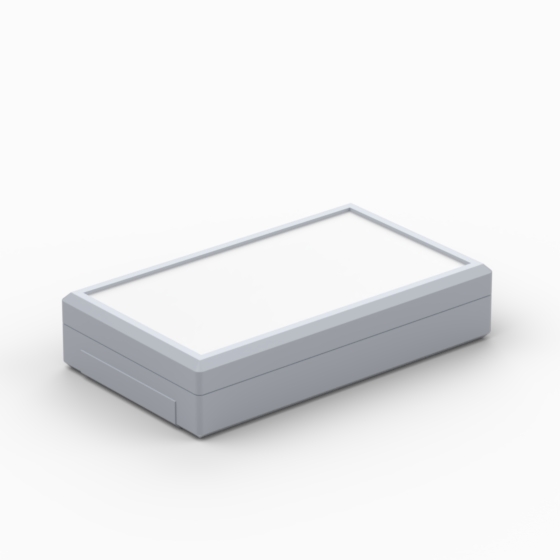

780-B.5 | 145 | 85 | 31 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | 1 x 9V |
AB9 APTB M M58 M59 |
PDF DWG |
|
|

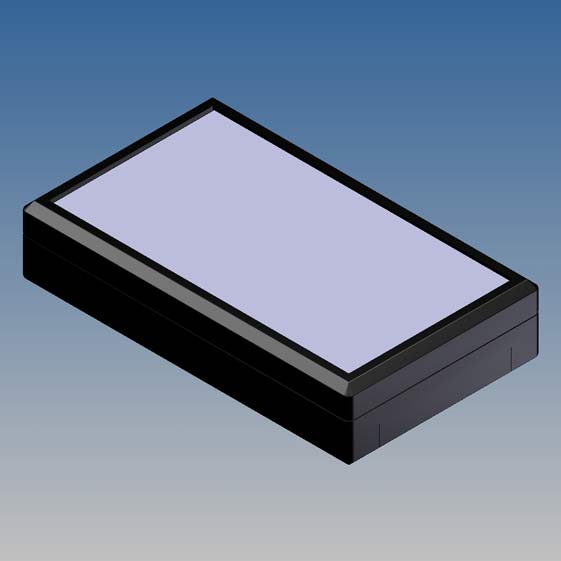

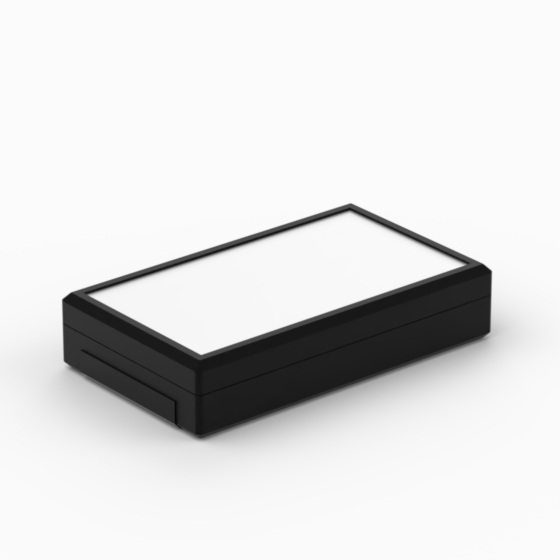

780-B.9 | 145 | 85 | 31 |
9004 |
TERLURAN GP-35 | 97,6 | 75,2 | 4 | 1 x 9V |
AB9 APTB M M58 M59 |
PDF DWG |
|
|

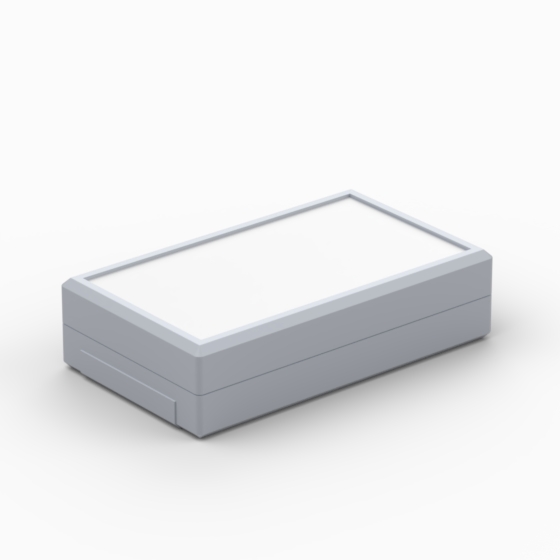

880-B.5 | 145 | 85 | 37 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | 1 x 9V |
AB9 APTB M M58 M59 |
PDF DWG |
|
|

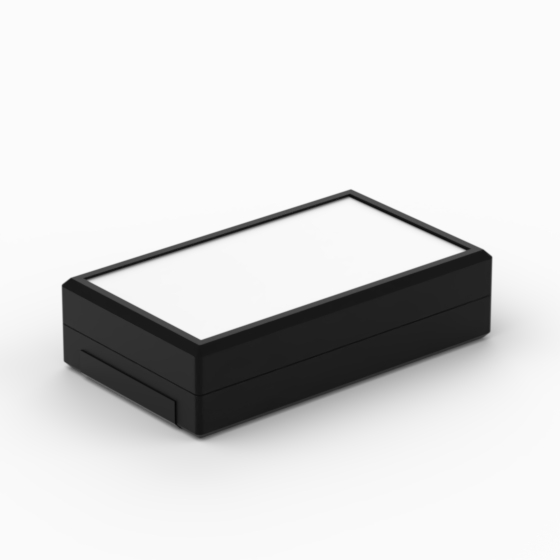

880-B.9 | 145 | 85 | 37 |
9004 |
TERLURAN GP-35 | 97,6 | 75,2 | 4 | 1 x 9V |
AB9 APTB M M58 M59 |
PDF DWG |
|
|

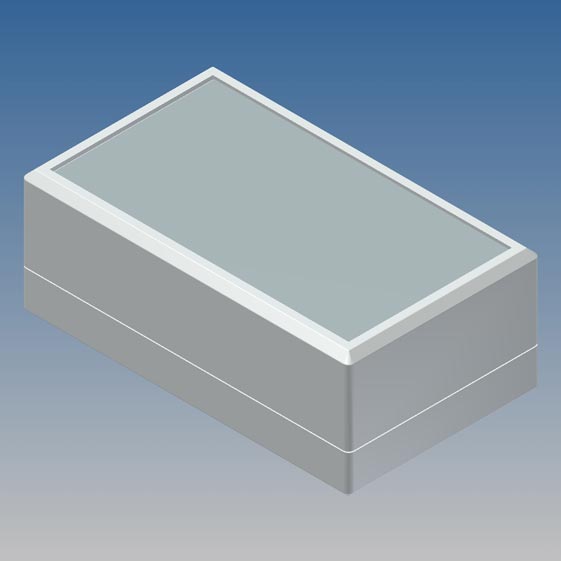

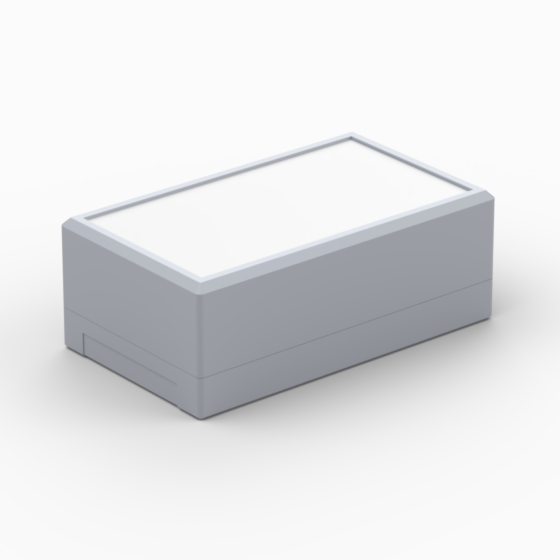

980-B.5 | 145 | 85 | 55 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | 1 x 9V |
AB9 APTB M M58 M59 |
PDF DWG |
|
|

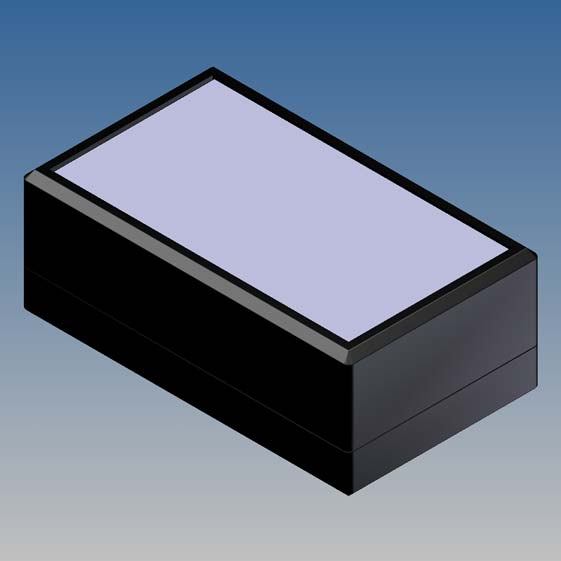

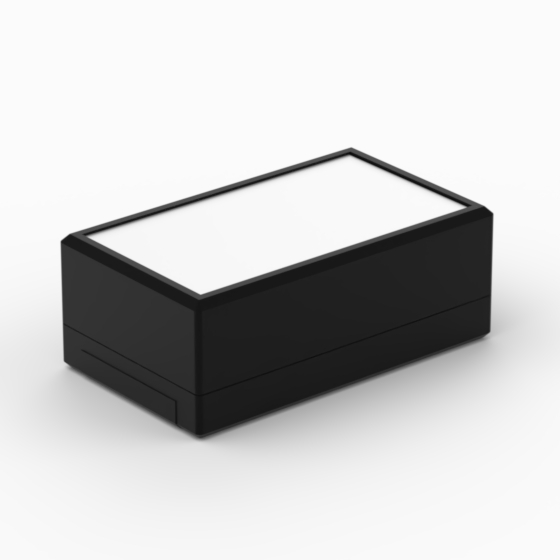

980-B.9 | 145 | 85 | 55 |
9004 |
TERLURAN GP-35 | 97,6 | 75,2 | 4 | 1 x 9V |
AB9 APTB M M58 M59 |
PDF DWG |
