Description

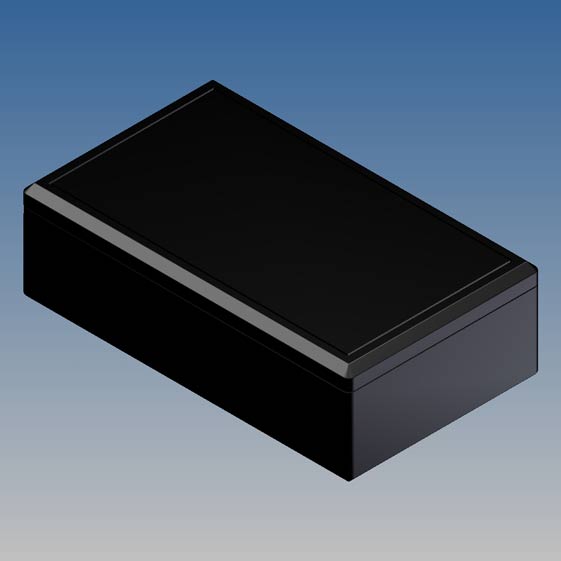

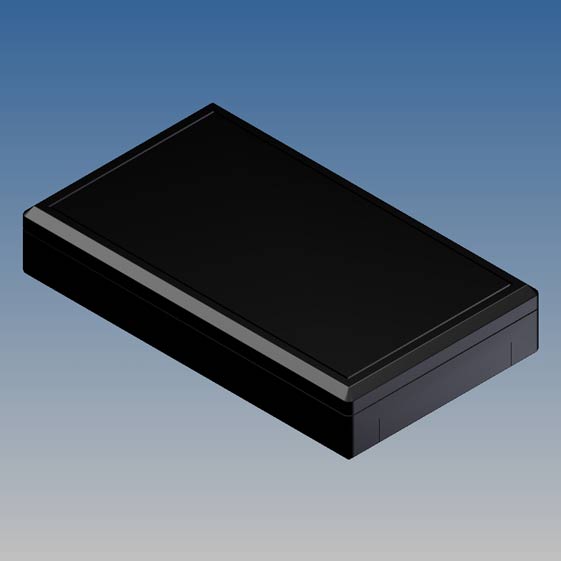

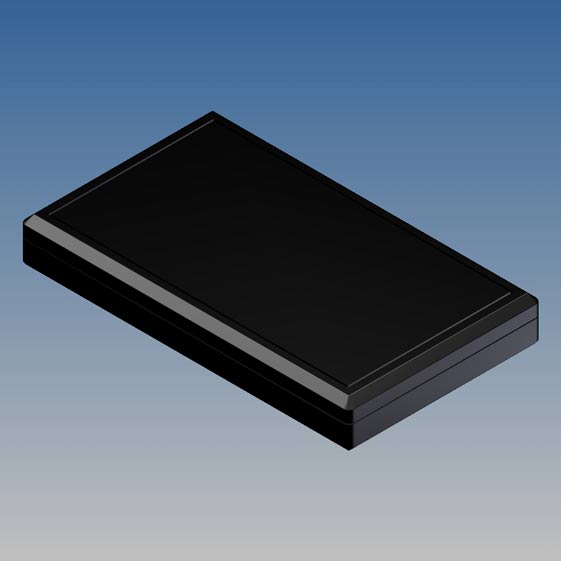

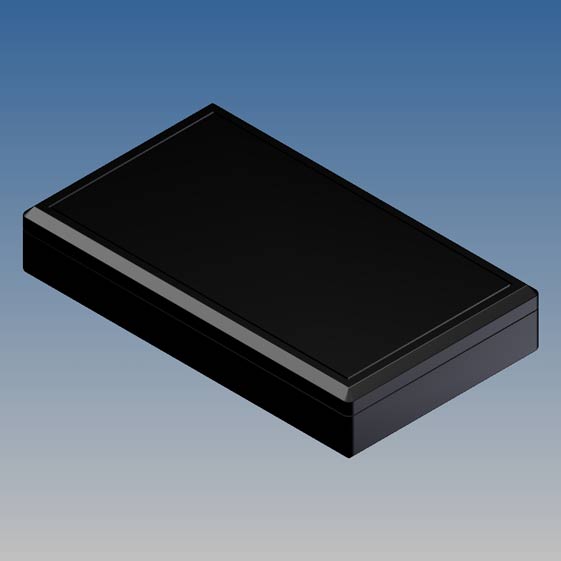

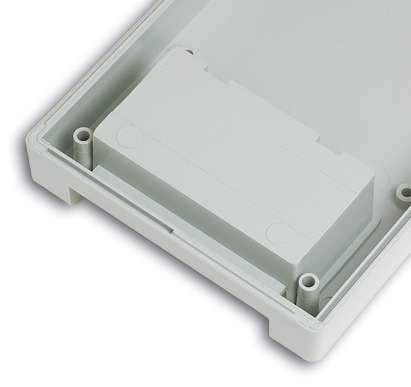

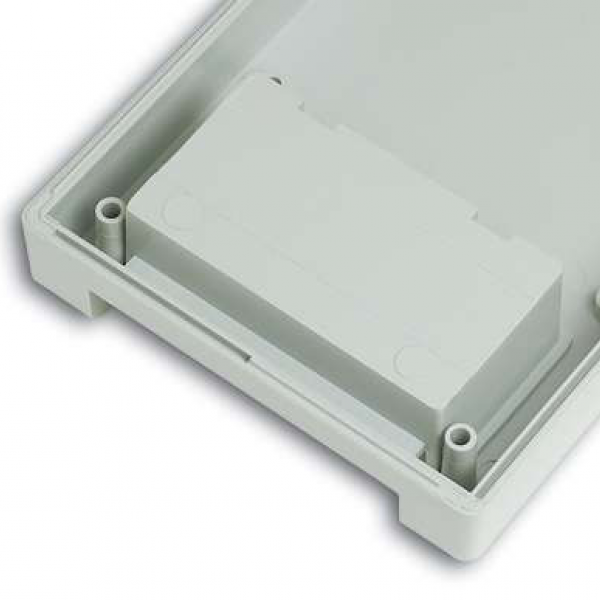

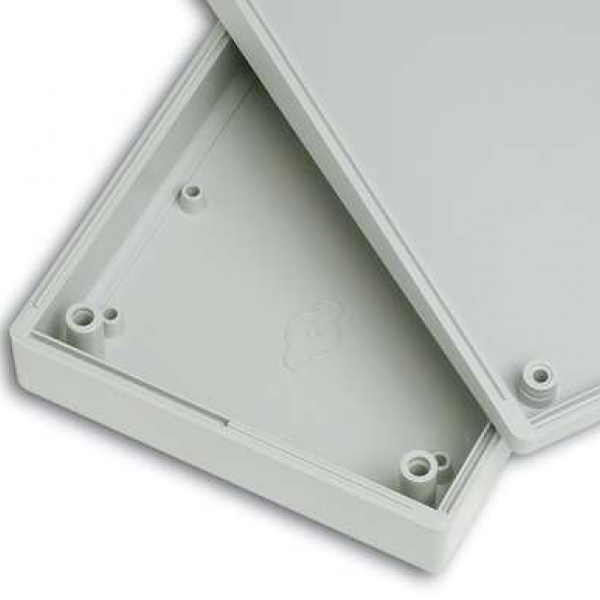

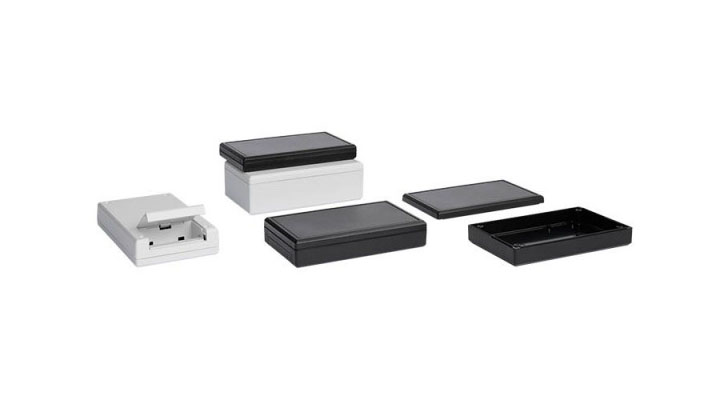

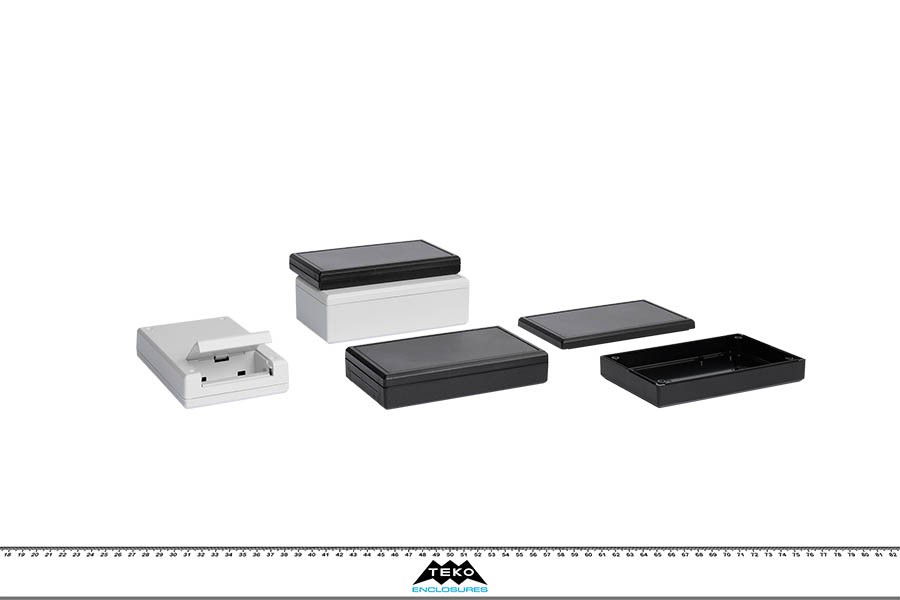

ABS enclosures with a recessed area to allow an 0.5 mm anodised aluminium panel. Base and cover have integral PCB mounting studs. The models with “F-B” have 9V battery compartment with snap-on cover. Matt surface finish. Closing by four screws. The models with “F” and “F-B” have neither aluminium panel nor recessed area. Upon request ABS mounting tabs (Mod. MT1).
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

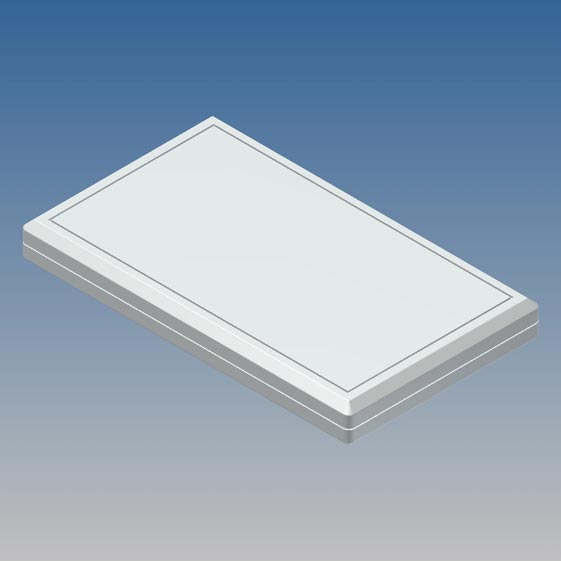

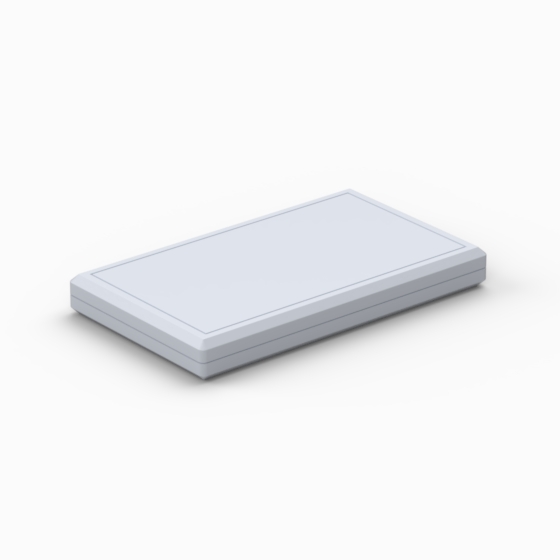

450F.5 | 145 | 85 | 17 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

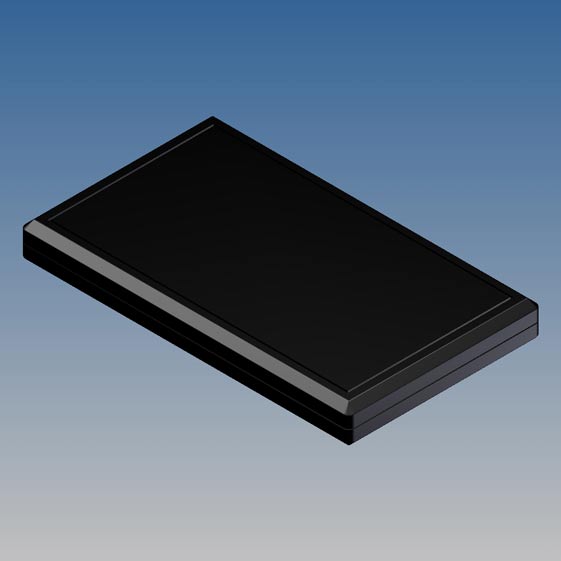

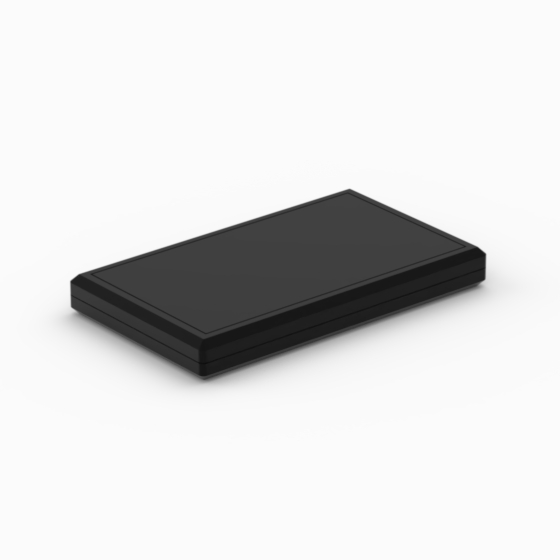

450F.9 | 145 | 85 | 17 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

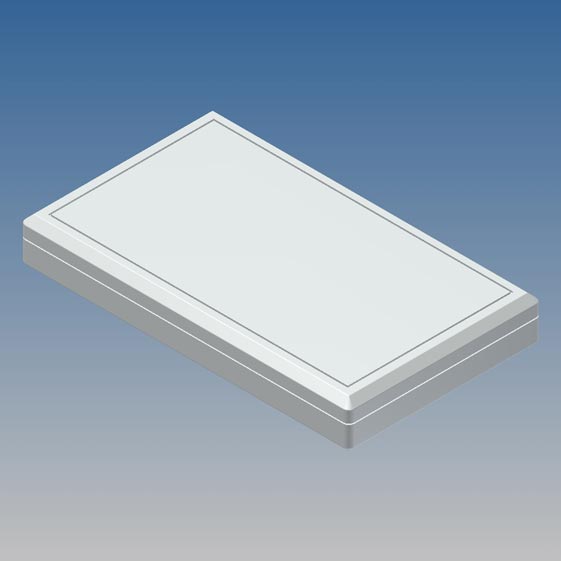

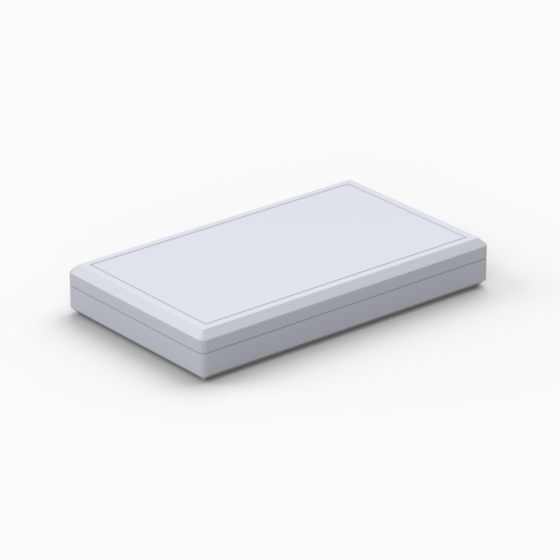

550F.5 | 145 | 85 | 21 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

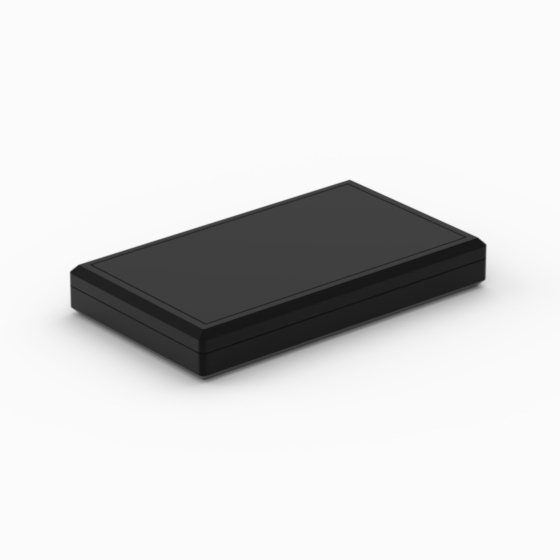

550F.9 | 145 | 85 | 21 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

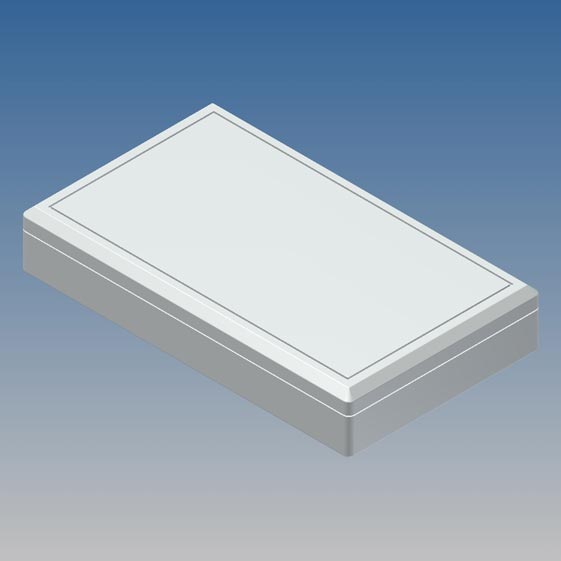

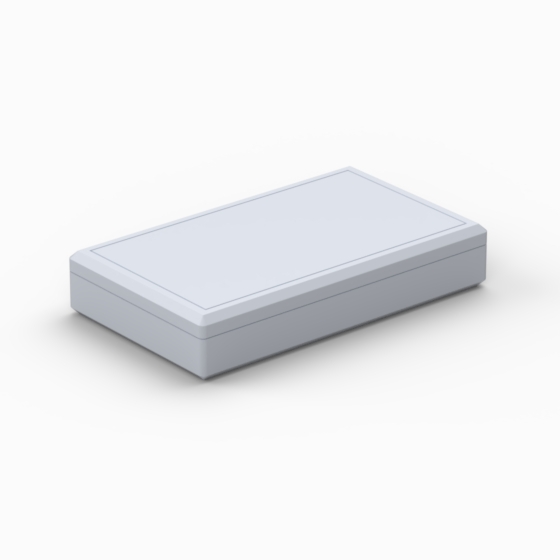

660F.5 | 145 | 85 | 27 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

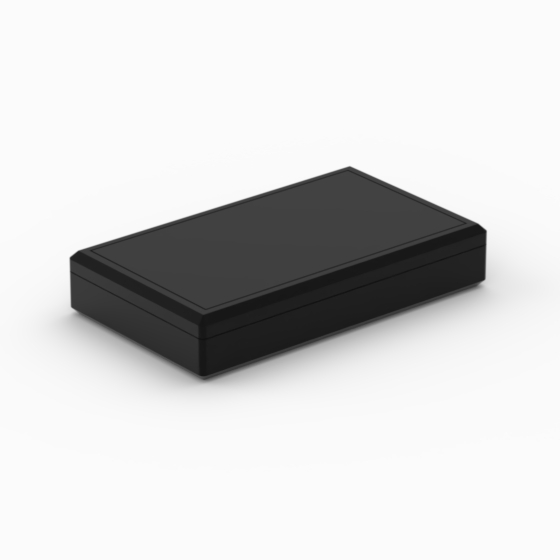

660F.9 | 145 | 85 | 27 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

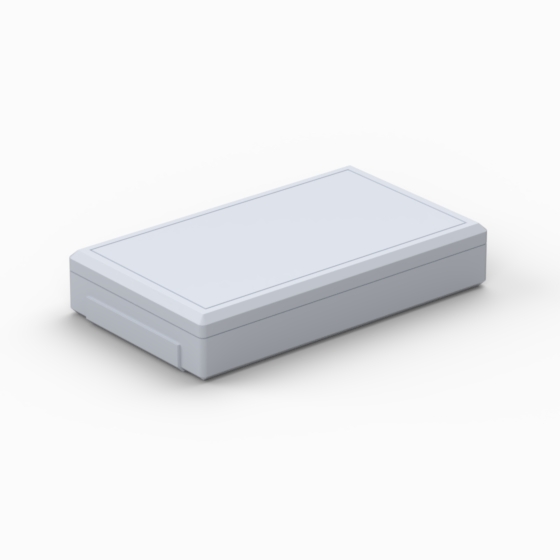

660F-B.5 | 145 | 85 | 27 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | 1 x 9V |
AB9 M M58 M59 |
PDF DWG |
|
|

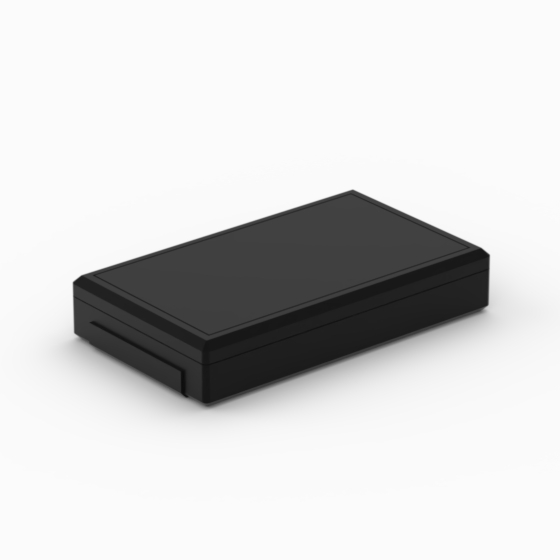

660F-B.9 | 145 | 85 | 27 |
9004 |
TERLURAN GP-35 | 97,6 | 75,2 | 4 | 1 x 9V |
AB9 M M58 M59 |
PDF DWG |
|
|

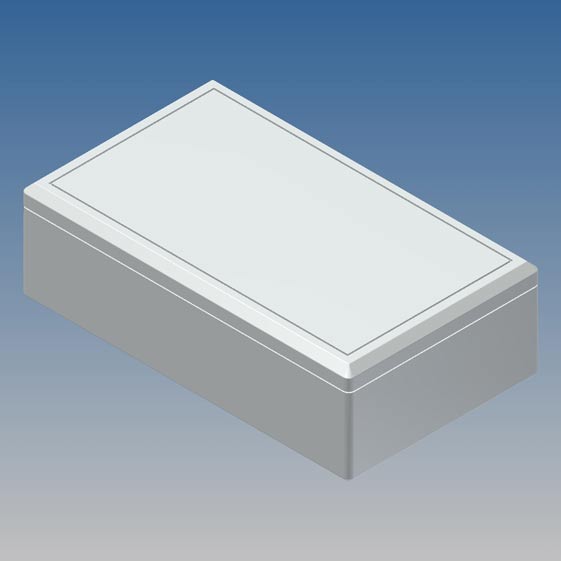

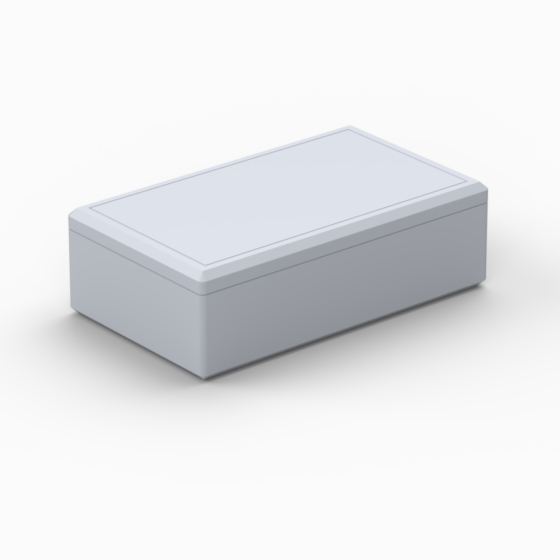

770F.5 | 145 | 85 | 45 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

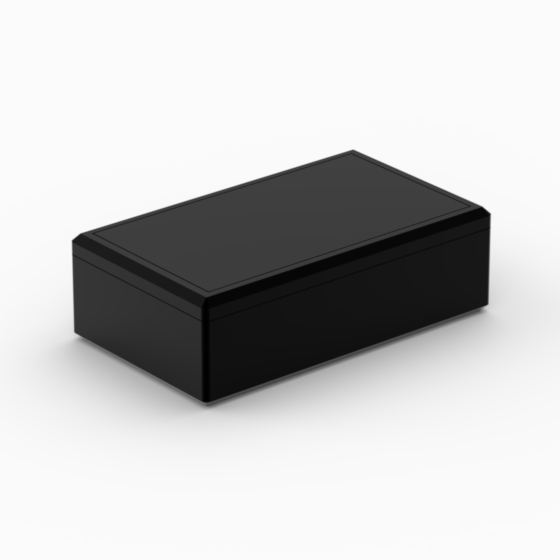

770F.9 | 145 | 85 | 45 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
