Description

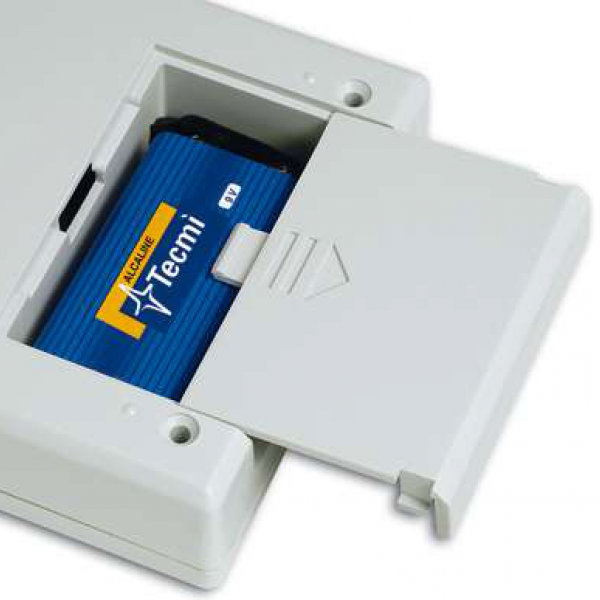

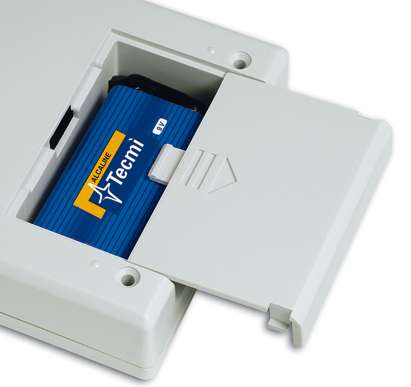

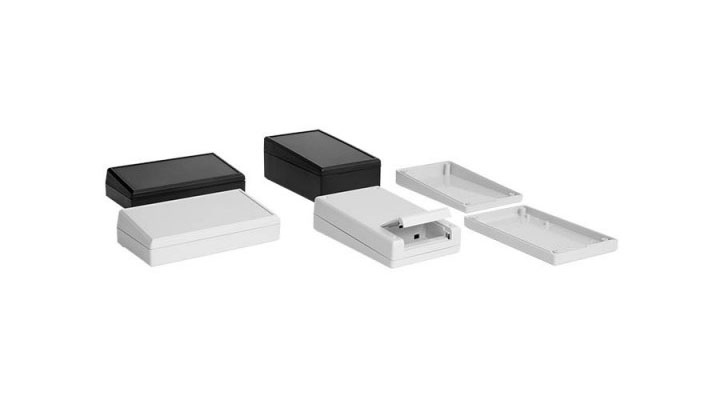

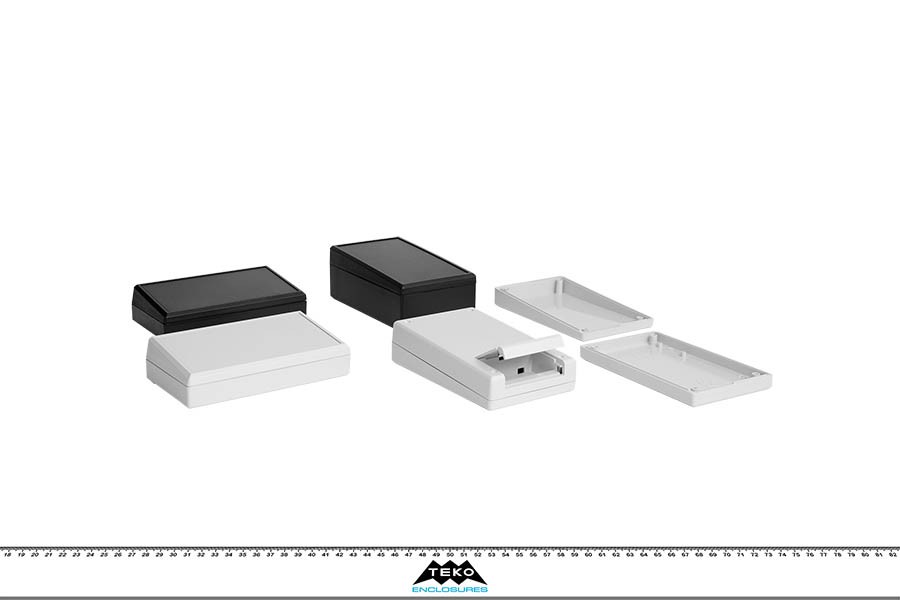

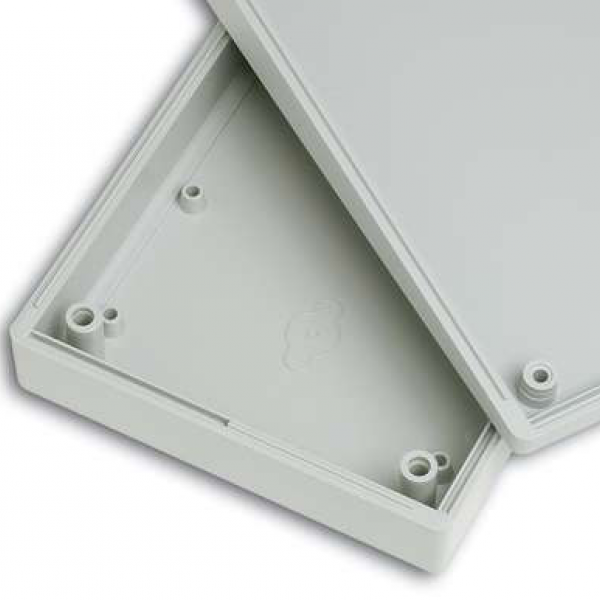

ABS enclosures with inclined cover. Matt surfaces finish. The base has integral PCB mounting studs. The models with “-B” have a 9V battery compartment with snap-on cover. Closing by four screws. Upon request ABS mounting tabs (Mod. MT1), Anodised aluminium panel (Mod. APTB).
Products
Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

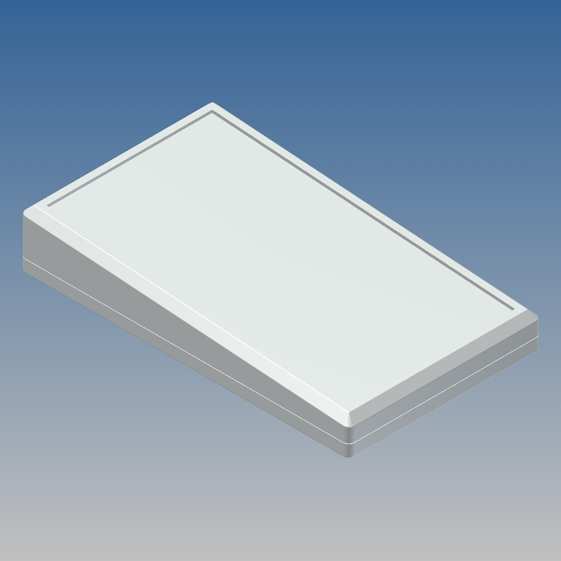

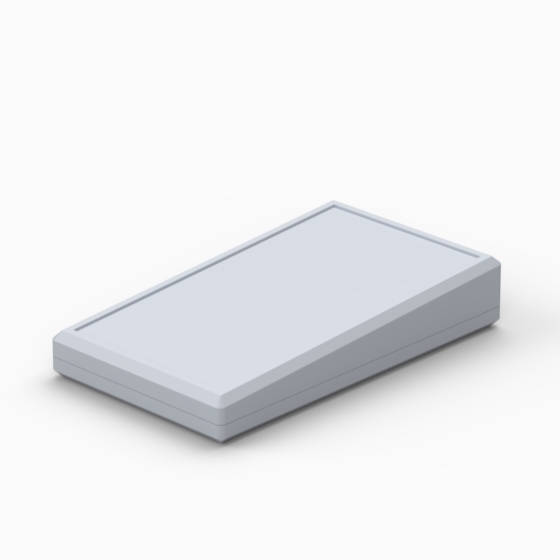

450S.5 | 145 | 85 | 27,5 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
||

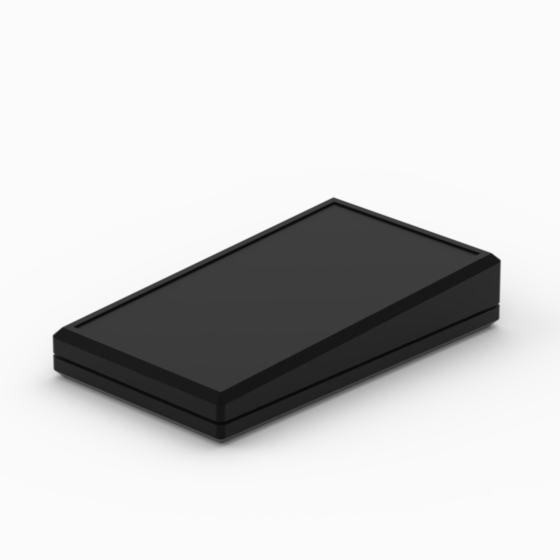

450S.9 | 145 | 85 | 27,5 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
||

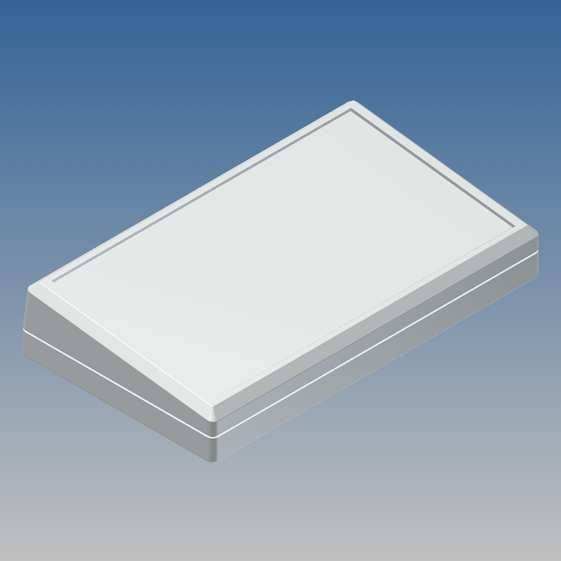

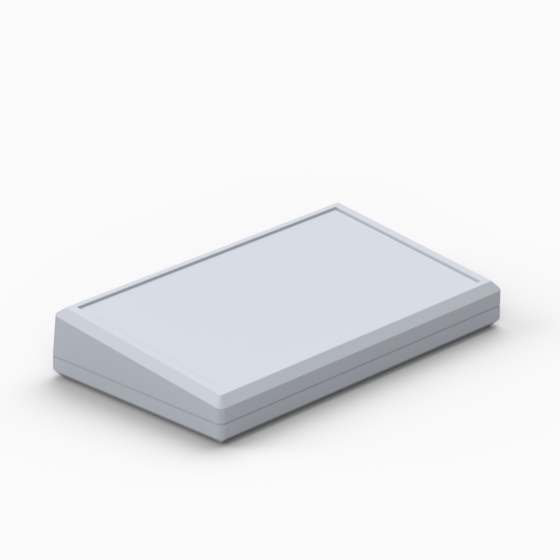

450SP.5 | 145 | 85 | 27,5 |
9018 |
AG-ATY | - | - | - | - |
PDF DWG |
|||
450SP.9 | 145 | 85 | 27,5 |
9004 |
TERLURAN GP-35 | - | - | - | - |
PDF DWG |
View
|
||

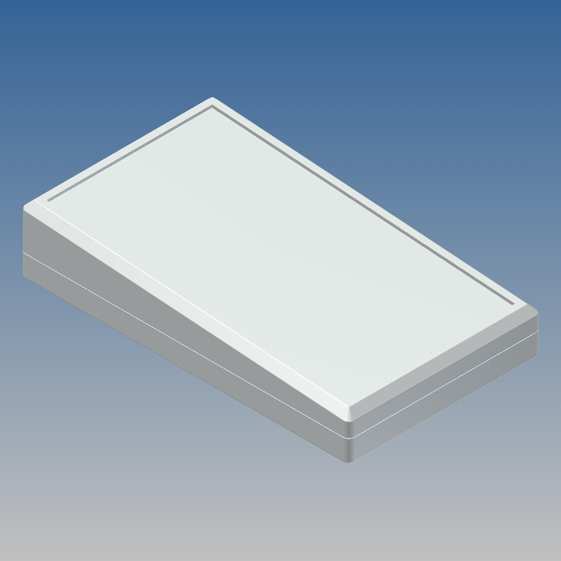

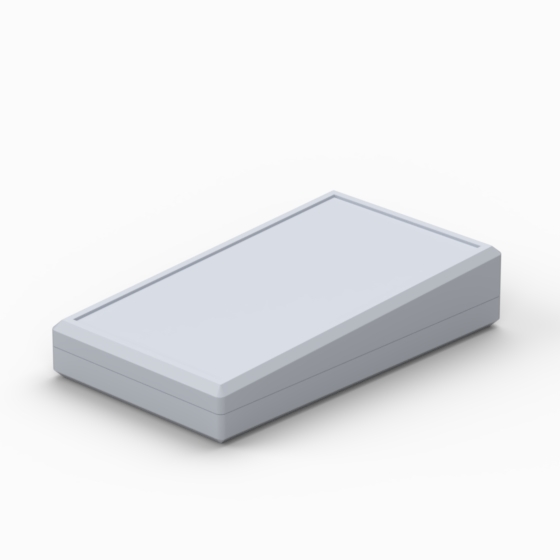

550S.5 | 145 | 85 | 31,5 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
||

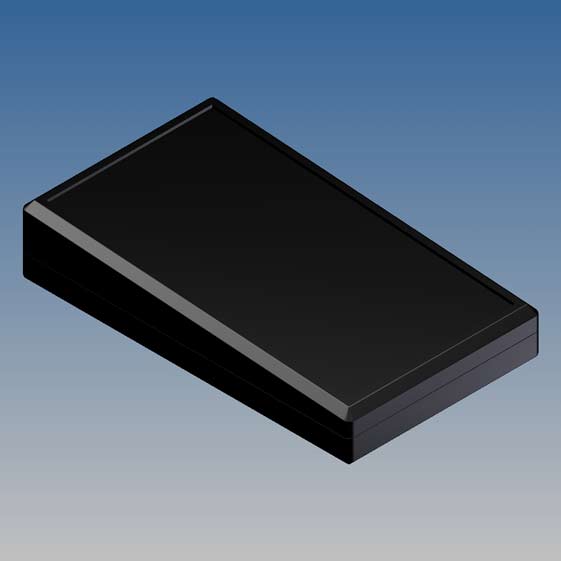

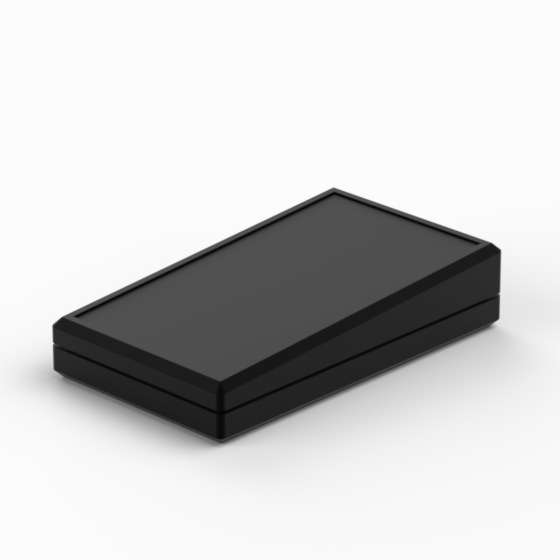

550S.9 | 145 | 85 | 31,5 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
||
550SP.5 | 145 | 85 | 31,5 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
APTB MT1 |
PDF DWG |
||

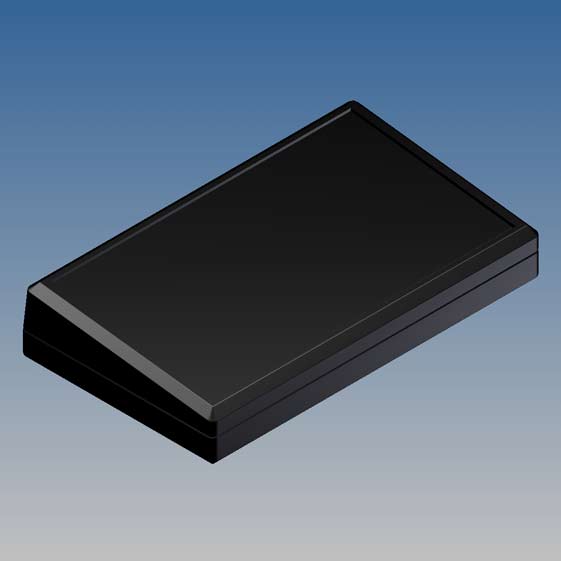

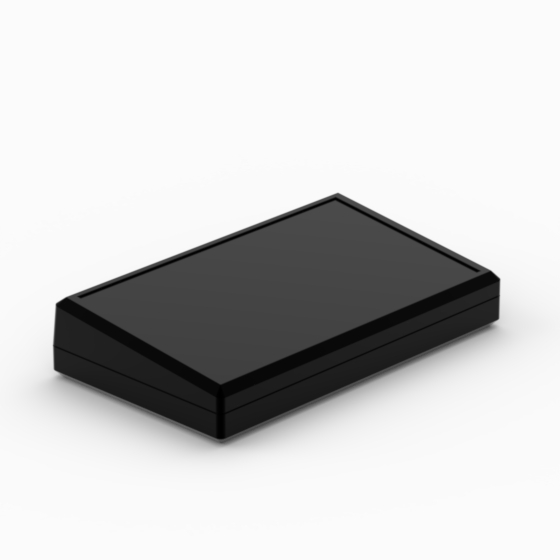

550SP.9 | 145 | 85 | 31,5 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
APTB MT1 |
PDF DWG |
||

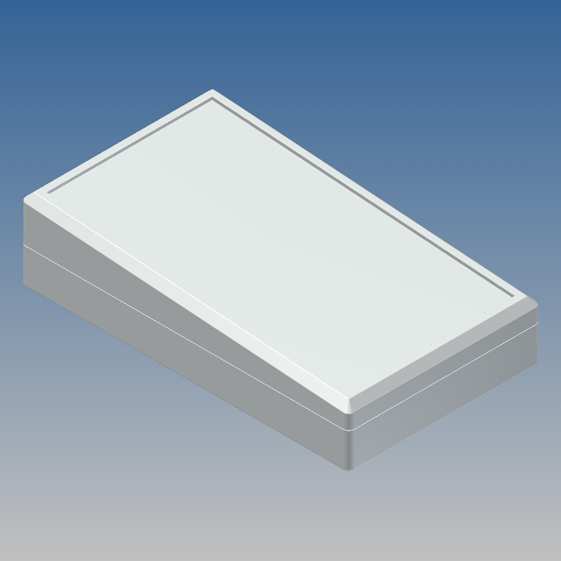

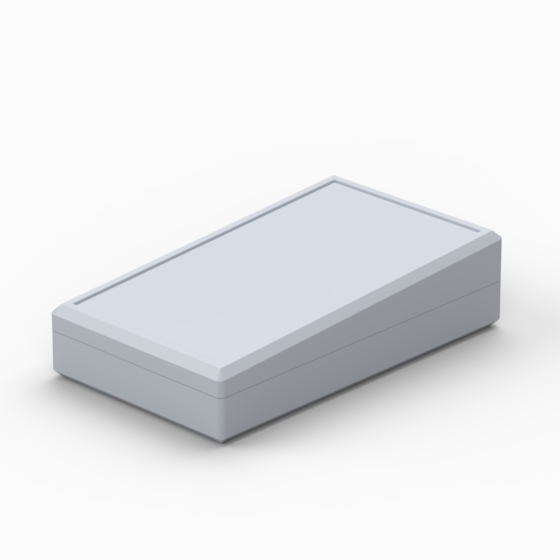

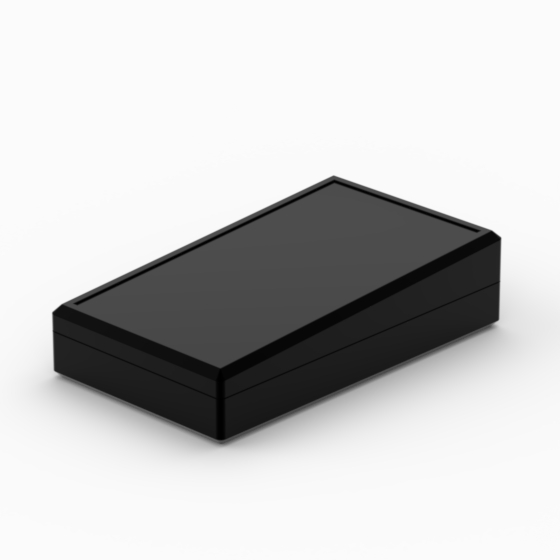

660S.5 | 145 | 85 | 37,5 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
||
660S.9 | 145 | 85 | 37,5 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
||
660S-B.5 | 145 | 85 | 37,5 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | 1 x 9V |
AB9 APTB M M58 M59 |
PDF DWG |
||

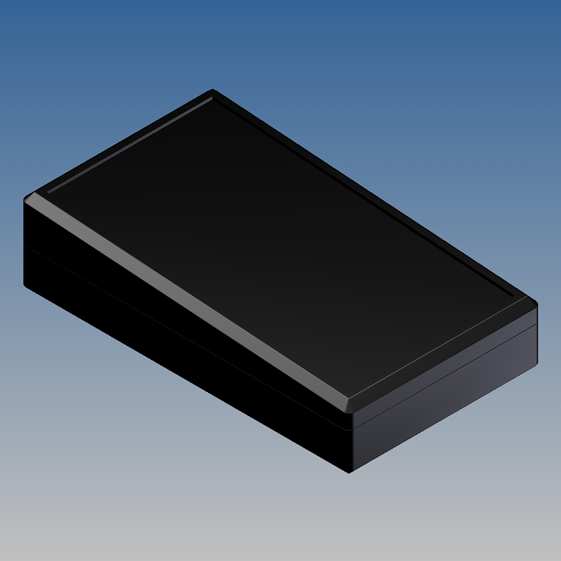

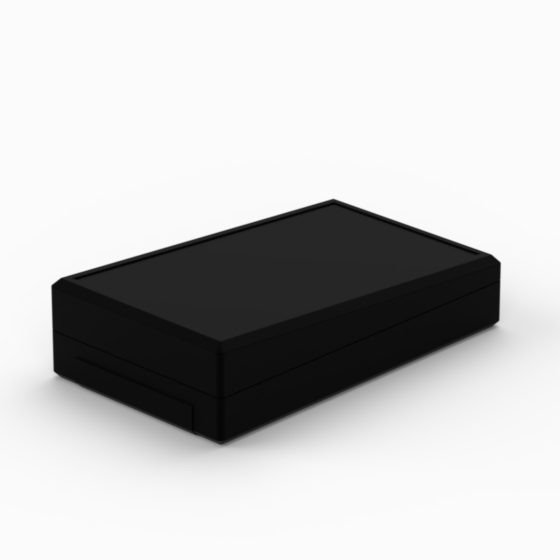

660S-B.9 | 145 | 85 | 37,5 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | 1 x 9V |
AB9 APTB M M58 M59 |
PDF DWG |
||

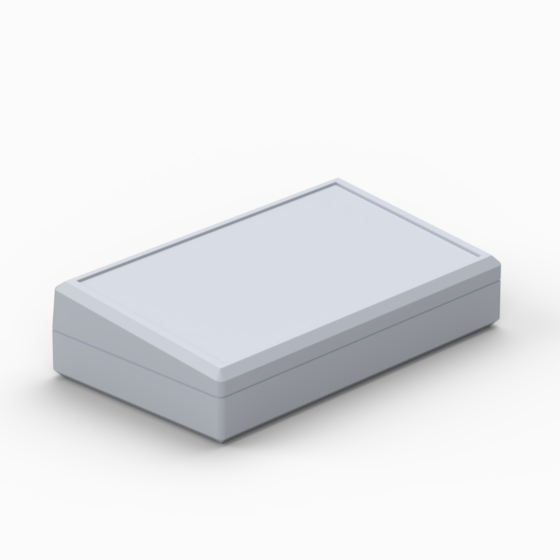

660SP.5 | 145 | 85 | 37,5 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | - |
APTB MT1 |
PDF DWG |
||

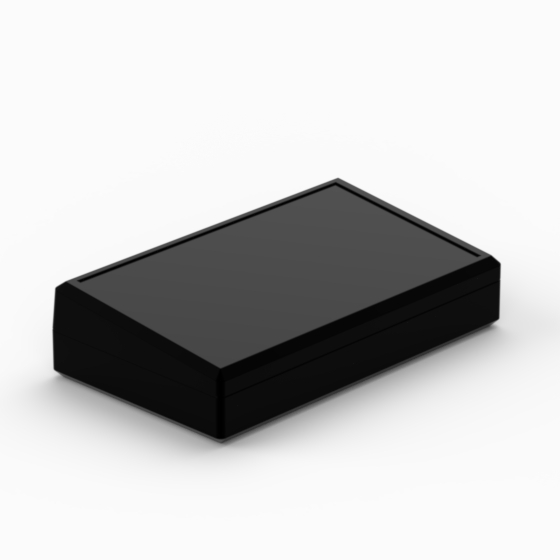

660SP.9 | 145 | 85 | 37,5 |
9004 |
TERLURAN GP-35 | 97,6 | 75,2 | 4 | - |
APTB MT1 |
PDF DWG |
||

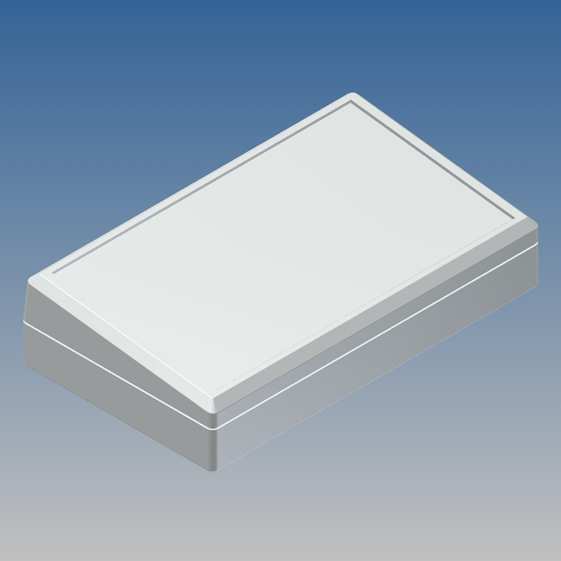

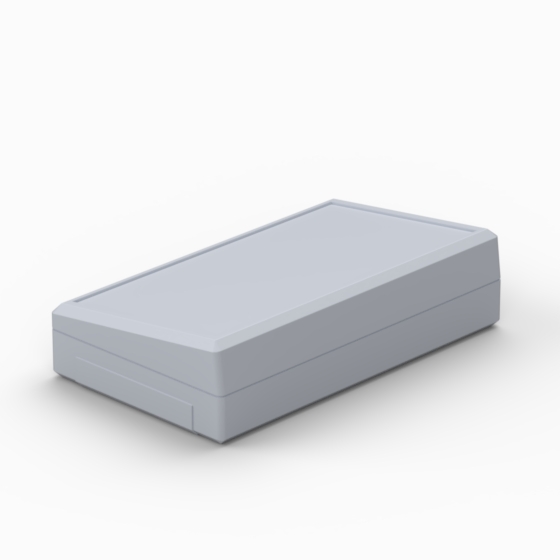

660SP-B.5 | 145 | 85 | 37,5 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | 1 x 9V |
AB9 APTB |
PDF DWG |
||

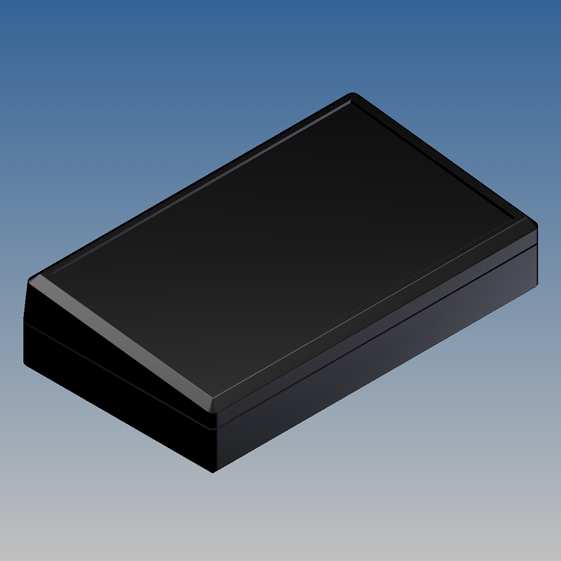

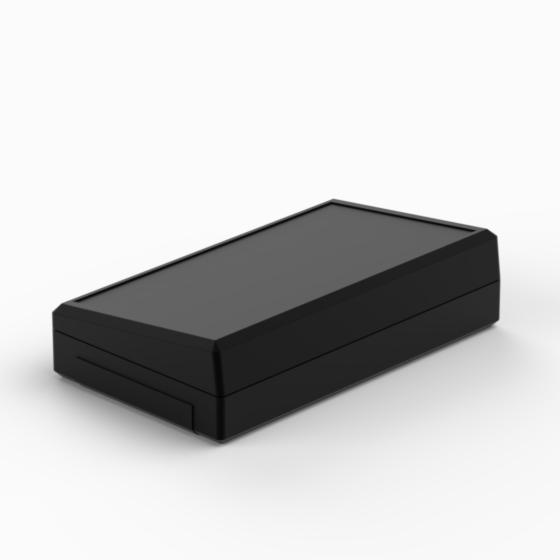

660SP-B.9 | 145 | 85 | 37,5 |
9004 |
TERLURAN GP-35 | 97,6 | 75,2 | 4 | 1 x 9V |
AB9 APTB |
PDF DWG |
||

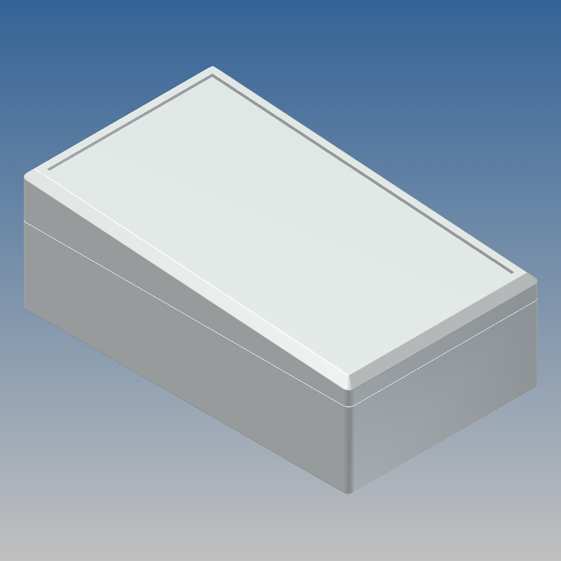

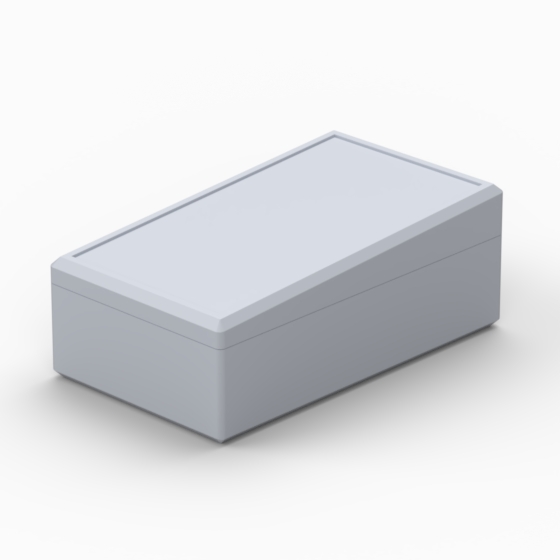

770S.5 | 145 | 85 | 55,5 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
||

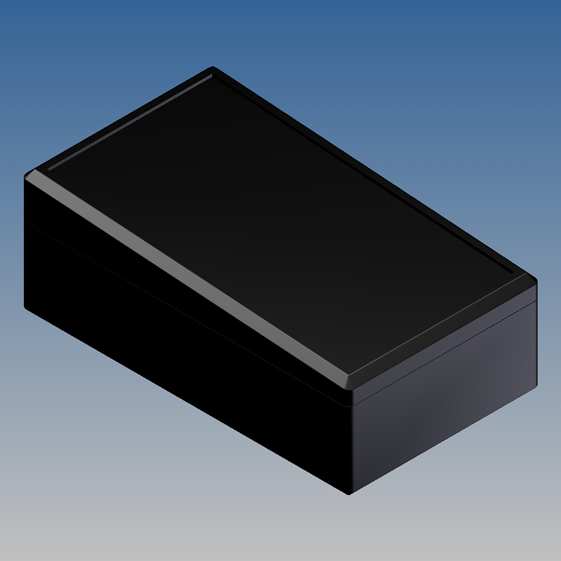

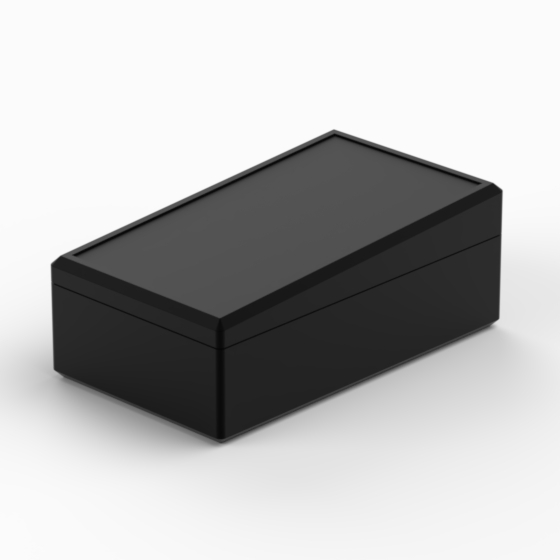

770S.9 | 145 | 85 | 55,5 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
||

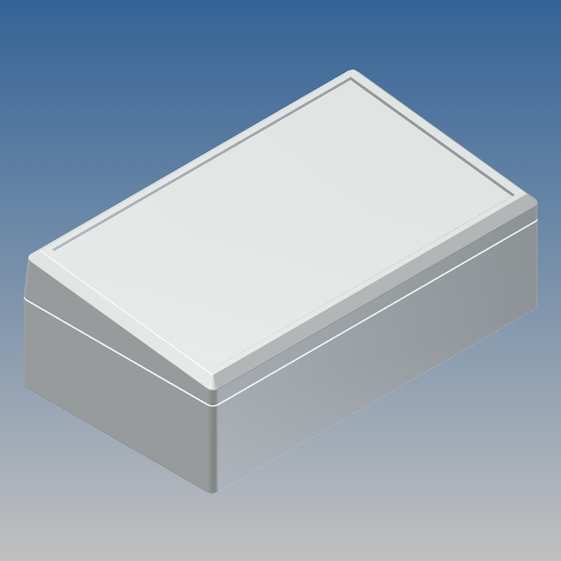

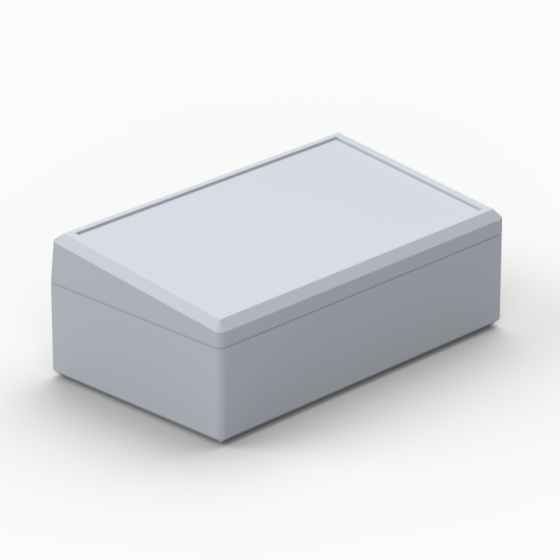

770SP.5 | 145 | 85 | 55,5 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | - |
APTB MT1 |
PDF DWG |
||

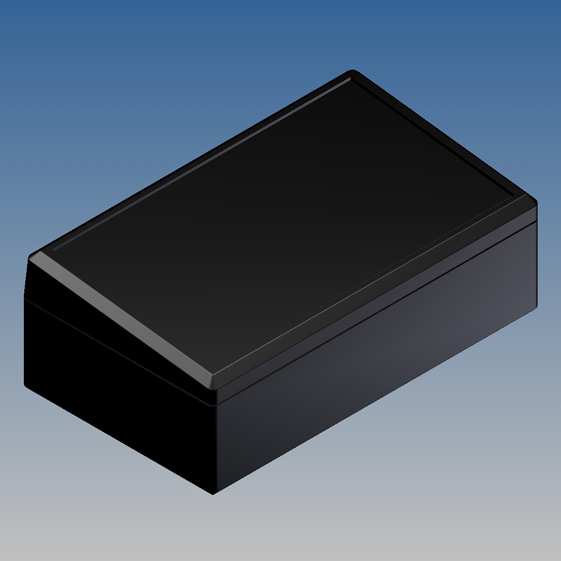

770SP.9 | 145 | 85 | 55,5 |
9004 |
TERLURAN GP-35 | 97,6 | 75,2 | 4 | - |
APTB MT1 |
PDF DWG |
