Description

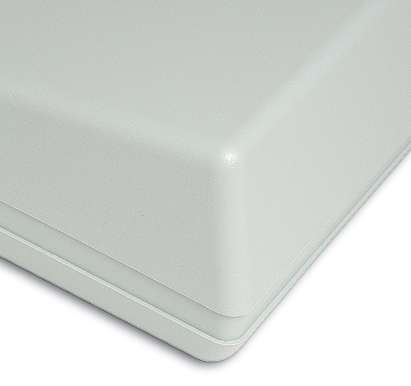

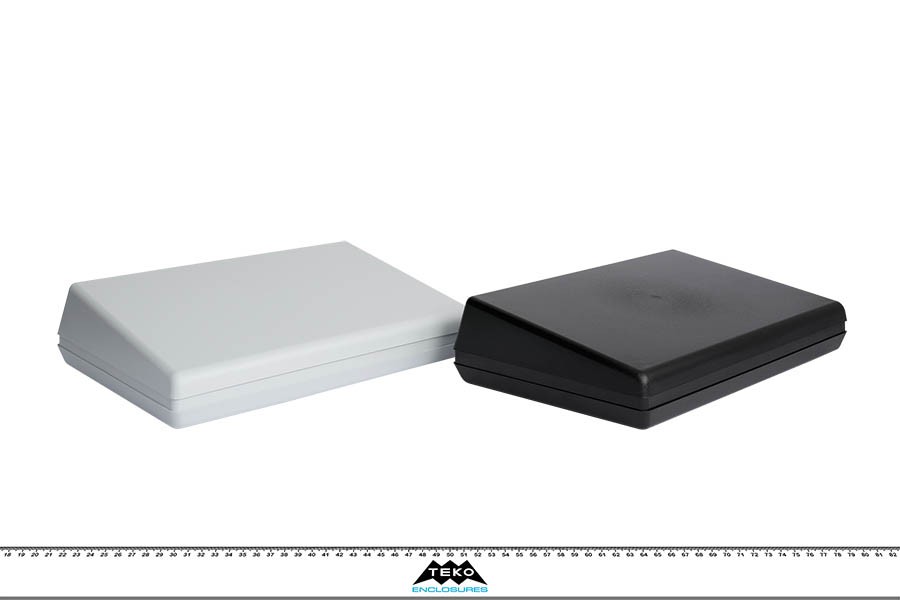

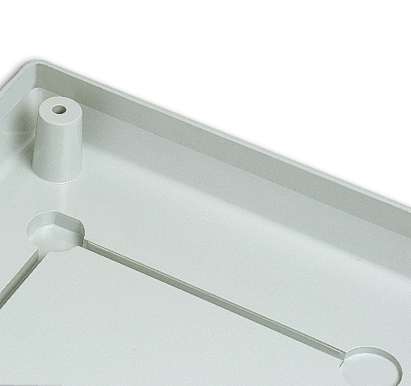

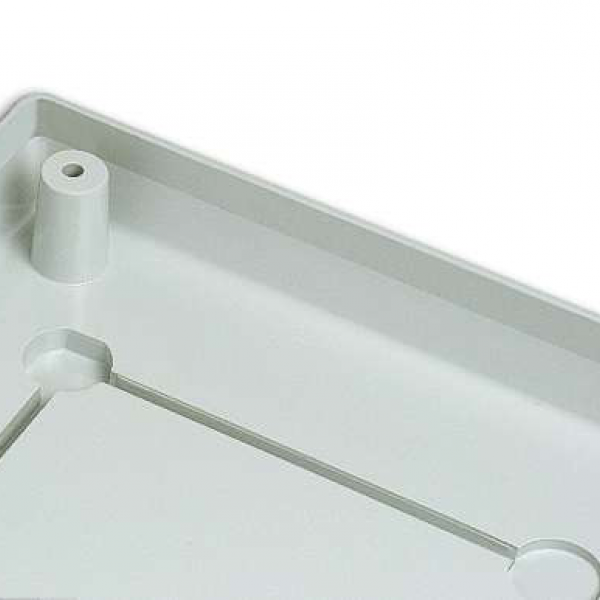

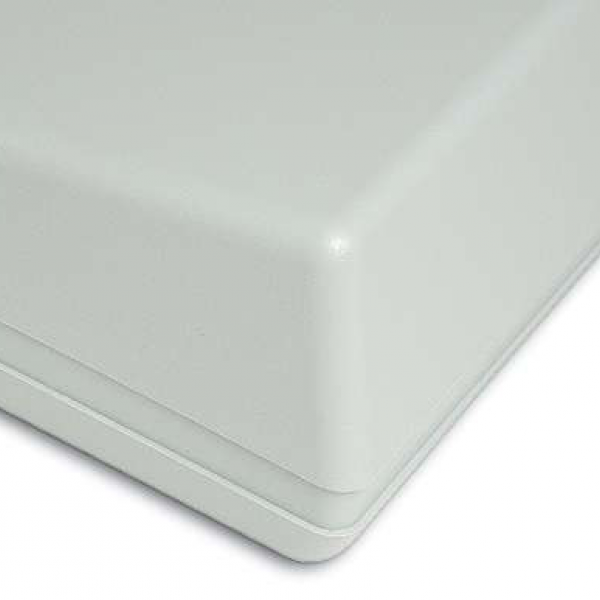

ABS case with inclined cover. The base and the cover have integral PCB mounting studs. Matt surface finish. Closing by four screws.
Details
Products
| |
|---|---|

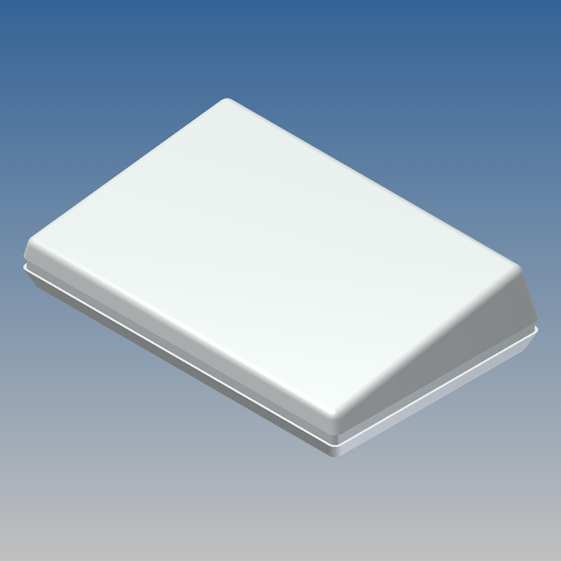

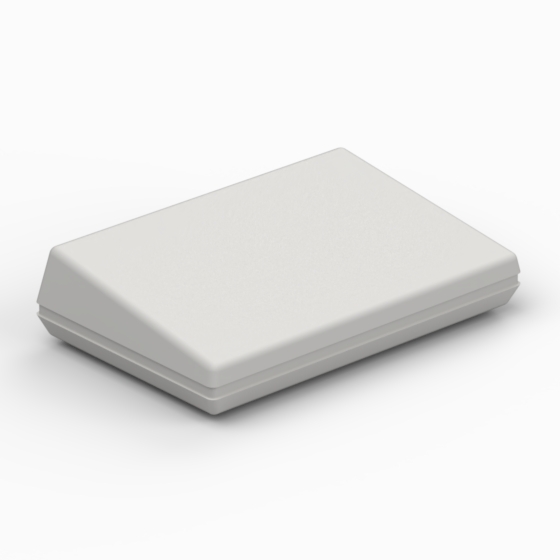

| Model | PRO11.5 |
| L (mm) | 320 |
| W (mm) | 210 |
| H (mm) | 81,9 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

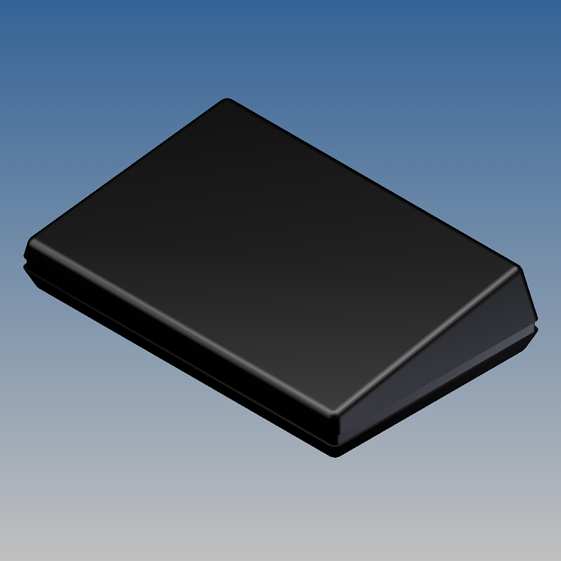

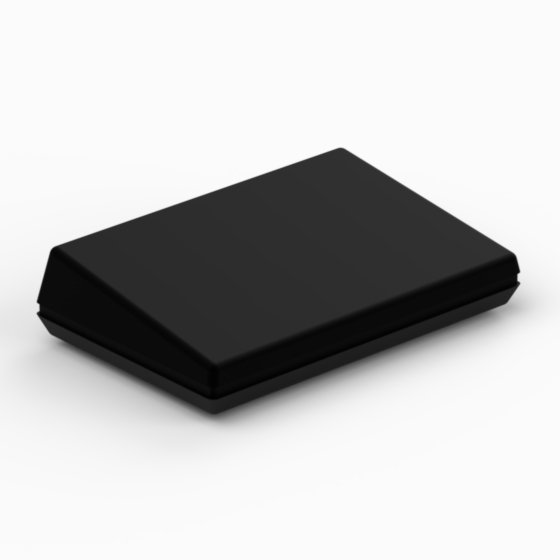

| Model | PRO11.9 |
| L (mm) | 320 |
| W (mm) | 210 |
| H (mm) | 81,9 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
PRO11.5 | 320 | 210 | 81,9 |
9018 |
AG-ATY | - | - | 4 | - |
PDF DWG |
View
|
|
|
|
PRO11.9 | 320 | 210 | 81,9 |
9004 |
P2H-AT | - | - | 4 | - |
PDF DWG |
View
|
