Description

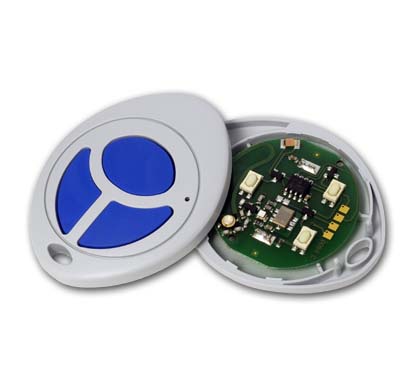

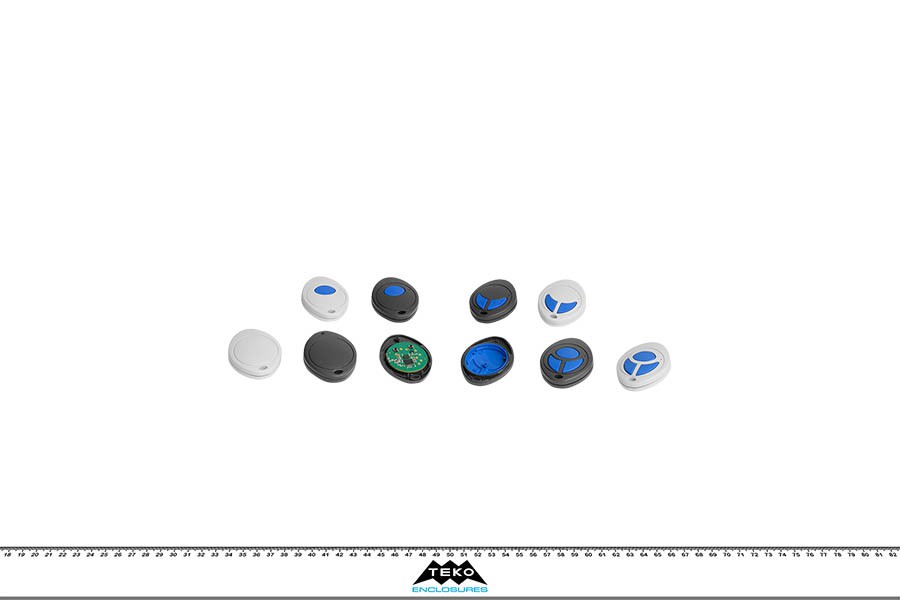

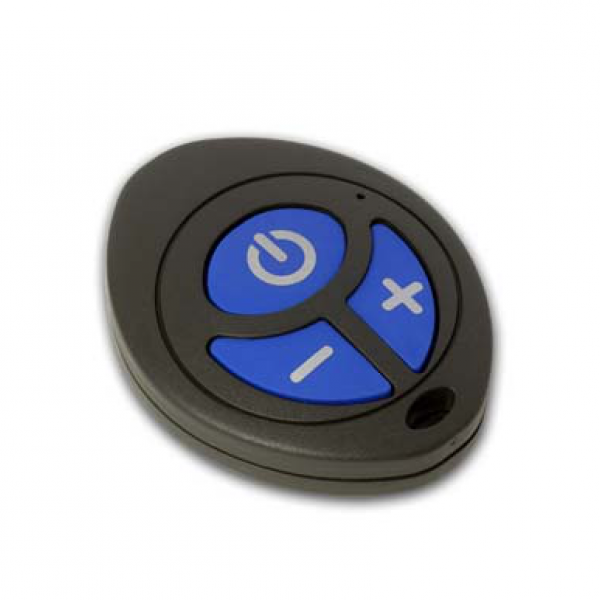

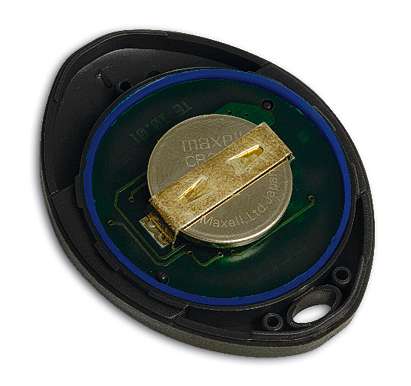

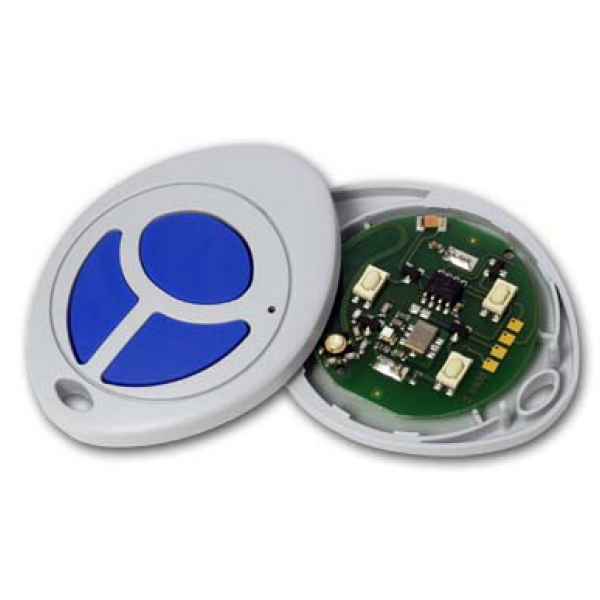

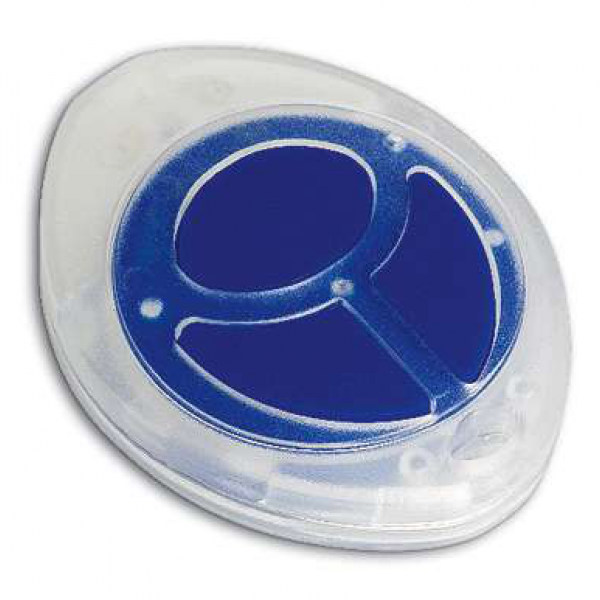

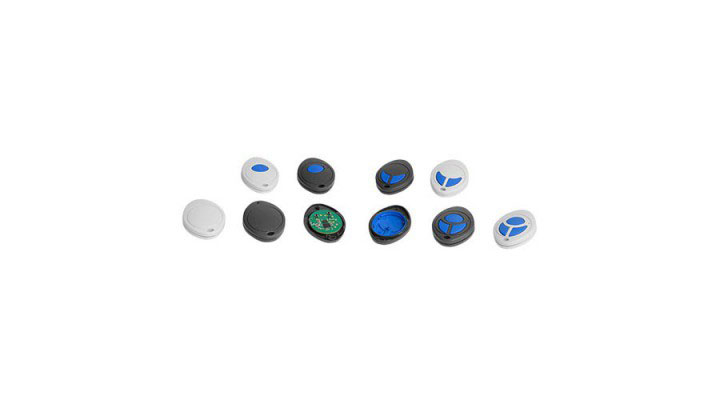

Ergonomic designed ABS pocket enclosures with one, two or three push-buttons,available in six different colours, configuration. Space for round PCB (35 mm.) with button cells batteries. The model “OVO-3/0” has no buttons. Matt surface finish.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

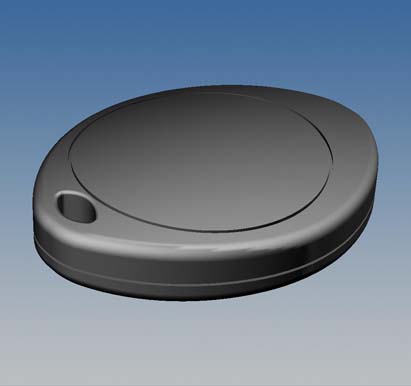

OVO-3/0.4 | 55 | 43,7 | 14 |
7016 |
GP40 | Ø | 34,4 | - | - |
AB2032 |
PDF DWG |
|
|

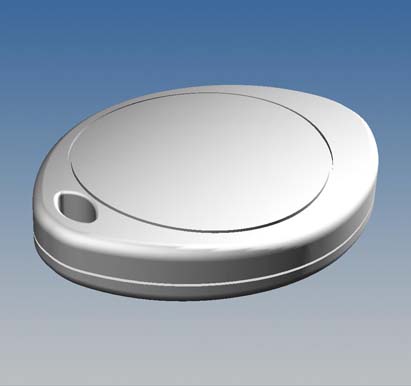

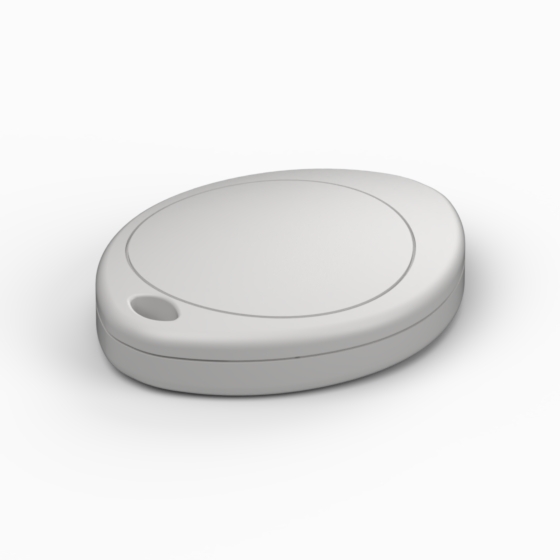

OVO-3/0.5 | 55 | 43,7 | 14 |
9018 |
AG-ATY | Ø | 34,4 | - | - |
AB2032 |
PDF DWG |
|
|

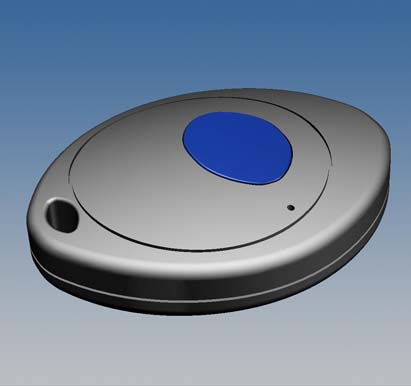

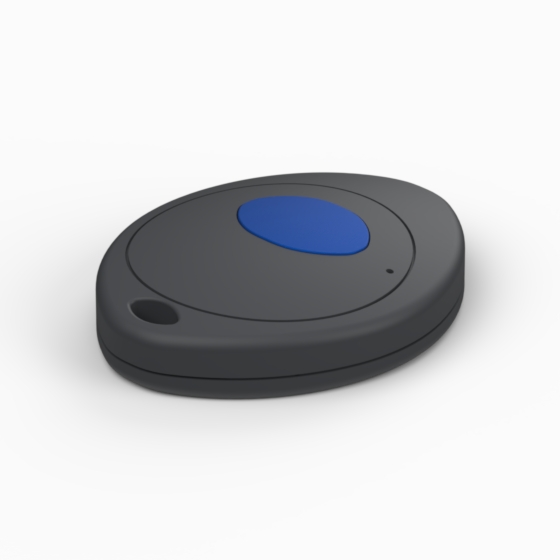

OVO-3/1.4 | 55 | 43,7 | 14 |
7016 |
GP40 | Ø | 34,4 | - | - |
AB2032 OT1 |
PDF DWG |
|
|

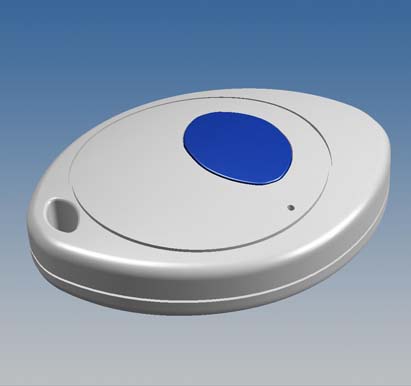

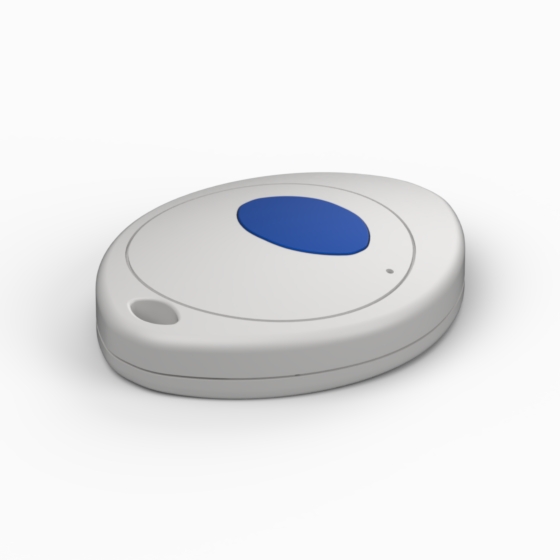

OVO-3/1.5 | 55 | 43,7 | 14 |
9018 |
AG-ATY | Ø | 34,4 | - | - |
AB2032 OT1 |
PDF DWG |
|
|

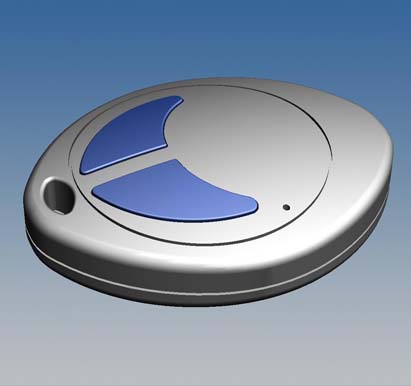

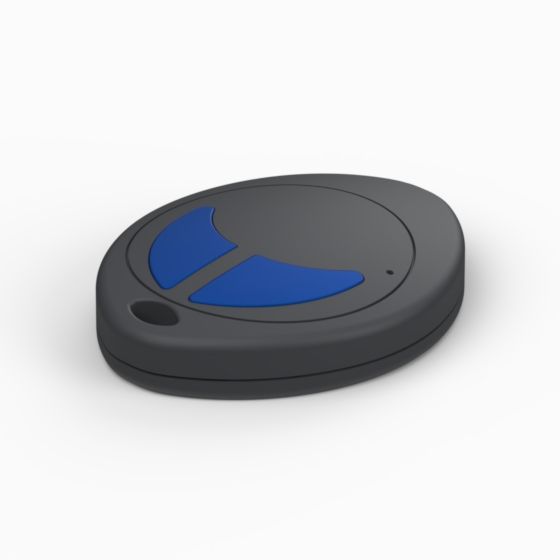

OVO-3/2.4 | 55 | 43,7 | 14 |
7016 |
GP40 | Ø | 34,4 | - | - |
AB2032 OT2 |
PDF DWG |
|
|

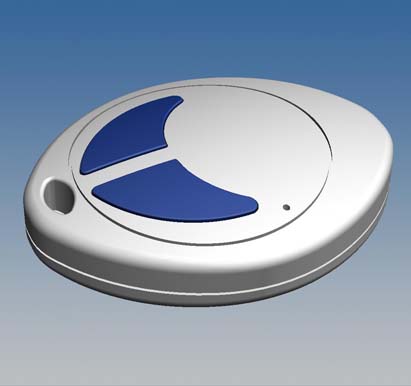

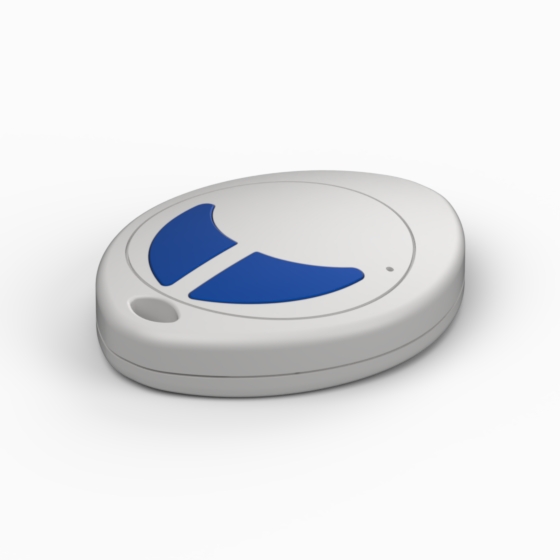

OVO-3/2.5 | 55 | 43,7 | 14 |
9018 |
AG-ATY | Ø | 34,4 | - | - |
AB2032 OT2 |
PDF DWG |
|
|

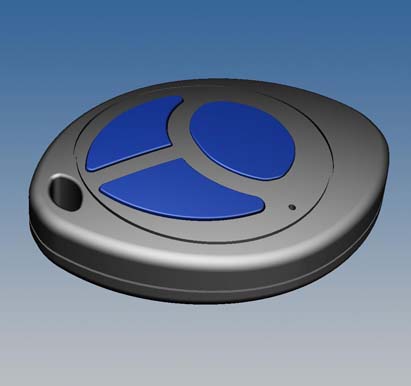

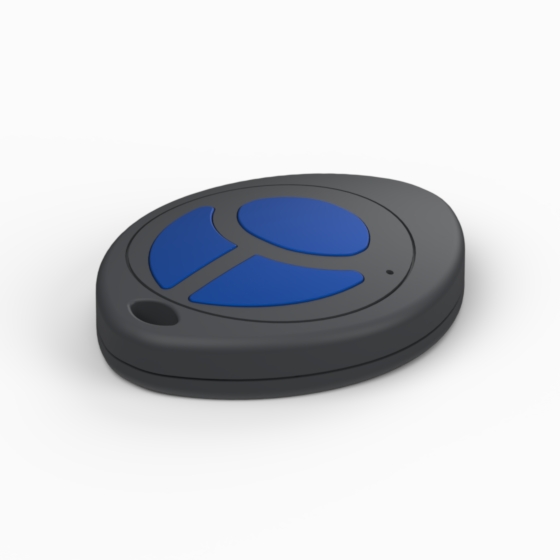

OVO-3/3.4 | 55 | 43,7 | 14 |
7016 |
GP40 | Ø | 34,4 | - | - |

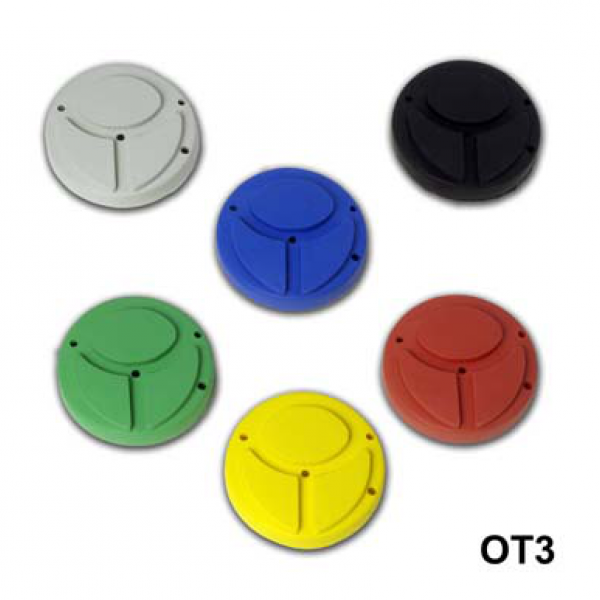

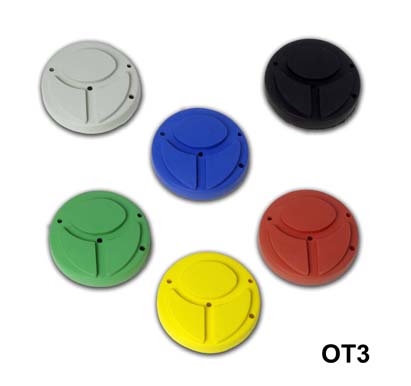

AB2032 OT3 |
PDF DWG |
|
|

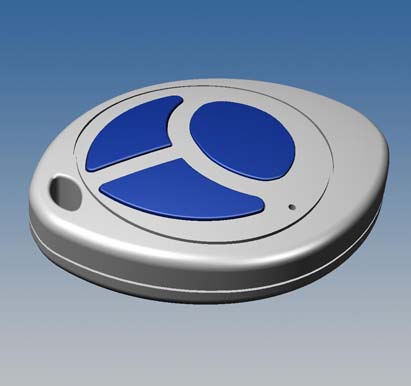

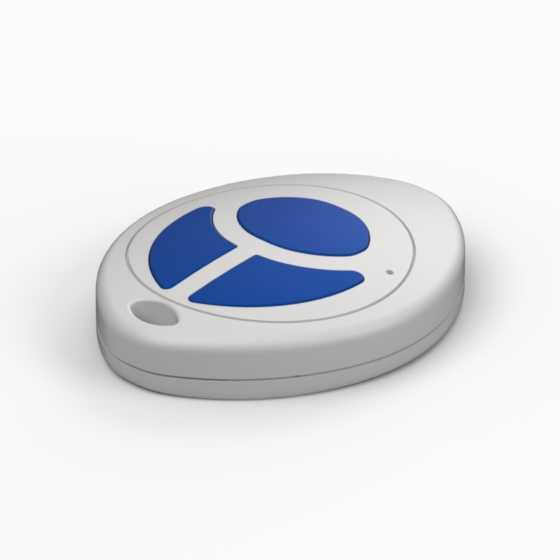

OVO-3/3.5 | 55 | 43,7 | 14 |
9018 |
AG-ATY | Ø | 34,4 | - | - |
AB2032 OT3 |
PDF DWG |
