POCKET 10

Family Pocket - Electronic enclosures - Plastic

Description

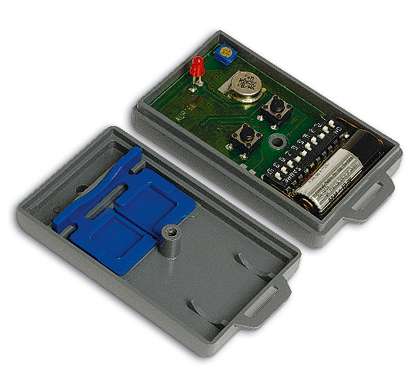

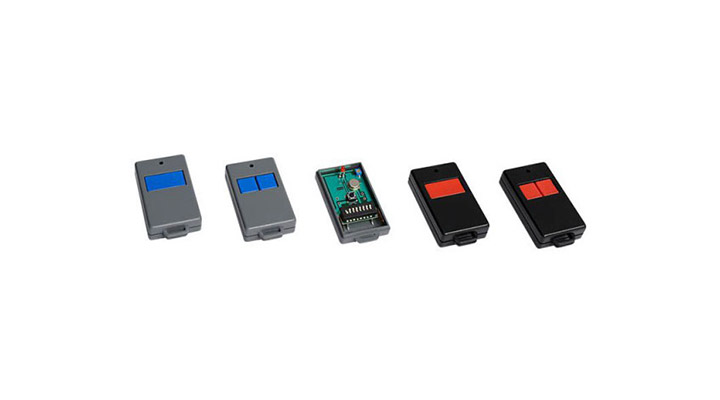

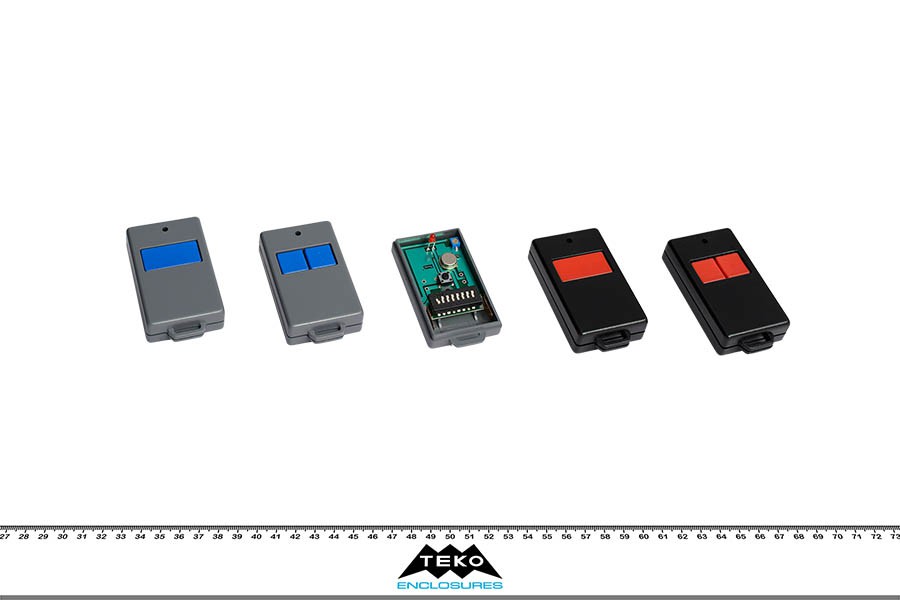

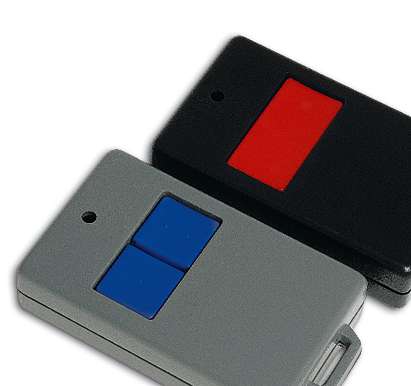

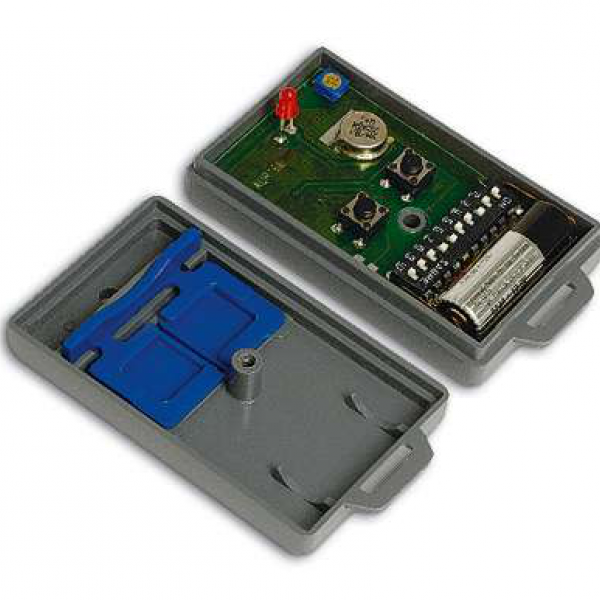

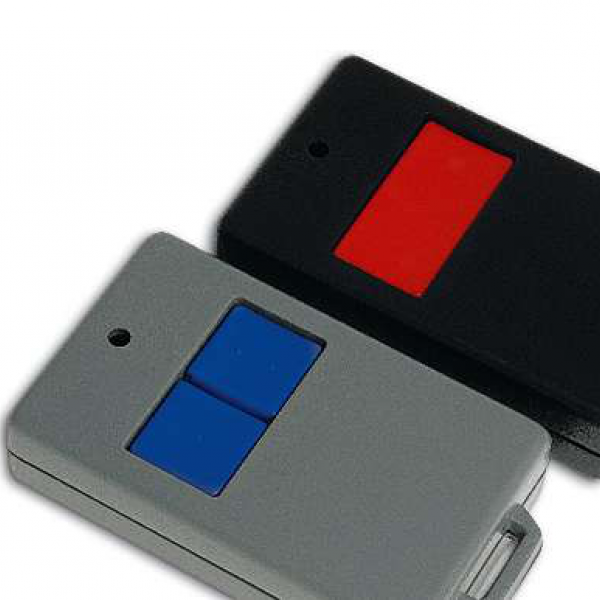

ABS enclosures with rounded corners with one or two push-button configurations. The base has a integral PCB mounting studs. The enclosure is supplied with two metal contacts for 12V battery (Mod. AB12). Matt surface finish. Closing by one screw.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
10120.2 61 37 15 7012
N-UT 43 31,5 1 1 x 12V PDF
DWG
View
  • Color (Ral): 7012
  • Material: N-UT
  • MAX PCB L (mm): 43
  • MAX PCB W (mm): 31,5
  • Screws: 1
  • Battery: 1 x 12V
  • Accessories:
  • Drawings:  PDF  DWG

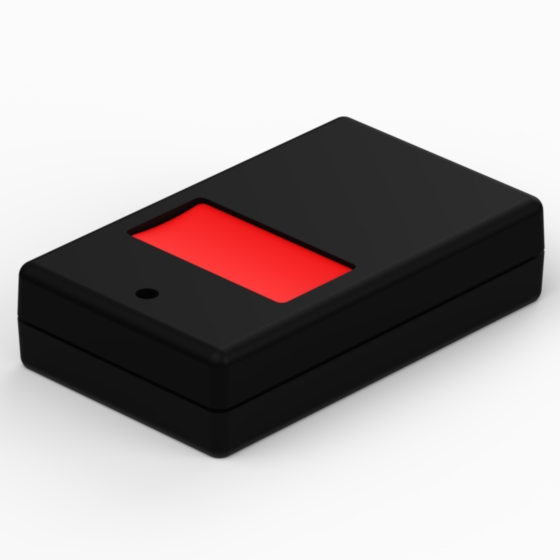

10120.9 61 37 15 9004
GP40 43 31,5 1 1 x 12V PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP40
  • MAX PCB L (mm): 43
  • MAX PCB W (mm): 31,5
  • Screws: 1
  • Battery: 1 x 12V
  • Accessories:
  • Drawings:  PDF  DWG

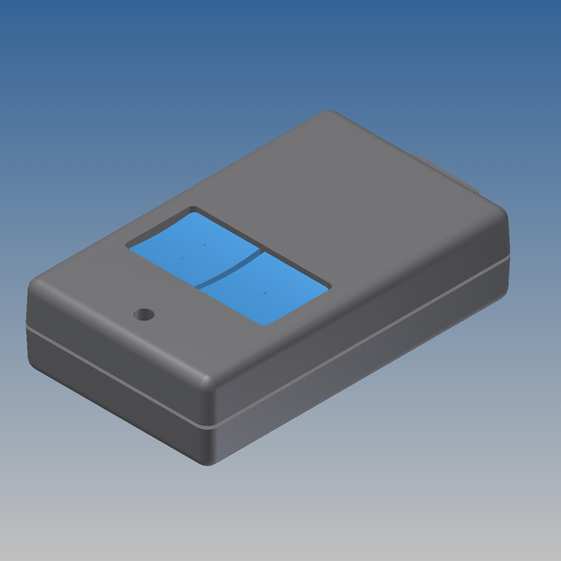

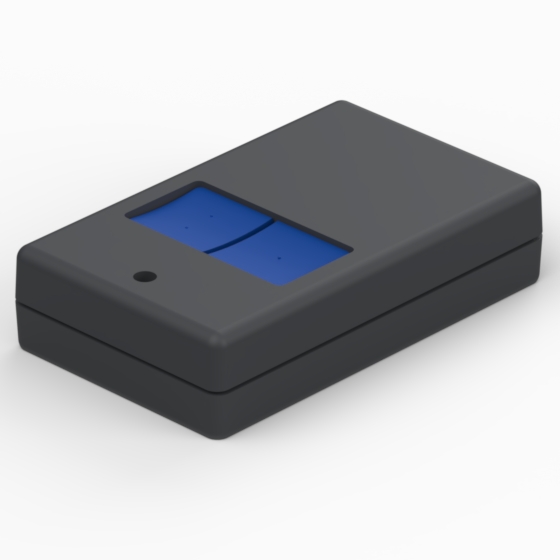

10120/2.2 61 37 15 7012
N-UT 43 31,5 1 1 x 12V PDF
DWG
View
  • Color (Ral): 7012
  • Material: N-UT
  • MAX PCB L (mm): 43
  • MAX PCB W (mm): 31,5
  • Screws: 1
  • Battery: 1 x 12V
  • Accessories:
  • Drawings:  PDF  DWG

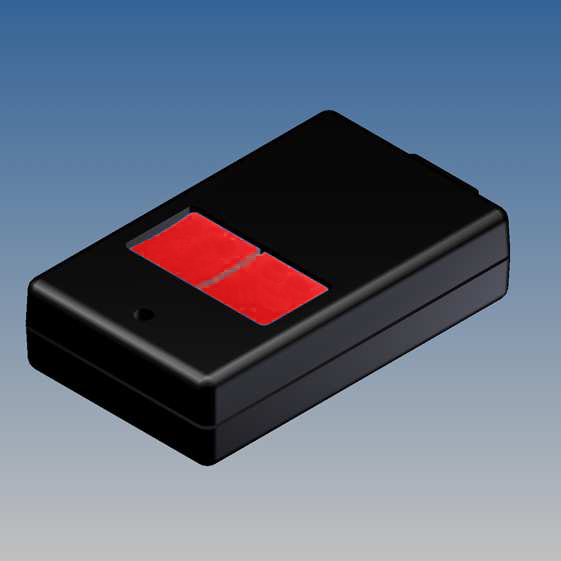

10120/2.9 61 37 15 9004
GP40 43 31,5 1 1 x 12V PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP40
  • MAX PCB L (mm): 43
  • MAX PCB W (mm): 31,5
  • Screws: 1
  • Battery: 1 x 12V
  • Accessories:
  • Drawings:  PDF  DWG
