Description

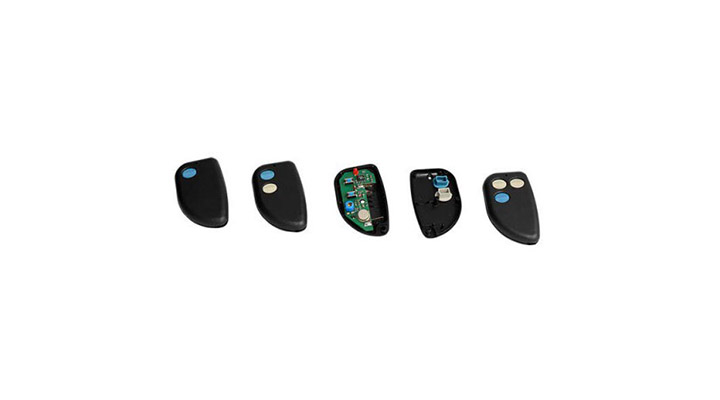

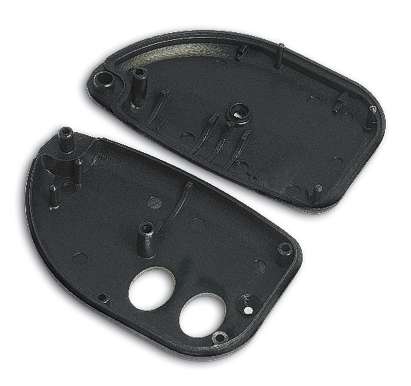

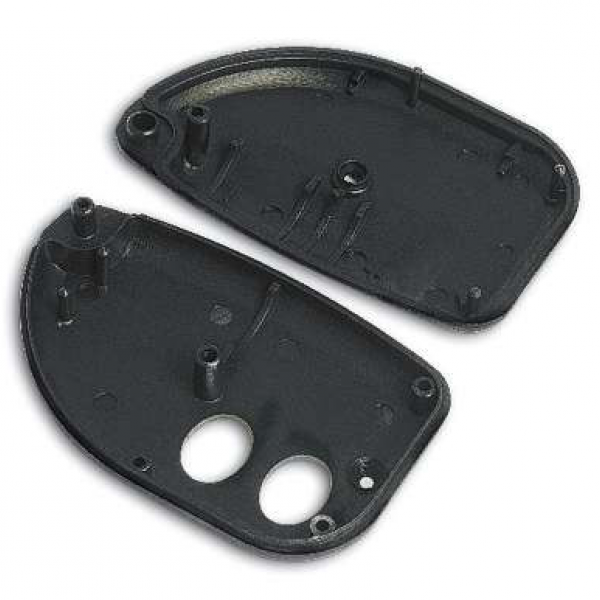

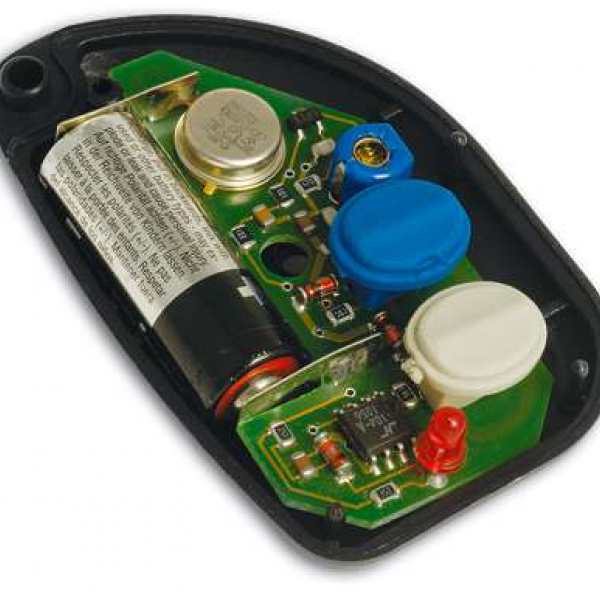

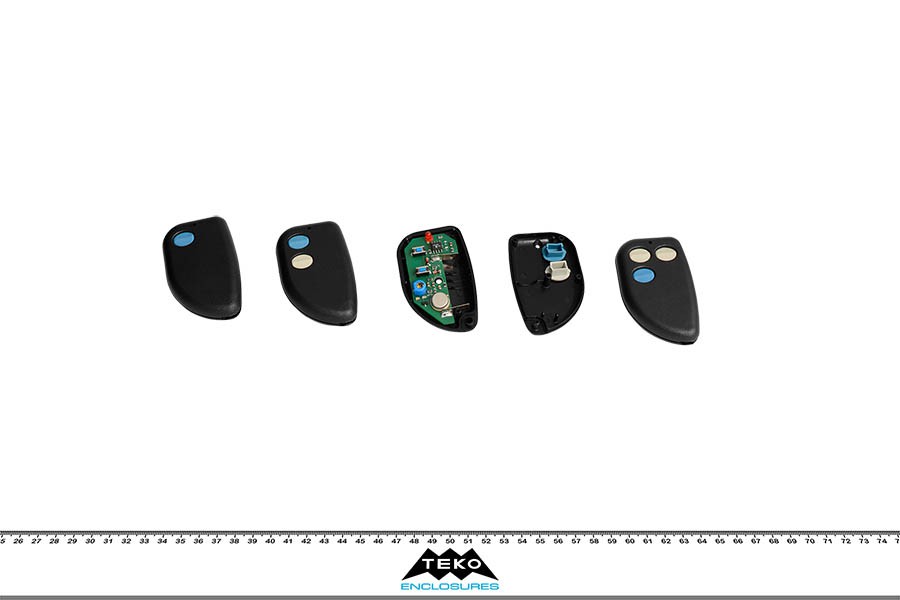

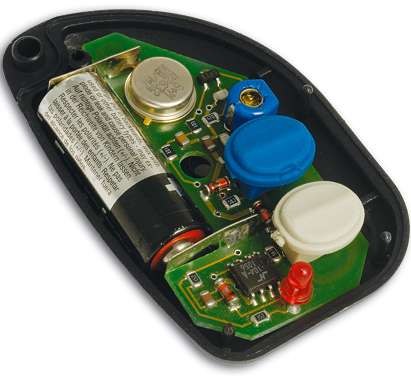

ABS enclosures with an innovative design. Three models available with one, two or three push-button configurations. The base has a integral PCB mounting studs. The enclosure is supplied with two metal contacts for 12V battery (Mod. ABM). Matt surface finish. Closing by one screw.
Products
|
Model |
L (mm) |
W (mm) |
H (mm) |
Color (Ral) |
Material |
MAX PCB L (mm) |
MAX PCB W (mm) |
Screws |
Battery |
Accessories |
Drawings |
Other |
|

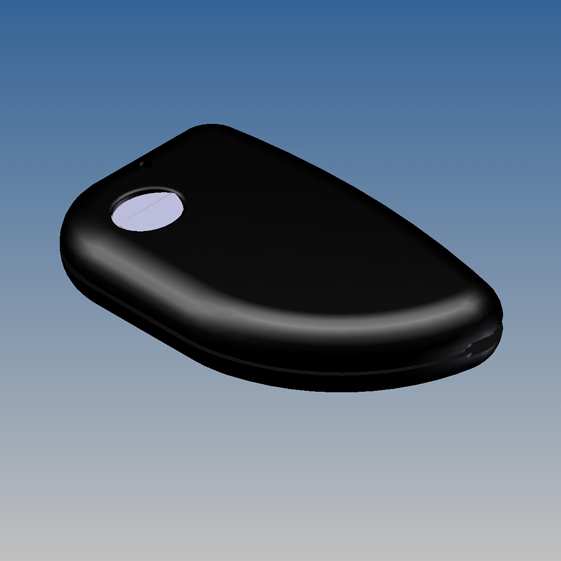

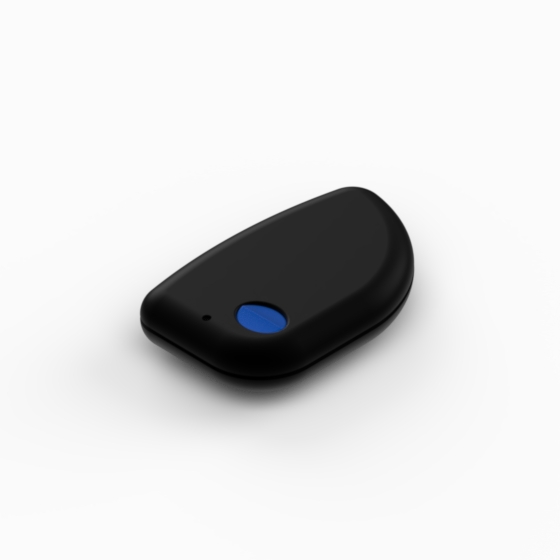

12121.9 |
56,5 |
35,5 |
13,5 |
9004
|
P2H-AT
|
- |
- |
1 |
1 x 12V |
|
PDF
DWG
|
View
- Color (Ral):
9004
- Material:
P2H-AT
- MAX PCB L (mm): -
- MAX PCB W (mm): -
- Screws: 1
- Battery: 1 x 12V
- Accessories:
-
Drawings:
PDF
DWG
|
|

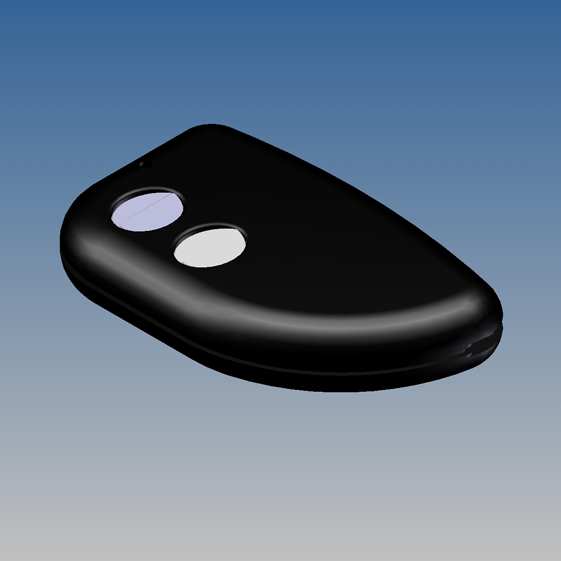

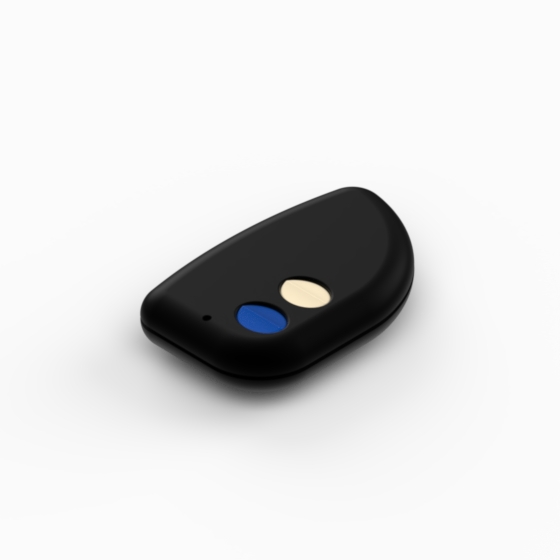

12122.9 |
56,5 |
35,5 |
13,5 |
9004
|
P2H-AT
|
- |
- |
1 |
1 x 12V |
|
PDF
DWG
|
View
- Color (Ral):
9004
- Material:
P2H-AT
- MAX PCB L (mm): -
- MAX PCB W (mm): -
- Screws: 1
- Battery: 1 x 12V
- Accessories:
-
Drawings:
PDF
DWG
|
|

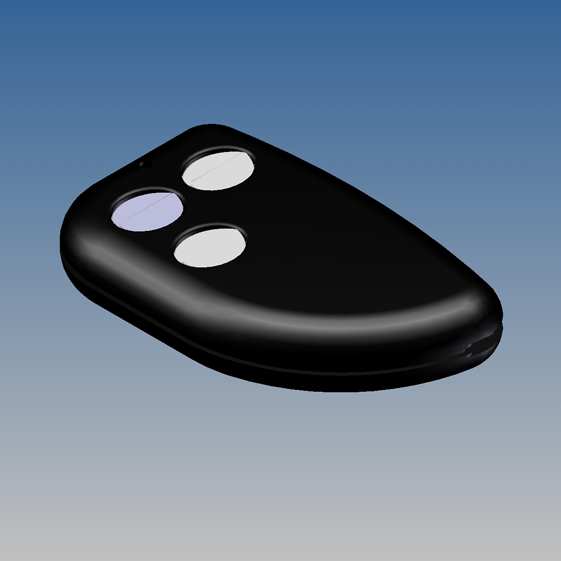

12123.9 |
56,5 |
35,5 |
13,5 |
9004
|
P2H-AT
|
- |
- |
1 |
1 x 12V |
|
PDF
DWG
|
View
- Color (Ral):
9004
- Material:
P2H-AT
- MAX PCB L (mm): -
- MAX PCB W (mm): -
- Screws: 1
- Battery: 1 x 12V
- Accessories:
-
Drawings:
PDF
DWG
|
