SNAP

Family Pocket - Electronic enclosures - Plastic

Description

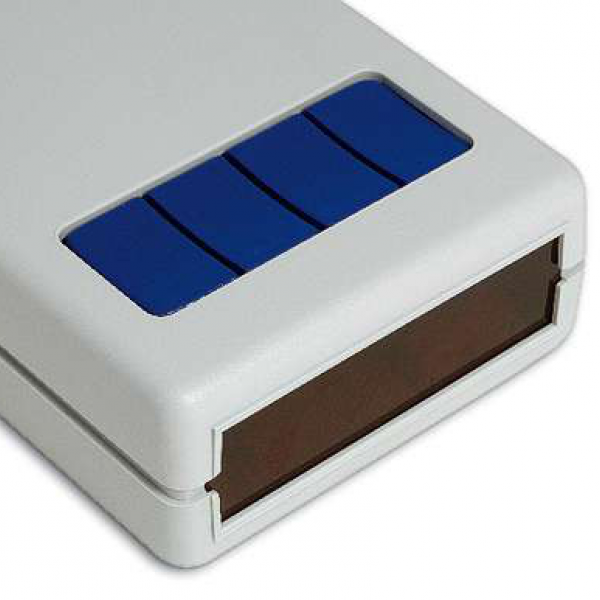

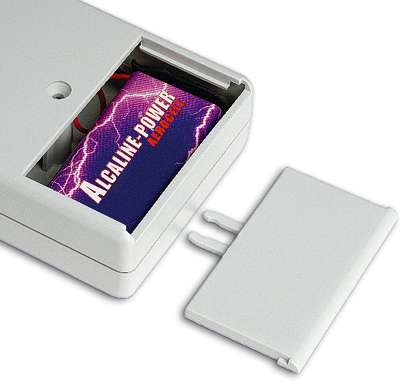

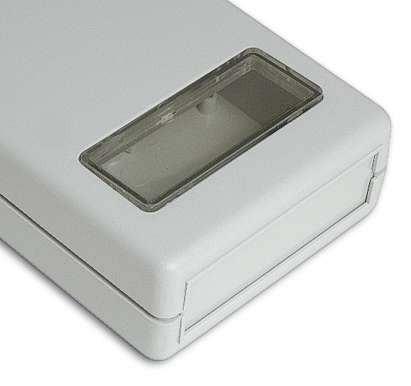

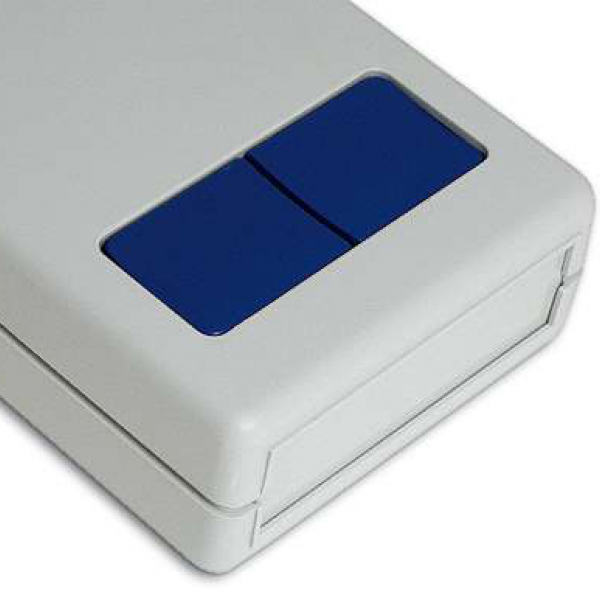

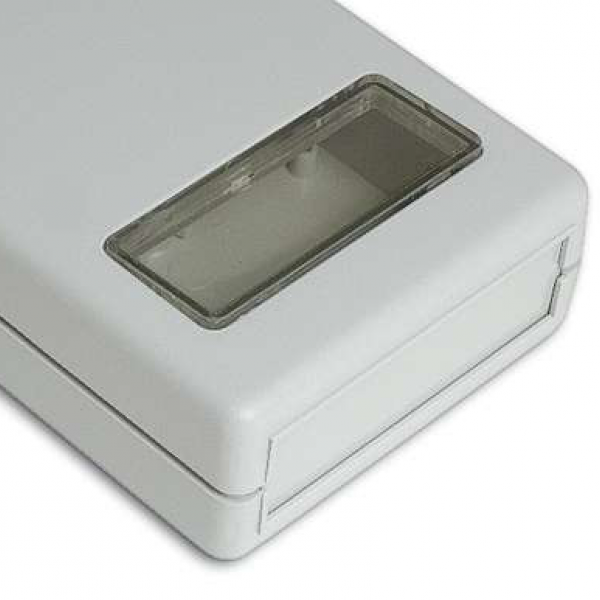

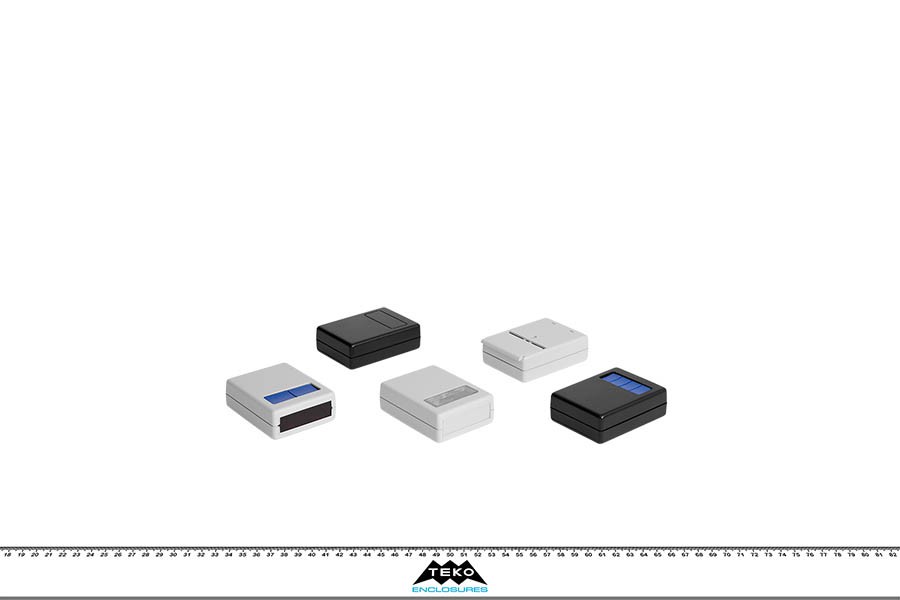

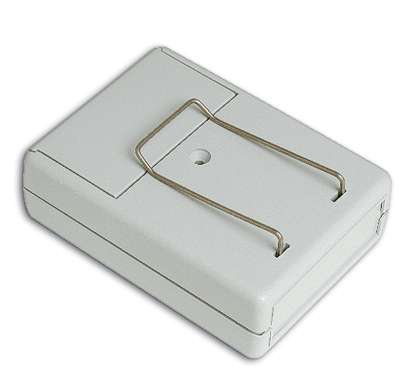

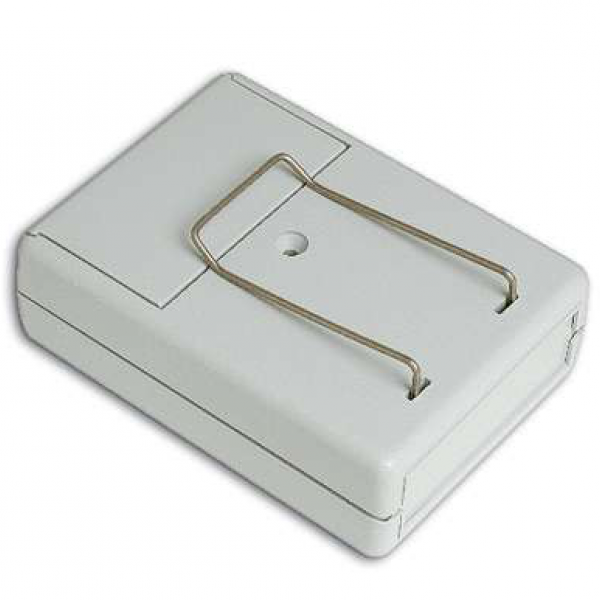

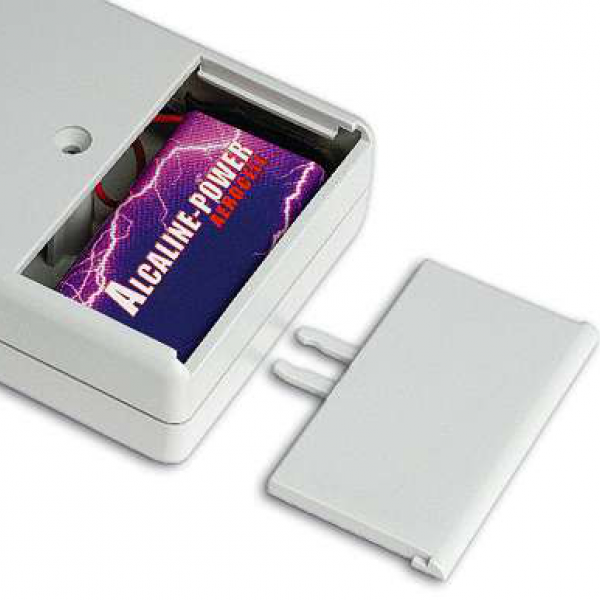

ABS enclosures with rounded corners. 9V battery compartment with a snap sliding lid. The model “10124” have one, two and four blue push-buttons set. The model “10005-DW1” have on the top a transparent window. The models “10005-B”, “10005-DW1” and “10124” have a front IR-panel replaceable by a plastic panel coloured as the box. Matt surface finish. Closing by only one screw. Upon request stainless steel clip (Mod. CL1).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

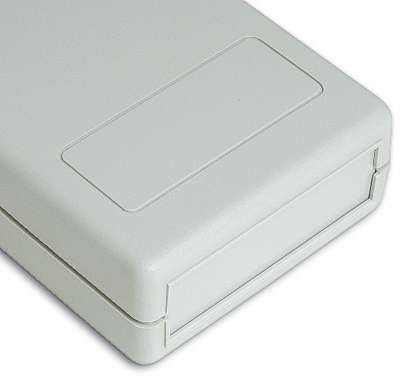

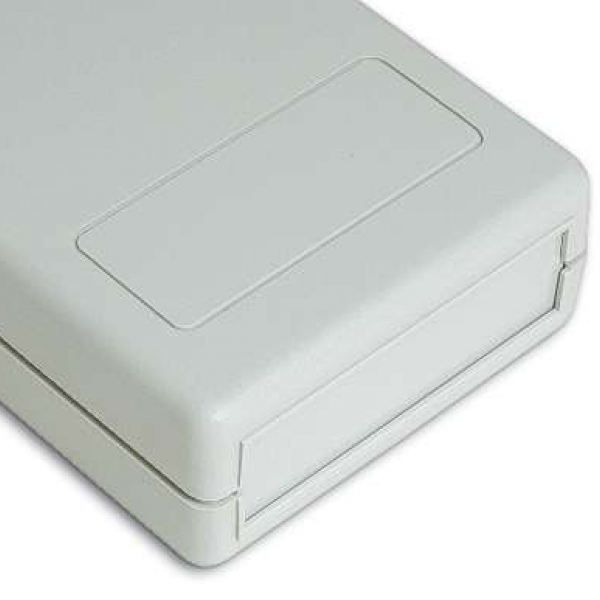

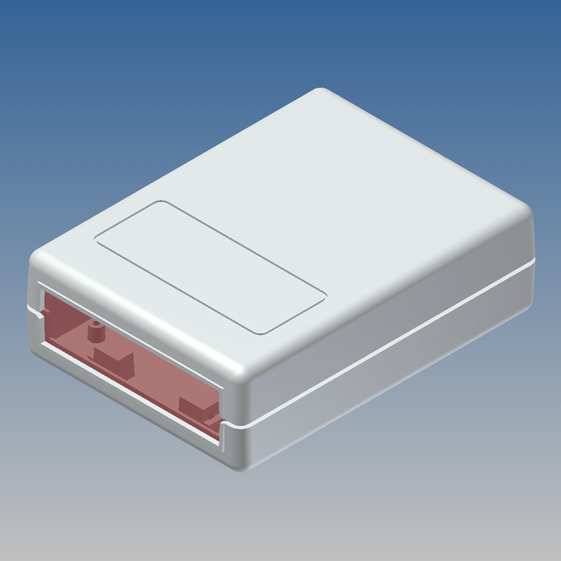

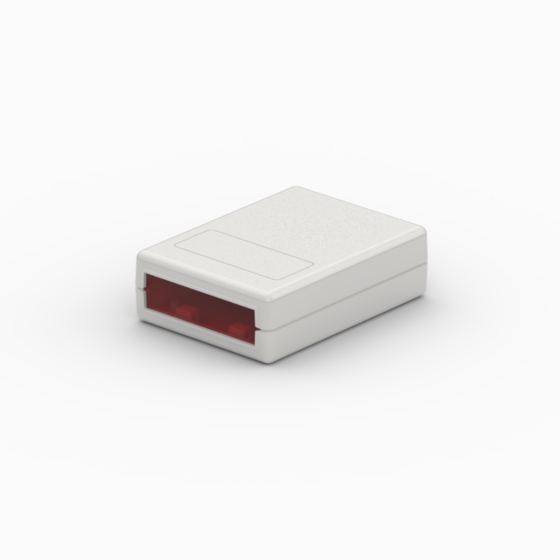

10005-B.5 82 60 25 9018
AG-ATY 52,5 35 1 1 x 9V CL1
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 52,5
  • MAX PCB W (mm): 35
  • Screws: 1
  • Battery: 1 x 9V
  • Accessories: CL1
  • Drawings:  PDF  DWG

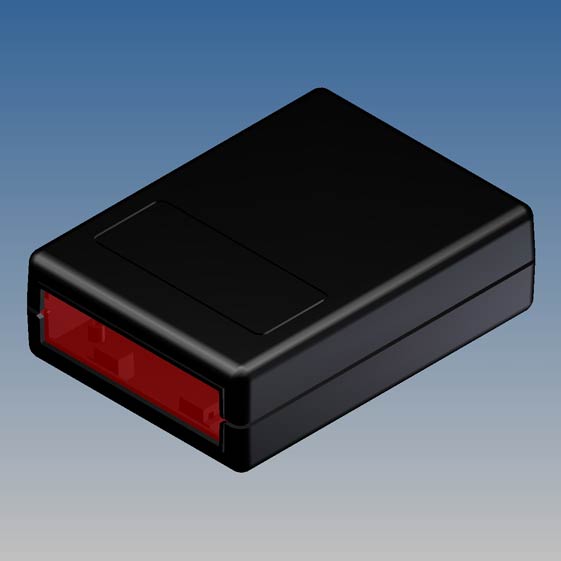

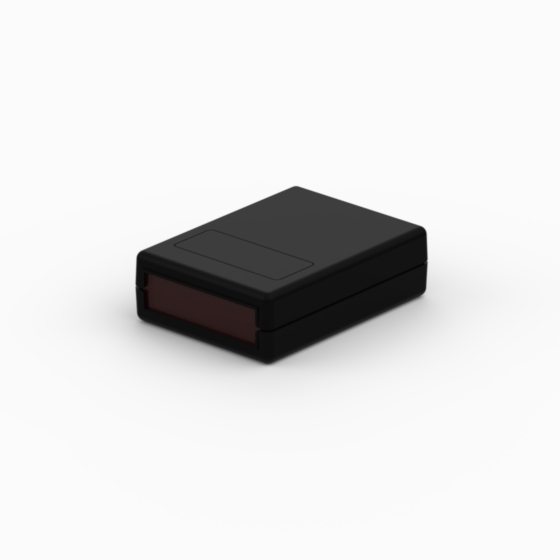

10005-B.9 82 60 25 9004
P2H-AT 52,5 35 1 1 x 9V CL1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 52,5
  • MAX PCB W (mm): 35
  • Screws: 1
  • Battery: 1 x 9V
  • Accessories: CL1
  • Drawings:  PDF  DWG

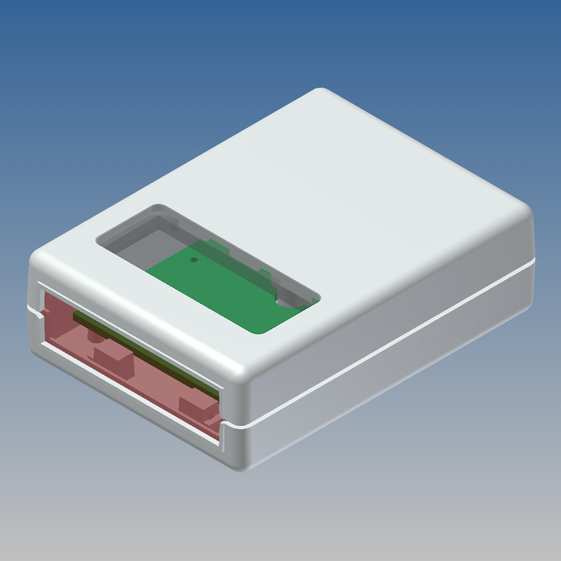

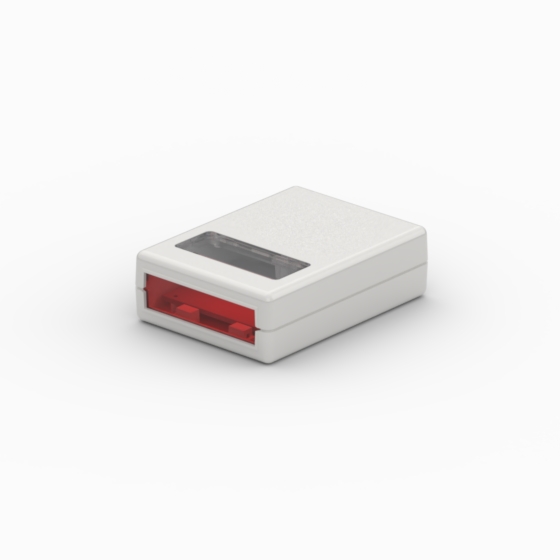

10005-DW1.5 82 60 25 9018
AG-ATY 52,5 35 1 1 x 9V CL1
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 52,5
  • MAX PCB W (mm): 35
  • Screws: 1
  • Battery: 1 x 9V
  • Accessories: CL1
  • Drawings:  PDF  DWG

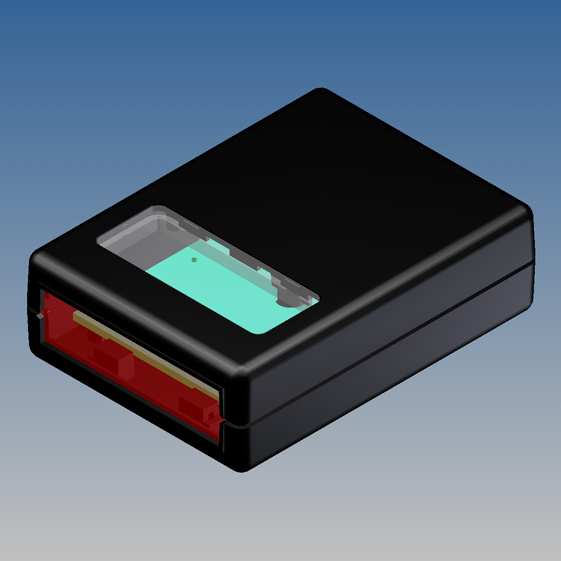

10005-DW1.9 82 60 25 9004
P2H-AT 52,5 35 1 1 x 9V CL1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 52,5
  • MAX PCB W (mm): 35
  • Screws: 1
  • Battery: 1 x 9V
  • Accessories: CL1
  • Drawings:  PDF  DWG

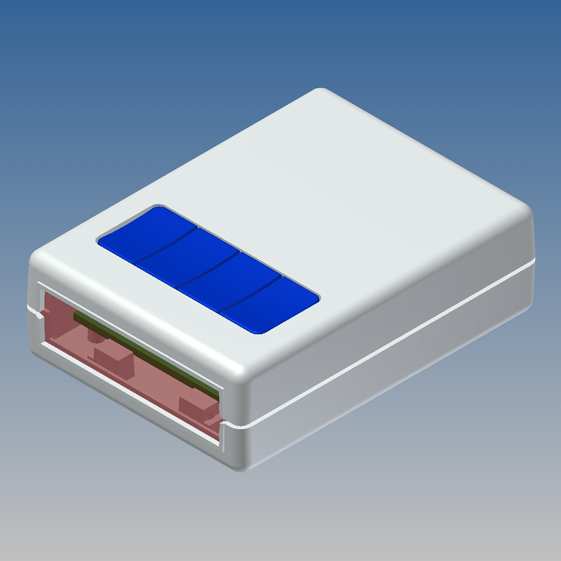

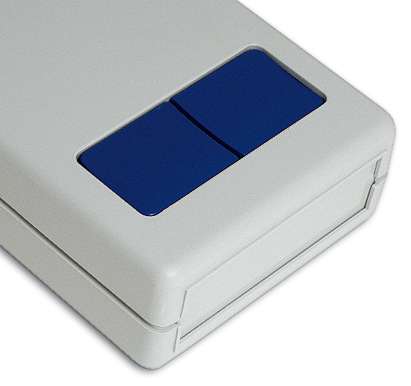

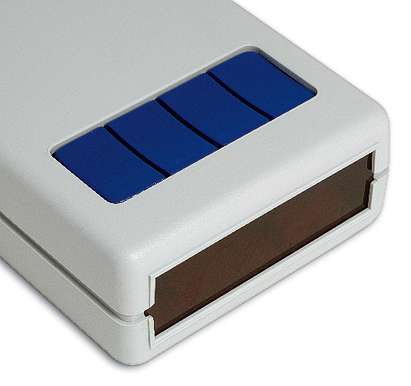

10124.5 82 60 25 9018
AG-ATY 52,5 35 1 1 x 9V CL1
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 52,5
  • MAX PCB W (mm): 35
  • Screws: 1
  • Battery: 1 x 9V
  • Accessories: CL1
  • Drawings:  PDF  DWG

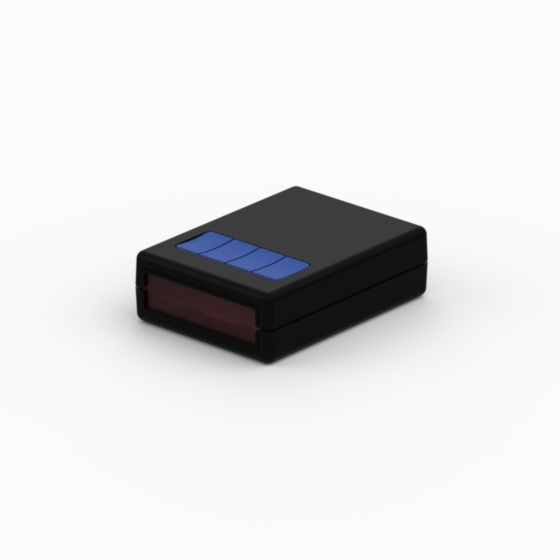

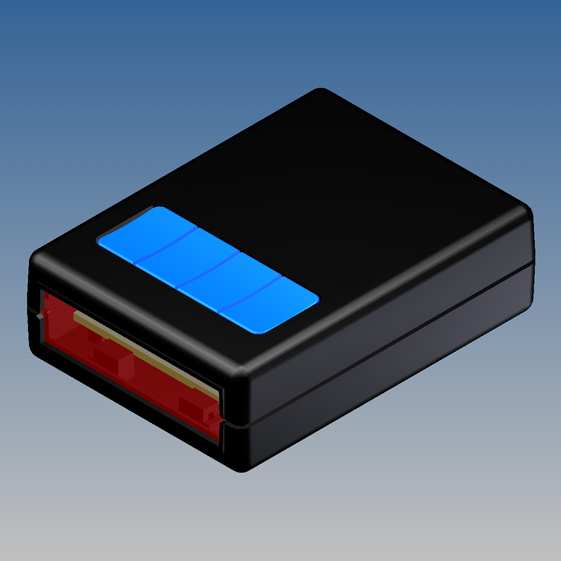

10124.9 82 60 25 9004
P2H-AT 52,5 35 1 1 x 9V CL1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 52,5
  • MAX PCB W (mm): 35
  • Screws: 1
  • Battery: 1 x 9V
  • Accessories: CL1
  • Drawings:  PDF  DWG
