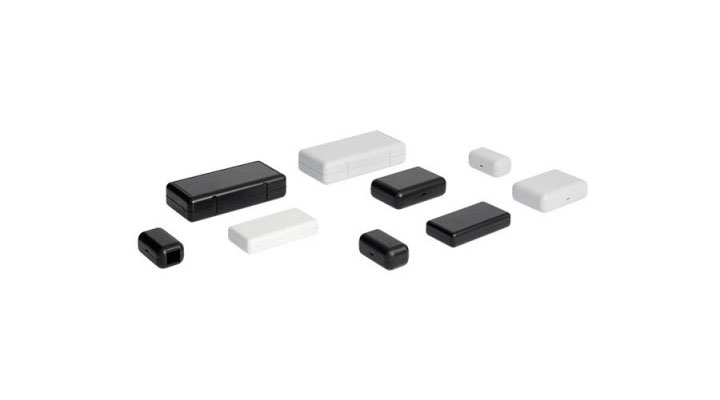

SOAP 1

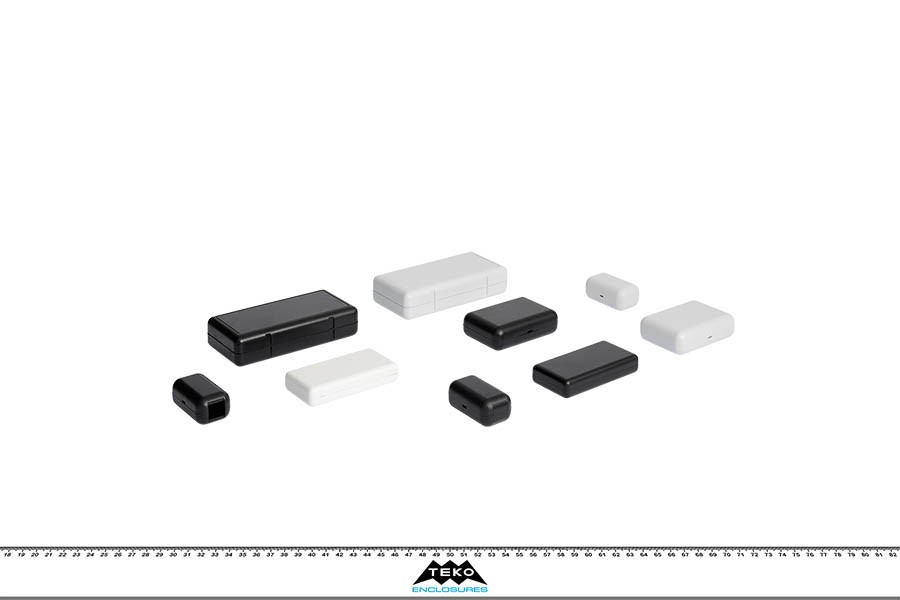

Family Pocket - Electronic enclosures - Plastic

Description

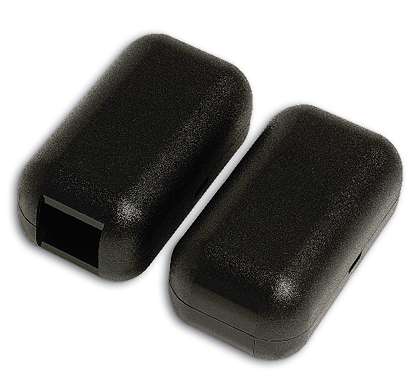

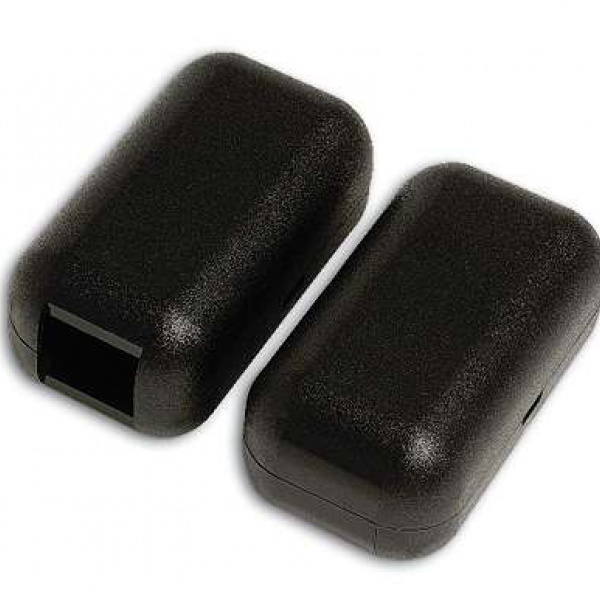

ABS enclosures with rounded corners, convenient to carry and snaps together for easy assembly. Base and cover have integral PCB mounting studs. The enclosures “10006/1” and “10006/2” are available with one or two cutouts for connectors or cables (14,7 x 12,5 mm). Matt surface finish. Only the model “10014” is available in black or white.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

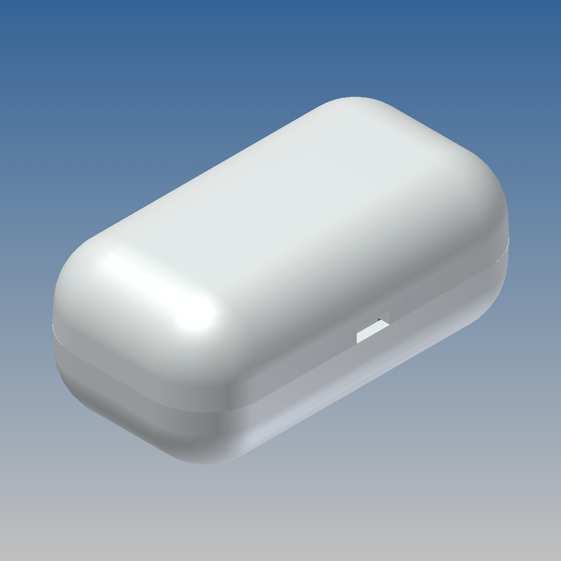

10006.5 56 31 24 9018
AG-ATY 37 25 - - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 37
  • MAX PCB W (mm): 25
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

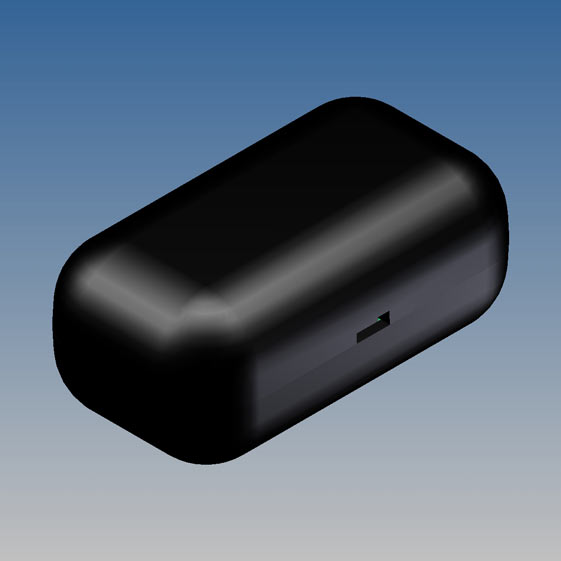

10006.9 56 31 24 9004
P2H-AT 37 25 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 37
  • MAX PCB W (mm): 25
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

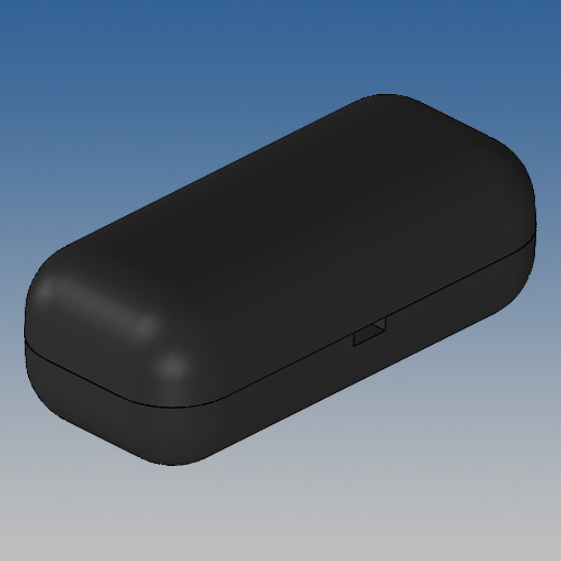

10006-L.9
NEW
68 31 24 9004
P2H-AT 61 24,5     PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 61
  • MAX PCB W (mm): 24,5
  • Screws:
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG
10006/1.5 56 31 24 9018
AG-ATY 37 25 - - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 37
  • MAX PCB W (mm): 25
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
10006/1.9 56 31 24 9004
P2H-AT 37 25 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 37
  • MAX PCB W (mm): 25
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

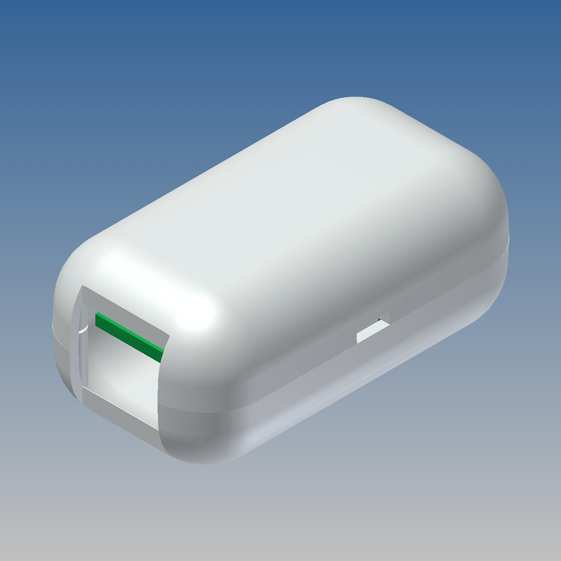

10006/2.5 56 31 24 9018
AG-ATY 37 25 - - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 37
  • MAX PCB W (mm): 25
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

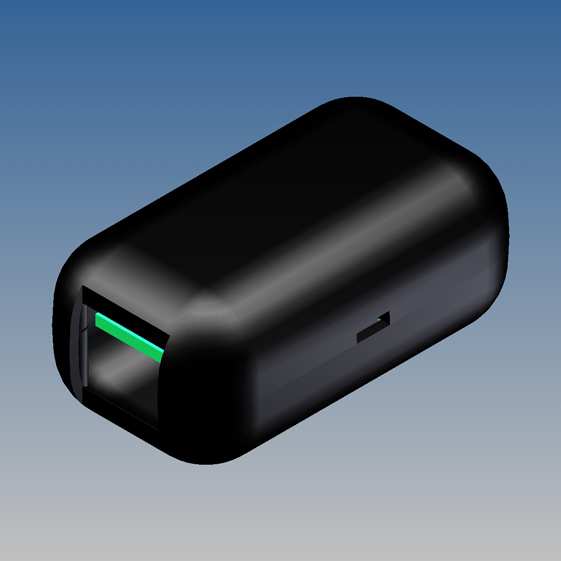

10006/2.9 56 31 24 9004
P2H-AT 37 25 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 37
  • MAX PCB W (mm): 25
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

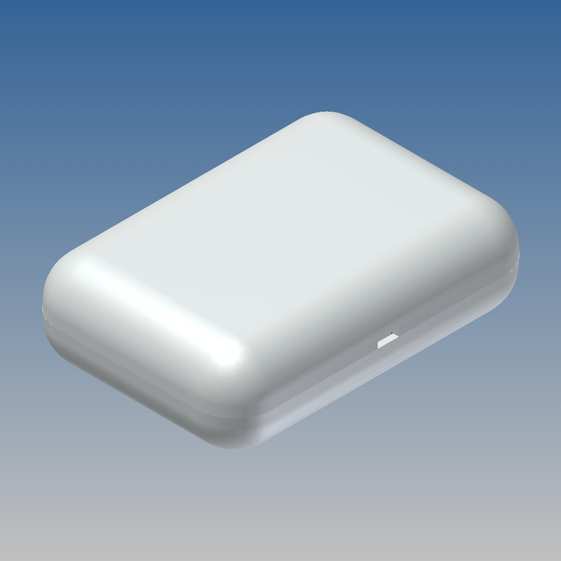

10007.5 80 56 24,5 9018
AG-ATY 65 49,5 - - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 65
  • MAX PCB W (mm): 49,5
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

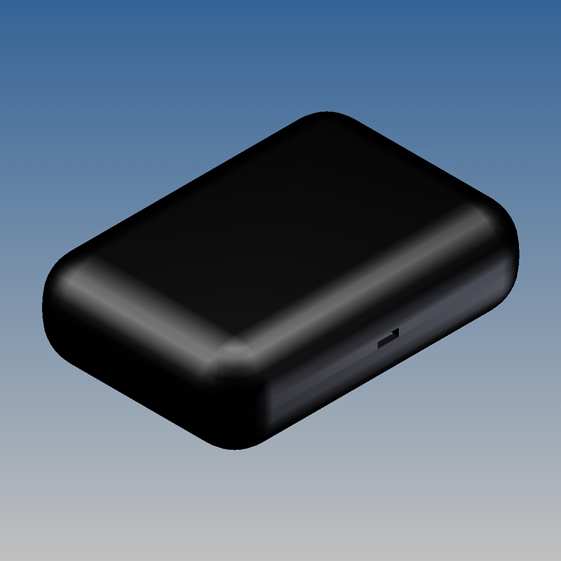

10007.9 80 56 24,5 9004
P2H-AT 65 49,5 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 65
  • MAX PCB W (mm): 49,5
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

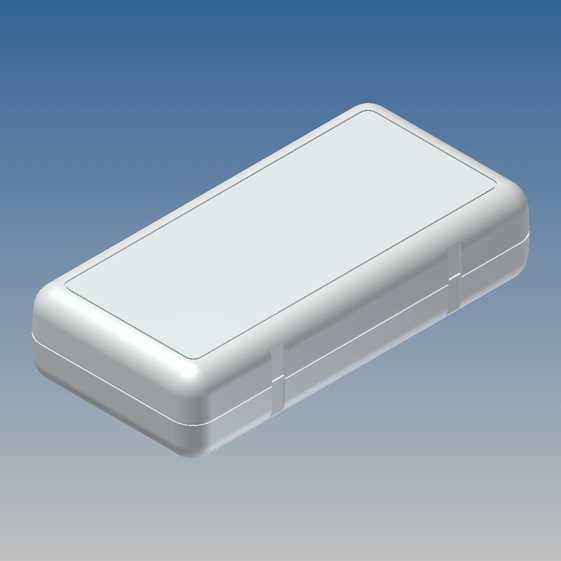

10008.5 131 65 30,5 9018
AG-ATY 117 58 - - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 117
  • MAX PCB W (mm): 58
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

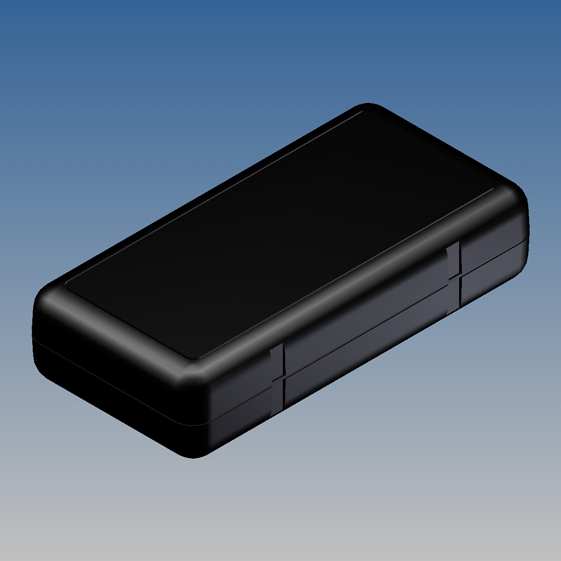

10008.9 131 65 30,5 9004
P2H-AT 117 58 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 117
  • MAX PCB W (mm): 58
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

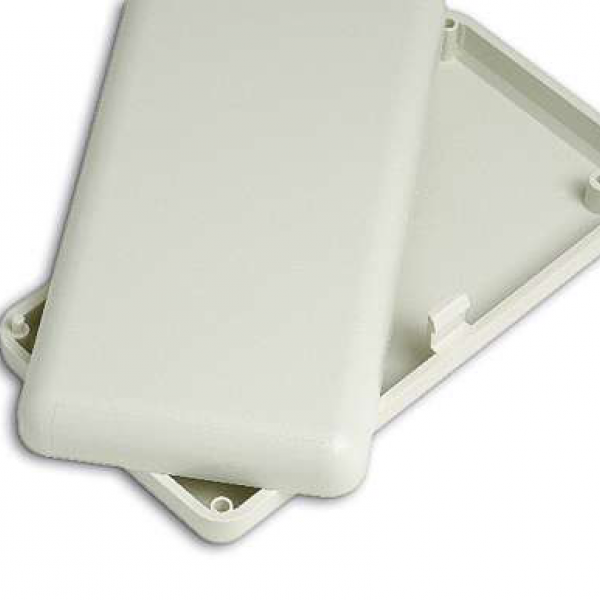

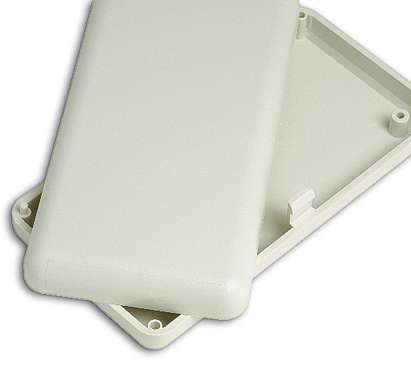

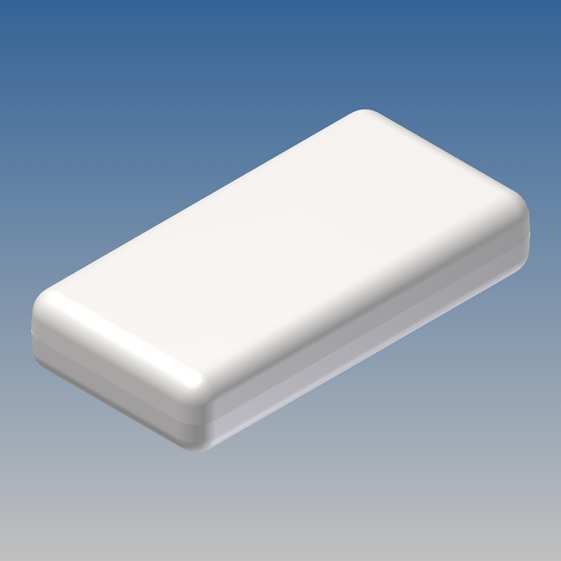

10014.7 90 46 17,5 9002
L320 83 39 - - PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 83
  • MAX PCB W (mm): 39
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

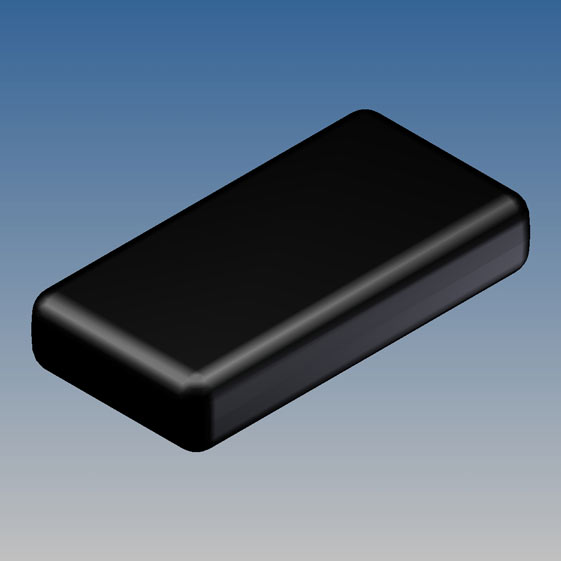

10014.9 90 46 17,5 9004
P2H-AT 83 39 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 83
  • MAX PCB W (mm): 39
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
