SOAP 2

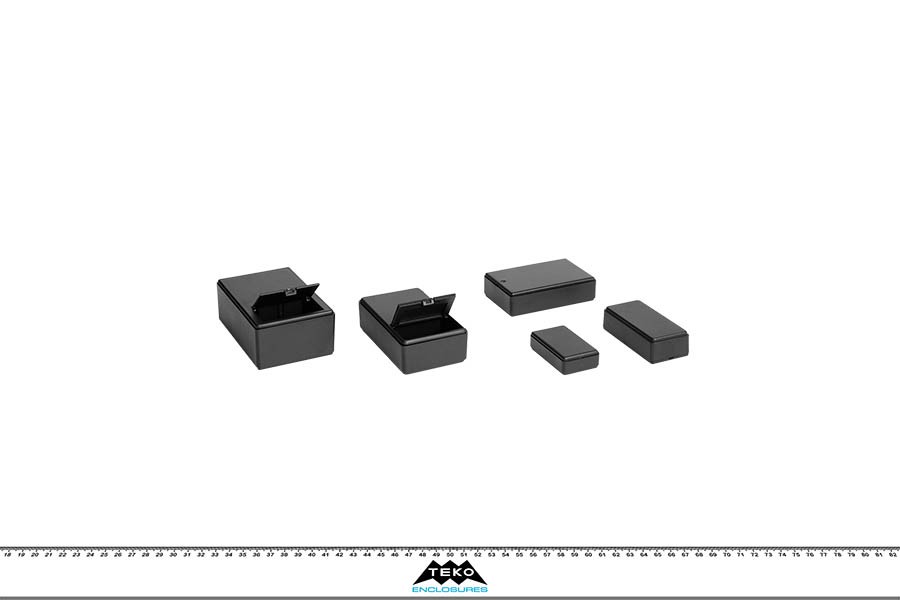

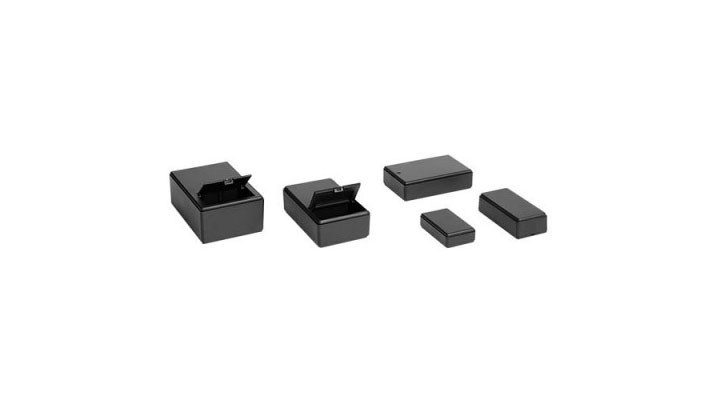

Family Pocket - Electronic enclosures - Plastic

Description

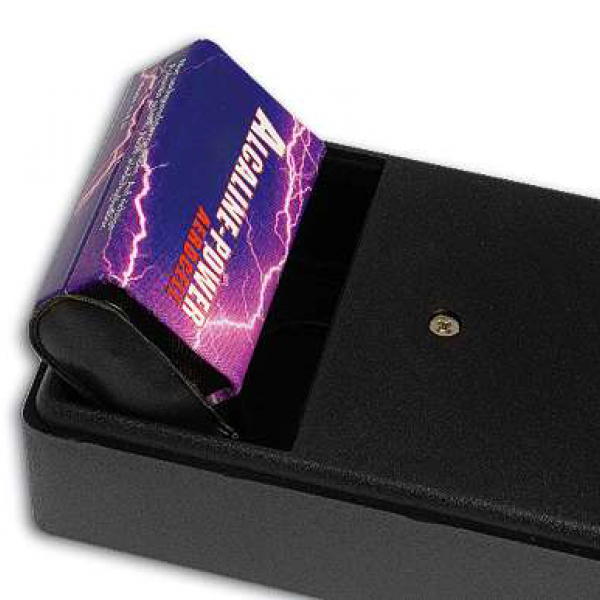

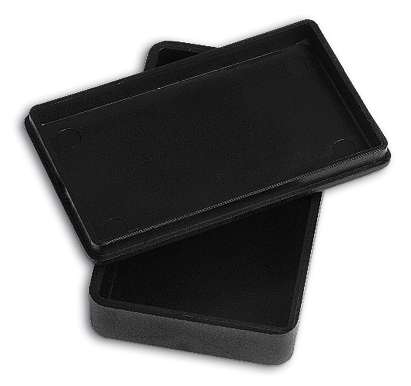

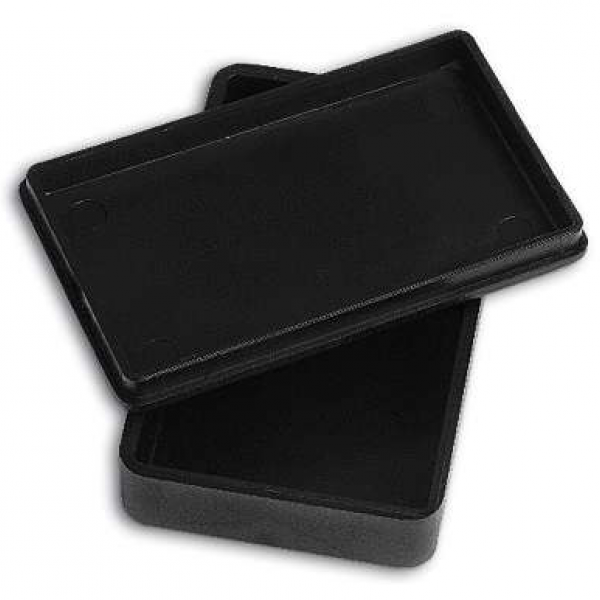

ABS enclosures with rounded corners. Base and cover have integral PCB mounting studs. The models “10011”, “10012-B” and “10013-B” have a closing by one screw. The model “10012-B” has a 9V battery compartment. The model “10013-B” has a compartment for two 9V batteries. Matt surface finish.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
10010.9 58 35 16 9004
P2H-AT 54,6 31,6 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 54,6
  • MAX PCB W (mm): 31,6
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

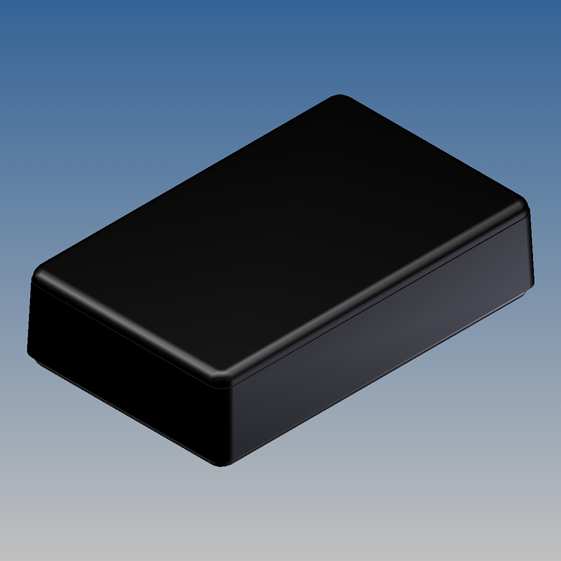

10011.9 90 56 22 9004
P2H-AT 75,5 49 1 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 75,5
  • MAX PCB W (mm): 49
  • Screws: 1
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

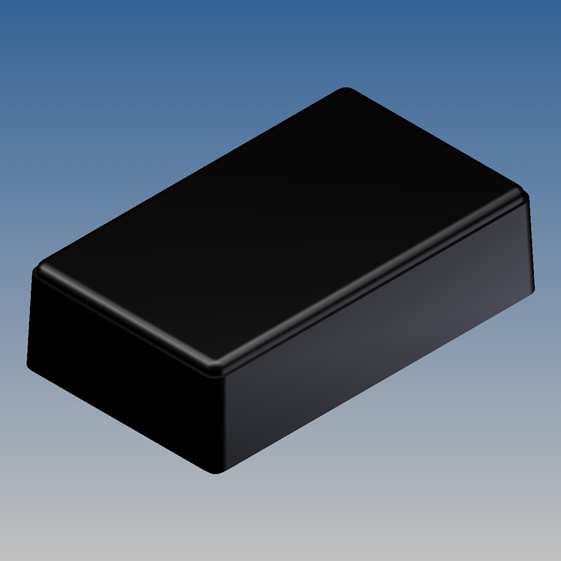

10012-B.9 99,5 60 30 9004
P2H-AT 54,5 51,5 1 1 x 9V AB9
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 54,5
  • MAX PCB W (mm): 51,5
  • Screws: 1
  • Battery: 1 x 9V
  • Accessories: AB9
  • Drawings:  PDF  DWG

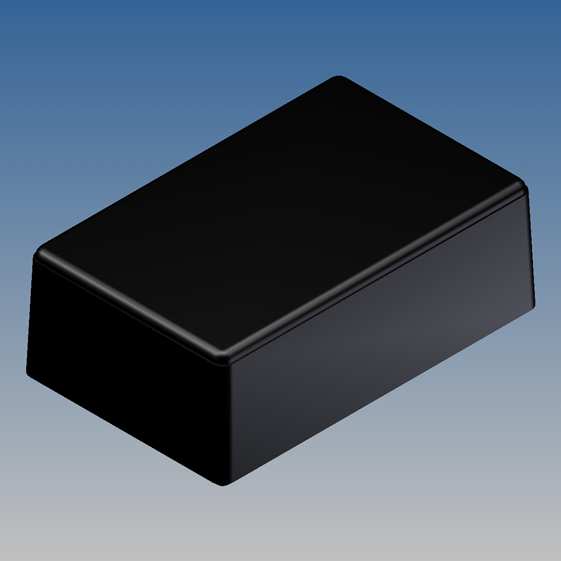

10013-B.9 109 69,5 40 9004
P2H-AT 60,5 59,5 1 1 x 9V / 2 x 9V AB9
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 60,5
  • MAX PCB W (mm): 59,5
  • Screws: 1
  • Battery: 1 x 9V / 2 x 9V
  • Accessories: AB9
  • Drawings:  PDF  DWG
10015.9 78 39 23 9004
P2H-AT 70 31,5 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 70
  • MAX PCB W (mm): 31,5
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
