SQUID1

Description

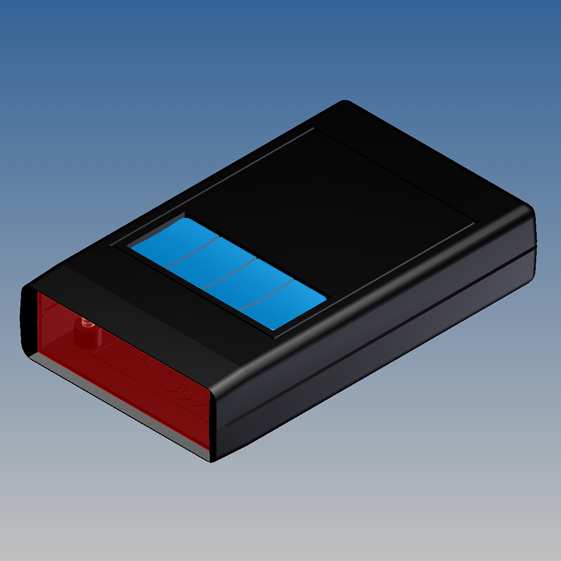

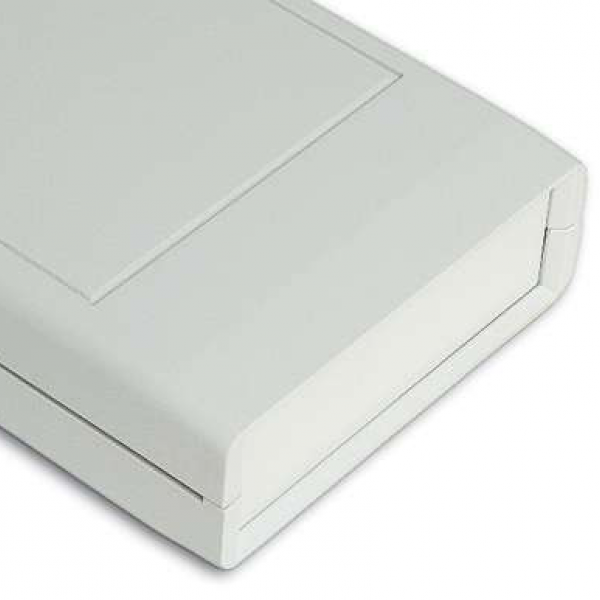

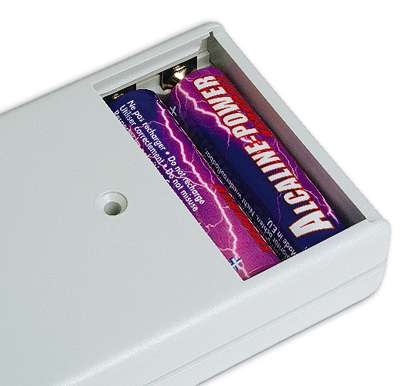

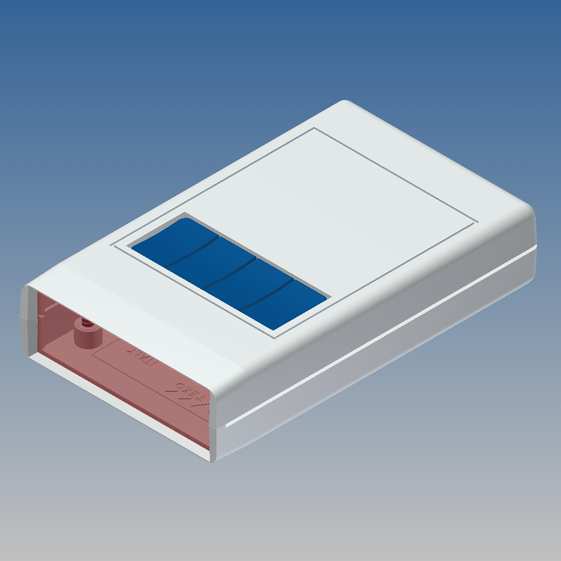

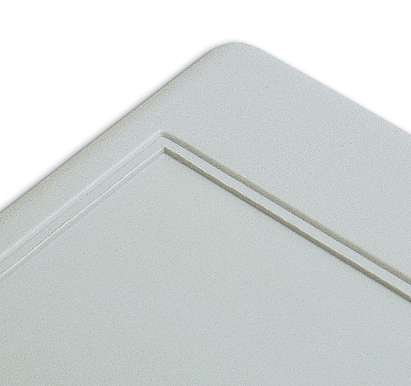

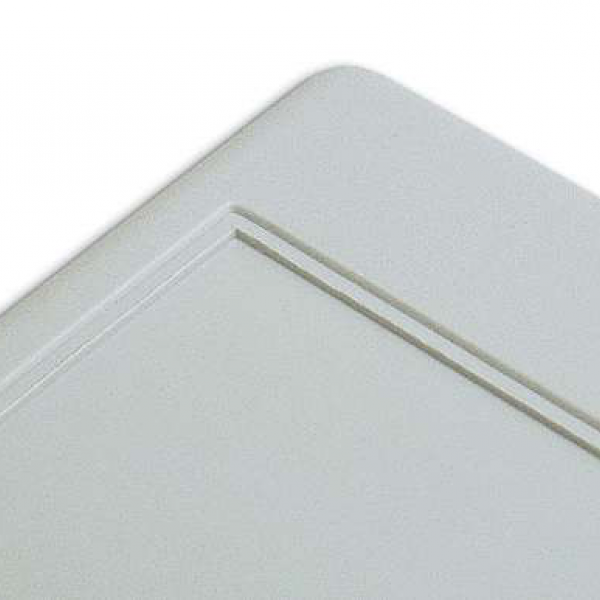

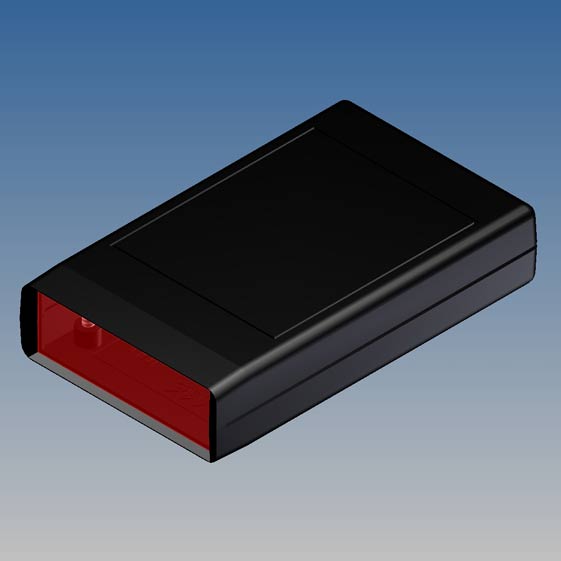

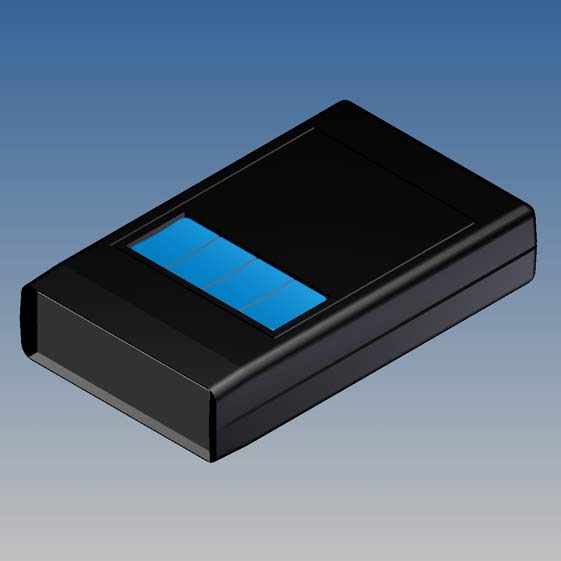

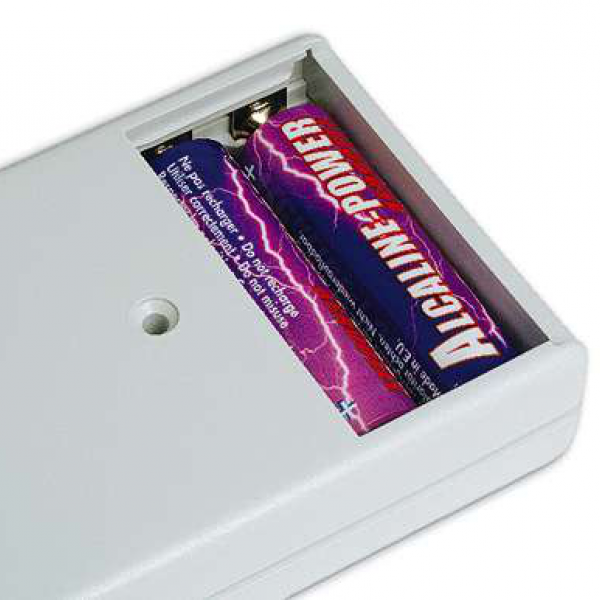

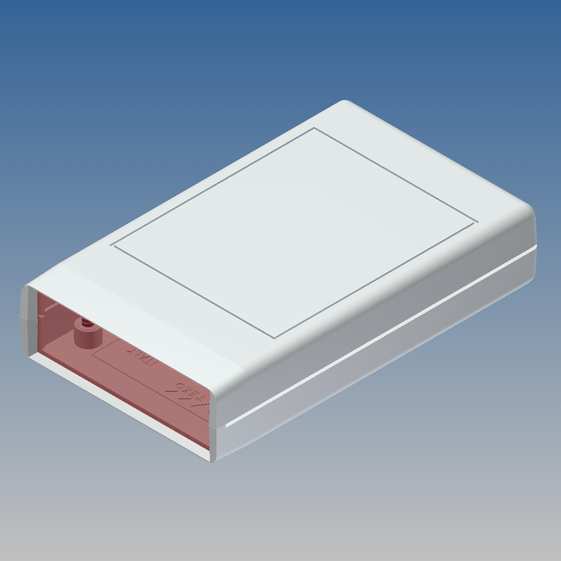

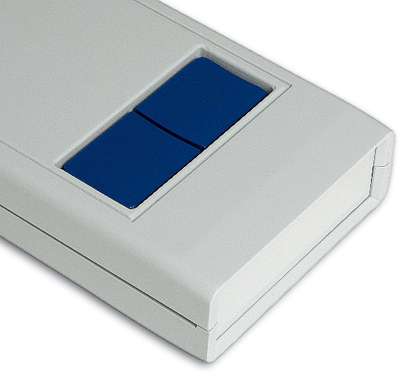

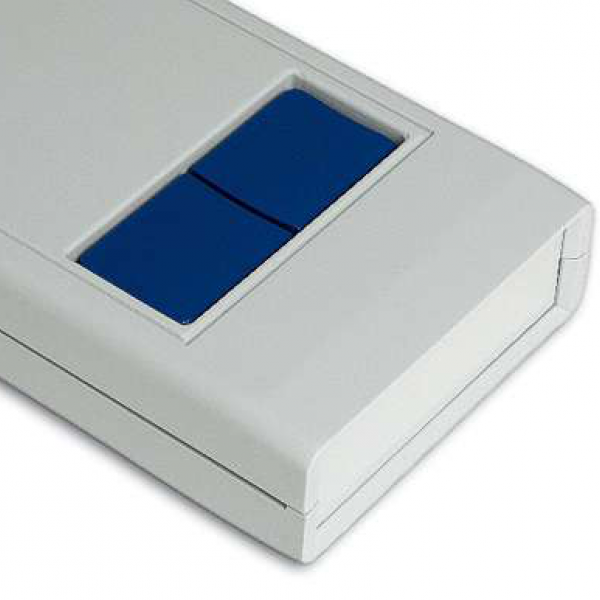

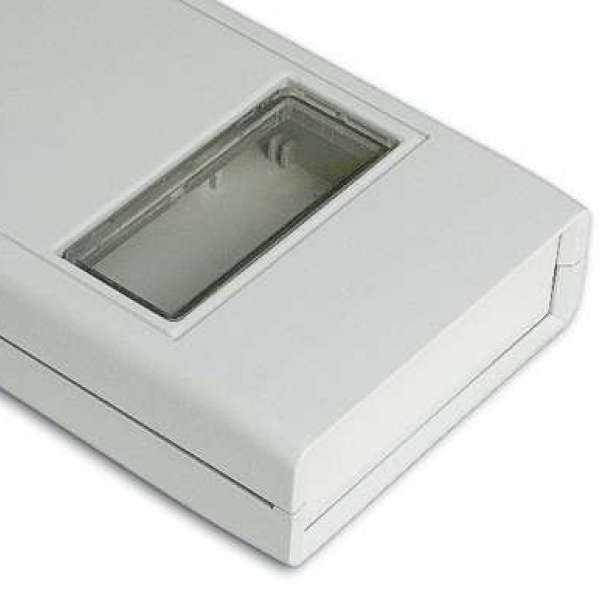

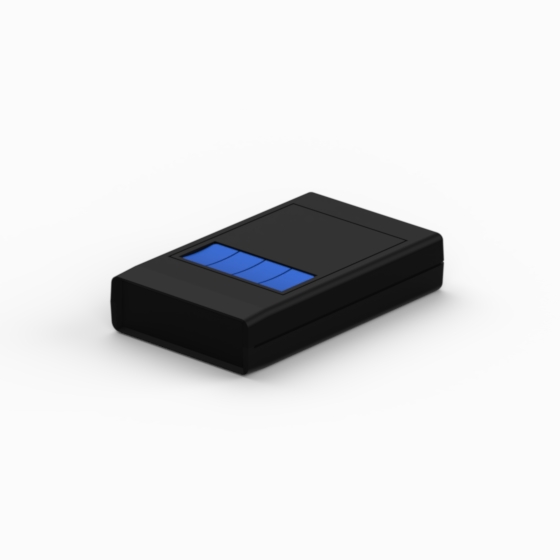

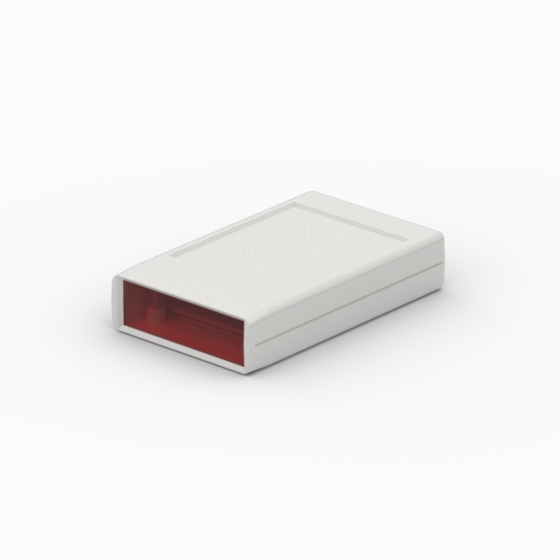

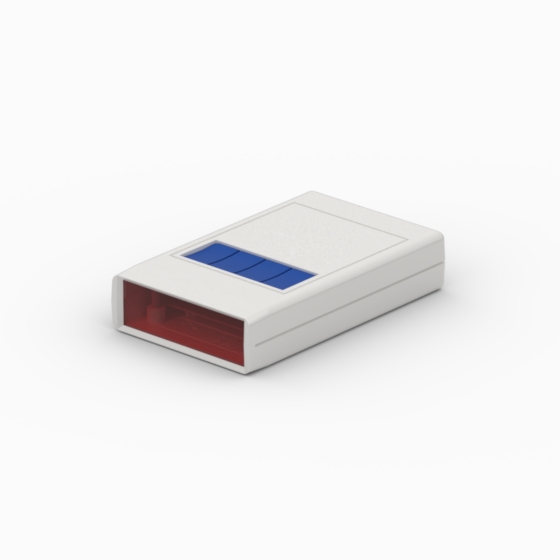

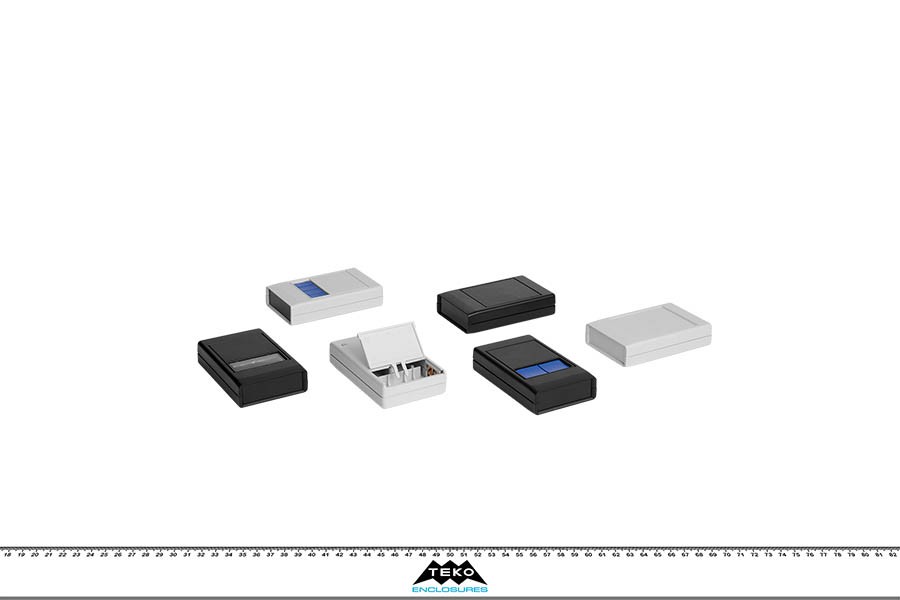

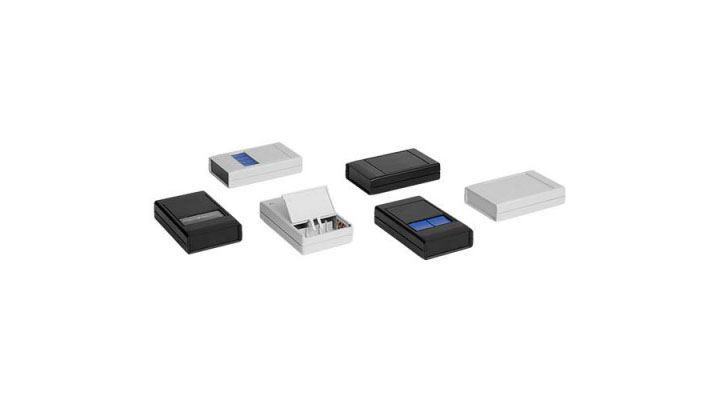

ABS enclosures with ergonomic design. The base and cover have integral PCB guides and mounting pillars. The base has a compartment with snap fit sliding door for housing either a single 9V battery or two 1.5V batteries. Available also a front panel permeable to infrared light (Mod. SQ1-IR and SQ124-IR). The model “SQ124” has one, two and four blue push buttons set. The models “SQ11” and “SQ11-IR” have a recessed area suitable for keypad membrane. Closing by three screws. Upon request dual miniature clip for 9V battery (Mod. AB9), Self adhesive spacer for batteries (Mod. DSA).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
SQ1.5 100 60,5 21 9018
 AG-ATY 52 48,5 3 2 x AA / 1 x 9V AB9
DSA
 PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
SQ1.9 100 60,5 21 9004
 P2H-AT 52 48,5 3 2 x AA / 1 x 9V AB9
DSA
 PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG

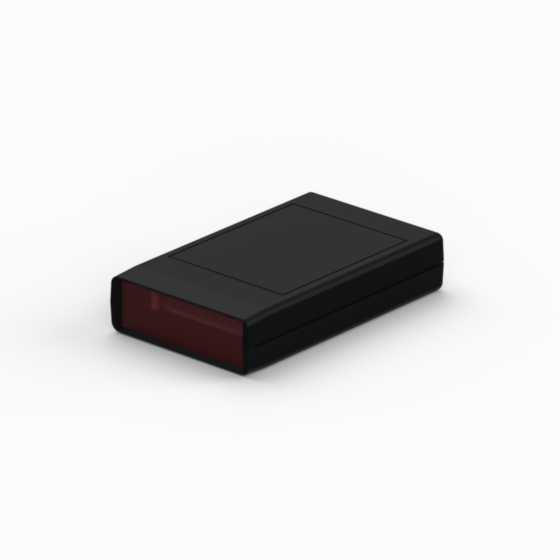

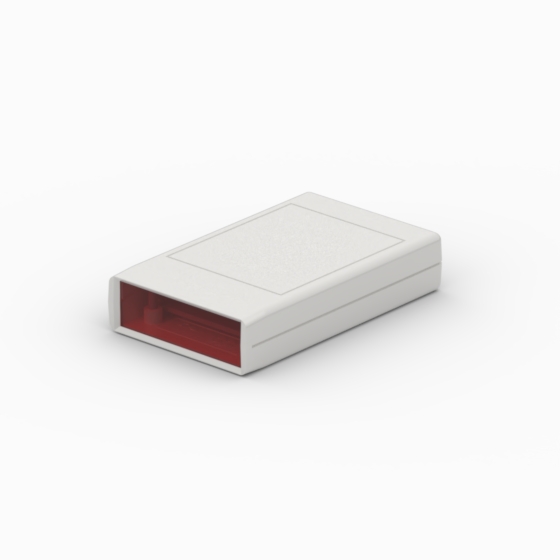

SQ1-IR.5 100 60,5 21 9018
 AG-ATY 52 48,5 3 2 x AA / 1 x 9V AB9
DSA
 PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
SQ1-IR.9 100 60,5 21 9004
 P2H-AT 52 48,5 3 2 x AA / 1 x 9V AB9
DSA
 PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG

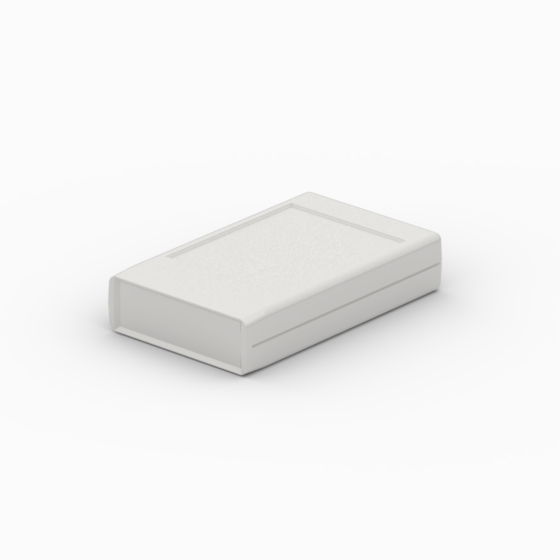

SQ11.5 100 60,5 21 9018
 AG-ATY 52 48,5 3 2 x AA / 1 x 9V AB9
DSA
 PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
SQ11.9 100 60,5 21 9004
 P2H-AT 52 48,5 3 2 x AA / 1 x 9V AB9
DSA
 PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
SQ11-IR.5 100 60,5 21 9018
 AG-ATY 52 48,5 3 2 x AA / 1 x 9V AB9
DSA
 PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
SQ11-IR.9 100 60,5 21 9004
 P2H-AT 52 48,5 3 2 x AA / 1 x 9V AB9
DSA
 PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG

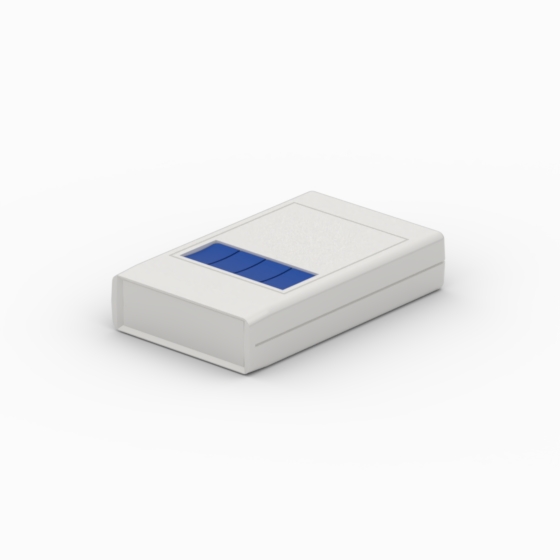

SQ124.5 100 60,5 21 9018
 AG-ATY 52 48,5 3 2 x AA / 1 x 9V AB9
DSA
 PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
SQ124.9 100 60,5 21 9004
 P2H-AT 52 48,5 3 2 x AA / 1 x 9V AB9
DSA
 PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
SQ124-IR.5 100 60,5 21 9018
 AG-ATY 52 48,5 3 2 x AA / 1 x 9V AB9
DSA
 PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
SQ124-IR.9 100 60,5 21 9004
 P2H-AT 52 48,5 3 2 x AA / 1 x 9V AB9
DSA
 PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
