Description

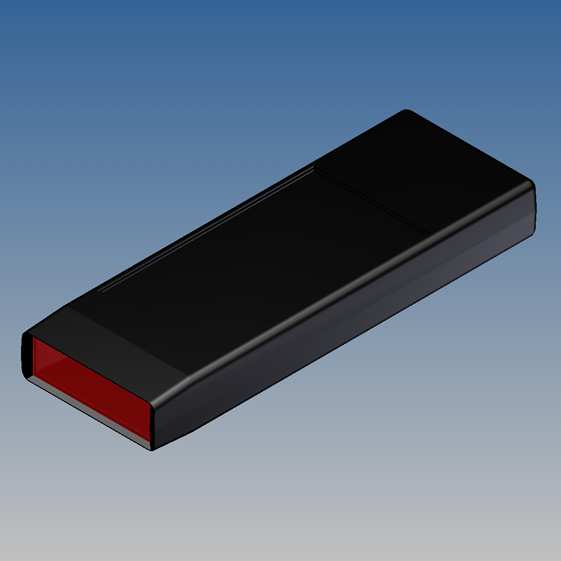

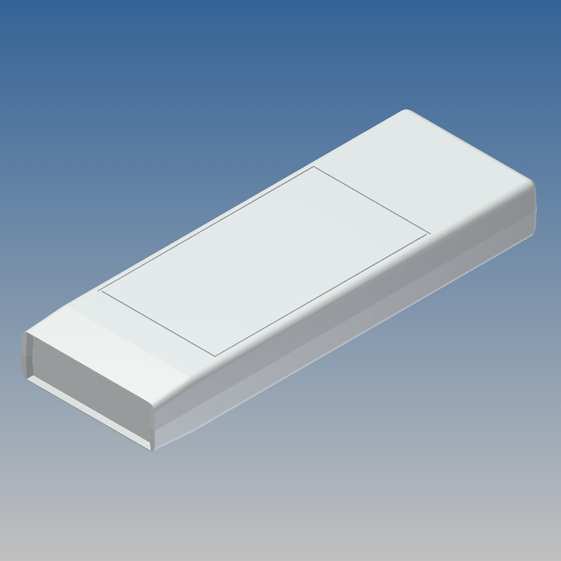

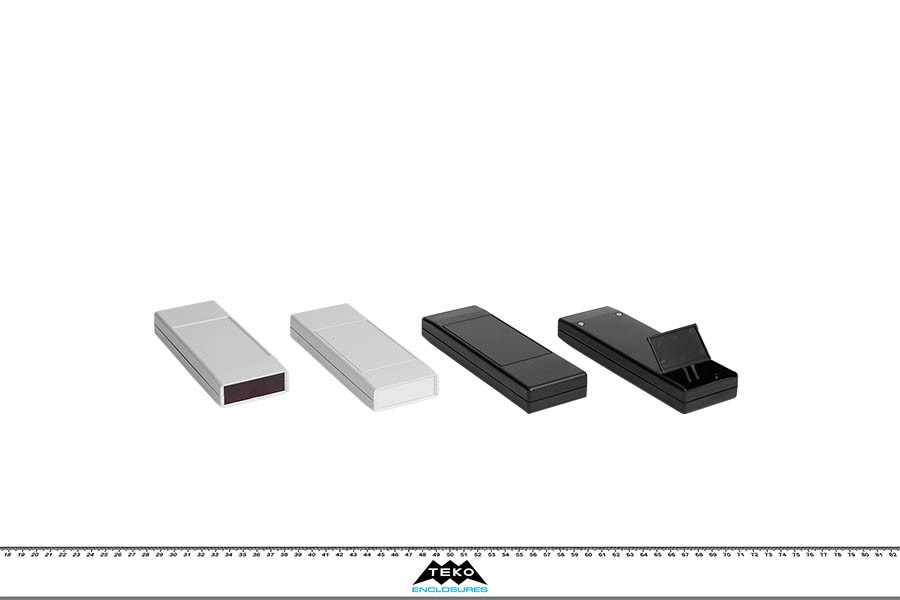

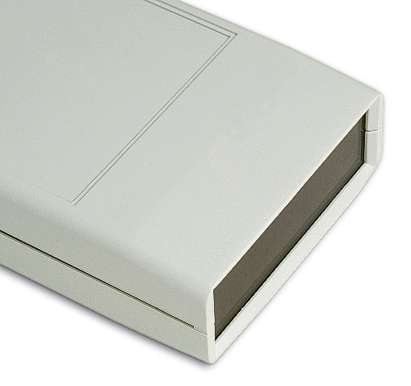

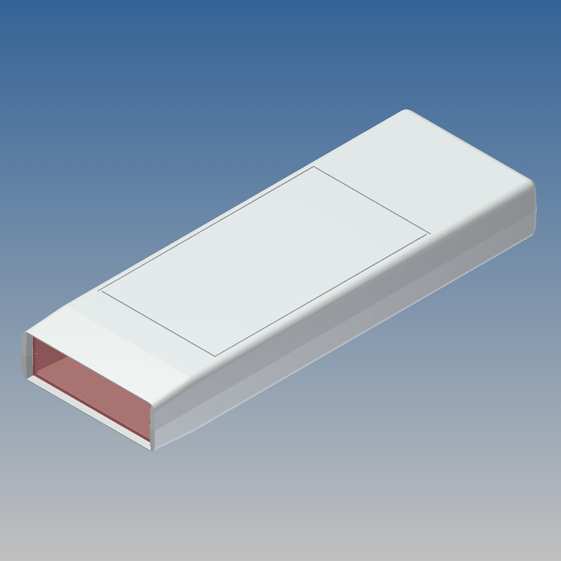

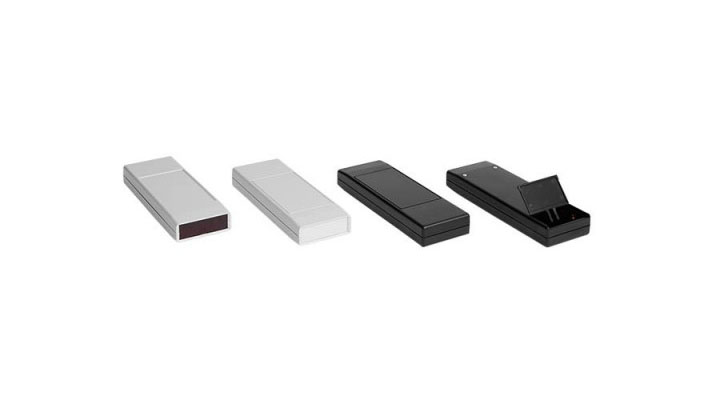

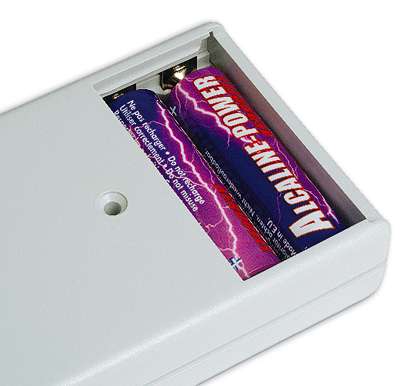

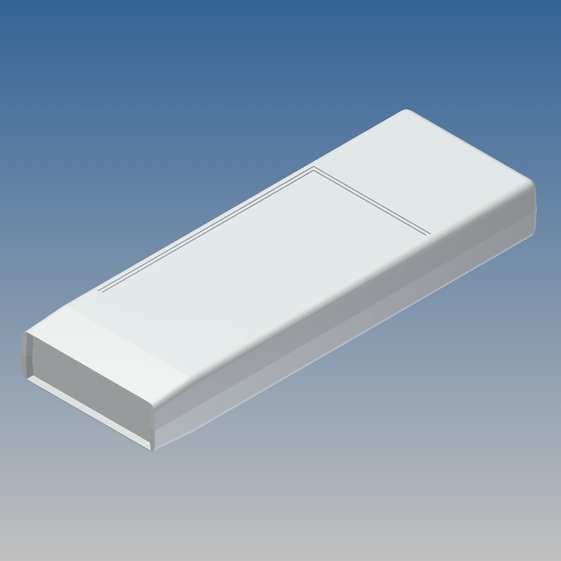

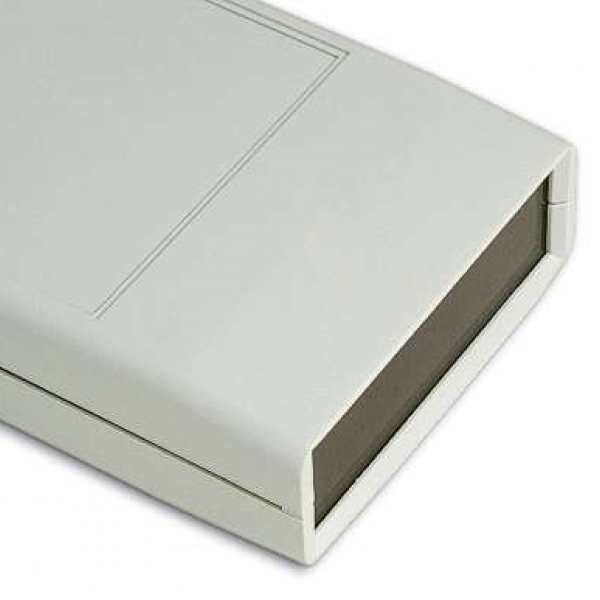

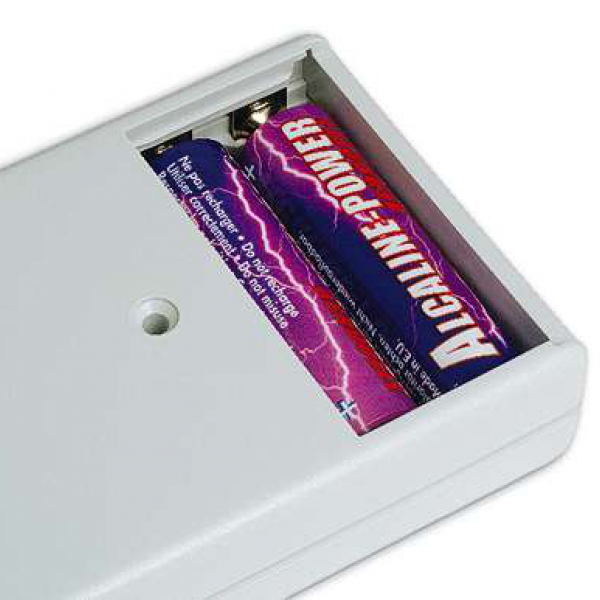

ABS enclosures with ergonomic design. The base and cover have integral PCB guides and mounting pillars. The base has a compartment with snap fit sliding door for housing either a single 9V battery or two 1.5V batteries. Available also a front panel permeable to infrared light (Mod. SQ2-IR). The models “SQ22” and “SQ22-IR” have a recessed area suitable for keypad membrane. Closing by three screws. Upon request dual miniature clip for 9V battery (Mod. AB9), Self adhesive spacer for batteries (Mod. DSA).
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

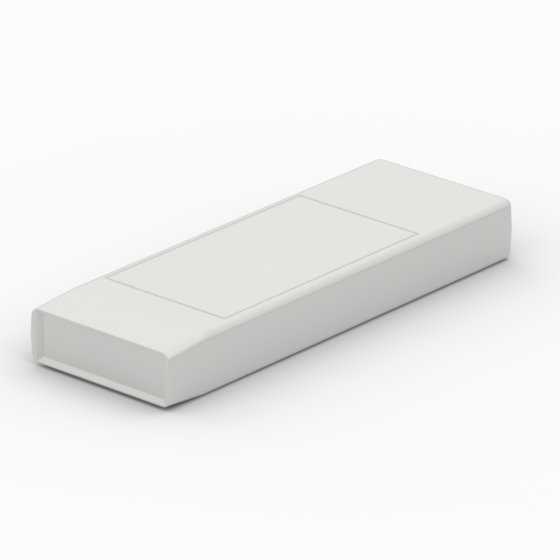

SQ2.5 | 174 | 60,5 | 23 |
9018 |
AG-ATY | 110 | 52 | 3 | 2 x AA / 1 x 9V |
AB9 DSA |
PDF DWG |
|
|
SQ2.9 | 174 | 60,5 | 23 |
9004 |
P2H-AT | 110 | 52 | 3 | 2 x AA / 1 x 9V |
AB9 DSA |
PDF DWG |
|
|

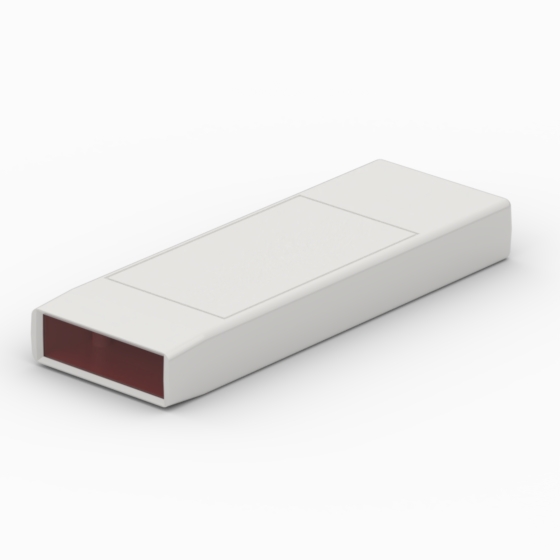

SQ2-IR.5 | 174 | 60,5 | 23 |
9018 |
AG-ATY | 110 | 52 | 3 | 2 x AA / 1 x 9V |
AB9 DSA |
PDF DWG |
|
|

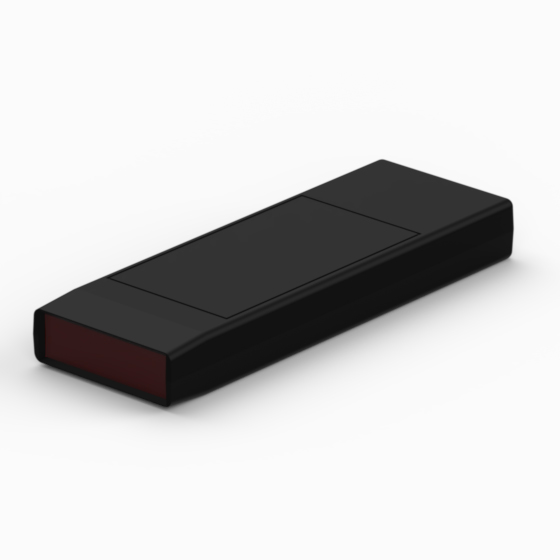

SQ2-IR.9 | 174 | 60,5 | 23 |
9004 |
P2H-AT | 110 | 52 | 3 | 2 x AA / 1 x 9V |
AB9 DSA |
PDF DWG |
|
|

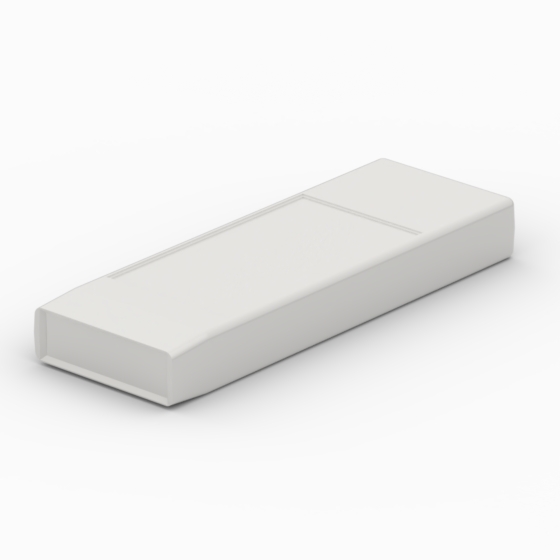

SQ22.5 | 174 | 60,5 | 23 |
9018 |
AG-ATY | 110 | 52 | 3 | 2 x AA / 1 x 9V |
AB9 DSA |
PDF DWG |
|
|

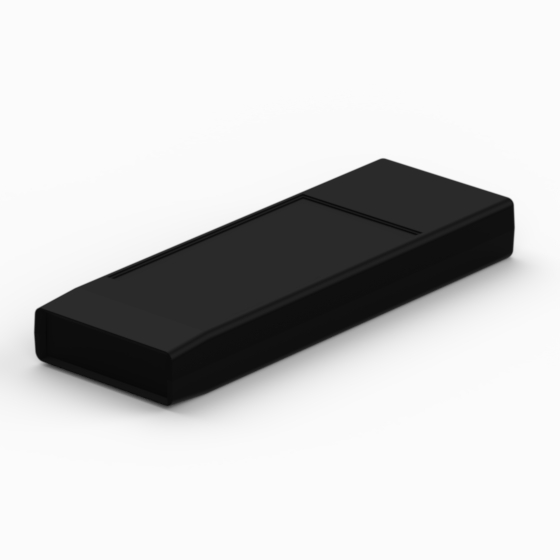

SQ22.9 | 174 | 60,5 | 23 |
9004 |
P2H-AT | 110 | 52 | 3 | 2 x AA / 1 x 9V |
AB9 DSA |
PDF DWG |
|
|
SQ22-IR.5 | 174 | 60,5 | 23 |
9018 |
AG-ATY | 110 | 52 | 3 | 2 x AA / 1 x 9V |
AB9 DSA |
PDF DWG |
|
|
SQ22-IR.9 | 174 | 60,5 | 23 |
9004 |
P2H-AT | 110 | 52 | 3 | 2 x AA / 1 x 9V |
AB9 DSA |
PDF DWG |
12 product families, 152 series. You can't find what you're looking for? Contact us
