Description

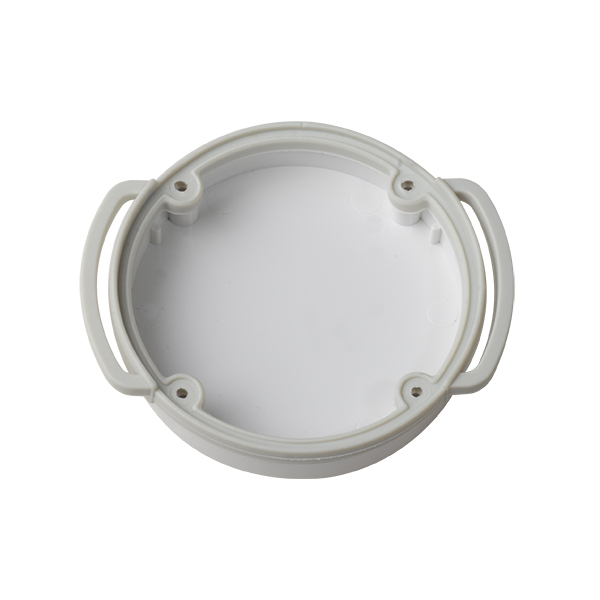

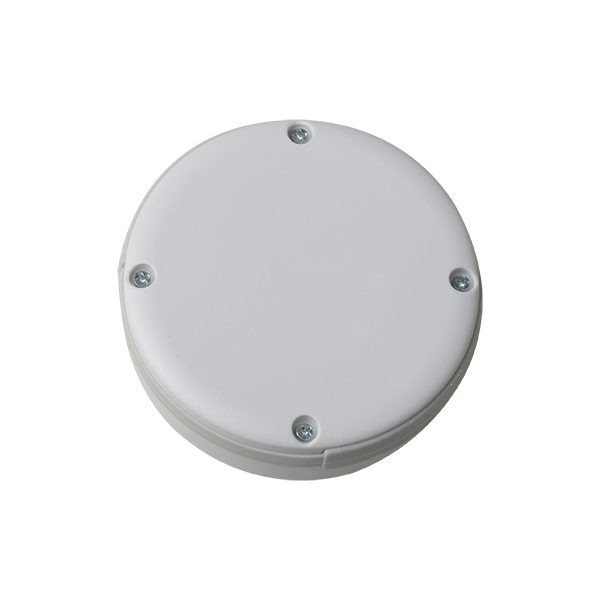

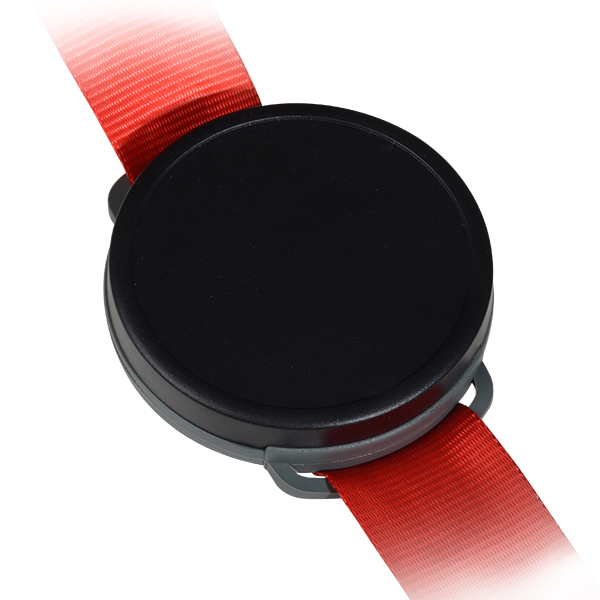

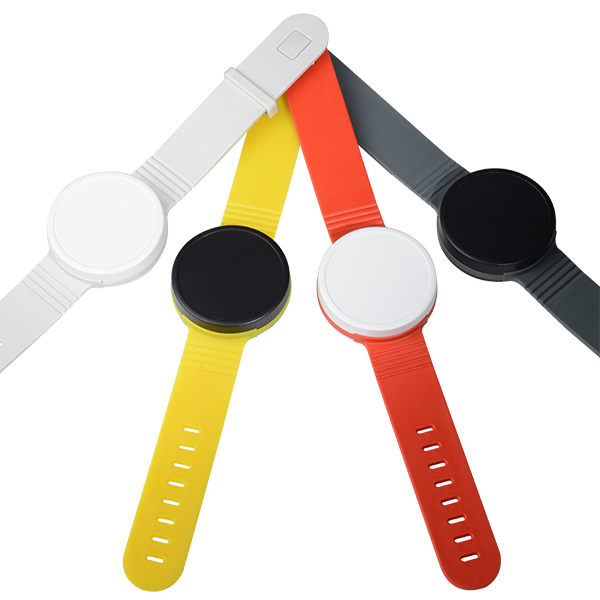

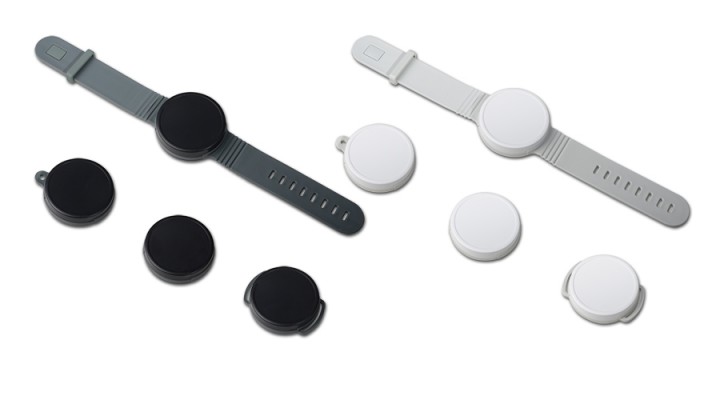

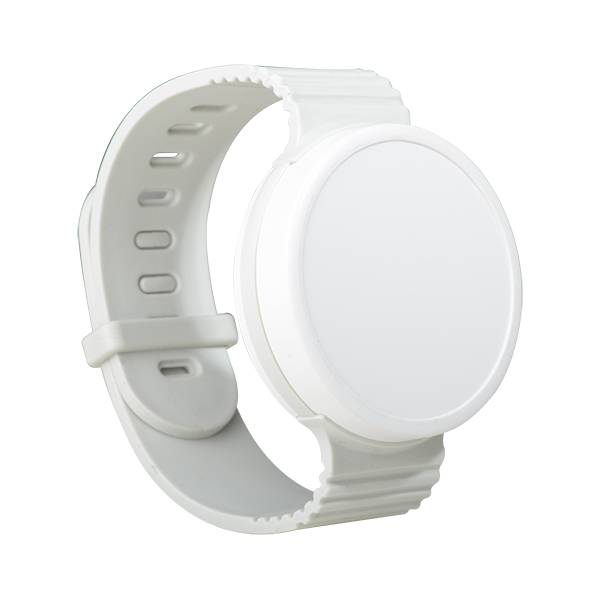

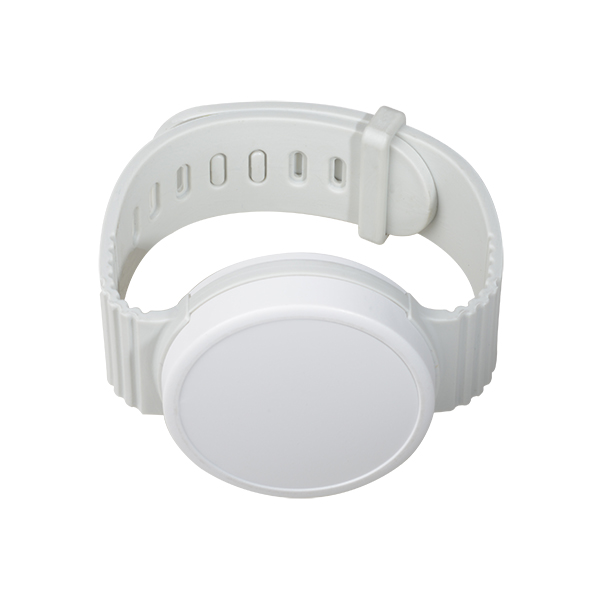

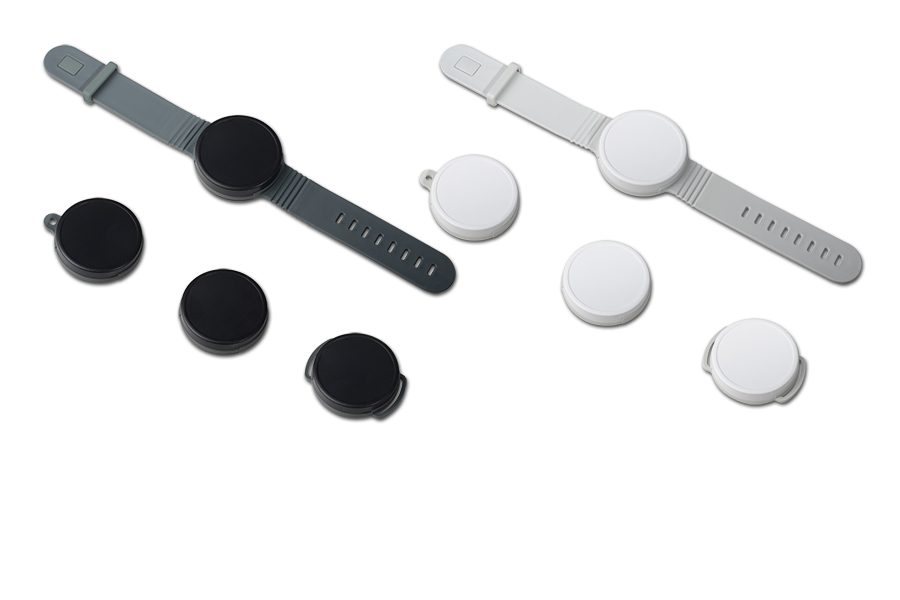

Brand new series of small and smooth shaped enclosures. Perfect for using as weareable device to collect datas from internal and external sensors and show them on a screen up to 1,5”. Available with different accessories, it can be fit out on a necklace, strap, pocket or standalone use. Colorful middle gaskets ensure a good protection from dust and water certified IP65. Internal space for standard button cells for a long life use. Easy and secure closing by four small screws.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

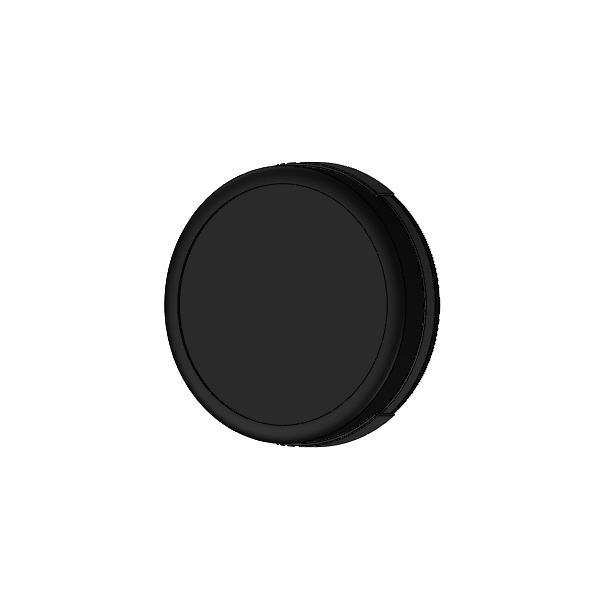

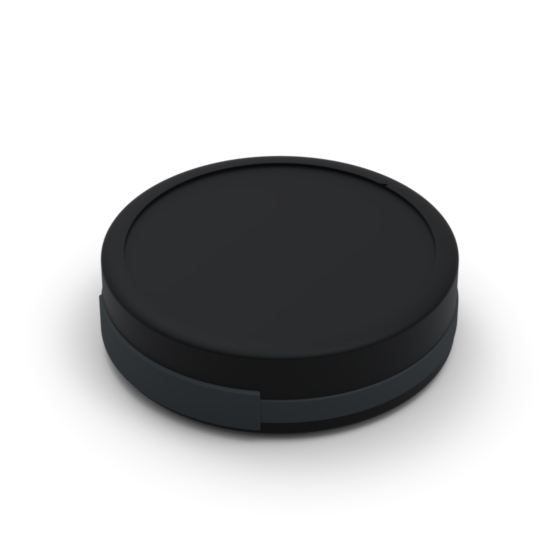

SUI-TEK0A.29 | 47 | 47 | 13,5 |
9004 7012 |
ABS - TPE | 4 | CR2032 |
AB2032 |
PDF DWG |
|||
|

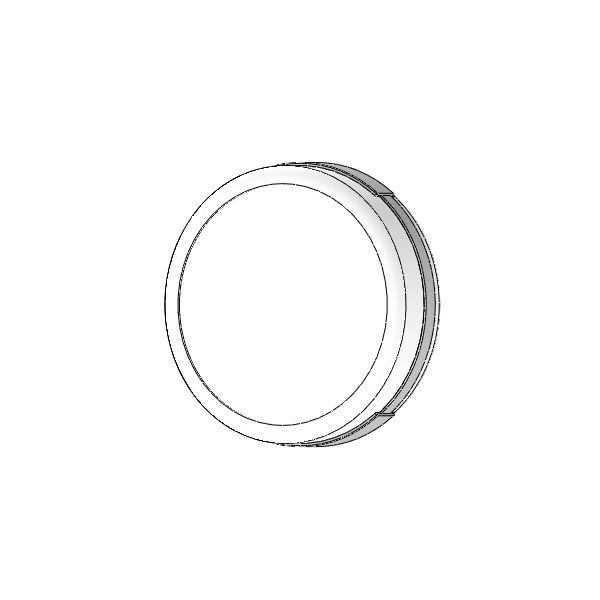

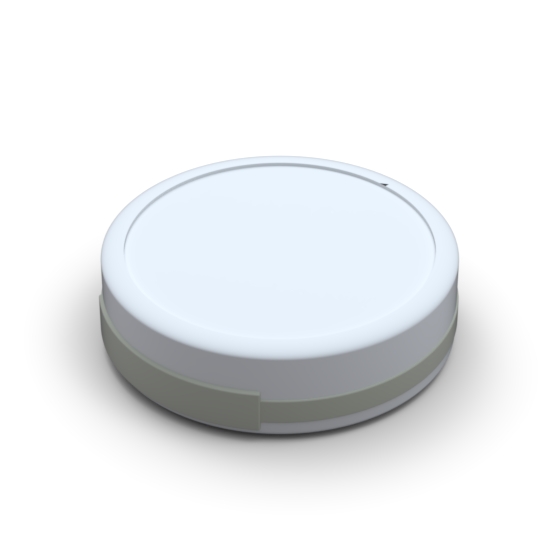

SUI-TEK0A.30 | 47 | 47 | 13,5 |
9002 9018 |
ABS - TPE | 4 | CR2032 |
AB2032 |
PDF DWG |
|||
|

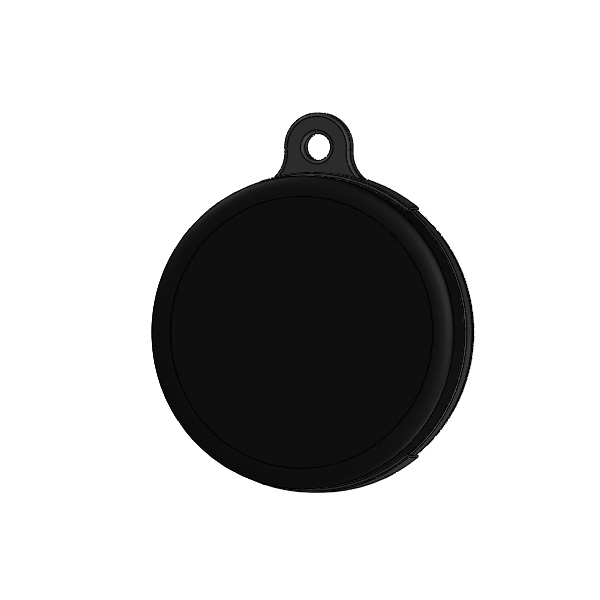

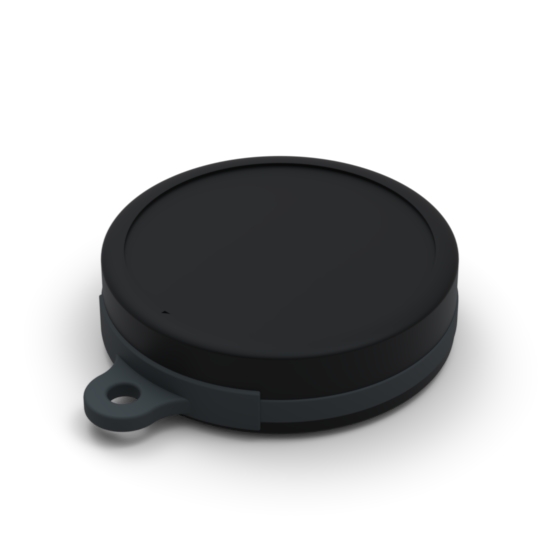

SUI-TEK1A.29 | 47 | 47 | 13,5 |
9004 7012 |
ABS - TPE | 4 | CR2032 |
AB2032 |
PDF DWG |
|||
|

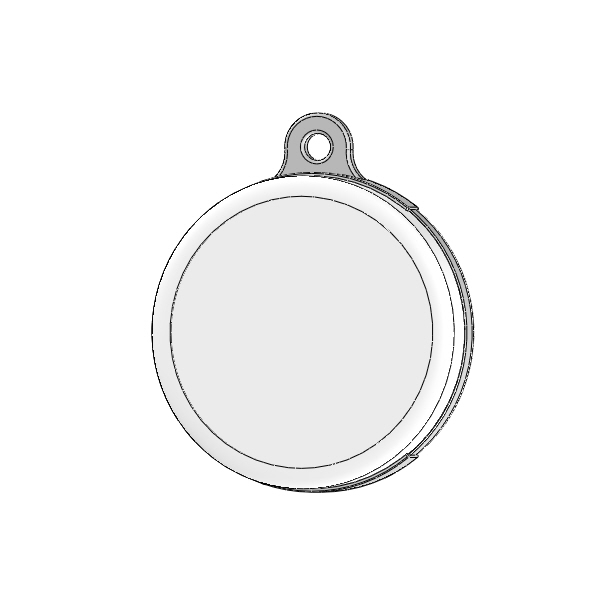

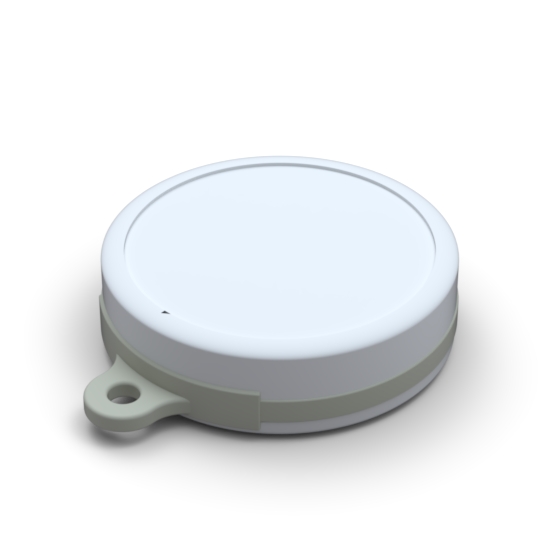

SUI-TEK1A.30 | 47 | 47 | 13,5 |
9002 9018 |
ABS - TPE | 4 | CR2032 |
AB2032 |
PDF DWG |
|||
|

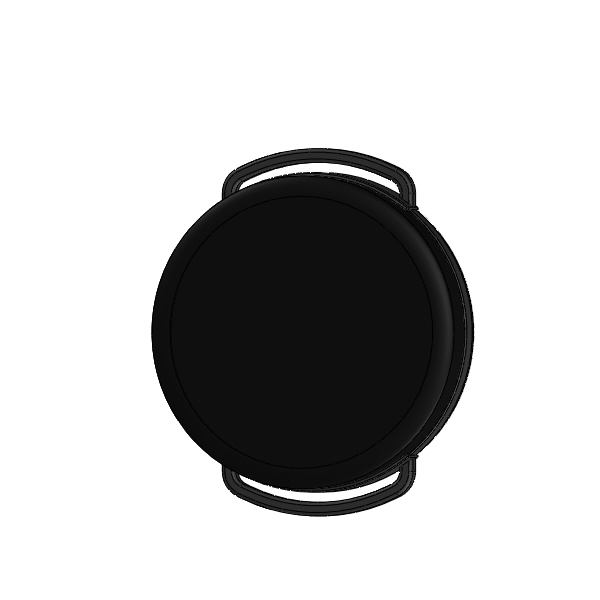

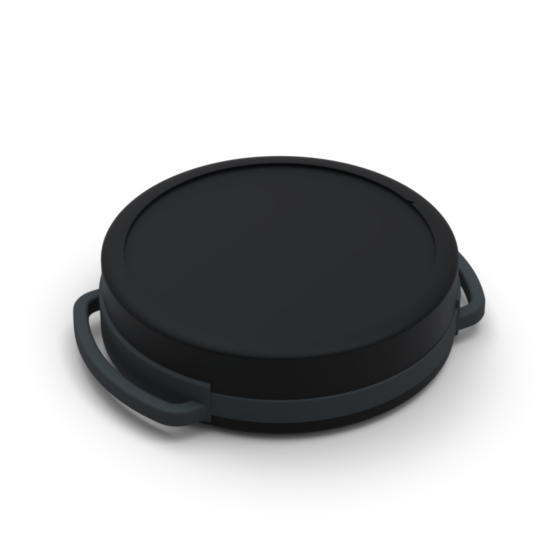

SUI-TEK2A.29 | 47 | 47 | 13,5 |
9004 7012 |
ABS - TPE | 4 | CR2032 |
AB2032 |
PDF DWG |
|||
|

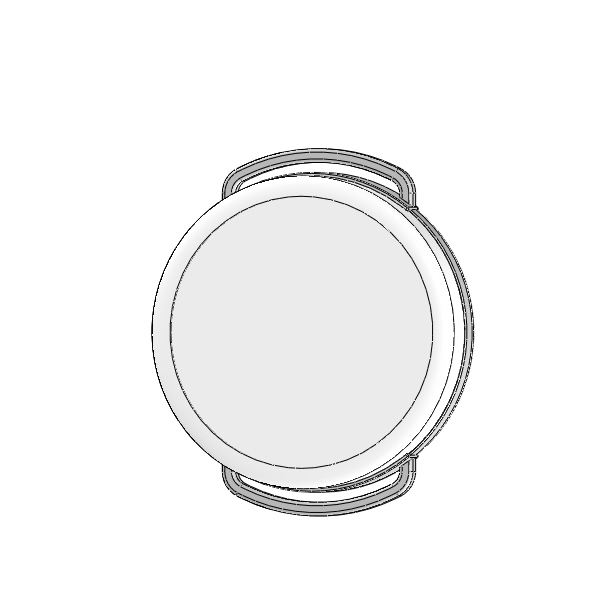

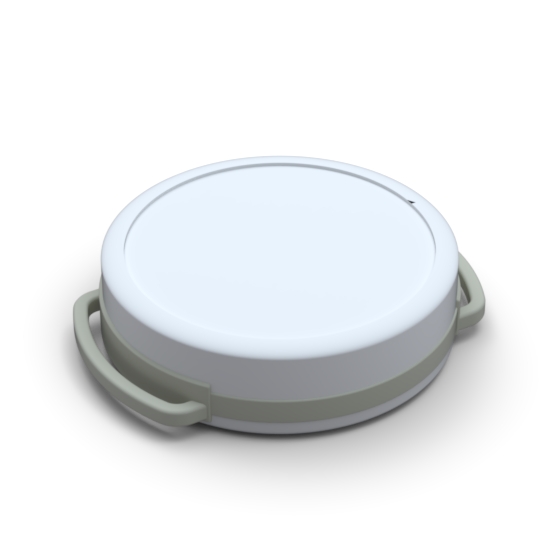

SUI-TEK2A.30 | 47 | 47 | 13,5 |
9002 9018 |
ABS - TPE | 4 | CR2032 |
AB2032 |
PDF DWG |
|||
|

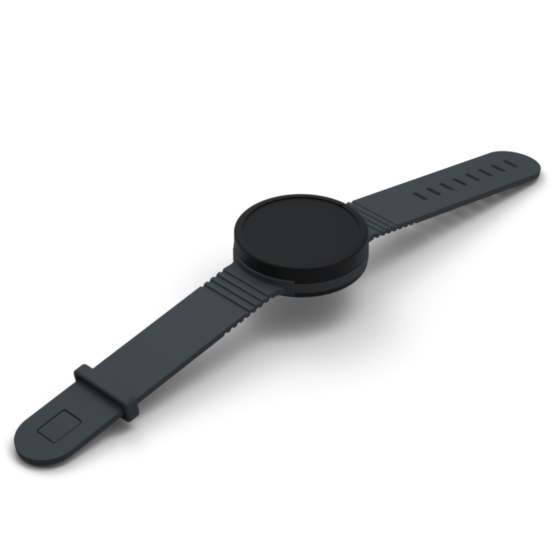

SUI-TEKWW.29 | 47 | 47 | 13,5 |
9004 7012 |
ABS - TPE | 4 | CR2032 |
AB2032 |
PDF DWG |
|||
|

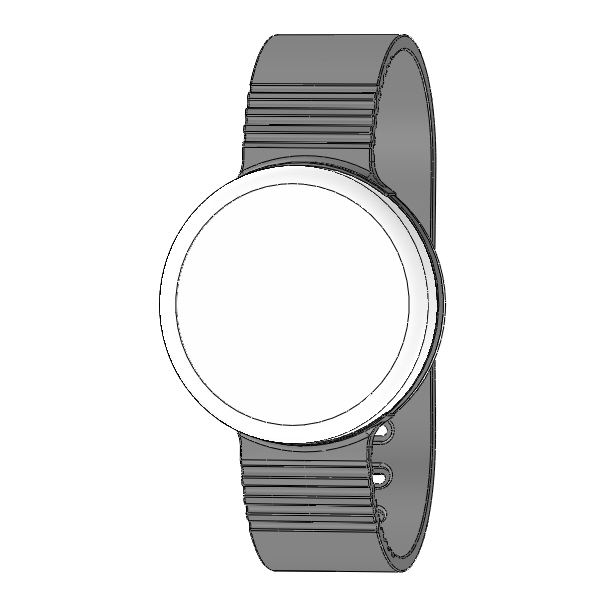

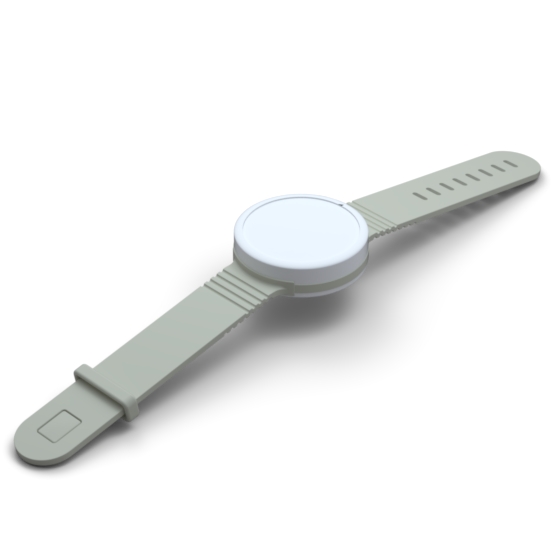

SUI-TEKWW.30 | 47 | 47 | 13,5 |
9002 9018 |
ABS - TPE | 4 | CR2032 |
AB2032 |
PDF DWG |
12 product families, 152 series. You can't find what you're looking for? Contact us
