Description

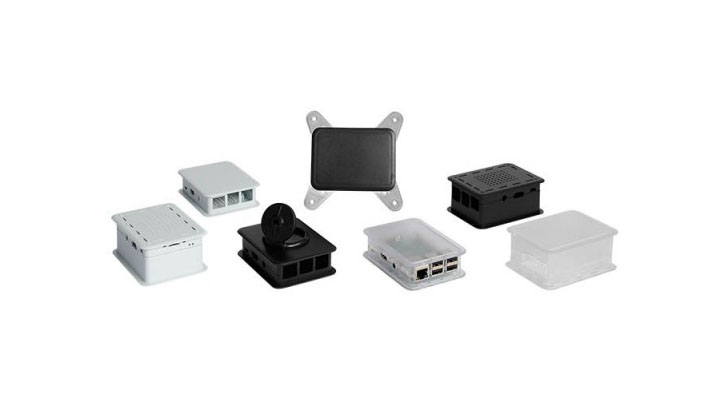

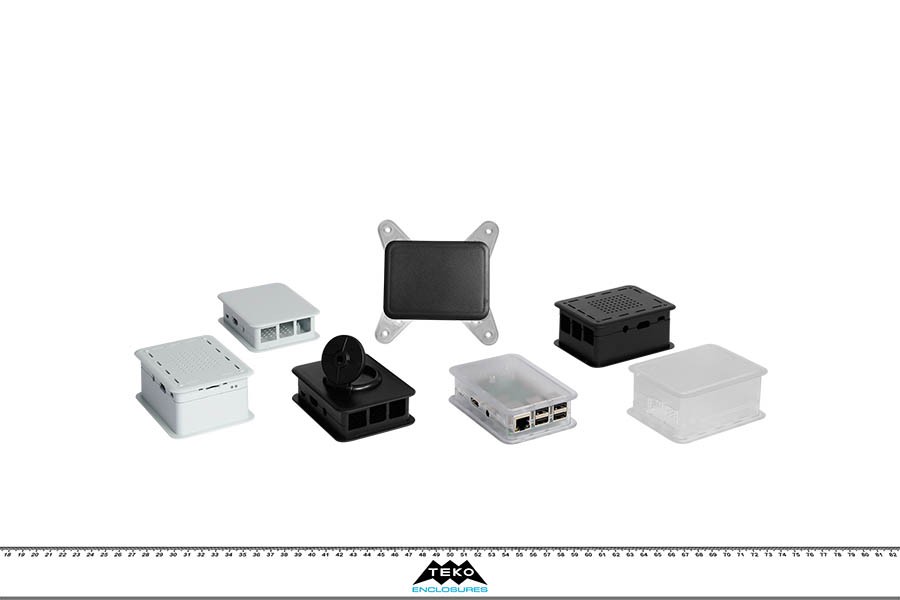

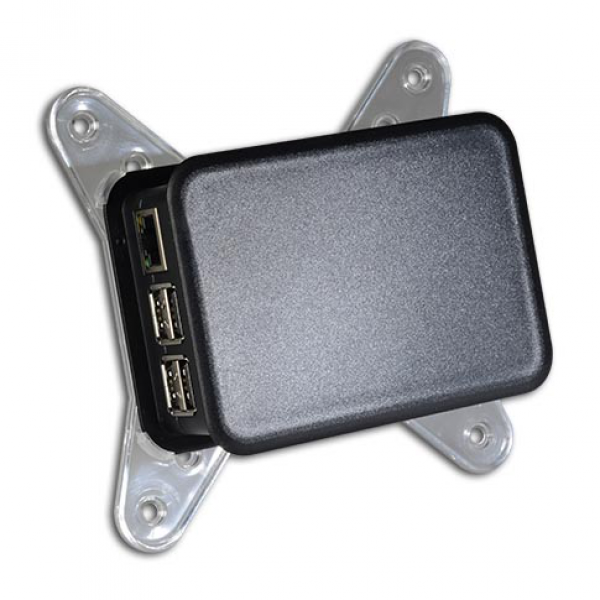

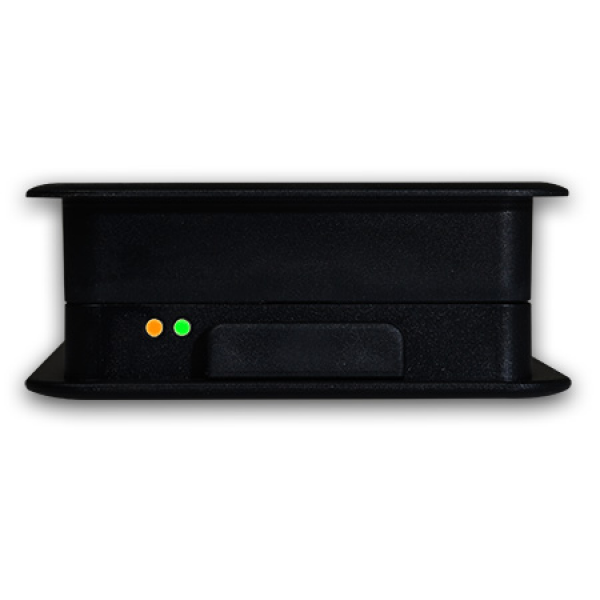

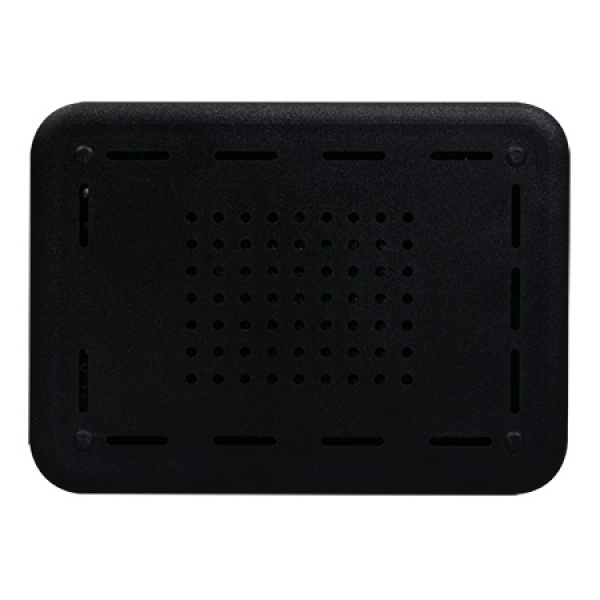

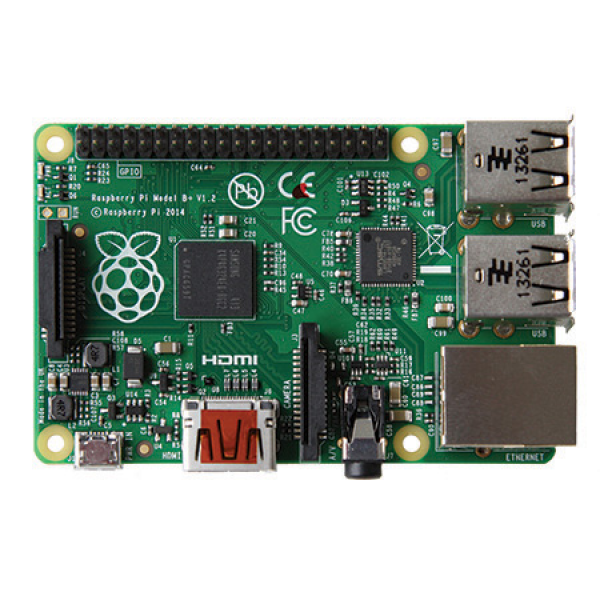

The NEW professional case specific for housing the Raspberry Pi™ mod.B+. Moulded in flame-retardant ABS+PC. Easy snap-on closing. Brigth LED light-guide on the front. Improved air vents on the bottom. Protection cover for MicrdoSD card slot. Three colours available (black, white and transparent). Accessories: Vesa mount adapter (RPI-VESA), heatsinks cooling KIT (RPI-COOLKIT).
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

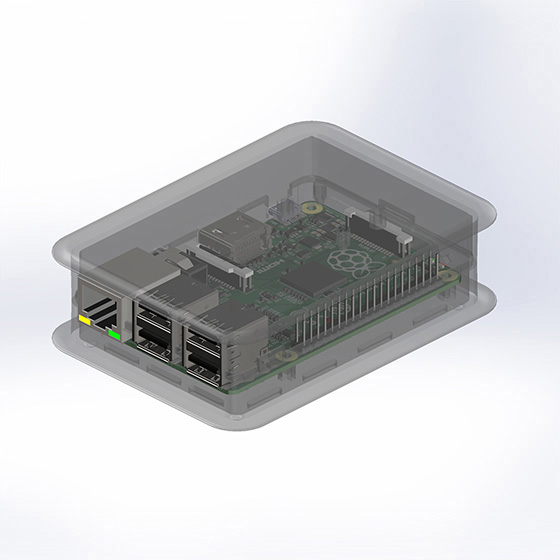

TEK-BERRY+.0 | 100,6 | 73,5 | 28,5 |
- |
ASYBLEND T65 | 85 | 56 |
RPI-CAM RPI-COOLKIT RPI-VESA |
PDF DWG |
View
|
||
|

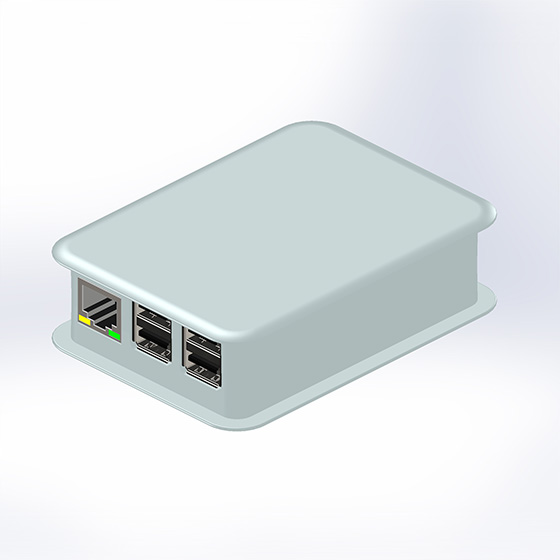

TEK-BERRY+.40 | 100,6 | 73,5 | 28,5 |
50719 |
ASYBLEND T65 | 85 | 56 |
RPI-CAM RPI-COOLKIT RPI-VESA |
PDF DWG |
View
|
||
|

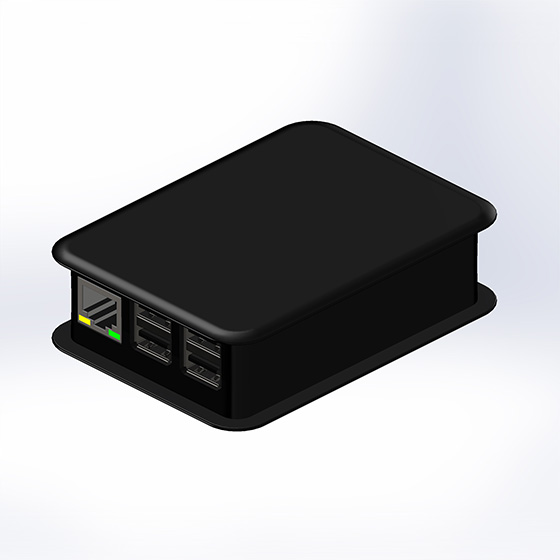

TEK-BERRY+.9 | 100,6 | 73,5 | 28,5 |
9004 |
ASYBLEND T65 | 85 | 56 |
RPI-CAM RPI-COOLKIT RPI-VESA |
PDF DWG |
View
|
||
|

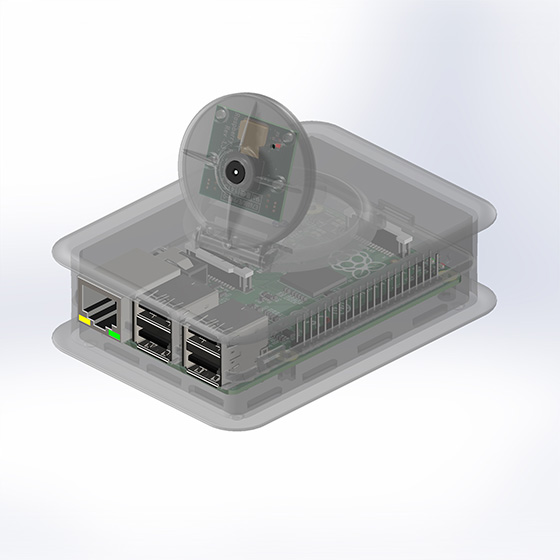

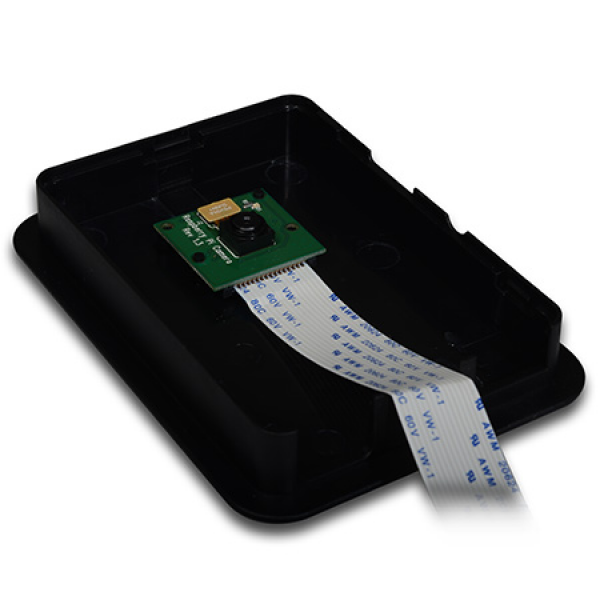

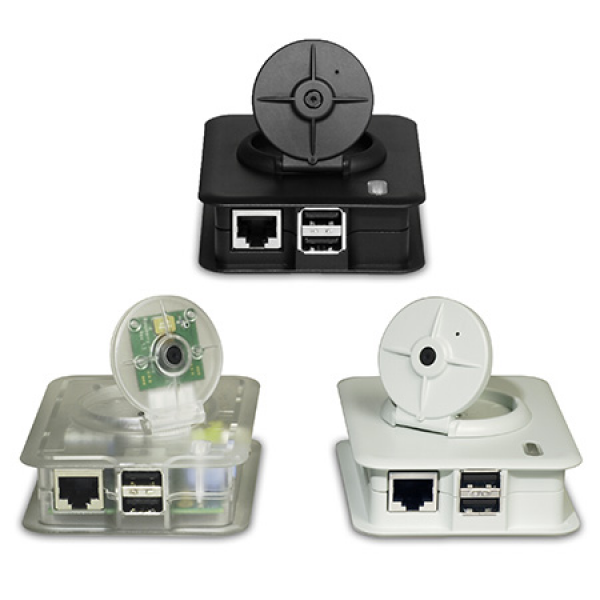

TEK-CAM+.0 | 100,6 | 73,5 | 38,5 |
- |
ASYBLEND T65 | 85 | 56 |
RPI-COOLKIT RPI-VESA |
PDF DWG |
View
|
||
|

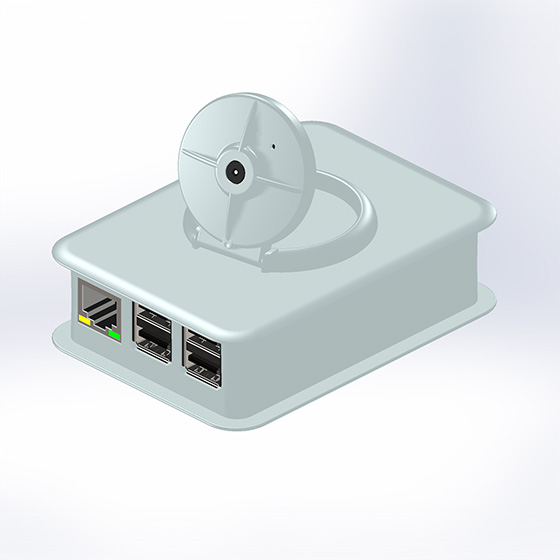

TEK-CAM+.40 | 100,6 | 73,5 | 38,5 |
50719 |
ASYBLEND T65 | 85 | 56 |
RPI-COOLKIT RPI-VESA |
PDF DWG |
View
|
||
|

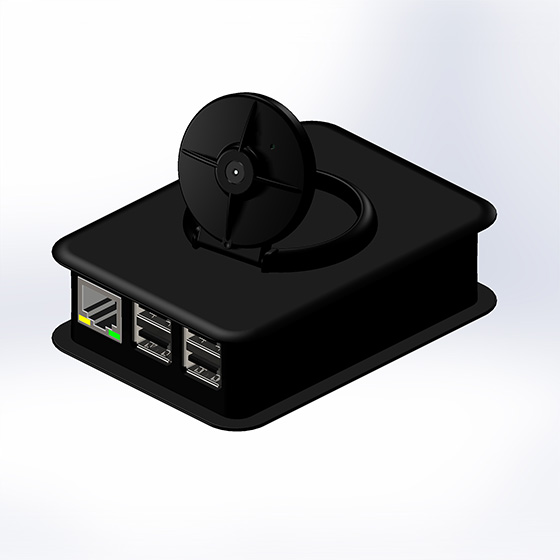

TEK-CAM+.9 | 100,6 | 73,5 | 38,5 |
9004 |
ASYBLEND T65 | 85 | 56 |
RPI-COOLKIT RPI-VESA |
PDF DWG |
View
|
||
|

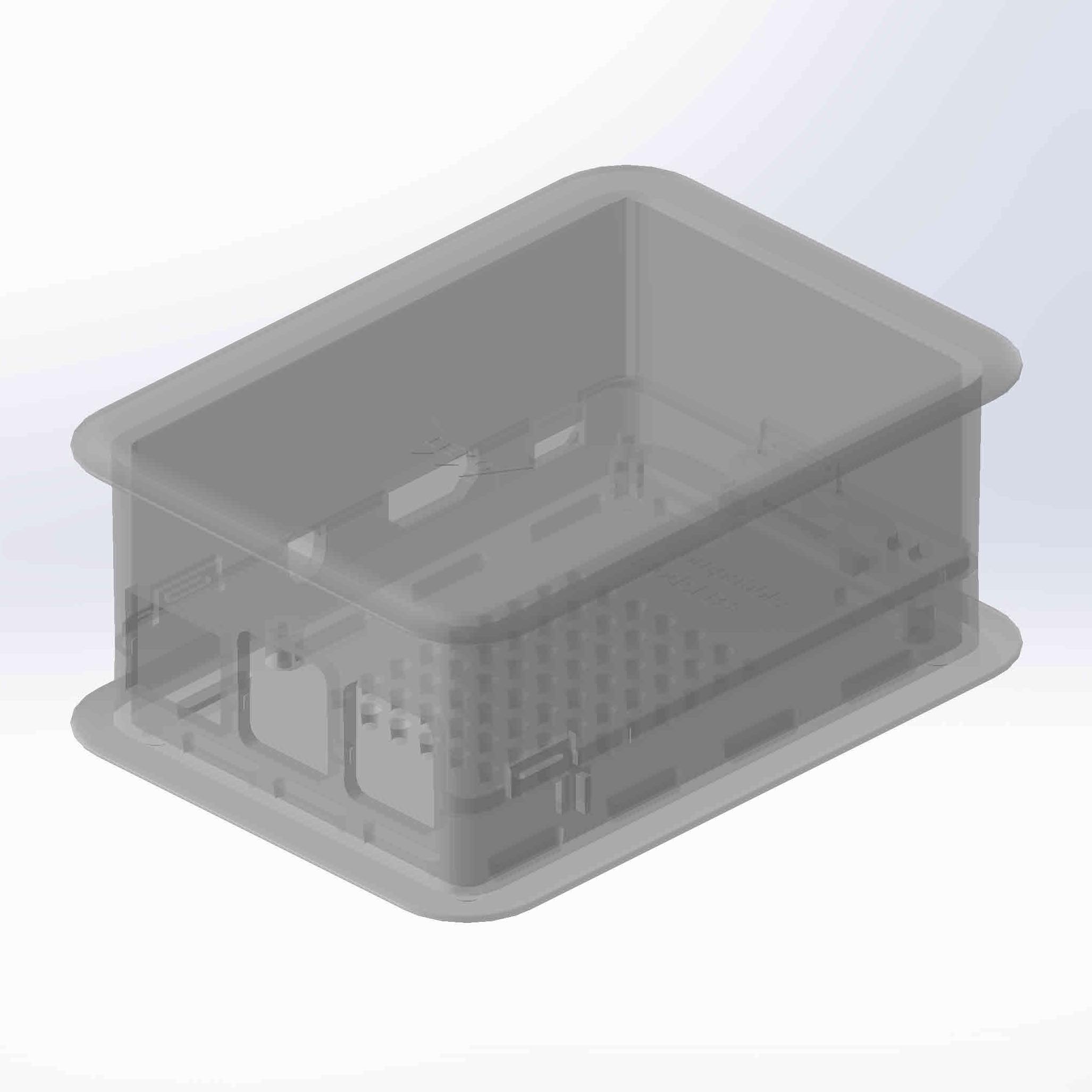

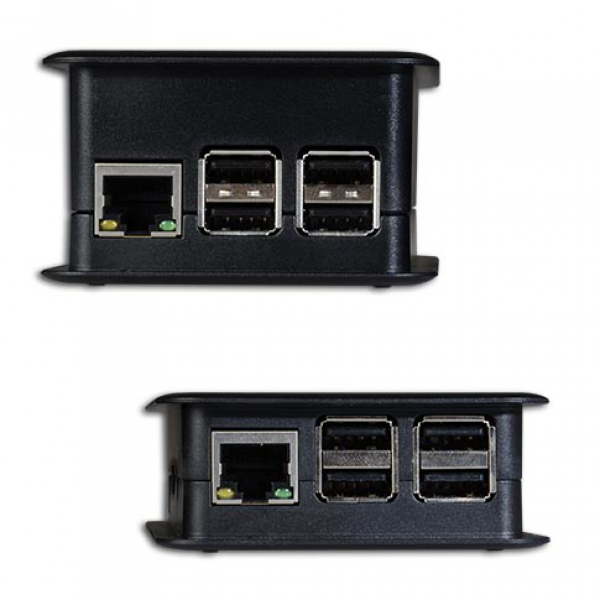

TEK-RPI-XL.0 | 100,6 | 73,5 | 42,50 |
- |
ASYBLEND T65 | 85 | 56 | - | - |
RPI-CAM RPI-COOLKIT RPI-VESA |
PDF DWG |
View
|
|

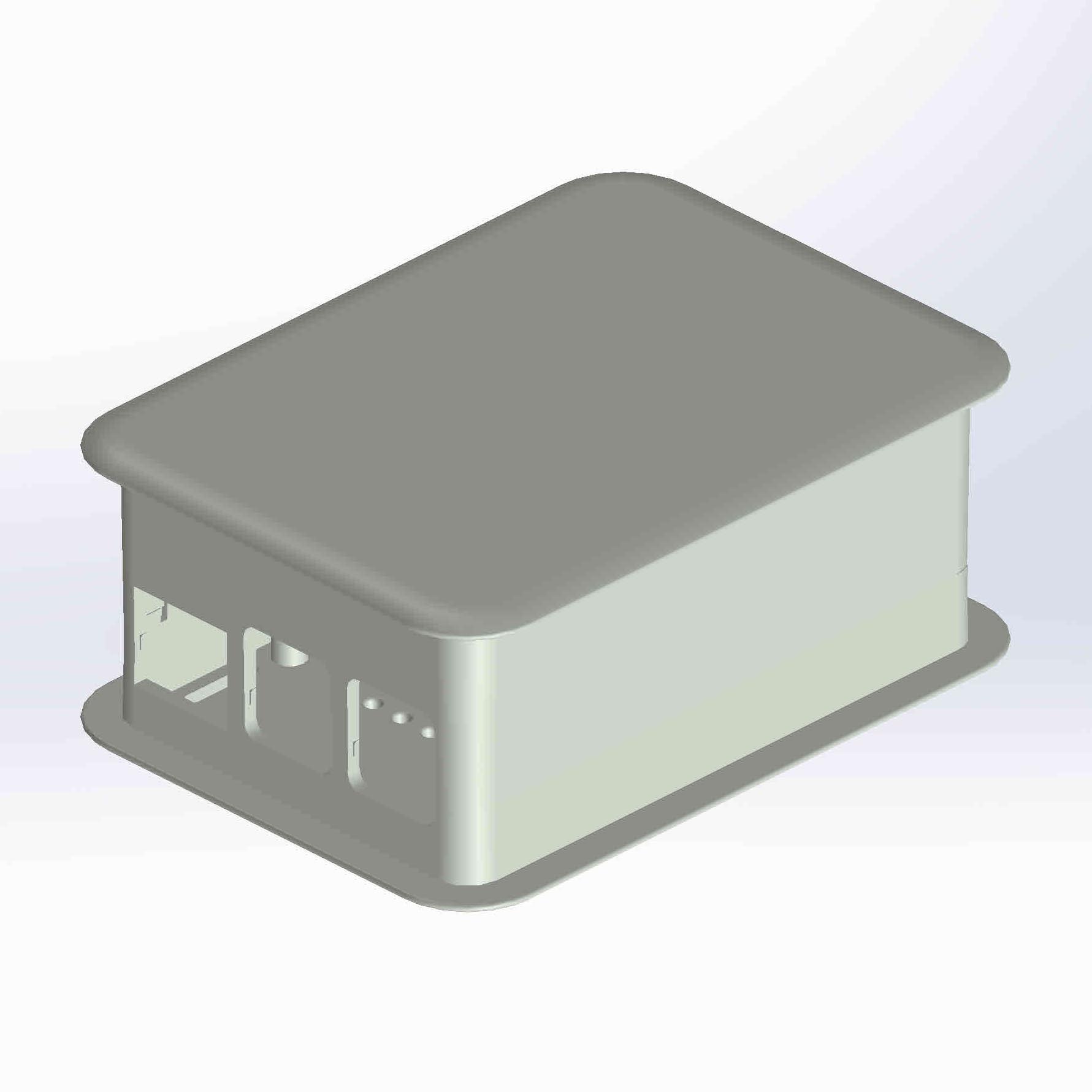

TEK-RPI-XL.40 | 100,6 | 73,5 | 42,50 |
50719 |
ASYBLEND T65 | 85 | 56 | - | - |
RPI-CAM RPI-COOLKIT RPI-VESA |
PDF DWG |
View
|
|

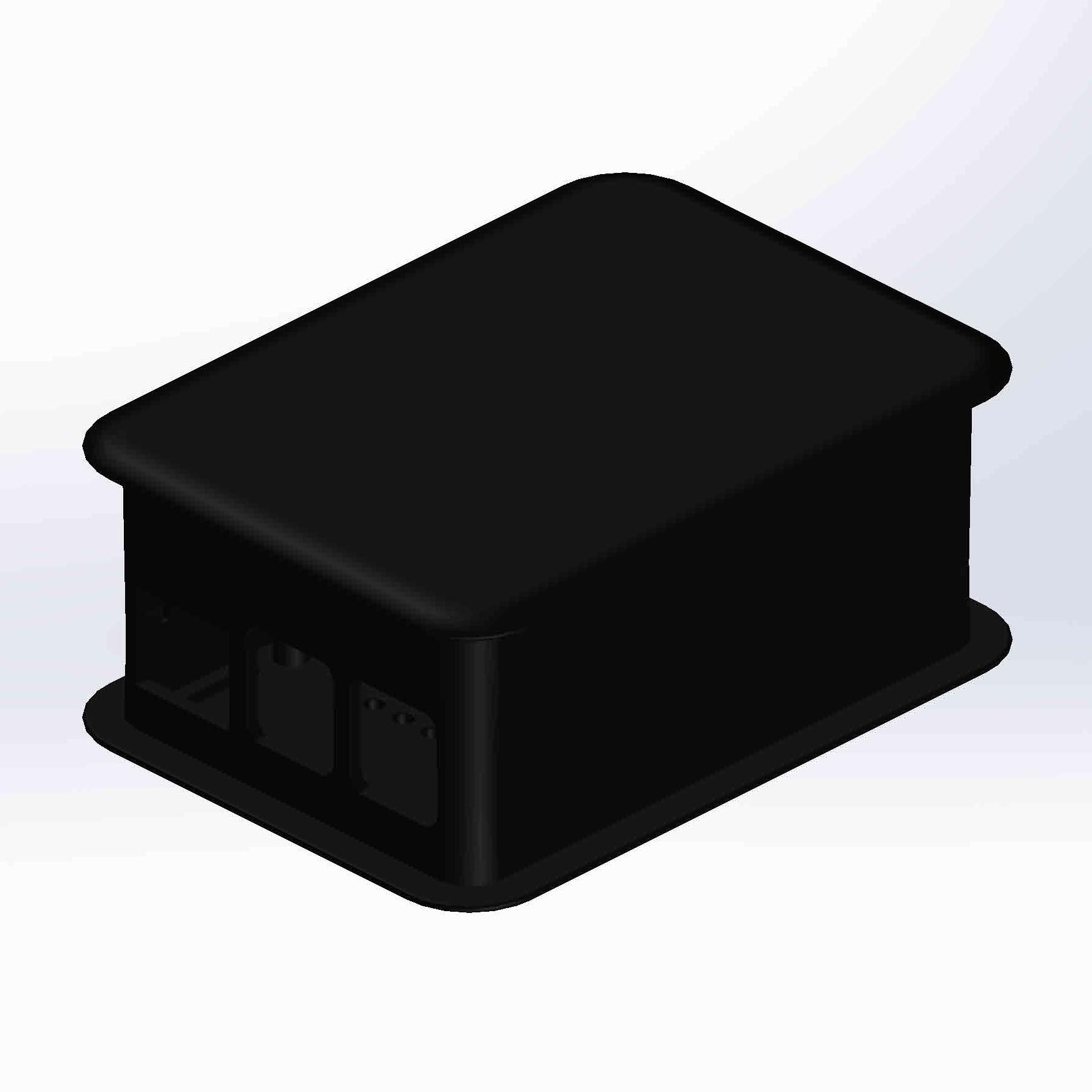

TEK-RPI-XL.9 | 100,6 | 73,5 | 42,50 |
9004 |
ASYBLEND T65 | 85 | 56 | - | - |
RPI-CAM RPI-COOLKIT RPI-VESA |
PDF DWG |
View
|
