TEK-USB

Family Pocket - Electronic enclosures - Plastic

Description

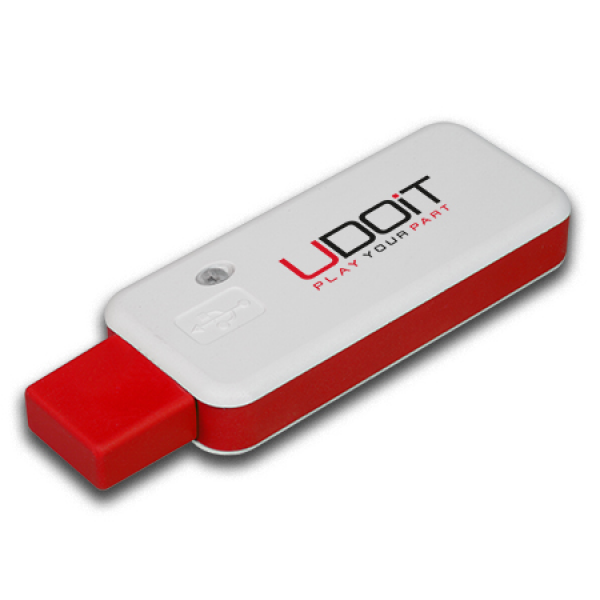

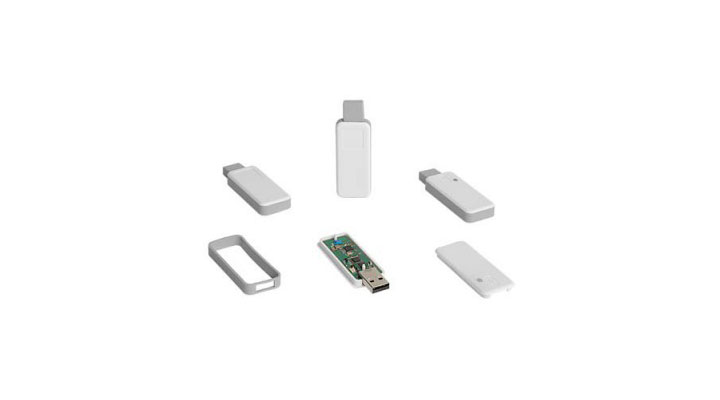

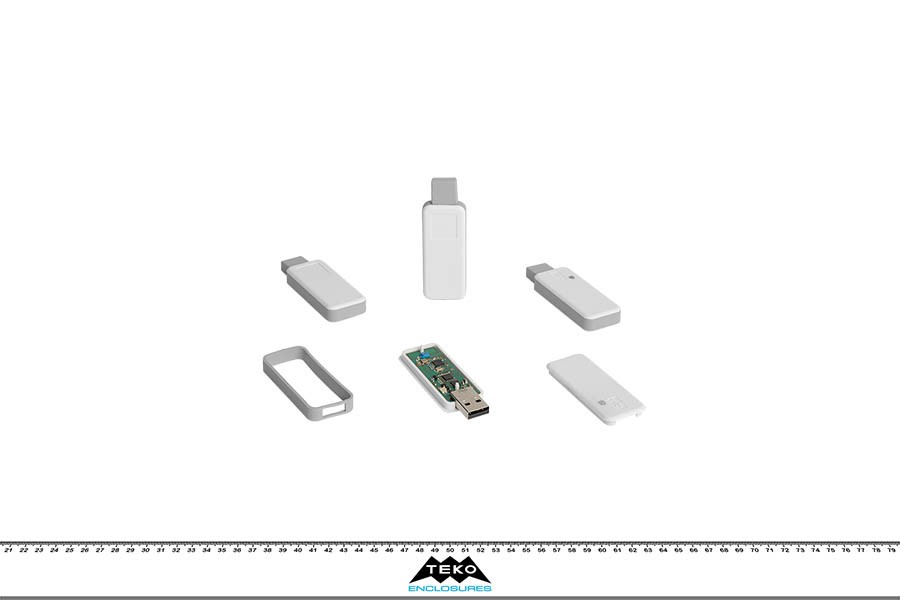

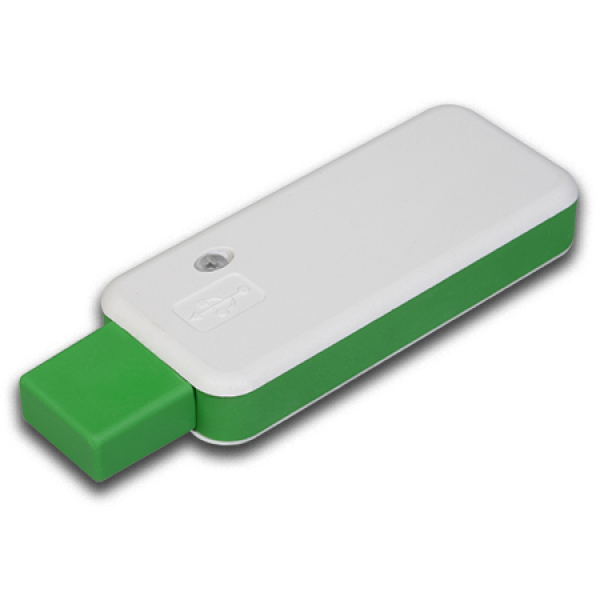

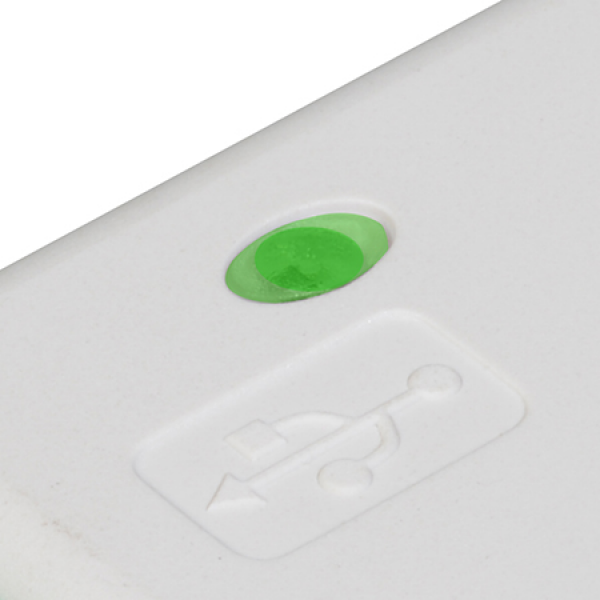

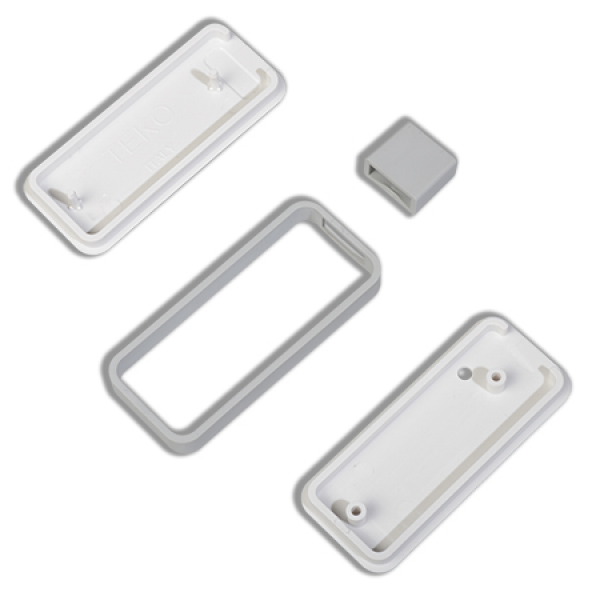

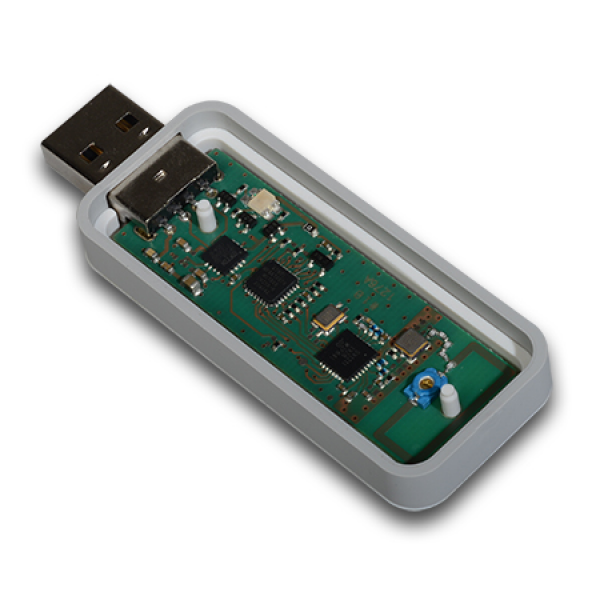

Modern and essential design for the case designed to house the most diversified USB devices such as Dongle, Pendrive and wireless transmitters. Snap-on lid and bottom closure completed by a soft-feel protection bumper and a rubber cap. LED guide light on the cover to monitor device activity. Recessed area on the bottom for labels and markings. Standard white and light gray colours. Custom colours according to Company identity: MOQ 500 pieces.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

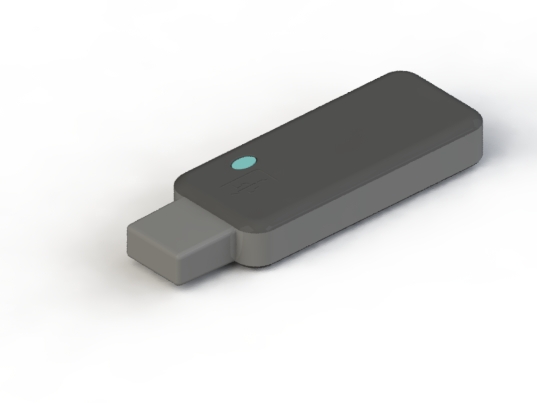

TEK-USB.29 58 25 10,2 9004 7012
P2H-AT  -  8020 50,5 18     PDF
DWG
View

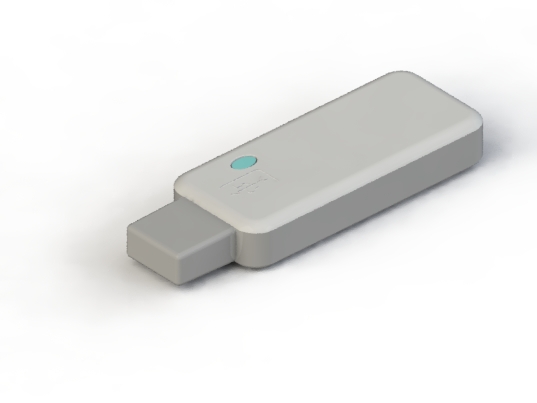

TEK-USB.30 58 25 10,2 9002 9018
P2H-AT  -  8020 50,5 18     PDF
DWG
View

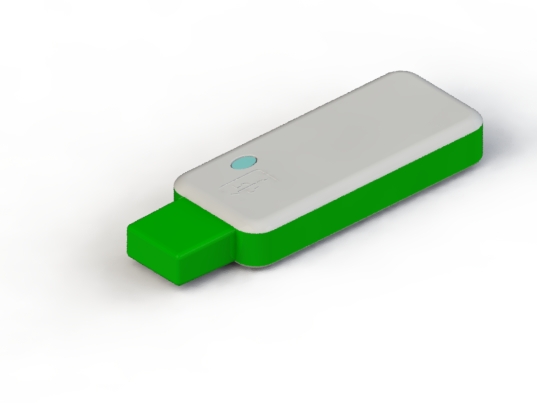

TEK-USB.45 58 25 10,2 9002 6010
P2H-AT  -  8020 50,5 18     PDF
DWG
View

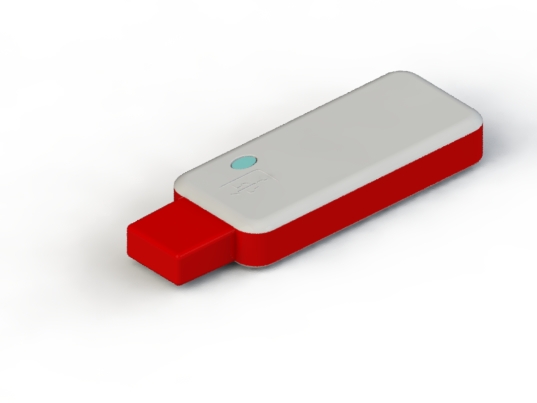

TEK-USB.49 58 25 10,2 9002 3020
P2H-AT  -  8020 50,5 18     PDF
DWG
View

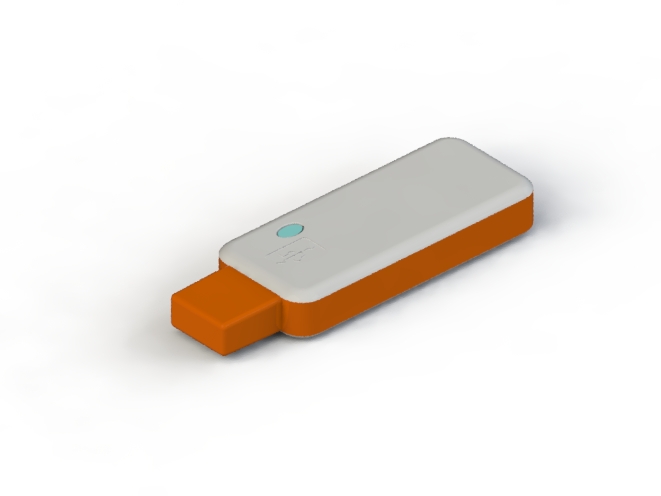

TEK-USB.50 58 25 10,2 9002 5017
P2H-AT  -  8020 50,5 18     PDF
DWG
View
