Description

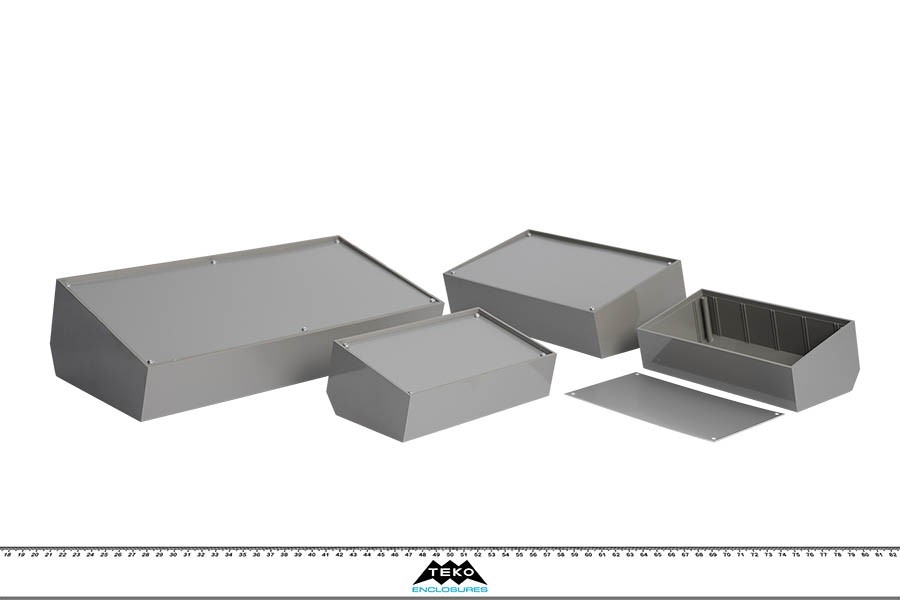

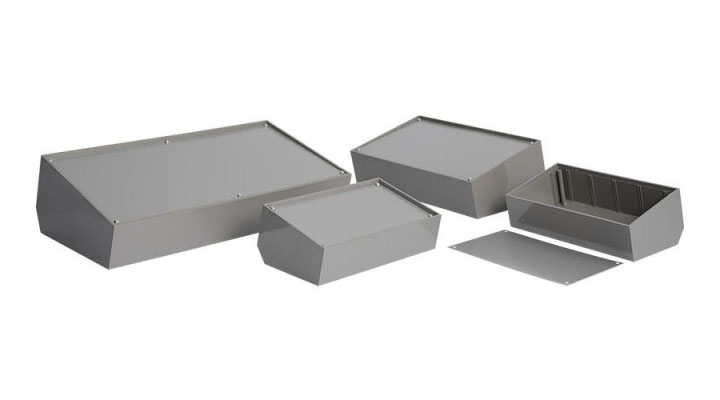

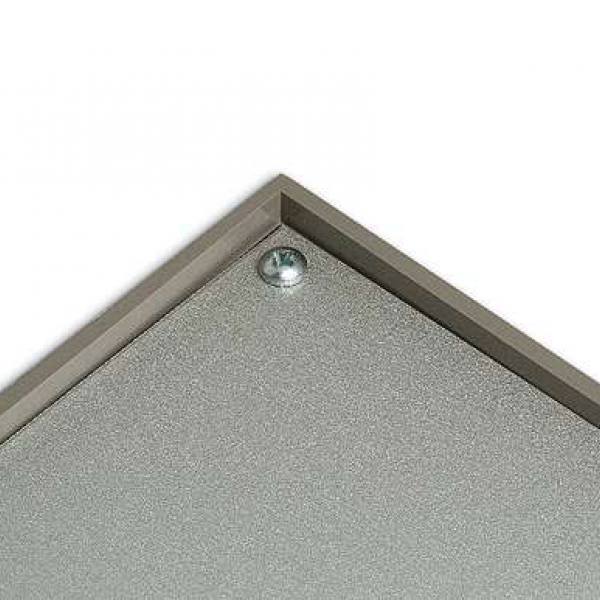

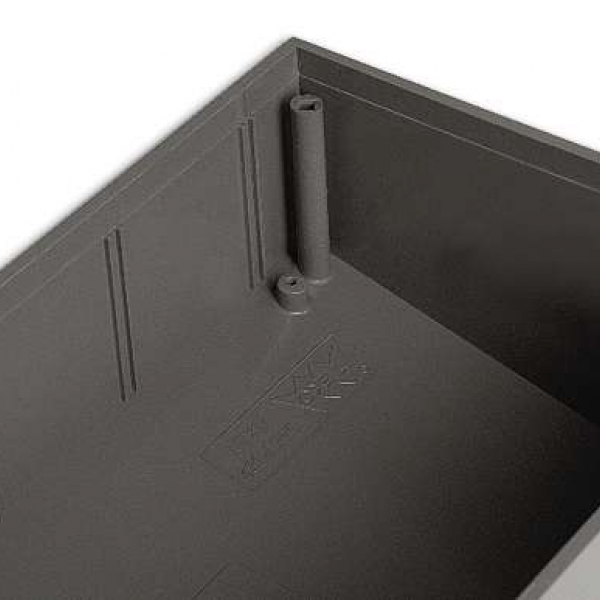

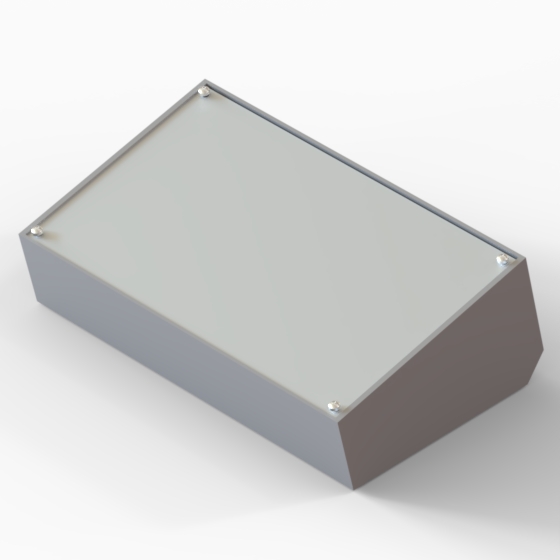

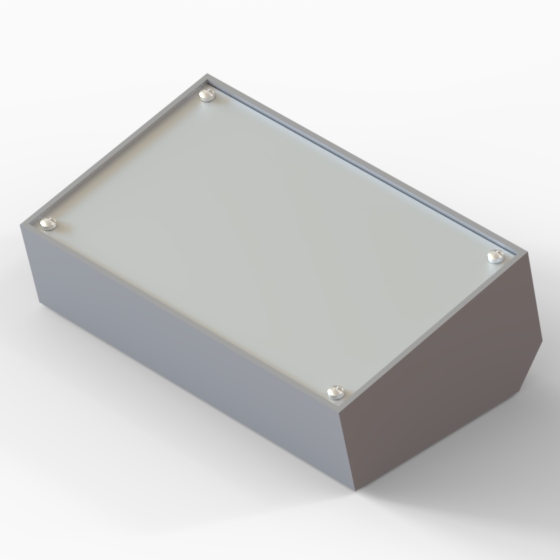

ABS enclosure with a 15° inclined 1mm aluminium panel. The base walls have integral PCB guides and mounting studs. Glossy surface finish. Closing by four screws.
Products
|
Model |
L (mm) |
W (mm) |
H (mm) |
Color (Ral) |
Material |
MAX PCB L (mm) |
MAX PCB W (mm) |
Screws |
Battery |
Accessories |
Drawings |
Other |
|

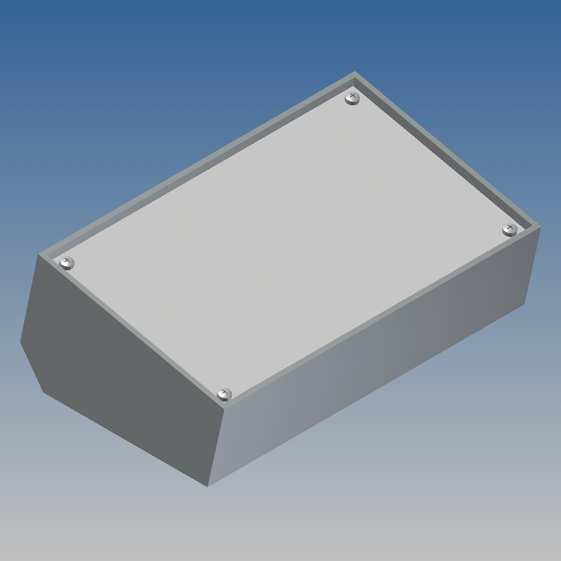

362.8 |
161 |
97 |
61,1 |
7037
|
N-UT
|
153 |
82 |
4 |
- |
|
PDF
DWG
|
View
- Color (Ral):
7037
- Material:
N-UT
- MAX PCB L (mm): 153
- MAX PCB W (mm): 82
- Screws: 4
- Battery: -
- Accessories:
-
Drawings:
PDF
DWG
|
|

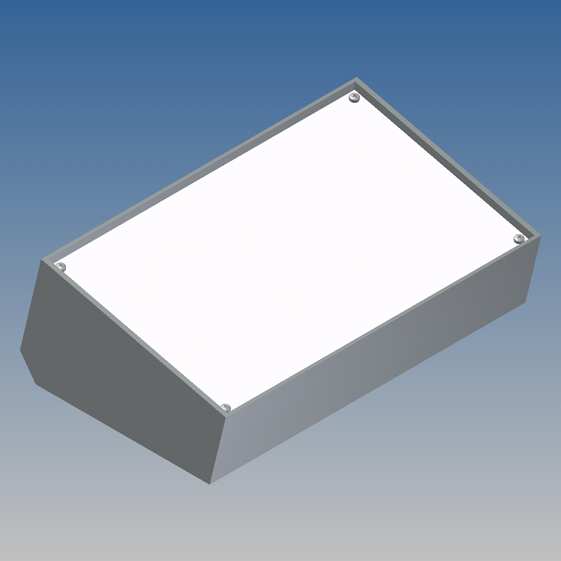

363.8 |
216 |
130 |
77,7 |
7037
|
N-UT
|
207 |
118 |
4 |
- |
|
PDF
DWG
|
View
- Color (Ral):
7037
- Material:
N-UT
- MAX PCB L (mm): 207
- MAX PCB W (mm): 118
- Screws: 4
- Battery: -
- Accessories:
-
Drawings:
PDF
DWG
|
|

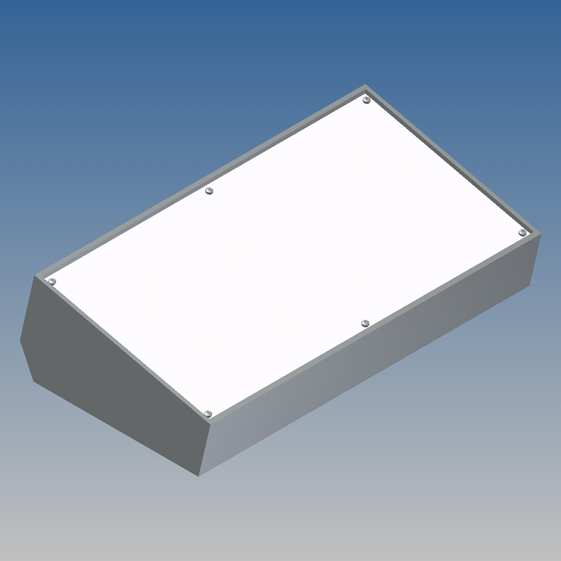

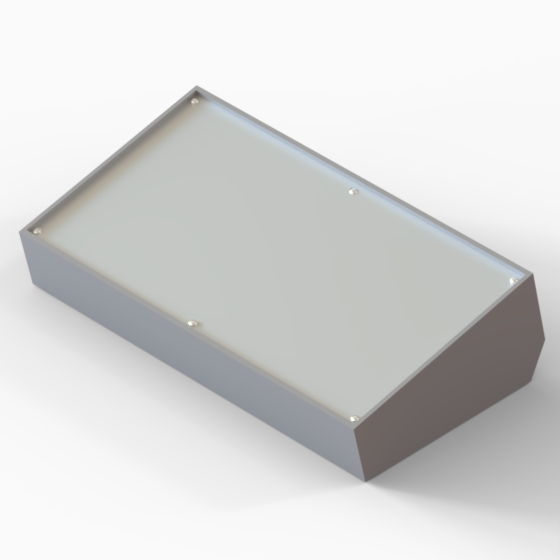

364.8 |
311 |
170 |
89 |
7037
|
N-UT
|
302 |
150 |
6 |
- |
|
PDF
DWG
|
View
- Color (Ral):
7037
- Material:
N-UT
- MAX PCB L (mm): 302
- MAX PCB W (mm): 150
- Screws: 6
- Battery: -
- Accessories:
-
Drawings:
PDF
DWG
|
