MICRO

Family Rf - Electronic enclosures - Metal

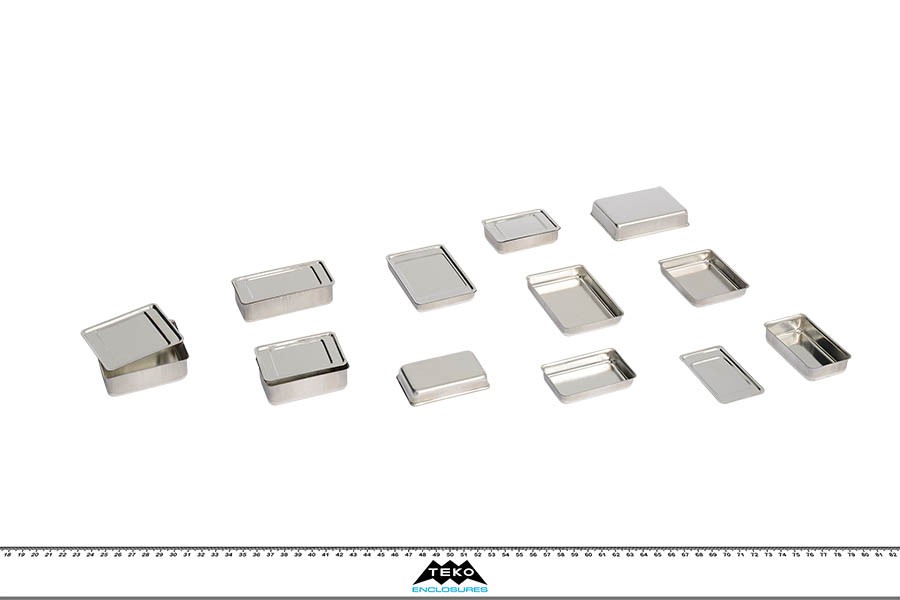

MICRO

Description

Electrolythic tin-plated steel enclosures for High/Frequency electronic components assembly with a cover that can be soldered on for hermetic sealing. Volume of casing is suitable for easy assembly of professional and High-Technology circuits.

Details

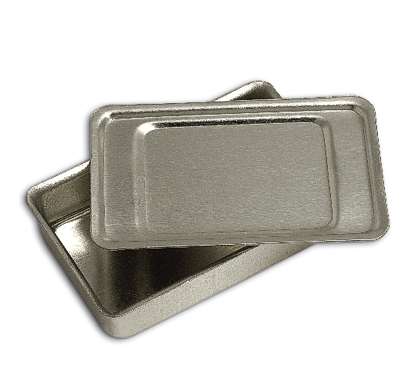

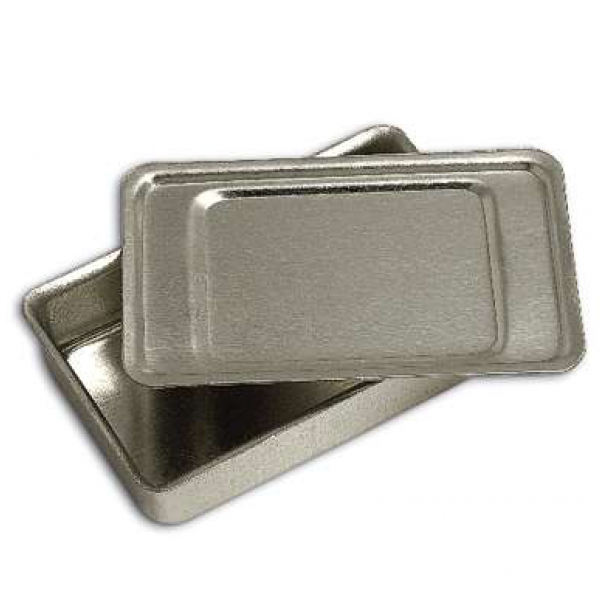

MICRO - dettaglio 1

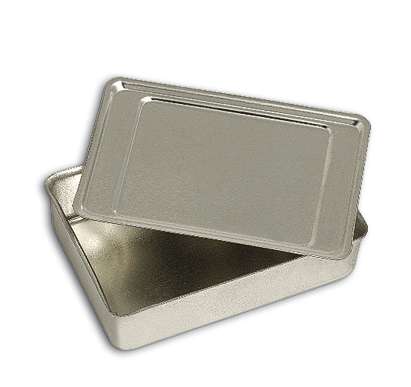

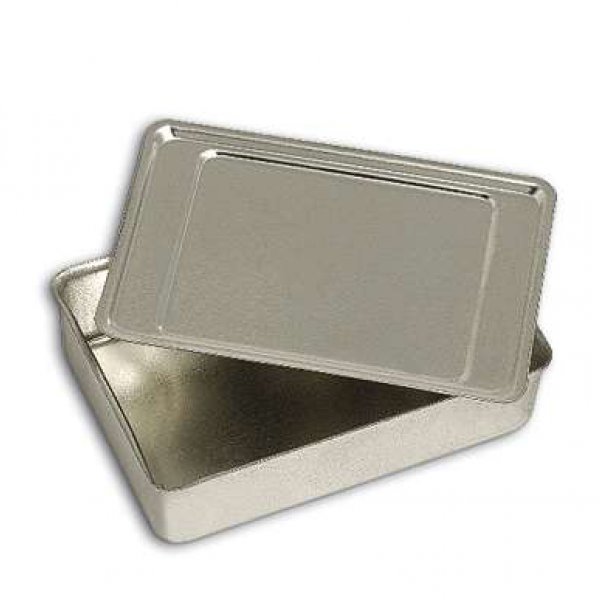

MICRO - dettaglio 2

Products

	Model	L (mm)	W (mm)	H (mm)	Color (Ral)	Material	MAX PCB L (mm)	MAX PCB W (mm)	Screws	Battery	Accessories	Drawings	Other

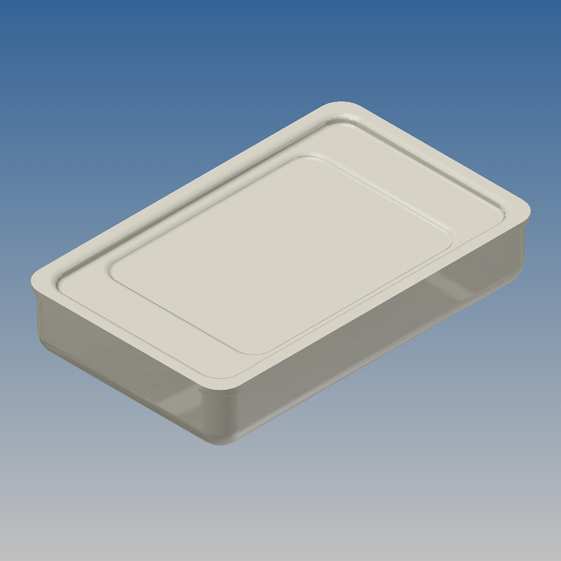

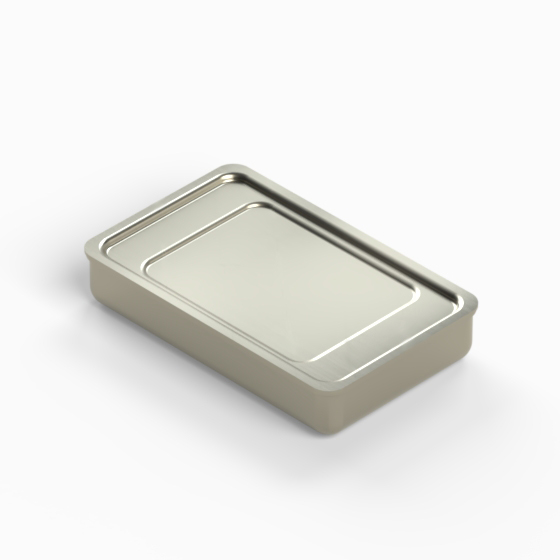

	433.15	50,5	31,5	9,5	-	B.S.E. T.55	-	-	-	-			View Color (Ral): - Material: B.S.E. T.55 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

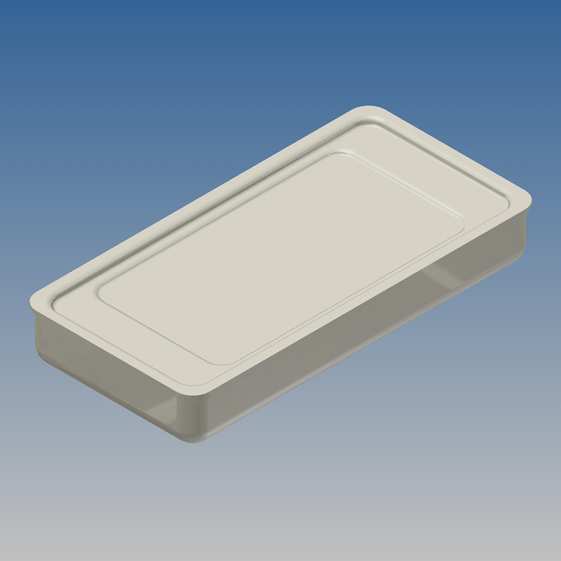

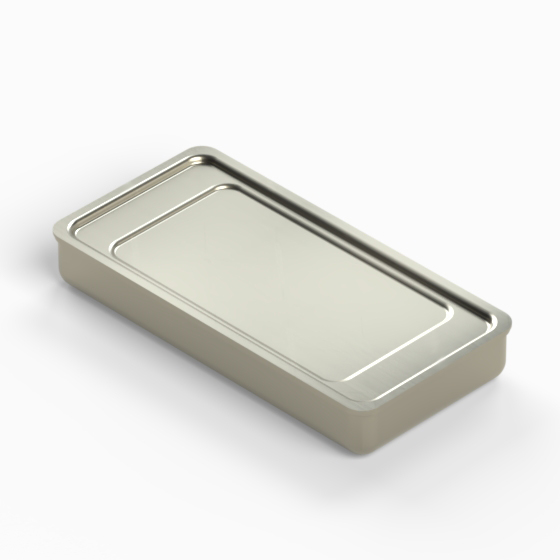

	434.15	63,5	31,5	9,5	-	B.S.E. T.55	-	-	-	-			View Color (Ral): - Material: B.S.E. T.55 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

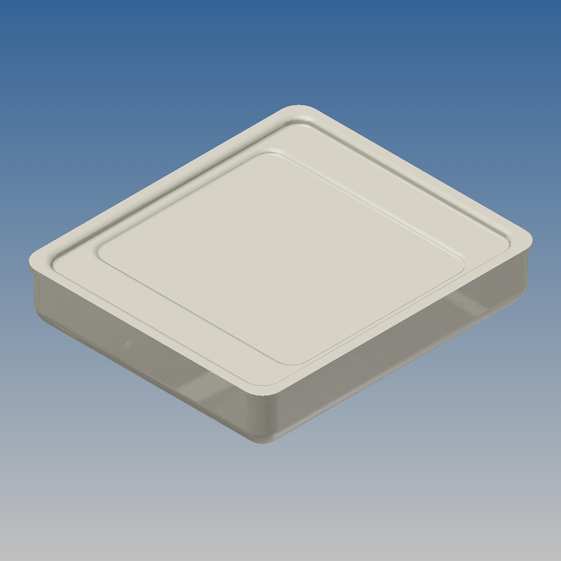

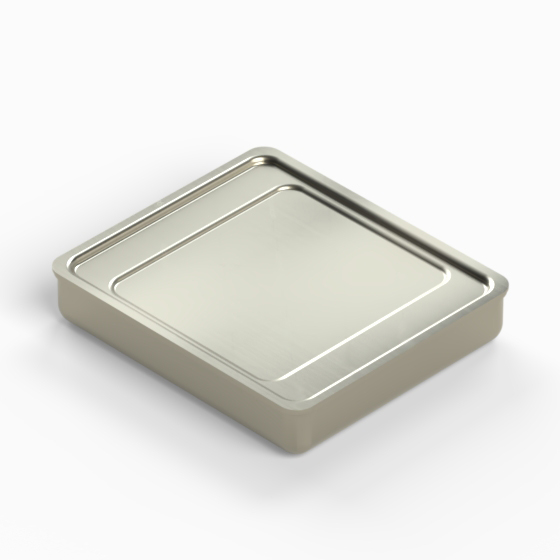

	435.15	50,5	44	9,5	-	B.S.E. T.55	-	-	-	-			View Color (Ral): - Material: B.S.E. T.55 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

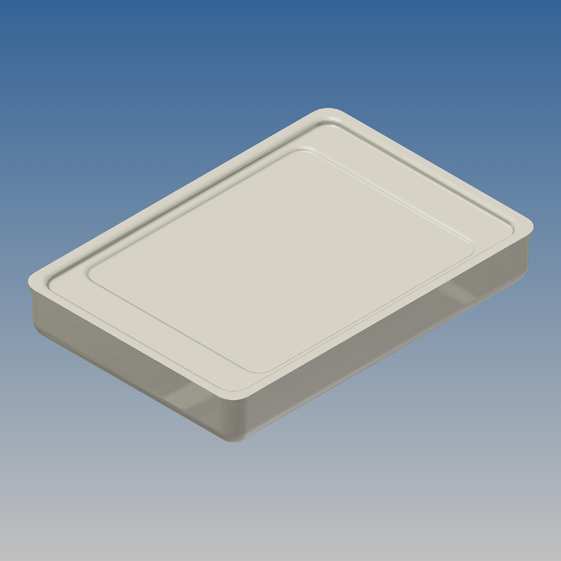

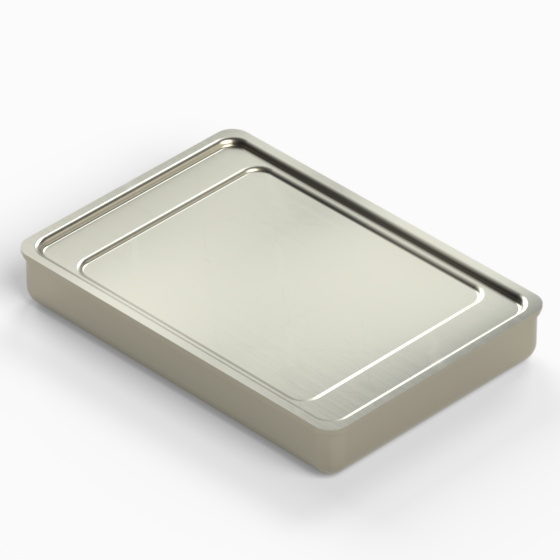

	436.15	63,5	44	9,5	-	B.S.E. T.55	-	-	-	-			View Color (Ral): - Material: B.S.E. T.55 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

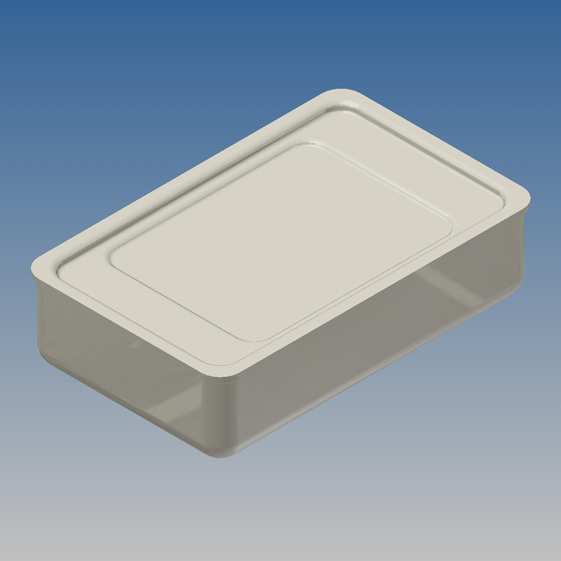

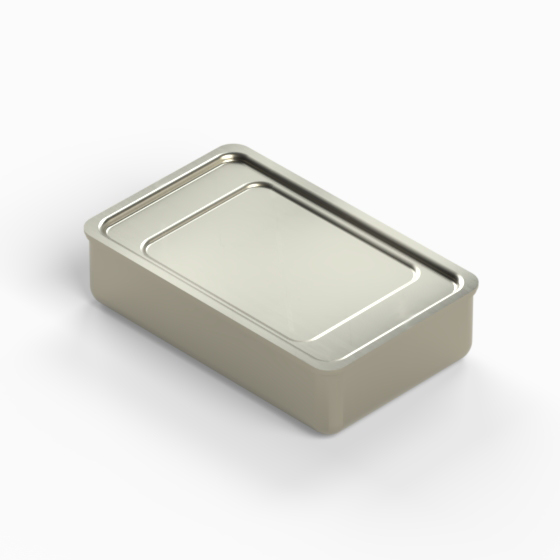

	443.15	50,5	31,5	13	-	B.S.E. T.55	-	-	-	-			View Color (Ral): - Material: B.S.E. T.55 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

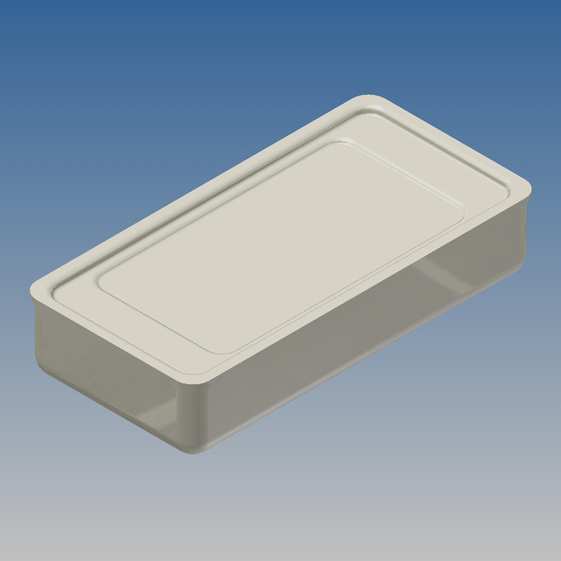

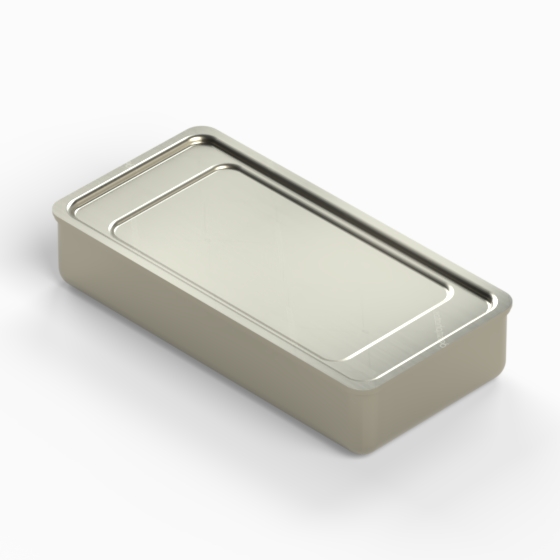

	444.15	63,5	31,5	13	-	B.S.E. T.55	-	-	-	-			View Color (Ral): - Material: B.S.E. T.55 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

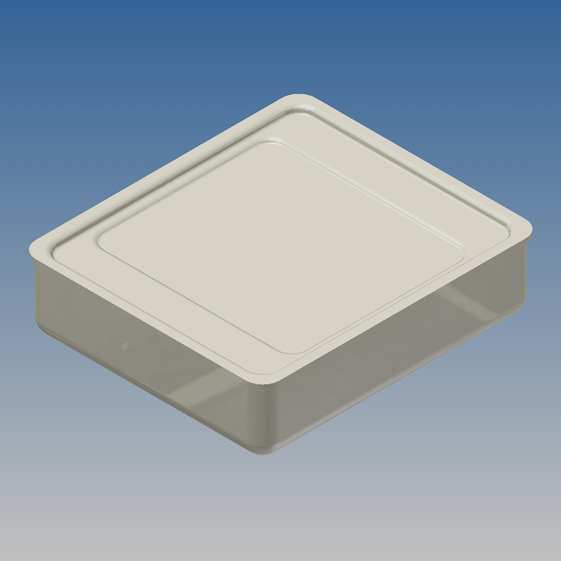

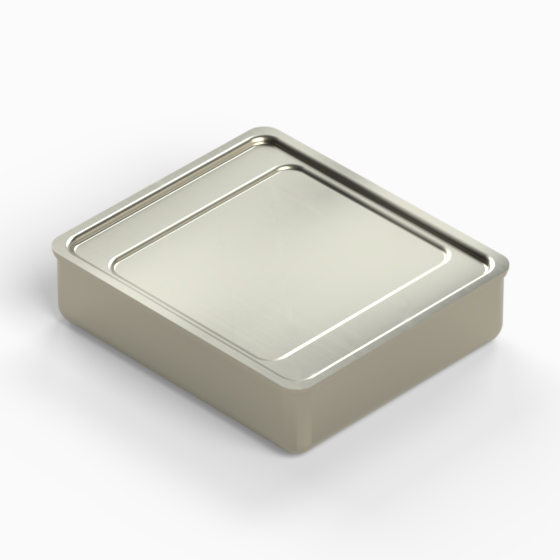

	445.15	50,5	44	13	-	B.S.E. T.55	-	-	-	-			View Color (Ral): - Material: B.S.E. T.55 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

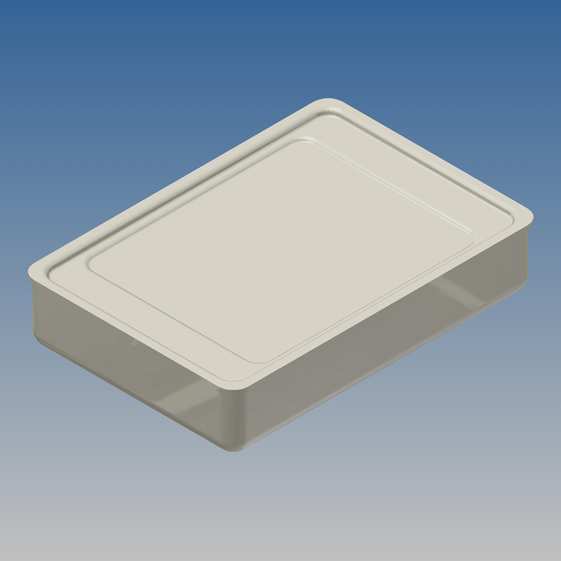

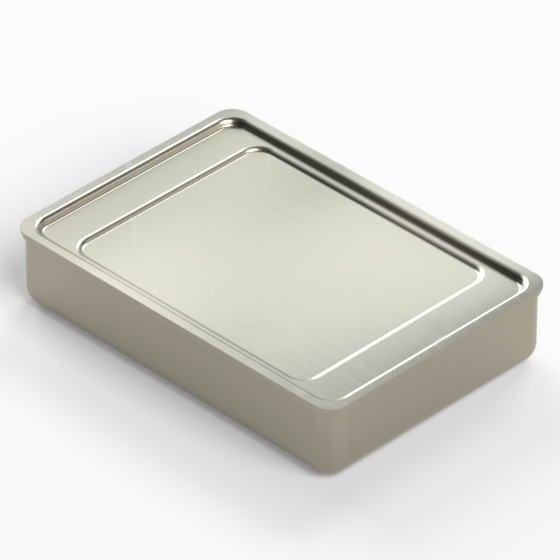

	446.15	63,5	44	13	-	B.S.E. T.55	-	-	-	-			View Color (Ral): - Material: B.S.E. T.55 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

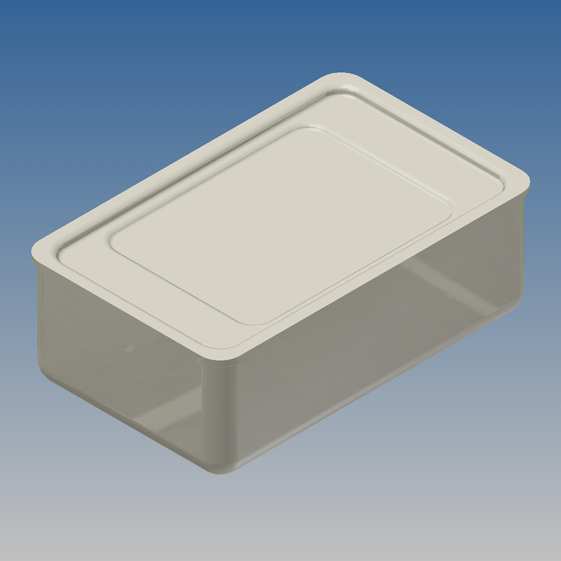

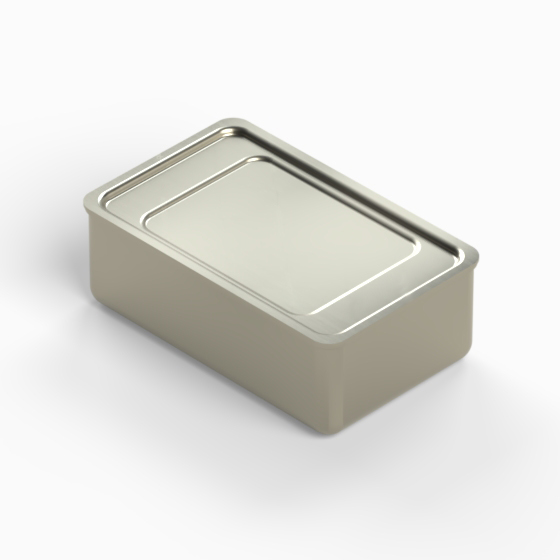

	453.15	50,5	31,5	17,5	-	B.S.E. T.55	-	-	-	-			View Color (Ral): - Material: B.S.E. T.55 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

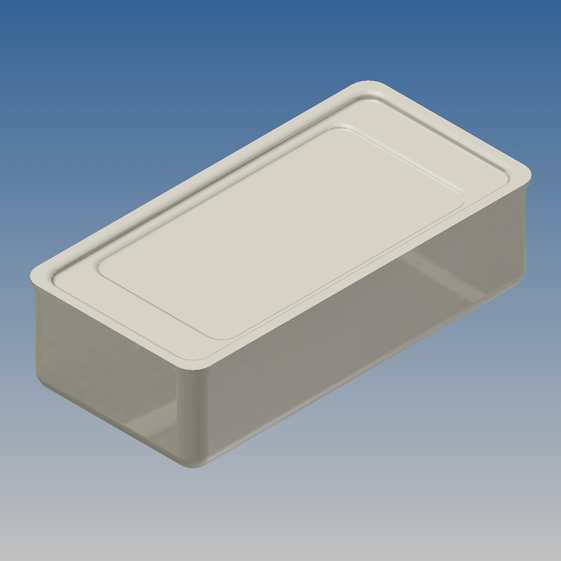

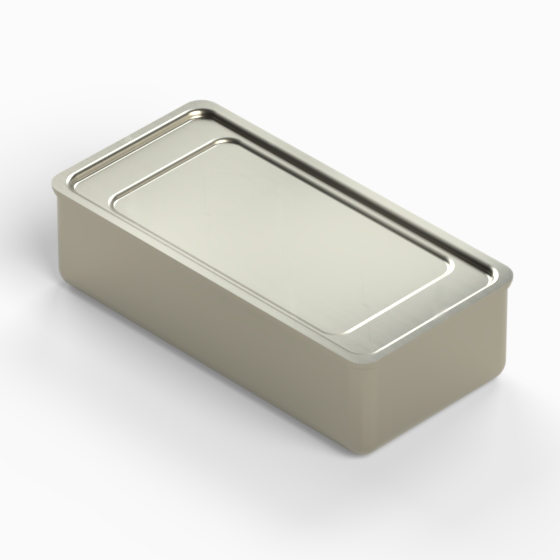

	454.15	63,5	31,5	17,5	-	B.S.E. T.55	-	-	-	-			View Color (Ral): - Material: B.S.E. T.55 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

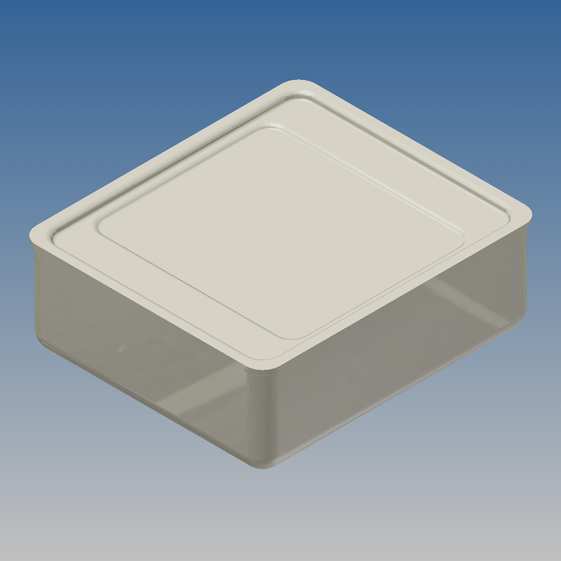

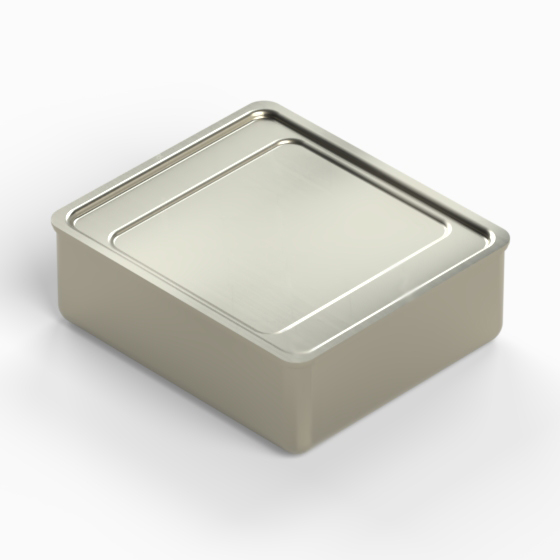

	455.15	50,5	44	17,5	-	B.S.E. T.55	-	-	-	-			View Color (Ral): - Material: B.S.E. T.55 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

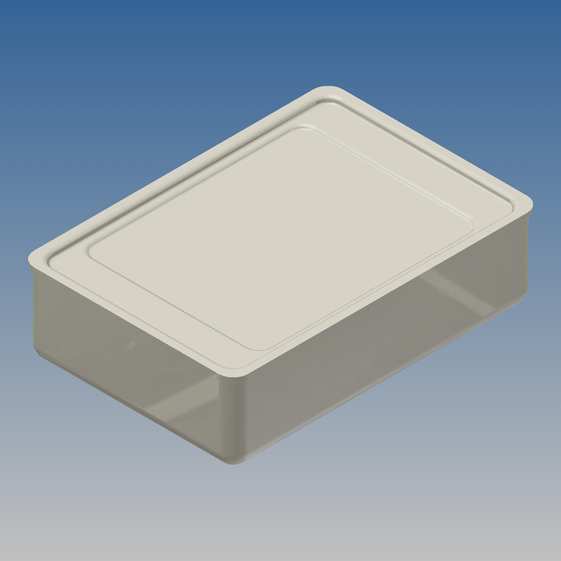

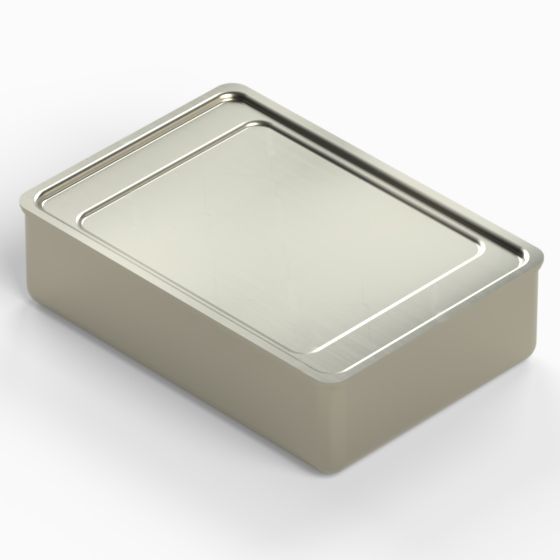

	456.15	63,5	44	17,5	-	B.S.E. T.55	-	-	-	-			View Color (Ral): - Material: B.S.E. T.55 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG
