Description

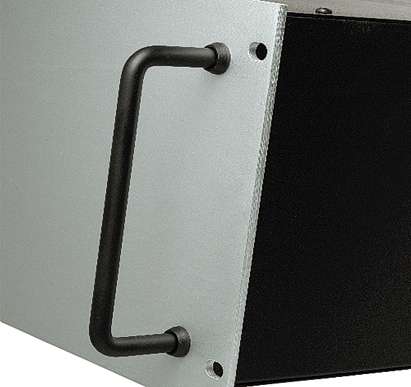

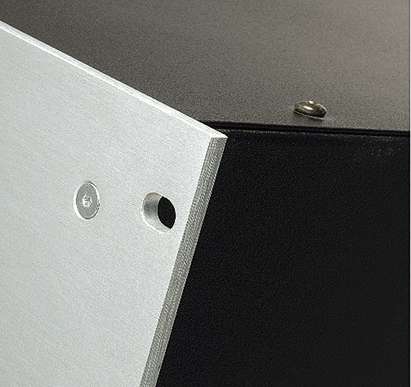

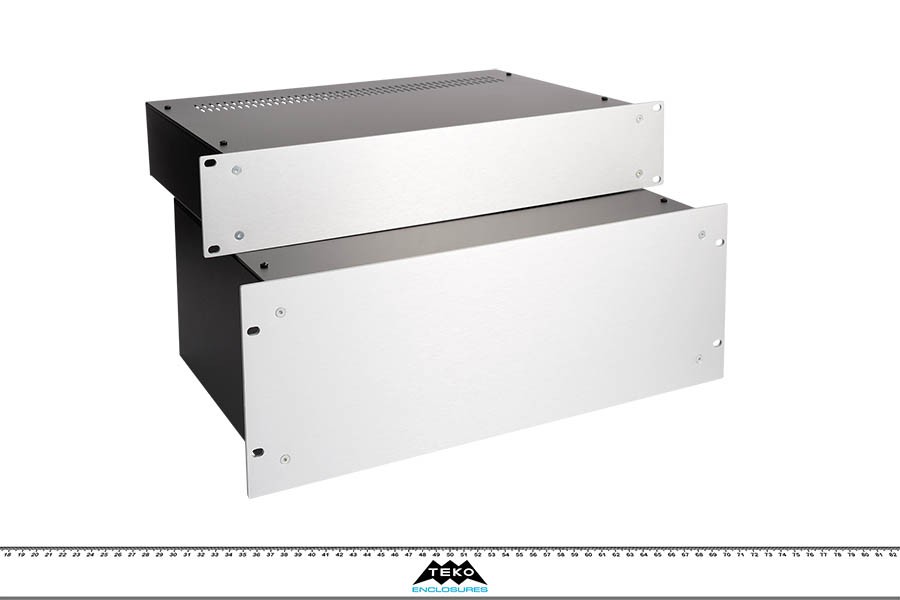

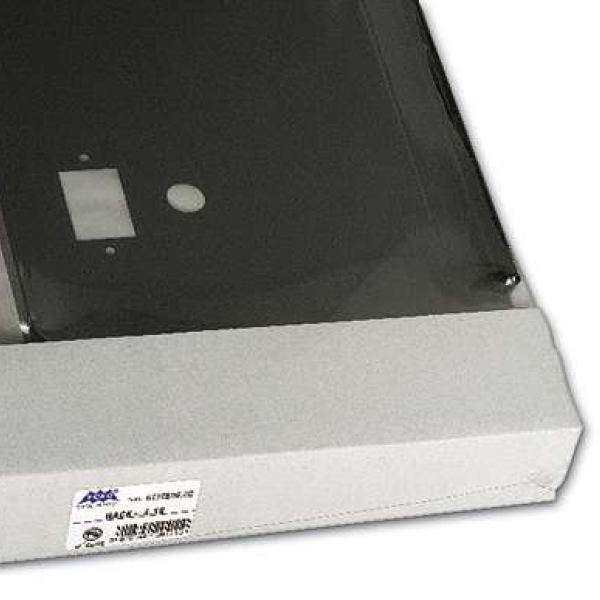

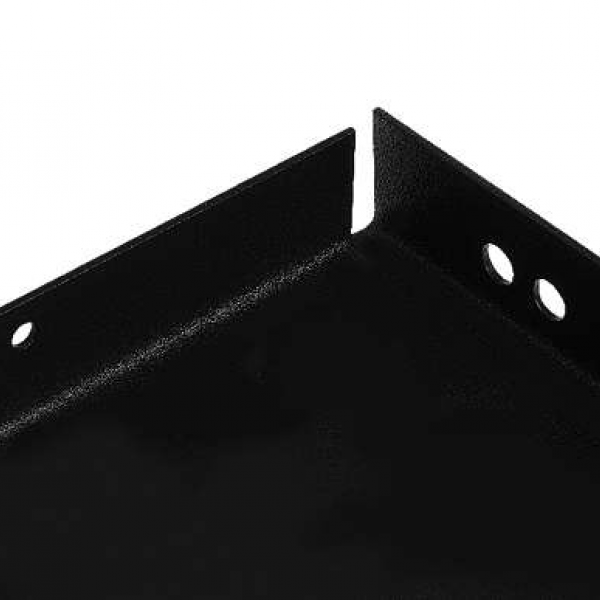

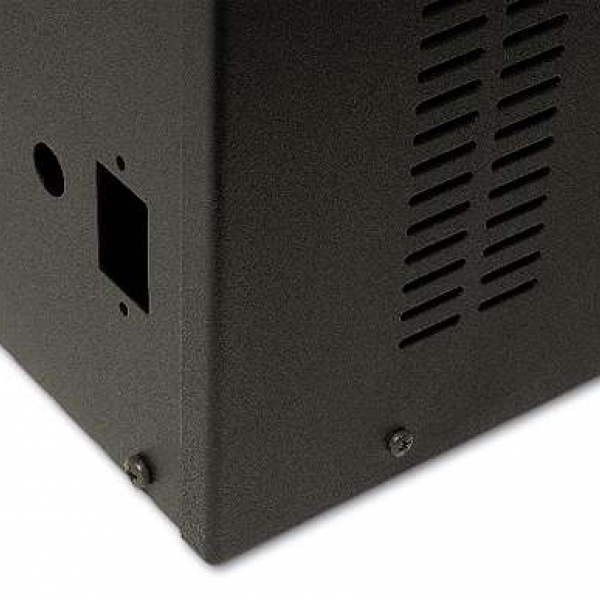

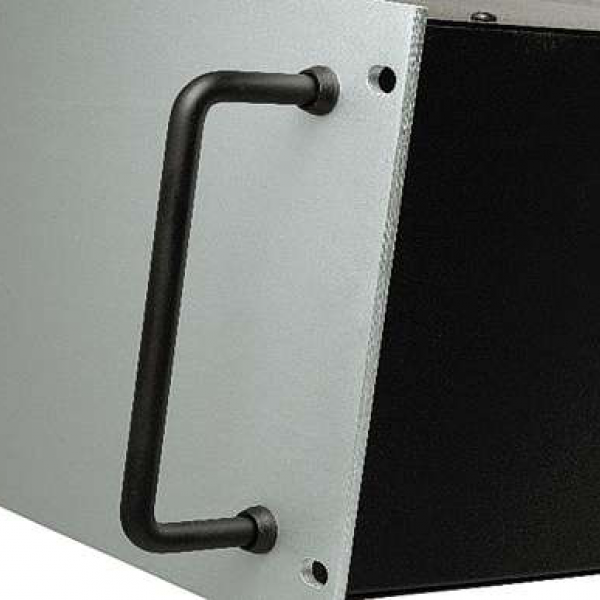

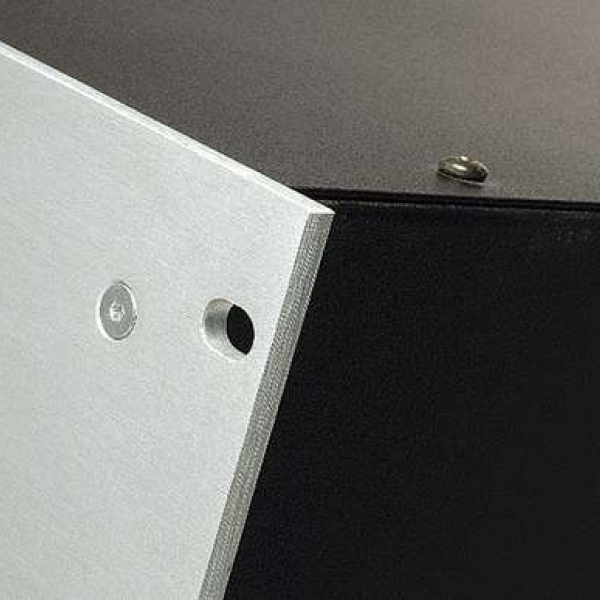

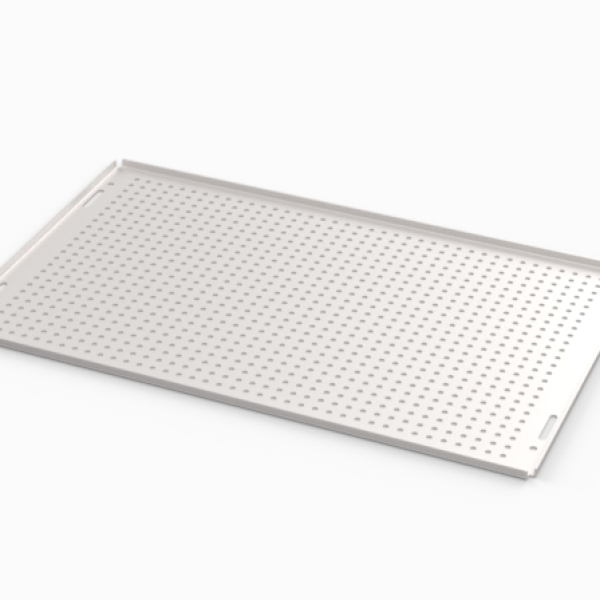

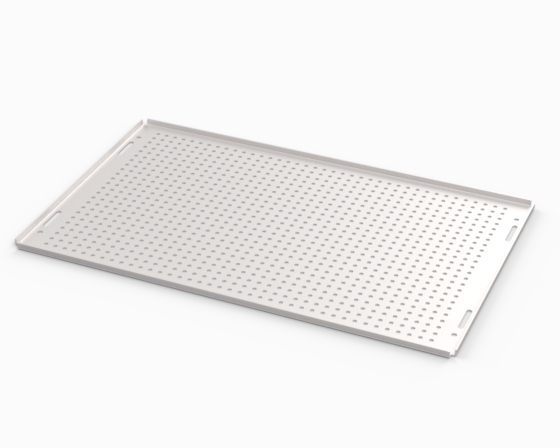

Series of modern styled enclosures with extremely accurate finish. The front panel is manufactured from silver anodised aluminium, the cover and the side panels from black steel. Ventilated covers. Panels remove easily while leaving the sub-assembly intact. ACCESSORIES: internal base mm. 175 x 435 (Mod. LEVEL) - Flat anodised aluminium handles, silver or black colour (FLAT RACK) - Round handles in black plastified steel (ROUND RACK).
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

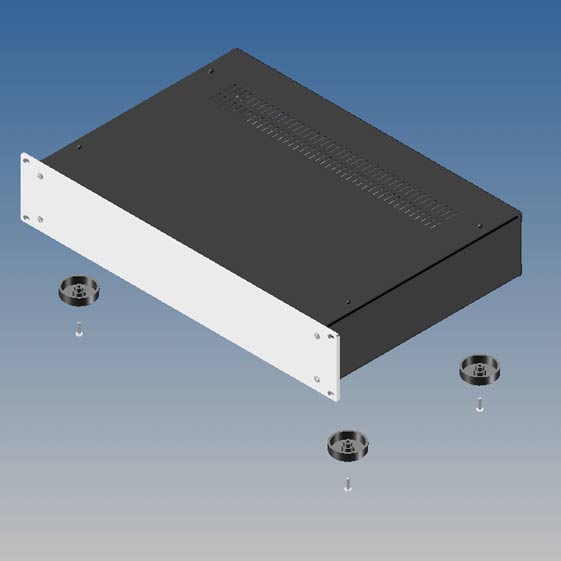

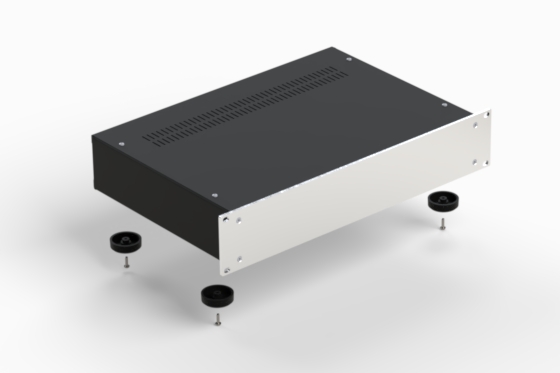

RACK2.18 | 307 | 434 | 83 |
9004 9006 |
- | - | - | - |
RACK-C234 FLATRACK2 ROUNDRACK2 |
PDF DWG |
||
|

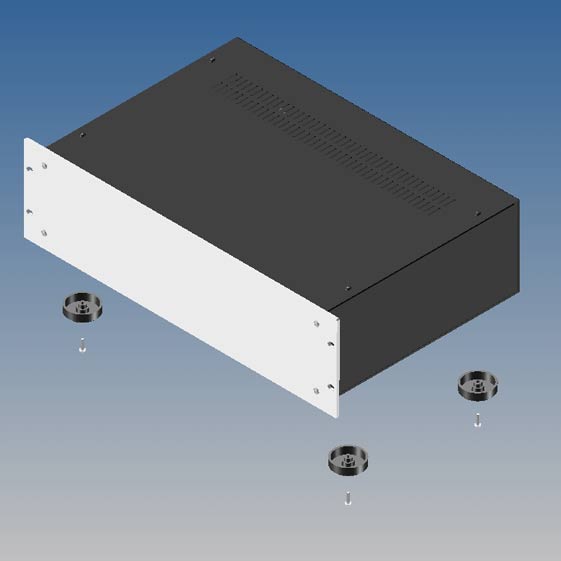

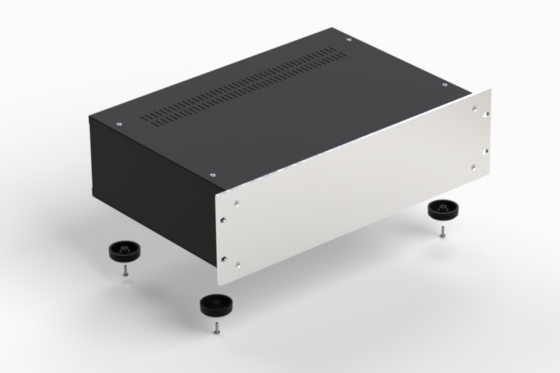

RACK3.18 | 307 | 434 | 123 |
9004 9006 |
- | - | - | - |
RACK-C234 FLATRACK3 ROUNDRACK3 |
PDF DWG |
||
|

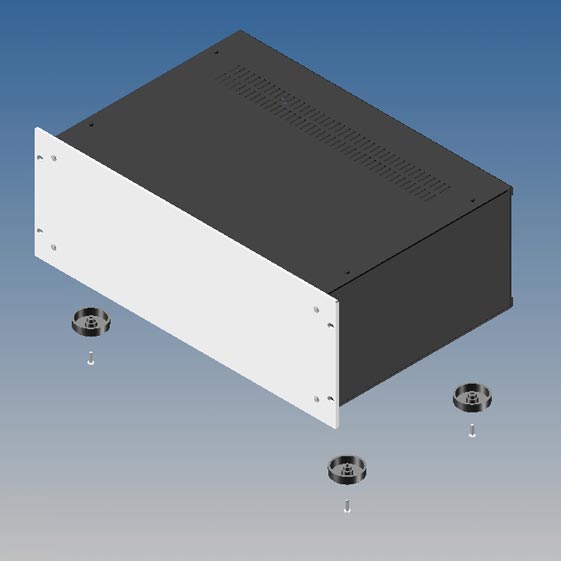

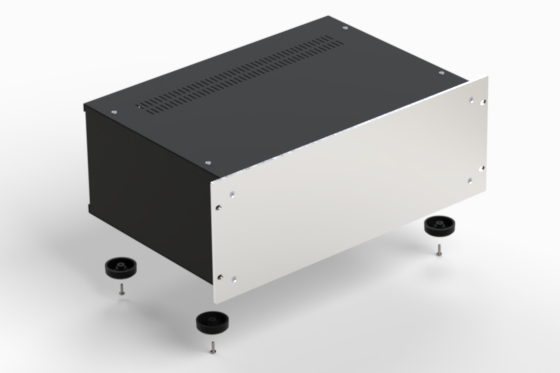

RACK4.18 | 307 | 434 | 166 |
9004 9006 |
- | - | - | - |
RACK-C234 FLATRACK4 ROUNDRACK4 |
PDF DWG |
