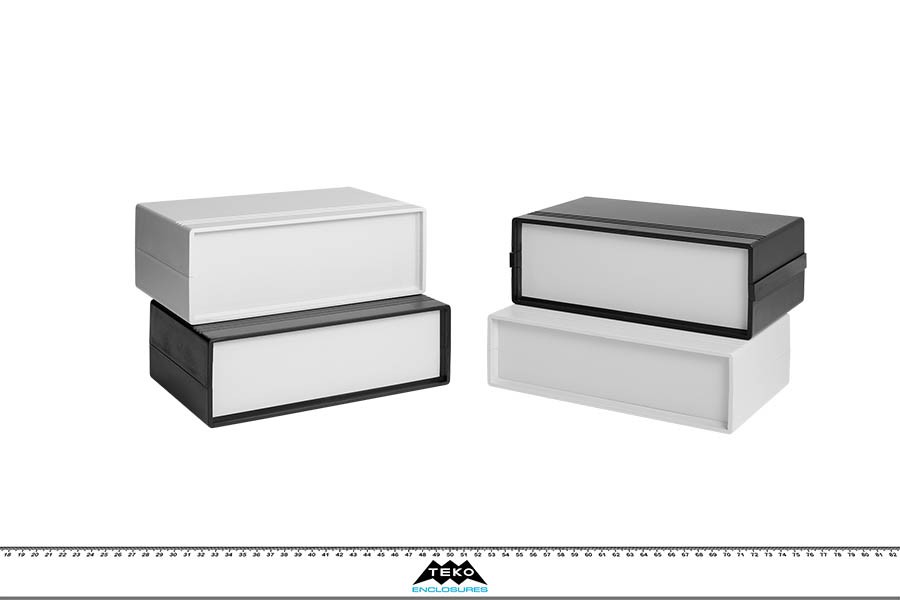

STRUMENTA MINOR

Family Strumentalia - Electronic enclosures - Plastic

Description

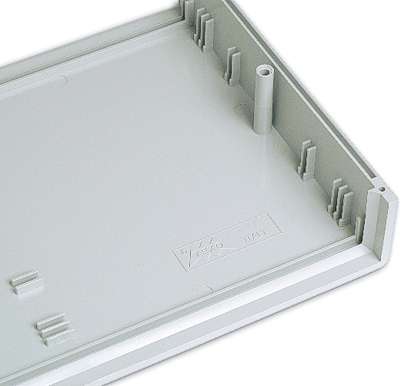

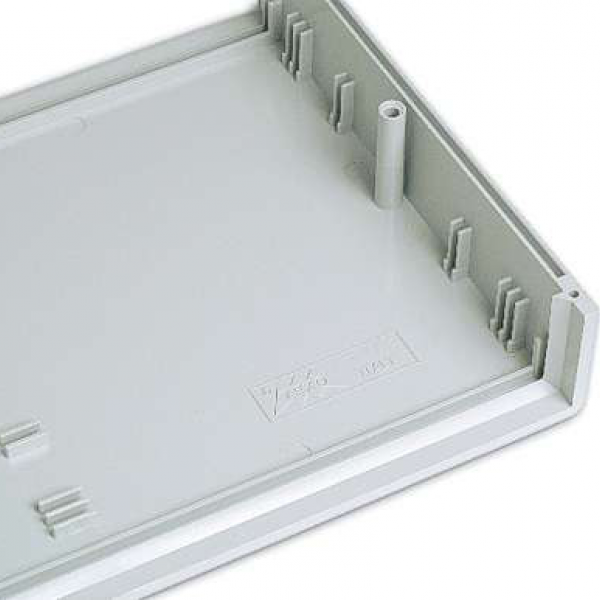

Cases with the front and rear panels moulded in ABS. The base and the cover have integral PCB guides and mounting studs. Closing by two screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

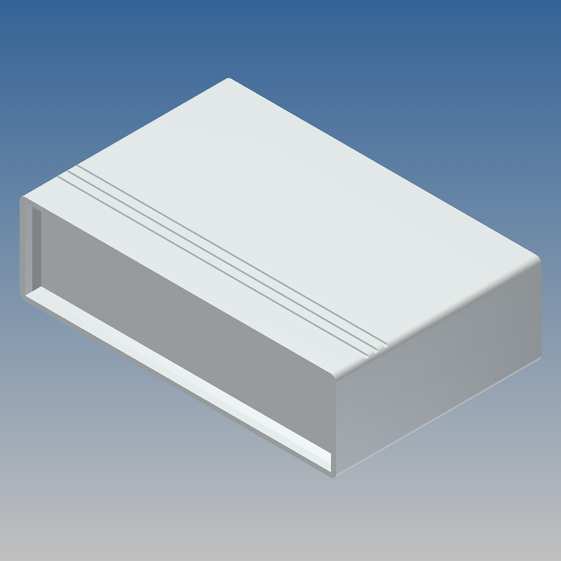

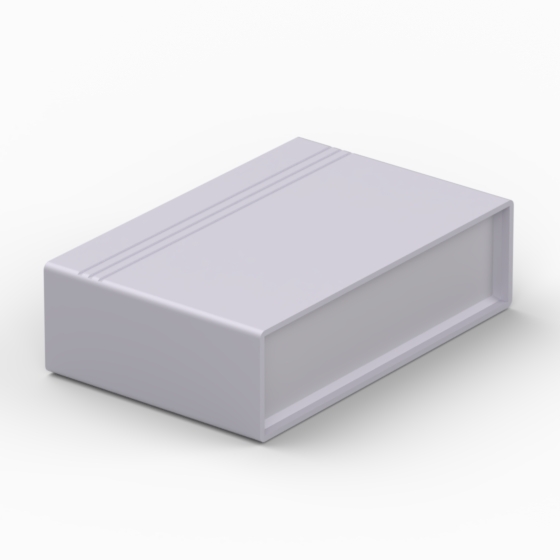

NE22.5 218 141,5 62 9018
AG-ATY 207,6 52,6 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 207,6
  • MAX PCB W (mm): 52,6
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

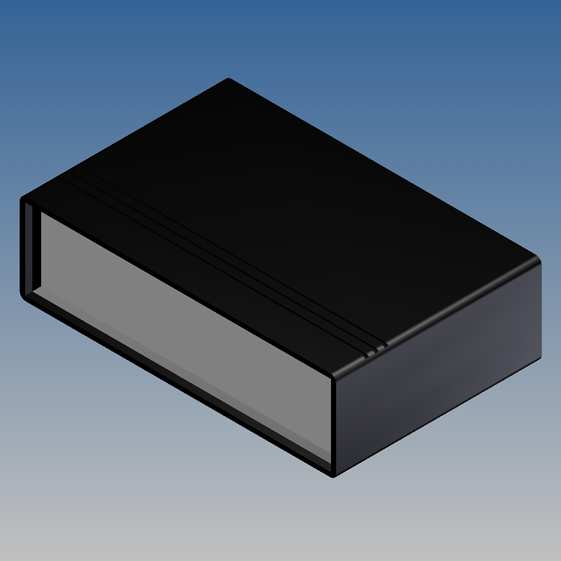

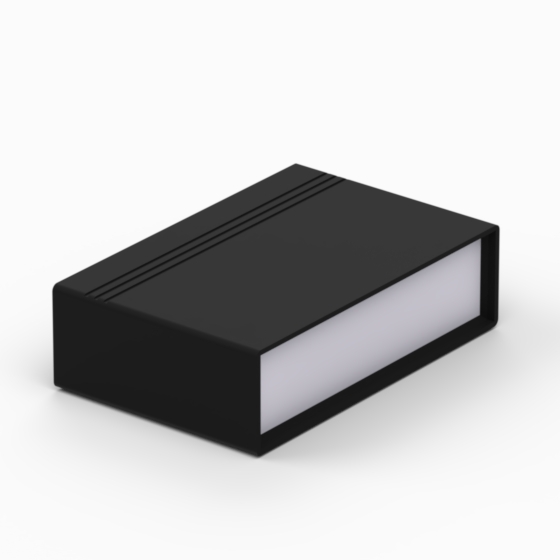

NE22.9 218 141,5 62 9004
P2H-AT 207,6 52,6 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 207,6
  • MAX PCB W (mm): 52,6
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

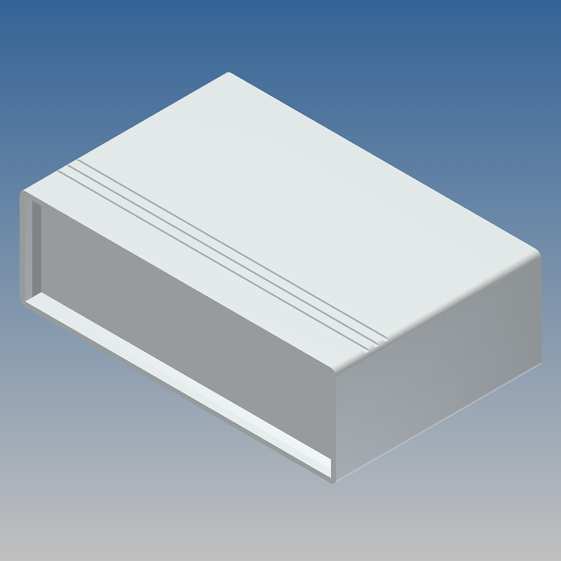

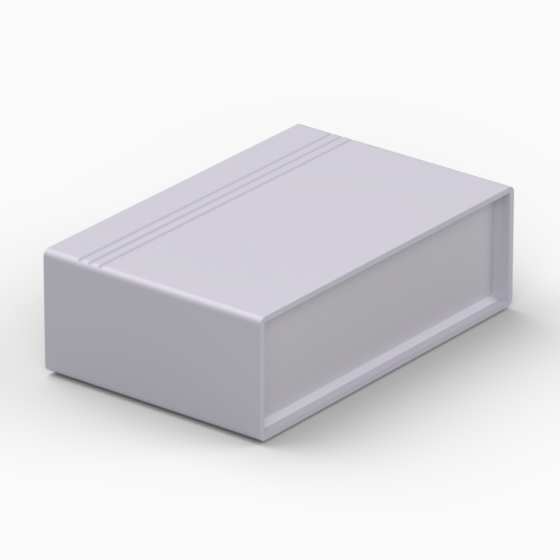

NE23.5 218 141,5 69 9018
AG-ATY 207,6 59,6 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 207,6
  • MAX PCB W (mm): 59,6
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

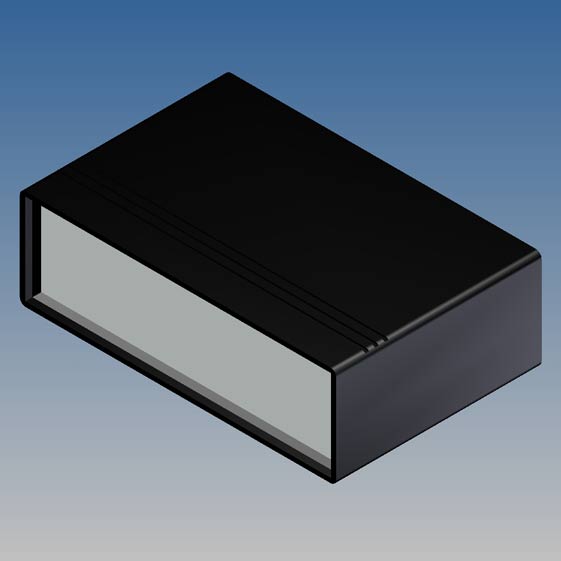

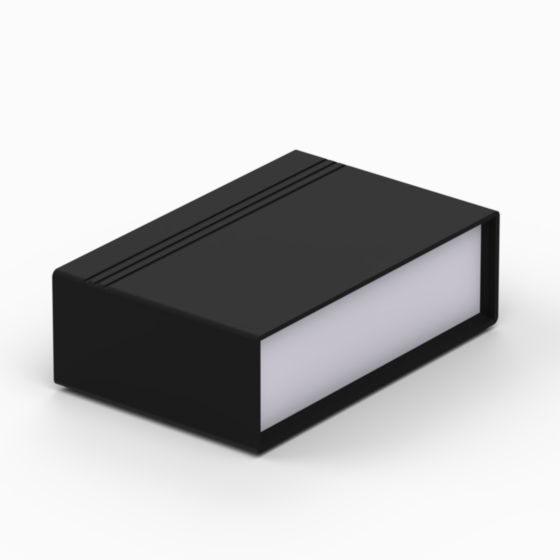

NE23.9 218 141,5 69 9004
P2H-AT 207,6 59,6 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 207,6
  • MAX PCB W (mm): 59,6
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

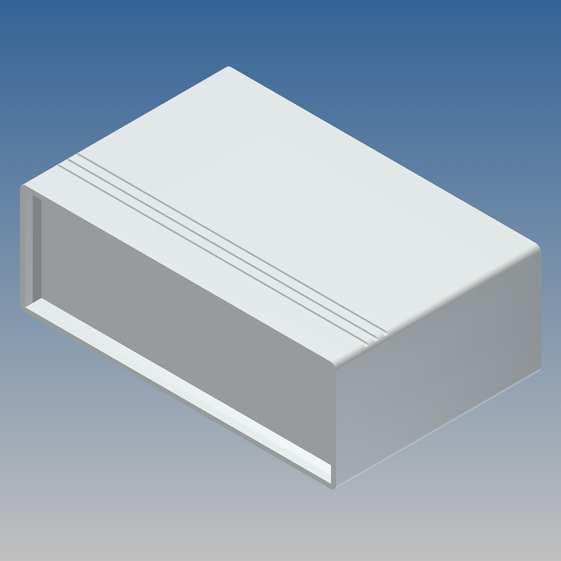

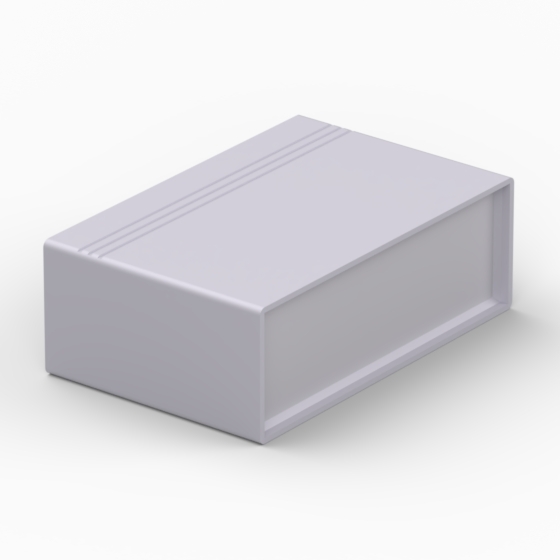

NE33.5 218 141,5 76 9018
AG-ATY 207,6 66,6 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 207,6
  • MAX PCB W (mm): 66,6
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

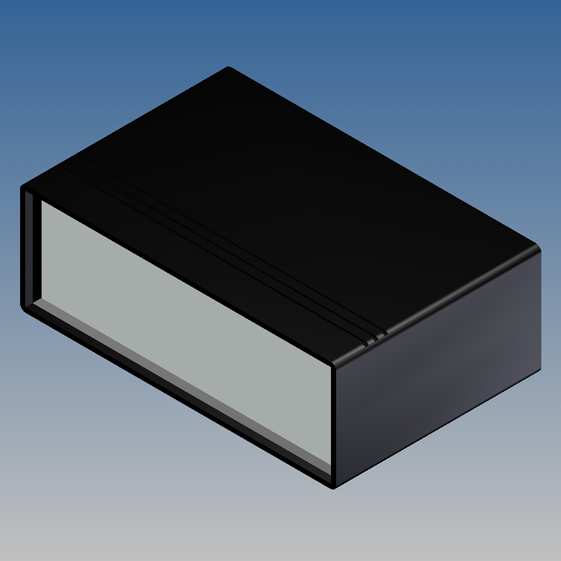

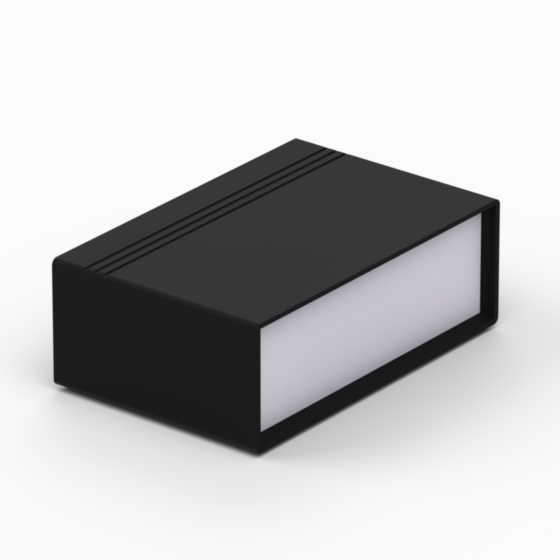

NE33.9 218 141,5 76 9004
P2H-AT 207,6 66,6 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 207,6
  • MAX PCB W (mm): 66,6
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

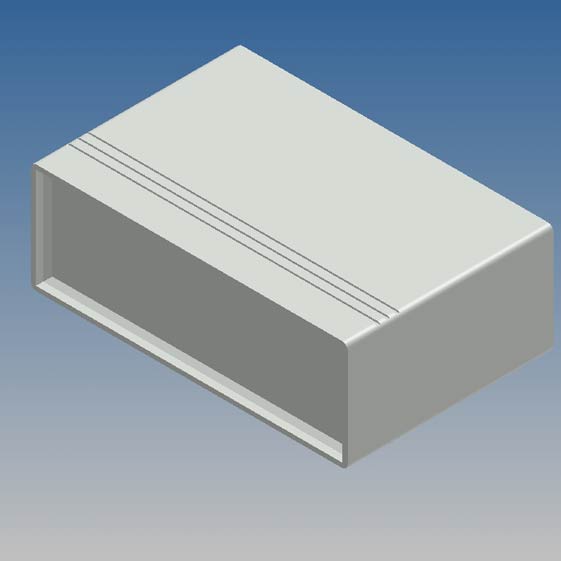

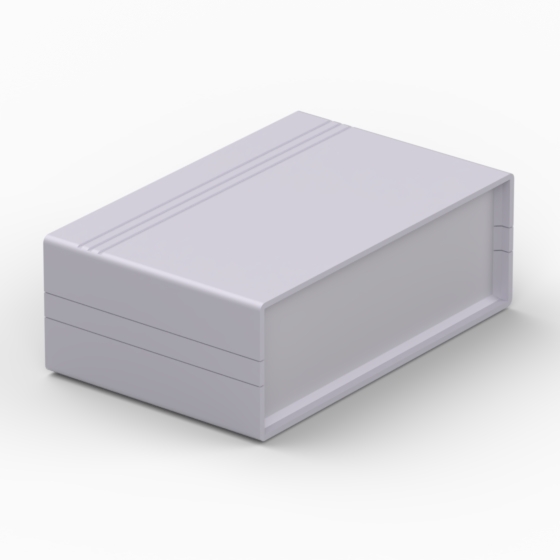

NE43.5 218 141,5 75,5 9018
AG-ATY 207,6 66 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 207,6
  • MAX PCB W (mm): 66
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

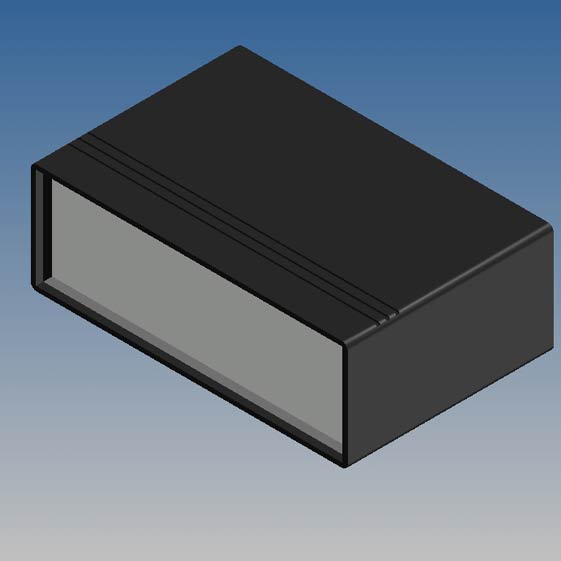

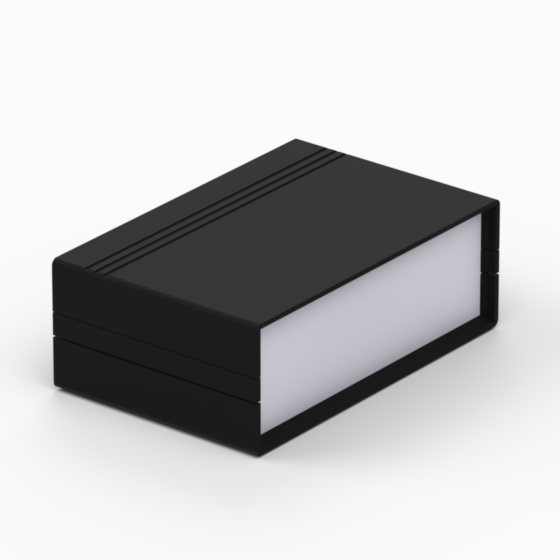

NE43.9 218 141,5 75,5 9004
P2H-AT 207,6 66 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 207,6
  • MAX PCB W (mm): 66
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
