STRUMENTALIA PULPIT

Family Strumentalia - Electronic enclosures - Plastic

Description

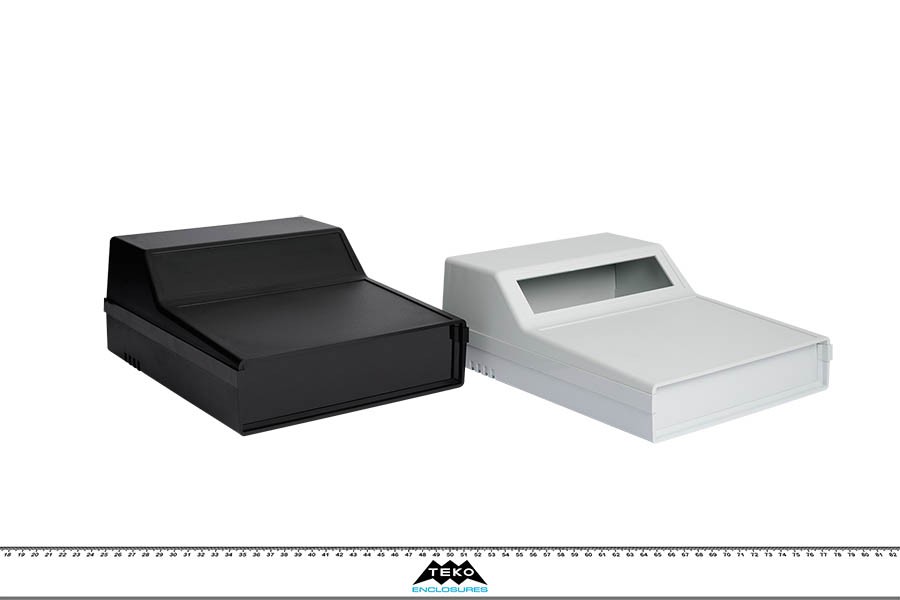

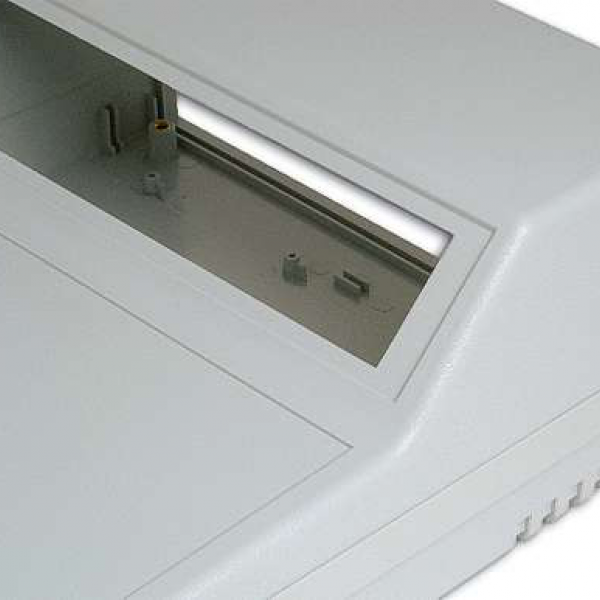

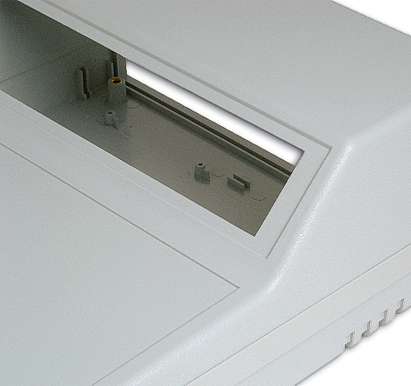

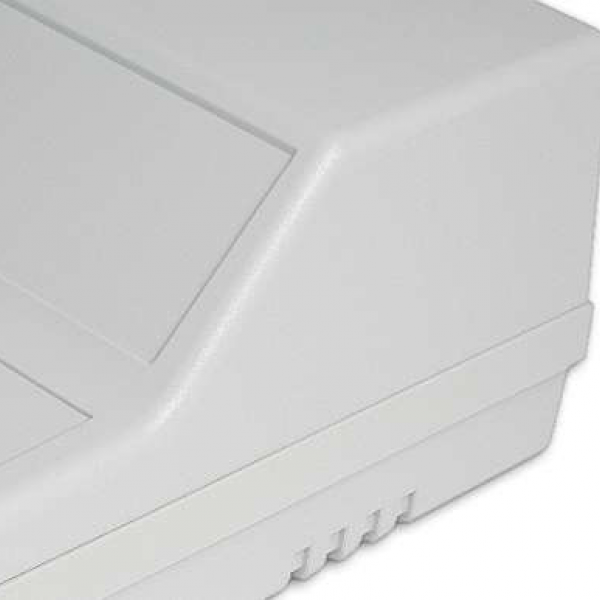

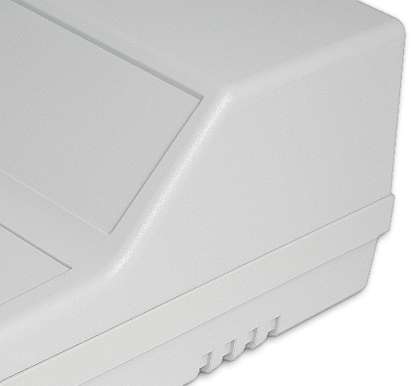

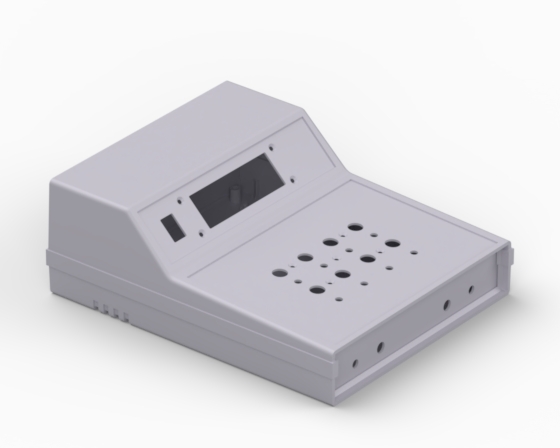

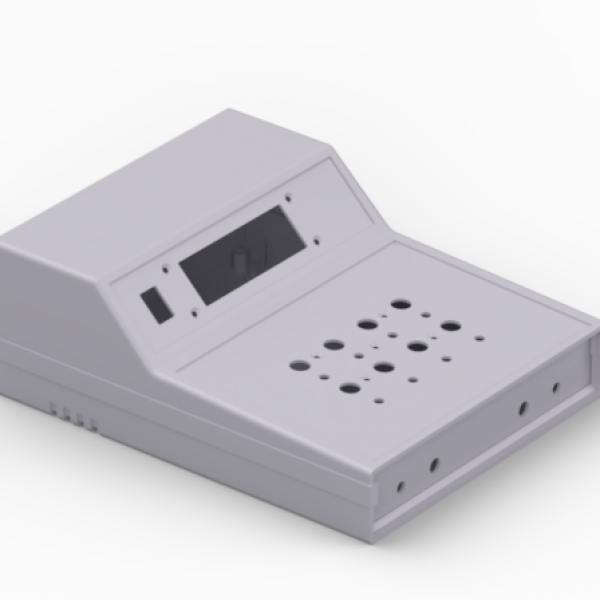

Cases with the front and rear panels moulded in ABS. The base and the cover have integral PCB guides and mounting studs. The models “763” and “764” have inclined cover with a recessed area or with cut-outs (175 x 35 mm.) for keyboard or display (Mod. 763/O and 764/O). Matt surface finish. Closing by four screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

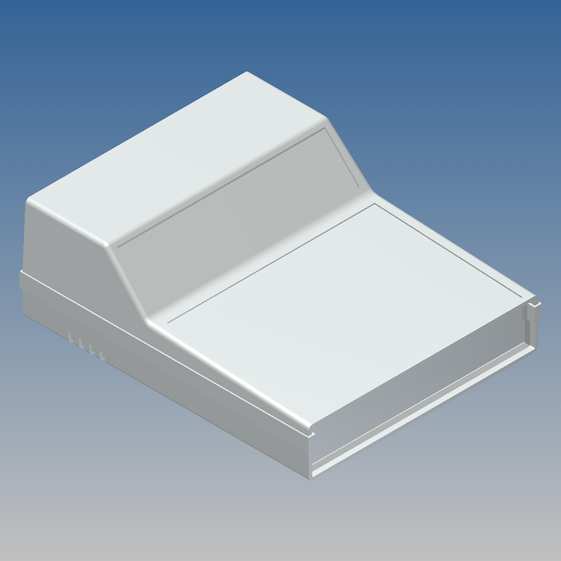

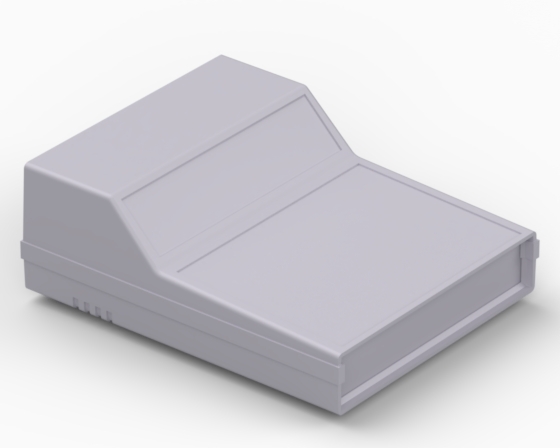

763.5 268 216 95,5 9018
AG-ATY 240 200 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

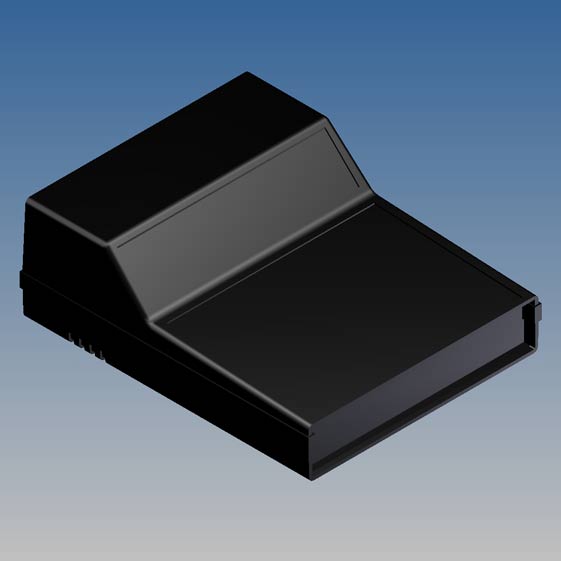

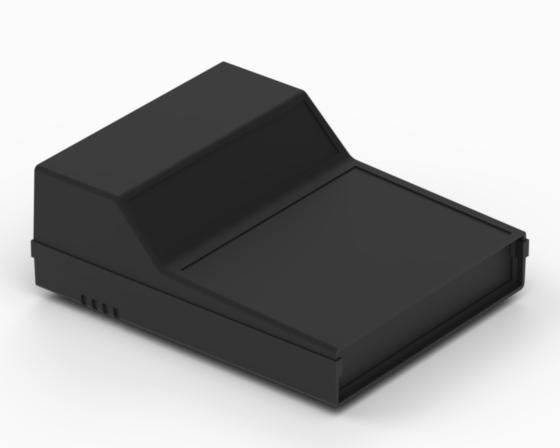

763.9 268 216 95,5 9004
P2H-AT 240 200 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

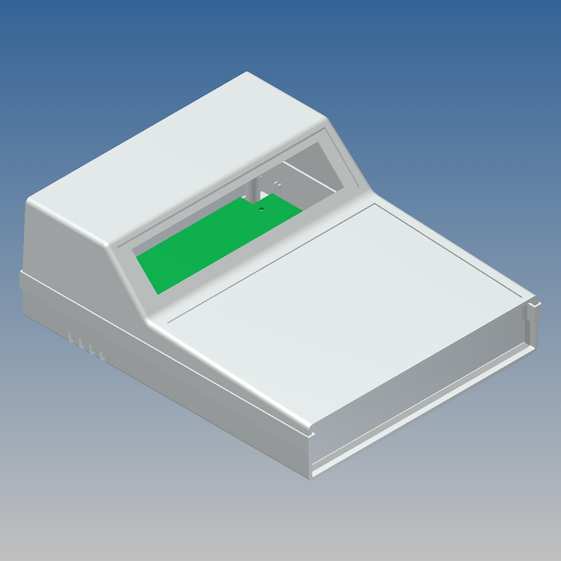

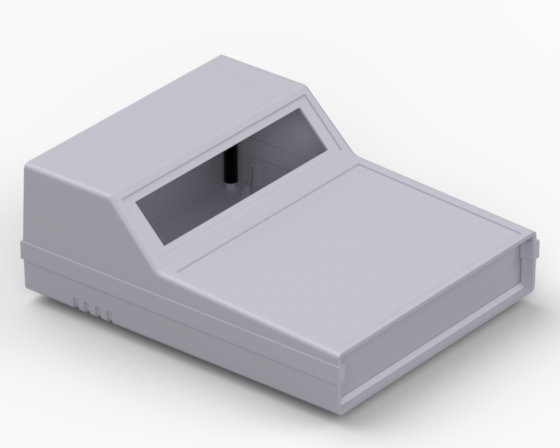

763/O.5 268 216 95,5 9018
AG-ATY 240 200 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

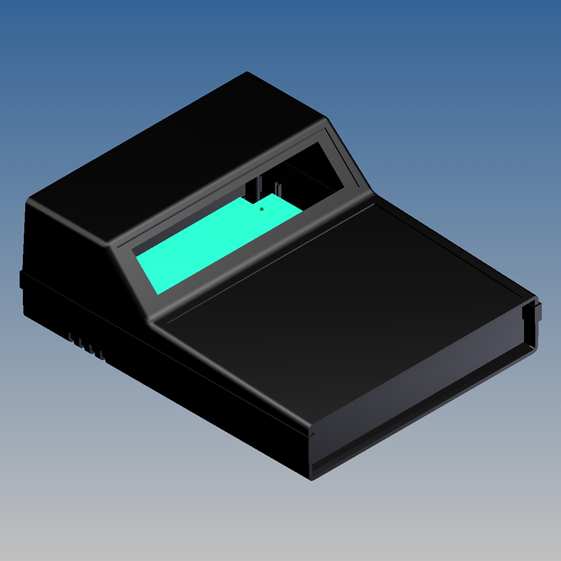

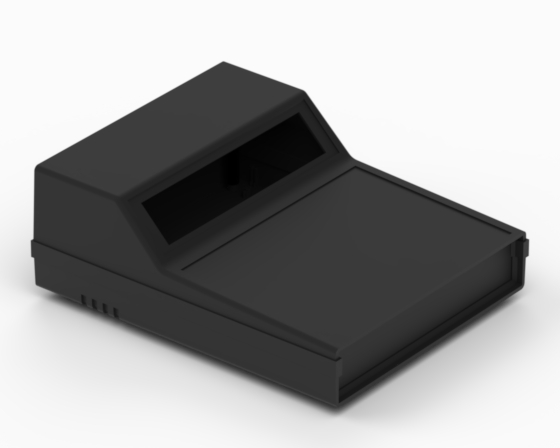

763/O.9 268 216 95,5 9004
P2H-AT 240 200 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

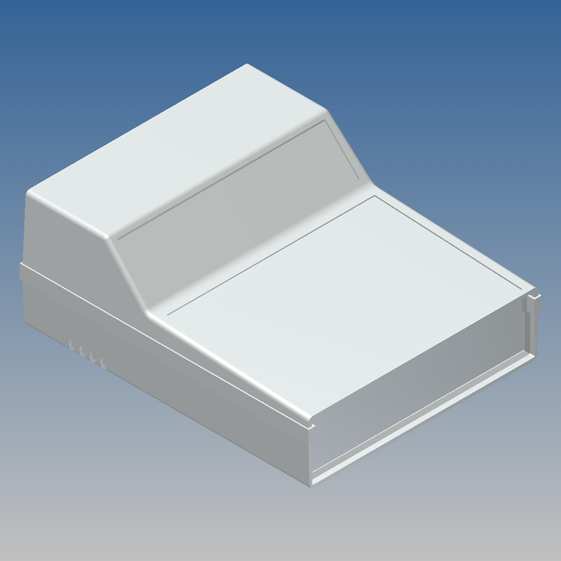

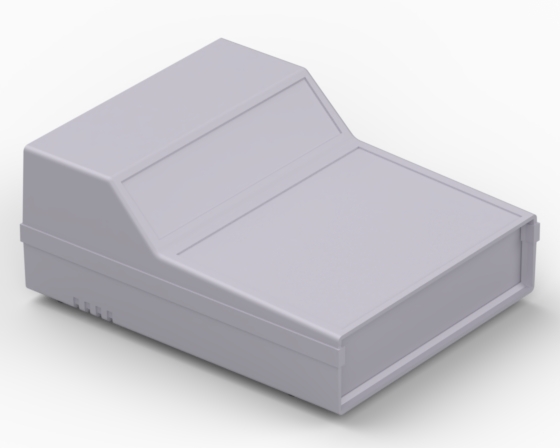

764.5 268 216 108,5 9018
AG-ATY 240 200 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

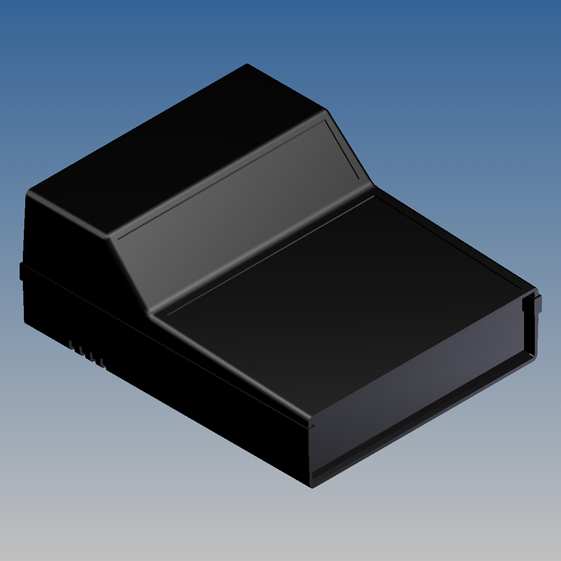

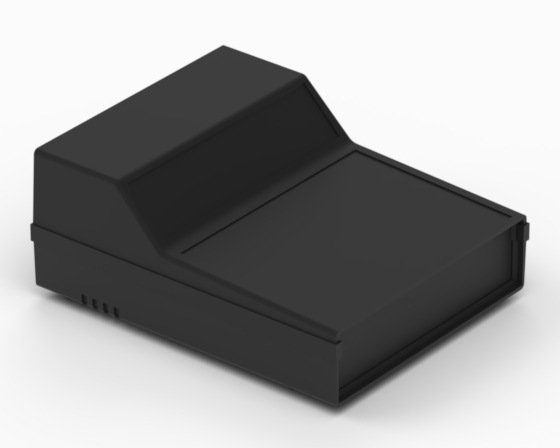

764.9 268 216 108,5 9004
P2H-AT 240 200 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

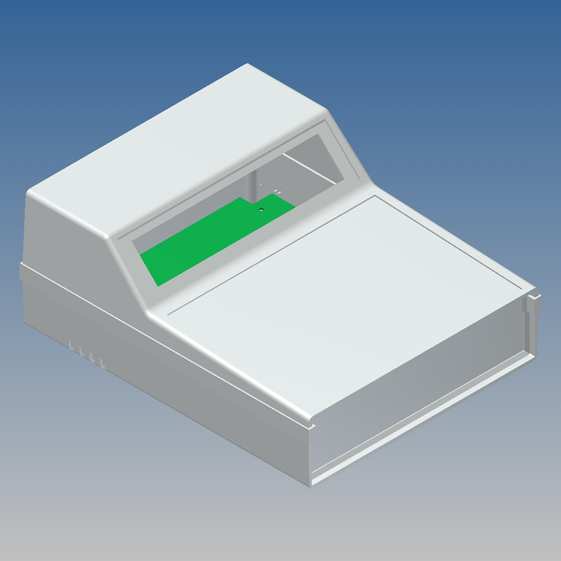

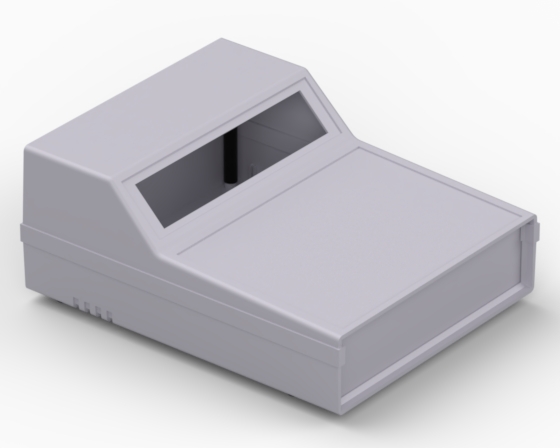

764/O.5 268 216 108,5 9018
AG-ATY 240 200 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

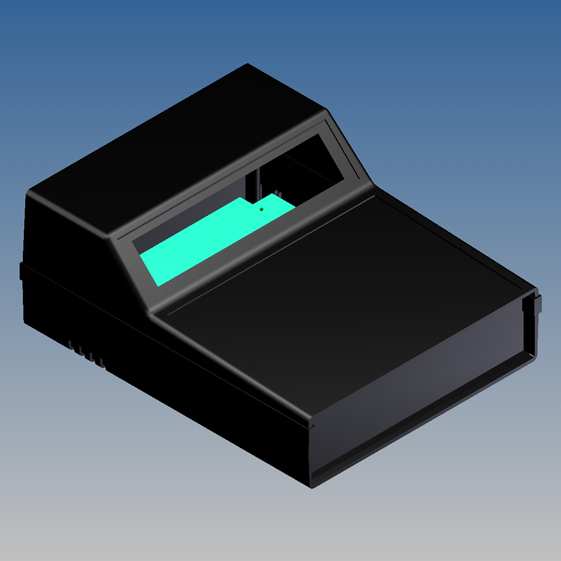

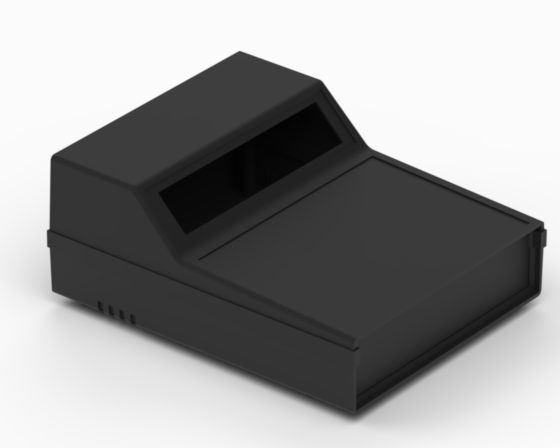

764/O.9 268 216 108,5 9004
P2H-AT 240 200 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
