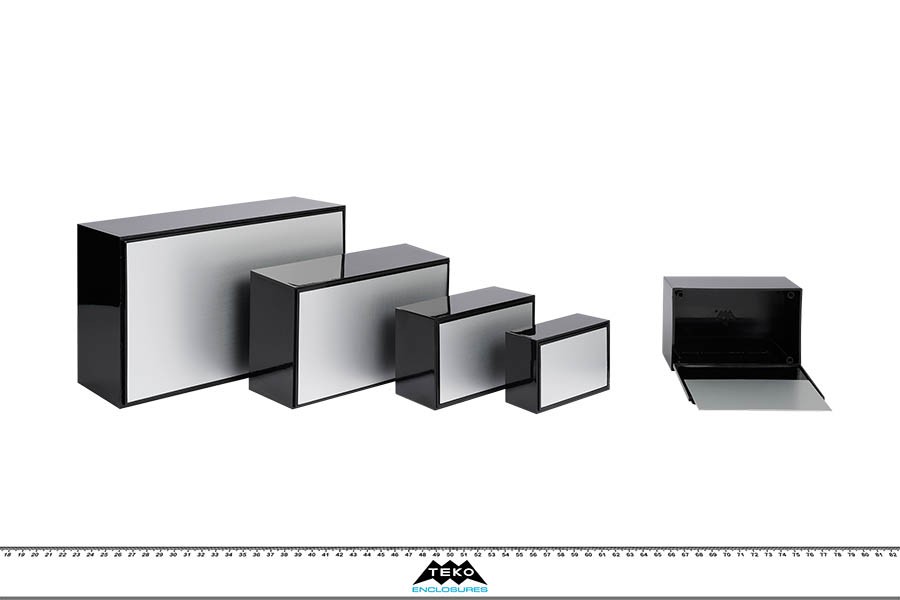

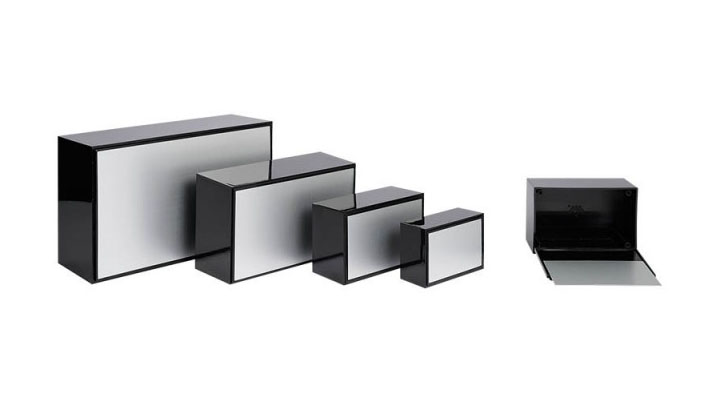

Family Top Cover - Electronic enclosures - Plastic

Description

ABS enclosures with a plastic cover and an aluminium panel. Glossy surface finish. The cover has a recessed area to hold an 0.5 mm anodized aluminium panel. The base walls have integral PCB guides. Closing by four screws.

Details

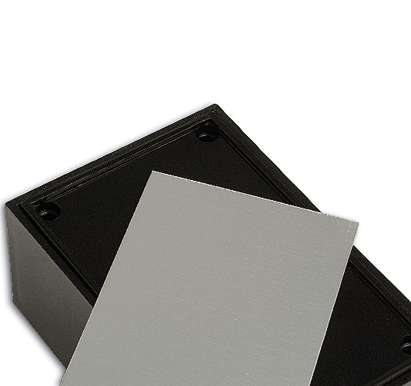

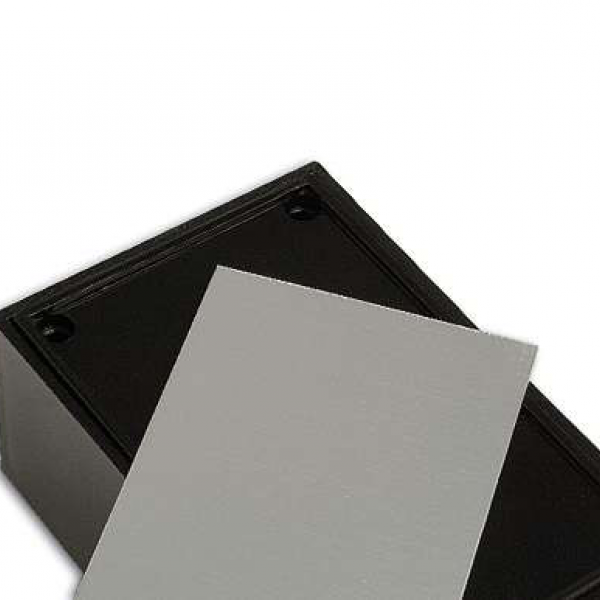

15 - dettaglio 1

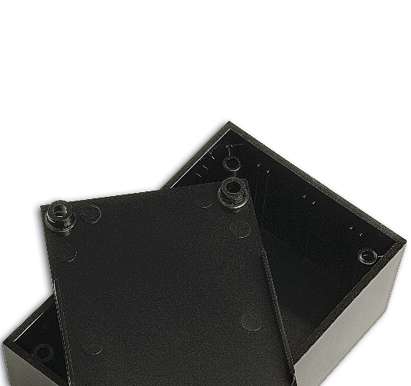

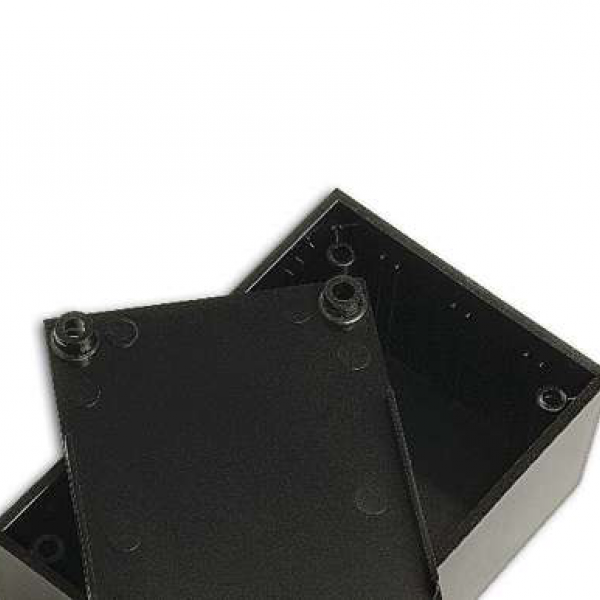

15 - dettaglio 2

Products

	Model	L (mm)	W (mm)	H (mm)	Color (Ral)	Material	MAX PCB L (mm)	MAX PCB W (mm)	Screws	Battery	Accessories	Drawings	Other

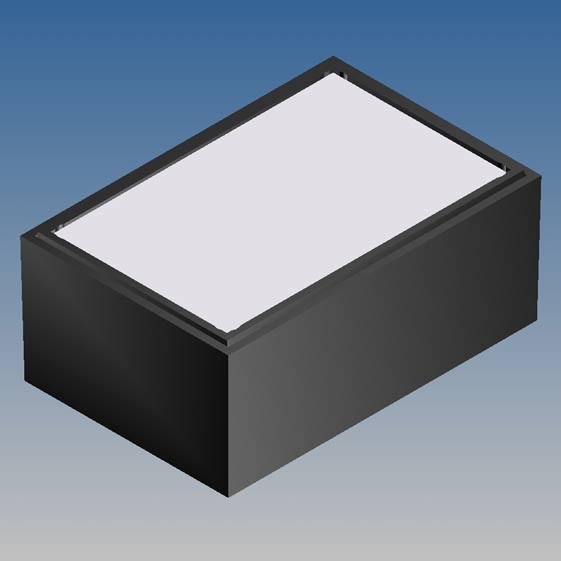

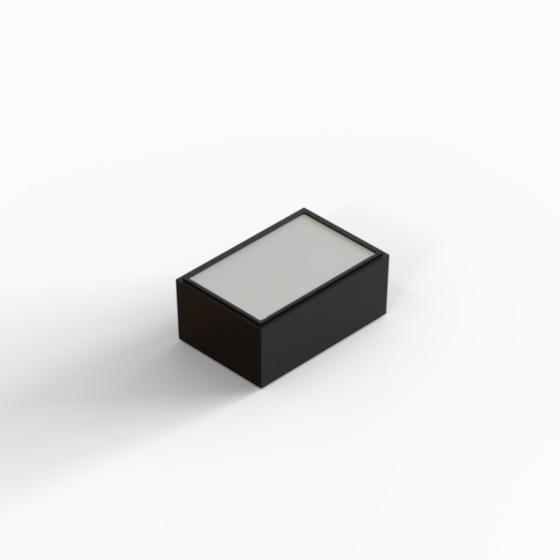

	151/P.9	85	56	36,6	9004	ALLOY 6060 - 1640 AS	80	25	4	-			View Color (Ral): 9004 Material: ALLOY 6060 - 1640 AS MAX PCB L (mm): 80 MAX PCB W (mm): 25 Screws: 4 Battery: - Accessories: Drawings: PDF DWG

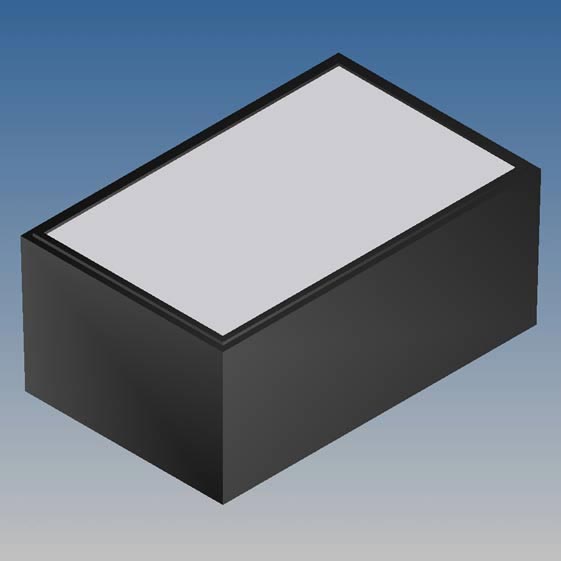

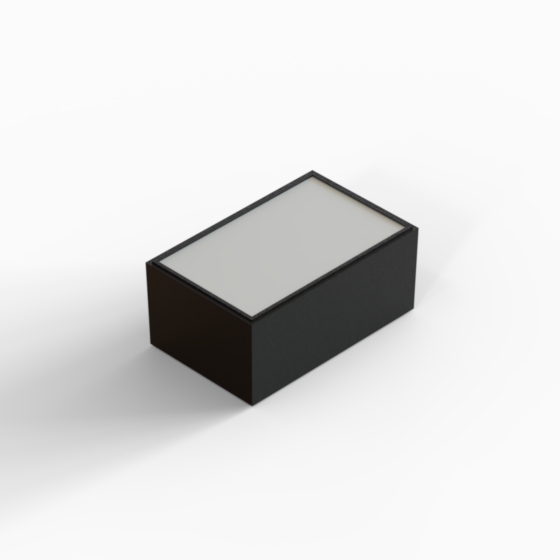

	152/P.9	110	70	48,9	9004	ALLOY 6060 - 1640 AS	103,5	37	4	-			View Color (Ral): 9004 Material: ALLOY 6060 - 1640 AS MAX PCB L (mm): 103,5 MAX PCB W (mm): 37 Screws: 4 Battery: - Accessories: Drawings: PDF DWG

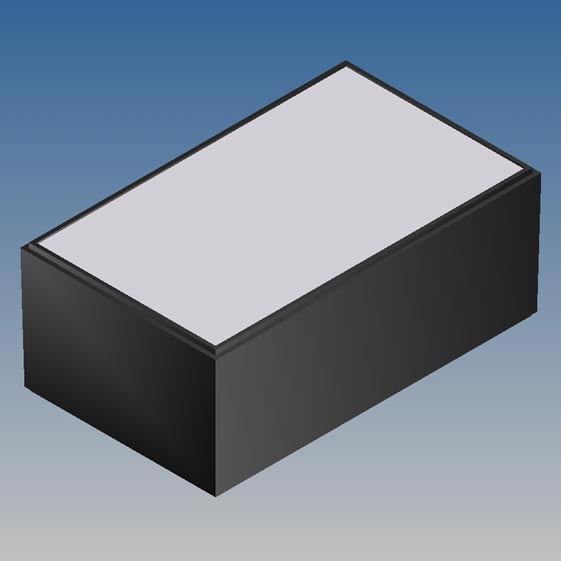

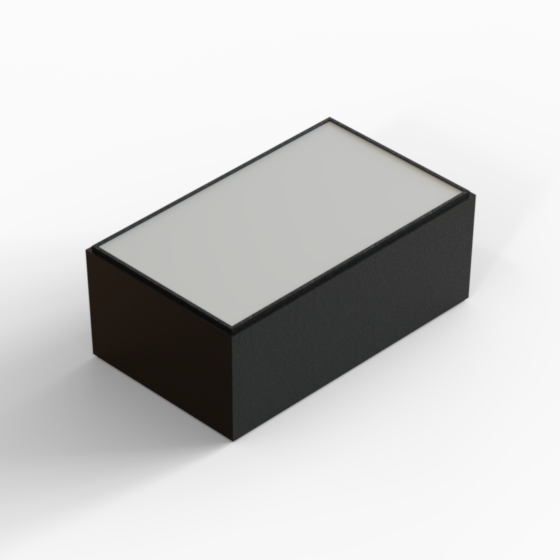

	153/P.9	160	96	63,2	9004	ALLOY 6060 - 1640 AS	154	49	4	-			View Color (Ral): 9004 Material: ALLOY 6060 - 1640 AS MAX PCB L (mm): 154 MAX PCB W (mm): 49 Screws: 4 Battery: - Accessories: Drawings: PDF DWG

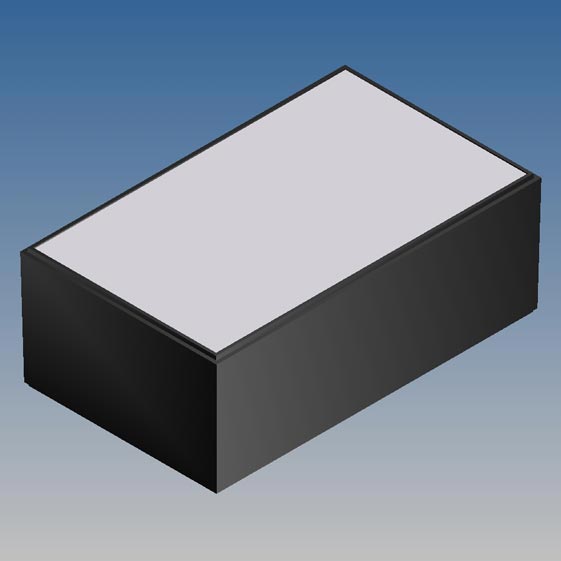

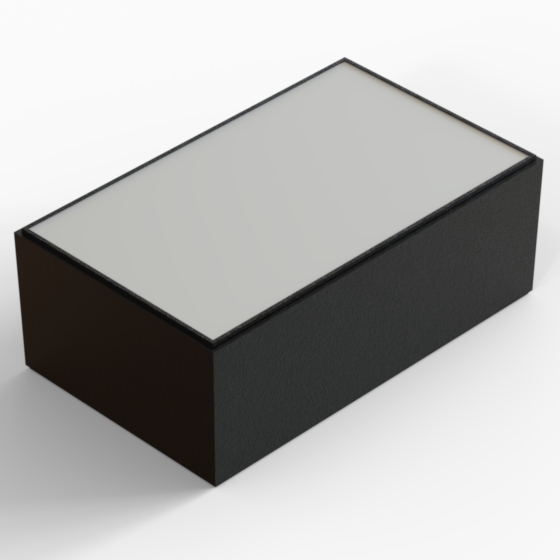

	154/P.9	215	130	79,4	9004	ALLOY 6060 - 1640 AS	208	64,5	4	-			View Color (Ral): 9004 Material: ALLOY 6060 - 1640 AS MAX PCB L (mm): 208 MAX PCB W (mm): 64,5 Screws: 4 Battery: - Accessories: Drawings: PDF DWG
