Description

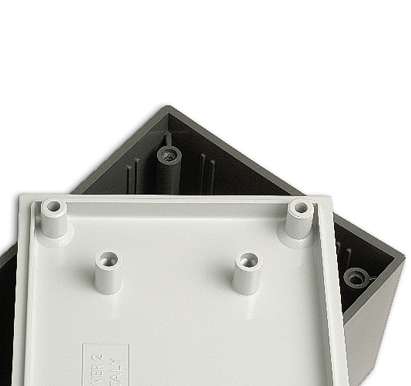

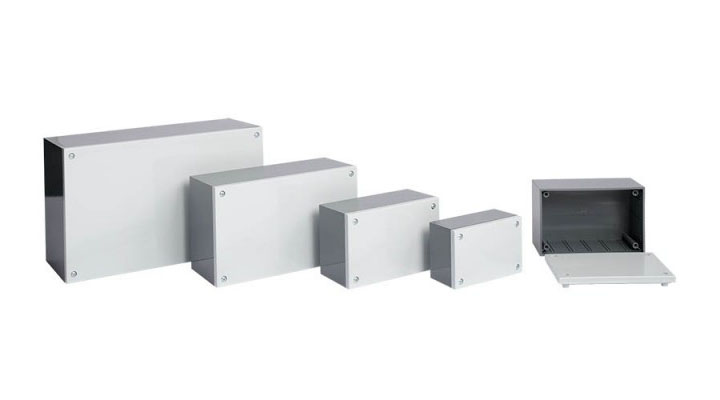

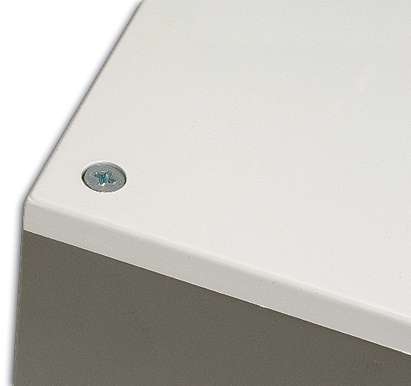

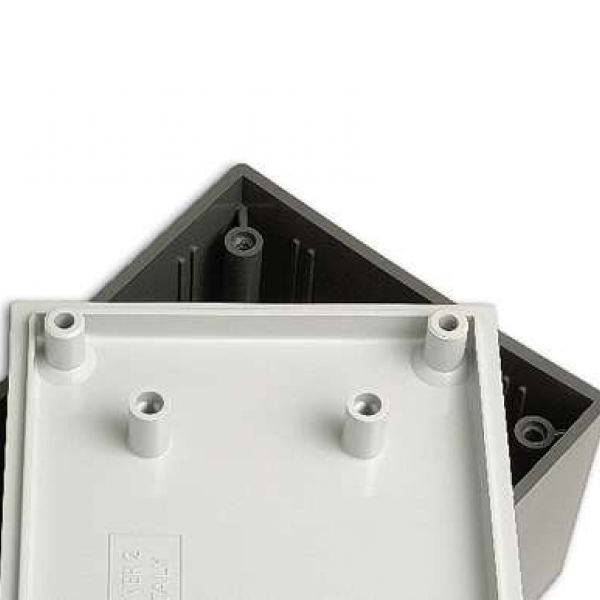

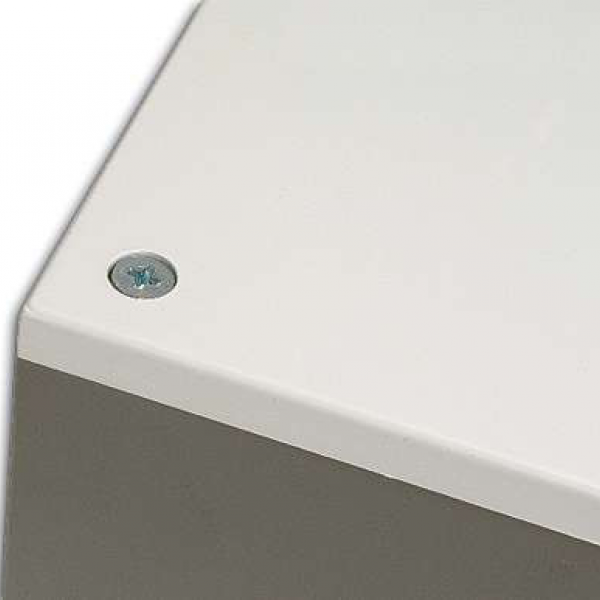

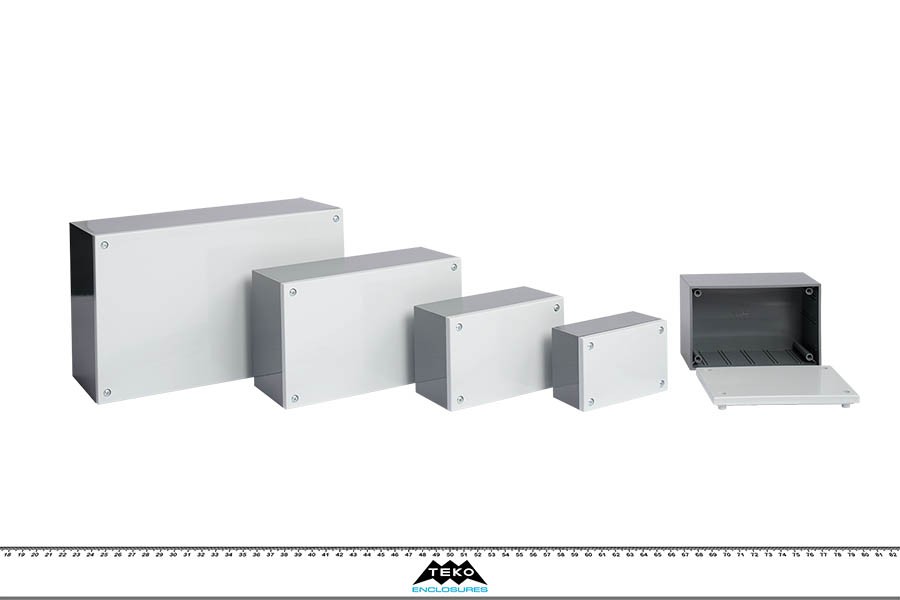

ABS enclosures with square corners and glossy surface finish. The base walls have integral PCB guides.“CP” series have two-tone colour scheme, the cover is always in light gray colour. Closing by four screws.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

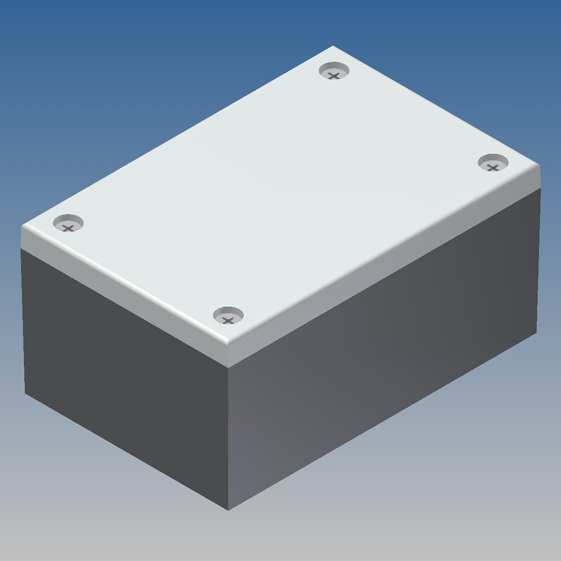

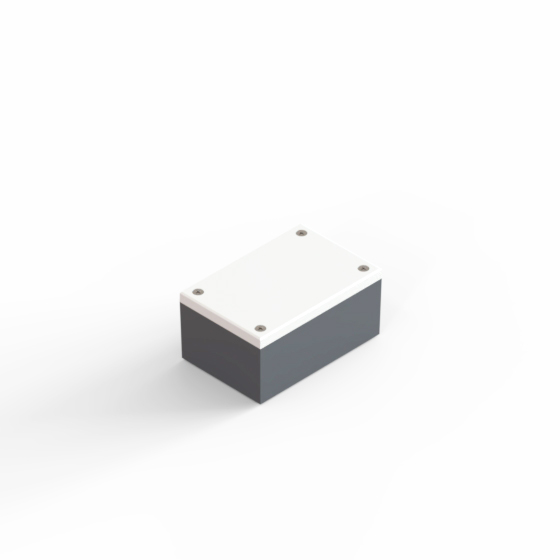

CP/1.20 | 85 | 56 | 41,4 |
7012 9018 |
N-UT - AG-ATY | 80 | 25 | 4 | - |
PDF DWG |
||
|

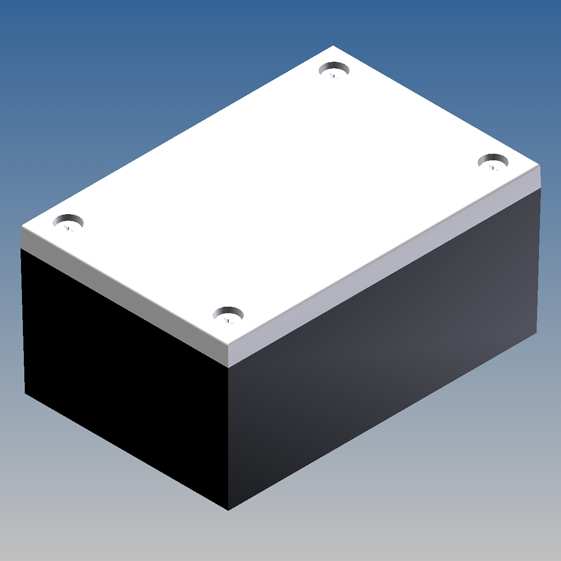

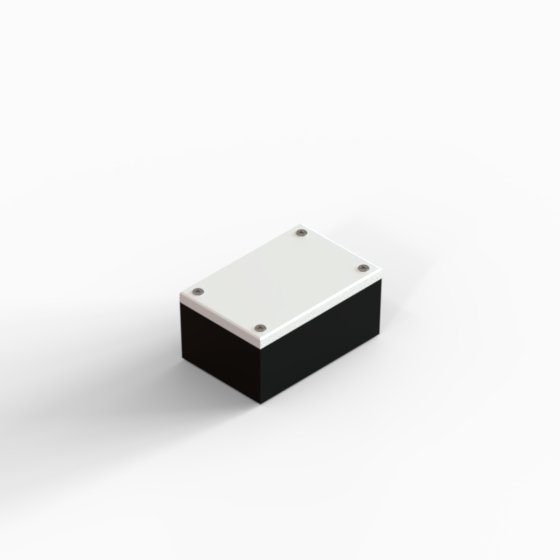

CP/1.23 | 85 | 56 | 41,4 |
9004 9018 |
P2H-AT - AG-ATY | 80 | 25 | 4 | - |
PDF DWG |
||
|

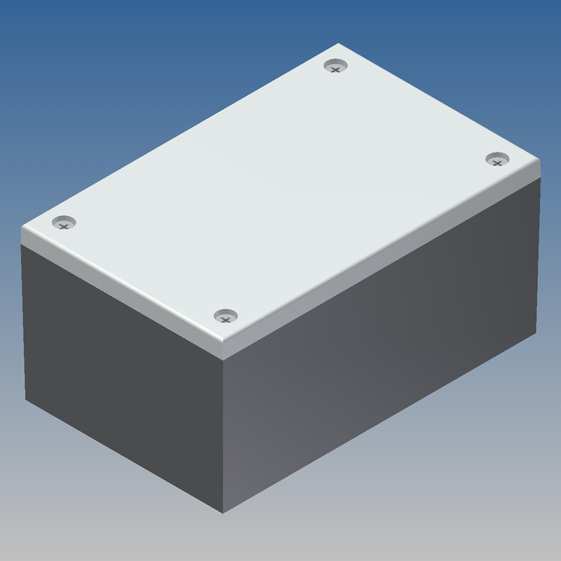

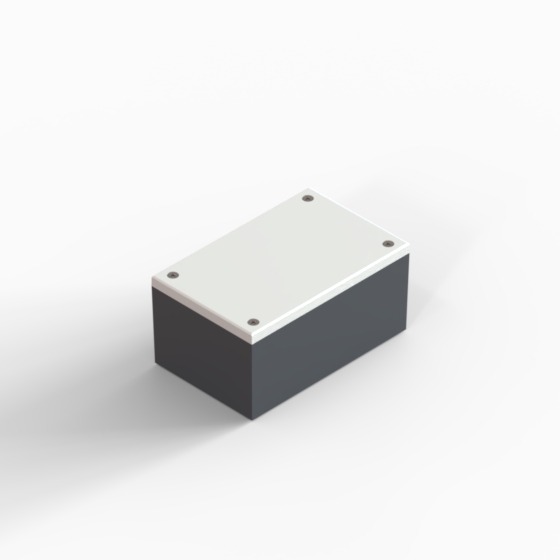

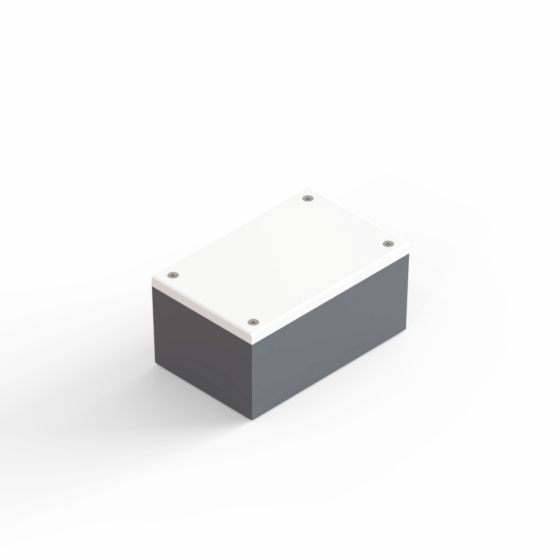

CP/2.20 | 110 | 70 | 53,9 |
7012 9018 |
N-UT - AG-ATY | 103,5 | 37 | 4 | - |
PDF DWG |
||
|

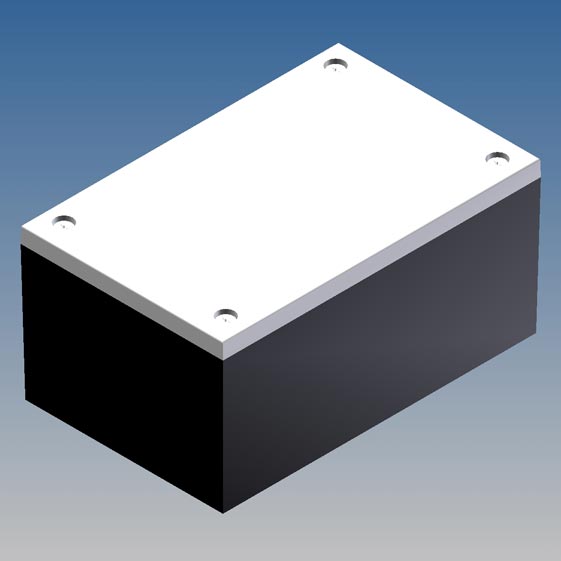

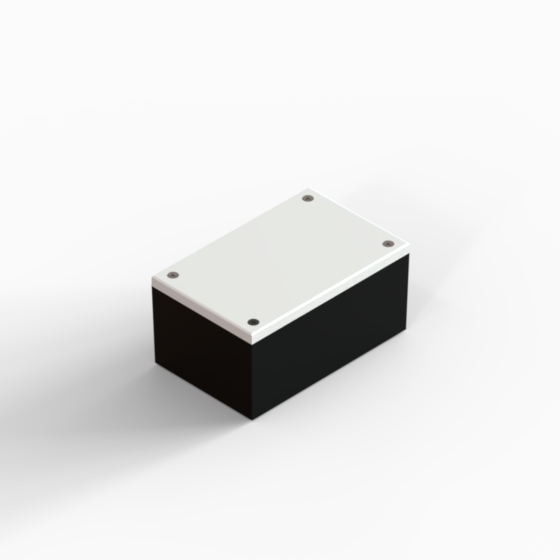

CP/2.23 | 110 | 70 | 53,9 |
9004 9018 |
P2H-AT - AG-ATY | 103,5 | 37 | 4 | - |
PDF DWG |
||
|

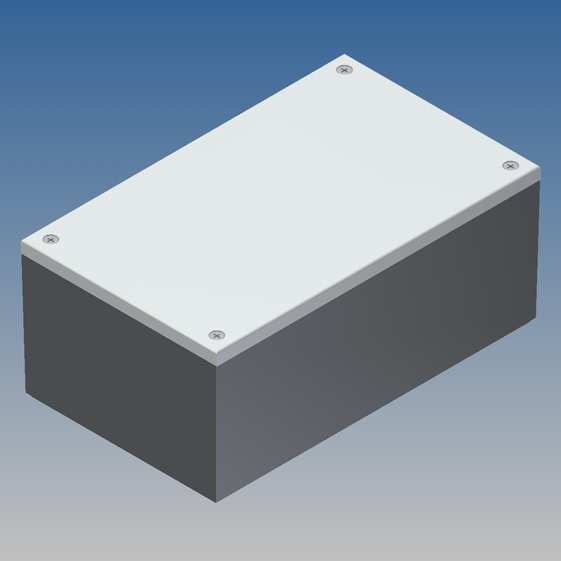

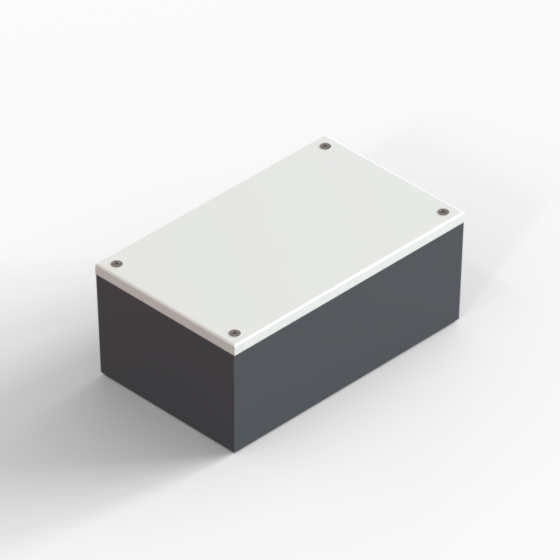

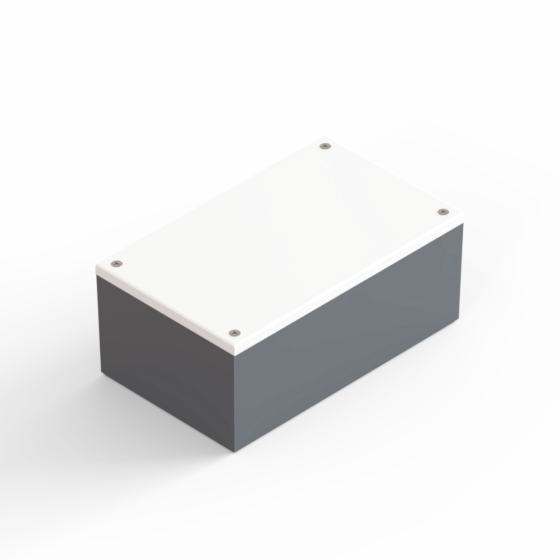

CP/3.20 | 160 | 96 | 66,9 |
7012 9018 |
N-UT - AG-ATY | 154 | 49 | 4 | - |
PDF DWG |
||
|

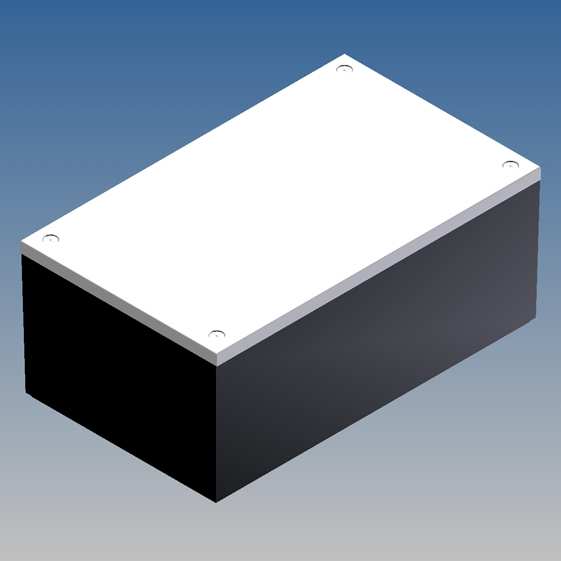

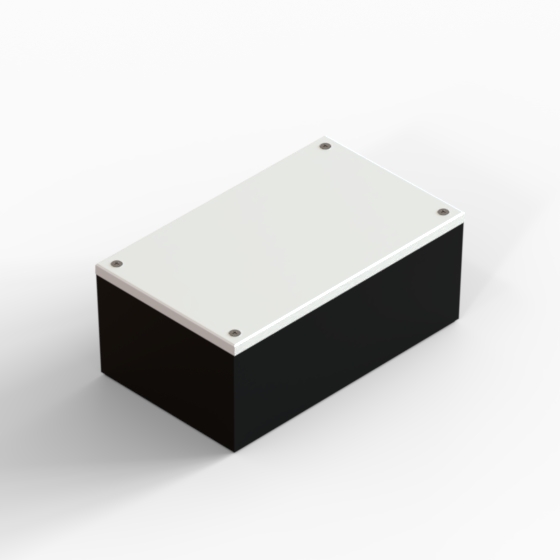

CP/3.23 | 160 | 96 | 66,9 |
9004 9018 |
P2H-AT - AG-ATY | 154 | 49 | 4 | - |
PDF DWG |
||
|

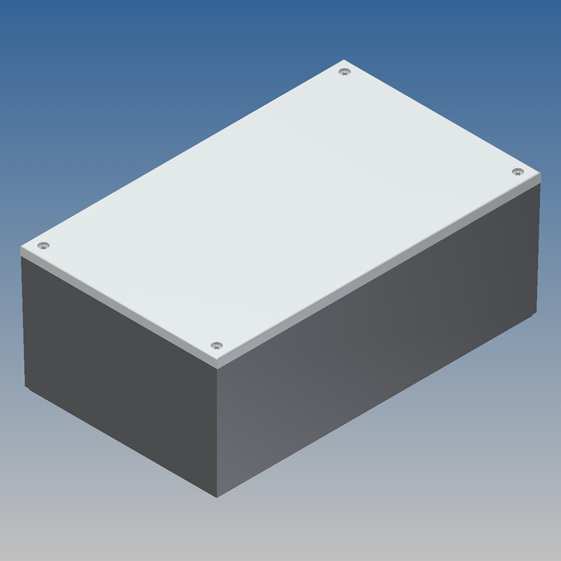

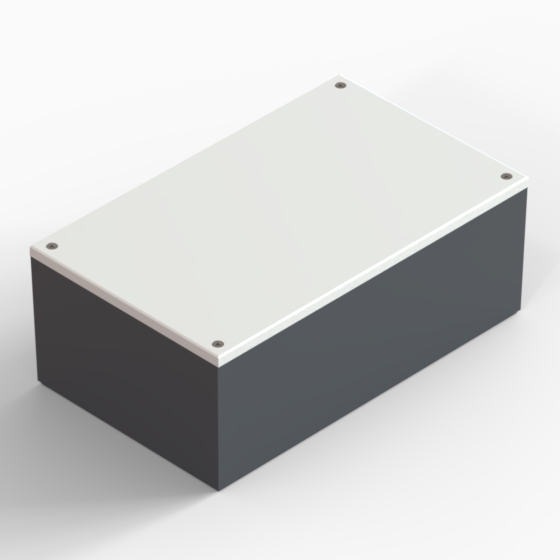

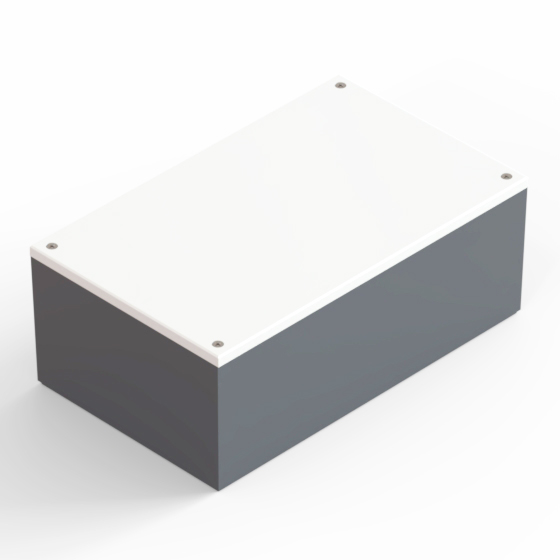

CP/4.20 | 215 | 130 | 82,9 |
7012 9018 |
N-UT - AG-ATY | 208 | 64,5 | 4 | - |
PDF DWG |
||
|

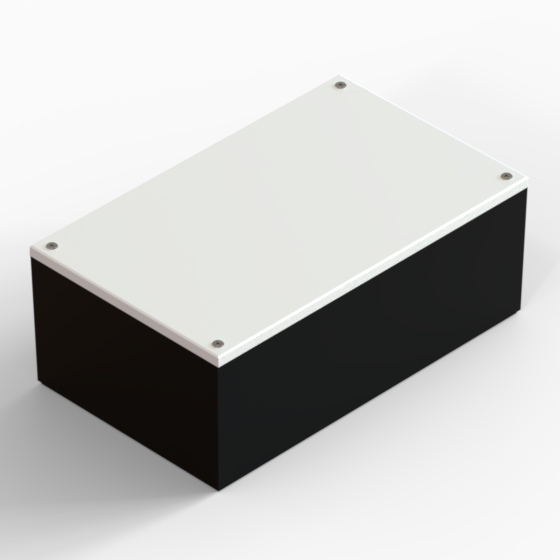

CP/4.23 | 215 | 130 | 82,9 |
9004 9018 |
P2H-AT - AG-ATY | 208 | 64,5 | 4 | - |
PDF DWG |
12 product families, 152 series. You can't find what you're looking for? Contact us
