Family Top Cover - Electronic enclosures - Plastic

Description

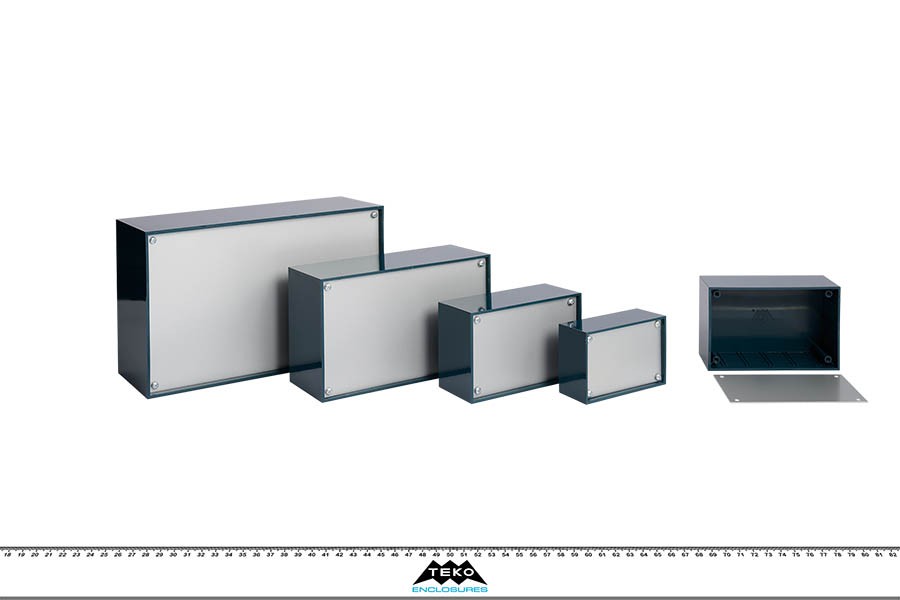

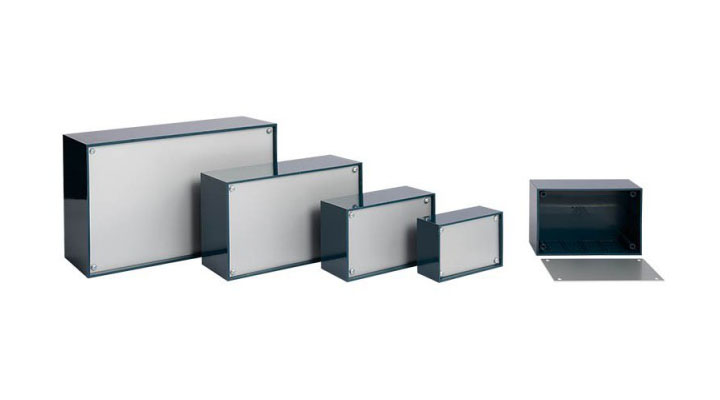

ABS enclosures with square corners and glossy surface finish. The base walls have integral PCB guides. P series have 1 mm aluminium panel. The models “M1” and “M1/P” have a flanged panel for easy mounting. Closing by four screws. Upon request light gray Polystyrene panel suitable (Mod. PP1, PP2, PP3, PP4).

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

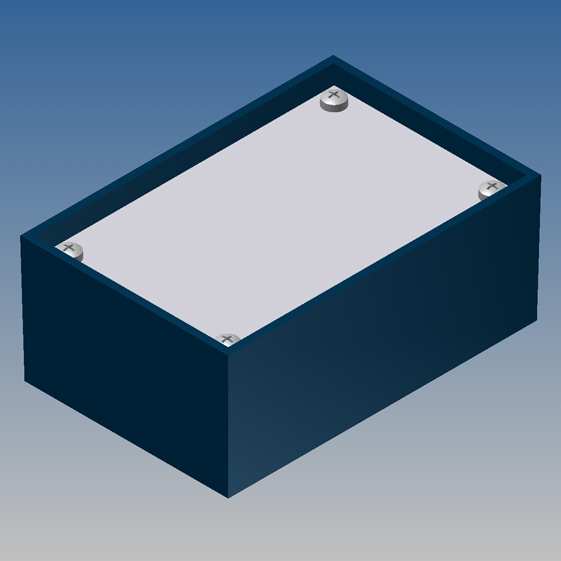

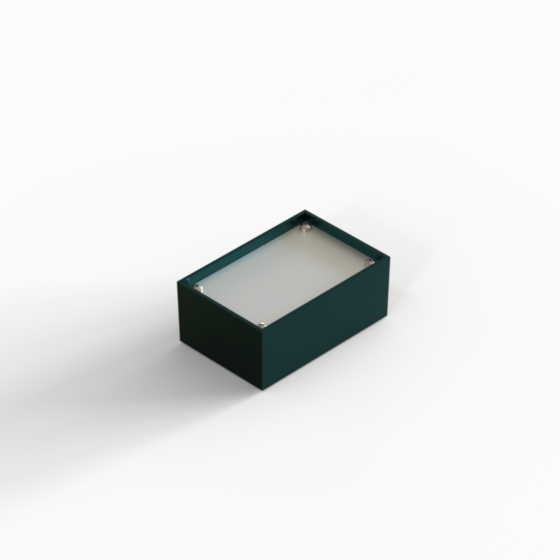

P/1.10 85 56 35,5 5020
N-UT 80 25 4 - PP1
PDF
DWG
View
  • Color (Ral): 5020
  • Material: N-UT
  • MAX PCB L (mm): 80
  • MAX PCB W (mm): 25
  • Screws: 4
  • Battery: -
  • Accessories: PP1
  • Drawings:  PDF  DWG

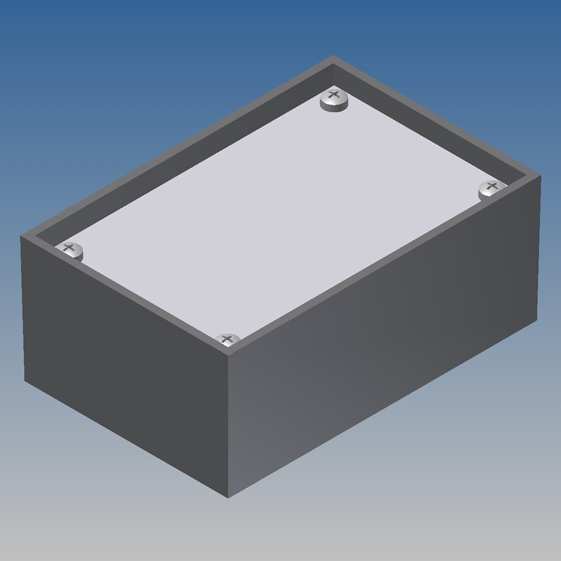

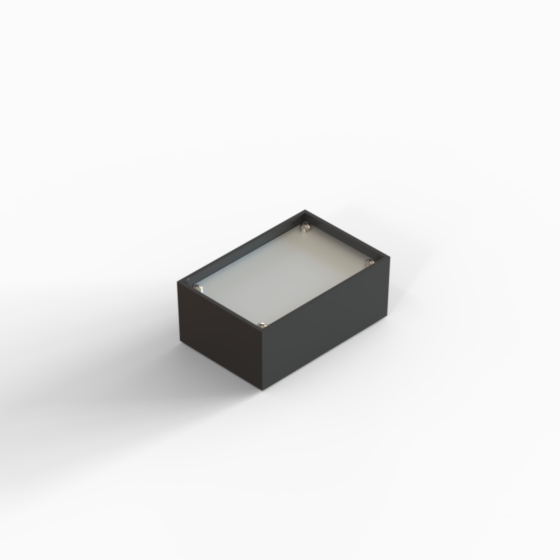

P/1.2 85 56 35,5 7012
N-UT 80 25 4 - PP1
PDF
DWG
View
  • Color (Ral): 7012
  • Material: N-UT
  • MAX PCB L (mm): 80
  • MAX PCB W (mm): 25
  • Screws: 4
  • Battery: -
  • Accessories: PP1
  • Drawings:  PDF  DWG

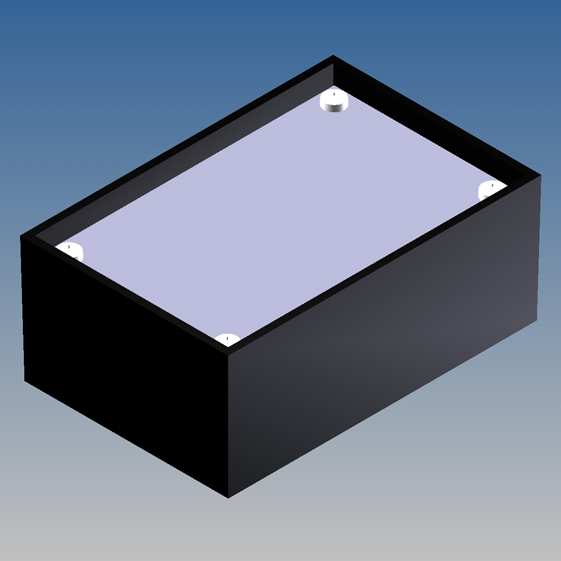

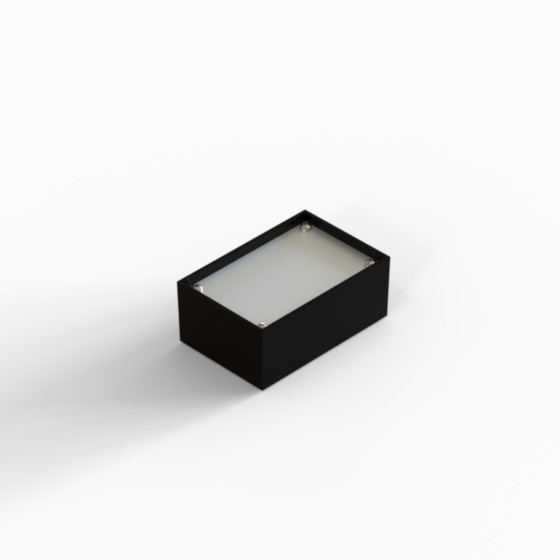

P/1.9 85 56 35,5 9004
P2H-AT 80 25 4 - PP1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 80
  • MAX PCB W (mm): 25
  • Screws: 4
  • Battery: -
  • Accessories: PP1
  • Drawings:  PDF  DWG

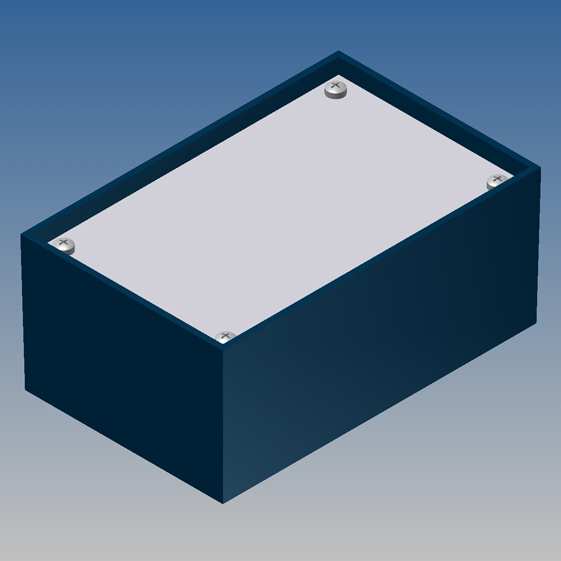

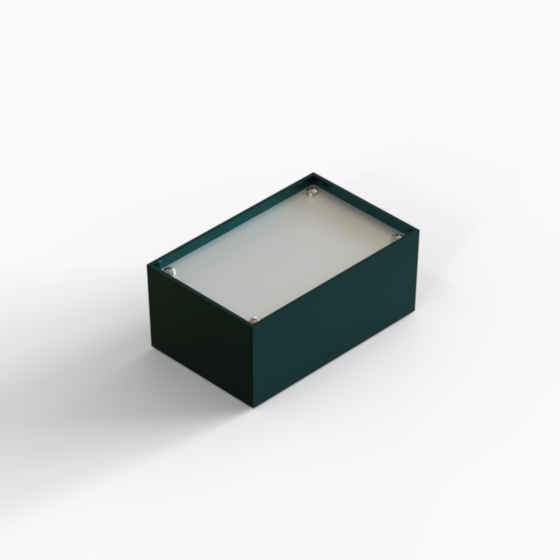

P/2.10 110 70 48 5020
N-UT 103,5 37 4 - PP2
PDF
DWG
View
  • Color (Ral): 5020
  • Material: N-UT
  • MAX PCB L (mm): 103,5
  • MAX PCB W (mm): 37
  • Screws: 4
  • Battery: -
  • Accessories: PP2
  • Drawings:  PDF  DWG

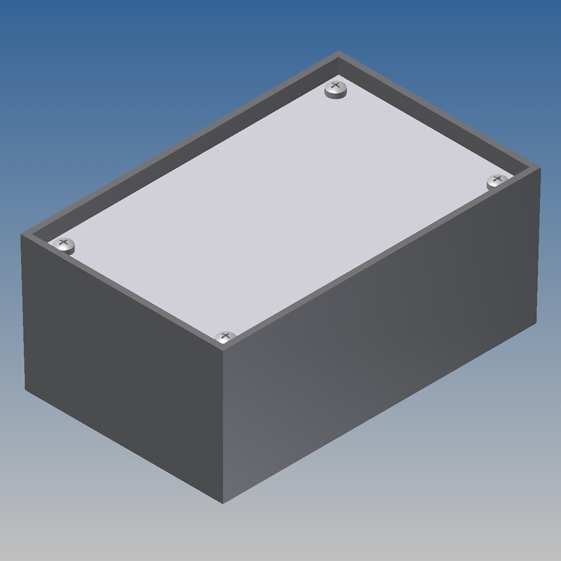

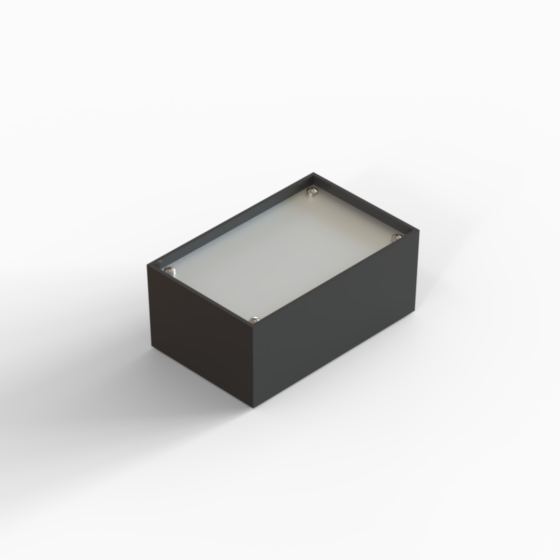

P/2.2 110 70 48 7012
N-UT 103,5 37 4 - PP2
PDF
DWG
View
  • Color (Ral): 7012
  • Material: N-UT
  • MAX PCB L (mm): 103,5
  • MAX PCB W (mm): 37
  • Screws: 4
  • Battery: -
  • Accessories: PP2
  • Drawings:  PDF  DWG

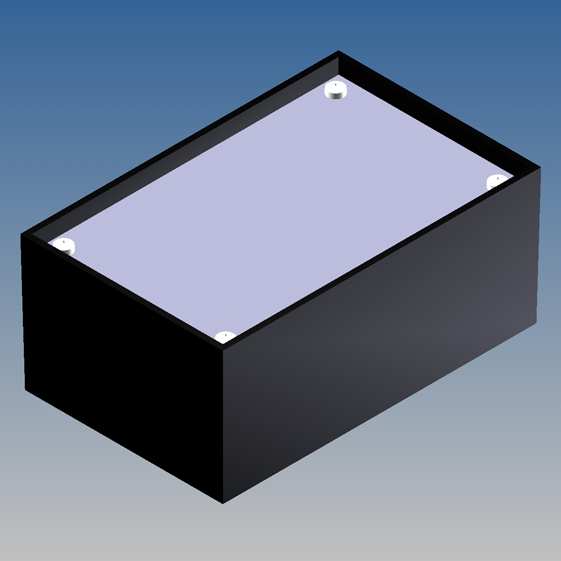

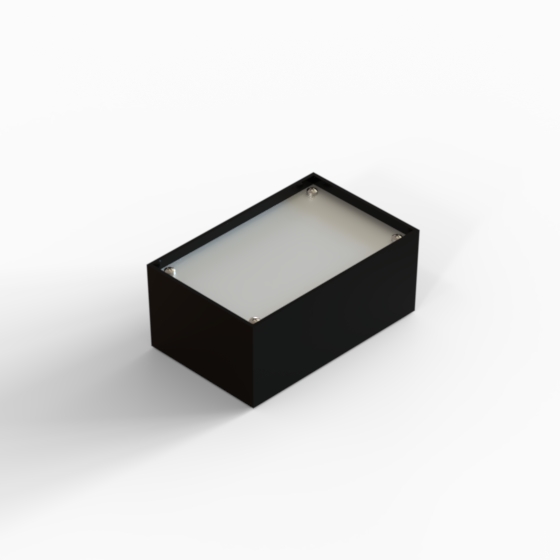

P/2.9 110 70 48 9004
P2H-AT 103,5 37 4 - PP2
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 103,5
  • MAX PCB W (mm): 37
  • Screws: 4
  • Battery: -
  • Accessories: PP2
  • Drawings:  PDF  DWG

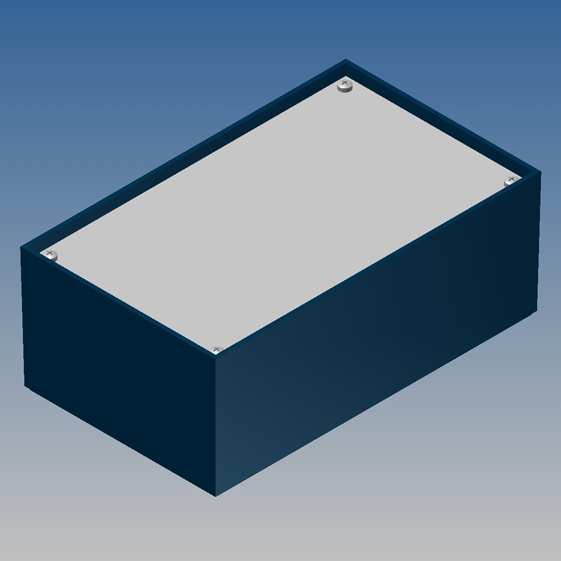

P/3.10 160 96 61 5020
N-UT 154 49 4 - PP3
PDF
DWG
View
  • Color (Ral): 5020
  • Material: N-UT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 49
  • Screws: 4
  • Battery: -
  • Accessories: PP3
  • Drawings:  PDF  DWG
P/3.2 160 96 61 7012
N-UT 154 49 4 - PP3
PDF
DWG
View
  • Color (Ral): 7012
  • Material: N-UT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 49
  • Screws: 4
  • Battery: -
  • Accessories: PP3
  • Drawings:  PDF  DWG

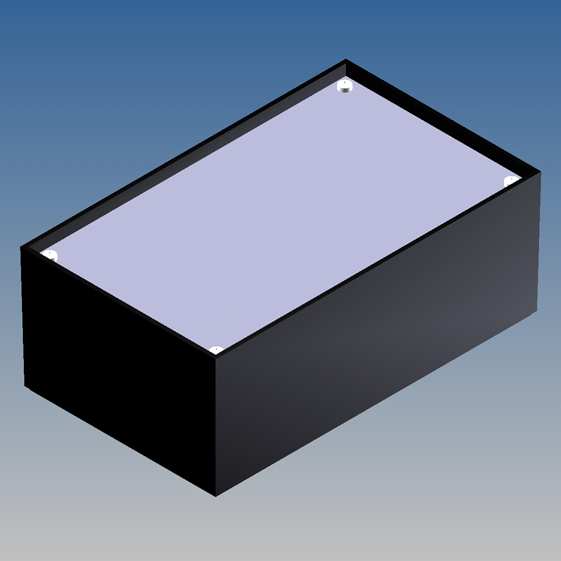

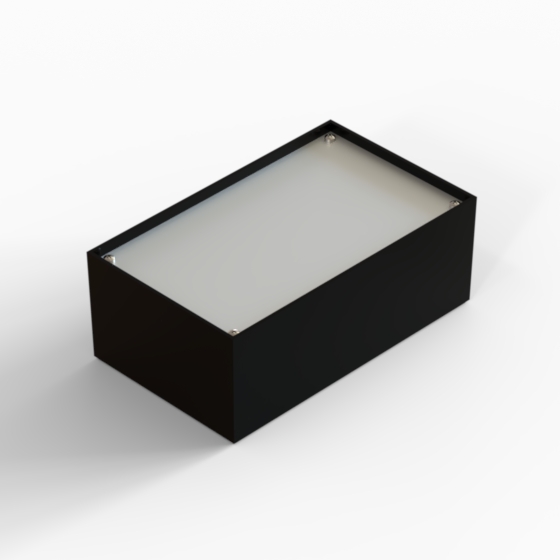

P/3.9 160 96 61 9004
P2H-AT 154 49 4 - PP3
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 49
  • Screws: 4
  • Battery: -
  • Accessories: PP3
  • Drawings:  PDF  DWG

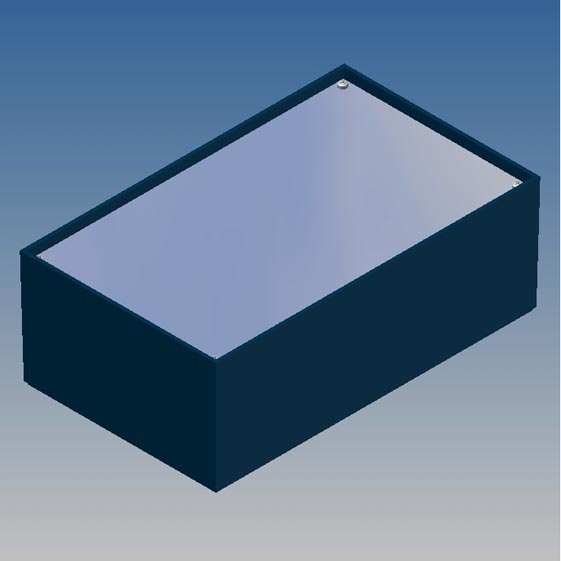

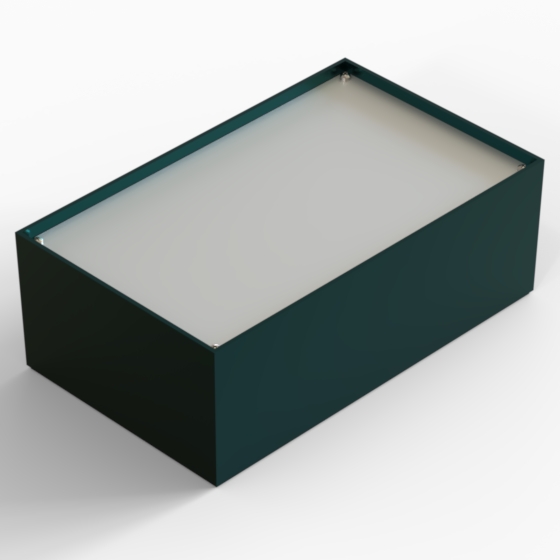

P/4.10 215 130 77 5020
N-UT 208 64,5 4 - PP4
PDF
DWG
View
  • Color (Ral): 5020
  • Material: N-UT
  • MAX PCB L (mm): 208
  • MAX PCB W (mm): 64,5
  • Screws: 4
  • Battery: -
  • Accessories: PP4
  • Drawings:  PDF  DWG

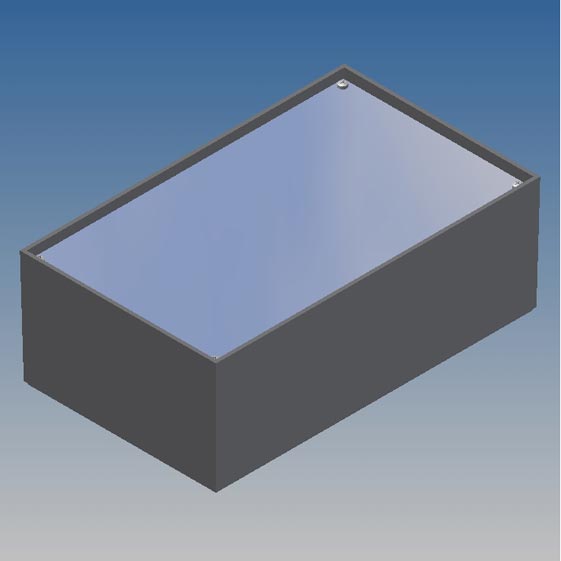

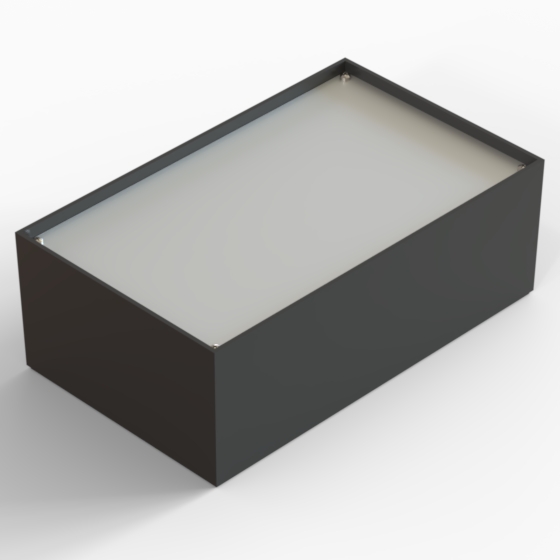

P/4.2 215 130 77 7012
N-UT 208 64,5 4 - PP4
PDF
DWG
View
  • Color (Ral): 7012
  • Material: N-UT
  • MAX PCB L (mm): 208
  • MAX PCB W (mm): 64,5
  • Screws: 4
  • Battery: -
  • Accessories: PP4
  • Drawings:  PDF  DWG

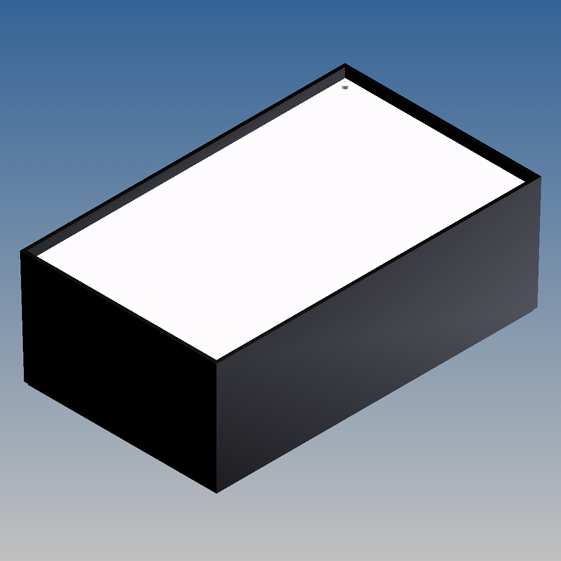

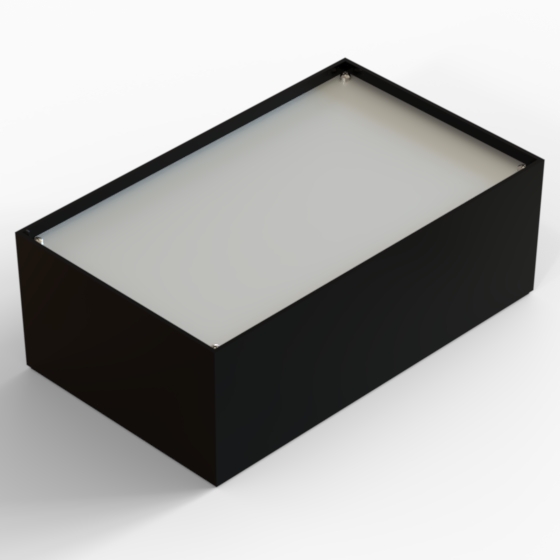

P/4.9 215 130 77 9004
P2H-AT 208 64,5 4 - PP4
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 208
  • MAX PCB W (mm): 64,5
  • Screws: 4
  • Battery: -
  • Accessories: PP4
  • Drawings:  PDF  DWG
