WALL

Family Top Cover - Electronic enclosures - Plastic

Description

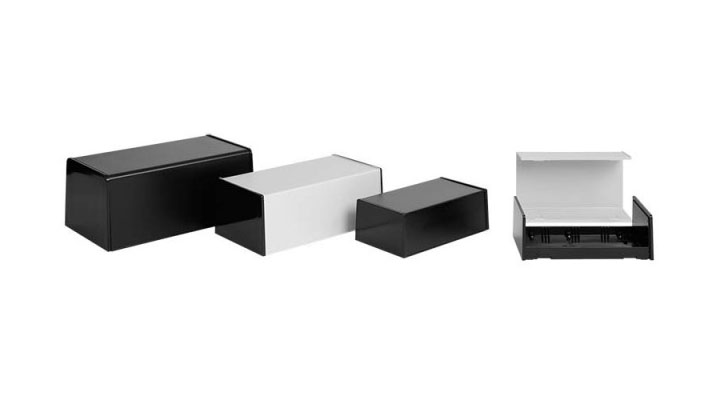

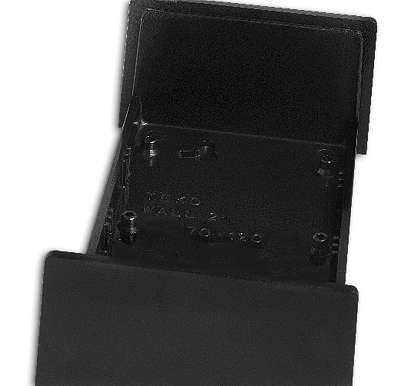

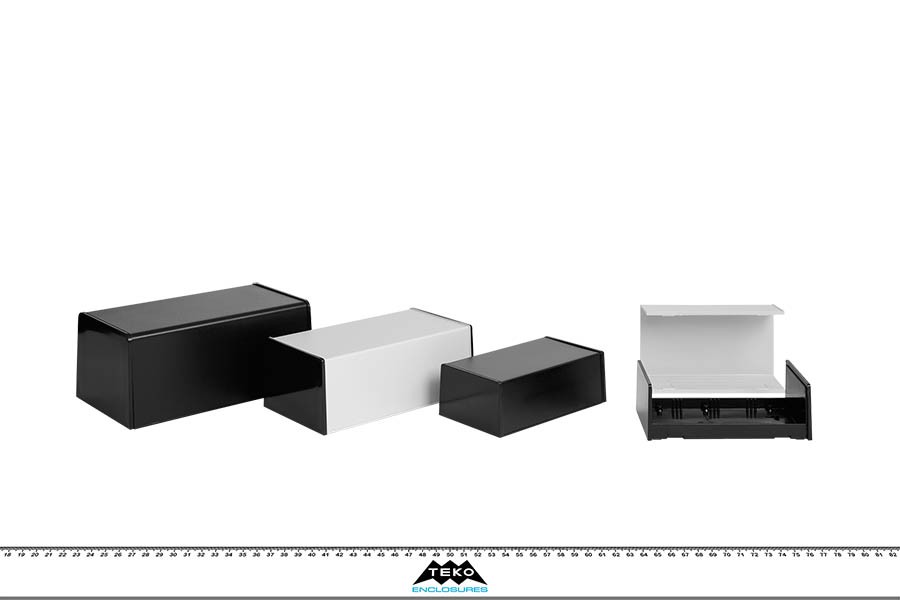

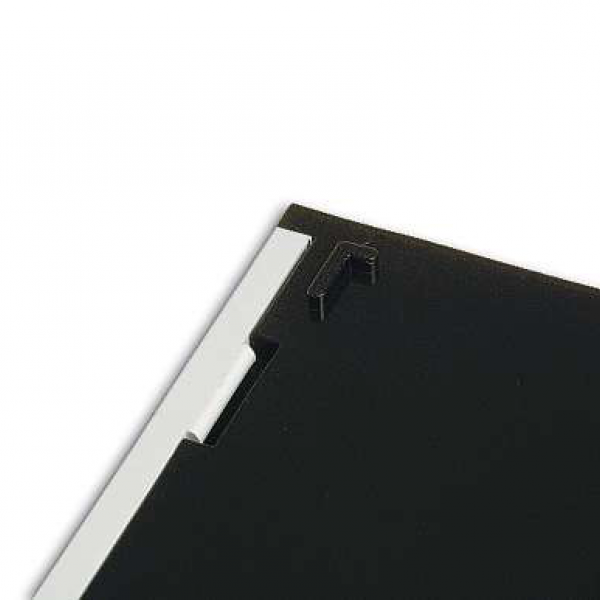

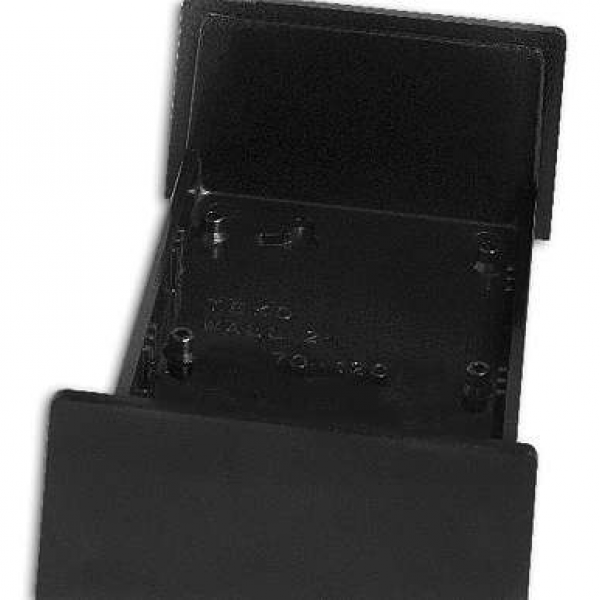

ABS enclosures with two snap together half-shells (one base/one cover) especially suited to wall mounting, available in either a solid (black) or a two-tone colour configuration (the base is always black). The base has integral PCB mounting studs and guides. No screws are required.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

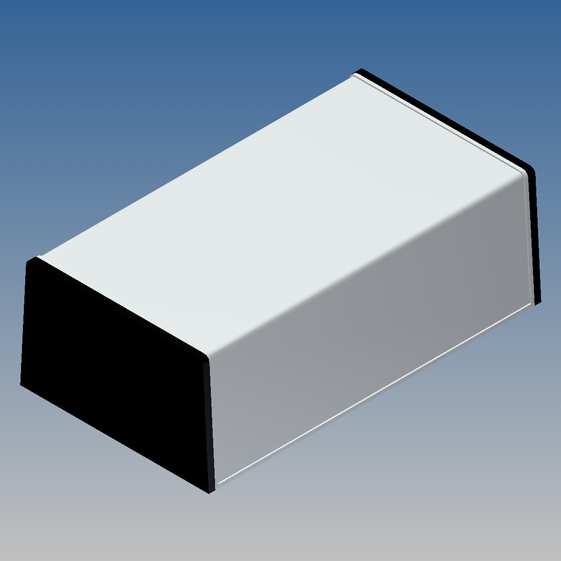

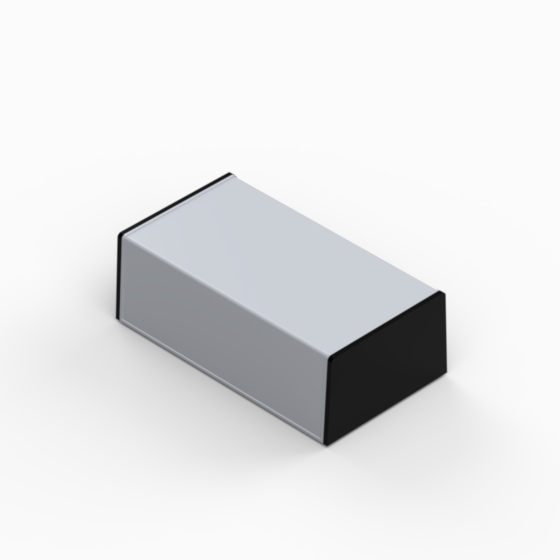

WALL2.23 122,5 69,5 43,1 9004 9018
P2H-AT  -  AG-ATY 114 54 - - PDF
DWG
View

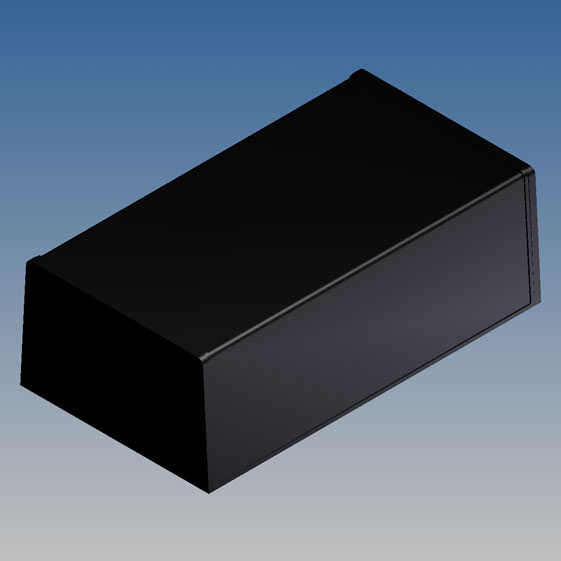

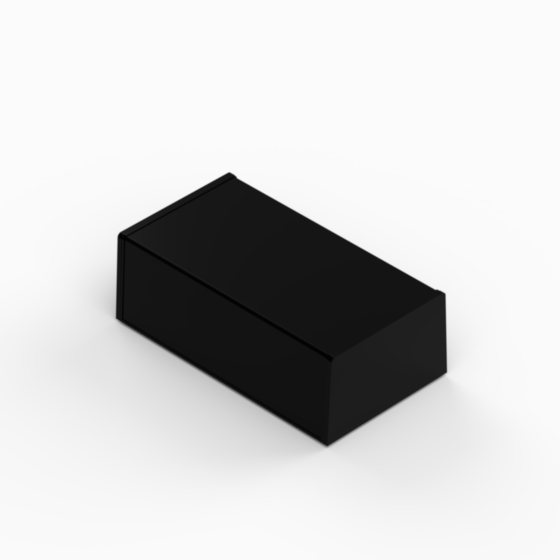

WALL2.9 122,5 69,5 43,1 9004
P2H-AT 114 54 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 114
  • MAX PCB W (mm): 54
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

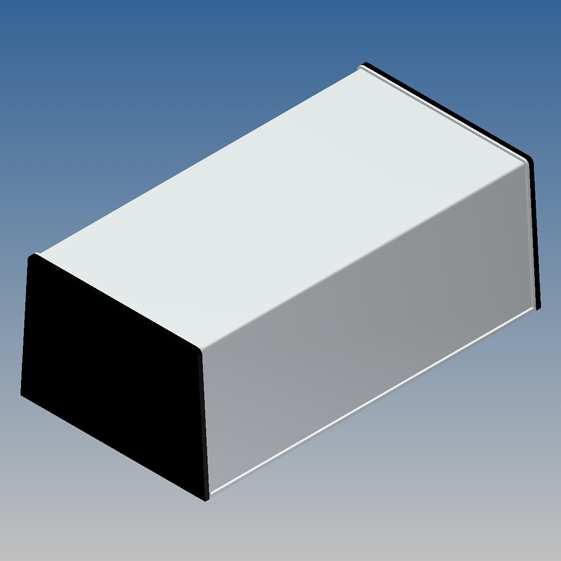

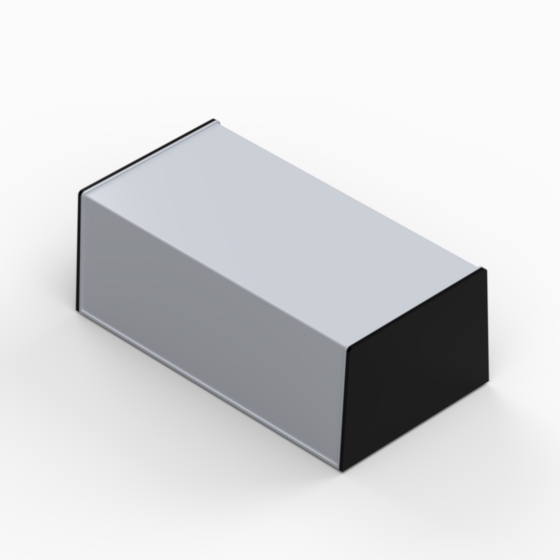

WALL3.23 154,5 85 59 9004 9018
P2H-AT  -  AG-ATY 146 69 - - PDF
DWG
View

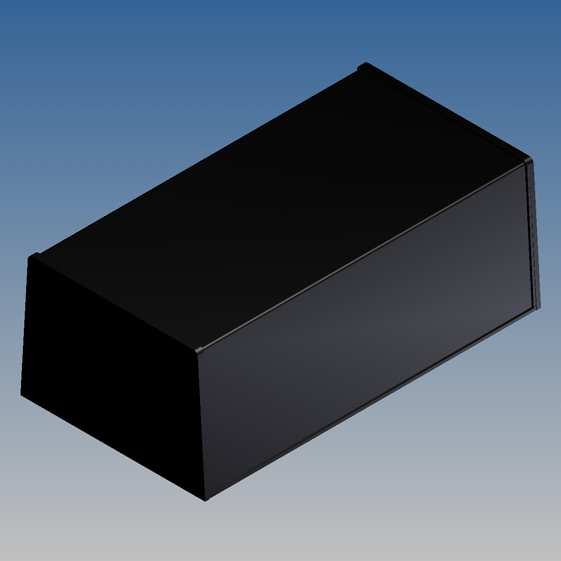

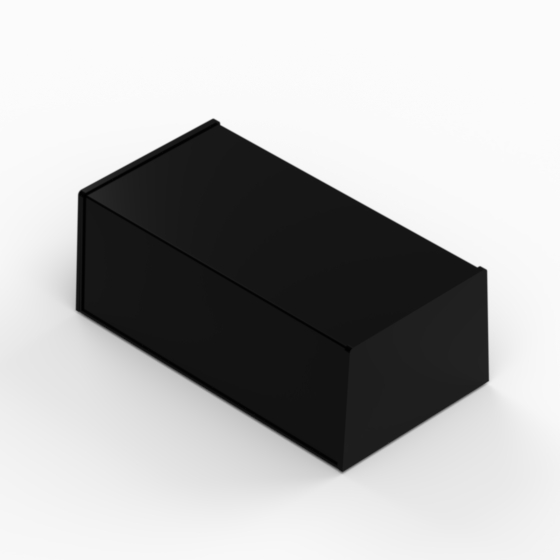

WALL3.9 154,5 85 59 9004
P2H-AT 146 69 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 146
  • MAX PCB W (mm): 69
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

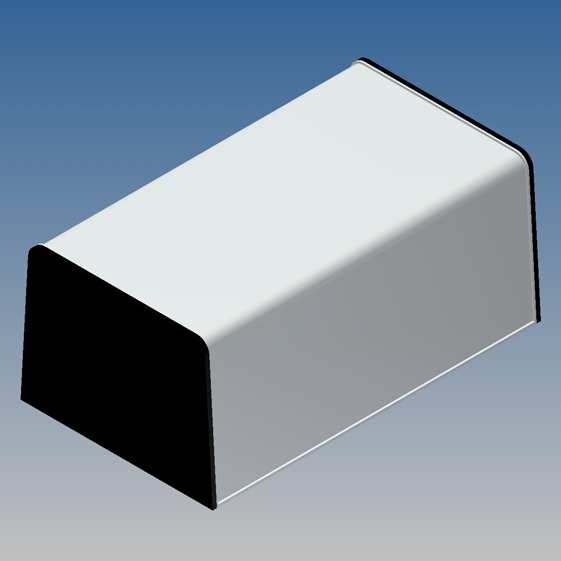

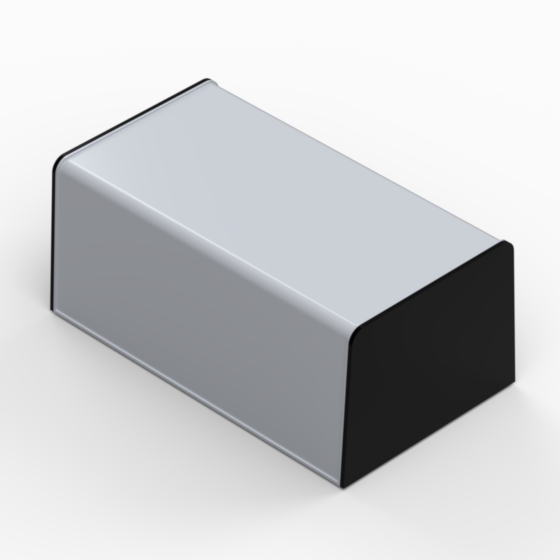

WALL4.23 170 99,5 74 9004 9018
P2H-AT  -  AG-ATY 161 84 - - PDF
DWG
View

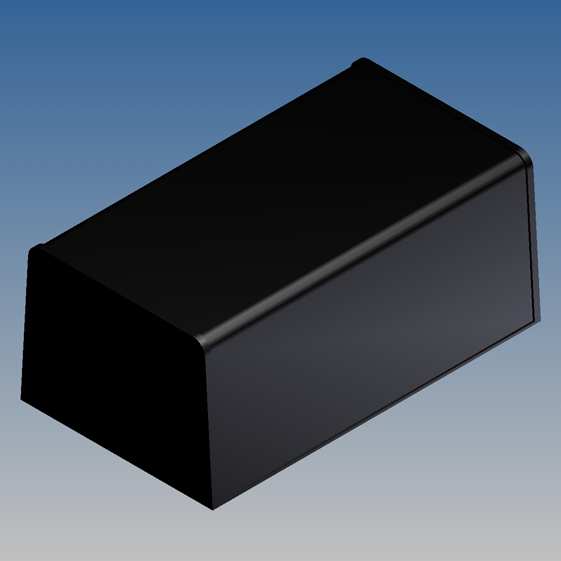

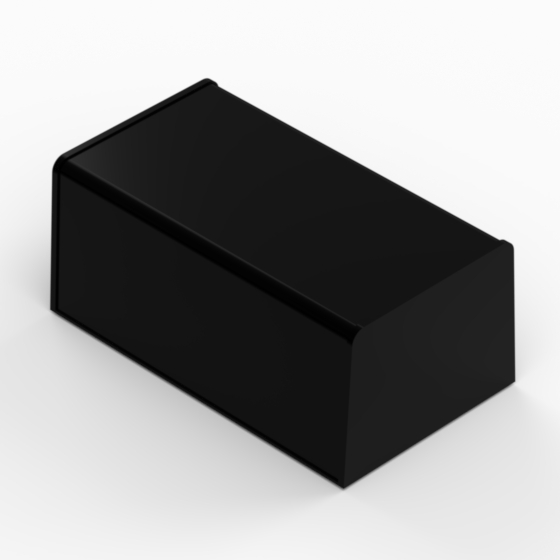

WALL4.9 170 99,5 74 9004
P2H-AT 161 84 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 161
  • MAX PCB W (mm): 84
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
