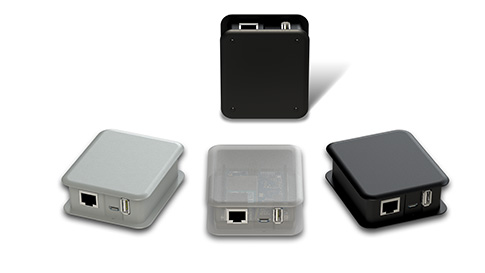

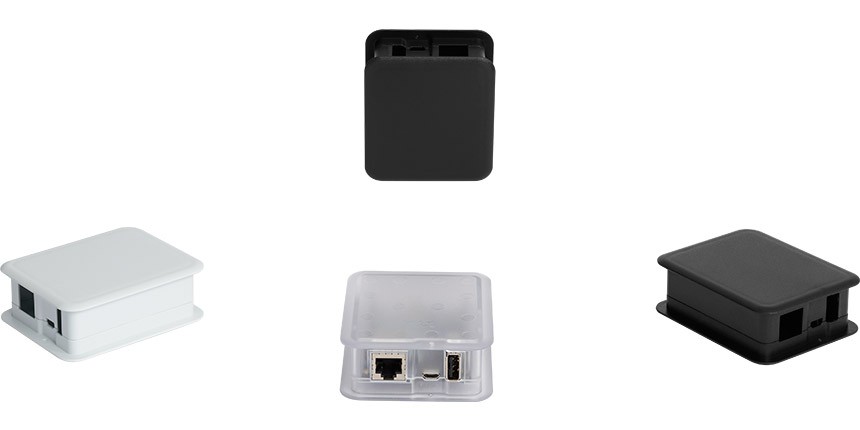

Protective case designed specifically for Arduino Yun microcontroller board. TEK-YUN is a two-shells case molded in flame retardant ABS+PC. Thanks to the sharing template can be easily adapted to any Arduino board. It provides long-lasting protection for the Arduino Yun while giving an easy access to all Arduino connectors. Internal fixing studs for an easy and intuitive fixing of the board. Three colors available (black, white, transparent). Snap-on closing.

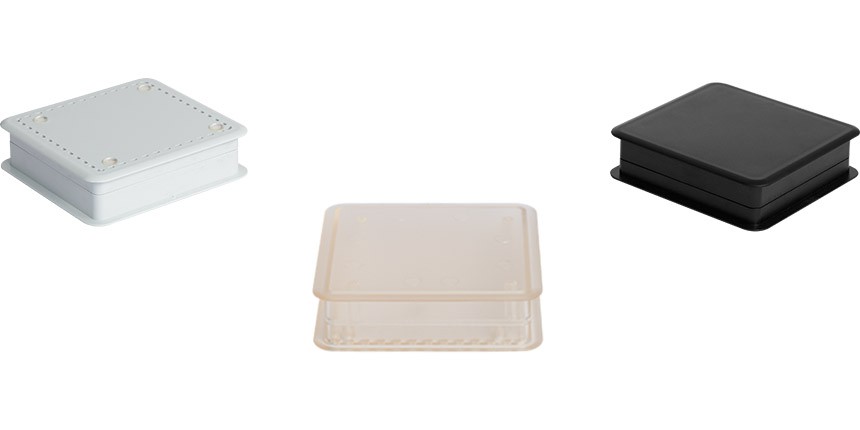

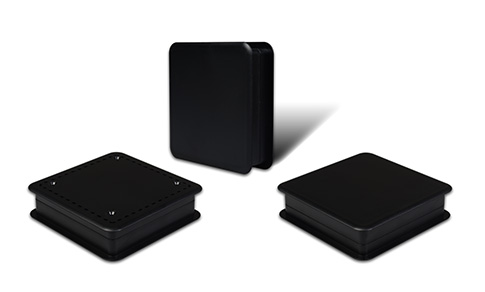

Reliable, robust, superior quality case in flame retardant material (ABS+PC), specifically oriented to accept embedded boards. One size, three colors (black, white, transparent). Aeration slots along the perimeter of the base, supplied with transparent rounded non-slip feet. Screws connection with 4 stainless steel screws. Easy to be customised by CNC machining according to individual hardware requirements.

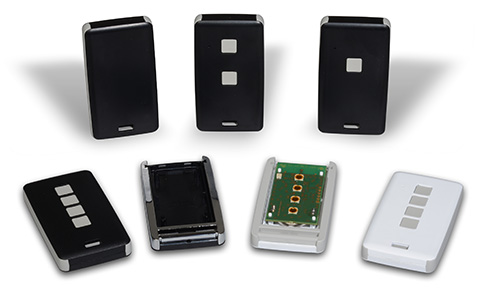

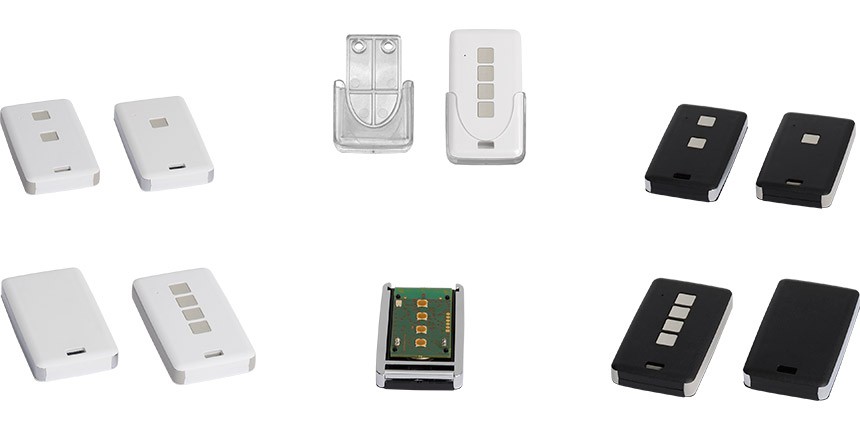

Fresh design for the remote control case featuring rounded edges available both as compact unit (13120) and with push button combination from one to four (13121, 13122, 13124). Internal pillars for PCB fixing. Two colour versions: white/light gray and black/light gray. Protection bumper in solid plastic or polished chromed metal. LED aperture on the cover. Closing by one screw. Suitable to accept button cells, accessorizable with battery holder AB2032.

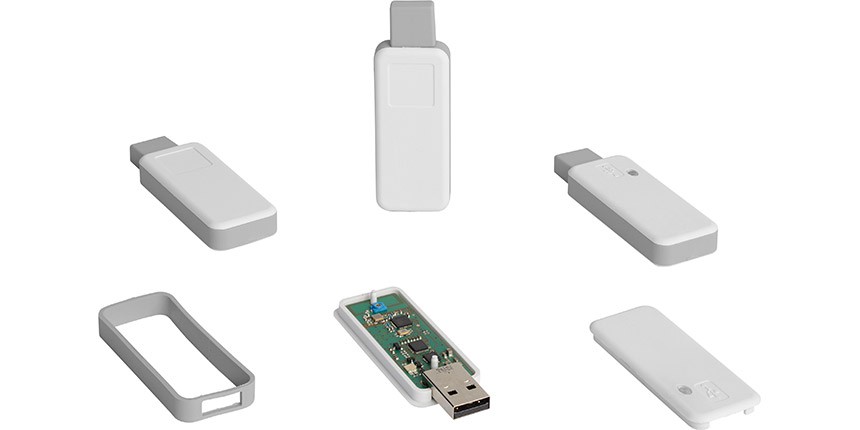

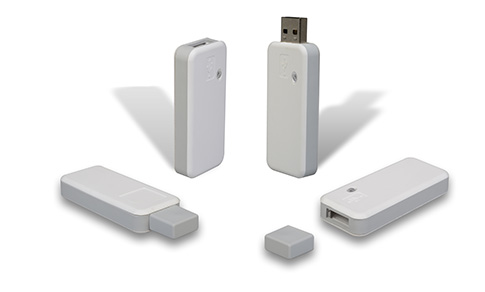

Small and clean design for the most diversified USB devices such as Dongle, Pendrive and Wireless transmitters. Self-snap closing of cover and bottom completed by a soft feel protection bumper and rubber connector cap. LED guidelight on the cover to monitor device activity. Recessed area on the bottom for labels and markings. Standard colour white and light gray. Custom colours according to Company identity: MOQ 500 pieces.

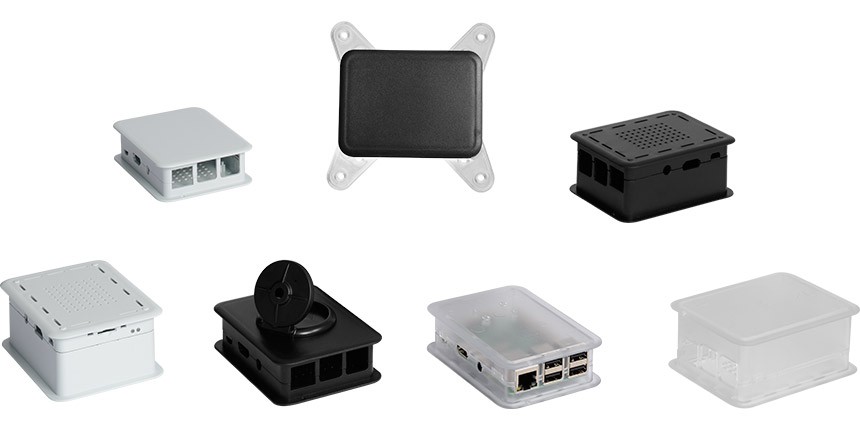

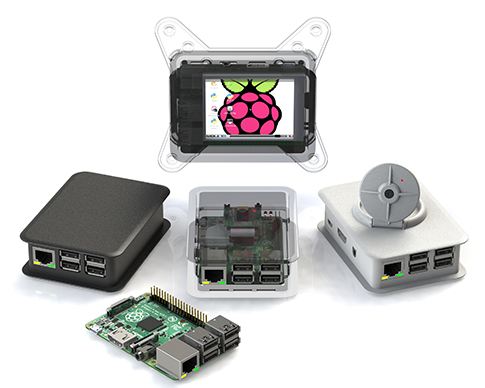

TEKO is proud to introduce our own housing solution for new Raspberry Pi Model B+.

Thanks to the experience collected with TEK-BERRY, we have developed the most evoluted solution to protect and in the meantime take advantage of your new Raspberry Pi Model B+

Technical specifications:

• External dimensions: 100X73X29,5mm
• Colours: White (.40) Black (.9) Clear Transparent (0.)
• Material: Flame retardant ABS+PC
• Matt surface finish
• Easy and secure snap-on closing

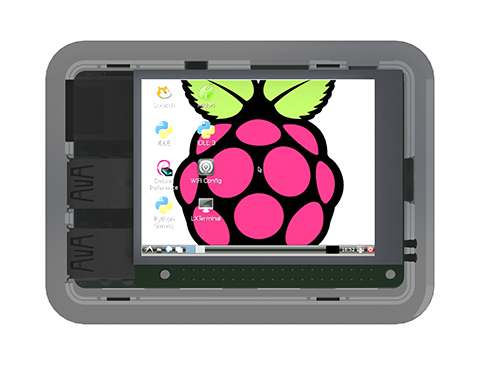

• Allow commercial touch display integration

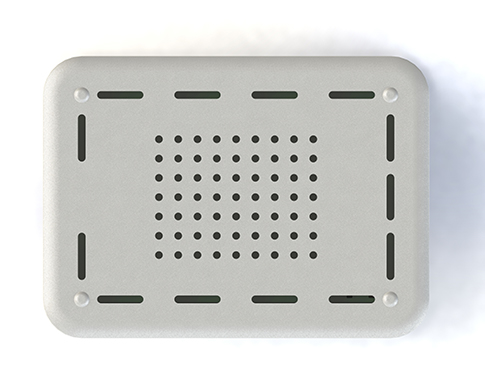

• Vents holes for heat dissipation

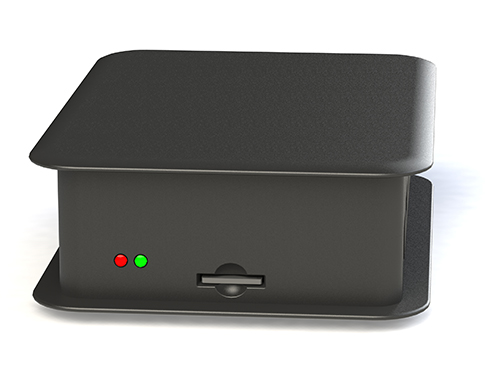

• LED guidelight to display the Raspberry Pi's status

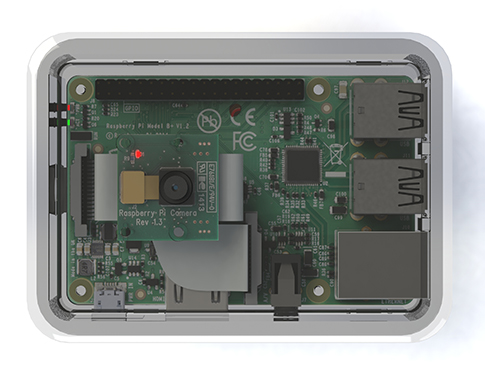

• Mounting holes inside the top to fit Camera Module
• Perfect fit with RPI-VESA mounting element
• Perfect fit with RPI-CAM
• Easy access to MicroSD memory card

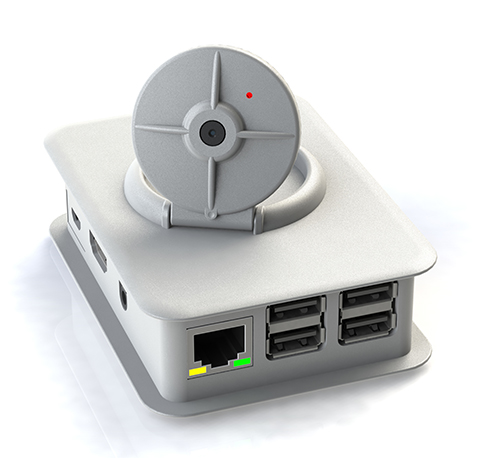

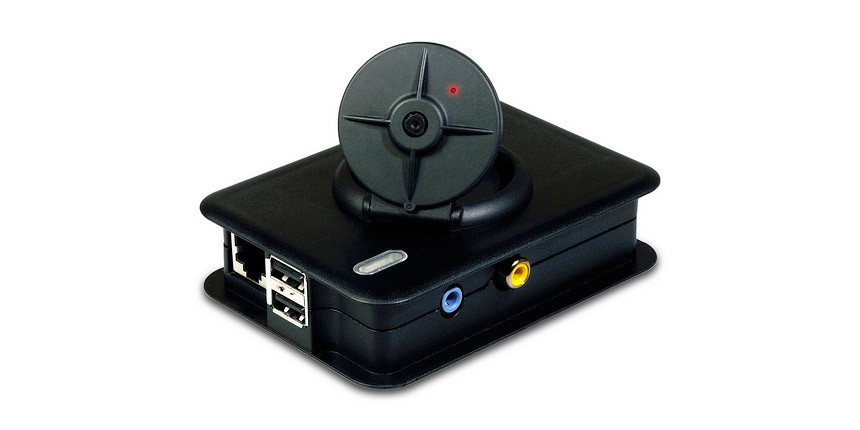

Now available the ultimate solution to protect the new Raspberry Camera Module.Thanks to this innovative project created by TEKO, what till now was impossible becomes true. The unique features of new Raspberry Camera Module require a specific smart housing to obtain the highest performances.You can choose to assemble this new addon both directly on TEK-BERRY and any other case you already have (RPI-CAM), or buy the KIT including Raspberry's case and Camera Module's case (TEK-CAM).

The accessories included in the KIT allow to fix RPI-CAM Module to any surface simply a textile faston or a screw.

Three standard color versions :

.0 (Transparent) - .9 (Black) - .40 (White)

Custom colours available upon request and with a MOQ of 500 unitsi.

CONCEPT

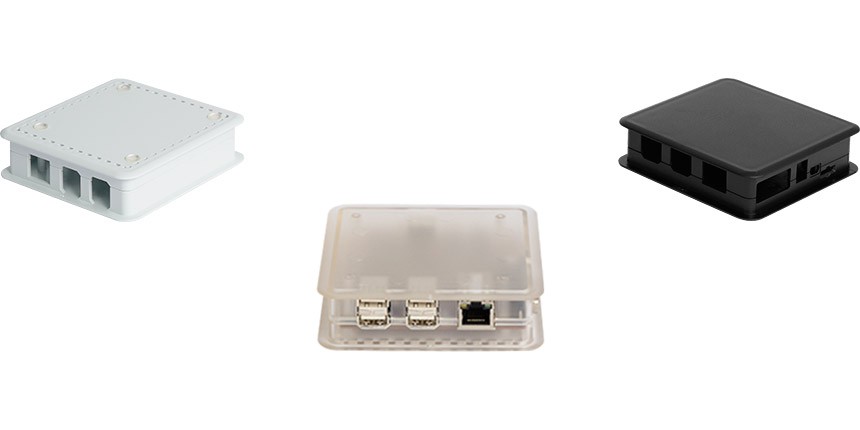

TEKO know-how comes into play by presenting on the market the new case “TEK-BEAGLE” specific for housing the “Beagleboard XM (Rev. C) card. Following the success of TEK-BERRY - our solution to housing Raspberry PI - we are now pleased to propose the new TEK-BEAGLE.

DESIGN

The new case “TEK-BEAGLE” features a fresh and innovative design that, complemented by technical solutions aimed at enhancing the performances of embedded Mini-PC, identifies the well-know TEKO-Style.

TEK-BEAGLE  Specifiche tecniche

Flame retardant material Bayblend  (ABS  + PC) – Flame class VO -  to ensure an excellent mechanical strength even when exposed to high temperatures.

Fast and secure closing by 4 screws on the bottom.

Internal fixing studs for an easy  and intuitive fixing of the “Beagleboard-XM”.

Aeration slots on all the perimeter of the base for a proper airflow in order to not overheat the components.
Sides of the case protrude to protect the connectors.

Supply includes 4 transparent non-slip feet that cover the screws.

Available standard colors: ice white.40 – black .9 – transparent .0
Production in custom colors requires a MOQ = 500pcs.

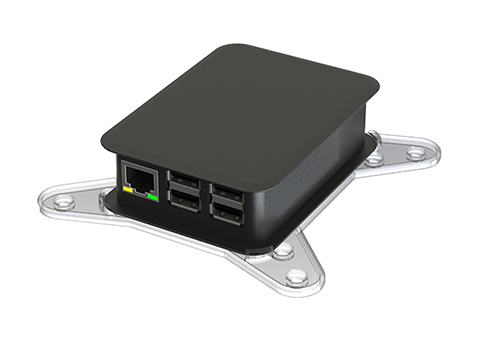

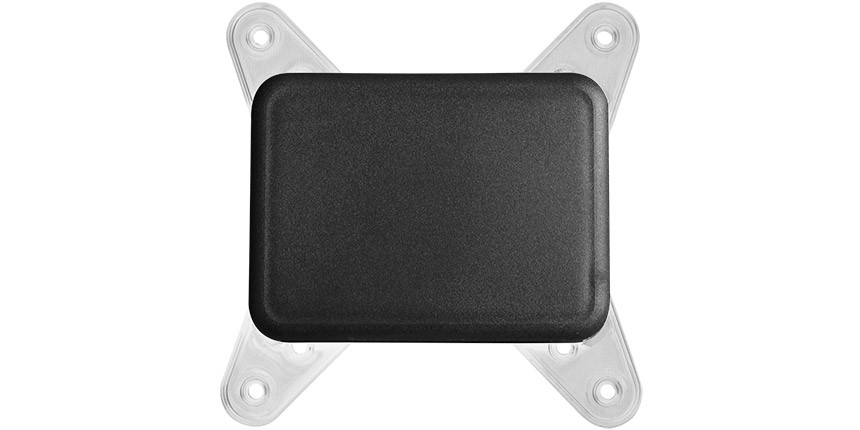

No more cables, and connectors to Your desk by using the new accessory for TEK-BERRY developed by TEKO that allows to operate at a tidy workstation! The RPI-VESA adapter perfectly suits to the standard VESA 50, 75 and 100 and ensures compatibility with most of the screens on the market.

Easy to install by means of 4XM4-countersunks screws (not included). The simple fixing  system allows to firmly hold Your Raspberry-PI into our TEK-BERRY case.

Minimal designed and completely transparent, the RPI-VESA Adapter can be perfectly used as wall bracket, ideal for industrial applications (home automation, IT-technology, security systems etc.).

 The benefits of using our RPI-VESA:

• significant reduction of the cables from Your desk
• no danger of liquids or dirt falling on your Raspberry-PI
• high visual impact
• simple and intuitive system for fixing and dismounting with the TEK-BERRY
• suitable for standard VESA50, VESA75 and VESA100

• possibility of mounting on all types of surfaces (wall, desktop, Rack cabinets, etc.)

As we know, the Raspberry Foundation offered the possibility to  maximize the performances of Raspberry-PI Rev. 2 by providing  a 512M-RAM and by overclocking up to 1GhZ without affecting  the warranty: http://www.raspberrypi.org/archives/2008

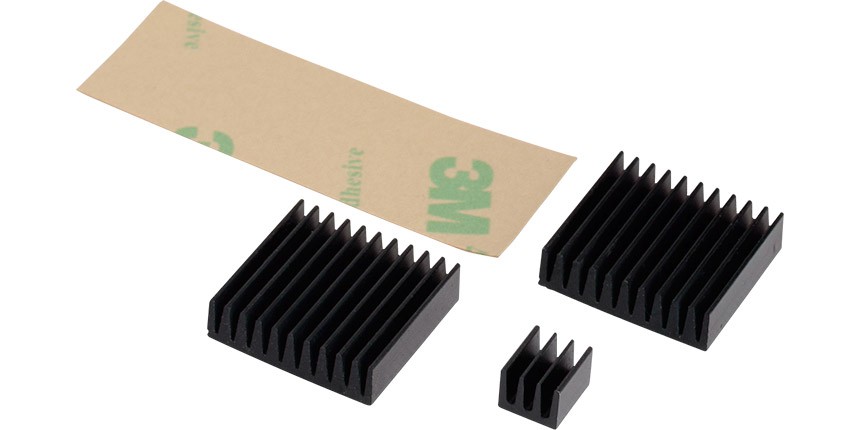

This inevitably leads to a substantial increase of the temperature of the main components and a consequent reduction in lifetime of the board.To overcame this problem, TEKO has developed a cooling kit which allow to reduce the temperature. The kit consists of three heat sinks to apply directly on the SOC (BMC2835), on the USB/Ethernet (LAN 9512) and on the regulator voltage by means of the 3M thermal adhesive included in the kit.

The tests we did with thermal chamber by playing the QUAKE-3 DEMO , show a strong reduction of the temperature up to 12°C.

Without RPI-COOLKIT		With RPI-COOLKIT

The benefits of using our KIT:

• easy assembling assured by the 3M adhesive tape
• extremely low profile to an easy access to GPIO
• compatible with Raspberry PI Rev-1 and Rev-2
• no noisy funs
• extension of life of your Raspberry PI

• reduction of failure risk

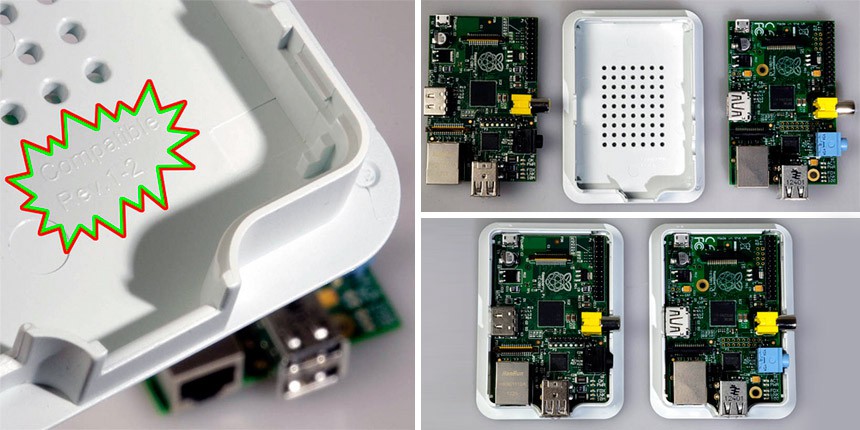

Now fully compatible with Raspberry PI Rev1 and Rev2
