Description

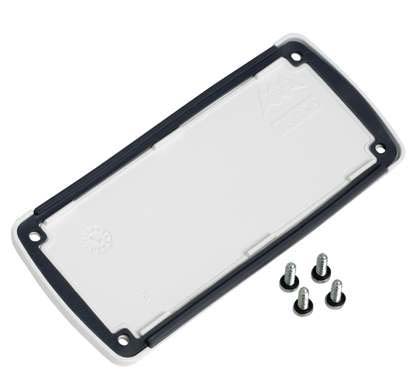

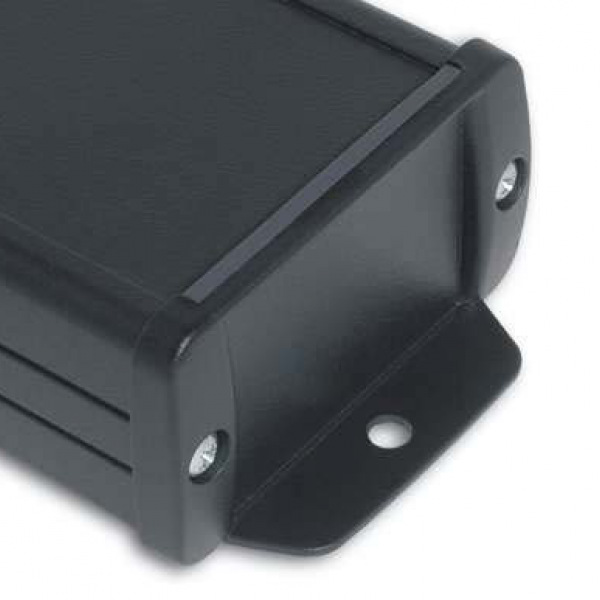

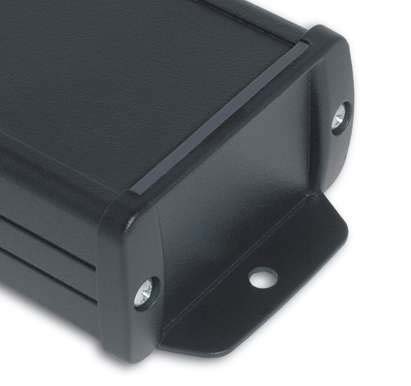

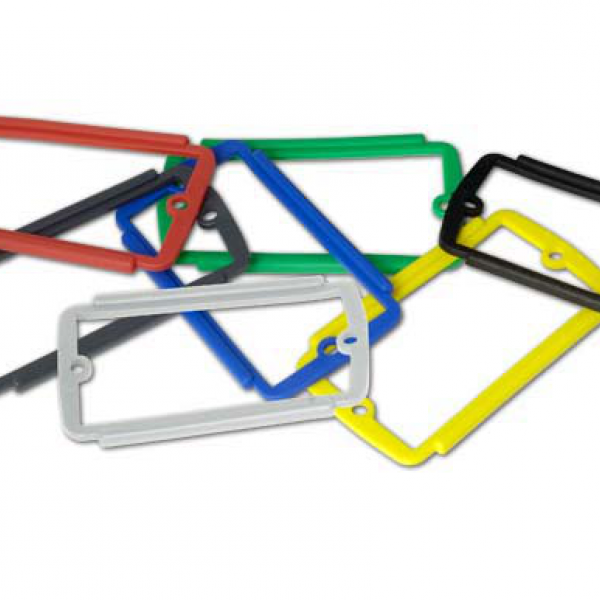

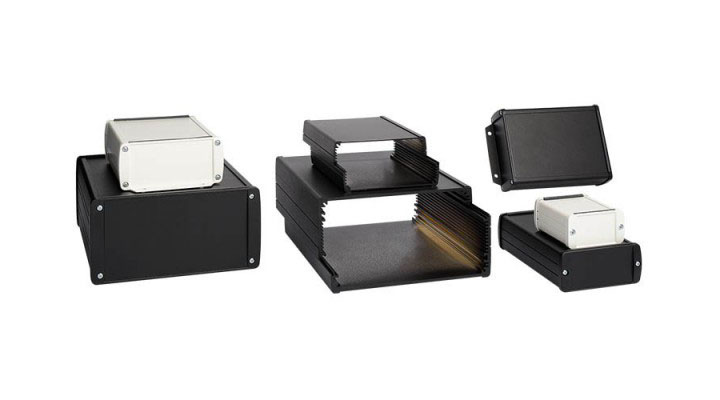

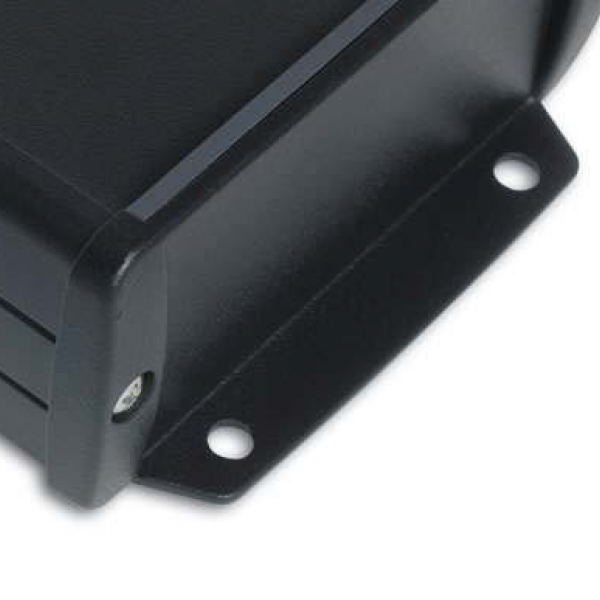

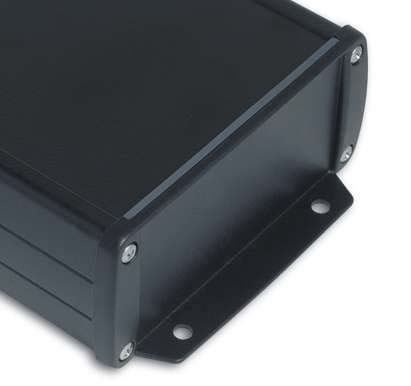

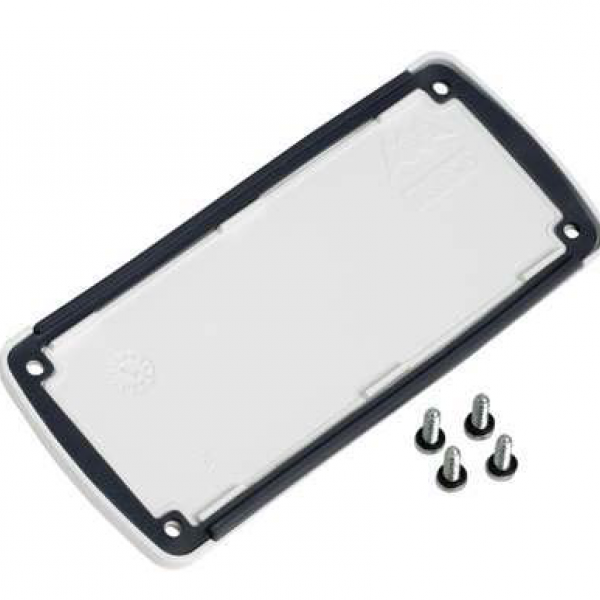

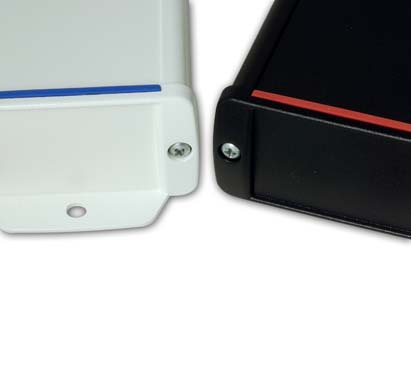

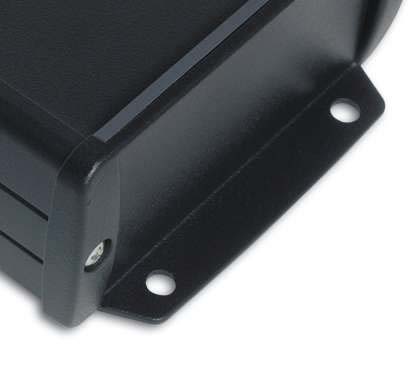

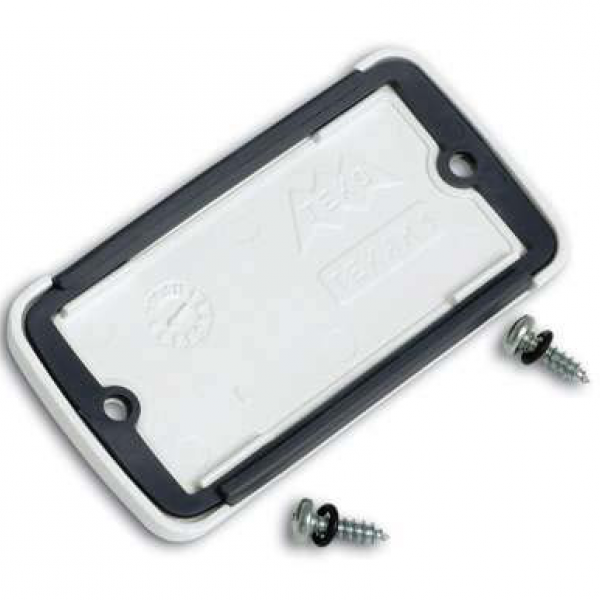

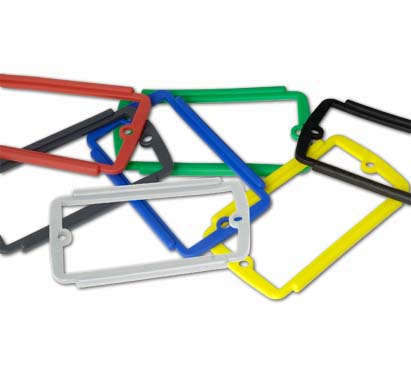

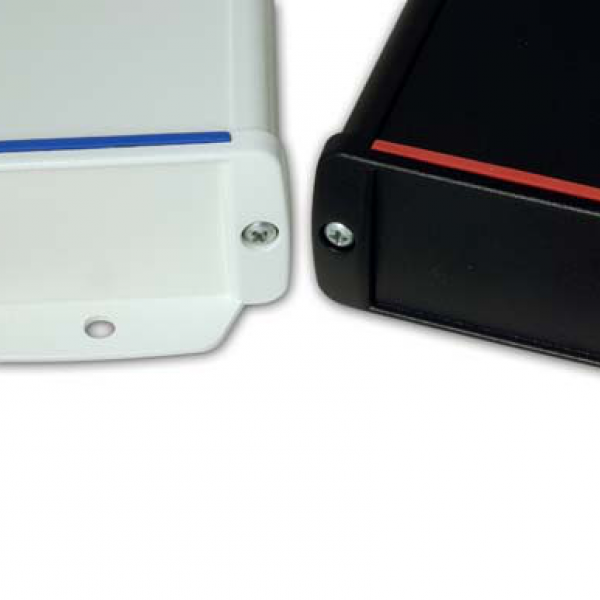

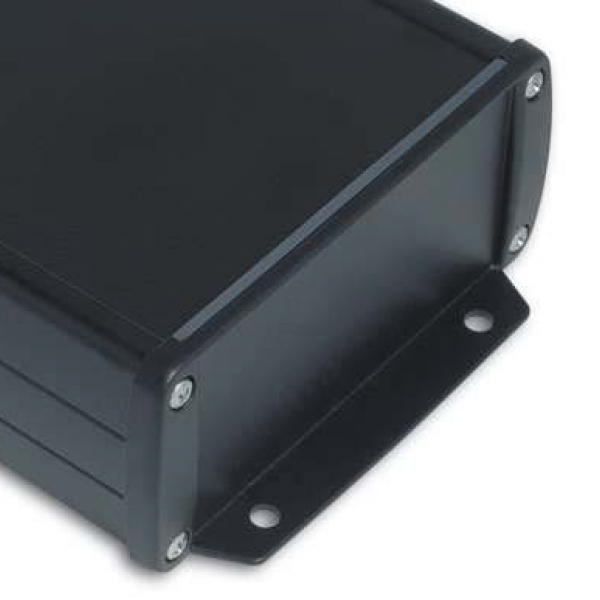

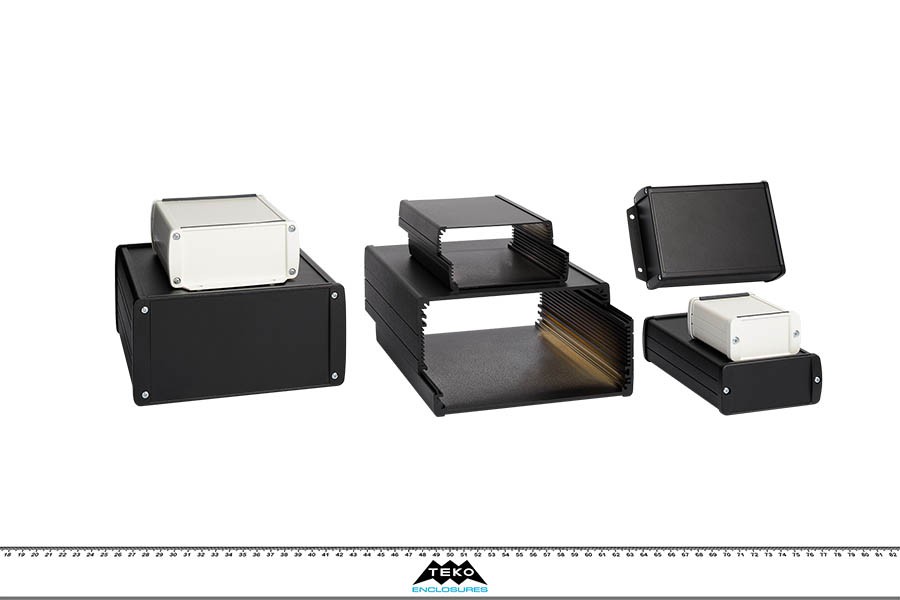

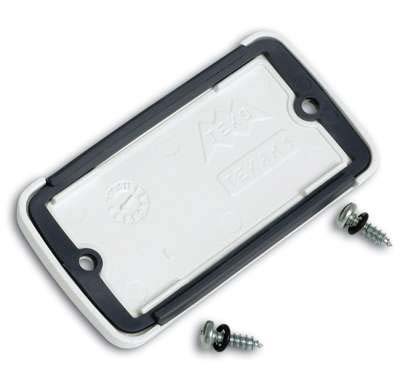

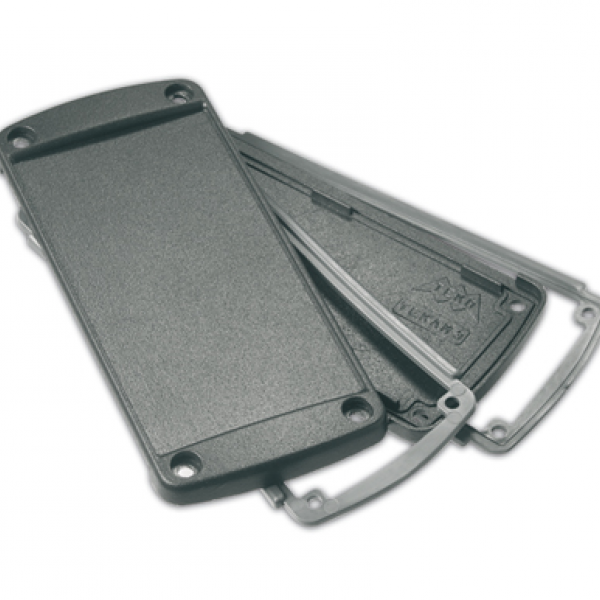

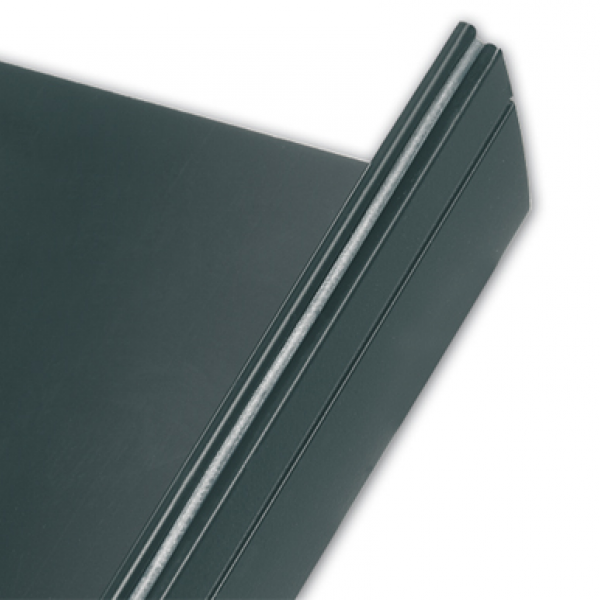

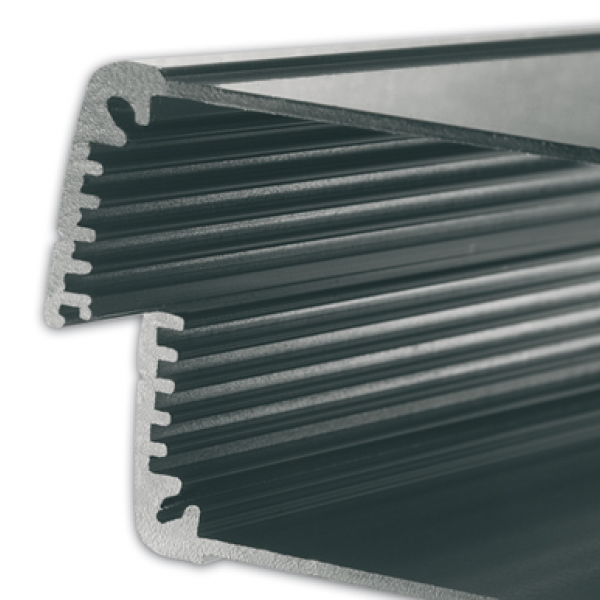

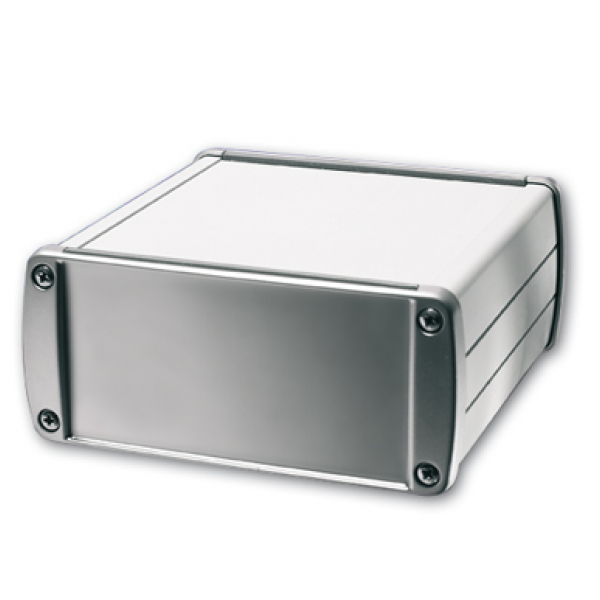

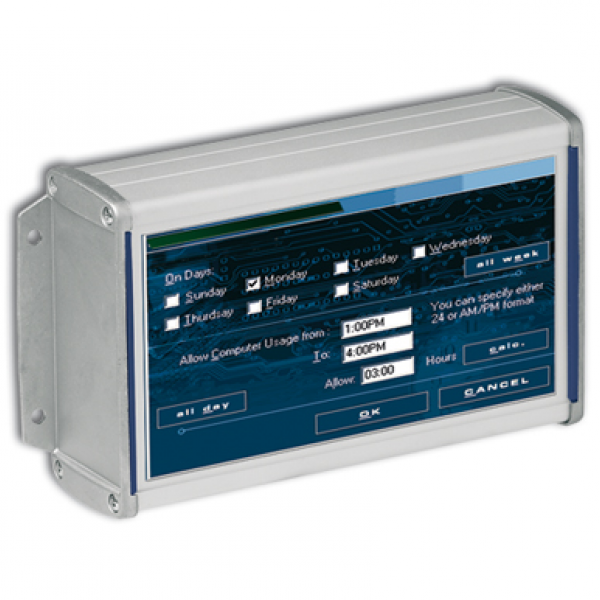

Extruded aluminium case with powder coating and two rubber sealing kits to protect against water and from dust (IP65) available in six different colours. Two metal front panels, internal slots for PCB’s and a recessed area for a keypad membrane. The models with “E” have mounting wall metal panels. Closing by four or eight screws.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEKAM-11.7 | 70 | 59,9 | 30,9 |
9002 |
ALLOY 6060 - ZA4C1 | 60 | 54,5 | 4 | - |
ALP-1 TKAMSK1 |
PDF DWG |
|
|

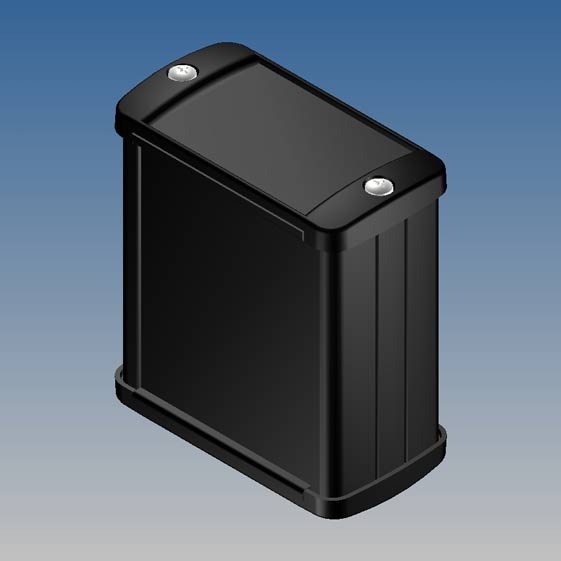

TEKAM-11.9 | 70 | 59,9 | 30,9 |
9004 |
ALLOY 6060 - ZA4C1 | 60 | 54,5 | 4 | - |
ALP-1 TKAMSK1 |
PDF DWG |
|
|

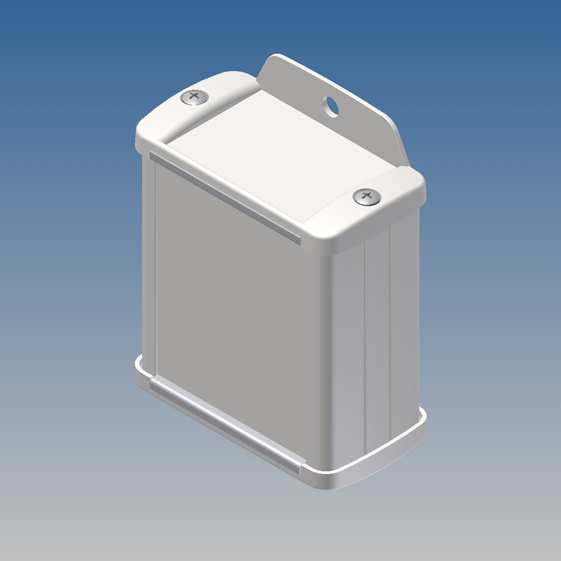

TEKAM-11/E.7 | 70 | 59,9 | 30,9 |
9002 |
ALLOY 6060 - ZA4C1 | 60 | 54,5 | 4 | - |
TKAMSK1 |
PDF DWG |
|
|

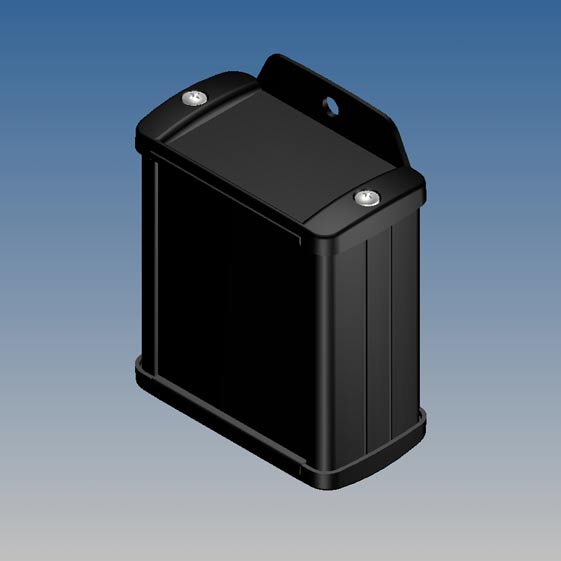

TEKAM-11/E.9 | 70 | 59,9 | 30,9 |
9004 |
ALLOY 6060 - ZA4C1 | 60 | 54,5 | 4 | - |
TKAMSK1 |
PDF DWG |
|
|

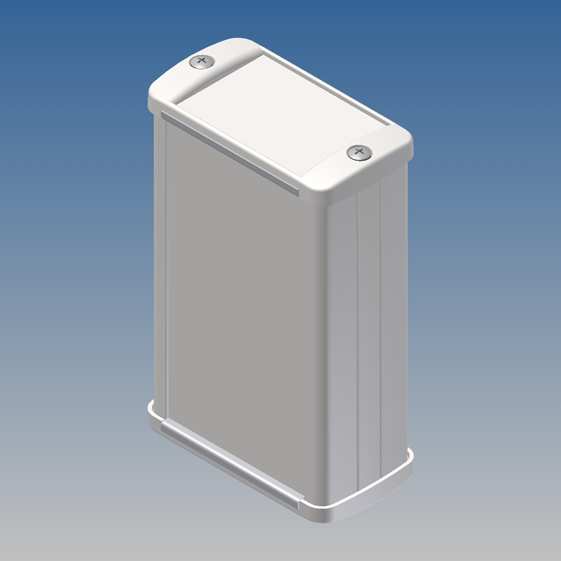

TEKAM-12.7 | 100 | 59,9 | 30,9 |
9002 |
ALLOY 6060 - ZA4C1 | 90 | 54,5 | 4 | - |
ALP-1 TKAMSK1 |
PDF DWG |
|
|

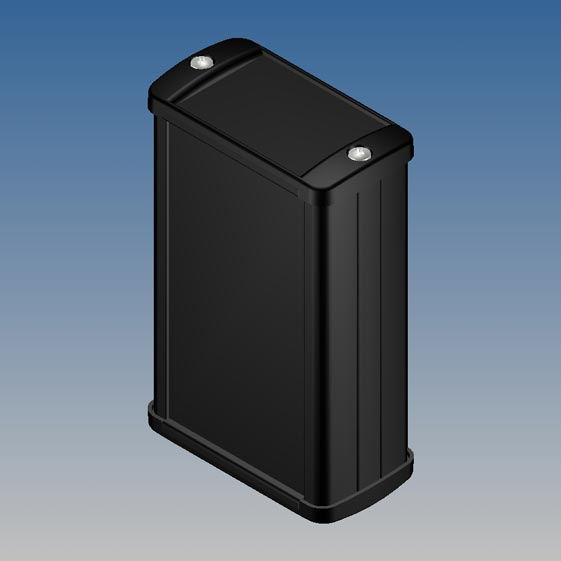

TEKAM-12.9 | 100 | 59,9 | 30,9 |
9004 |
ALLOY 6060 - ZA4C1 | 90 | 54,5 | 4 | - |
ALP-1 TKAMSK1 |
PDF DWG |
|
|
TEKAM-12/E.7 | 100 | 59,9 | 30,9 |
9002 |
ALLOY 6060 - ZA4C1 | 90 | 54,5 | 4 | - |
TKAMSK1 |
PDF DWG |
|
|

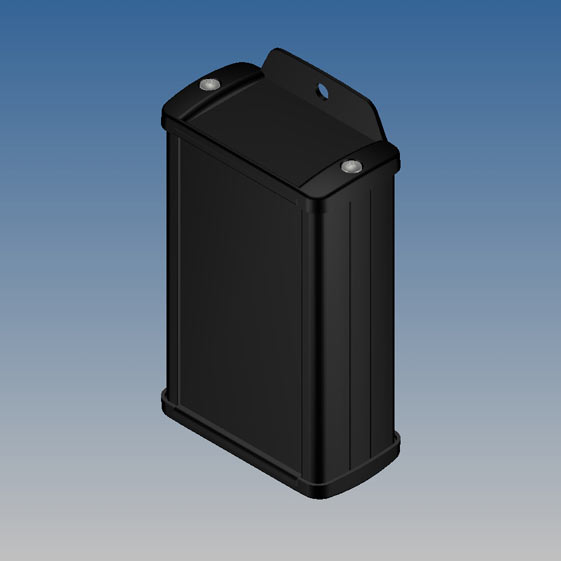

TEKAM-12/E.9 | 100 | 59,9 | 30,9 |
9004 |
ALLOY 6060 - ZA4C1 | 90 | 54,5 | 4 | - |
TKAMSK1 |
PDF DWG |
|
|
TEKAM-13.7 | 125 | 59,9 | 30,9 |
9002 |
ALLOY 6060 - ZA4C1 | 115 | 54,5 | 4 | - |
ALP-1 TKAMSK1 |
PDF DWG |
|
|

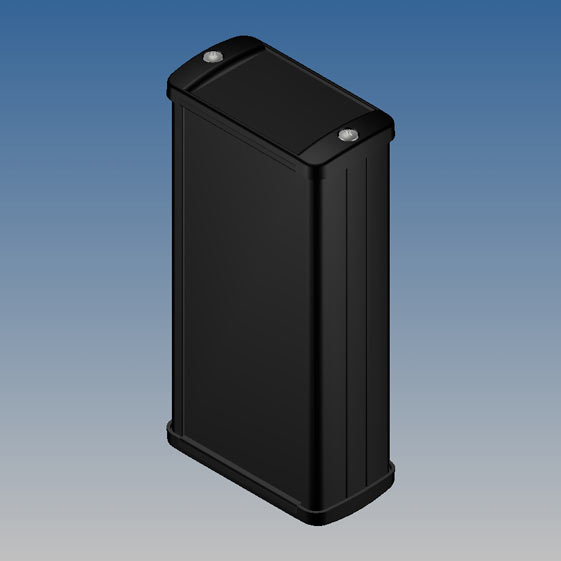

TEKAM-13.9 | 125 | 59,9 | 30,9 |
9004 |
ALLOY 6060 - ZA4C1 | 115 | 54,5 | 4 | - |
ALP-1 TKAMSK1 |
PDF DWG |
|
|

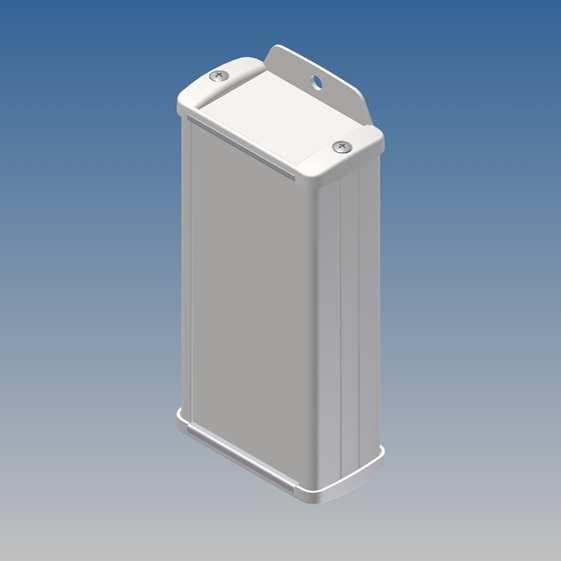

TEKAM-13/E.7 | 125 | 59,9 | 30,9 |
9002 |
ALLOY 6060 - ZA4C1 | 115 | 54,5 | 4 | - |
TKAMSK1 |
PDF DWG |
|
|

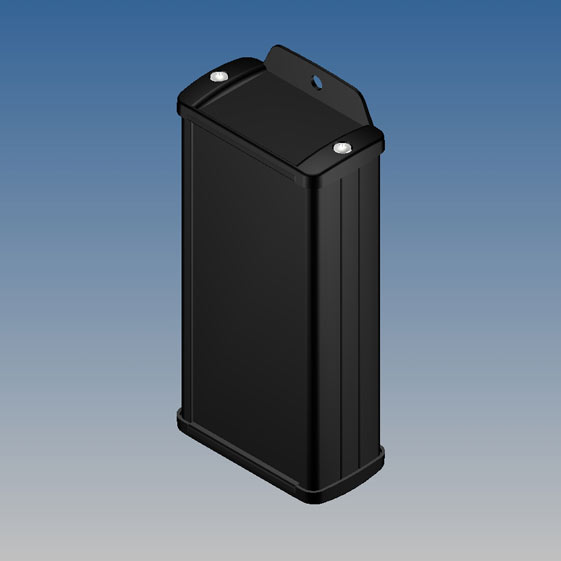

TEKAM-13/E.9 | 125 | 59,9 | 30,9 |
9004 |
ALLOY 6060 - ZA4C1 | 115 | 54,5 | 4 | - |
TKAMSK1 |
PDF DWG |
|
|

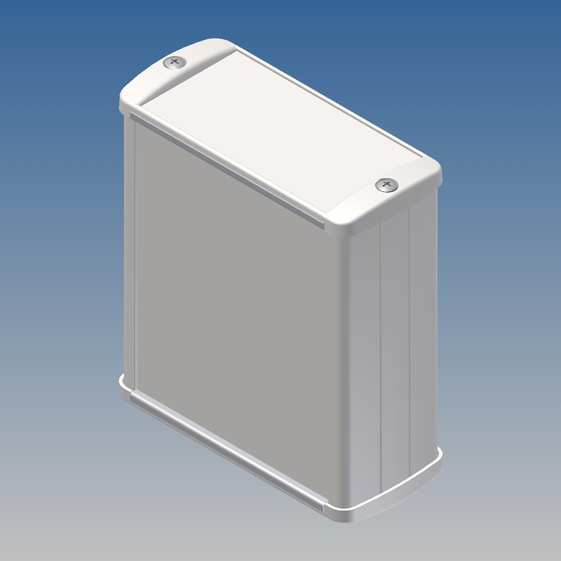

TEKAM-21.7 | 100 | 85,8 | 36,9 |
9002 |
ALLOY 6060 - ZA4C1 | 90 | 78,5 | 4 | - |
ALP-2 TKAMSK2 |
PDF DWG |
|
|

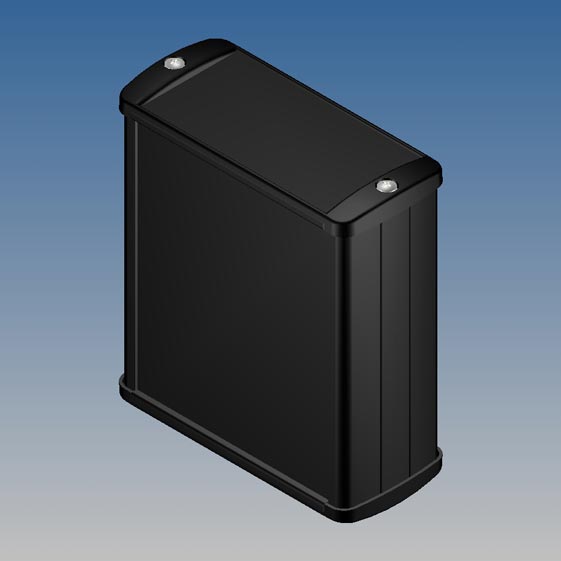

TEKAM-21.9 | 100 | 85,8 | 36,9 |
9004 |
ALLOY 6060 - ZA4C1 | 90 | 78,5 | 4 | - |
ALP-2 TKAMSK2 |
PDF DWG |
|
|

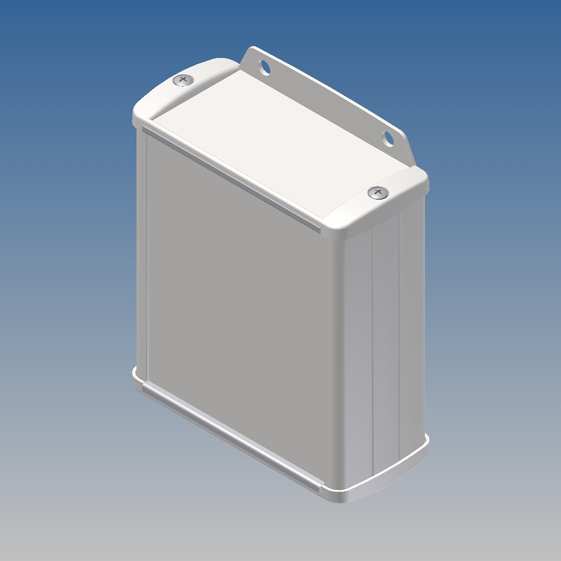

TEKAM-21/E.7 | 100 | 85,8 | 36,9 |
9002 |
ALLOY 6060 - ZA4C1 | 90 | 78,5 | 4 | - |
TKAMSK2 |
PDF DWG |
|
|

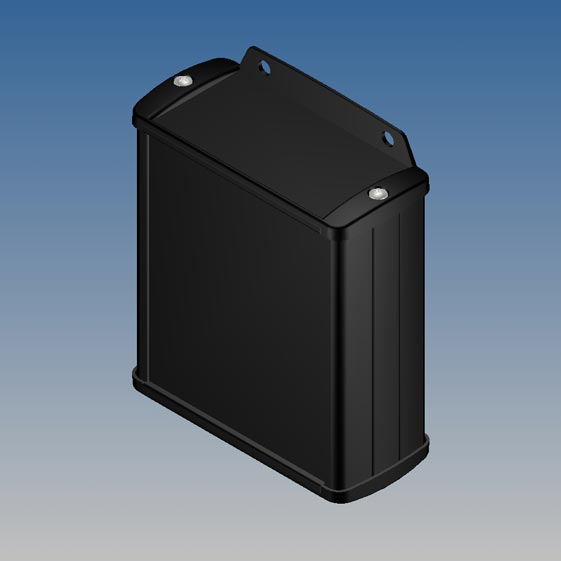

TEKAM-21/E.9 | 100 | 85,8 | 36,9 |
9004 |
ALLOY 6060 - ZA4C1 | 90 | 78,5 | 4 | - |
TKAMSK2 |
PDF DWG |
|
|

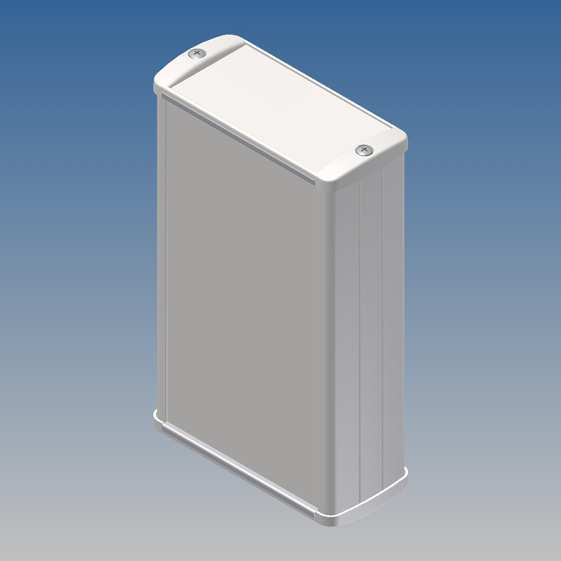

TEKAM-22.7 | 145 | 85,8 | 36,9 |
9002 |
ALLOY 6060 - ZA4C1 | 135 | 78,5 | 4 | - |
ALP-2 M M58 M59 TKAMSK2 |
PDF DWG |
|
|

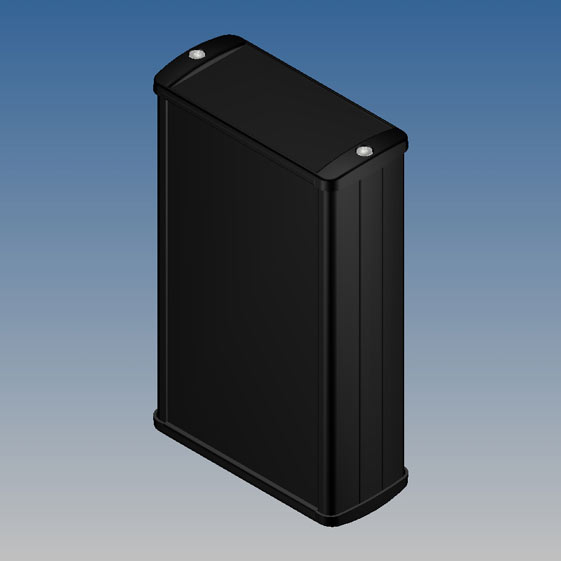

TEKAM-22.9 | 145 | 85,8 | 36,9 |
9004 |
ALLOY 6060 - ZA4C1 | 135 | 78,5 | 4 | - |
ALP-2 M M58 M59 TKAMSK2 |
PDF DWG |
|
|
TEKAM-22/E.7 | 145 | 85,8 | 36,9 |
9002 |
ALLOY 6060 - ZA4C1 | 135 | 78,5 | 4 | - |
M M58 M59 TKAMSK2 |
PDF DWG |
|
|

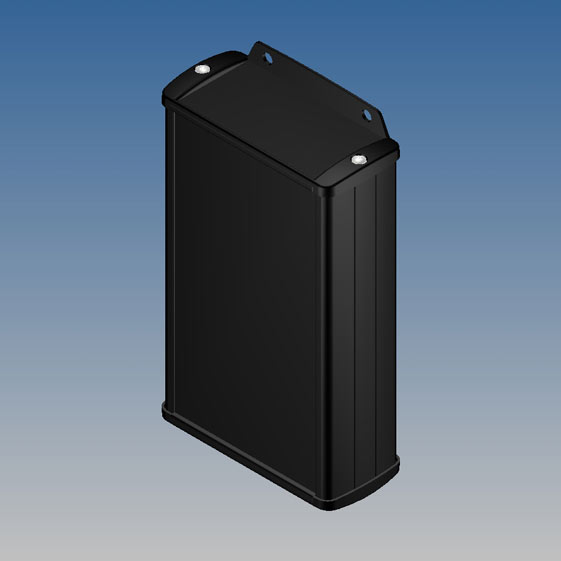

TEKAM-22/E.9 | 145 | 85,8 | 36,9 |
9004 |
ALLOY 6060 - ZA4C1 | 135 | 78,5 | 4 | - |
M M58 M59 TKAMSK2 |
PDF DWG |
|
|

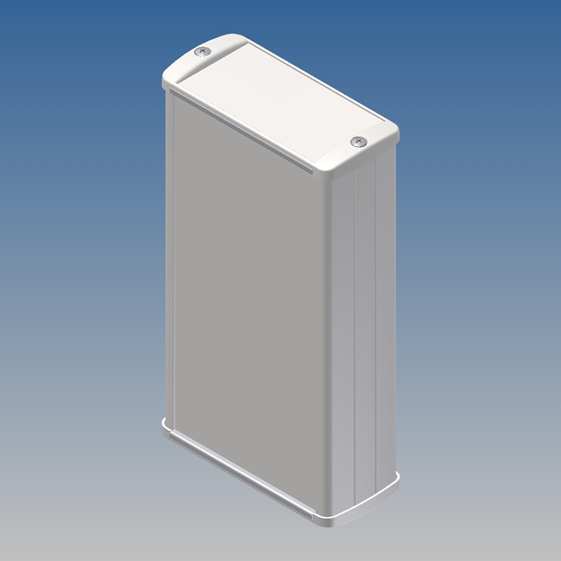

TEKAM-23.7 | 160 | 85,8 | 36,9 |
9002 |
ALLOY 6060 - ZA4C1 | 150 | 78,5 | 4 | - |
ALP-2 TKAMSK2 |
PDF DWG |
|
|

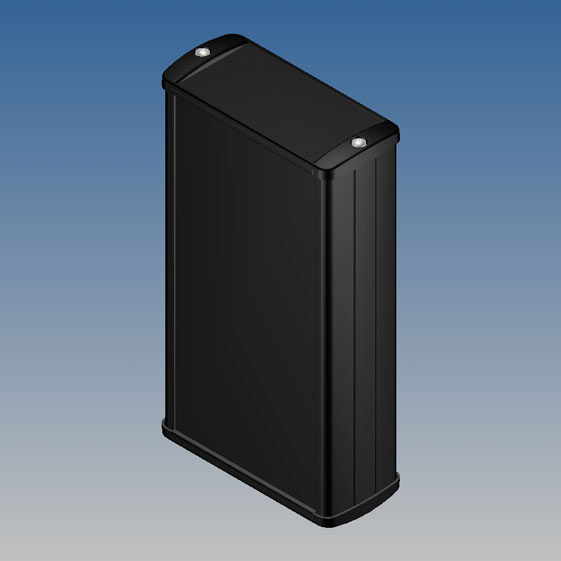

TEKAM-23.9 | 160 | 85,8 | 36,9 |
9004 |
ALLOY 6060 - ZA4C1 | 150 | 78,5 | 4 | - |
ALP-2 TKAMSK2 |
PDF DWG |
|
|

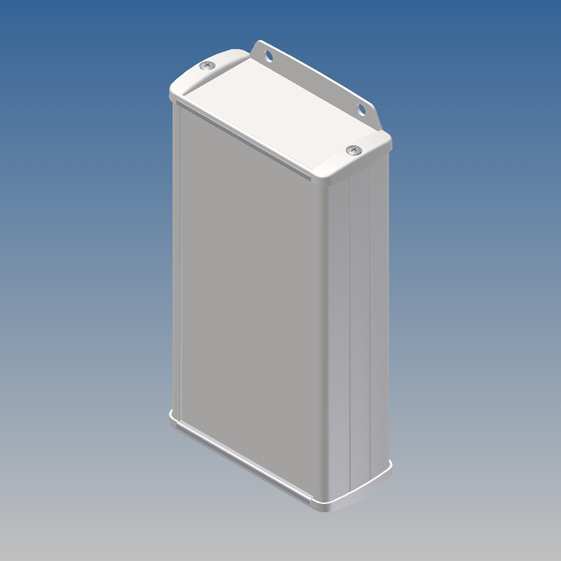

TEKAM-23/E.7 | 160 | 85,8 | 36,9 |
9002 |
ALLOY 6060 - ZA4C1 | 150 | 78,5 | 4 | - |
TKAMSK2 |
PDF DWG |
|
|

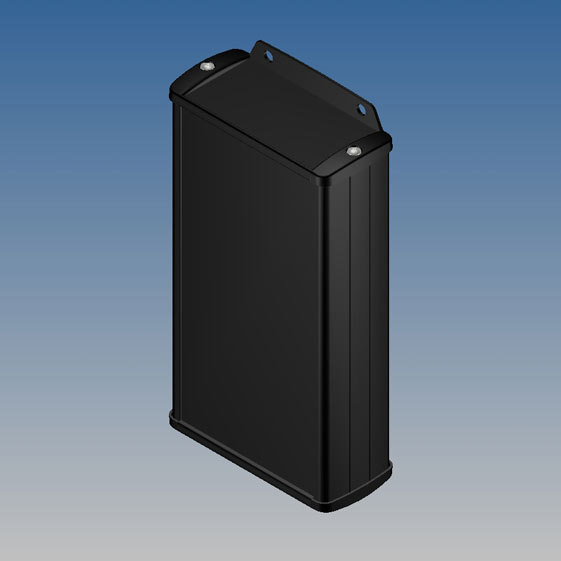

TEKAM-23/E.9 | 160 | 85,8 | 36,9 |
9004 |
ALLOY 6060 - ZA4C1 | 150 | 78,5 | 4 | - |
TKAMSK2 |
PDF DWG |
|
|

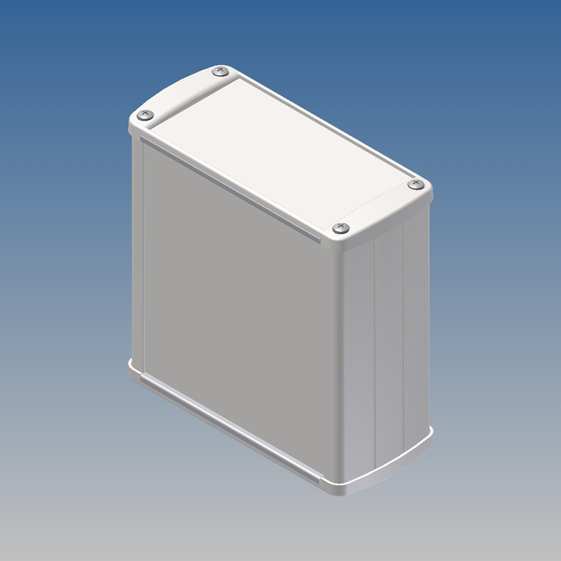

TEKAM-31.7 | 110 | 105,9 | 45,8 |
9002 |
ALLOY 6060 - ZA4C1 | 100 | 100,5 | 8 | - |
ALP-3 TKAMSK3 VS1 |
PDF DWG |
|
|

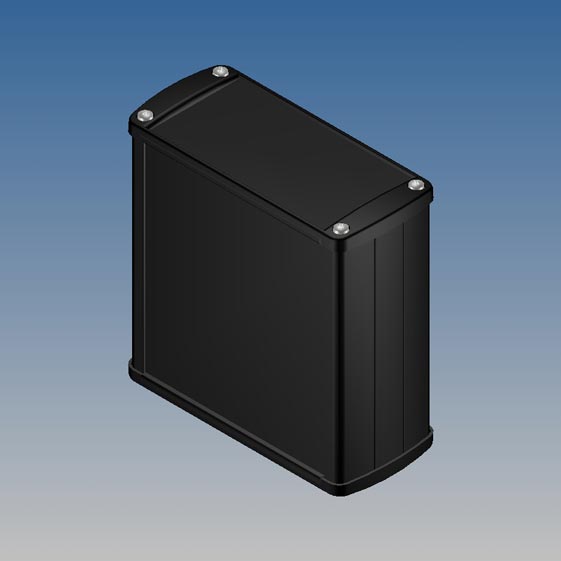

TEKAM-31.9 | 110 | 105,9 | 45,8 |
9004 |
ALLOY 6060 - ZA4C1 | 100 | 100,5 | 8 | - |
ALP-3 TKAMSK3 VS1 |
PDF DWG |
|
|

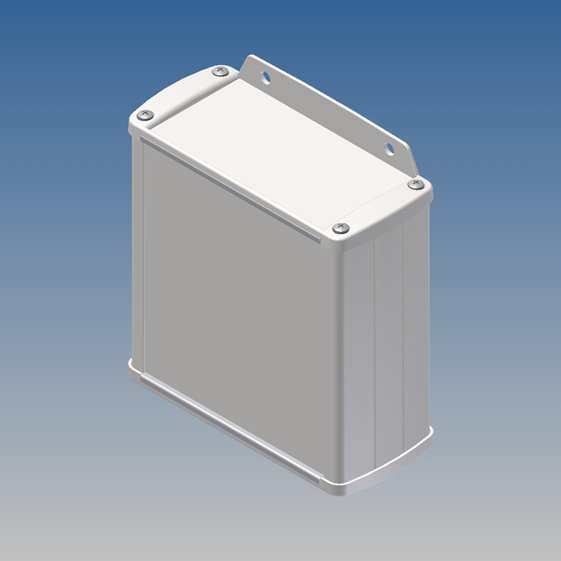

TEKAM-31/E.7 | 110 | 105,9 | 45,8 |
9002 |
ALLOY 6060 - ZA4C1 | 100 | 100,5 | 8 | - |
TKAMSK3 |
PDF DWG |
|
|
TEKAM-31/E.9 | 110 | 105,9 | 45,8 |
9004 |
ALLOY 6060 - ZA4C1 | 100 | 100,5 | 8 | - |
TKAMSK3 |
PDF DWG |
|
|

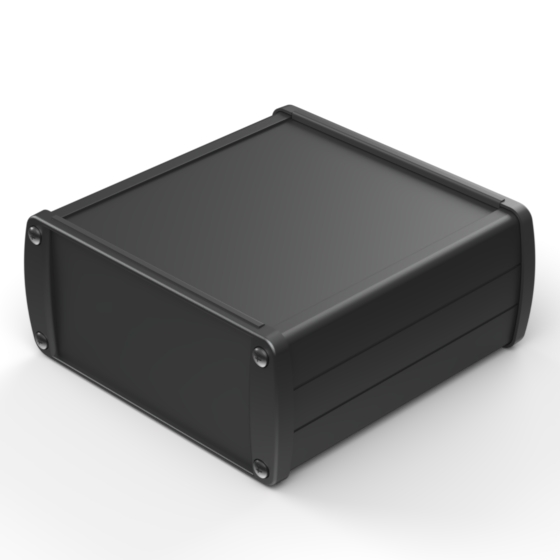

TEKAM-31L.9 | 110,0 | 105,9 | 45,8 |
9004 |
ALLOY 6060 - ZA4C1 | 100 | 100,5 | 8 |
ALP-3 TKAMSK3 VS1 |
PDF DWG |
||
|

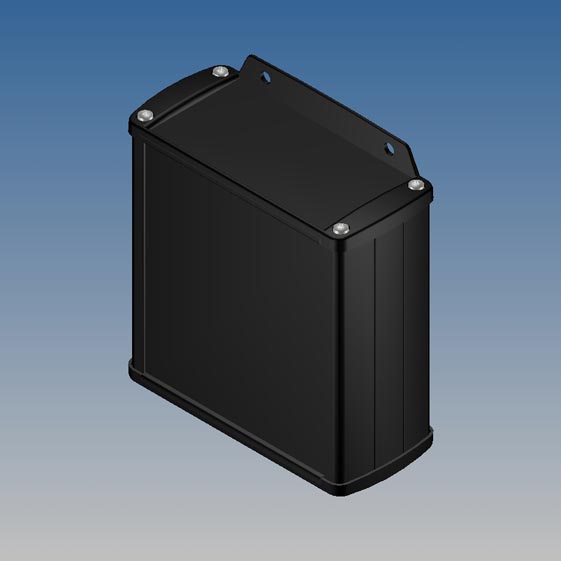

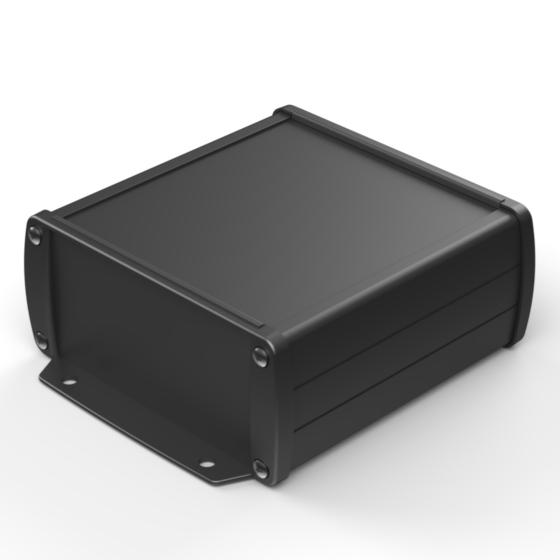

TEKAM-31L/E.9 | 110 | 105,9 | 45,8 |
9004 |
ALLOY 6060 - ZA4C1 | 100 | 100,5 | 8 |
TKAMSK3 |
PDF DWG |
||
|

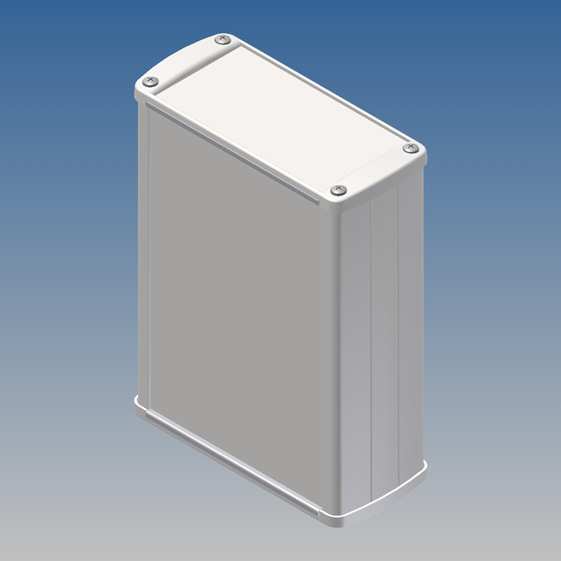

TEKAM-32.7 | 145 | 105,9 | 45,8 |
9002 |
ALLOY 6060 - ZA4C1 | 135 | 100,5 | 8 | - |
ALP-3 TKAMSK3 VS2 |
PDF DWG |
|
|

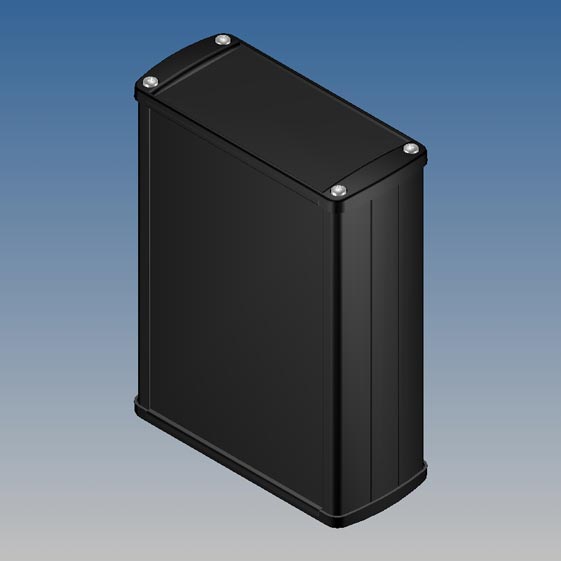

TEKAM-32.9 | 145 | 105,9 | 45,8 |
9004 |
ALLOY 6060 - ZA4C1 | 135 | 100,5 | 8 | - |
ALP-3 TKAMSK3 VS2 |
PDF DWG |
|
|

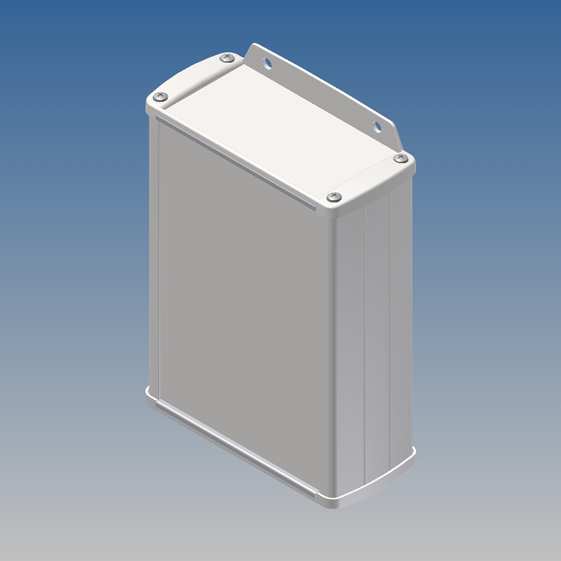

TEKAM-32/E.7 | 145 | 105,9 | 45,8 |
9002 |
ALLOY 6060 - ZA4C1 | 135 | 100,5 | 8 | - |
TKAMSK3 |
PDF DWG |
|
|

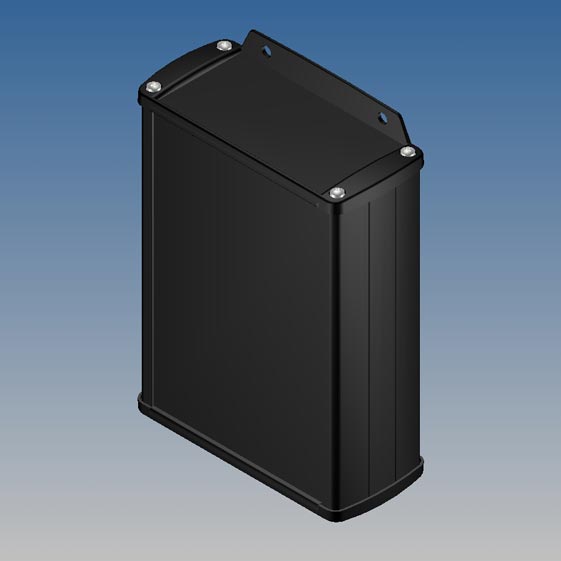

TEKAM-32/E.9 | 145 | 105,9 | 45,8 |
9004 |
ALLOY 6060 - ZA4C1 | 135 | 100,5 | 8 | - |
TKAMSK3 |
PDF DWG |
|
|

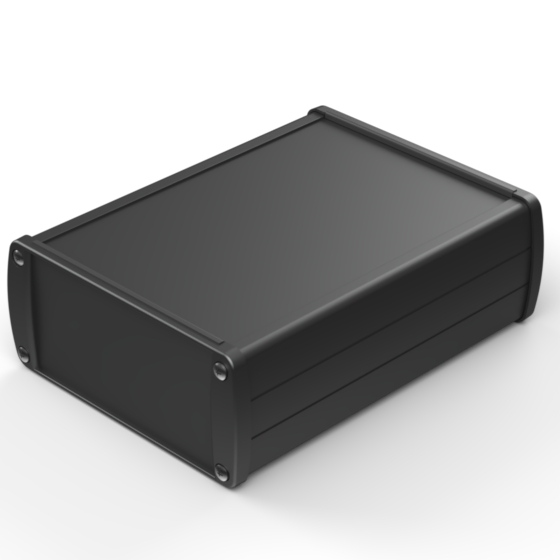

TEKAM-32L.9 | 145 | 105,9 | 45,8 |
9004 |
ALLOY 6060 - ZA4C1 | 135 | 100,5 | 8 |
ALP-3 TKAMSK3 VS2 |
PDF DWG |
||
|

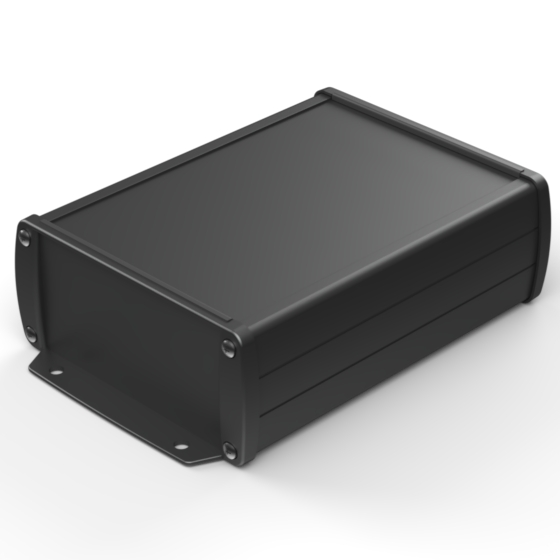

TEKAM-32L/E.9 | 145 | 105,9 | 45,8 |
9004 |
ALLOY 6060 - ZA4C1 | 135 | 100,5 | 8 |
TKAMSK3 |
PDF DWG |
||
|

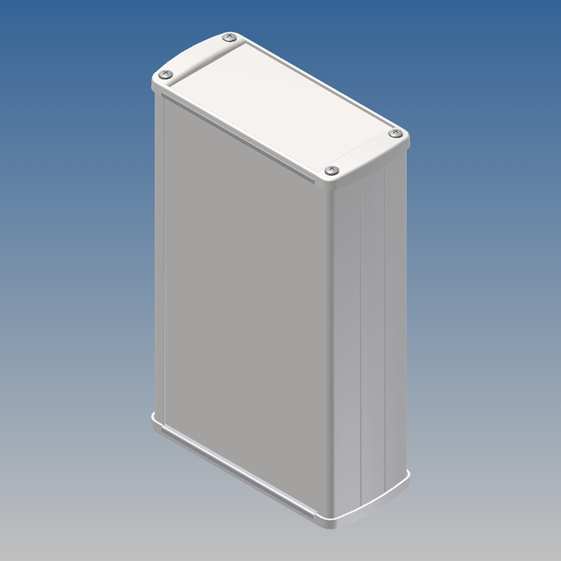

TEKAM-33.7 | 175 | 105,9 | 45,8 |
9002 |
ALLOY 6060 - ZA4C1 | 165 | 100,5 | 8 | - |
ALP-3 TKAMSK3 VS3 |
PDF DWG |
|
|
TEKAM-33.9 | 175 | 105,9 | 45,8 |
9004 |
ALLOY 6060 - ZA4C1 | 165 | 100,5 | 8 | - |
ALP-3 TKAMSK3 VS3 |
PDF DWG |
|
|

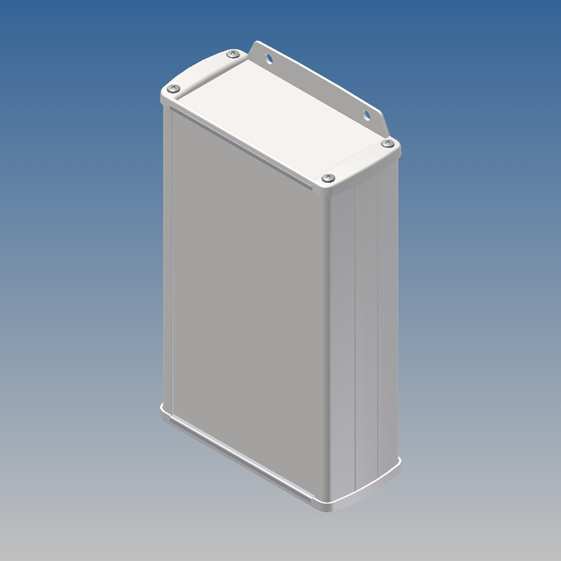

TEKAM-33/E.7 | 175 | 105,9 | 45,8 |
9002 |
ALLOY 6060 - ZA4C1 | 165 | 100,5 | 8 | - |
TKAMSK3 |
PDF DWG |
|
|
TEKAM-33/E.9 | 175 | 105,9 | 45,8 |
9004 |
ALLOY 6060 - ZA4C1 | 165 | 100,5 | 8 | - |
TKAMSK3 |
PDF DWG |
|
|

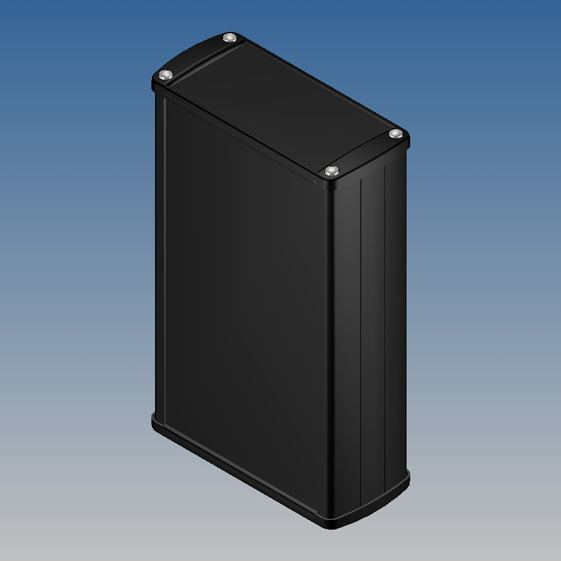

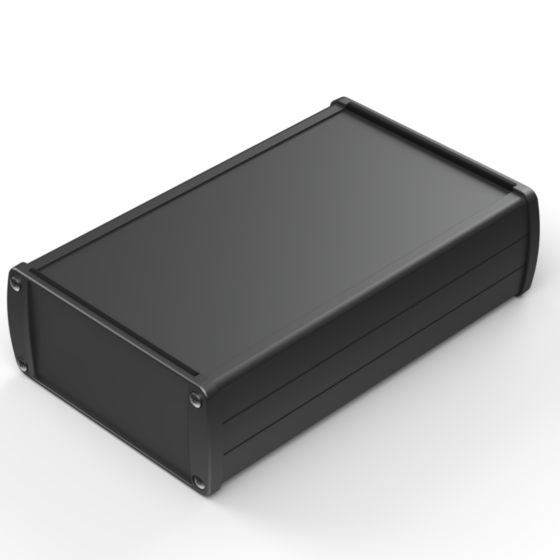

TEKAM-33L.9 | 175 | 105,9 | 45,8 |
9004 |
ALLOY 6060 - ZA4C1 | 165 | 100,5 | 8 |
ALP-3 TKAMSK3 VS3 |
PDF DWG |
||
|

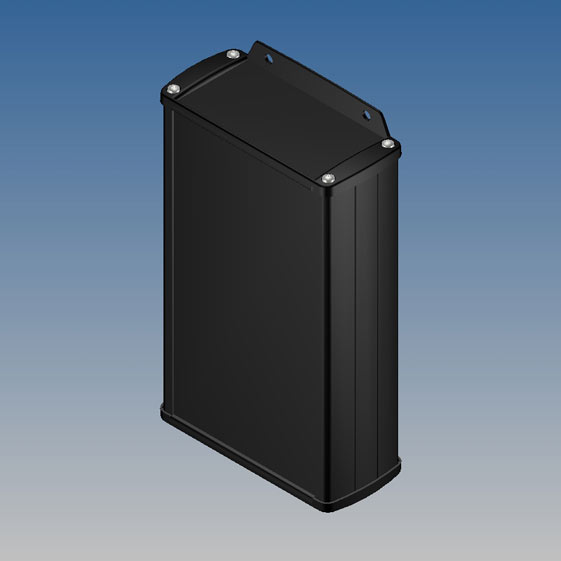

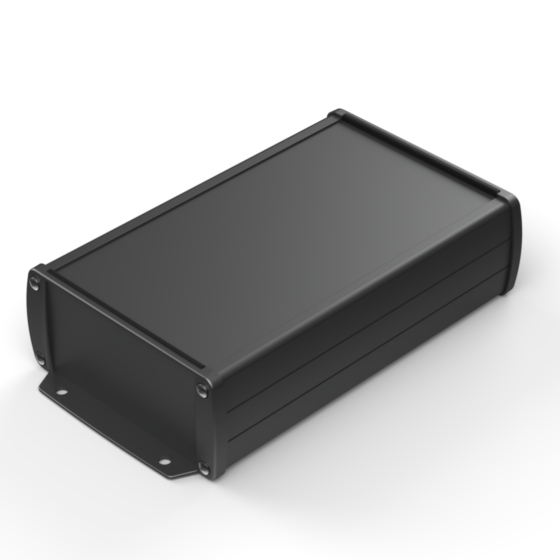

TEKAM-33L/E.9 | 175 | 105,9 | 45,8 |
9004 |
ALLOY 6060 - ZA4C1 | 165 | 100,5 | 8 |
TKAMSK3 |
PDF DWG |
12 product families, 152 series. You can't find what you're looking for? Contact us
