Description

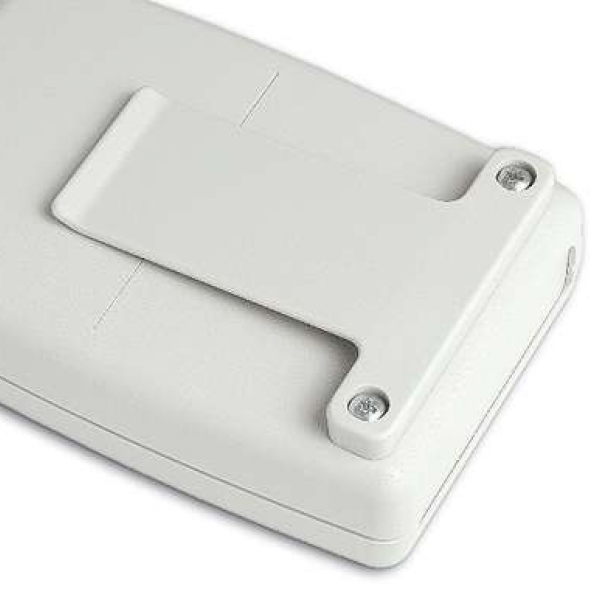

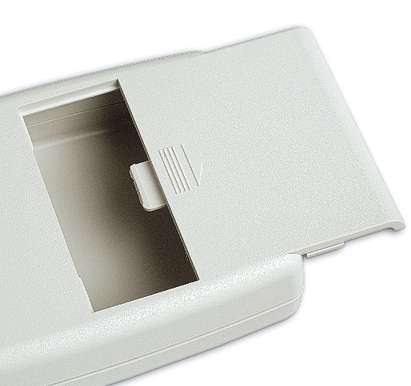

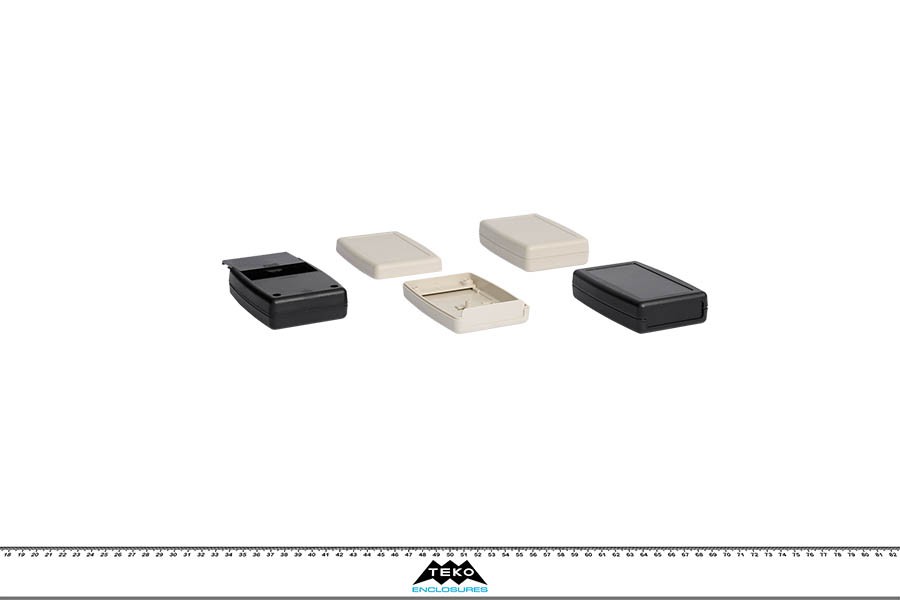

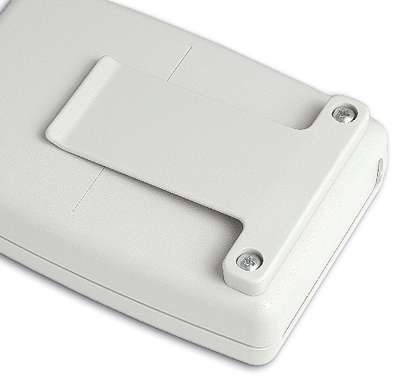

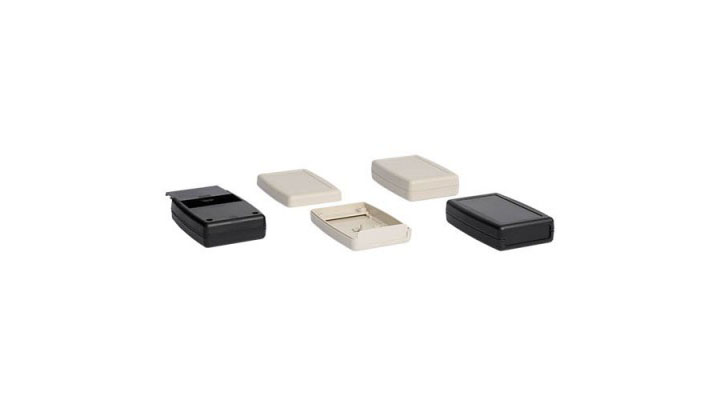

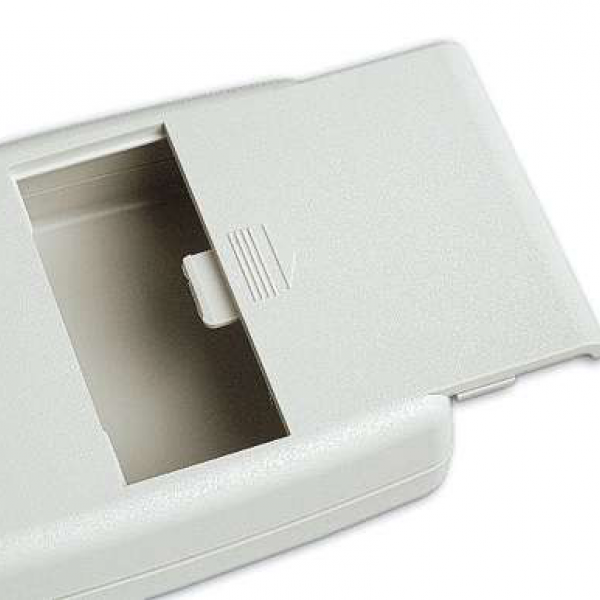

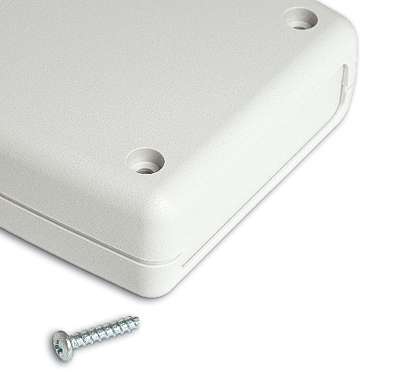

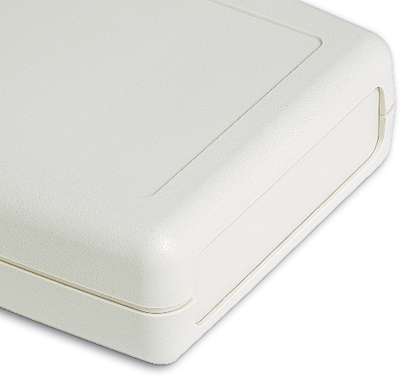

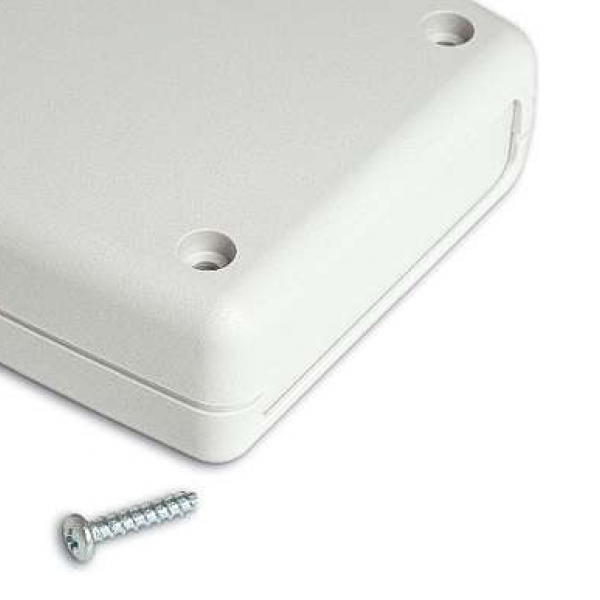

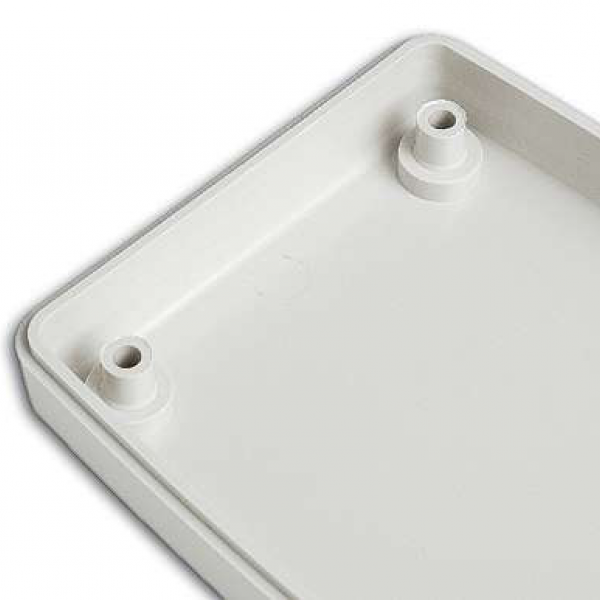

Ergonomic pocket ABS enclosures with a recessed area suitable for a membrane keypad. Four models available. The base has integral PCB mounting studs. The models with “-B” have a battery compartment with a sliding lid. The “P” version has an ABS front panel. Matt surface finish. Closing by four screws. Upon request plastic belt clip (Mod. CLY).
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

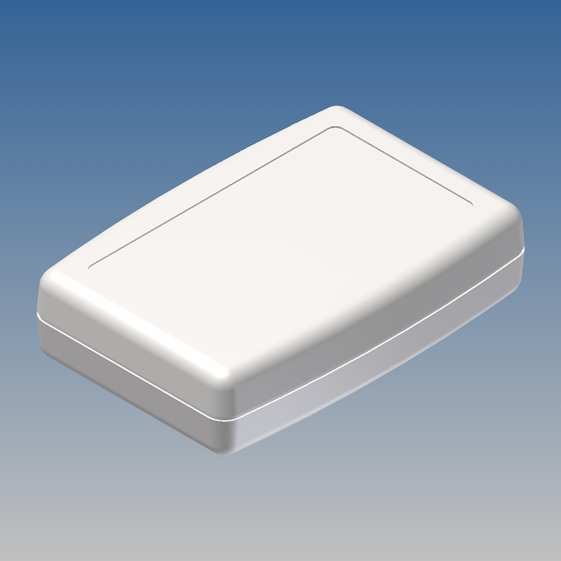

HY.7 | 104 | 71,8 | 25,4 |
9002 |
TERLURAN GP-22 | 94 | 58 | 4 | - |
CLY |
PDF DWG |
View
|
|

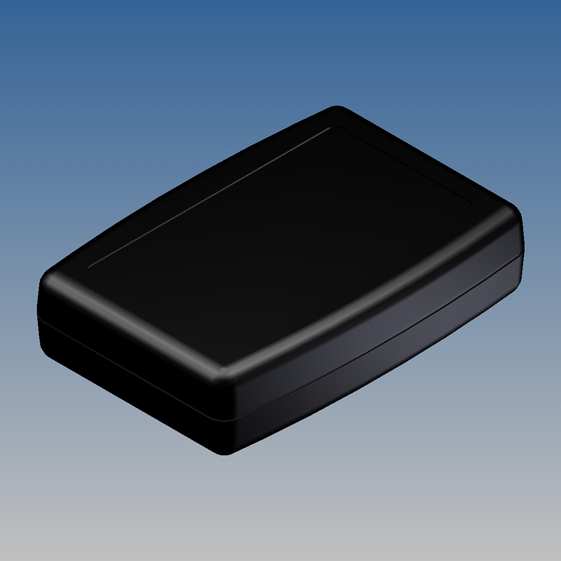

HY.9 | 104 | 71,8 | 25,4 |
9004 |
TERLURAN GP-22 | 94 | 58 | 4 | - |
CLY |
PDF DWG |
View
|
|

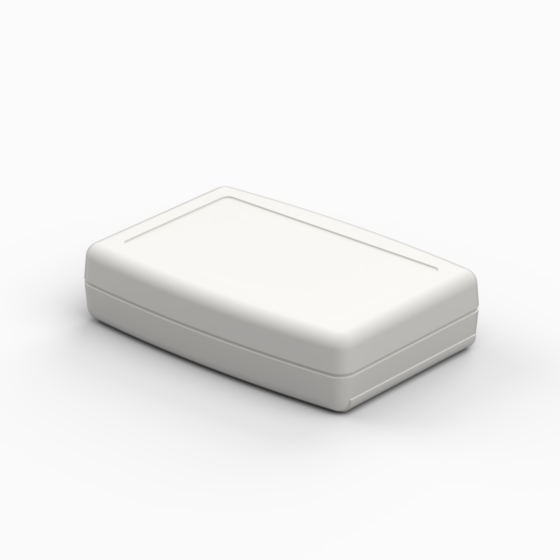

HY-B.7 | 104 | 71,8 | 25,4 |
9002 |
TERLURAN GP-22 | 94 | 58 | 4 | - |
CLY |
PDF DWG |
View
|
|

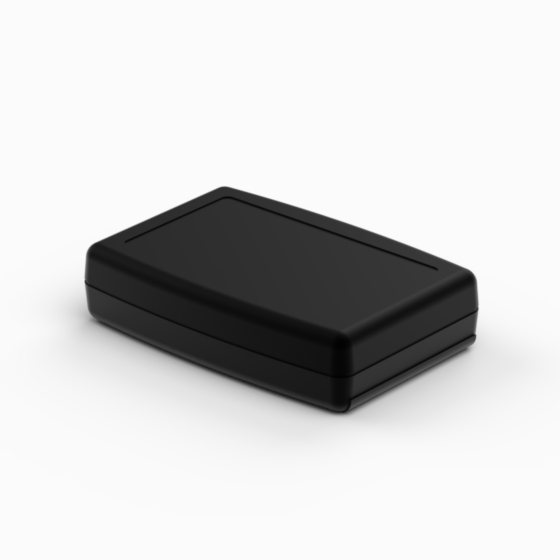

HY-B.9 | 104 | 71,8 | 25,4 |
9004 |
TERLURAN GP-22 | 94 | 58 | 4 | - |
CLY |
PDF DWG |
View
|
|

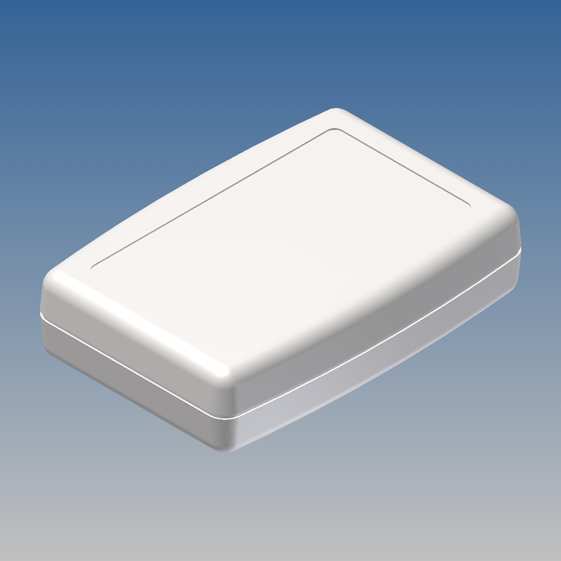

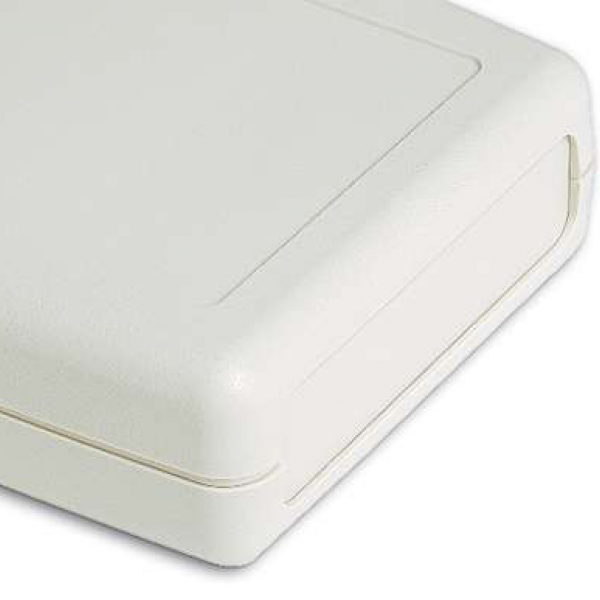

HYP.7 | 104 | 71,8 | 25,4 |
9002 |
TERLURAN GP-22 | 94 | 58 | 4 | - |
CLY |
PDF DWG |
View
|
|
HYP.9 | 104 | 71,8 | 25,4 |
9004 |
TERLURAN GP-22 | 94 | 58 | 4 | - |
CLY |
PDF DWG |
View
|
|

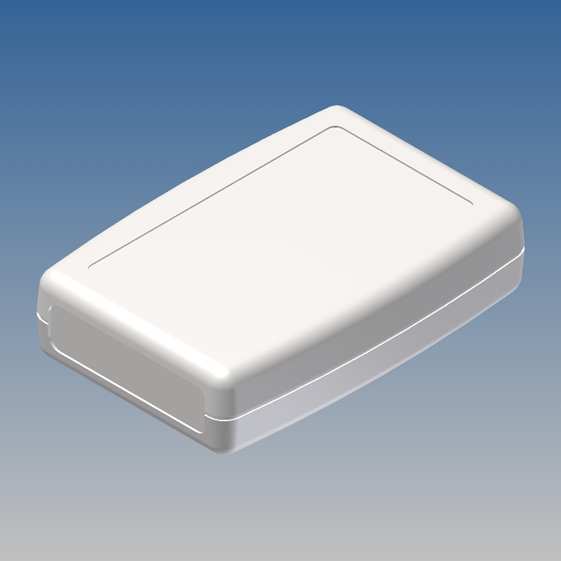

HYP-B.7 | 104 | 71,8 | 25,4 |
9002 |
TERLURAN GP-22 | 94 | 58 | 4 | - |
CLY |
PDF DWG |
View
|
|
HYP-B.9 | 104 | 71,8 | 25,4 |
9004 |
TERLURAN GP-22 | 94 | 58 | 4 | - |
CLY |
PDF DWG |
View
|
|

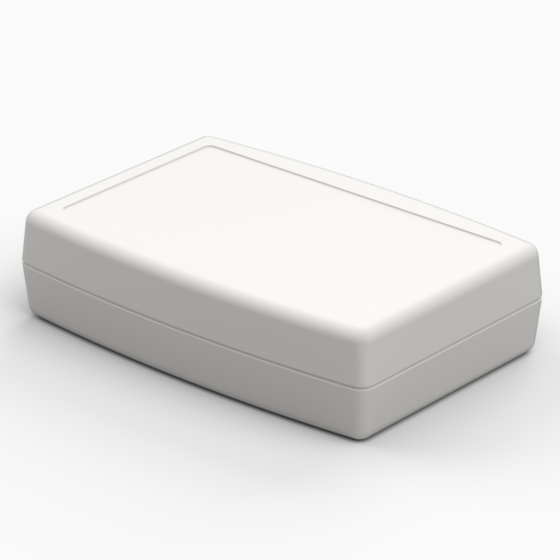

HYXL - OUT OF STOCK.7 | 136 | 93,1 | 35,3 |
9002 |
TERLURAN GP-22 | 117,3 | 66,6 | 4 |
PDF DWG |
View
|
||
|

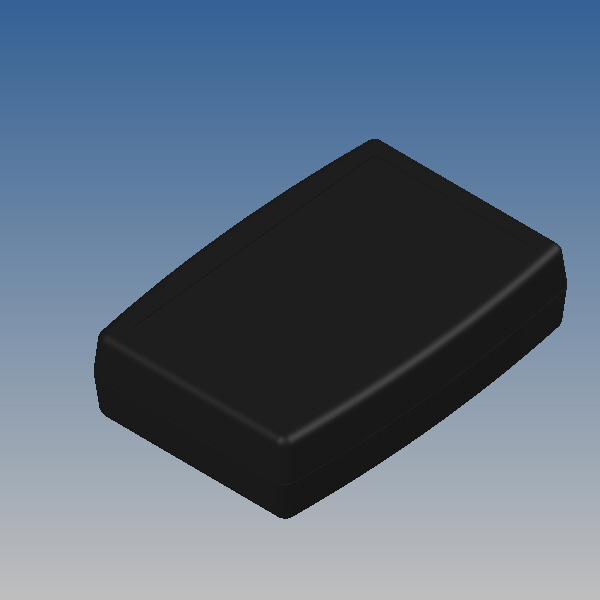

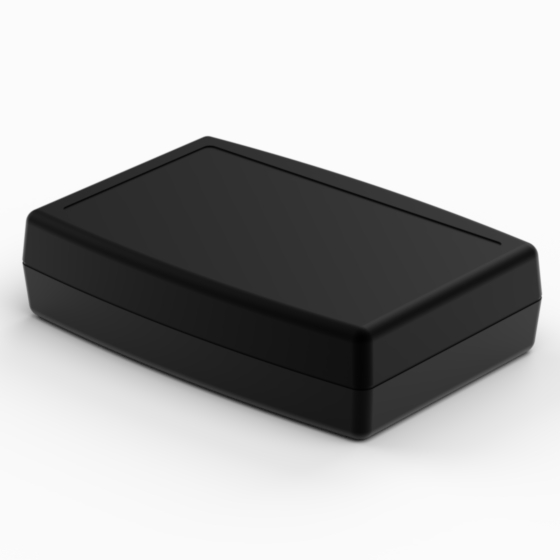

HYXL - OUT OF STOCK.9 | 136 | 93,1 | 35,3 |
9004 |
TERLURAN GP-22 | 117,3 | 66,6 | 4 |
PDF DWG |
View
|
||
|

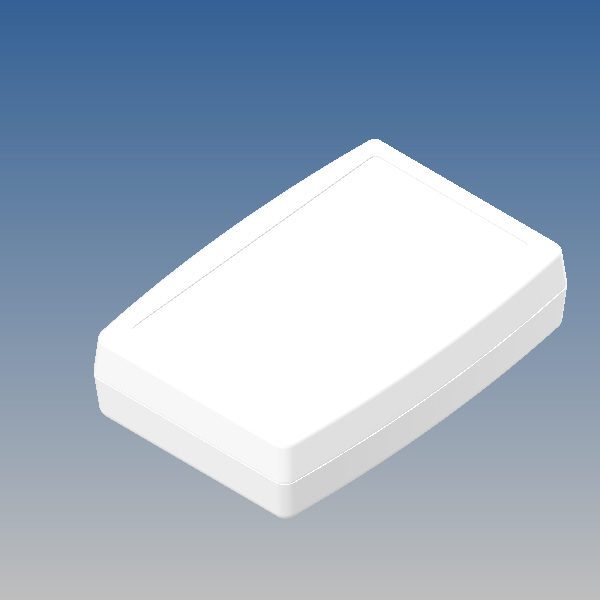

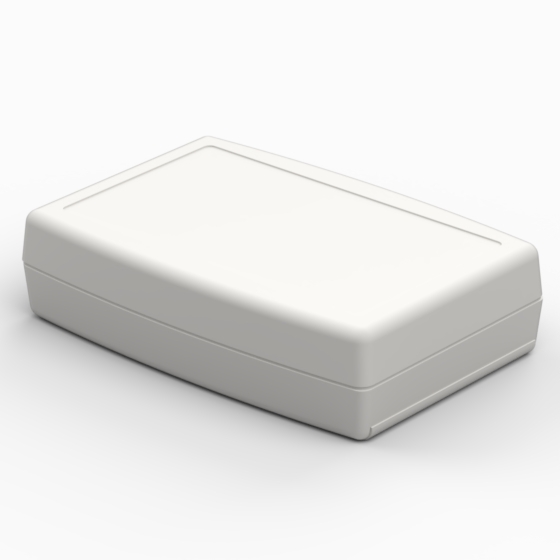

HYXL-B - OUT OF STOCK.7 | 136 | 93,1 | 35,3 |
9002 |
TERLURAN GP-22 | 117,3 | 66,6 | 4 |
PDF DWG |
View
|
||
|
HYXL-B - OUT OF STOCK.9 | 136 | 93,1 | 35,3 |
9004 |
TERLURAN GP-22 | 117,3 | 66,6 | 4 |
PDF DWG |
View
|
||
|
HYXL-P - OUT OF STOCK.7 | 136 | 93,1 | 35,3 |
9002 |
TERLURAN GP-22 | 117,3 | 66,6 | 4 |
PDF DWG |
View
|
||
|

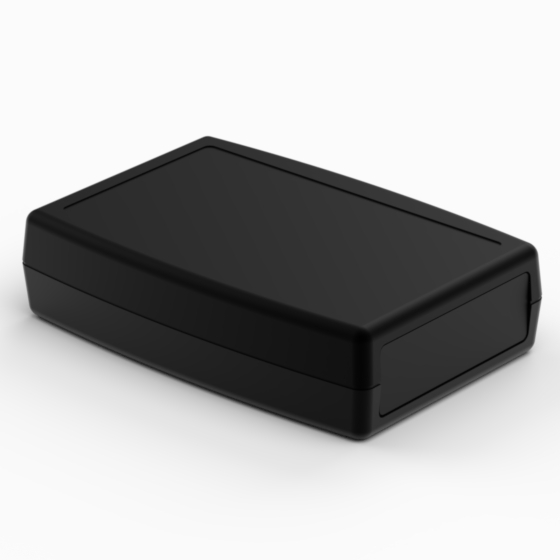

HYXL-P - OUT OF STOCK.9 | 136 | 93,1 | 35,3 |
9004 |
TERLURAN GP-22 | 117,3 | 66,6 | 4 |
PDF DWG |
View
|
||
|
HYXLP-B - OUT OF STOCK.7 | 136 | 93,1 | 35,3 |
9002 |
TERLURAN GP-22 | 117,3 | 66,6 | 4 |
PDF DWG |
View
|
||
|
HYXLP-B - OUT OF STOCK.9 | 136 | 93,1 | 35,3 |
9004 |
TERLURAN GP-22 | 117,3 | 66,6 | 4 |
PDF DWG |
View
|
